2

38

Do not tamper or damage
the airbag modules. If, for
any reason, an airbag cover

gets damaged, have the airbag
module immediately checked by an
Authorized Maserati Dealer.

Activation of a damaged
module could cause serious
or fatal injuries. Please note

that your vehicle is not capable of
automatically detecting damage to
the airbag cover.

Operation and replacement

The airbags are controlled by an ECU
that is designed to activate them in
the case of a head-on collision of
sufficient force.
In the event of a collision with an
impact force that causes deceleration
exceeding the value set for the
internal sensor, the ECU will transmit
a signal to deploy the airbags. The
airbags will begin to inflate, breaking
the cover along the breakage line
and will inflate completely in a few
milliseconds. Once inflated, they will
serve as a protection between the
driver and/or passenger and structures
that could cause injury.
The airbags deflate immediately
afterward.

The driver and passenger
are both advised not to
travel handling objects (e.g.,

beverage cans or bottles, pipes, etc,)
that could cause injury in the event of
airbag activation.

WARNING: When the system starts
operating, gases are released in the
form of fumes, together with the gas
used for inflating the airbags.
These gases are not harmful.

Drive with your hands
always on the rim of the
steering wheel so that, in

the case of activation, the airbag can
inflate without obstruction. Placing
hands or arms inside the rim increases
the risk of arm/hand injuries in the
event of a crash.

Always keep the seat
backrest in the upright
position and sit with your

back properly resting against it.
Do not modify the system
components or wiring under any
circumstances.

With the ignition key
inserted and in position MAR
(ON), although the engine is

off, the airbags can still be activated
when the vehicle is stationary if it is
hit by a moving vehicle.
Thus, even with the vehicle
stationary, do not put children in the
front seat. In addition, remember
that if the ignition key is in position
STOP (OFF), none of the safety
devices (airbags or pretensioner) are
activated in the event of a collision.
Failure of the airbags to inflate in
these circumstances is not indicative
of system malfunction.

A

B

C

D

2

39

WARNING: Do not cut or tamper with
the connectors of the airbag harness
or on the airbag modules.
Do not cover the steering wheel and
the top part on the instrument panel
on the passenger’s side with any tape
or label, or treat it in any way.
Never remove the steering wheel.
If necessary, this procedure should
only be performed by an Authorized
Maserati Dealer.
All the airbag system components
must be replaced after an accident
that has caused airbag deployment.
Following an accident not involving
airbag activation, you must contact
an Authorized Maserati Dealer to
have the system checked and replace
any system components that may be
damaged or malfunctioning.

Damaged or defective
components of the airbag
system cannot be repaired

and must be replaced.

Improper intervention involving the
system components can cause failures
or undesired activation of the airbags
with damage resulting.
The airbag system components have
been specially designed for this
specific vehicle model. Do not attempt
to use them on other vehicles, as
this could cause serious injuries
to passengers in the event of an
accident.
To scrap the vehicle, please contact
an Authorized Maserati Dealer to
have the airbag system disposed of
properly.
If the vehicle has been stolen or there
has been an attempted theft, have

the airbag system checked by an
Authorized Maserati Dealer.

The airbag modules must
be replaced at the intervals
indicated in the “Warranty

Booklet and Maintenance Schedule”,
even if the vehicle was not involved
in collisions.

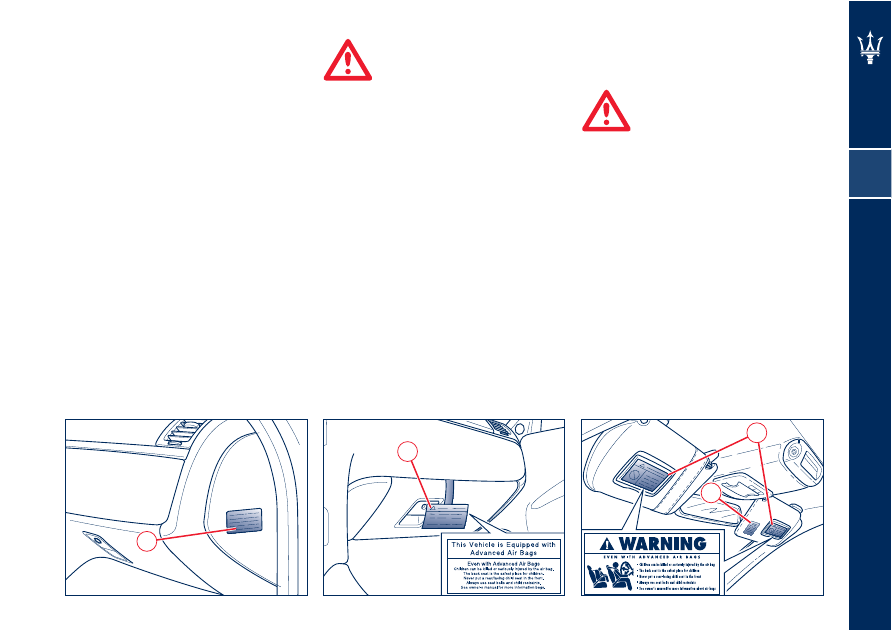

The label A on the right-hand side
of the dashboard, bears the airbag
system expiration date. Please contact
an Authorized Maserati Dealer for
replacement of the system when this
date approaches.
The labels B, C and D indicate that the
airbag system is installed.

Note: The label B on the dashboard
can be removed.

2

40

Side airbags

The side airbags have been designed
to help enhance the protection level
provided to passengers travelling in
the front seats in the event of certain
medium-high severity collisions.
They consist of an instantaneously
inflating airbag (side bag) housed in
the front seat backrests.
In the event of a side impact, an
electronic control unit processes the
signals coming from a deceleration
sensor and activates airbag
deployment when necessary.
The airbag deploys almost
instantaneously, placing itself
between the front passengers the side
of the vehicle. The airbag deflates
immediately afterwards.

WARNING: The electronic control unit
activates the pretensioners, the front
airbags and side bags on the basis of
different criteria, according to the
type of collision.
Failure of one or the other system to
activate is not indicative of system
malfunction.

In the case of low-severity side
collisions (for which the restraining
action of the seat belts provides
adequate protection), the side airbags
to not deploy.
The side airbags are not a substitute
for the seat belts but rather act
in combination with them. As a
consequence, the seat belts must
always be worn as provided for by
applicable legislation in Europe and in
most non-European countries.

WARNING: The front and/or side
airbags may deploy if the vehicle
suffers a violent impact beneath the
vehicle body, for example in the event
of strong impacts against curbs, steps
or speed bumps, potholes or roads
with subsidence.

WARNING: The airbags release a
small amount of powder during
deployment. This powder is not
harmful and does not indicate the
presence of fire; in addition, the
surface of the deployed airbag and
the interior of the vehicle may be
covered with a powdery residue: this
powder may irritate your skin and
eyes. In case of contact, wash the
affected parts with running water and
neutral soap.

If the warning light



comes on when the vehicle
is running (indicating a

fault), contact your local Authorized
Maserati Dealer as soon as possible to
have the system checked.

In the event of a collision
with consequent airbag
inflation, contact your

local Authorized Maserati Dealer
for replacement of the entire safety
system, electronic control unit, seat
belts, pretensioners, and to have the
vehicle’s electrical system checked.

All testing, repairs and
replacements of the airbag
system must be performed

by an Authorized Maserati Dealer.

2

41

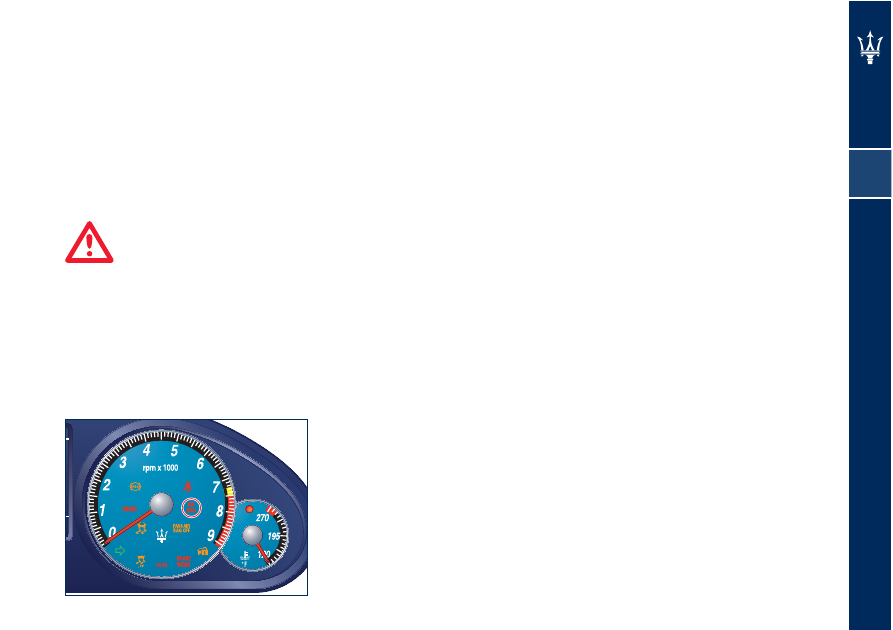

WARNING: In the case of scrapping
of the vehicle, contact your local
Authorized Maserati Dealer to have
the system deactivated.

WARNING: If the vehicle is sold, the
new owner must be informed of the
aforesaid instructions for use and
warnings, and he/she must also be
provided with the “Owner’s Manual”.

The electronic control unit
activates the pretensioners
and front/lateral airbags

based on different criteria, according
to the type of collision. The fact
that one or more systems do not
activate is not indicative of a system
malfunction.

Event Data Recorder (EDR)

This vehicle is equipped with an
event data recorder (EDR). The main
purpose of an EDR is to record,
in certain crash or near crash-
like situations, such as an air bag
deployment or hitting a road obstacle,
data that will assist in understanding
how a vehicle’s systems performed.
The EDR is designed to record data
related to vehicle dynamics and safety
systems for 5 seconds.
The EDR in this vehicle is designed to
record such data as:
s

were operating;

s

passenger safety belts were
buckled/fastened;

s

depressing the accelerator and/or
brake pedal; and

s

NOTE: EDR data are recorded by
your vehicle only if a non-trivial
crash situation occurs; no data are
recorded by the EDR under normal
driving conditions and no personal
data (e.g., name, gender, age,
and crash location) are recorded.
However, other parties, such as law
enforcement, could combine the
EDR data with the type of personally
identifying data routinely acquired
during a crash investigation.

To read data recorded by an EDR,
special equipment is required, and
access to the vehicle or the EDR is
needed.
In addition to the vehicle
manufacturer, other parties, such
as law enforcement, that have the
special equipment, can read the
information if they have access to
vehicle or the EDR.

California Proposition 65
Warning

THIS MOTOR VEHICLE CONTAINS
CHEMICALS KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE
CANCER, BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM (see page 7)

2

42

General warnings

When the ignition key is
turned to the MAR (ON)
position, the warning

light

 comes on, but it switches

off after approx. 5 seconds. If the
warning light fails to come on at this
time, or stays on, or lights up when
driving, contact your local Authorized
Maserati Dealer immediately.

Drive with both hands on the
steering wheel rim, so that
if the airbag inflates it can

do so freely, without encountering
obstacles which can cause serious
injuries. Do not drive with your
body curved forwards but keep the
seatback upright, with your back fully
against it.

Do not apply stickers or
other objects to the steering
wheel or the passenger’s

airbag compartment.

Do not travel with objects
in your lap, in front of your
chest or especially with a

pipe, pencil or other objects held
in your mouth. In the event of a
collision, the deployment of the
airbag could result in serious injury.

Do not cover the front
seatbacks with clothing or
covers.

Note that with the ignition
key inserted and turned to
the MAR (ON) position, even

with the engine switched off, the
airbags can inflate even if the vehicle
is stationary, if it is struck by another
vehicle. Therefore, even with the
vehicle stationary, children must be
secured by the specific child restraint
systems installed on the passenger
seat. In addition, the airbags will
not inflate in the event of collisions
with the vehicle stationary and the
key removed from the ignition lock;
failure of the airbags to inflate in
these circumstances is not indicative
of a system malfunction.

If the vehicle has been the
object of theft or attempted
theft, if it has been

vandalized or involved in flooding,
contact your local Authorized
Maserati Dealer to have the airbag
system checked.

If repairs are carried out
on the electrical system
incorrectly, the airbag could

be activated, thereby causing injuries
to anyone in the vicinity.

The airbags do not replace
the seat belts but act as a
supplementary restraint

system. Moreover, in the event of
head-on collisions at low speed, side
impacts, rear impacts or roll-overs,
the passengers are protected by the
seat belts only, that must always be
fastened.


Do not wash the seats with
water or pressurized steam.

Do not hang rigid objects
onto the clothing hooks or
onto the handholds.

Do not fit sunshades of any
kind on the windows or door
panels.

A

2

43

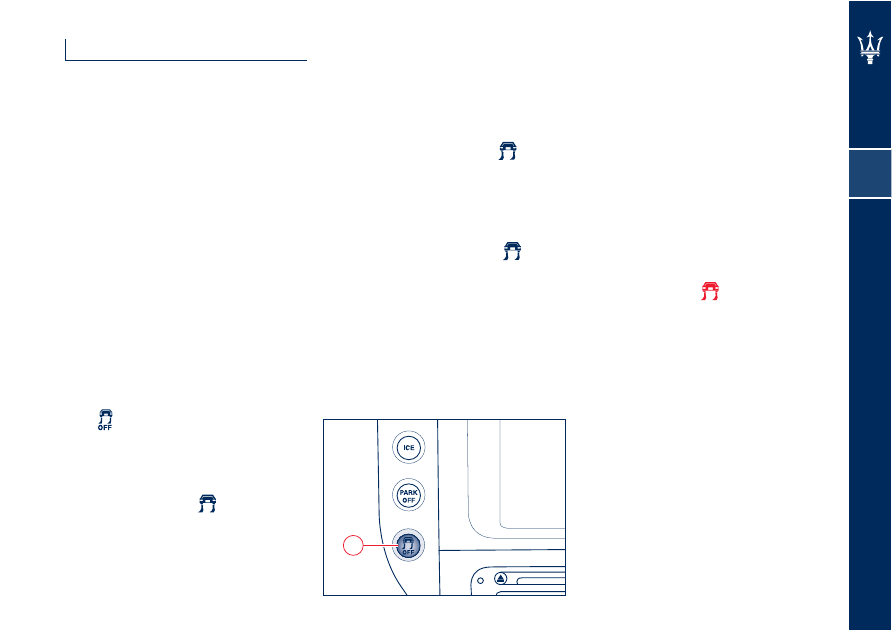

ESC system

The vehicle is equipped with the ESC
(Electronic Stability Control) system,
which contains all the various control
systems in it: ABS, EBD, ASR and MSR.
ESC contains a model that supplies a
very accurate forecast of the vehicle’s
behavior. It is able to detect whether
the driver is about to lose control
of the vehicle. In this case it can
individually activate the brake calipers
and the engine control system in
order to create a torque that counters
the skid.

Activation

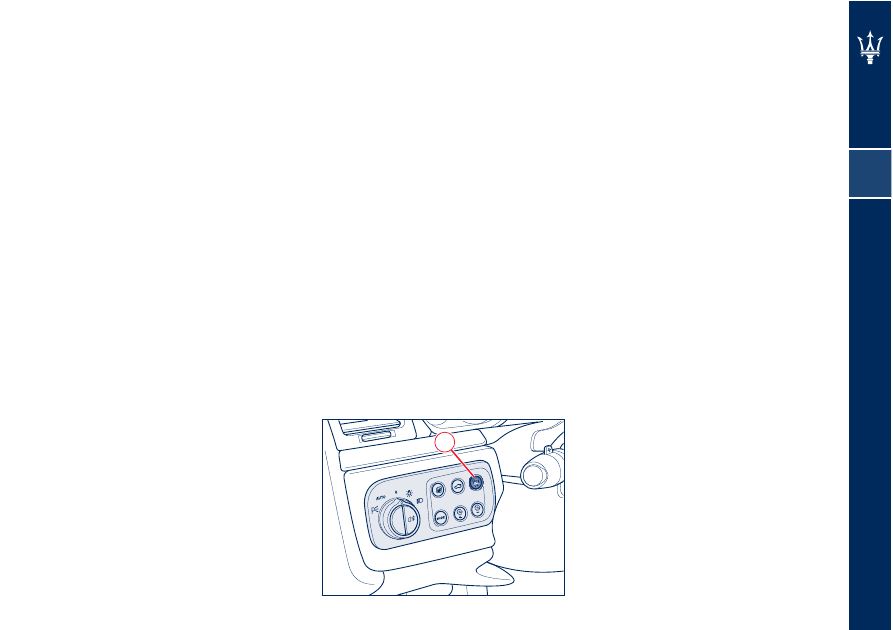

The ESC system is designed to
automatically activate every time the
engine starts; it can be overridden by
pressing button A for approximately
2 seconds. In this case the warning
light

 lights up on the dial and on

the display, and the latter displays a
specific message. To turn the system
back on, press button A again. During
every stage of the operation, the
amber warning light

 will flash on

the instrument panel.

Malfunction indicator

In the event of a malfunction, the
system is automatically deactivated
and it is not possible to reactivate
it. While the vehicle is moving, this
state is indicated by the illumination
of the amber warning light

 on

the instrument panel and on the
multifunction display. The latter also
displays the message “ESC failure, go
to dealer”. When the engine is started
up, the system fault is indicated by
the illumination of the light

.

WARNING: In the event of a
malfunction and when ESC is not
activated, the vehicle behaves as if it
were not equipped with this system: it
is recommended that you go to your
nearest Authorized Maserati Dealer
as soon as possible to have the system
checked.

WARNING: If you need to tow the
vehicle with two wheels raised,
make sure that the ignition key is in
position STOP (OFF). Otherwise, with
ESC activated, the relative control
unit memorizes a malfunction and
the warning lights

 are activated

on the instrument panel and display,
requiring the assistance of an
Authorized Maserati Dealer to reset
the system.

WARNING: In low and medium
traction conditions (wet weather,
snow, ice, sand, etc.) you are advised
not to activate the SPORT function,
even if ESC is activated.

WARNING: Travelling along high-
banked curves deactivates the system.

2

44

ASR system

The ASR system is designed to help
avoid skidding of the driving wheels
during acceleration by means of the
engine control unit (spark advance
delay, engine throttle opening
reduction and fuel injection cut-out)
and the rear brakes.
The ASR system is designed to
enhance vehicle stability and active
safety while driving, specially under
the following conditions:
-  internal wheel slip on curves due

to the load dynamic variations or
excessive acceleration

-  excessive power transmitted to the

wheels, also in relation to road
conditions

-  acceleration on slippery, snowy or

icy road surfaces

-  in the event of loss of grip on wet

roads (aquaplaning).

The ASR system is designed to work
in combination with the electronic
suspension control system: under
normal conditions (SPORT mode
off), stability in low and medium
grip conditions has priority, while
with SPORT mode active, the system
favors traction and optimizes vehicle
performance on dry asphalt.

Activation

The ASR system is automatically
activated every time the engine
starts; it can be overridden by
pressing button A (see page 43) for
approximately 2 seconds. In this case
the warning light

 lights up on the

dial and on the display, and the latter
displays a specific message.
To turn the system back on, press
button A again. During every stage
of the operation, the amber warning
light

 will flash on the instrument

panel.

Malfunction indicators

In the event of a malfunction, the
system is automatically deactivated
and it is not possible to reactivate it.
While the vehicle is moving, this state
is indicated by the illumination of the
amber icon

 on the multifunction

display, which also displays the

message “ASR failure, go to dealer”.
On the instrument panel, the warning
light

 comes on.

MSR function (engine braking
torque adjustment)

The ASR system is also designed to
help control the engine braking
torque when the accelerator pedal
is released under low grip conditions
(e.g., snow, ice etc.): in these
conditions, the high braking torque
provided by the engine may cause
instability of the vehicle.
The system, using the same sensors
as the ABS, detects skidding of one
or both driving wheels when the
accelerator is released and opens the
motor-driven throttle of the engine
fuel system, thus reducing the braking
torque and re-establishing optimal
grip conditions for the driving wheels.

WARNING: The maximum
deceleration that can be obtained
with the engine brake always
depends on the tire grip on the road
surface. Snow or ice obviously reduces
grip.

2

45

ABS, EBD, HBA and BOS
systems

The vehicle is equipped with ABS
(Anti-lock Braking System) and EBD
(Electronic Brake force Distribution)
systems, which are designed to
help enhance the braking system
performance by means of the ABS
system sensors and ECU.
In the event of emergency braking
or braking on slippery road surfaces
(e.g., snow, ice etc.) the ABS, in
combination with the standard
braking system, allows the driver
to apply maximum braking force
without causing the wheels to lock
and consequently losing control of
the vehicle.
The system uses an electronic control
unit that processes the signals coming
from 4 sensors fitted on the 4 wheels.
When a wheel tends to lock, the
sensor warns the ECU, which activates
an electro-hydraulic unit that
modulates the pressure applied to
the brake calipers; the driver will feel
a “pulsing” sensation on the brake
pedal which is completely normal.
The vehicle is equipped with another
system to assist braking: HBA
(Hydraulic Brake Assistance), which
has been designed to help the driver

during emergency braking.
In the event of a critical situation,
where the vehicle should stop in
the shortest possible distance, the
driver usually depresses the brake
pedal quickly, but often not strongly
enough: this increases the braking
distance. This system has been
designed to apply optimal braking
force during emergency braking,
in order to stop the vehicle in the
shortest possible distance.
The system recognizes the emergency
condition by analyzing certain
parameters, such as the pressure on
the brake servo, the wheel speed and
activation of the third stop.
The ABS control unit is designed to
cross-check this data and substitute
the driver by activating the braking
system full power, so helping to
ensure optimal braking performance
in the shortest possible distance.
To complete the range of systems
that assist braking, the vehicle comes
equipped with BOS (Brake Override
System), which is designed to stop
the vehicle even when it is being
accelerated.
If the brake pedal is depressed
together with the accelerator, the
engine power should be automatically
reduced and, if the driver continues
to depress the accelerator, the system

may even cause the vehicle to come
to a complete stop. Additionally, if
the brake pedal is released when
the accelerator is still depressed, the
corresponding engine torque can be
reached gradually.
In the event of a failure, the system
will be deactivated, but this will not
affect the efficiency of the standard
braking system.
The failure will be indicated by the
illumination of the dark yellow
warning light

 with the letters

“ABS” on the instrument panel.
In this case, we recommend you
contact the nearest Authorized
Maserati Dealer, where the problem
will be immediately identified
through the self-diagnostic function
of the system.

The vehicle must be
equipped only with wheels,
tires and brake pads of the

type and make approved by the
Maserati S.p.A. for this model.

Regardless of the fact that
this device enhances safety
levels, it is essential to

always drive with the greatest care
when the road surface is wet, covered
with snow or ice.

California Proposition 65
Warning

THIS MOTOR VEHICLE CONTAINS
CHEMICALS KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE
CANCER, BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM (see page 7)

2

46

The vehicle is equipped
with an Electronic Brake
force Distributor (EBD). The

warning light

 illuminates when

the engine is running to indicate
an EBD system malfunction: in this
case, sharp braking may cause an
early locking of the rear wheels, and
the vehicle may skid. Drive with the
greatest care and have the system
immediately checked by the nearest
Authorized Maserati Dealer.

The failure warning light

 usually illuminates

with the engine running to

indicate a malfunction in the ABS
system only. In this case, the braking
system will remain fully functioning,
but will not use the ABS. In these
conditions, also the EBD system
efficiency may be affected. Drive with
the greatest care in order to avoid
sudden braking and have the system
immediately checked by the nearest
Authorized Maserati Dealer.

If the low brake fluid
warning light



illuminates when the engine

is running, stop the vehicle and check
the brake fluid level immediately. If
fluid is below the minimum level, top
up with the recommended fluid and
contact your Authorized Maserati
Dealer immediately. Brake fluid leaks
affect the operation of the braking
systems, both the standard one and
the one equipped with ABS.

System performance in terms
of active safety is not a
reason for the driver to take

unnecessary risks. The driving style
must always be suited to weather
conditions, range of visibility and
road traffic conditions.

The maximum deceleration
that can be obtained always
depends on the tire grip on

the road surface. With snow or ice,
the grip is obviously reduced and the
braking distance is greater, even with
the ABS system.

2

47

TPMS – Tire Pressure
Monitoring System

The vehicle is equipped with a system
that monitors the tire pressure by
means of special sensors fitted inside
the wheel rims, in position with
the inflation valve. These sensors
transmit a signal that is detected by
the antennas installed on the vehicle
body, behind the gravel guards and
connected to the ECU.

WARNING: The system can
momentarily experience radio-electric
interference emitted by devices using
similar frequencies.

The ECU processes this information
and, via the CAN line, transmits a
series of tire pressure data and system
errors, if any, to the instrument panel.
The display may show the information
received by means of specific screen
pages, which can be recalled selecting
the “Tire Pressure” page.

The system warns the driver
that the tire pressure has
decreased. This warning

does not exempt the driver from
periodically checking the tires and
from complying with the prescribed
tire pressure levels.

WARNING: The system stores the
tire pressures as a reference rate,
therefore tires must be inflated to the
prescribed pressure.

Each tire, including the spare one
(if provided), should be checked
monthly when cold and inflated to
the inflation pressure recommended
by the vehicle manufacturer on
the vehicle placard or tire inflation
pressure label. (If your vehicle has tires
of a different size than that indicated
on the vehicle placard or tire inflation
pressure label, you should determine
the proper tire inflation pressure for
those tires.)

As an added safety feature, your
vehicle has been equipped with a tire
pressure monitoring system (TPMS) that
illuminates a low tire pressure warning
light when one or more of your tires
is/are significantly under-inflated.
Accordingly, when the low tire
pressure warning light illuminates,
you should stop and check your tires
as soon as possible, and inflate them
to the proper pressure.
Driving on a significantly under-inflated
tire causes the tire to overheat and can
lead to tire failure. Under-inflation also
reduces fuel efficiency and tire tread
life, and may affect vehicle handling

and stopping ability.

Please note that the TPMS is
not a substitute for proper tire
maintenance, and it is the driver’s
responsibility to maintain a correct
tire pressure, even if under-inflation
has not reached the level to trigger
illumination of the TPMS low tire
pressure warning light.
Your vehicle has also been equipped
with a TPMS malfunction indicator
that indicates when the system is not
operating properly.
The TPMS malfunction indicator is
combined with the low tire pressure
warning light.
When the system detects a
malfunction, the warning light will
flash for approximately one minute
and then remain permanently
illuminated.
This sequence will continue upon
subsequent vehicle start-ups as long
as the malfunction persists.

When the malfunction indicator
is illuminated, the system may not
be able to detect or signal low tire
pressure as intended.
TPMS malfunctions may occur for
a variety of reasons, including
the installation of replacement or
alternate tires or wheels on the

A

B

2

48

vehicle, that prevent the TPMS from
functioning properly. Always check
the TPMS malfunction warning light
after replacing one or more tires or
wheels on your vehicle, to ensure that
the replacement or alternate tires and
wheels allow the TPMS to continue to
function properly.

System calibration

The system must be calibrated:
-   after replacing one or more tires
-   after inverting the wheels
-   if you are not sure whether at least

one of the operations above was
performed.

If you simply corrected the tire
inflation pressure, you do not need to
recalibrate the system.

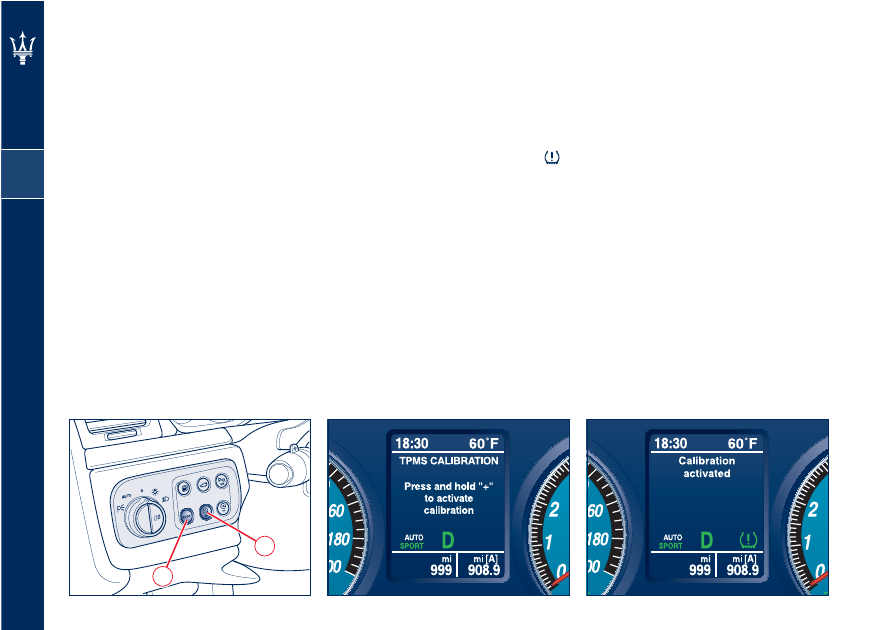

To calibrate the system, select the
screen page “TPMS calibration”
by pressing the MODE button A.

Subsequently press and hold button
“+” B to activate the calibration
procedure.
This operation may be performed
with the key at MAR (ON) and the
engine off. The system will take a few
seconds to complete the process, and
during this time the green symbol



and the message “Calibration started”
will be displayed.
If the user recalls the information
page showing the pressure levels
of each tire, dashes “--.--“ will be
displayed in the place of the values.

WARNING: The system will not
perform calibration if the pressure is
below 29 PSI (2 bar).

Viewing messages on the
display

By pressing the MODE button A
repeatedly (see on page 74), the user
can access the information page that
shows the pressure values of each tire
(“Tire Pressure” page).
If system faults are found when
this page is recalled, the same page
will be replaced by an information
message on the problem found. Also
in this case, the information message
will be displayed for a preset time.
When the display time has elapsed,
the “Tire Pressure” screen page
becomes available again, but the
summary symbol for the malfunction
will remain displayed in the dedicated
area, until the malfunction is
corrected.



1

2

49

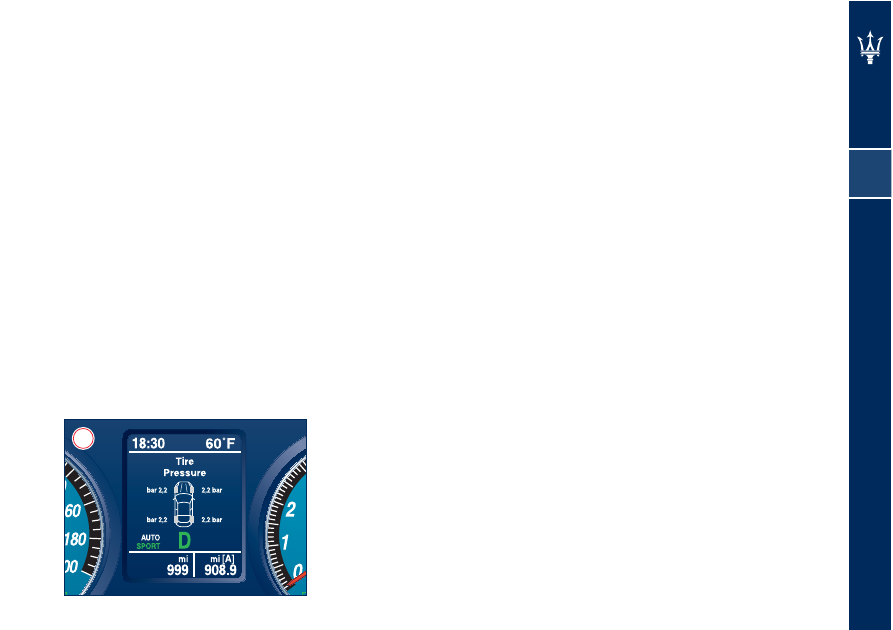

Normal conditions

By pressing the specific button for
quick information display (MODE
button A pressed briefly), the user can
access the information page (screen
page 1), which displays the pressure
levels for each tire.

Low tire pressure conditions

The system includes two alarm
thresholds for monitoring the tire
pressure, which respectively activate
a “check tire pressure” indicator light
and a “low tire inflation pressure”
warning light, this last one will also
warn the driver to stop driving.
The system also monitors the sudden
loss of pressure (punctured tire) of
one or more tires.
The first alert (check tire pressure
indicator light) illuminates when
the pressure of one or more tires
falls below the low-pressure alarm
threshold, corresponding to 90%
of the pressure level set at the
calibration.
The second warning alert (the low
inflation pressure tire warning light
– do not drive on message) activates
when the pressure of one or more
tires is below the minimum pressure
alarm threshold, corresponding to
83% of the pressure level set at the
calibration.

A tire puncture (a sudden loss of
pressure) is signaled when the system
detects a loss of pressure of one or
more tires measured within a set
time frame (0.35 bar/min). In this last
case, ie a tire puncture detection, the
system activates the low inflation
pressure tire warning light – do not
drive on message.

Note: To perform calibration of the
system follow the indications from
paragraph “System calibration” and
apply the pressure level as indicated
in chapter “Tire pressure”

2

3

2

50

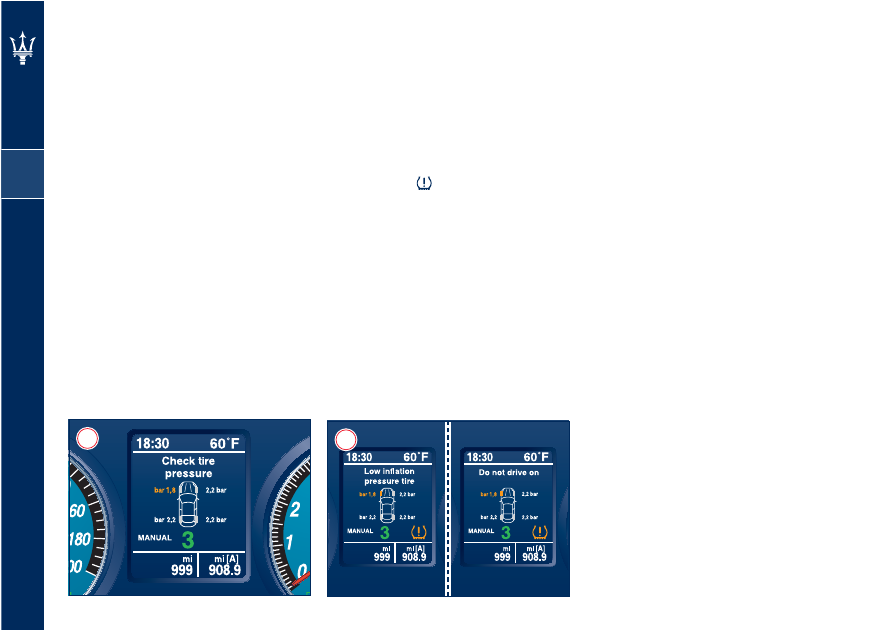

Low tire inflation pressure  –
Punctured tire

When the instrument cluster receives
a signal from the tire pressure ECU
indicating that the pressure level
of one or more tires is below the
alarm threshold or there is a sudden
pressure loss (punctured tire), the
warning light

 will permanently

illuminate on the instrument cluster
and screen pages 3 will alternate on
the display for 20 seconds.
Every time the key is subsequently
turned back to ON, if the malfunction
persists the display will show screen
pages 3 for 20 seconds.
These screen pages will be displayed
until the situation is corrected and the
system is calibrated again as required
by the system.

Tire pressure checkup

When the onboard instrument panel
receives a message from the tire
pressure ECU indicating that one or
more tires have pressure levels below
the control threshold, screen page 2 is
displayed for 10 seconds, after which
the system will display the screen
page previously active.
When the key is subsequently turned
back to MAR (ON), if the malfunction
persists the display will show screen
page 2 once again.

4

5

2

51

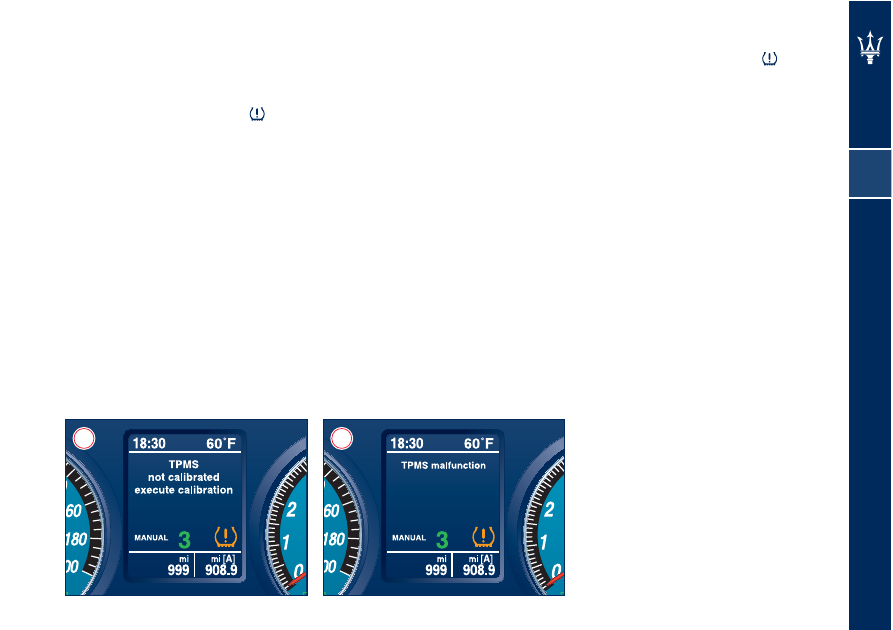

System not calibrated

In the event that: the system has
not been calibrated or following
replacement or reversal of one or
more tires, the warning light

 will

illuminate on instrument panel, and
the display will show screen page 4.
Subsequently, the system will display
the page previously active
The system can be calibrated by
selecting the “TPMS calibration” page
on the multifunction display.
The information page that shows the
pressure value for each tire cannot be
recalled.

Tire pressure monitoring system
failure

Screen page 5 may appear in the
following cases:
s

wiring;

s

more sensors due to malfunction,
breakage or dead battery;

s

In addition to screen page 5 being
displayed, the warning light

, which

is permanently illuminated on the
instrument panel, will flash for 90
seconds, after which it will remain
permanently on until the situation is
corrected. The information page that
shows the pressure value for each tire
cannot be recalled by the user.

Note: The TPMS malfunction indicator
is combined with the low tire pressure
telltale. When the system detects a
malfunction, the telltale will flash for
approximately 90 seconds and then
remain continuously illuminated.”
Once the system detects a failure, you
must go to the Authorized Maserati
Dealer to fix the problem and
extinguish the malfunction light.

2

52

Parking sensors

To assist the driver during parking
maneuvers, the vehicle is equipped
with four sensors housed in the rear
bumper and four sensor in the front
bumper.
During parking manoeuvres, the
parking sensors provide the driver
with information on the distance
between obstacles found behind
and in front of the vehicle. The
information about the obstacle
distance is given to the driver by
means of a acoustic and visual signals.
The acoustic signals generated by
the system add to the driver’s field of
vision, allowing him to avoid hitting
any obstacles during manoeuvres.

However, the driver remains
responsible during parking
manoeuvres and in other

potentially dangerous situations. The
system has actually been designed
only as a supplementary aid during
parking manoeuvres, since it allows
the driver to detect obstacles outside
his field of vision.

Extreme caution is required
in case of obstacles whose
shape and volume are

susceptible to be incorrectly detected.
When starting the vehicle after
parking, these obstacles might not be
detected if they are already close to
the bumper.
Always stop when the acoustic signal
becomes steady.

Rear four-sensor system
activation/deactivation

Rear sensors are automatically activated
when the key is turned to MAR (ON)
and when the vehicle is put into
reverse. A beeper alerts the driver that
the system is activated. Under these
conditions, the system displays the
detection areas of vehicle’s rear end on
the instrument panel and a beep starts
as soon as an obstacle is detected. When
the vehicle is put out of reverse, the rear
sensors are active for an additional 10
seconds or until the vehicle exceeds a
speed of approx. 6 mph (10 km/h).

Stop & Go function

This function is activated by the
manufacturer and can be deactivated
by the Multi Media System by
accessing the “Configuration” menu.
To deactivate, select the “Define
vehicle parameters” option, then select
“Stop & Go parking sensors” and set
on “Deactivate”. When vehicle speed is
6 mph (10 km/h) or lower, this function
aids the driver in certain traffic
conditions, as it signals that the vehicle
ahead is at the minimum distance.

A

2

53

Eight-sensor system with Stop &
Go Function activated

When the Stop & Go function is
activated, all sensors are automatically
activated with the key set to MAR
(ON) but they are not displayed on the
instrument panel. When the vehicle
is put into reverse or an obstacle is
detected, the corresponding detection
areas are displayed on the instrument
panel. When the vehicle is put out of
reverse, all sensors remain active: the
rear sensors for approx. 10 seconds
or until the vehicle exceeds approx. 6
mph (10 km/h), and the front sensors
until the vehicles exceeds approx. 6
mph (10 km/h). At a speed of 6 mph
(10 km/h) or lower, the front sensor
detection areas are displayed as soon
as the system detects an obstacle and
the beeper sounds. If no obstacle is
detected for 10 seconds, the displayed
information disappears.

Front sensors can be temporarily
deactivated by pressing pushbutton
A: the system will sound a beep and
the pushbutton LED will turn off.
When pushbutton A is pressed again,
the sounding of a beep and the LED
turned on will alert the driver that the
sensors are now active again.

Eight-sensor system with Stop &
Go function deactivated

With the Stop & Go function
deactivated by the Multi Media
System, the rear sensor activation/
deactivation operating logic remains
unchanged. For the front sensors, the
Stop & Go function signal status will
not change if pushbutton A is pressed,
and the front sensors will be active
and displayed on the instrument
panel as long as vehicle speed is 6
mph (10 km/h) or lower. When the
vehicle goes over this speed but then
slows to 6 mph (10 km/h) or lower,
the sensors will not be activated. To
reactivate them, press pushbutton A.

WARNING: Front sensors are activated
only when the LED on pushbutton A is
on. In addition, the system will ignore
the pressing of pushbutton A when
vehicle speed is over 6 mph (10 km/h).
