BUGATTI REPLACEMENT PARTS CATALOGUE - 3

/b>

33

Tel : +44 (0)1242 675496 Fax: +44 (0)1242 677001

spares@bugatti.co.uk

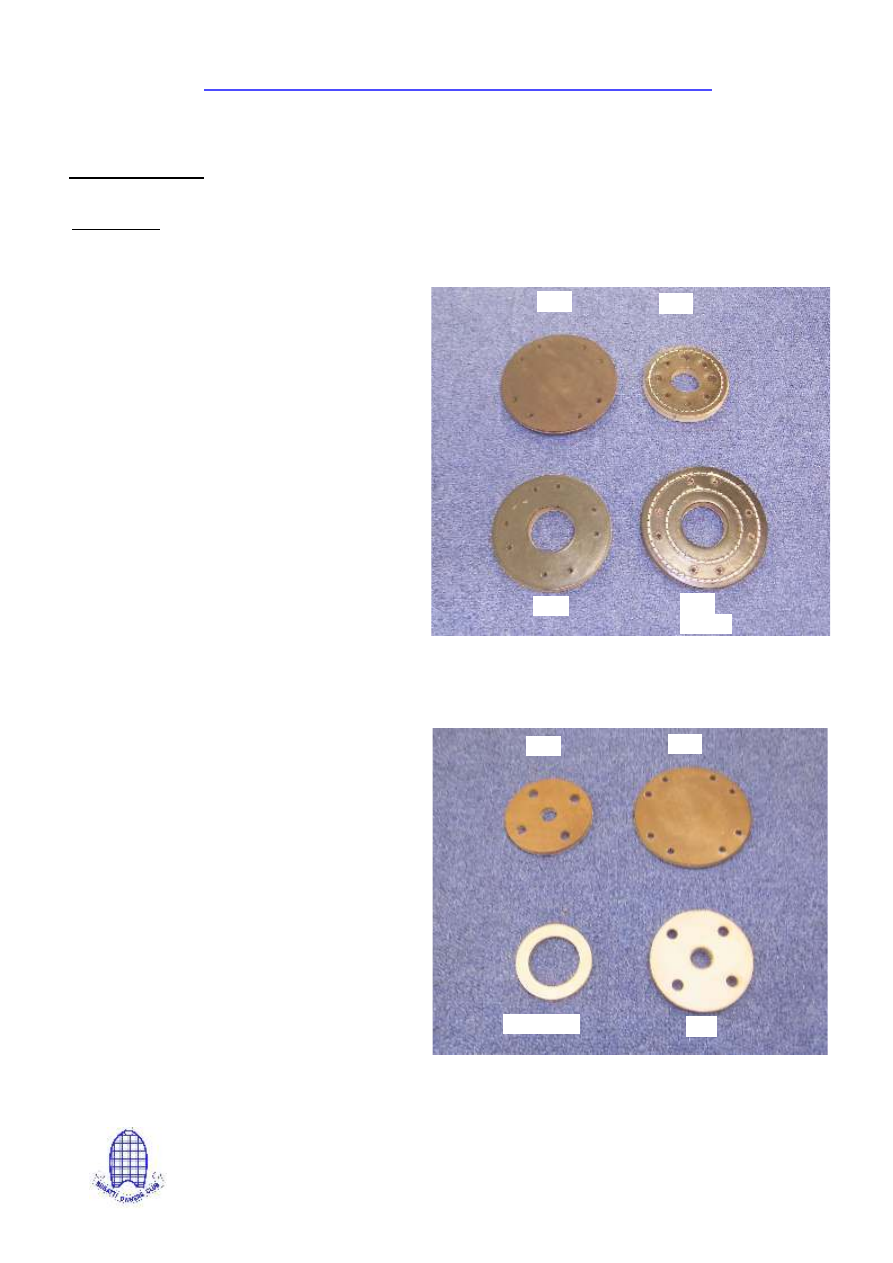

10. Leather Items

Leather Discs

C1A

C1B

C1C

C1C
special

C1A

Steering column
115mm OD, 8 holes
(7mm dia) on 95
PCD

Types: 30, 43, 44, 55,
57

C1B

Steering
column/magneto
coupling
85mm OD, 30mm
ID, 8 holes (10mm
dia) on 54mm PCD

Types: 35, 43, 51

C1C

Blower coupling
105mm OD, 40mm
ID, 8 holes (6mm
dia) on 80mm PCD

C1C
Special

Twin magneto
driveshaft coupling
110mm OD, 40mm
ID, 8 holes (6mm
dia) on 84mm PCD
(Reinforced
stitching)

Type: Brescia

C1D

Water pump drive
coupling
75mm OD, 14mm
ID, 4 holes (8mm
dia) on 54mm PCD

Type: Early 35

C1E

Brescia magneto
drive
100mm OD, 8 holes
(6mm dia) on 84mm
PCD

Type: Brescia

C1G

C1H

Fuel cap leather seal
57mm OD, 38mm
ID

Fuel cap leather seal
63mm OD, 43mm
ID

Types: Brescia, 30, 38,
40

Type:: 35

C66

Water pump leather
75mm OD, 16mm
ID, 4 holes (8mm
dia) on 53mm PCD

Type: 35

C1D

C1E

C1G/C1H

C66

Types: 35C, 35B, 37A,
43

/b>

34

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

C2A

C2B

C2C

C2D

C2E

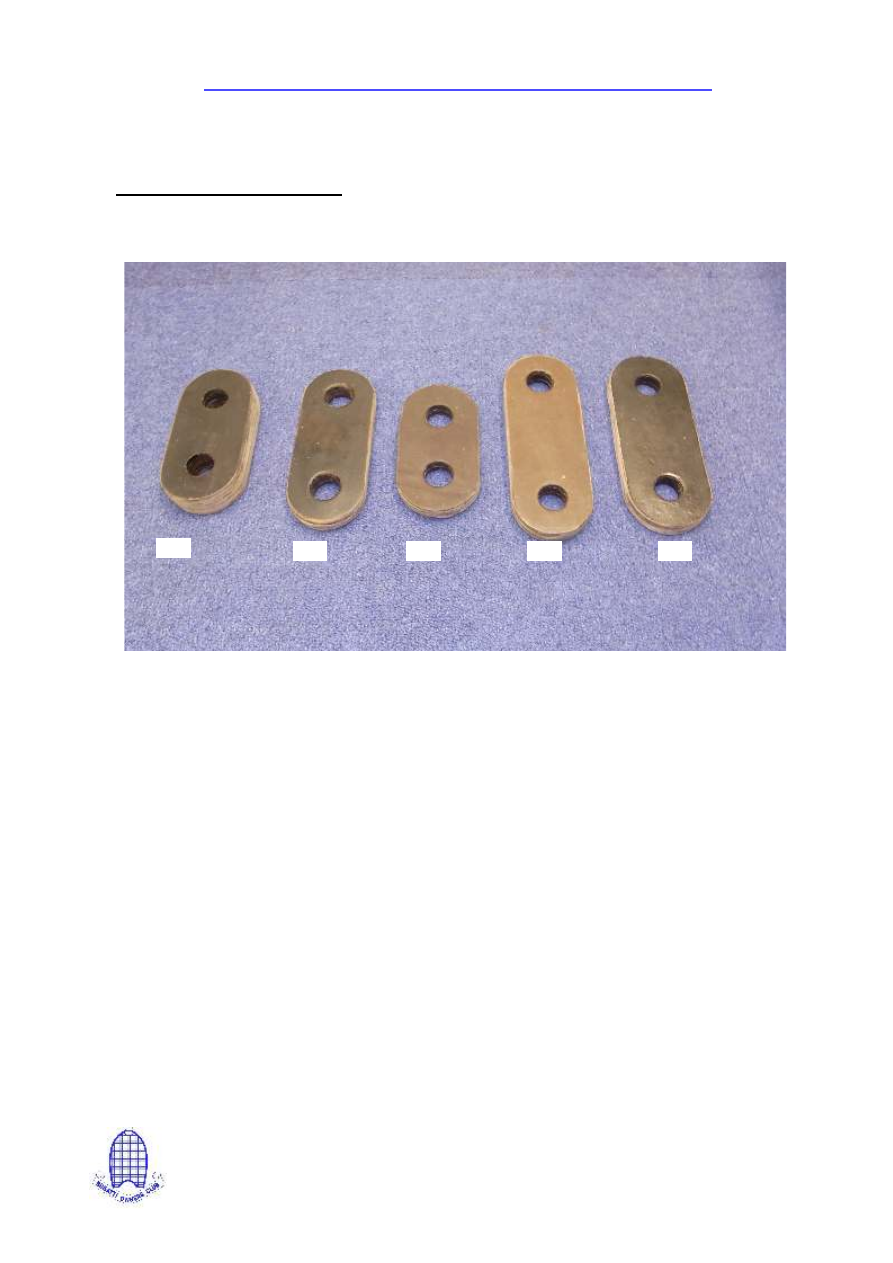

C2A

Shock absorber & torque arm
(without metal banding)
70mm centres

Type: GP

C2B

Shock absorber (without
reinforcing plate)
95mm centres

Type: Brescia

C2C

Torque arm
60mm centres

Type: various touring cars

C2D

Shock absorber
120mm centres

Type: Brescia

C2E

Torque arm
110mm centres

Type: 57

10. Leather Items - continued

/b>

35

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

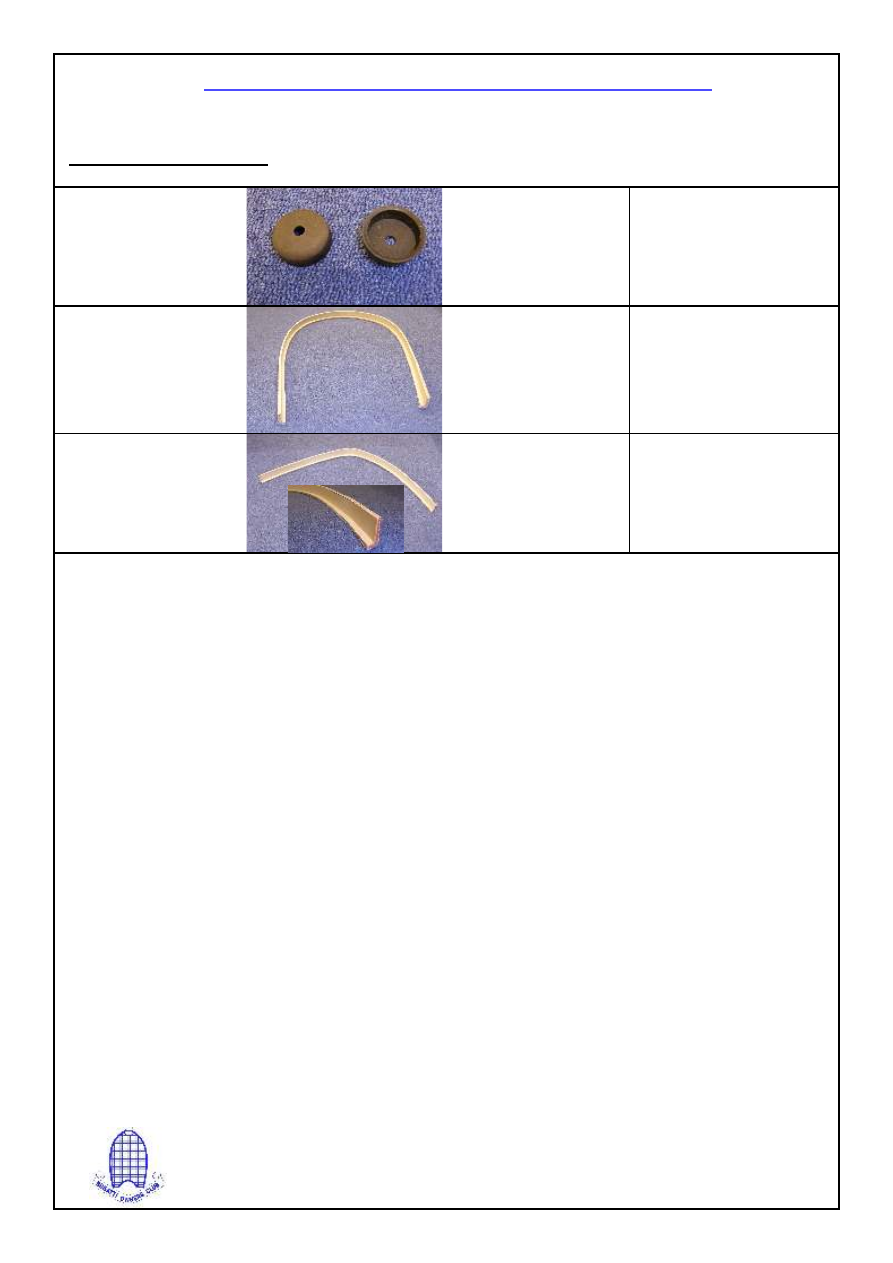

Leather Items - continued

C12A

Cup leathers (for hand
operated air pump)

C19A

“L” shaped leather bonnet
rest - scuttle

42” long (1070mm)

C19B

“L” shaped leather bonnet
rest - radiator surround

27” long (685mm)

/b>

36

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

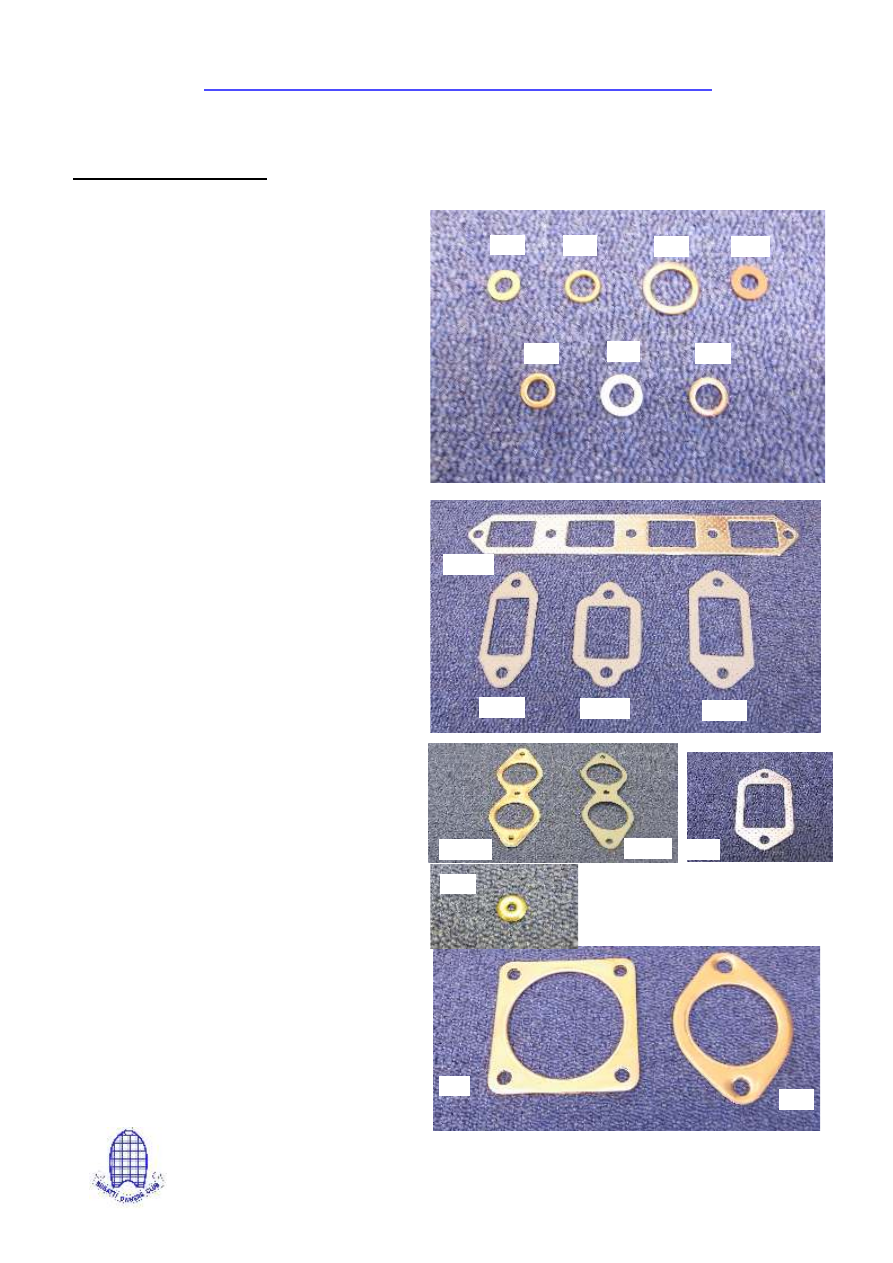

11. Washers and Gaskets

C3A

Copper washer for 7mm unions

C3B

Copper washer (folded) for 9mm unions

C3C

Copper washer (folded) for 16mm unions

C3M

Red fibre washer for 7mm unions

C3N

Copper washer (folded) for 8mm unions

C3P

Soft aluminium washer for 9mm unions

C3Q

Flat copper washer for 9mm unions

C3E/I

Inlet manifold to
cylinder block gasket -
4 per engine

Types: 35, 43

C3E/E Exhaust manifold to

cylinder block gasket -
2 per engine

Types: 35, 43

C3F/I

Inlet manifold to
cylinder gasket - 2 per
engine

Types: 37, 40, 44

C3F/E Exhaust manifold to

cylinder block gasket -
4 per engine

Types: 37, 40, 44

C3G/I Inlet manifold to

cylinder block gasket -
4 per engine

Type: 57

C3G/E Exhaust manifold to

cylinder block gasket -
4 per engine (copper)

Type: 57

C3R

Exhaust manifold to
cylinder block gasket -
8 per engine

Type: 46

C3S

Undertray rivet
washers

Types: GP cars,
T43

C3A

C3B

C3C

C3M

C3N

C3P

C3Q

C3E/E

C3E/I

C3F/E

C3F/I

C3J

C3D

C3G/E

C3G/I C3R

C3S

C3D

Copper composite
exhaust flange joint,
60mm pipe

Types: 30, 35, 37,
40, 43, 44 etc

C3J

C3J
Series
1

Copper composite
exhaust flange joint,
square, 4 holes, 75mm
pipe id.
As above but with
70mm pipe id

Type: 57

/b>

37

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

C3K

Felt washers for rear
axle - set of 8 per axles

Types: 30 - 55

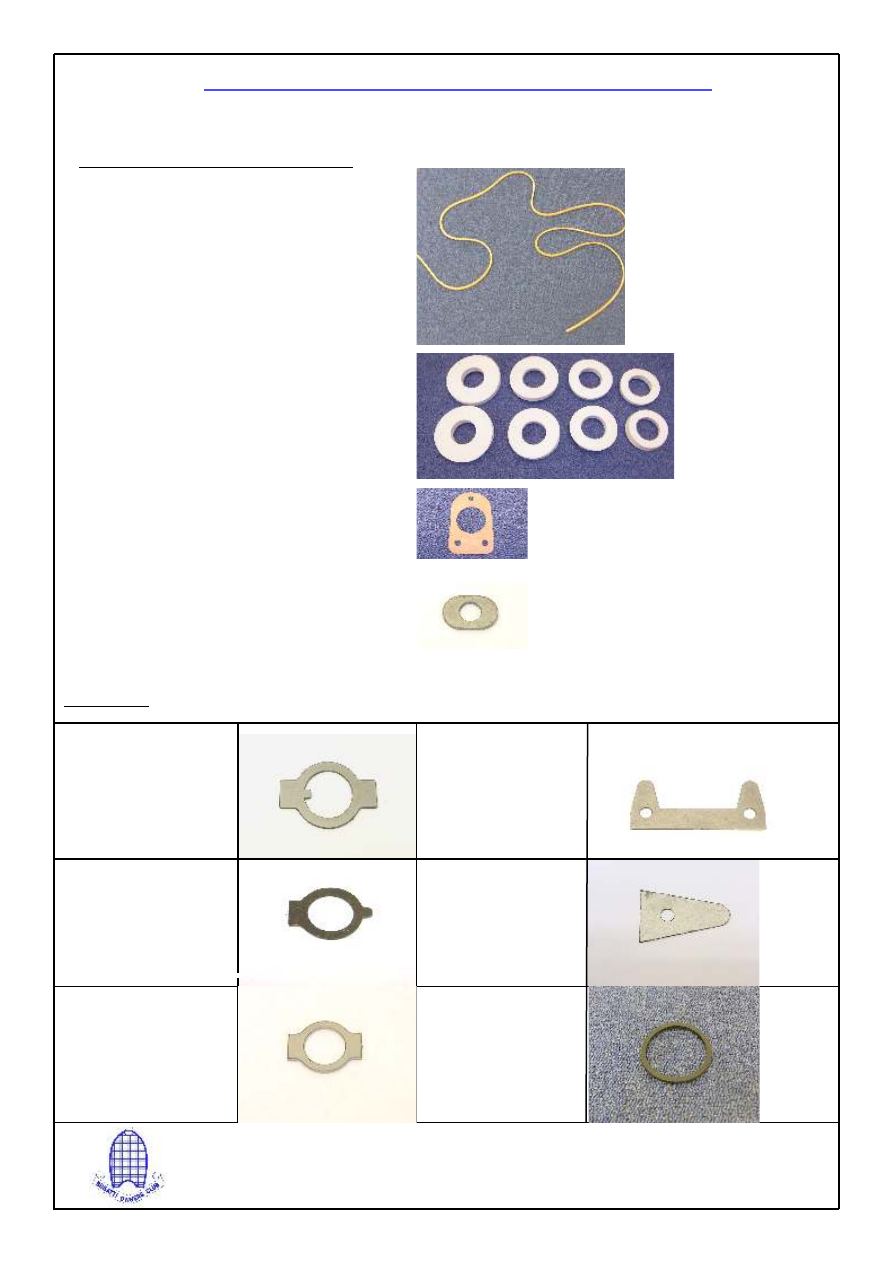

11. Washers and Gaskets continued

C58

Gasket - lower water pipe

Type: 57

C40A

Tab Washer, between stub
axle nuts

Various

C40B

Tab Washer, front spring
pivot block

Types Touring, 57

C40C

Tab Washer, spring shackle
pin

C40D

Tab Washer to hold sump
gauze (large)

C40E

Tab Washer to hold sump
gauze (small)

Tab Washers

C56

Oval Washer for steering and
drop arms

C3H

Square section rubber seal for water
manifold

C61

Oil filter/fuel filter
square section
“O” ring

/b>

38

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

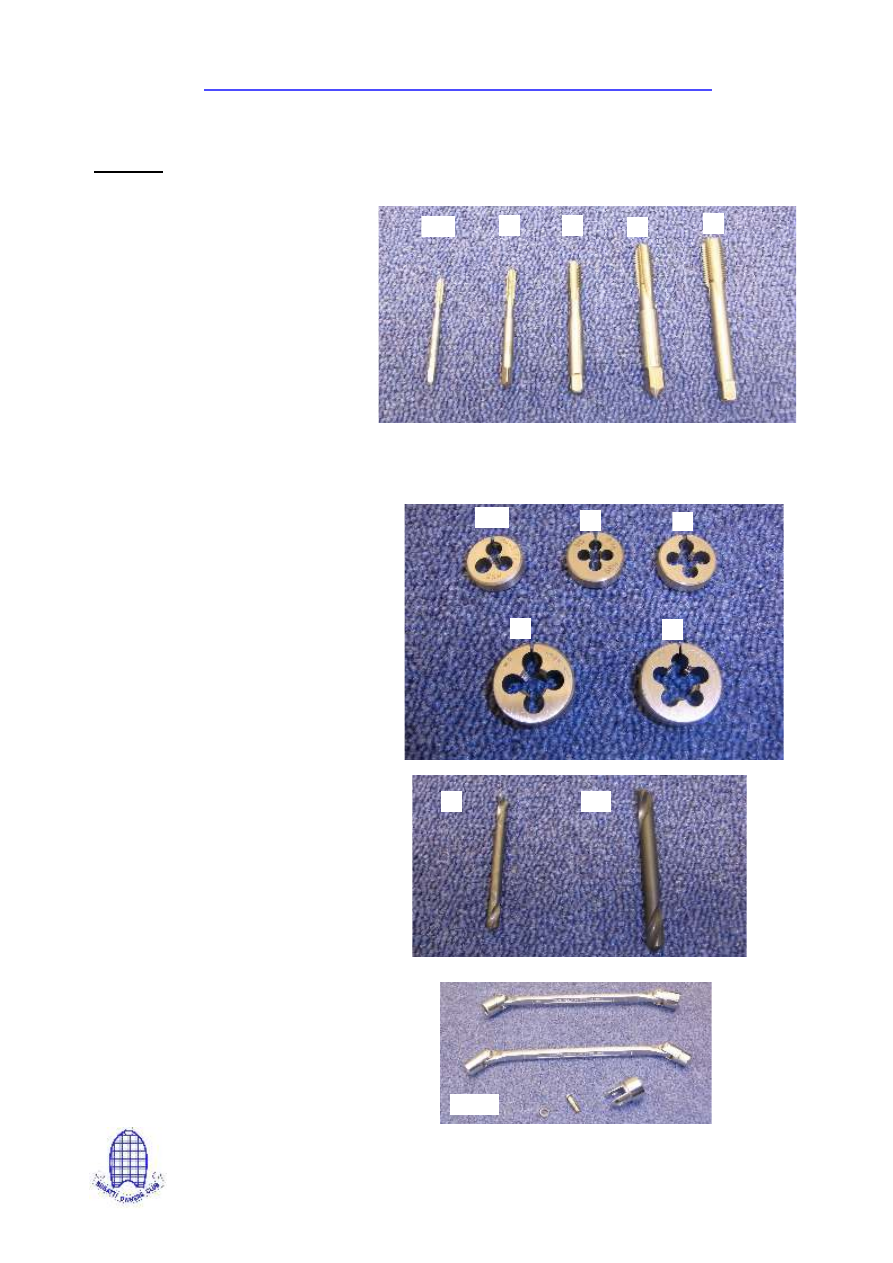

12. Tools

T1A

4mm x 0.75 tap

T1

5mm x 0.75 tap

T2

7mm x 1.0 tap

T3

9mm x 1.25 tap

T4

11mm x 1.25 tap

T5A

4mm x 0.75mm die

T5

5mm x 0.75mm die

T6

7mm x 1.0 die

T7

9mm x 1.25 die

T8

11mm x 1.25 die

T1A

T1

T2

T3

T4

T5

T6

T7

T8

T9

5mm body drill bit

T10

7mm body drill bit

T9

T10

T5A

T11/K

Flexible head
spanner set
containing sizes -
5mm, 6mm, 8mm,
9mm & 10mm

T11/K

/b>

39

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

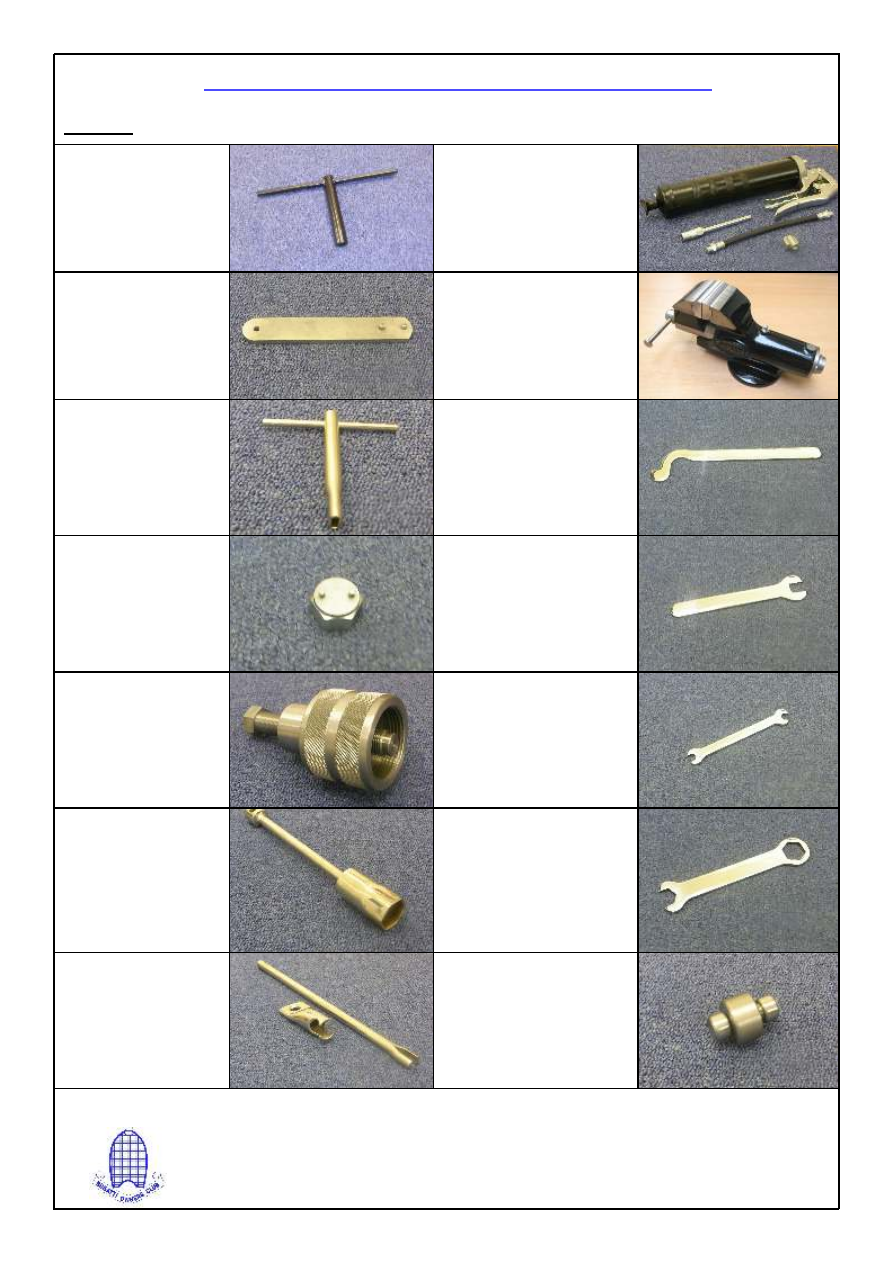

12. Tools

T12/5, T12/6, T12/8

T-Handled spanners for
square head bolts - 5mm,
6mm, 8mm

T13

Peg spanner for brass plugs
on cambox

T14

Tool for body screws

T15

Oil union spanner

T16 -Hub puller, small,
for wire wheels

T17 - Hub puller, large,
for alloy wheels

T18

18mm plug spanner

T20 -Grease gun, Wanner
type, for hexagonal nipples

T20A - hook on connector

T20B - rubber flexible hose for
T20

T21A

Bugatti vice, large - exact
replica of works vice

(Bench leg also available)

T24

Propshaft spanner

T25

Solex carburettor spanner

T26

8mm “Moteur”spanner

T27

“Moteur” combination spanner

T19

Valve spring compressor

T29

Body eyelet fitting kit

/b>

40

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

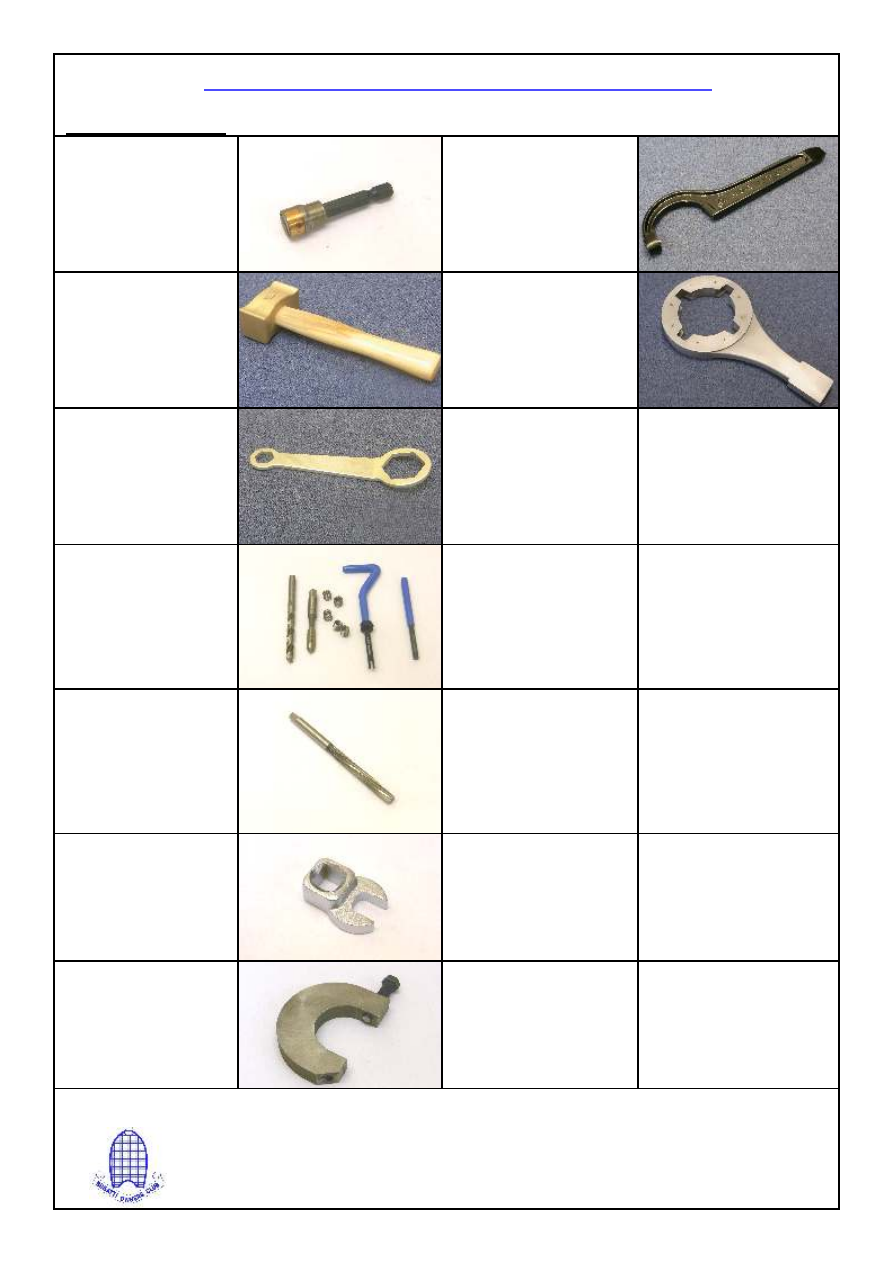

12. Tools - continued

T31

Power tool bit for body
screws

T32

Bugatti Hammer (bronze)

T33

Gearbox filler and drain
plug double ended ring
spanner

T34

Thread insert tool

7mm x 1mm

T35

Reamer

7mm x 1mm (spiral)

T36

Crowfoot spanner

3/8 DR  10mm

T37

Cotter Pin Extractor

T38

Rudge Whitworth 42mm
Wheel Nut “C” Spanner

T39

Wheel brace for 4 eared
wheel nuts

50mm across
flats

24mm across
flats

/b>

41

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

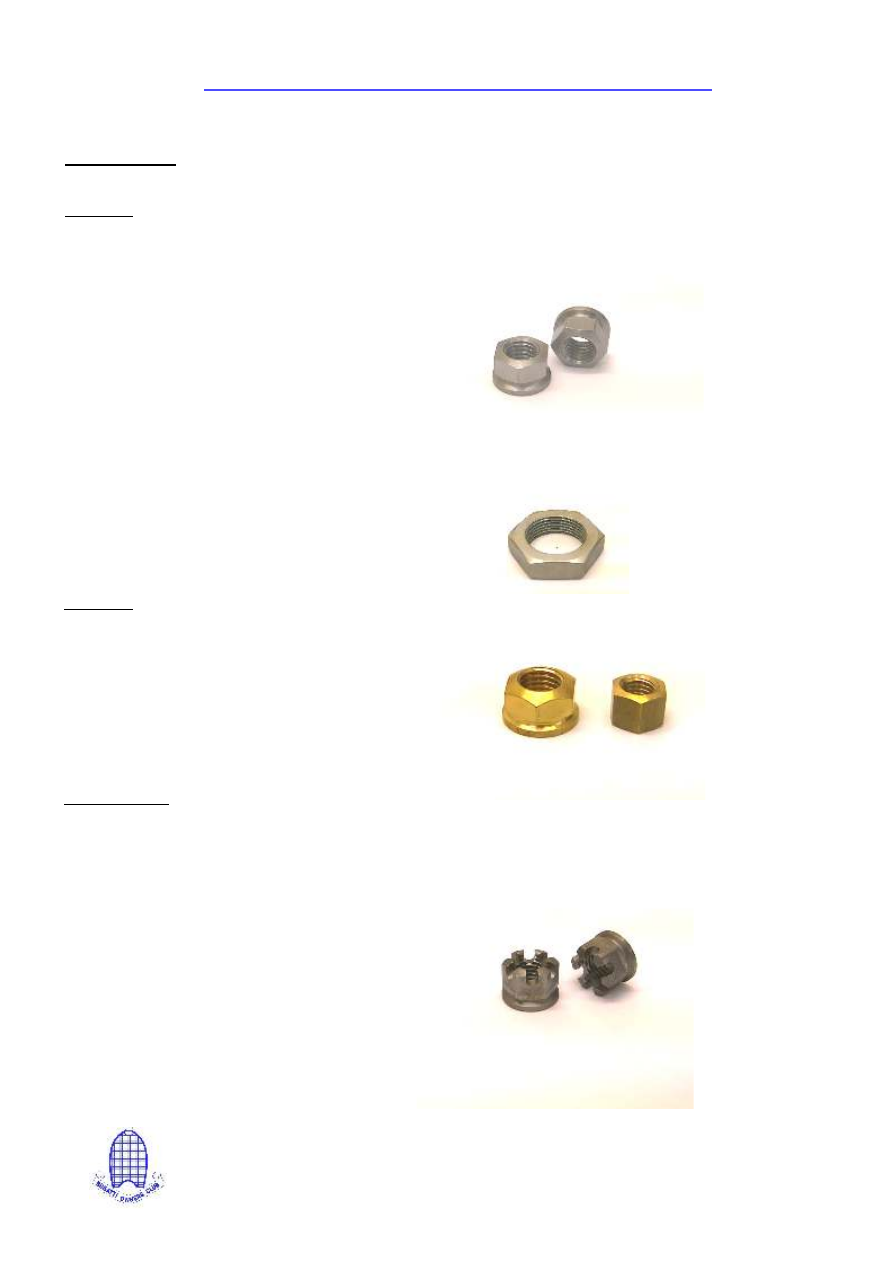

13. FASTENERS

Plain Nuts

B1A

5mm x 0.75p

8 hex

B1B

7mm x 1.0p

10 hex HT

B1C

9mm x 1.25p

13 hex

B1D

11mm x 1.25p

16 hex

B1E

9mm x 1.0p

13 hex HT

B1F

14mm x 1.25p

20 hex (original
molsheim stock)

Castellated Nuts

B2A

7mm x 1.0p

10 hex

B2B

9mm x 1.25p

13hex

B2BB

9mm x 1.25p

13 hex (brass)

B2C

11mm x 1.25p

16 hex

B2D

14mm x 1.25p

20 hex

B2E

12mm x 1.5p

17 hex

B2F

6mm x 1.0p

9 hex

Brass Nuts

B6A

7mm x 1.0p

10 hex (Exhaust)

B6B

9mm x 1.25p

13 hex (cambox)

B6B

B6A

B1G

25mm x 1.5p

Stub axle nut

/b>

42

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

13. FASTENERS - Continued

5mm x 0.75p

B3A

Countersunk Square Head 13mm long

B3G

Countersunk Square Head 22mm long

B3J

Countersunk Square Head (stainless)
13mm long

B3H

Square Head 13mm long

B3HSS

Square Head, stainless, 13mm long

B3B

Square Head 20mm long

B3E

Square Head 50mm long

B3F

Countersunk Screw 18mm long,
stainless (raised head)

B3C

Body Screw

B3C/P

Body Screw, Plated

/b>

43

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

13. FASTENERS - Continued

6mm x 1.0p

B3AA

Countersunk Square Head
13mm long

B3D

Body Screw

B3D/P Body Screw - Plated

7mm x 1.0p

B4A23 Square Head 23mm long

B4A30 Square Head 30mm long

B4A43 Square Head 43mm long

B4A55 Square Head 55mm long

B4F

10mm Hex, 35mm long

B4G

9mm Hex, 20mm long (shock
absorber)

B4N

Countersunk Slotted Head
Road Wheel Screw

B4P

Countersunk Square Head
Road Wheel Screw

/b>

44

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

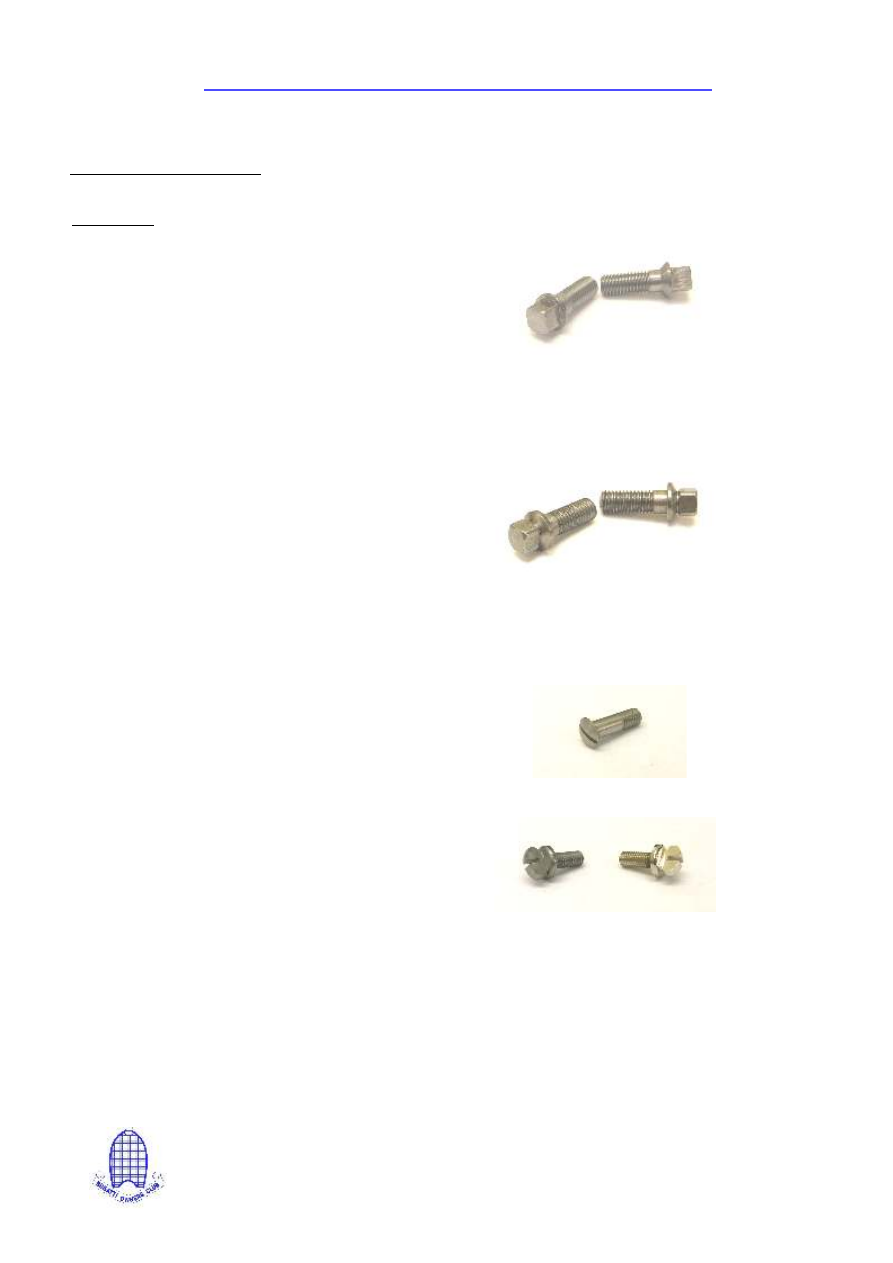

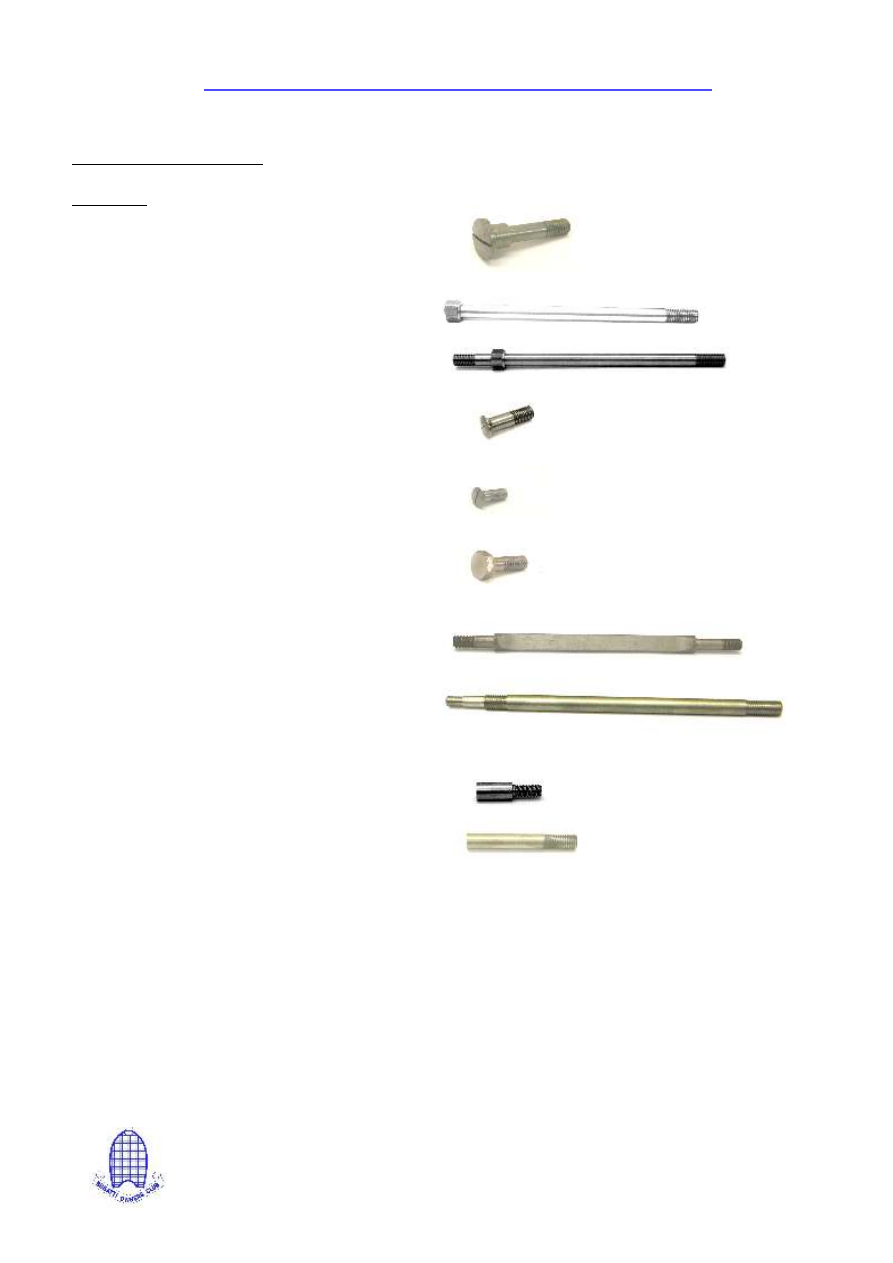

13. FASTENERS - Continued

7mm x 1.0p

B4J

10mm Hex, 118mm long (cambox)

B4K 10mm Hex, 118mm long with threaded

extension (cambox)

B6J

7mm diameter bar - 350mm long

B4U

7mm x 170mm long inter block bolt-
(original Molsheim stock)

B4H

Stepped Slotted Head (steering
coupling)

B4L

Countersunk Slotted Head, 26.5mm long
(brake drum)

B4Q

Countersunk Slotted Head,
20mm long (brake drum)

B4S

12mm Hex, 20 long (brake
backplate

B6C

10mm Round Head with 7 x 1 socket
(cambox)

B6F

Semi-finished Stud, 50mm long

No image available for B6J

B4V

7mm  stepped cam box
stud, 146mm long

/b>

45

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

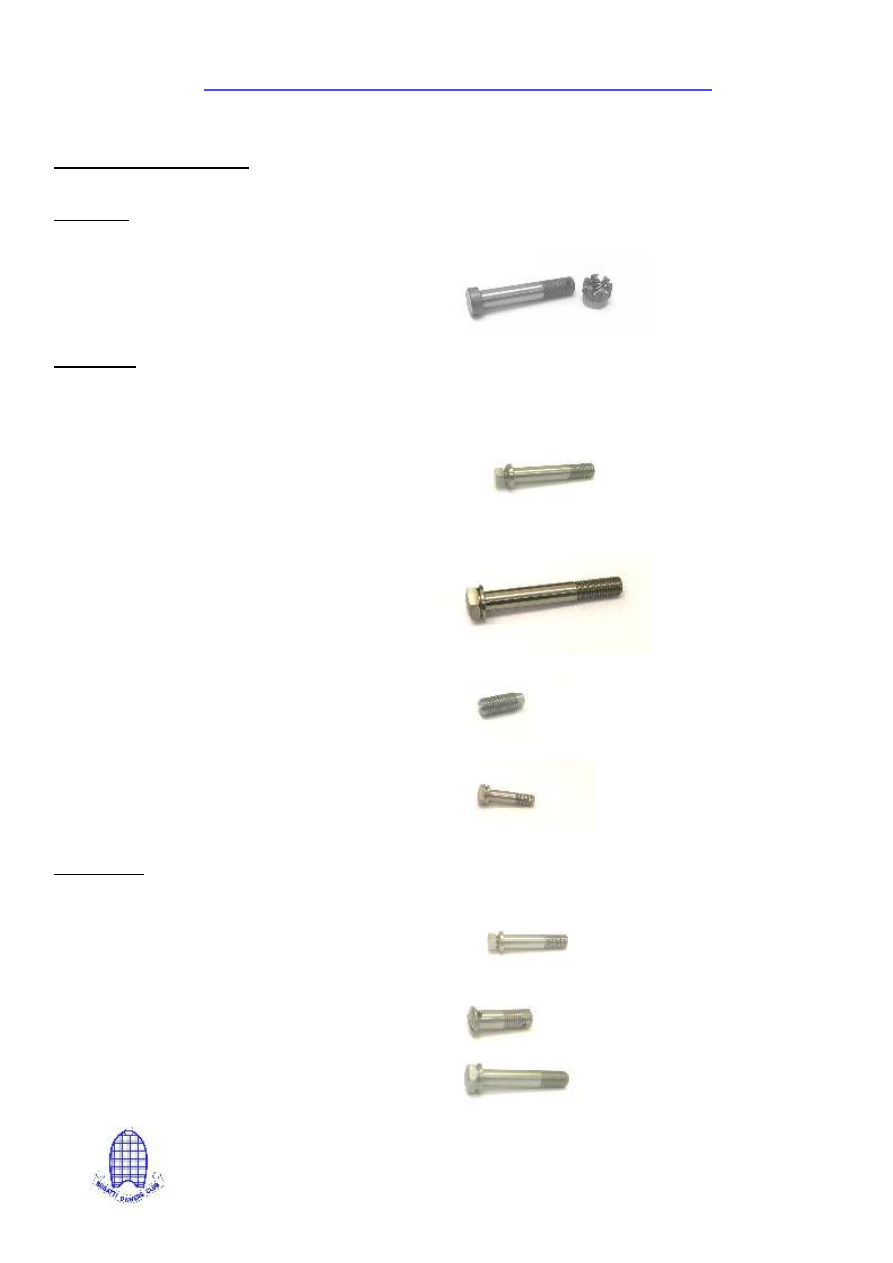

9mm x 1.0p

B4M

Big End Bolt with Slotted Nut

9mm x 1.25p

B4B30

Square Head, 30mm long

B4B50

Square Head, 50mm long

B4B65

Square Head, 65mm long

B4BB100 Square Head, high tensile, 100mm

long

B4BB62

13mm Hex, high tensile, 62mm
long (clutch - T57)

B6D

9mm rocker screw

B6K

13mm Hex Head, 33mm long
(torque arm)

11mm x 1.25p

B4E

Square Head 50mm long

B4D

Square Head 105mm long

B4T

Countersunk Head, 30mm long
(57MOT48) for flywheel

B4R

16mm Hex, 55mm long
(propshaft)

13.  FASTENERS - Continued

/b>

46

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

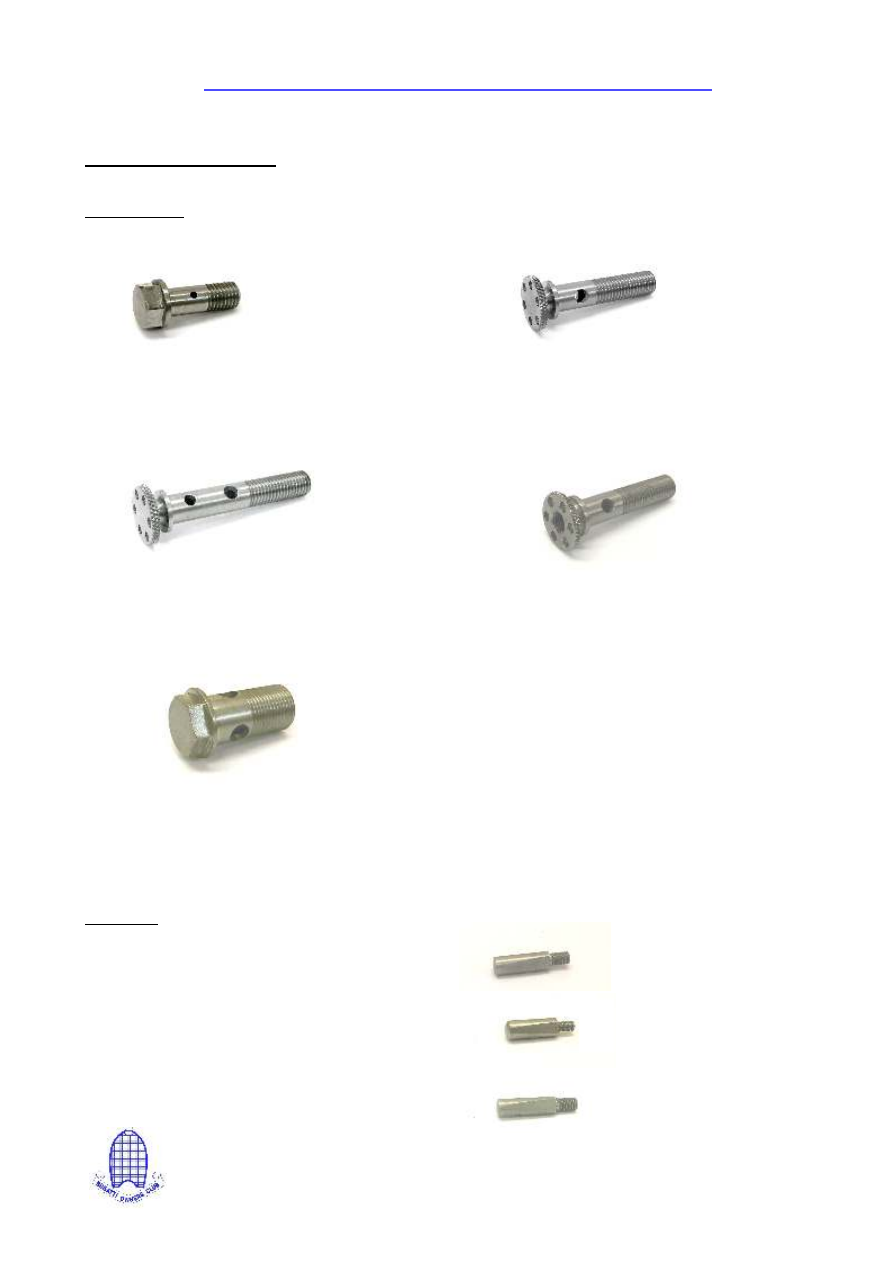

13. FASTENERS - Continued

Oil Union Bolts

B5A

7mm x 1.0p Hex, 20mm long

B5B

9mm x 1.25p 6 Hole Knurled
Head, 40mm long

B5C

9mm x 1.25p 6 Hole Knurled
Head, 52mm long

B5D

9mm x 1.25p 6 Hole 7 x 1
Tapped Head, 40mm long

B5E

16mm x 1.25 Hex, 32mm
long

Cotter Pins

B6E

10mm 7 x 1mm thread
(brake lever)

B6G

9mm 5 x 0.75mm thread
(camshaft bevel)

B6H

9mm 7 x 1mm thread
(vertical drive)

/b>

47

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

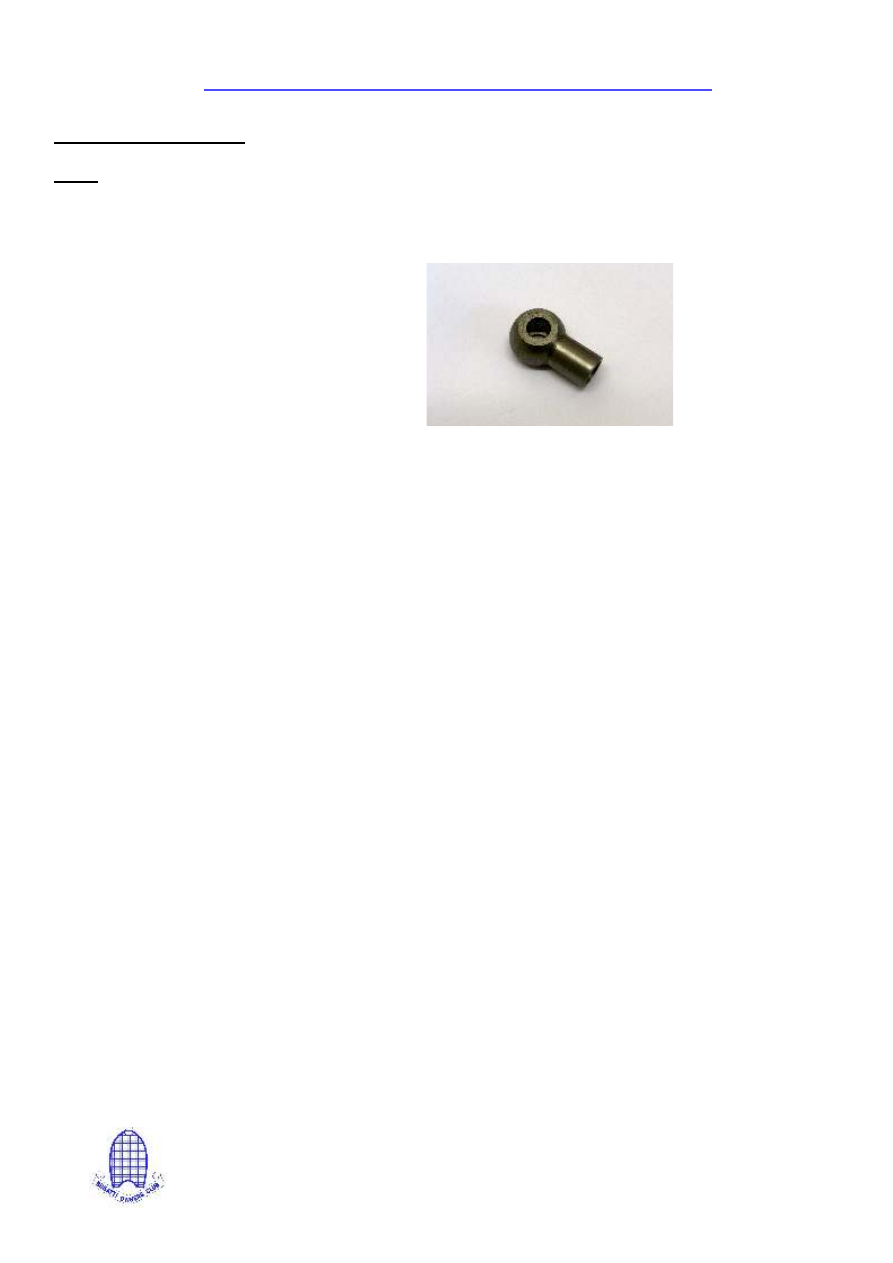

13. FASTENERS - Continued

Banjos

C55A/6

7mm bolt, 6mm feed pipe

C55A/8

7mm bolt, 8mm feed pipe

C55B/6

9mm bolt, 6mm feed pipe

C55B/8

9mm bolt, 8mm feed pipe

C55C/12

16mm bolt, 12mm feed pipe

C55C/16

16mm bolt, 16mm feed pipe

/b>

48

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

14. Publications

Key

H1A

Type 57 Manual

H1B

Bugatti Overhaul Manual (T30 - T55)

H1C

Brescia Overhaul Manual

H1D

Bugatti Data Book

H1E

T44 Parts Book (French language)

H1F

T44 Hand Book (French language)

H1G

Overhauling  a T43 Bugatti

H1I

GP Technicalities (compiled by Paul Devitt).
Approx 350 pages - also available on CD -
part no H1J

H1A

H1B

H1C

H1I

H1D

H1G

H1E & H1F
