BUGATTI REPLACEMENT PARTS CATALOGUE - 1





/b>

1

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

I trust you will find this edition of the  useful and the identification of the
parts you require easy. Please note that the photographs are an identification tool only and are not to
scale.

The sections and titles used in the previous Parts List have been deliberately adhered to for continuity
purposes and ease of reference.

The catalogue also appears on the Bugatti web-site - www.bugatti.co.uk and is updated regularly when new
items come into stock.

Price lists are not published as costs are too volatile but the Spares Department is always willing to advise
current prices when asked.

Please remember that the Spares Department functions as a service to Club members and can only operate with
your support.  Our prices remain competitive in relation to the quality standards that we insist upon from our
suppliers.  Stock items are readily available.  Over the years much information has been compiled with regard
to a source of supply for many parts which are not listed in the spares catalogue.  If you cannot find the parts
you require listed in the catalogue then please do contact us giving full details of your requirements and we will
do our best to assist you.

Refunds

Full refunds will be given on any parts purchased providing the part returned is in the original condition as sold
and the original invoice can be sourced.  The maximum term for refunds is two years.

Payment for Purchases of Spares

The Club prefers payment of invoices at the time of despatch.  We accept all major debit or credit cards with the
exception of American Express.  It is helpful if you quote the card details at the time of placing the order.  Cheques
from  overseas  must  be  in  £Sterling  and  drawn  on  a  British  Bank.    Regrettably  we  can  no  longer  accept
Eurocheques.  All cash payments must be in £Sterling.

The Spares Department is open Tuesday, Wednesday and Thursday between 0900 and 1700 hours UK time.
If the Department is closed, please do fax or e-mail your orders or enquiries and I will contact you on re-
opening.

WOULD NEW CUSTOMERS PLEASE NOTE THAT THE ARTICLES OF ASSOCIATION OF THE BUGATTI

OWNERS’ CLUB LTD ONLY ALLOW THE SALE OF PARTS TO PAID UP MEMBERS OF THE CLUB

/b>

2

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

CONTENTS LIST

1.  Engine Parts

1.1

Crankcase Castings

3, 4

1.2

Cylinder Blocks and Pistons

5

1.3

Cambox Castings

6, 7

1.4

Blower and Drive

7

1.5

Inlet Manifolds

8

1.6

Water Pump Parts and Spindles

9, 10

1.7

Water Manifolds

11, 12

1.8

Oil System Parts

13

1.9

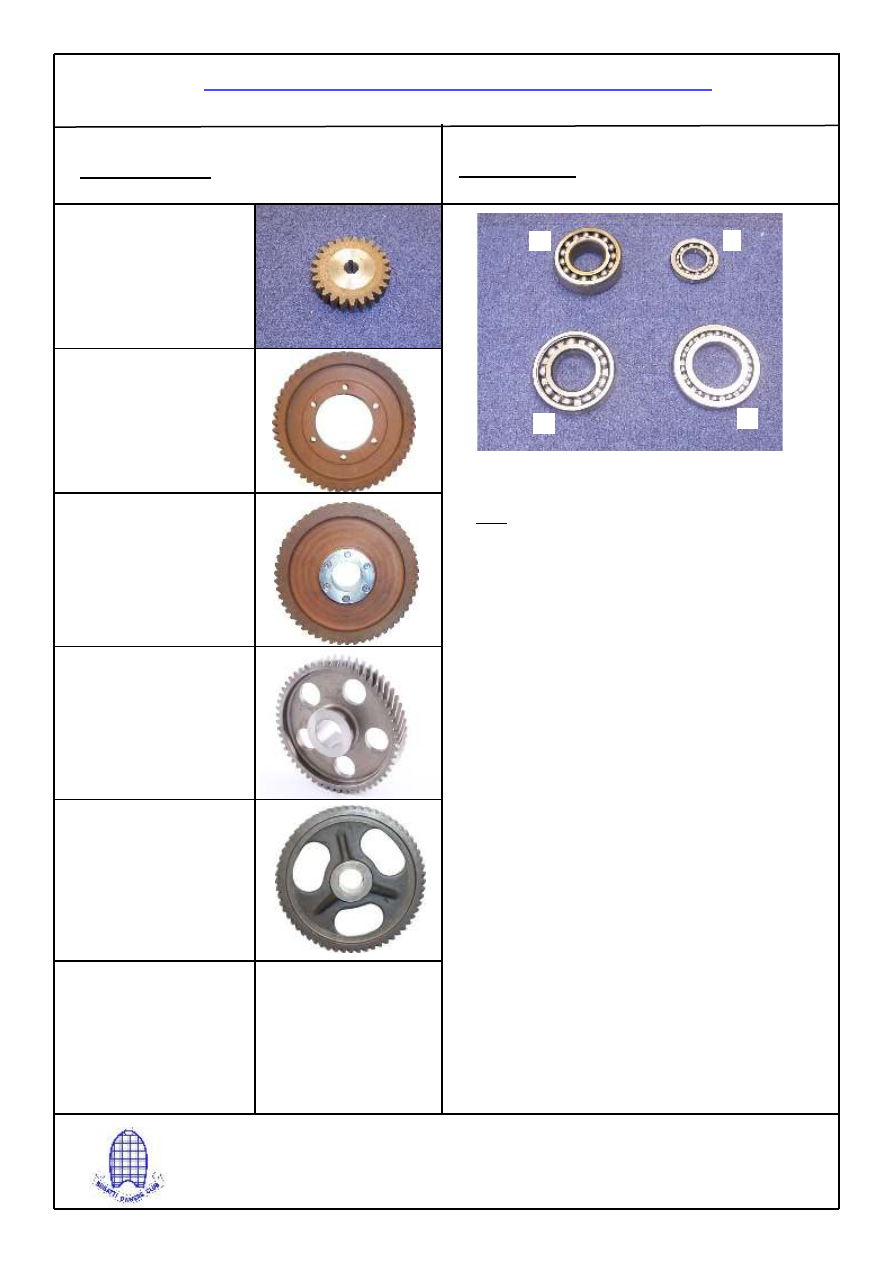

Engine Gears

14

1. 10

Ball Races

14

2

Axles, Wheels, Brakes

15 - 17

3

Steering

17, 18

4

Clutch

18, 19

5

Transmission

19, 20

6

Chassis and Tank

20 - 23

7

Valve Train

24 - 27

8

Springs

27, 28

9

Miscellaneous

29 - 32

10

Leather Items

33 - 35

11

Washers and Gaskets

36, 37

12

Tools

38 - 40

13

Fasteners

41 - 47

14

Publications

48

Page Number

Page Number

/b>

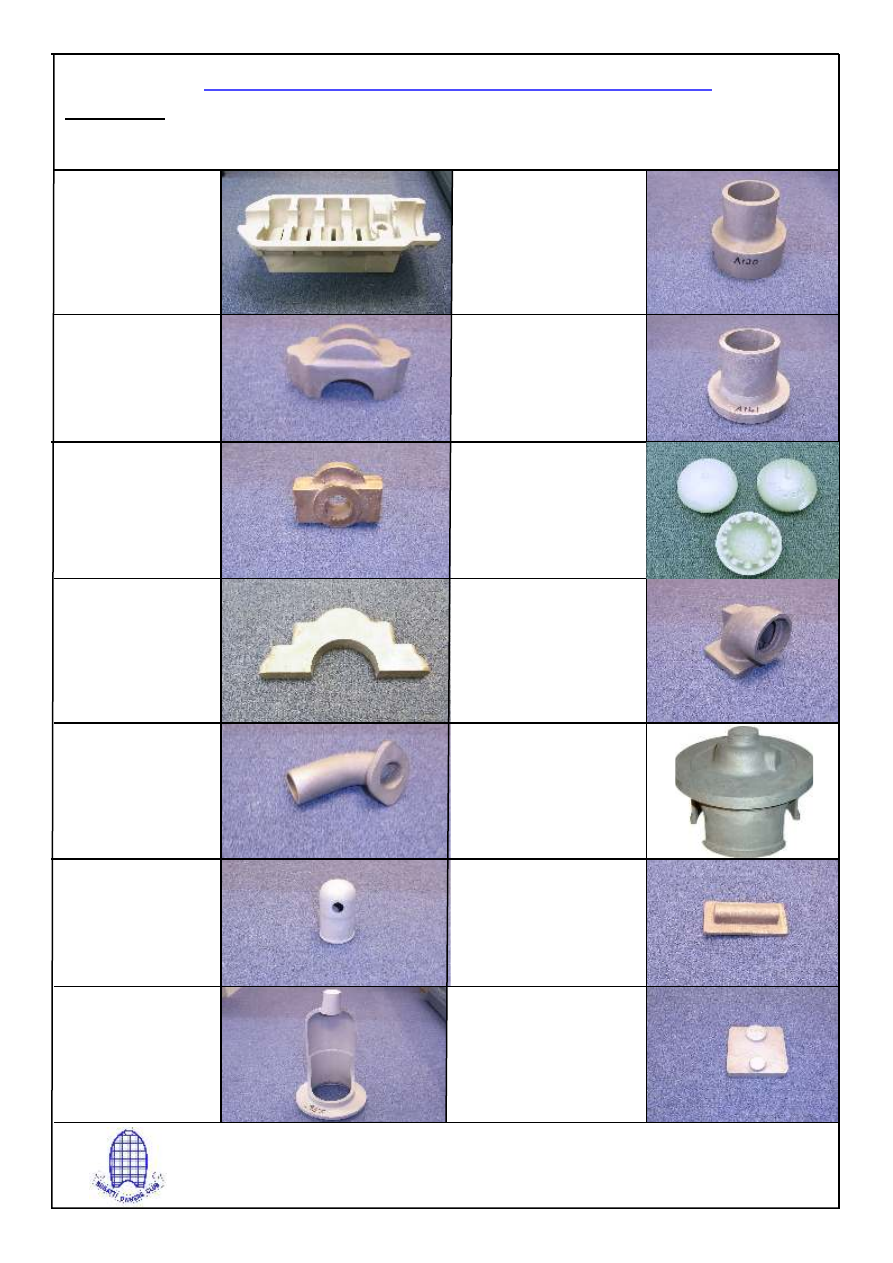

3

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

A151

Bearing Cap Rear

Types 37,40

28MOT5

A129

Crankcase Top

Types 37, 37A, 40

37MOT1

A152

Bearing Cap Front

Types 37, 40

28MOT 6

A160

Bearing Cap Centre

Types 37, 40

44MOT138

A13

Crankcase Breather Elbow

Types 35, 37A, 43, 44, 51,
55

30MOT150

A55

Dynamo cradle at front of
crankcase

Type: 37 - 37MOT70

A120

Dynamo Housing

Type 44

44MOT59

A141

Dynamo Housing

Type 40

40MOT32

A8 - Oil Filler Cap
Type: Several
37MOT25

A8A - Oil Filler Cap
Type: Touring Cars

A98

Oil Filler Elbow

Type 40

37MOT24

A105

Front Engine Cover

Type 35

29/30MOT26

A150

Oil Pipe Take Off Fitting

Types 35, 37, 43

35MOT561

A147

Oil Level Cover r/h side

Types 35, 37, 43

35MOT576

Engine Parts

1.1 Crankcase Castings

A14

Cap for crankcase breather

Types: 35, 37A, 43, 44,
51, 55
30MOT151

/b>

4

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

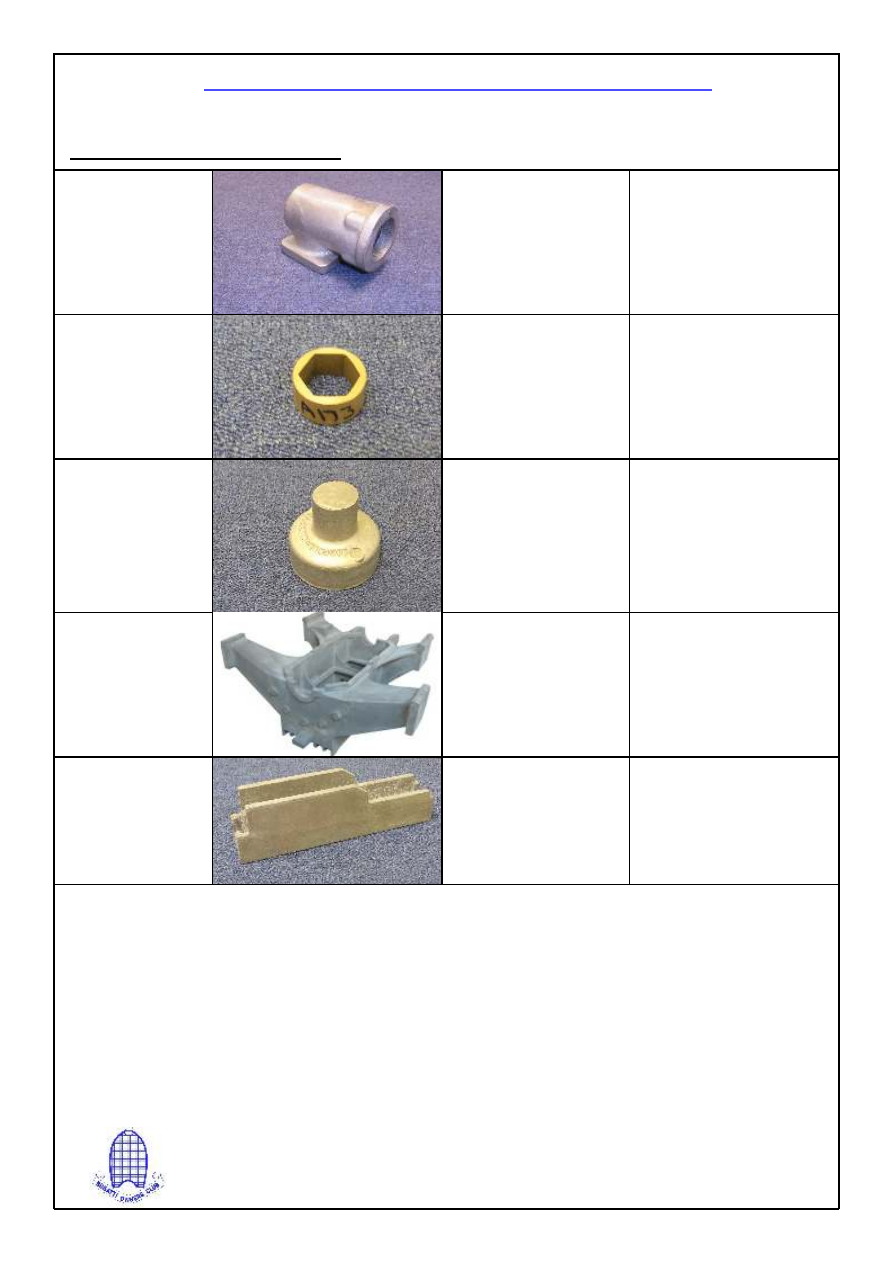

A155

Oil Level Float Casing

Suits various models

30MOT250

1.1 Crankcase Castings - continued

A173

Crank Nut Locking
Ring

Types: Several

30MOT10

A175

Marchal Dynamo
Cover - 100mm,
Aluminium

40MOT29

37MOT2

T37 Sump

A181

Interblock Cover

Types: 44, 49

28MOT47

/b>

5

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

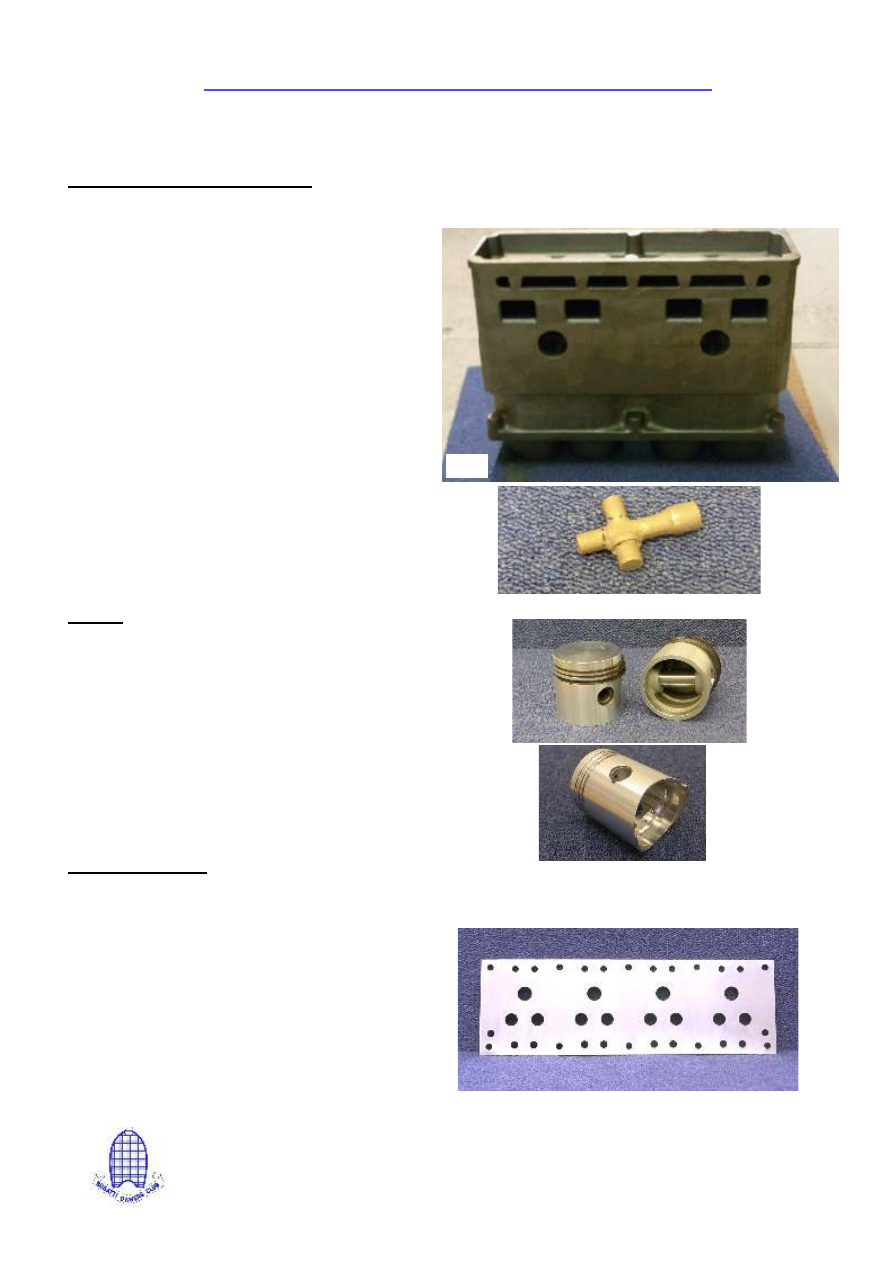

1.2 Cylinder Blocks and Pistons

Cylinder block castings for Brescia (part no 2719) are
available as the Club owns the appropriate patterns.

Bare castings are sold on the basis that an approved machine
shop does the machining under a separate contract between
the purchaser and the shop.

For Type 37 (part no 37MOT60) - machined blocks only can
be supplied.

Pistons

Type 37 forged pistons are now supplied,
both standard and oversized.

Cast Brescia and Type 37 pistons can be
supplied, both standard and oversized.

Pistons are supplied complete with gudgeon
pins and rings.

Aluminium Plates

Top of cylinder block, fully drilled

C10A

Types: 37, 40, 44, 49

C10B

Types 35, 35B, 35C, 43

C10C

Types 30, 35A, 38

A172

Cylinder block tap elbow - 30MOT160

2719

Forged

Cast

/b>

6

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

1.3 Cambox Castings

A126

Cambox Casing, less bushes

Types 30, 35, 38, 43

30AC1

A86

Lid for A126

Types 30, 35, 38, 43

30AC2

A148

Cambox Casing, less bushes

Types 37, 40

37AC1

A97

Cambox Lid (4 cylinder)

Types 37, 40

37AC2

A79A

Cover for vertical drive

Type 35

38MOT3

A17

Step up gear housing - rear

Types 35, 43

35AC42

A99

Air Pump Body (bronze)

Types 35, 37

30AC95/35AC120

A9

Water Elbow - circular flange
(machine to suit angle
required)

Types 30
30AC35/35AC35

57AC01 - Cambox Casing -
Inlet

57AC02 - Cambox Casing
Exhaust

Types 57, 59

A9B

Water Elbow - square flange

30AC35

A9C

Water Elbow - with boss

30AC35

A79

Cover for vertical drive, front
of block

Types: 37, 40

37MOT18

A56

Air pump drive housing,
bronze - rear of cambox

Types: 35A, 37

30AC46

/b>

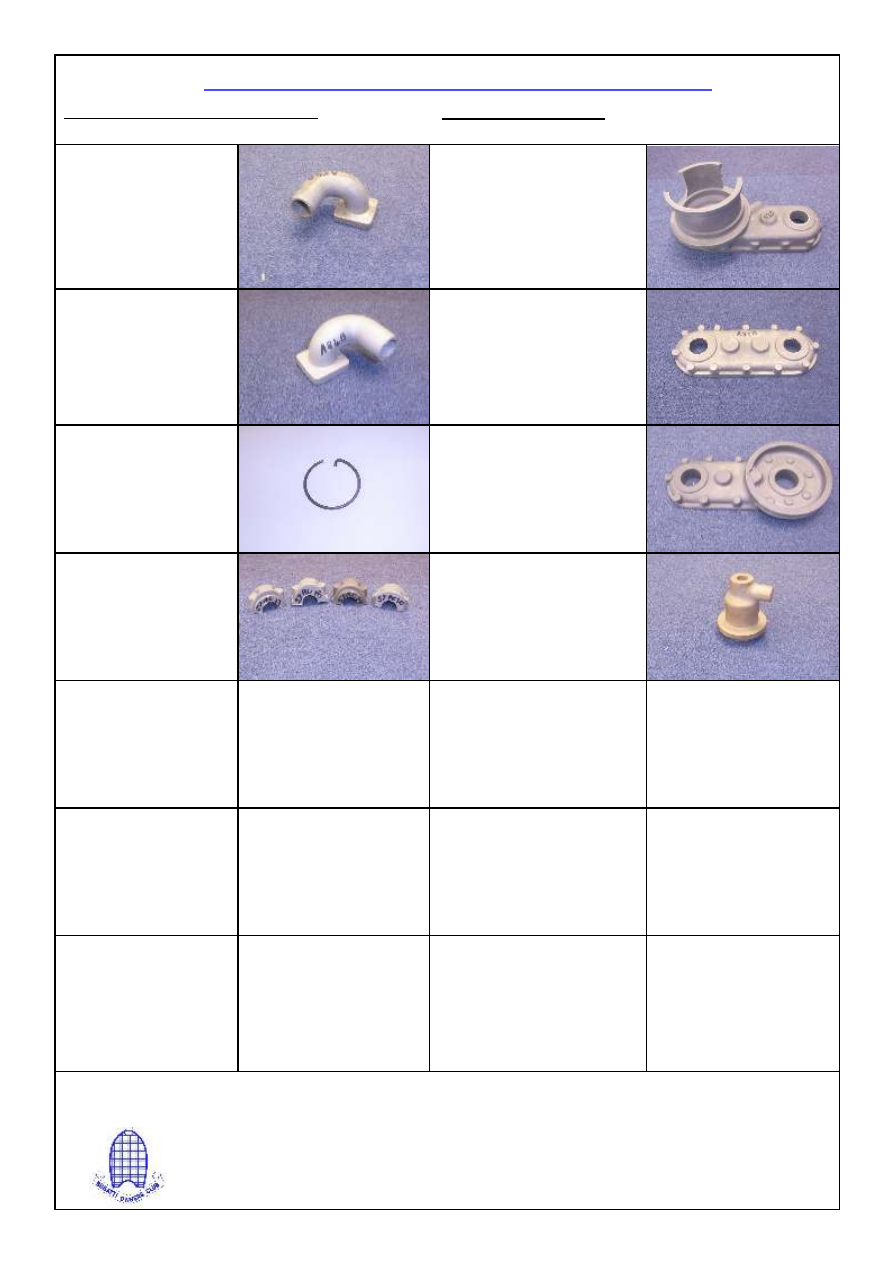

7

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

A84A

Water Elbow on cambox,
RH

Types 37, 40

40AC10

A84B - Water Elbow on
cambox, LH

Types 37, 40

40AC11

57AC17 (6 per set) - inner

57AC18 (1 per set) - front

57AC19 (1 per set) - centre

57AC20 (1 per set) - rear

C54

Circlip for Step-up gearbox

Types 35, 43

1.3 Cambox Castings - continued

1.4 Blower and Drive

A20

Blower Drive Housing - rear

Types 35B, 35C, 37A, 43, 51, 55

39COMP109

A21A

Front Cover for A20

Types 35B, 35C, 37A, 51

39COMP120

A21B

Front Cover for A20 - GP models
with dynamo

Types 43, 55

39COMP110

A16

Nose Piece on  Blower Drive
Casing - bronze

Types 35B, 35C, 37A, 51

39COMP67

Camshaft Bearing Caps

/b>

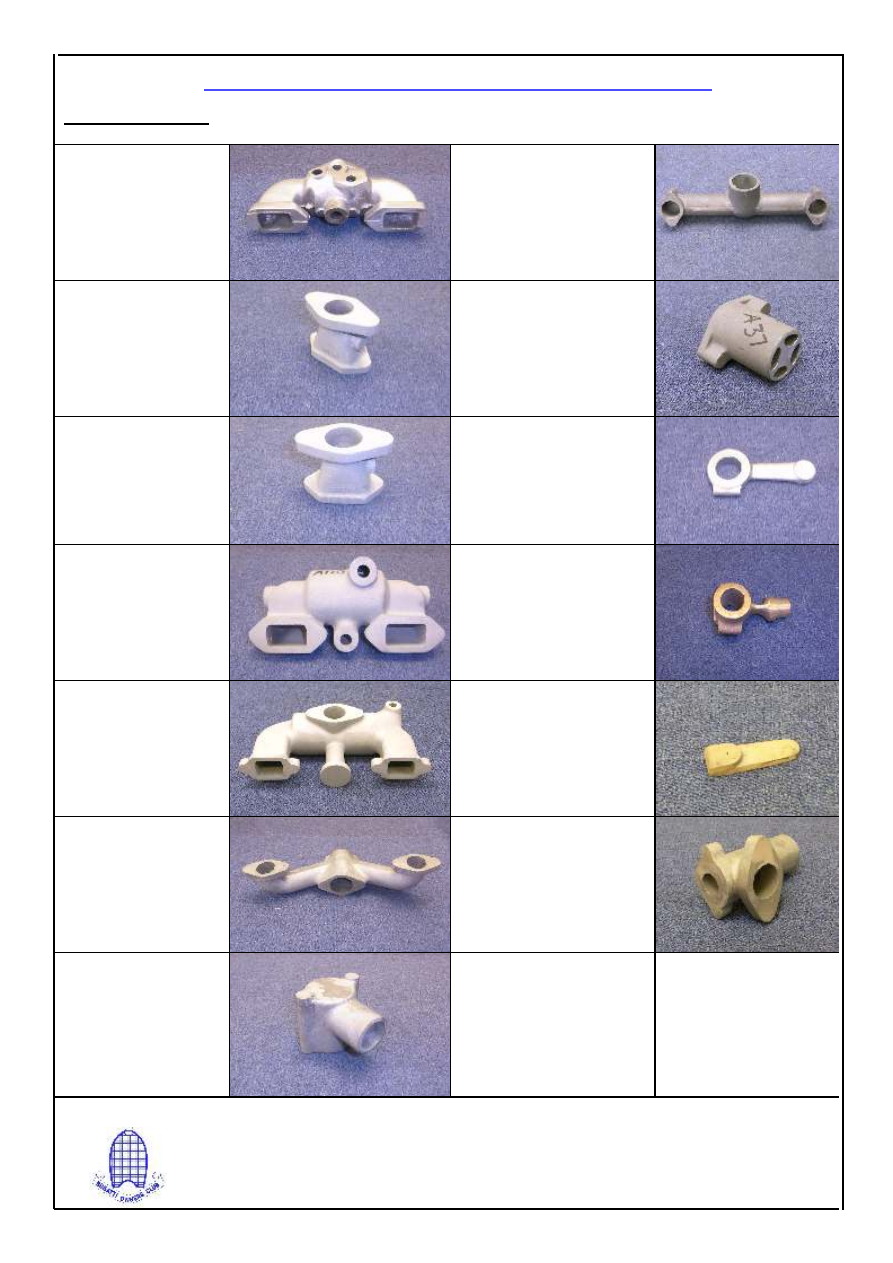

8

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

1.5 Inlet Manifolds

A131

Inlet Manifold - single carb

Type 37

37MOT81

A103

Inlet Manifold on block
(pairs)

30, 35, 38, 43

30MOT 146

A149

Inlet Manifold, later, long
type

Brescia (36mm carb)

22/23 MOT 2043

A18

Inlet Manifold - Y-piece
for blown engine

35B, 35C, 43

39COMP90

A19

Safety Valve Cap for A18

Types 35B, 35C, 37A, 43

39COMP79

A36

Inlet Manifold above Blower

Types 51, 55

51MOT10

A37

Safety Valve Housing for
A36

Types 51, 55

51MOT14

A106

Ignition Tube Support

Types 35, 43

35CH146

A145

Ignition Tube Support

Types 37

37MOT87

A170

Solex Carburettor Lever

A108

Manifold Adaptor, twin 30,
solex to block

Types: 37, 40, Brescia

A108A

Manifold Adaptor, 35
solex to block

Types: 37, 40, Brescia

A180

Inlet Elbow

Type: 37A

37MOT106

/b>

9

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

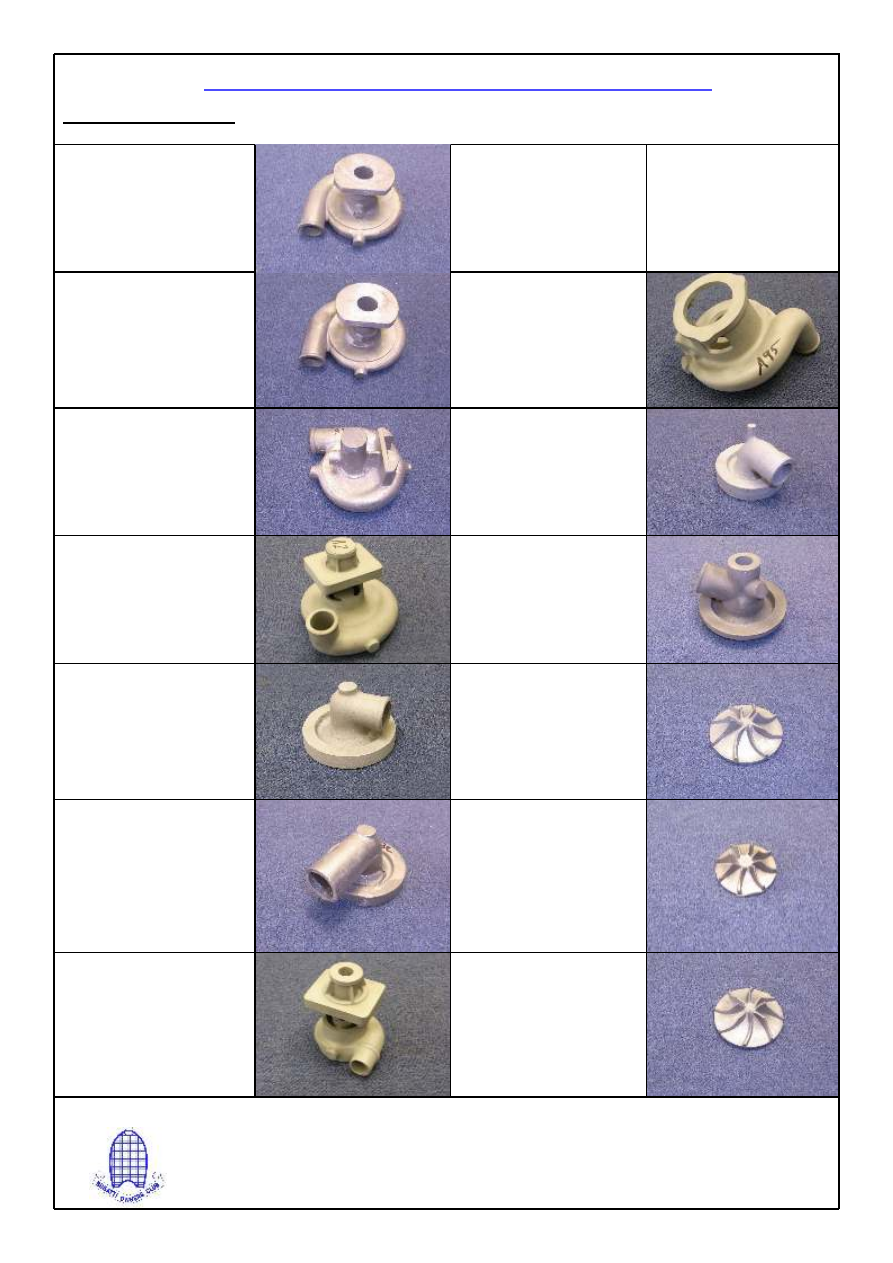

A1B

Water Pump Body

Types 51, 55

51MOT79

A1C

Water Pump Body,  Medium

Type Early 35

35MOT579

A2

Water Pump Body, Large

Type 37A

37MOT109

A3

Water Pump, Outer Cover with
water inlet connection (large)

Types 30, 35, 37A, 43, 44, 46

30MOT234

A3C

Water Pump Outer Cover

Type Early 35

35MOT582

A75

Water Pump Body, Small

Types 37, 40

37MOT29

A1A

Water Pump Body

Types 35, 43, 38, 30

30MOT228

1.6 Water Pump Parts

A118

Water Pump Body (late type)

Type 44

44MOT79

A95

Water Pump Body

Type 57

57MOT10

A76

Outer Cover for A75, alum

Types 37, 40

37MOT30

A96

Outer Cover for A95

Type 57

57MOT11

A6

Impeller, water pump, large
RH spiral

Types 37A, 44

27POMPE15

A5C

Impeller, water pump 75mm
dia

Type Early 35

35MOT581

AWAITING IMAGE

A5 - Impeller, water pump,
large LH spiral

Types 30. 35. 43. 46. 51. 55.
57

30MOT33/46MOT17

/b>

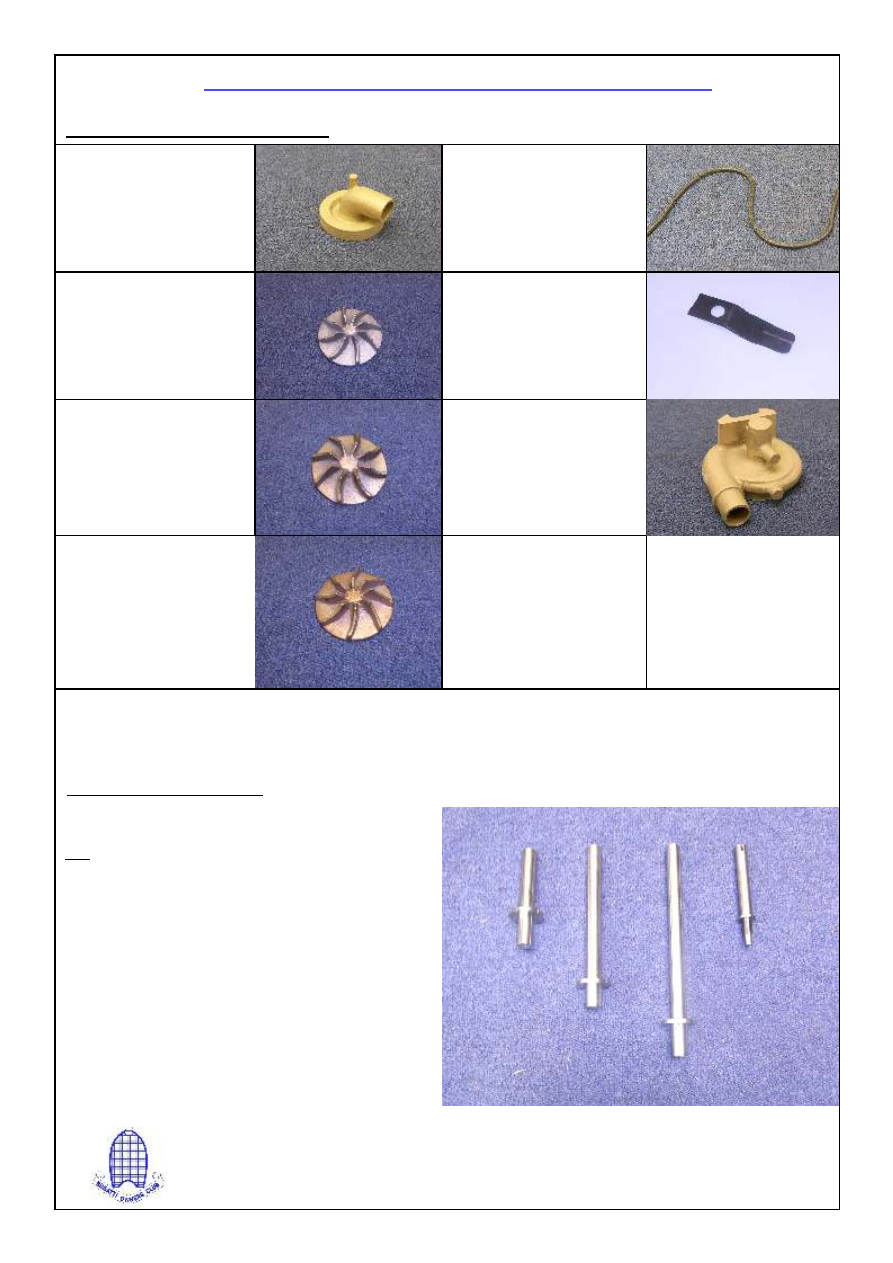

10

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

A77

Impeller, water pump, small,
RH spiral,  alum

Types 37, 40  37MOT31

A77A

Impeller, water pump, small,

LH spiral, bronze

A77B

Impeller, water pump, small
RH spiral, bronze

Types: 37, 40

37MOT31

Brescia  22/23MOT2174

Key

1 - C39A Water Pump Spindle, semi-finished, stainless steel -
105mm long -  Types 35, 43

2 - C39|B Water Pump Spindle, semi-finished, stainless steel -
165mm long - Types 37, 40

3 - C39C Water Pump Spindle, semi-finished for integral gear
stainless steel -  215mm long - Types 35, 43, 51, 55

4 - C39E Water Pump Spindle, semi-finished, stainless steel -
107mm long -  Type Brescia

1

2

3

4

C39D

Old fashioned steam packing
for water pump spindles sold in
1 metre lengths - graphited
PTFE

C57

Gland Locking Plate

Types 37, 37A, 40

37MOT104

1.6 Water Pump Spindles

A76A - Outer Cover for small
pump (bronze)

Type: Brescia

22/23MOT2173

1.6 Water Pump Parts - continued

A127

Water Pump Body

Type: Brescia

22/23MOT2172

/b>

11

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

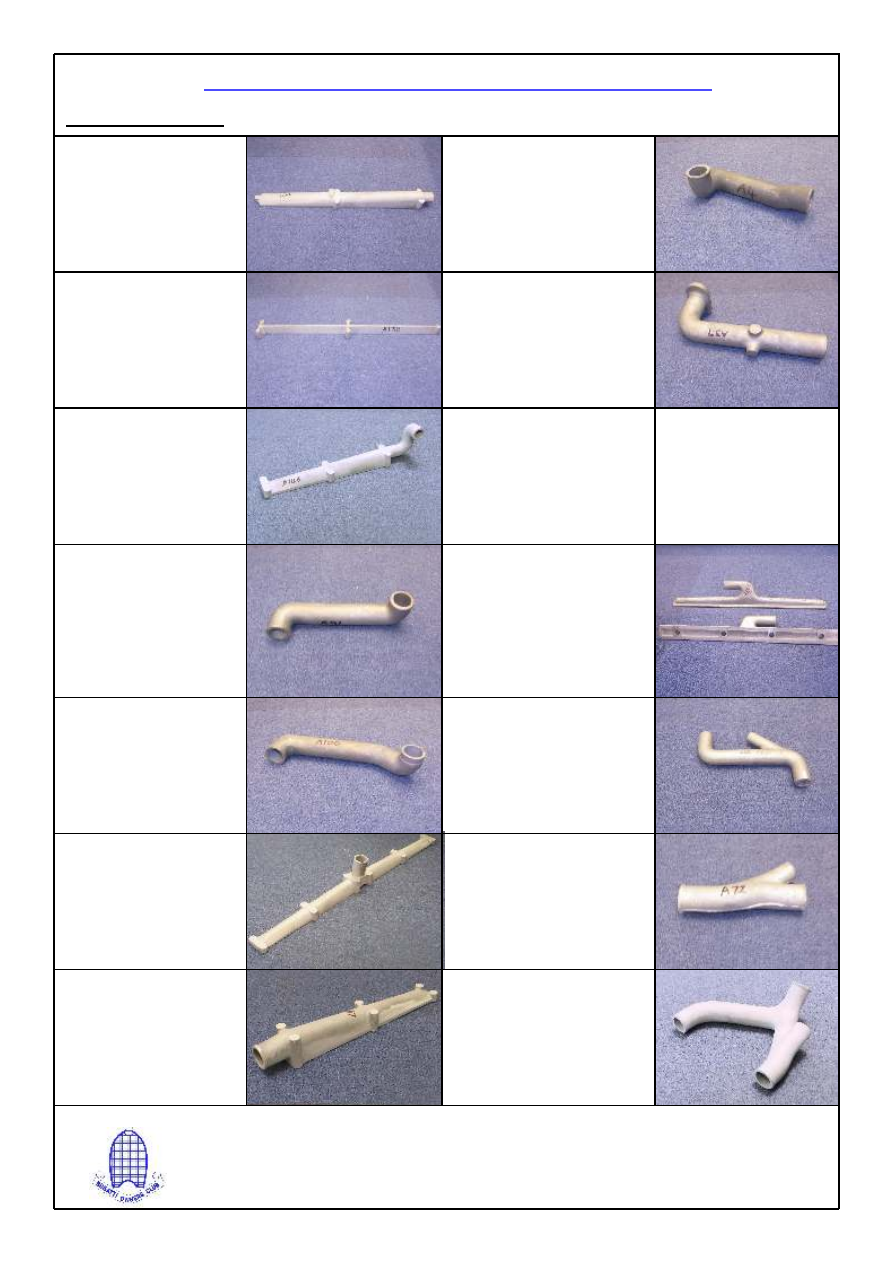

A102

Water Manifold, long RH
side of engine

Types: 30, 35, 38, 43

 38MOT38

A138

Counterpiece for A102

Types: 30, 35, 38, 43

30MOT226

A146

Water Manifold, cranked
end

Types: 37, 40

37MOT22

A91

Water Pipe, front of engine

Type: 35

38MOT4

A100

Water Pipe, front of engine,
early type

Type: 35

35MOT584

A88

Water Manifold, L/H side of
engine

Type: 44

44MOT12

A7

Water Manifold, R/H side of
engine, large inlet

Type: 37A

37MOT112

A4

Water Pipe, front

Type: 37A

37MOT113

A39

Water Pipe, lower to radiator
(solid engine)

Type 57

57MOT435

A39A

Water Pipe, lower to raditor
(rubber mounted engine)

Type 57

57CH279

A73

Water Gallery Manifold, on
block

Type 57

57MOT14

A80

Top Water Pipe., Y piece, for
thermometer

Type 57

57MOT145

A72

Top Water Pipe, Y piece, for
thermometer

Type 51

51CH22

A132

Top Water Pipe, Y piece, for
thermometer

Type 55

55CH39

1.7 Water Manifolds

AWAITING IMAGE

/b>

12

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

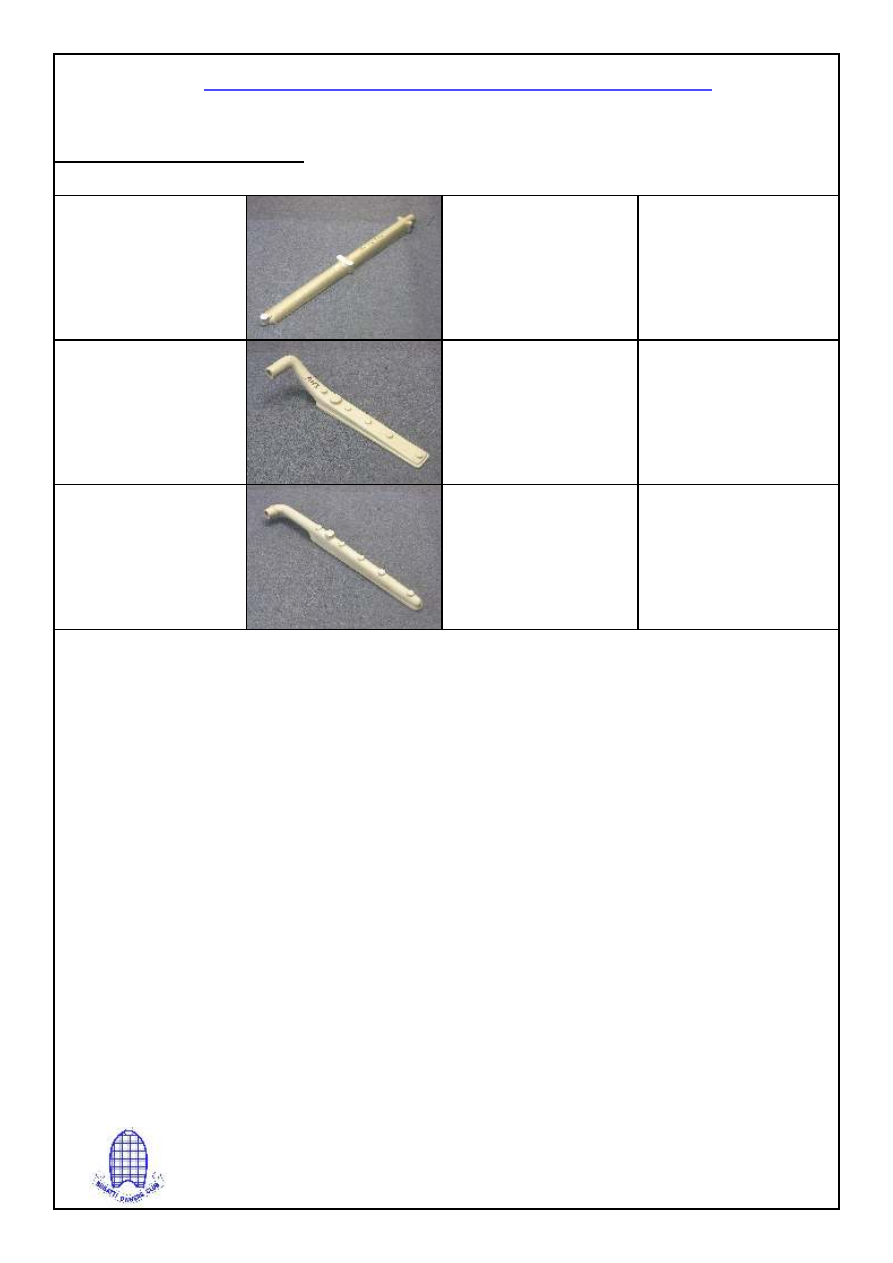

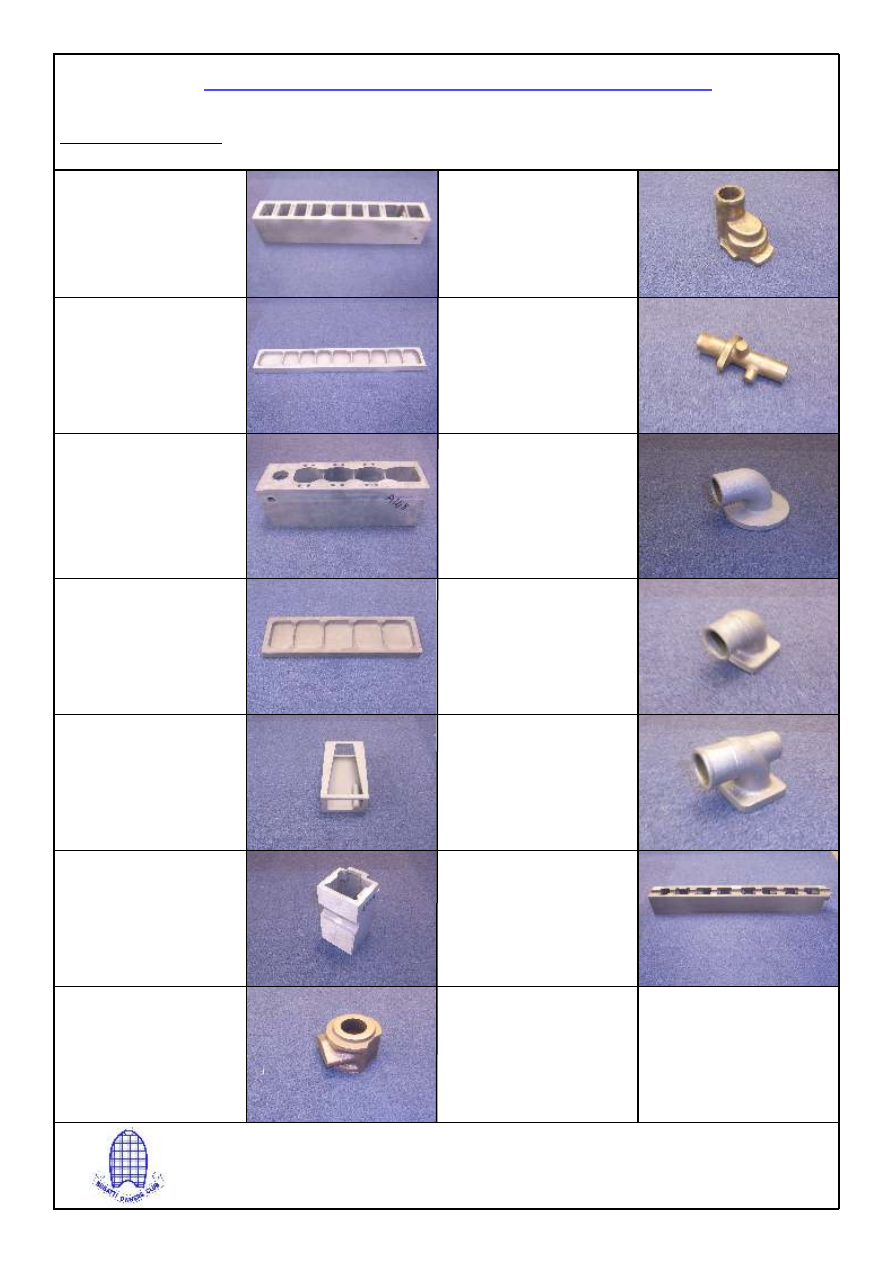

1.7 Water Manifolds - continued

A103A

Water Inlet Manifold  -
(narrow radiator)

Types: 30, Early 35

29/30MOT164

A163

Water Manifold

Brescia

22/23MOT1597

A164

Water Manifold

Brescia

22/23MOT1598

/b>

13

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

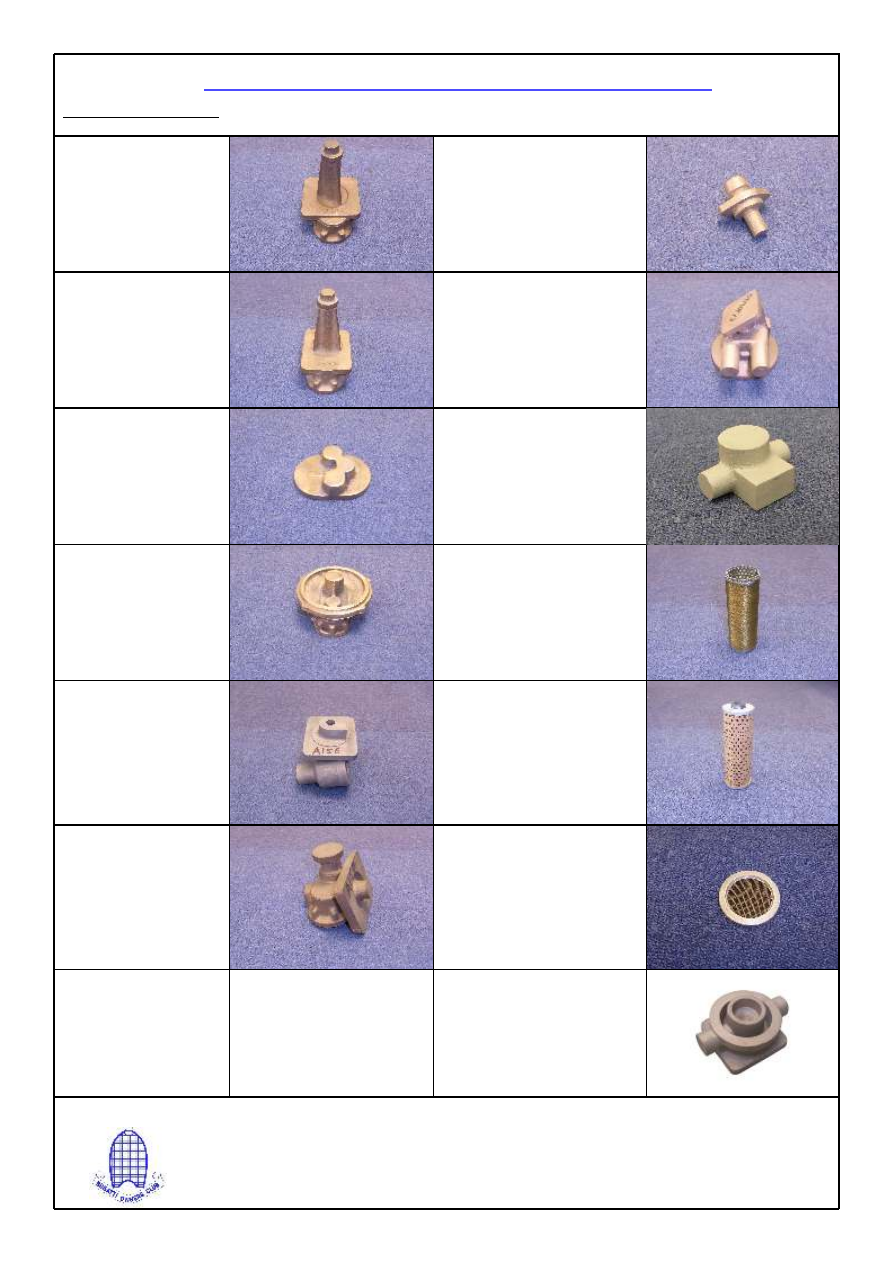

A139

Oil Pump Body

Types 35, 38, 43, 51

35MOT280

A142

Oil Pump Body

Types 37,40

37MOT39

A144

Oil Pump Body

Brescia

22/23MOT1601

A156

Oil Pump/Water Pump
Drive Housing

Type 44

44MOT71

A157

Oil Pump Body

Type 44

44MOT87

A158

Cover for A157

Type 44

44MOT89

A159

Relief Valve Cover

Type 44

44MOT124

57MOT13

Oil Filter Base

Type 57

A113

Oil Transfer Pump Body

Type GP

35CH249

1.8 Oil System Parts

AWAITING IMAGE

A140

Cover for A139 and A142

Types: 35, 37, 38, 40, 43,
51

30MOT281

C20

Purolator Oil Filter element

C20A

Oil Filter - paper

C20B

Oil Cap Filter

37MOT26

A162

Filter Base Casting

Type: 35

30MOT332

/b>

14

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

1.9 Engine Gears

46MOT93

Oil Pump Drive, fibre

Types 46, 50

57AC53

Camshaft Gear, fibre

57, 57C

57MOT317

Camshaft Gear, lower
intermediate, fibre

Type 57

1.10 Ball Races

Key

1 - 4207 - Output Shaft

2 - 98205 - Advance/Retard Yoke

3 - 6208 - Rear Hub

4 - 98209 - Inside Clutch

5 - 98202 - Vertical Drive - awaiting photo

  1

2

  3

4

57SCMOT4

Camshaft Gear, lower
intermediate, steel

Type 57S, 57C

57MOT318

Intermediate Camshaft Gear

/b>

15

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

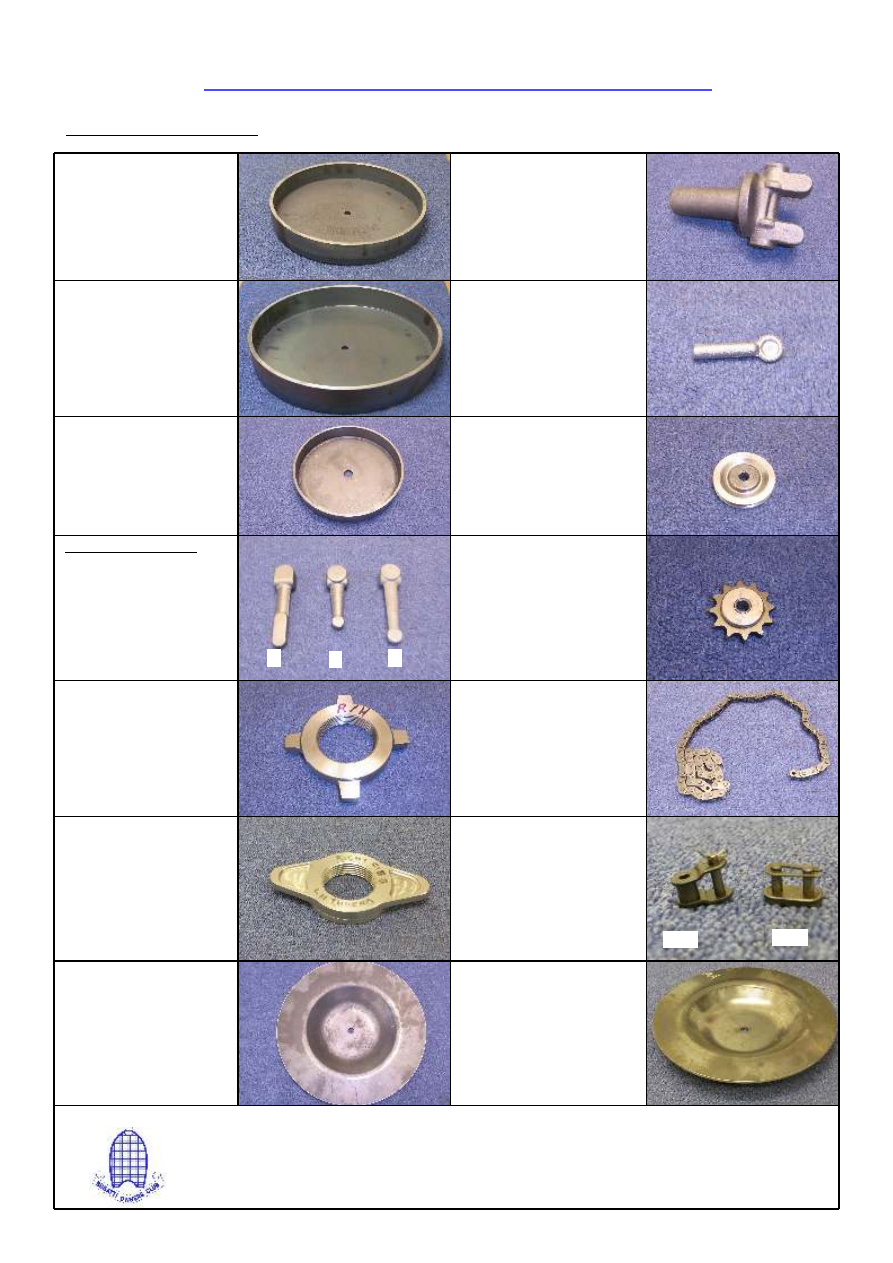

2.  Axles, Wheels, Brakes

C35A - Brake Drum
Pressing, 270mm dia

Types: Brescia, 35A, 37, 40

35PA100

C35B - Brake Drum
Pressing, 330mm dia

Types: 35A, 37 44, 49

C35C

Shock Absorber Drum

35AMORT1

C15A/L (left hand thread)

C15A/R (right hand thread)

Wheel Nut - 4 eared

35CH71

C15B/L  (left hand thread)

 C15B/R (right hand thread)

Wheel Nut - 2 eared

29/30EA60

C44

Stub Axle Forging,

Types GP, Brescia

35ESSAV1

Brake Lever Forgings

A - C23 - Universal

B - C23A Short (75mm
centres)

C - C23B Long (95mm

A

B

C

C46

Front Brake Backplate
Spinning - large brakes

Types GP, 43

43EA2

C47

Brake Cable Eye Forging

Type: Several

30CH237

C48

Brake Pulley

Type: Several

30CH250

C49

Brake Sprocket

Type: Several

30CH251

C50

Brake Chain (per foot)

Type:  Several

C50A

Split Link

C50B

Half Link

C51

Front Brake Backplate
spinning, small brakes

Types Brescia, 37

22/23EA2347a

C50B

C50A

/b>

16

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

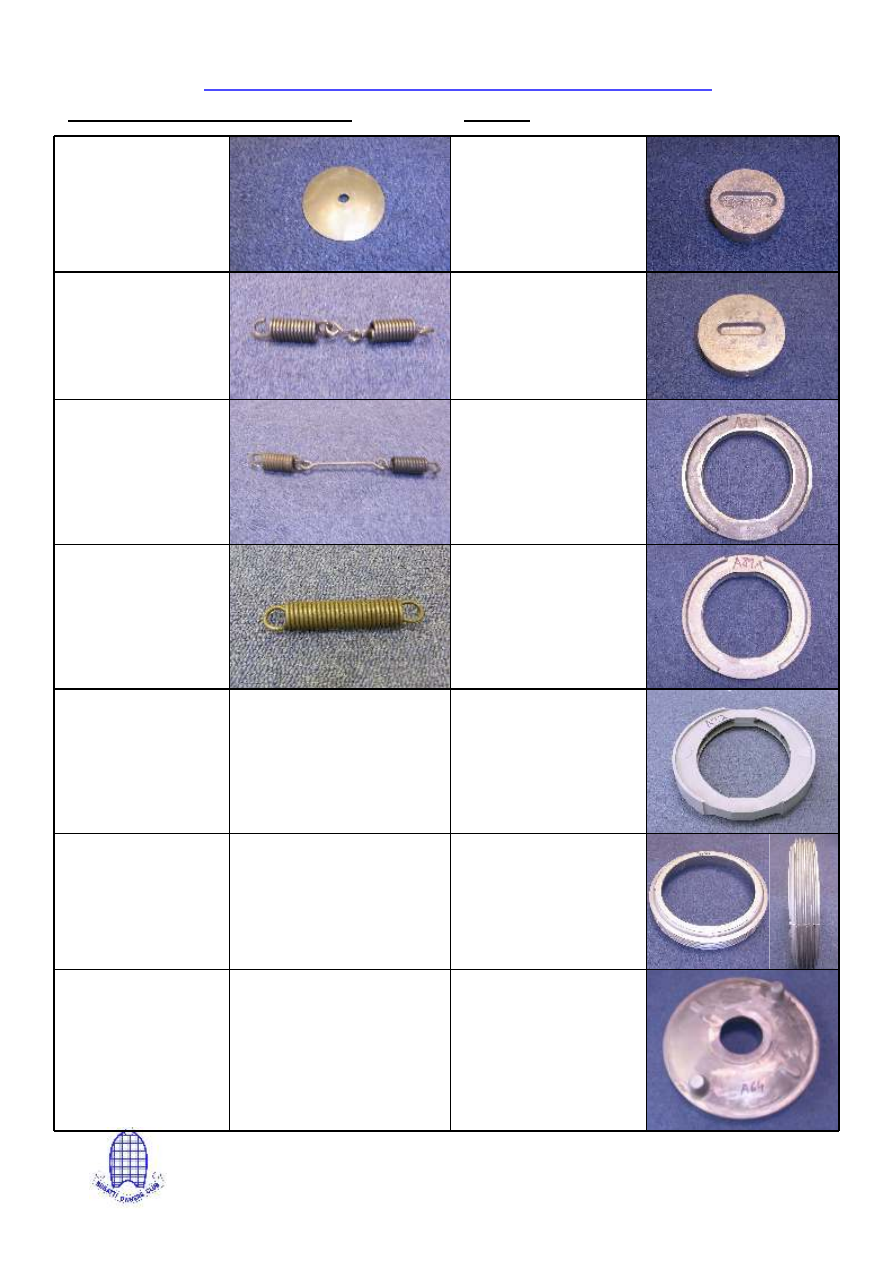

A11

Hub End Cover - Small

Types 35A, 37, 40, 44, 49

A12

Hub End Cover - Large

Types 35, 43, 51, 55

35CH501

A89 Brake Shoe, double, cast
iron - machines to 2 widths,
270mm brakes

Types 35A, 37, 40, Brescia

35PA21

A89A Brake Shoe, double,
aluminium - machines to 2
widths, 270mm brakes

Several

43PA15

 A128

Brake Drum Fin Ring
Casting,, large brakes

Types 44, 49, some 37

44EA2

C67 - Brake Shoe Spring
Assembly

270mm brakes

Castings

2. Axles, Wheels, Brakes  - continued

A32 - Brake Shoe Ring,
makes 2, aluminium, for
330mm brakes

Types: Several

43PA15

A64

Back Plate for rear brakes,
330mm.

Types 35, 43, 51

C68 - Brake Shoe Spring
Assembly

 330mm brakes

C71

Brake Shoe Spring
(spring only)

Type: Brescia

22/23PA367

C64

King Pin Pulley Cover
Disc

Types: Several















Content      ..       1      2     ..
