BUGATTI REPLACEMENT PARTS CATALOGUE

BUGATTI REPLACEMENT PARTS CATALOGUE - 2

/b>

17

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

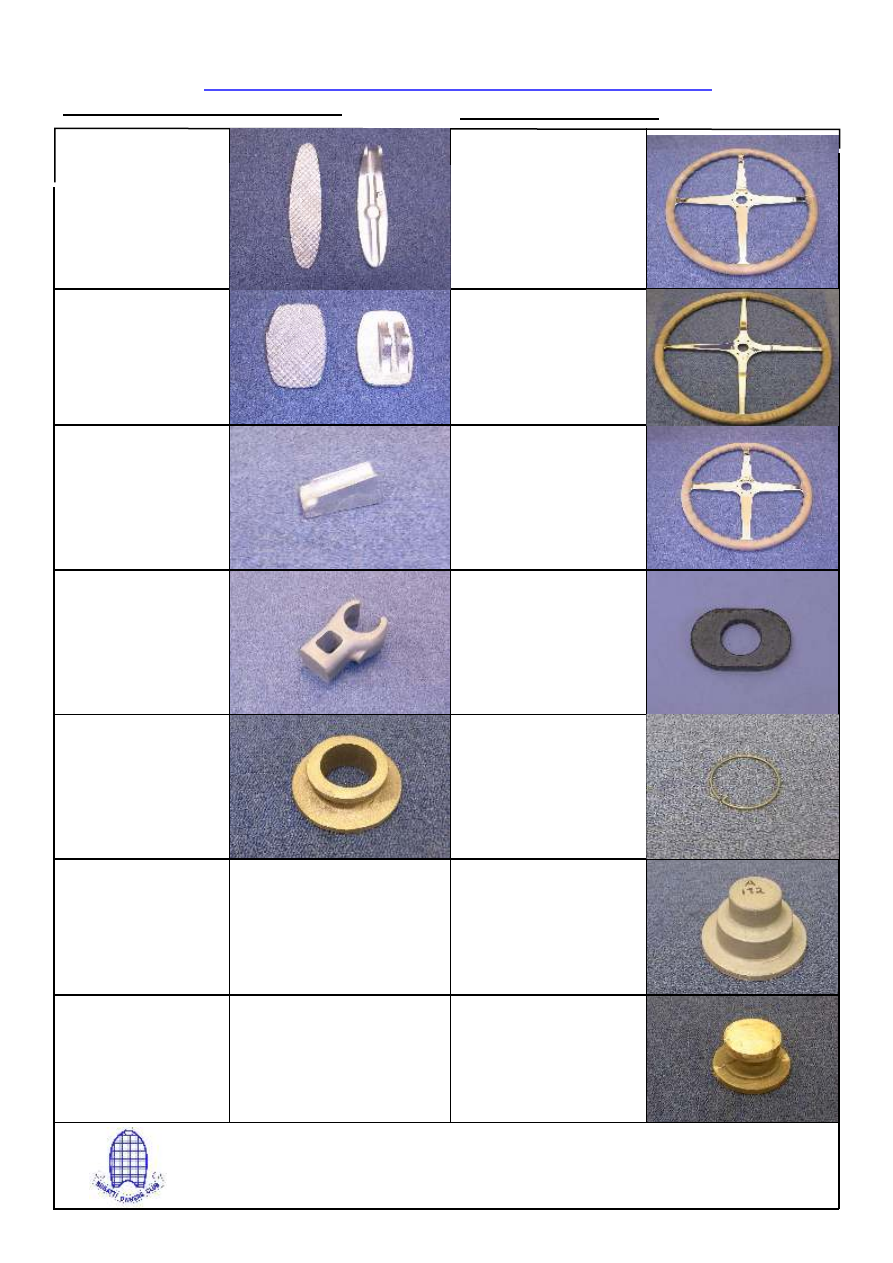

A101

Jacking Wedge, rear axle

Types 35, 51, 37

35PA14

A121

Jacking Pad on rear axle

Types; Touring

30PA118

2. Axles, Wheels, Brakes - continued

A45

Brake Pedal Pad

Types 35, 37, 51

35CH147

A82

Brake Pedal Pad

Types - touring cars

30CH279

3. Steering Parts/Castings

C18

Steering Wheel, nickel plate
centre, walnut rim

Type:  GP

30DIR26

C18A

Steering Wheel

Type:  57

57DIR10

C18B

Steering Wheel

Type: Brescia

22/23DIR19

C56

Oval Washer for steering and
drop arms

C63

Wire Circlip for steering box

Type: 35

A143

Thrust Collar, rear axle,
H/T bronze

Types:  Several

30PA143

A182

Steering Column Bracket

Types: 38, 40

38DIR6

A184

Steering Box  End Cover

Types: Touring Cars

33DIR40/33DIR12

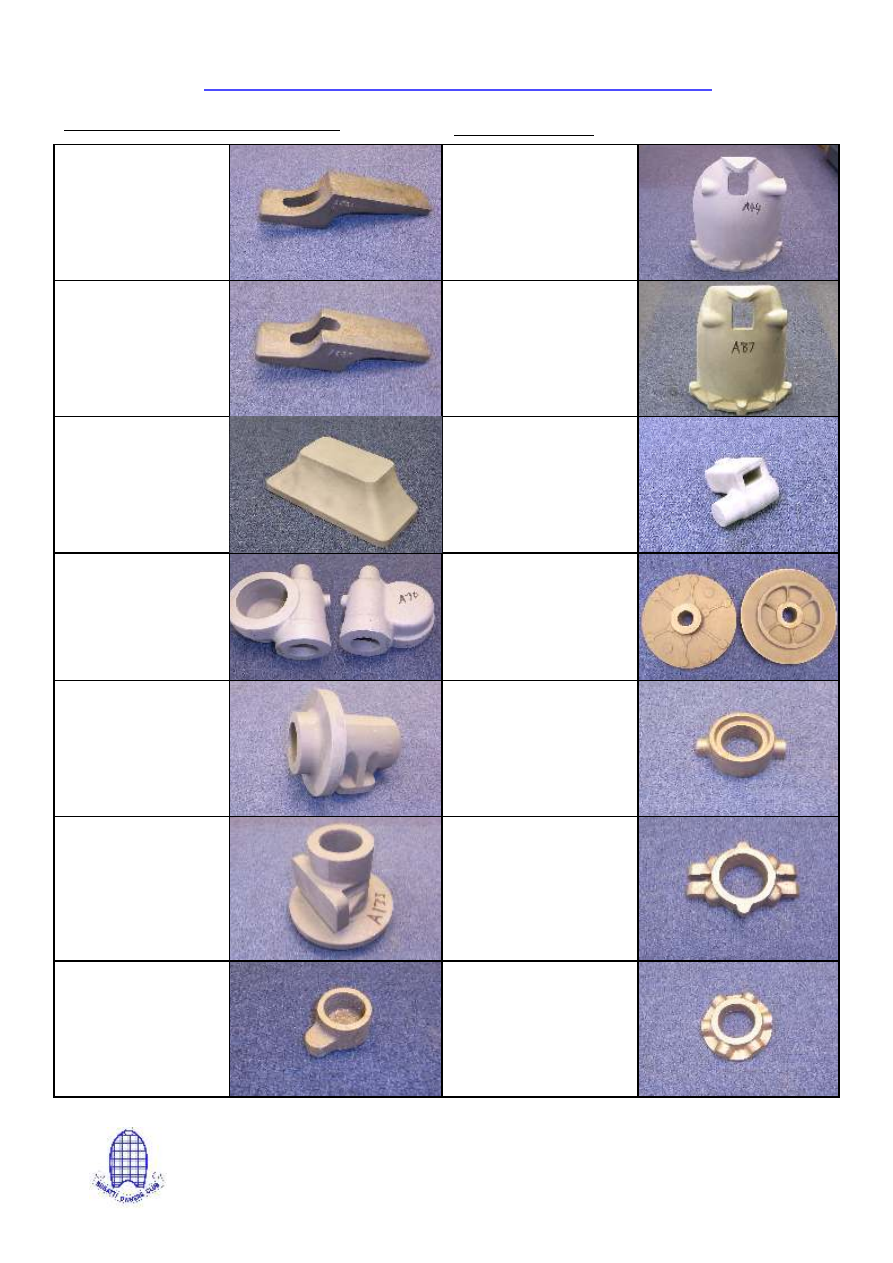

/b>

18

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

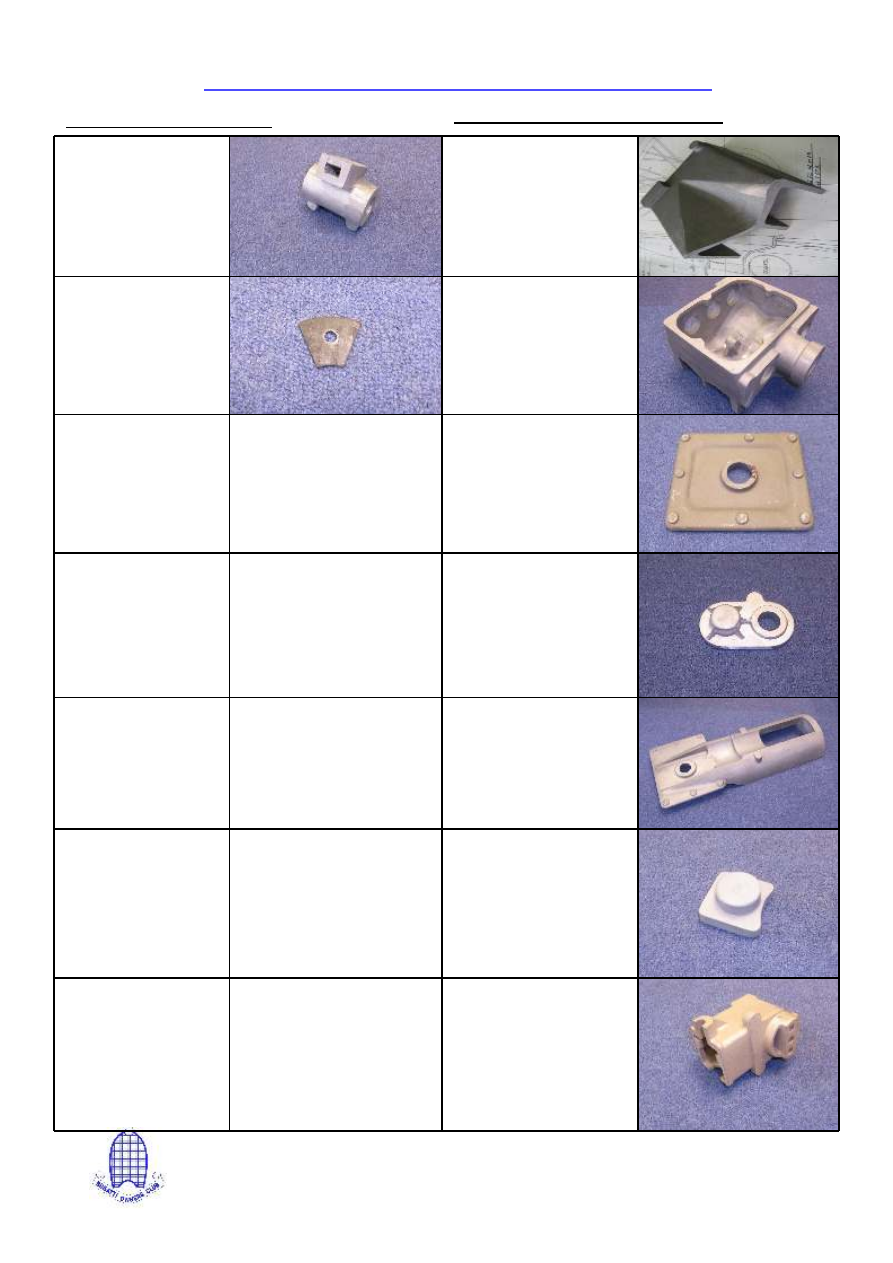

A38A

Steering Extension
Bracket (cast iron)

Type:  37A

37CH40

Steering Parts/Castings - continued

A38B

Steering Extension bracket
(cast iron)

Types:  35B, 35C, 51

39COMP105

A110

Steering Box Distance
Block

Type: 44

38ADIR1

A70

Steering Box Housing

Types:  35, 37, 51

35DIR31

A71

Cover for A70

Types: 35, 37, 51

35DIR4

A133

Steering Box Cover

Types:  Touring

33DIR4

A137

King Pin Pulley Cover

Types: Several

30EA71

4. Clutch Castings

A87

Clutch Tray below flywheel

Types: 35, 51

35EMB38

A74

Clutch Yoke Swinging Block

Types: 35, 37, 51

A123

Clutch Cover (bronze)

Type: Brescia

30 EMB 5

A85

Clutch Yoke Trunnion, early
cars, bronze

Type: Brescia

30EMB11

A153

Sliding Lever Yoke (bronze)

Types: Several

30EMB16

A154

Adjusting Nut (bronze)

Types: Several

30EMB15

A44

Clutch Tray below flywheel

Types: 37, 37A

37MOT73

/b>

19

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

A83

Clutch Yoke Swinging
Block

Types: 44,49

44CH7

C52

Clutch Bearing Retaining
Plate

Types: 35, 37

5. Gearbox, Transmission Castings

A25

Gearbox Casing, GP

Types: 35, 37, 51

35CV4

A26

Gearbox Lid for A25, A130

Types: 35, 37, 51, 30, late
Brescia

30CV72

4. Clutch parts - continued

A34

Gearbox Top with provision
for starter motor.

Types: 35, 37

35CV72

A27

Front Cover for A25

Types: 35, 37, 51, 30, late
Brescia

30CV36

A28

Layshaft End Cover for A25

Types: 35, 37, 51, 30, late
Brescia

30CV41

A29

Selector Box Housing for rear
of A25 (bronze)

Types: 35, 37, 51, 30, late
Brescia

30CV60

A130A

Brescia Gearbox Casing
Repair or GP Gearbox
Conversion to Brescia

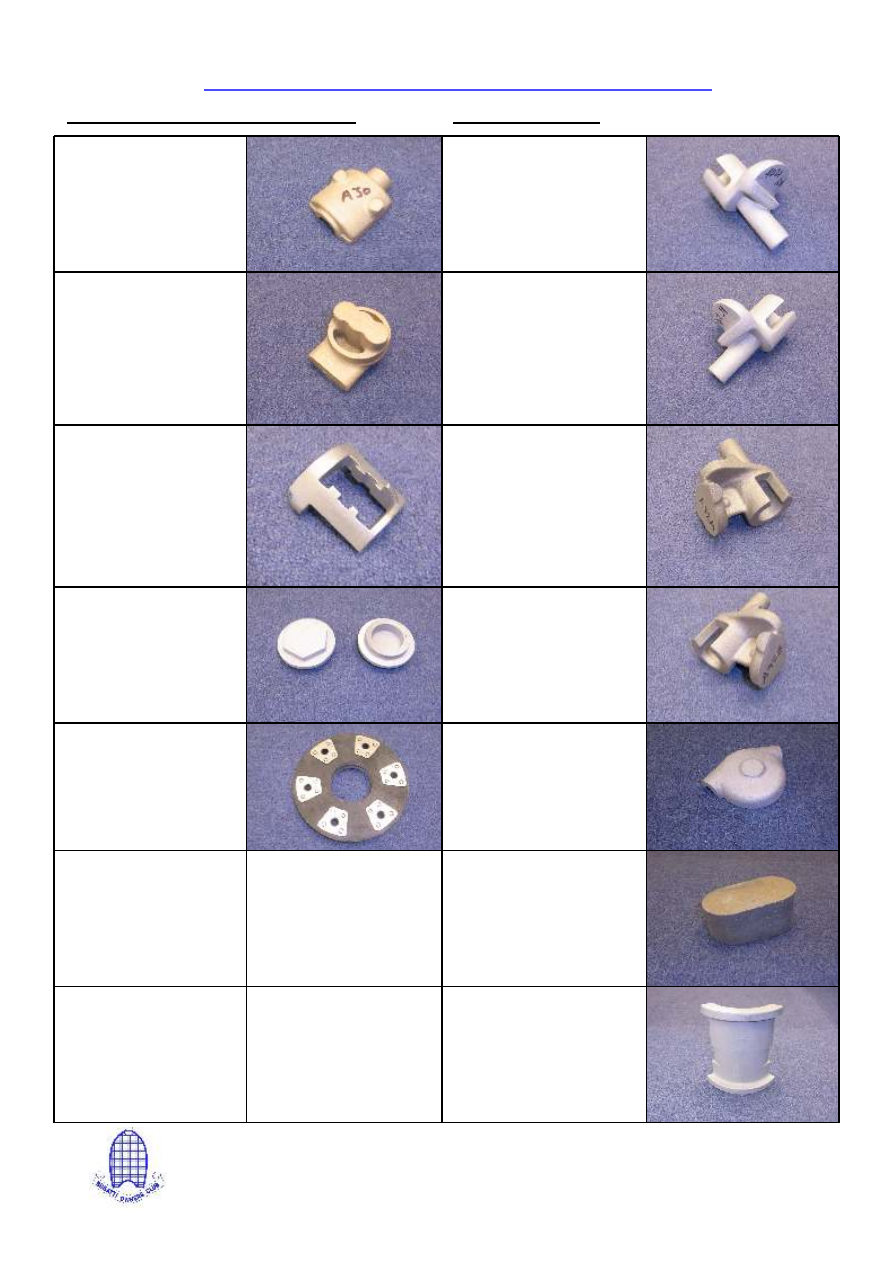

/b>

20

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

5. Gearbox, Transmission - continued

A30

Top Cover for A29 (bronze)

Types: 35, 37, 51, 30, late
Brescia

30CV63

A31

Front Cover for selector rods
and spring detents

Types: 35, 37, 51, 30, late
Brescia

30CV56

A23

Gear Lever Gate, stainless
steel casting

Types: 35, 37, 51, 30, late
Brescia

30CH49

A122

Gearbox Filler Nut

Types: 35, 37, 51, 30, late
Brescia

30CV65

C33

Propeller Shaft Coupling

Types: several

57PA152

6. Chassis Castings

A42A

Front Spring, rear hanger - R/H

Types: 35, 37, 51

35CH18

A42B

Front Spring, rear hanger - L/H

Types: 35, 37, 51

35CH16

A92A

Front Spring, rear hanger - R/H

Types: Touring cars

38CH11

A92B

Front Spring, rear hanger - L/H

Types: Touring cars

38CH12

A93

Cover for A92

Types: Touring cars

38CH13

A49

Distance Block, rear shock
absorber

Types@ 35, 37, 51

35CH14 (R/H) 35CH14a (L/H)

A10

Magneto Cradle on dash

Types: 35, 37A, 43, 51, 55

35CH75

/b>

21

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

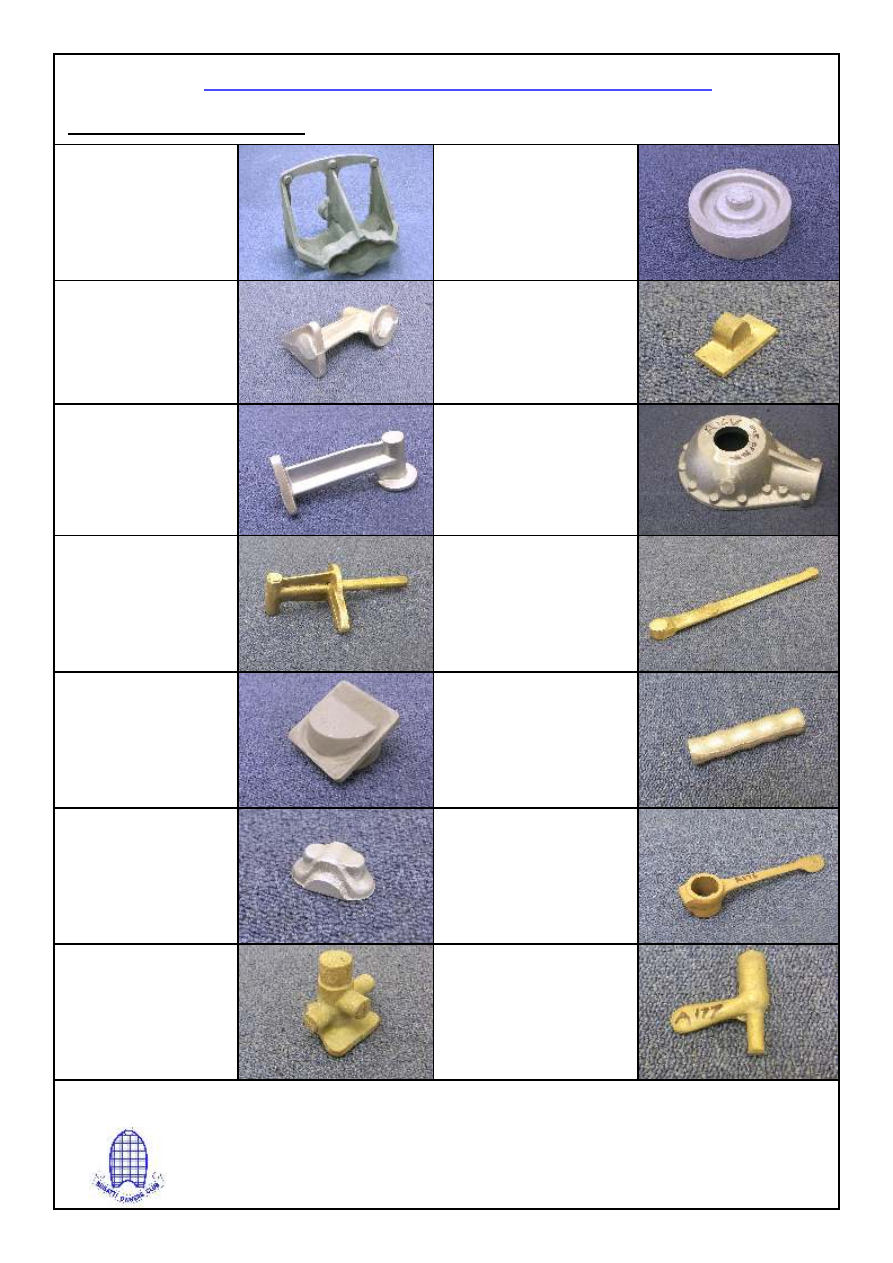

6. Chassis Castings - continued

A58

Magneto Cradle, twin type,
on dash

Type: Brescia

BR1

A47 - Aluminium Bracket
(short) for A-R mechanism

Types: 35, 43

35AC102

A48 - Aluminium Bracket
(long) for A-R mechanism

Type: 37A

37AC17

A46 - Bronze Pivot for
A-R lever

Types: 35, 37A

35AC101

A50 - Steering Column
Bracket on dash

Types: 35, 37, 51

35CH74

A104 - Accelerator Lever
pivot block

Types: 35, 37, 43

35CH169

A107 - 3-way Air Valve
Body (bronze)

Type: 43

43CH21

A15 - Tacho Pulley

Types: 35, 37A, 43, 51

35AC63

A78 - Bonnet Hinge Bracket
(bronze)

Types: Several

30CH91

A166

Rear Axle Casing

Brescia

T22/23PA1039/40

A174 - Starting Handle Grip
- Aluminium

Types: Several

35CH79

A171

Throttle Pedal Lever - bronze

Types: GP Cars, T43

35CH199

A176

Advance/Retard Lever -
36mm or 40mm (later type)

Type: 40
38DIR2/38DIR22

A177

Marchal Switch Lever

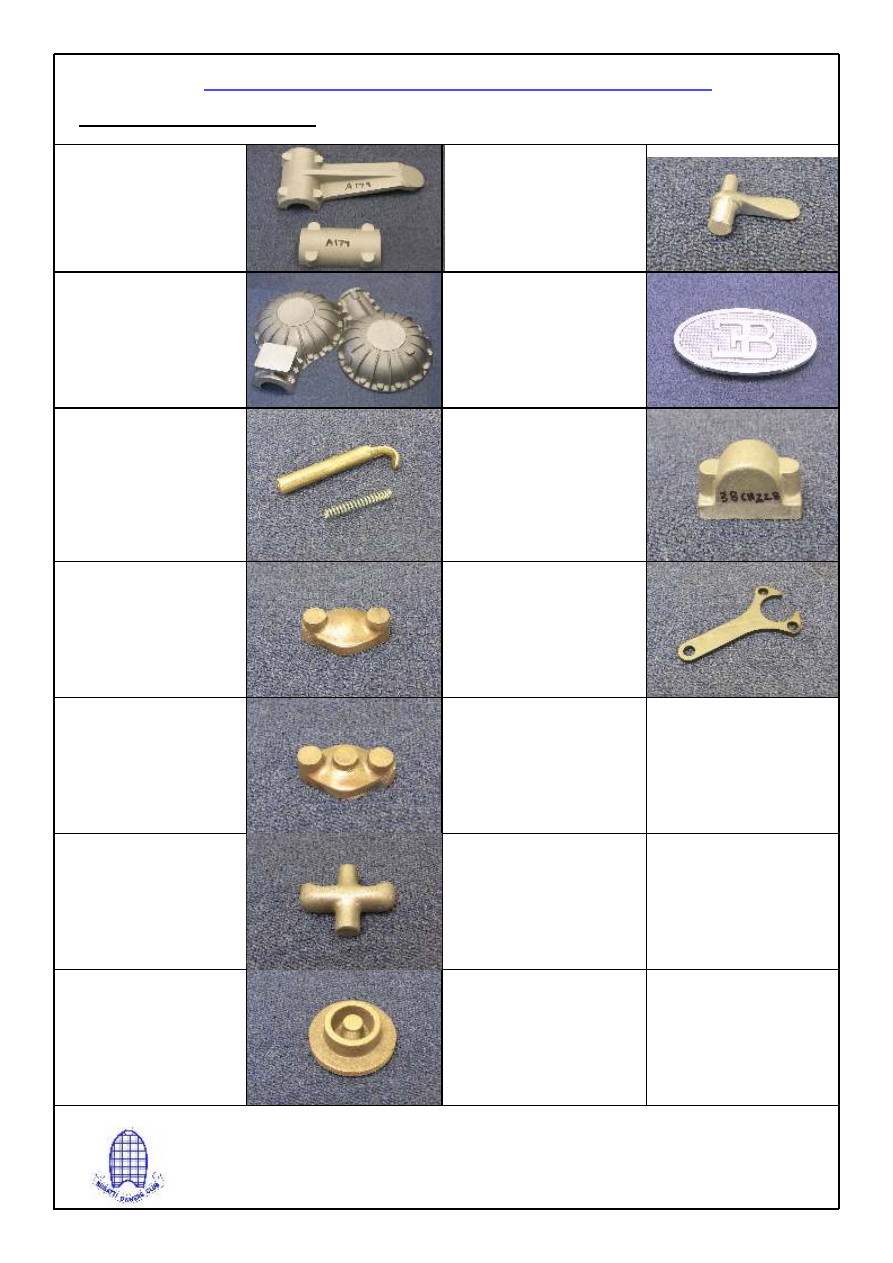

/b>

22

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

6. Chassis Castings - continued

A179

Spare Wheel Carrier
(2 part casting)

Brescia

57 PA61/62

Differential Housing

Type: 57

A111

Bonnet Catch Casting
(with spring)

A24A

Bronze Cup for radius
rod without greaser

Types: 35,37,51
35CH67

A24B

Bronze Cup for radius
rod without greaser

Types:: 35,37,51
35CH153

A62

Air Pump Handle

Type: Several

A63

Air Pump End Flange

Type: Several

A124

Switch Lever (aluminium)

Types: Various

A167

Aluminium Footplate

260mm x 130mm

A183

Handbrake Crosstube Bearing
2 per car

Types:: 38, 40, 44, 49

38CH228

C62

Steel Radius Rod Brackets

Types: 35, 37, 51

35CH68

/b>

23

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

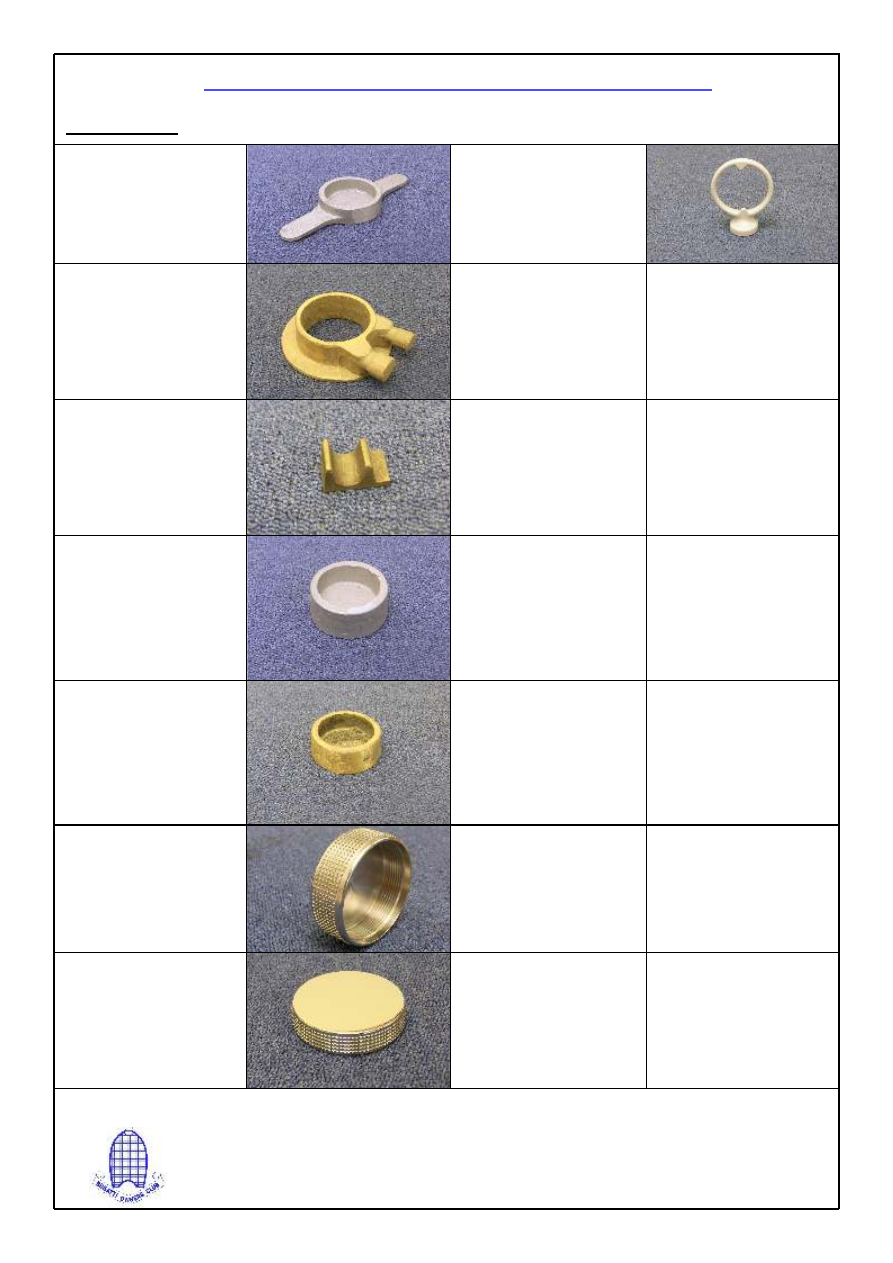

Tank Castings

A33 - Tank Cap, eared, GP

Types: 35, 37, 51

35CH12

A40 - Fuel Tank Collar,
GP (bronze)

Types: 35, 37, 51

35CH457

A41 - Fuel Tank Saddle
pieces, GP (bronze)

Types: 35, 37, 51

35CH330

A59 - Tank Cap, not eared,
aluminium alloy

Type: Touring

38CH150

A60 - Radiator Cap, for
65mm thread (not T57),
bronze

Types: Several

30CH73

A60 MACH -  Radiator
Cap, as above but fully
machined.

Types: Several

30CH73

A61

Boyce Ring Casting
(part of  kit C11)

Type: Several

A60MACH - T57

Radiator Cap - fully
machined

Type: 57

/b>

24

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

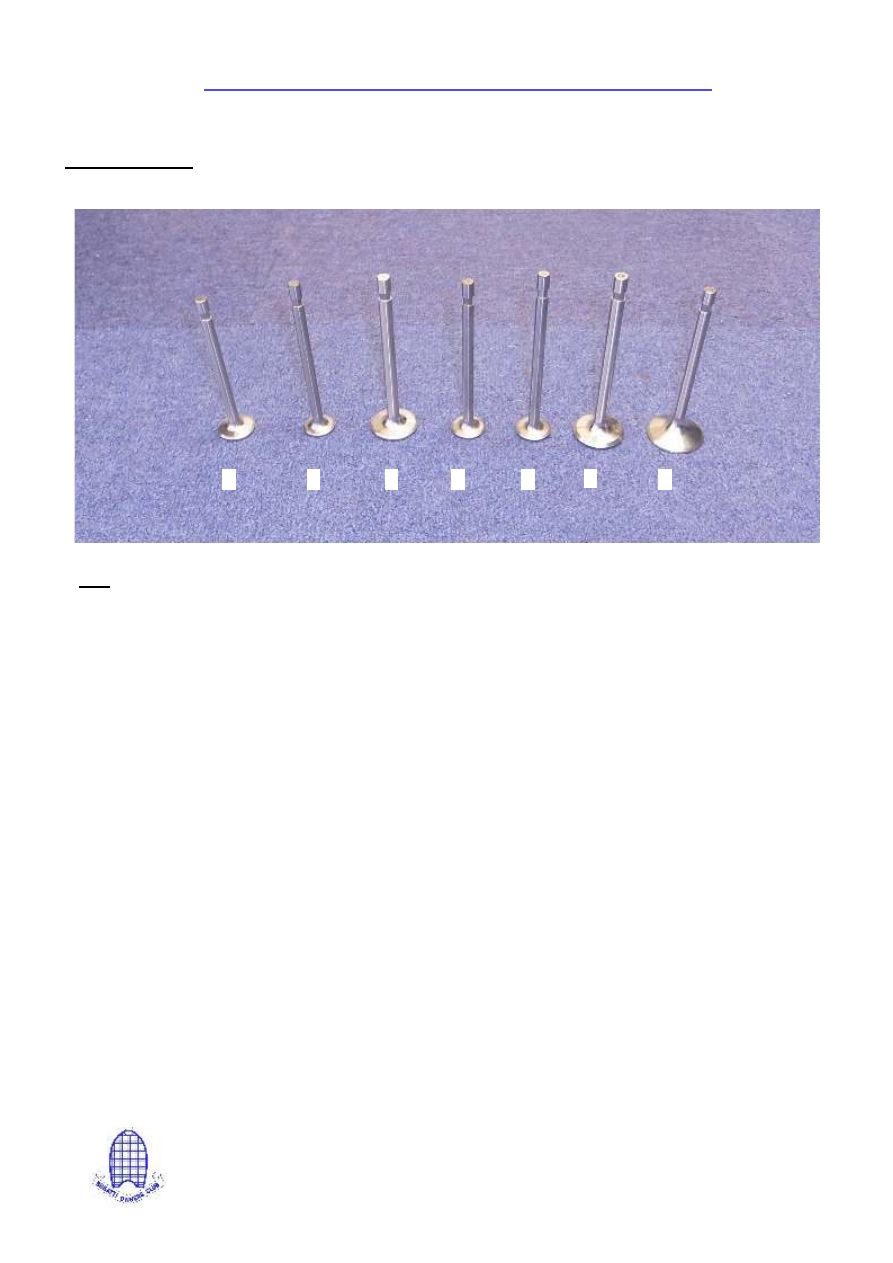

7. Engine Valves

Key

1 - G1- 2 -   Inlet and Exhaust valve (all exhaust quality) -16 per block

                     28mm dia, stem 8, length 113.5mm, 30°

2 - G1-3I -    Inlet valve for 60mm blocks (not T30 or 38) 8 per block

                     23.5mm dia, stem 8, length 123mm, 30°

3 - G1-3E -   Exhaust valve for 60mm blocks (not T30 or 38) - 4 per block

                     35mm dia, stem 9, length 125mm, 30°

4 - G1-3AI - Inlet valve for 60mm blocks - 8 per block

                     25.5mm dia, stem 8, length 123mm, 30°

5 - G1-4I -    Inlet valve for 69/72mm blocks - 8 per block

      26mm dia, stem 8, length 130mm, 30°

6 - G1-4E -  Exhaust valve for 69/72mm blocks - 4 per block (x2 for 8 cylinder cars)

                   37mm dia, stem 9, length 131mm, 45°

7 - G1-7 -    Inlet and exhaust valve (all exhaust quality) - 16 per block

                    41mm dia, stem 8, length 122.75mm, 45°

1

2

3

4

5

6

7

Type: Brescia

Types: 35, 43

Types: 35, 43

Type: Late 35

Types: 37, 40, 44, 49

Types: 37, 40, 44, 49

Type: 57

Note - coming soon - Type 51 valves. Part No G1-6

/b>

25

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

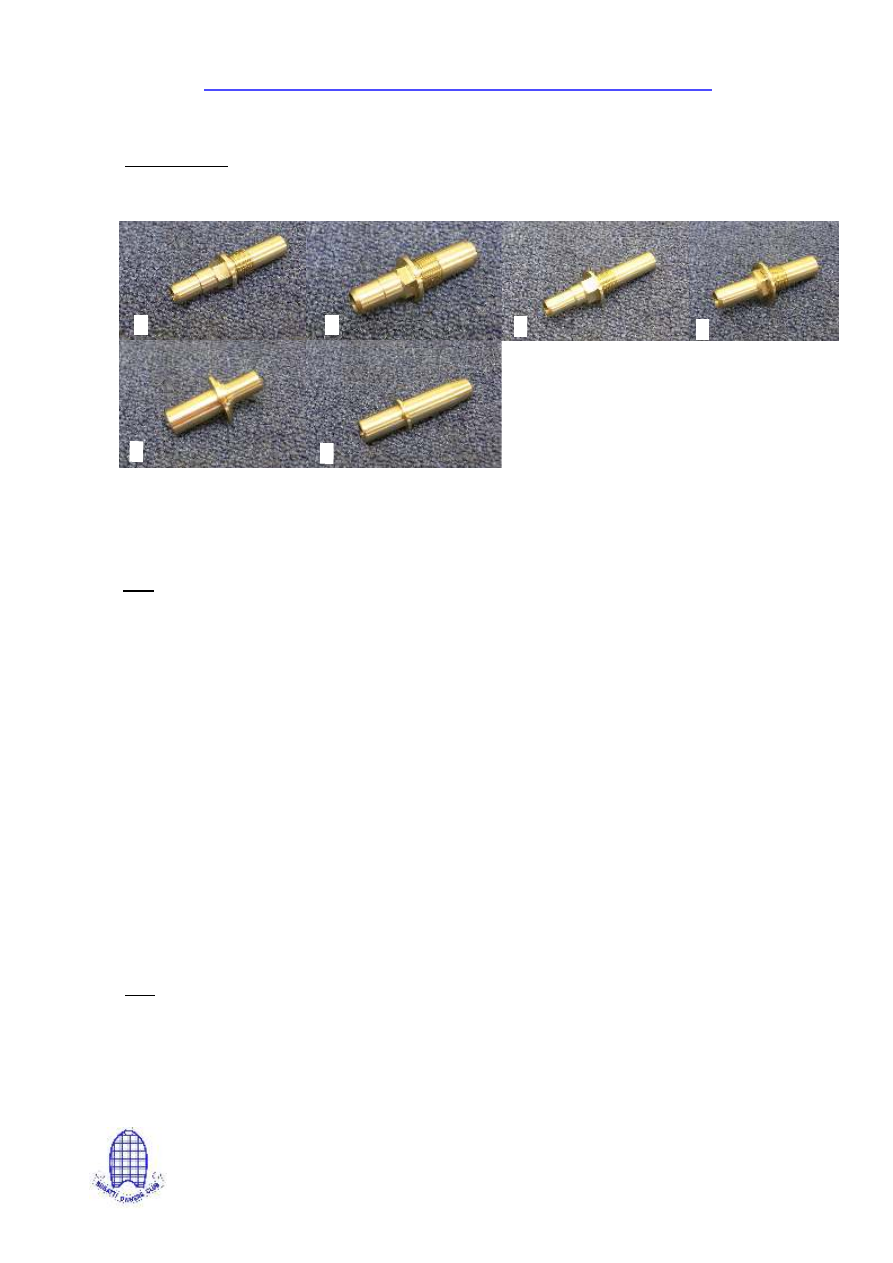

1 - G2-3I

Inlet guide for valve G1-3I of G3-AI - 8 per block
19mm dia, length 67mm, thread 14 x 1.25

Types: 35, late 35, 43

2 - G2-3E

Exhaust guide for valve G1-3E - 4 per block
22mm dia, length 64mm, thread 16 x 1.25

Types: 35, 43

3 - G2-4I

Inlet guide for valve G1-1 - 8 per block
22mm dia, length 75mm, thread 14 x 1.25

Types: 37, 40, 44, 49

4 - G2-4E

Exhaust guide for valve G1-4E, 4 per block
26.9mm dia, length 69mm, thread 16 x 1.25

Types: 37, 40, 44, 49

5 - G2-6

Inlet and Exhaust guide for valve G1-6, 16 per block
27.5mm dia, length 52mm

Type: 51

6 - G2-7

Inlet and exhaust guides for valves G1-7, 16 per block
19mm dia, length 67mm

Type: 57

Note

For Brescia cars, use inlet guide G2-3I and shorten upper end.

Brescia

Key

Valve Guides

1

2

3

4

5

6

/b>

26

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

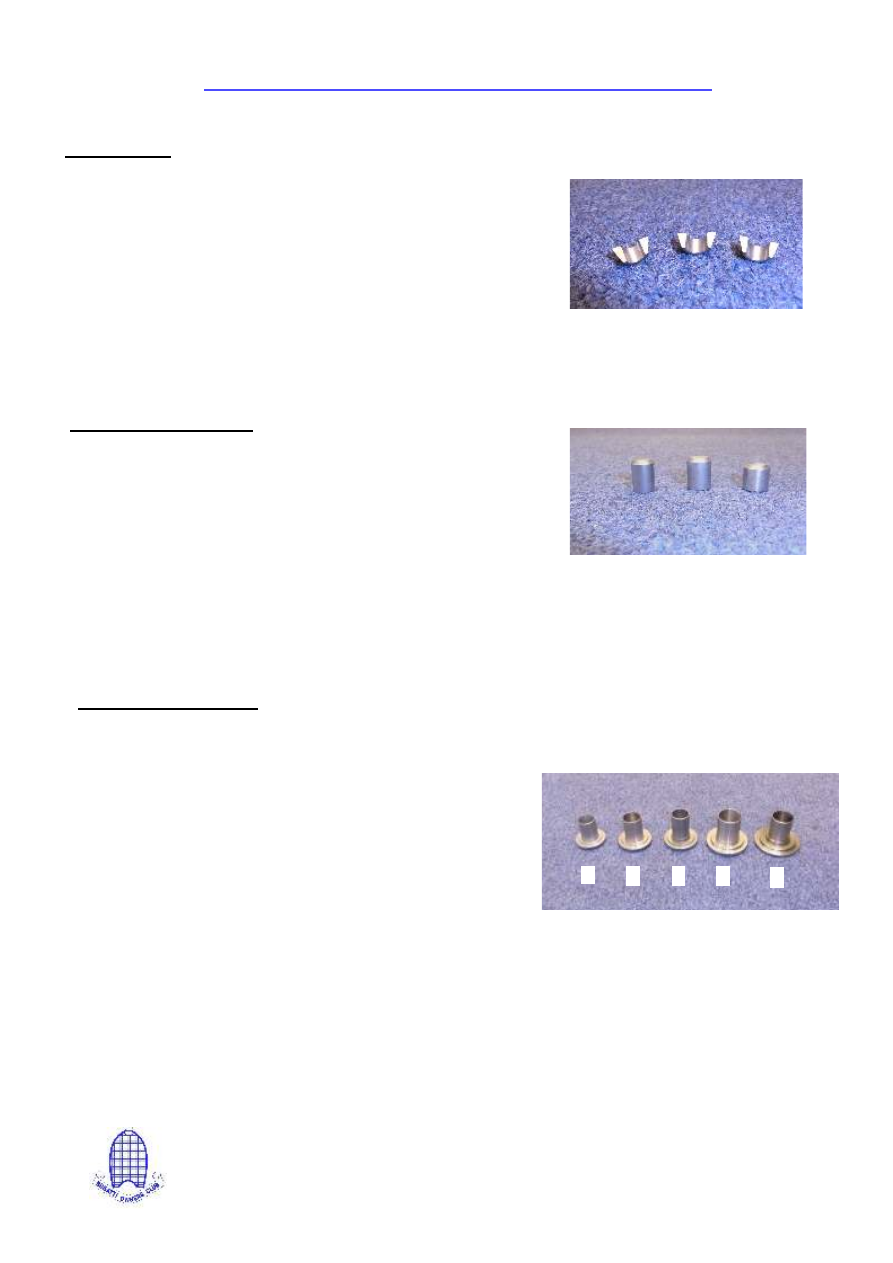

Valve Cotters

(sold in halves)

G3A - for inlet valves G1-4I, G1-3I & G1-2
8mm stem

G3B - for exhaust valvesd G1-4E & G1-3E
9 mm stem

G3C - for inlet or exhaust valves G1-7
8mm stem

Valve Adjustment Caps

G4A - 8mm inlet

G4B - 9mm exhaust

G4C - 8mm - T57

Note - set length and case harden
(cyanide, depth 0.012” , 0.3mm

Valve Spring Top Caps

1 - G5A - inlet valve spring top cap with
taper hole for cotters dia 25 mm, hole 8mm
- 8 per block

2 - G5B - exhaust valve spring top cap with
taper hole for cotters dia 28 mm, hole 9mm
- 4 per block

3 - G5C - inlet valve spring top cap with
taper hole for cotters, dia 28mm, hole 8mm
- 8 per block

4 - G5D - exhaust valve spring top cap with
taper hole for cotters, dia 34mm, hole 9mm
- 4 per block

5 - G5E - inlet and exhaust valve spring top
cap with taper hole for cotters, dia 38mm,
hole 16mm - 16 per block

Types: 35, 37, 40, 43, 44,
49, Brescia

Types: 35, 37, 40, 43, 44,
49

Types: 51, 57

1

2

3

4

5

Types: 30, 35, 38, 43

Types: 30, 35, 38, 43

Types: 37, 40, 44, 49, Brescia

Types: 37, 40, 44, 49

Type: 57

/b>

27

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

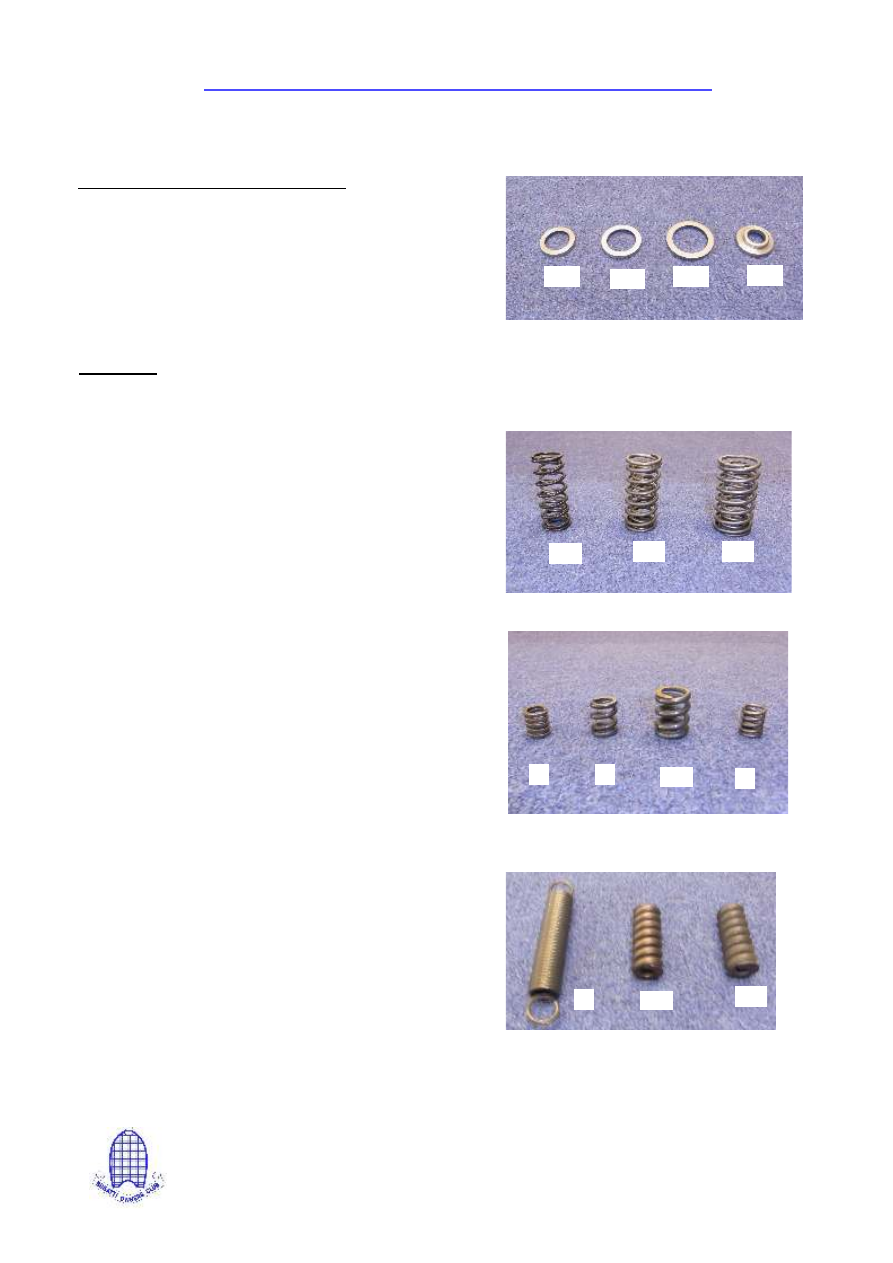

Flanged washers for under springs

G6A - flanged washer - T35 inlet

G6B - flanged washer - T35 exhaust, T37 inlet

G6C - flanged washer - T37 exhaust

G6D - flanged washer - T57 inlet & exhaust

G6A

G6B

G6C

G6D

8. Springs

F1A

Inlet double valve spring

Types: 30, 35, 43

F1B

F1B

Exhaust double valve spring

Inlet double valve spring

Types: 30, 35, 43

Types: 37, 40, 44, 49

F2B

Exhaust double valve spring

Types: 37, 40, 44, 49

F2B

Spring for blow off valve

Type: 51

F1A

F1B

F2B

F3

Propshaft coupling spring (sets
of 4)

F4

Track rod/drag link end spring

Types: 40. 37, 35

F4A

Track rod/drag link end spring

Types: 38, 43, 44

F5

Crankshaft vibration damper
spring (12 required)

Type: 57

F3

F4

F4A

F5

F6

Clutch spring (pairs)

Type: GP

F7A

Shock absorber spring 5.5mm
dia section

Type: GP

F7B

Shock absorber spring 6.0mm
dia section

Type: GP

F6

F7A

F7B

/b>

28

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

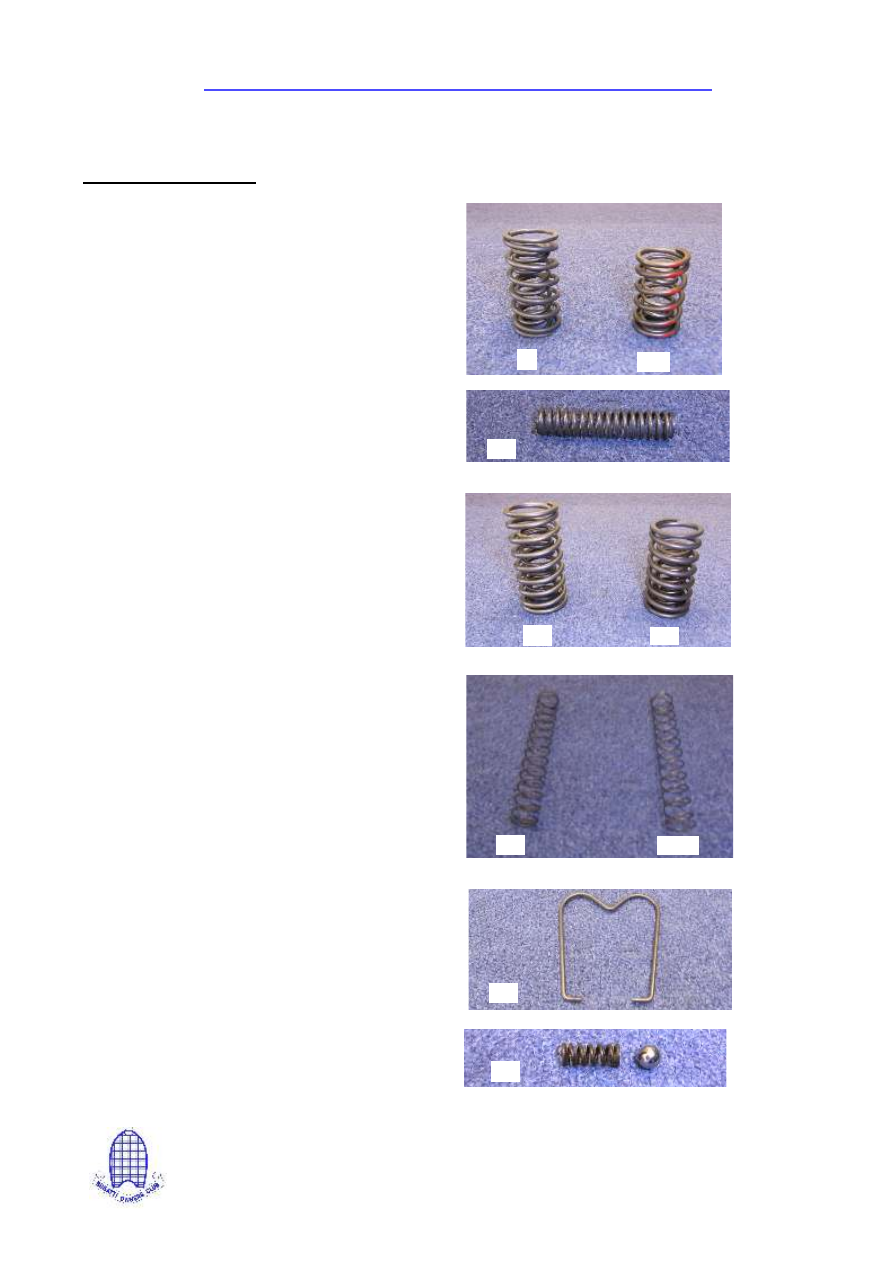

8. Springs - Continued

F8

Brescia double valve
spring - standard
specification

Type: Brescia

F8A

Brescia double valve
spring - stronger
specification

Type: Brescia

F8

F8A

F10

Air pump spring
(on cambox)

Type: GP

F10

F11

Inlet/exhaust double
valve spring

Type: 57

F12

Inlet/exhaust triple
valve spring

Type: 51

F11

F12

F13

Water pump greaser
spring

Type: All

F13A

Water pump greaser
spring (weaker)

Type: All

F13

F13A

F14

Oil filler wire clips

Type: 37, 40

F15

Gearbox selector spring
& ball

Types: Various

F14

F15

/b>

29

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

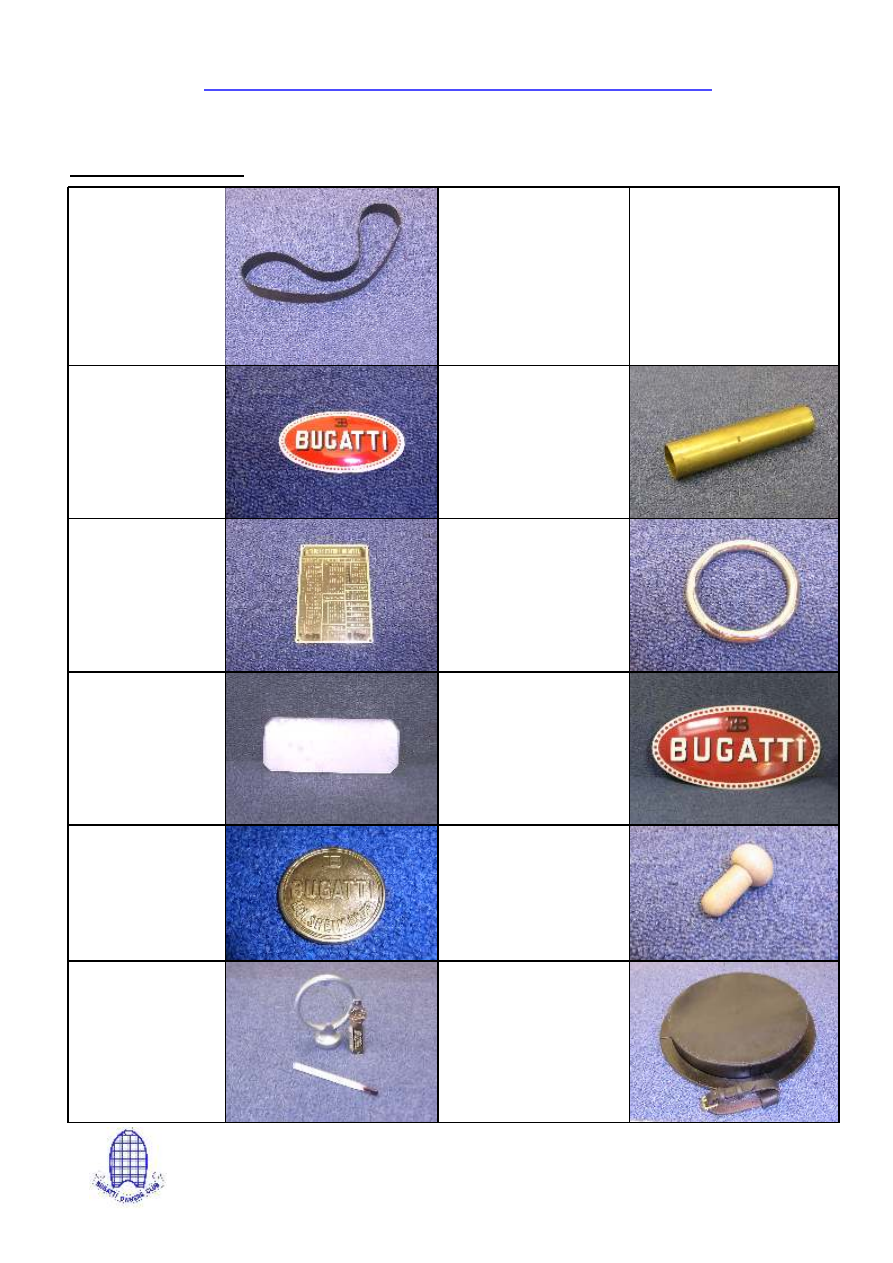

9. Miscellaneous Items

C5A - Radiator badge -
round dot

C5B - Radiator badge -
square dot

C6

Patent plate, brass,
black enamel on
etching.

Types: Several

C7 - Mirror

C7A - Aluminium
mirror holder
(35CH355)

Type: GP

C11 (Kit)

Replica Repusseau -
kit of parts comprising
ringcasting,
thermometer and
engraved plate.

C12

Hand operated air pump -
kit of parts

C12B

Air pump cylinder (brass)

C13

Spare wheel (bull ring)

C9

Brass disc for end of
rear spring cross tube,
embossed “Bugatti”

Types: Touring

C16A - Garage Wallplate
36cm x 20cm

C16B - Small Plaque
10cm x 5cm

C16C - Garage Wallplate
80cm x 50cm

C4 - Tacho belt

Available in 710mm,
720mm, 730mm,
740mm, 750mm,
760mm, 785mm ,
820mm

Types: GP

C21

Walnut knob for handbrake
lever

Type: Several

C22A - Tool holder,  spare
wheel, 330mm brake drum
(leather)

C22B - Tool holder, spare
wheel, 270mm brake drum
(leather)

AWAITING IMAGE

/b>

30

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

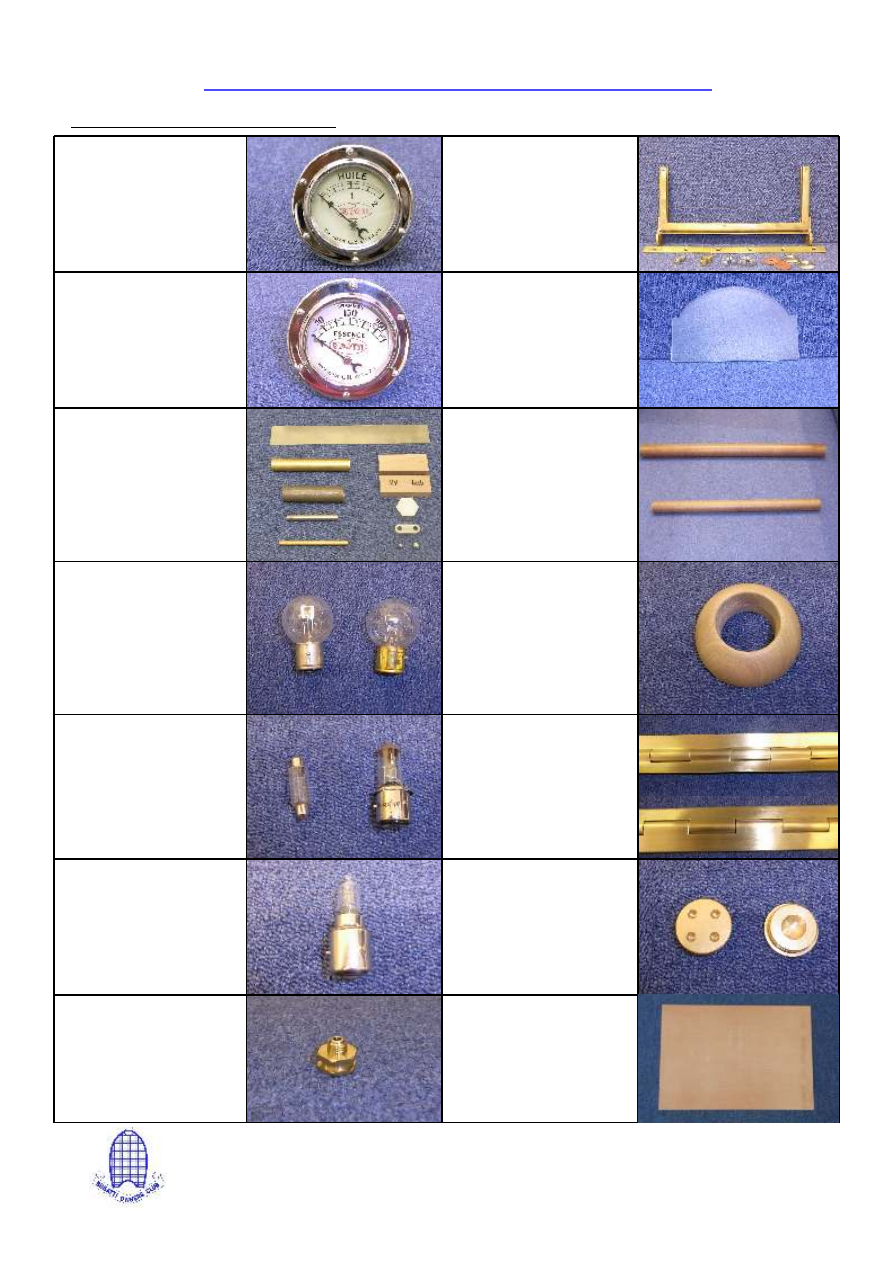

C24A

Pressure gauge, huile, 2kg

Type: GP

C24B

Pressure gauge, essence

Type: GP

C31A - Headlamp bulb, 12V
double contact

C31B - Headlamp bulb, 12V
single contact

C31C - Headlamp bulb,
halogen, 12V, 40/45W

C31E, Festoon bulb, 12V,
18W, 15mm x 44mm

C31F - Headlamp bulb,
halogen, 12V, 50W

C32B

Grease nipple - brass

C34

Windscreen frame with apron
strip, screws and washers

Type: GP

C34A

Windscreen glass

C42A - Ignition tube - high
voltage, resin coated, 42mm
OD x 36m m ID x 860mm L

Types: 35, 43

C42B - Ignition tube, high
voltage, resin coated, 31mm
OD x 25mm ID x 650mm L

C42C

Ignition tube, wooden holder
(rear)

Types: several

C45

Bonnet hinge -  48” length

Types: several

C53

Brass plug for cambox

9. Miscellaneous Items - continued

C25

Hand oil transfer pump kit

C59

Silicon Sheet - Red Oxide -
9” x 13”

Used for gear lever gait and
windscreen apron

/b>

31

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

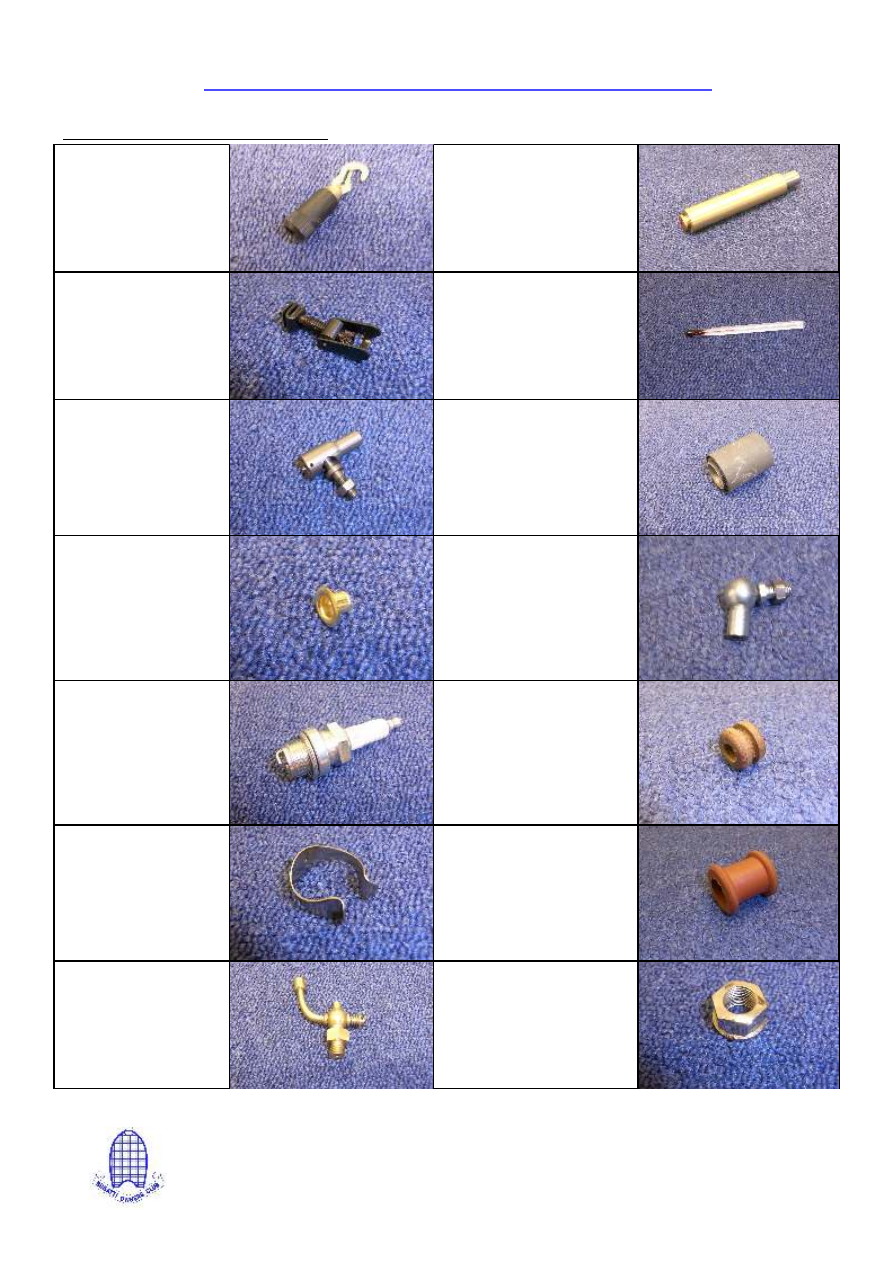

9. Miscellaneous Items - continued

M1

Beru spark plug terminals

Type: Various

M2

Beru hose clips

Type: Various

M3

Throttle ball joint

Type: GP

M4

Eyelets for body screws

Type: Various

M5/A6 - sparking plug

M5/A7 - sparking plug

M5/A8 - sparking plug

M6

Spring clip lubrication
cover for pedal shaft

Type: Various

M7

Drain tap

M8

Wax filled thermostat

Type: 57

M9

Thermometer bulb

Type: Various

M10

Silent bloc bush

Type: Touring cars

M11

Throttle ball joint

Types: 44, 49

M12

Ignition wiring grommet for
dash

M13

Bulkhead wiring grommet

Type: 57

M14

Royale Nut - plated

/b>

32

Tel : +44 (0)1242 675496   Fax: +44 (0)1242 677001

spares@bugatti.co.uk

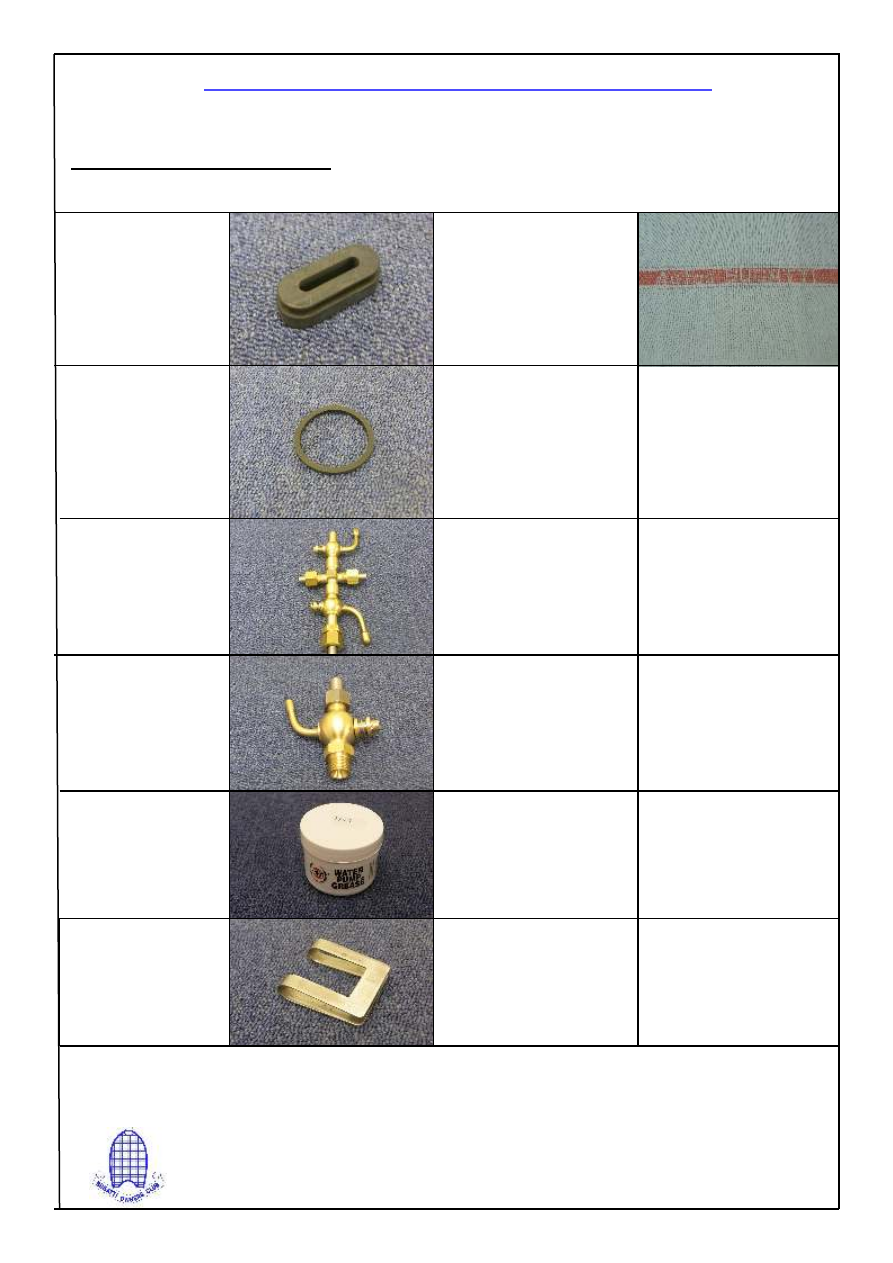

9.Miscellaneous Items - continued

C65

Fuel/Air Taps Assembly

C69

Fuel Tap - 18mm union
fitted with neoprene “O”
rings

C61

Oil filter/fuel filter
square section “O” ring

M15

Dashboard Ignition Lead
Grommet

Types: 8 cylinder GP cars

C70

Penrite water pump
grease - 50g tub

Types: All

C72

Fixing Strap for starter
motors, dynamos &
magnetos

M16

Bugatti “Automobile” Cloths

Content    ..    1    2    3      ..
