Coolant level
Washer fluid
9 Warning
Caution
Allow the engine to cool before
opening the cap. Carefully open
Too low a coolant level can cause
the cap, relieving the pressure
engine damage.
slowly.
To top up use a 1:1 mixture of
released coolant concentrate mixed
with clean tap water. If no coolant
concentrate is available, use clean
tap water. Install the cap tightly. Have
the coolant concentration checked
and have the cause of the coolant
loss remedied by a workshop.
Fill with clean water mixed with a
suitable quantity of approved
windscreen washer fluid which
contains antifreeze.
Caution
If the cooling system is cold, the
coolant level should be above the
Only washer fluid with a sufficient
filling line mark. Top up if the level is
antifreeze concentration provides
low.
protection at low temperatures or
a sudden drop in temperature.
Use of washer fluid containing
isopropanol can damage exterior
lamps.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
193
Brakes
In the event of minimum thickness of
the brake lining, a squealing noise
sounds during braking.
Continued driving is possible but
have the brake lining replaced as
Batteries do not belong in household
soon as possible.
waste. They must be disposed of at
Once new brake linings are installed,
an appropriate recycling collection
do not brake unnecessarily hard for
point.
the first few journeys.
Laying up the vehicle for more than
four weeks can lead to battery
Brake fluid
The brake fluid level must be between
discharge. Disconnect the clamp from
the MIN and MAX marks.
the negative terminal of the vehicle
9 Warning
If fluid level is below MIN seek the
battery.
assistance of a workshop.
Ensure the ignition is switched off
Brake fluid is poisonous and
Brake and clutch fluid 3 234.
before connecting or disconnecting
corrosive. Avoid contact with eyes,
the vehicle battery.
skin, fabrics and painted surfaces.
The anti-theft alarm siren must be
Vehicle battery
deactivated as follows: Switch the
The vehicle battery is maintenance-
ignition on then off, disconnect the
free provided that the driving profile
vehicle's battery within 15 seconds.
allows sufficient charging of the
Vehicle battery discharge protection
battery. Short-distance-driving and
3 124.
frequent engine starts can discharge
the battery. Avoid the use of
unnecessary electrical consumers.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

194
Vehicle care
Replacing the vehicle battery
Charging the vehicle battery
Notice
9 Warning
Any deviation from the instructions
given in this section may lead to
On vehicles with stop-start
temporary deactivation of the stop-
system, ensure that the charging
start system.
potential does not exceed
When the vehicle battery is being
14.6 volts when using a battery
replaced, please ensure that there
charger. Otherwise the vehicle
are no open ventilation holes in the
battery may be damaged.
vicinity of the positive terminal. If a
ventilation hole is open in this area, it
Jump starting 3 226.
must be closed off with a dummy cap,
An AGM battery can be identified by
and the ventilation in the vicinity of the
Warning label
the label on the battery. We
negative terminal must be opened.
recommend the use of an original
Only use vehicle batteries that allow
Vauxhall vehicle battery.
the fuse box to be mounted above the
Notice
vehicle battery.
Using an AGM vehicle battery
In vehicles with an AGM (Absorptive
different from the original Vauxhall
Glass Mat) battery, make sure to
vehicle battery may result in a lower
have the battery replaced with
performance of the stop-start
another AGM battery.
system.
We recommend that you have the
vehicle battery replaced by a
workshop.
Stop-start system 3 138.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
195
Meaning of symbols:
Wiper blade replacement
Bulb replacement
No sparks, naked flames or
smoking.
Switch off the ignition and switch off
Always shield eyes. Explosive
the relevant switch or close the doors.
gases can cause blindness or
Only hold a new bulb at the base. Do
injury.
not touch the bulb glass with bare
Keep the vehicle battery out of
hands.
reach of children.
Use only the same bulb type for
The vehicle battery contains
replacement.
sulphuric acid which could cause
Replace headlight bulbs from within
blindness or serious burn
the engine compartment.
injuries.
Bulb check
See the Owner's Manual for
further information.
Lift the wiper arm until it stays in the
After a bulb replacement switch on
raised position, press button to
Explosive gas may be present in
the ignition, operate and check the
disengage the wiper blade and
the vicinity of the vehicle battery.
lights.
remove.
Attach the wiper blade slightly angled
Diesel fuel system bleeding
to the wiper arm and push until it
If the tank has been run dry, the diesel
engages.
fuel system must be bled. Switch on
Lower wiper arm carefully.
the ignition three times for
15 seconds at a time. Then crank the
engine for a maximum of
40 seconds. Repeat this process after
no less than 5 seconds. If the engine
fails to start, seek the assistance of a
workshop.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

196
Vehicle care
Low/High beam (1)
2. Rotate the bulb holder
Halogen headlights
anticlockwise to disengage.
Withdraw the bulb holder from the
reflector.
1. Rotate the cap (1) anticlockwise
Bi-Halogen Headlight (1) with one
and remove it.
bulb for low and high beam.
Sidelight/Daytime running light (2).
3. Disengage the bulb holder from
the plug connector by pressing
the retaining lug.
4. Replace the bulb and connect
bulb holder with the plug
connector.
5. Insert the bulb holder, engaging
the two lugs into the reflector and
rotate clockwise to secure.
6. Fit the cap and rotate clockwise.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
197
Sidelight/Daytime running light
Adaptive forward lighting
(2)
9 Danger
Adaptive forward lighting system
uses Xenon headlights.
Xenon headlights work under
extremely high electrical voltage.
Do not touch. Have bulbs replaced
by a workshop.
Bulbs for front turn signal and
corner lighting can be changed.
2. Remove the bulb from the socket
by pulling.
Sidelight/Daytime running lights are
3. Replace and insert new bulb into
designed as Light Emitting Diodes
1. Rotate bulb socket (2)
socket.
(LEDs) and cannot be changed.
anticlockwise to disengage.
Withdraw the bulb socket from the
4. Insert the bulb socket into the
reflector.
reflector and turn clockwise.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

198
Vehicle care
Corner lighting
2. Rotate the bulb holder
Fog lights
anticlockwise to disengage.
The bulbs are accessible from the
Withdraw the bulb holder from the
underside of the vehicle.
reflector.
1. Rotate the cap anticlockwise and
remove it.
1. Turn the bulb holder anticlockwise
3. Disengage the bulb from the plug
and remove it from the reflector.
connector by pulling.
4. Replace the bulb and connect
bulb holder with the plug
connector.
5. Insert the bulb holder, engaging
the two lugs into the reflector and
rotate clockwise to secure.
6. Fit the cap and rotate clockwise.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
199
2. The illustration shows version
Front turn signal lights
with halogen headlights.
2. Disengage the bulb socket from
the plug connector by pressing
the retaining lug.
1. Rotate cap (1) anticlockwise and
The illustration shows version
remove it.
with adaptive forward lighting
3. Remove and replace the bulb
headlights.
socket with bulb and attach the
plug connector.
Rotate bulb socket anticlockwise
to disengage and withdraw from
4. Insert the bulb socket into the
the reflector.
reflector by turning clockwise and
engage.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

200
Vehicle care
Tail lights
Remove bulb holder by turning
3. Remove the bulb from the socket
anticlockwise.
by turning anticlockwise.
1. Open and remove the cover on
Turn signal lights (1)
4. Replace and insert new bulb into
the inside of the boot lid by loosen
Reversing lights (2)
socket by turning clockwise.
the screw with a coin.
5. Insert the bulb socket into the
2. Brake lights, tail lights and fog
reflector and turn clockwise.
light are designed as Light
6. Fit the cap and rotate clockwise.
Emitting Diodes (LEDs) and
cannot be changed.
3. Remove and replace bulb

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
201
4. Insert bulb holder into tail light
Turn signal lights (1)
assembly and turn clockwise.
Tail lights (2)
2. Release cover in side trim panel
and remove.
5. Close the cover by inserting the
4. Remove and replace bulb.
fastener clips first. Lock the cover
5. Insert the bulb holder into housing
by turning the screw clockwise
and turn clockwise.
with a coin.
6. Attach the side trim cover.
Additional lights in the boot lid
frame
1. Open the boot lid.
3. Remove bulb holder by turning
anticlockwise.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

202
Vehicle care
4. Insert bulb holder and turn
Side turn signal lights
clockwise.
To replace bulb, remove lamp
5. Insert left end of the lamp, slide to
housing:
the left and insert right end.

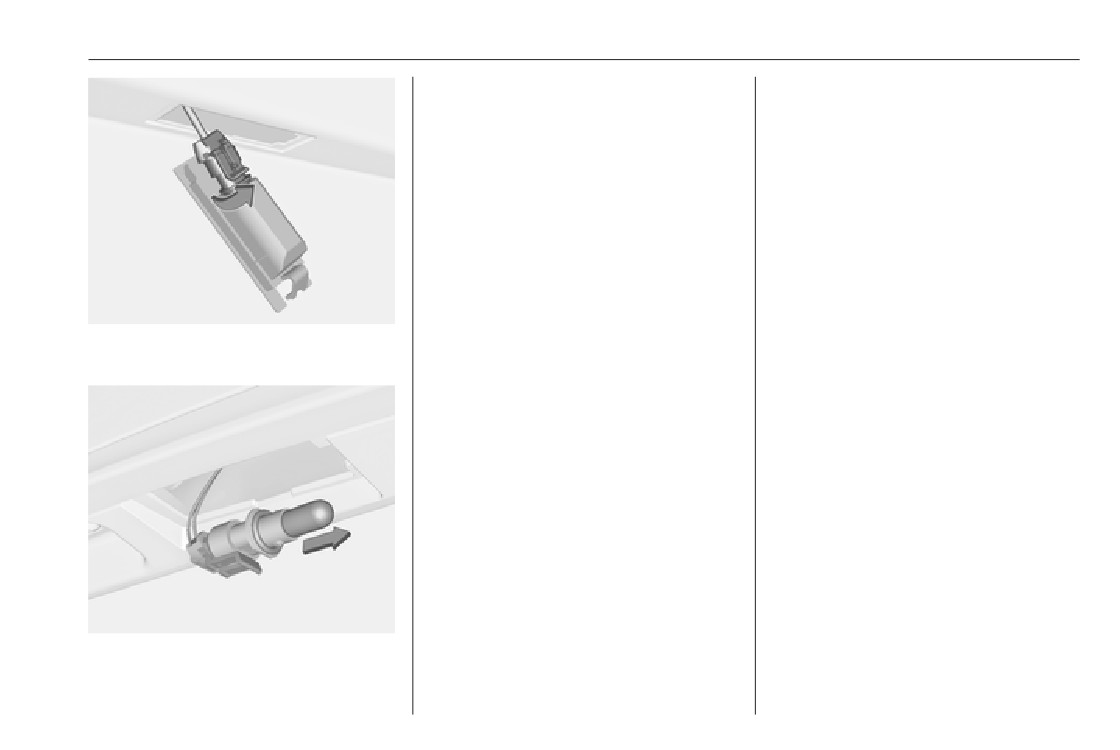

Number plate light
2. Turn bulb holder anticlockwise
and remove from housing.
1. Slide lamp to its left side and
remove with its right end.
1. Insert screwdriver in recess of the
cover, press to the side and
release spring.
2. Remove lamp downwards, taking
care not to pull on the cable.
3. Pull bulb from bulb holder and
replace it.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
203
5. Insert bulb holder into lamp
Electrical system
housing and turn clockwise.
6. Insert lamp into bumper and let
Fuses
engage.

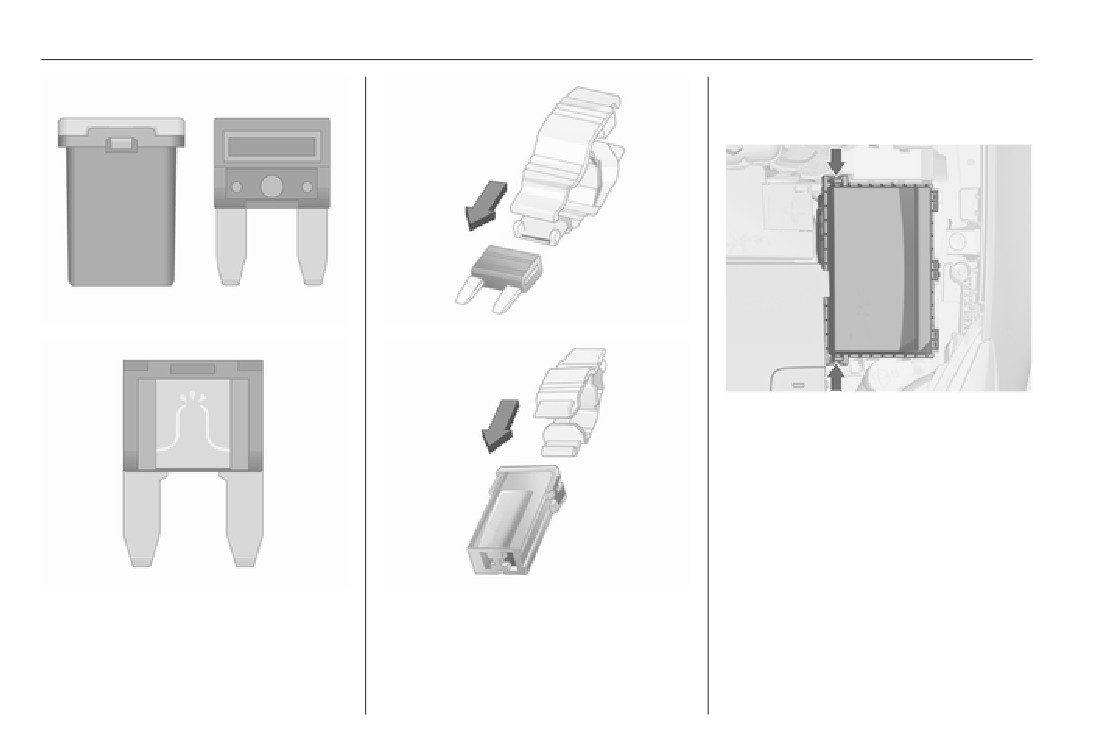

Data on the replacement fuse must
match the data on the defective fuse.
Interior lights

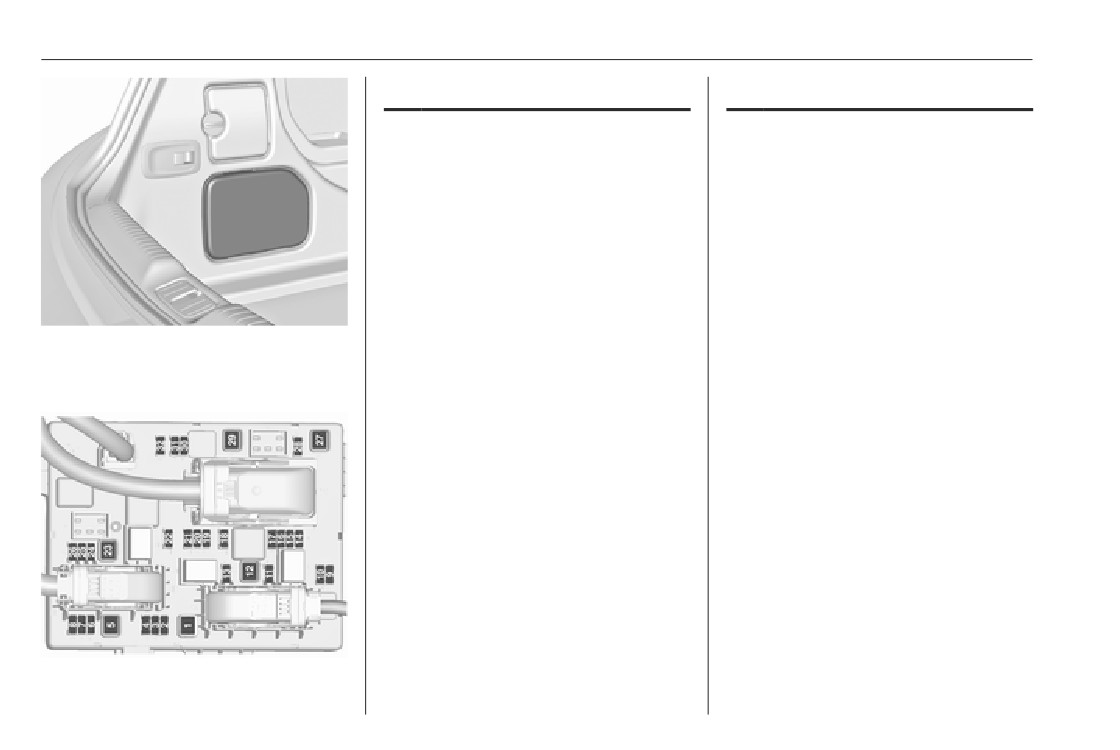

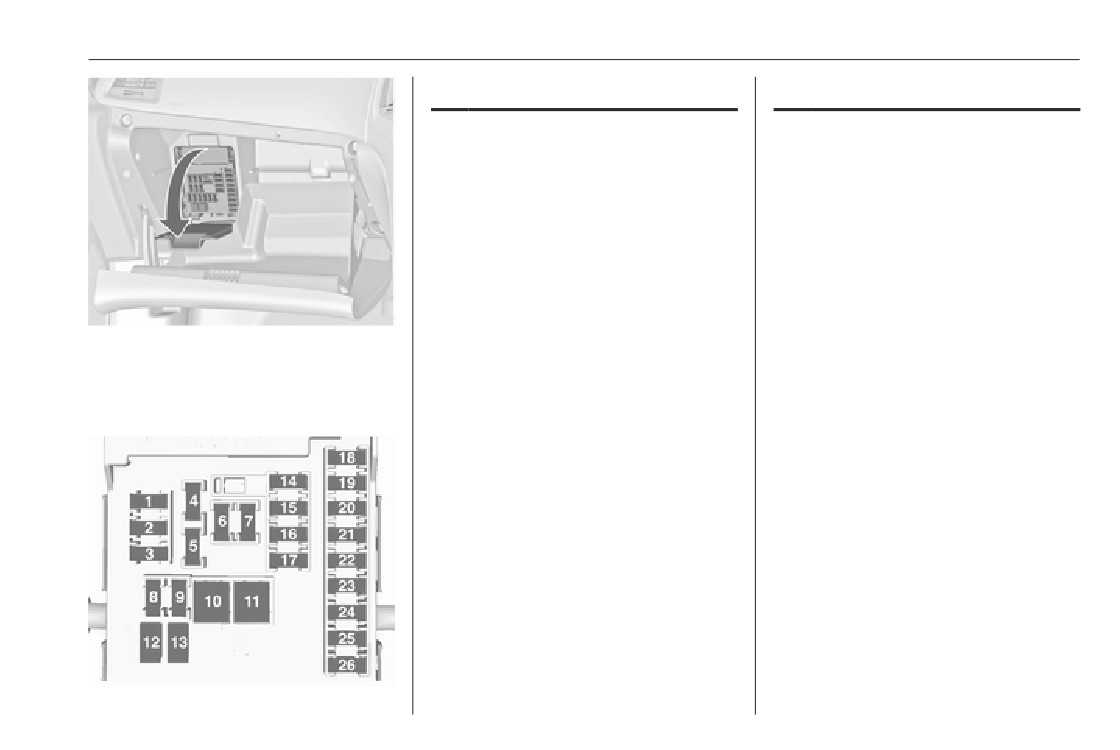

There are three fuse boxes in the
vehicle:
Courtesy light, reading lights
● In the front left of the engine
Have bulbs replaced by a workshop.
compartment,
● In left-hand drive vehicles, in the
Load compartment light
interior behind the storage
3. Remove bulb holder from lamp
Have bulbs replaced by a workshop.
compartment, or, in right-hand
housing by turning anticlockwise.
drive vehicles, behind the
glovebox,
Instrument panel
● Behind a cover on the left side of
illumination
the load compartment.
Have bulbs replaced by a workshop.
Before replacing a fuse, turn off the
respective switch and the ignition.
A blown fuse can be recognized by its
melted wire. Do not replace the fuse
until the cause of the fault has been
remedied.
Some functions are protected by
several fuses.
4. Pull bulb from bulb holder and
Fuses may also be inserted without
replace it.
existence of a function.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

204
Vehicle care

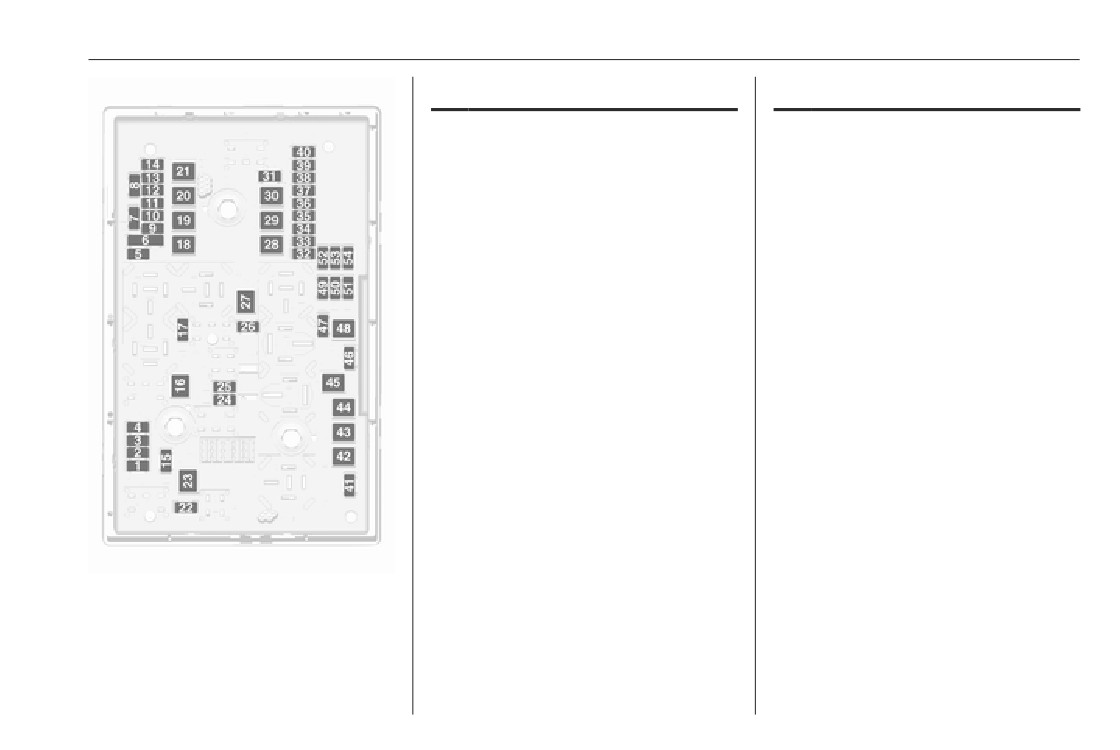

Engine compartment fuse
box
The fuse box is in the front left of the
engine compartment.
Disengage the cover and fold it
upwards until it stops. Remove the
cover vertically upwards.
Fuse extractor
Place the fuse extractor on the
various types of fuse from the top or
A fuse extractor may be located in the
side, and withdraw fuse.
fuse box in the engine compartment.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
205
No. Circuit
No. Circuit
1
Engine control module
18
Heated rear window
2
Lambda sensor
19
Front power windows
3
Fuel injection, ignition system
20
Rear power windows
4
Fuel injection, ignition system
21
Rear electrical centre
5
-
22
Left high beam (Halogen)
6
Mirror heating
23
Headlamp washer system
7
Fan control
24
Right low beam (Xenon)
8
Lambda sensor, engine cooling
25
Left low beam (Xenon)
9
Rear window sensor
26
Front fog lights
10
Vehicle battery sensor
27
Diesel fuel heating
11
Trunk release
28
Start stop system
12
Adaptive forward lighting, auto-
29
Electric parking brake
matic light control
30
ABS pump
13
ABS Valves
31
-
14
-
32
Airbag
15
Engine control module
33
Adaptive forward lighting, auto-
16
Starter
matic light control
17
Transmission control module
34
Exhaust gas recirculation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

206
Vehicle care
No. Circuit
No. Circuit
Instrument panel fuse box
35
Power windows, rain sensor,
51
-
exterior mirror
52
Auxiliary heater, diesel engine
36
Climate control
53
Transmission control module,
37
-
Engine control module
38
Vacuum pump
54
Vacuum pump, instrument
panel cluster, heating ventila-
39
Fuel system control module
tion, air conditioning system
40
Windscreen washer system
After having changed defective fuses,
41
Right high beam (Halogen)
close the fuse box cover and press
until it engages.
42
Radiator fan
If the fuse box cover is not closed
43
Windscreen wiper
correctly, malfunctions may occur.
44
-
In left-hand drive vehicles, the fuse
box is behind the storage
45
Radiator fan
compartment in the instrument panel.
46
-
Open the compartment and push it to
the left to unlock. Fold the
47
Horn
compartment down and remove it.
48
Radiator fan
49
Fuel pump
50
Headlamp levelling, adaptive
forward lighting

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
207
No. Circuit
No. Circuit
1
Displays
17
Air conditioning system
2
Body control unit, exterior lights
18
Service diagnose
3
Body control unit, exterior lights
19
Body control module, brake
lights, tail lights, interior lights
4
Infotainment system
20
-
5
Infotainment system, instru-
ment
21
Instrument panel
6
Power outlet, cigarette lighter
22
Ignition system
In right-hand drive vehicles, the fuse
7
Power outlet
23
Body control module
box is located behind a cover in the
8
Body control module, left low
24
Body control module
glovebox. Open the glovebox, then
beam
open the cover and fold it down.
25
-
9
Body control module, right low
26
Trunk power outlet accessory
beam
10
Body control module, door locks
Load compartment fuse box
11
Interior fan
The fuse box is on the left side of the
12
Driver power seat
load compartment behind a cover.
13
Passenger power seat
14
Diagnostic connector
15
Airbag
16
Boot lid relay

-------------------------------------------------------------------------------------------------------------------------------------------------------------

208
Vehicle care
No. Circuit
No. Circuit
1
Soft top control module, power
14
Rear seat electrical folding
rail right
15
-
2
-
16
Seat ventilation, rear view
3
Parking assist
camera, soft top control module
4
Selective catalytic reduction
17
-
system
18
-
5
-
19
Steering wheel heating
6
-
Remove the cover.
20
-
7
Power seat
21
Seat heating
Fuse assignments
8
Soft top control module
22
-
9
Selective catalytic reduction
23
Soft top control module, power
system
rail left
10
Selective catalytic reduction
24
Selective catalytic reduction
system
system
11
Trailer module, tyre pressure
25
-
monitor and rear view camera
26
Jumper fuse for non logistic
12
Soft top control module, tail
mode
lights
27
Passive entry
13
-
28
-















Content      ..     10      11      12      13     ..
