Vauxhall Antara (2014 year). Manual - part 11





-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
175
Fuse
Circuit
Fuse
Circuit
Vehicle tools
RUN 2
Power battery
XBCM
Export Body
Tools
key on run
Control Module
RUN/CRNK
Run crank
XM/HVAC/DLC XM satellite
Vehicles with spare wheel
radio, climate
SDM (BATT)
Safety Diag-
control, data link
nosis Module
connection
(Battery)
After changing of defective fuses
SDM (IGN 1)
Safety Diag-
close the fuse box cover and press
nosis Module
until it engages.
(Ignition)
If the fuse box cover is not closed
SPARE
-
correctly, malfunctions may occur.
S/ROOF
Sunroof
S/ROOF BATT
Sunroof battery
SSPS
Power steering
In vehicles with a spare wheel, a jack
STR/WHL SW
Steering wheel
and vehicle tools kit are available.
The jack and vehicle tools have been
TRLR
Trailer
specially developed for your vehicle
TRLR BATT
Trailer battery
and must only be used on that
vehicle. Only use jack for changing
wheels.
The jack and vehicle tools are in a
storage compartment below the floor
cover in the load compartment.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

176
Vehicle care
To remove the jack and vehicle tools,
Remove wing bolt from the jack by
open the tailgate.
rotating it anticlockwise and remove
the jack and wheel wrench bag.
Remove straps holding the bag
containing the wheel wrench.
Remove wheel wrench from the bag.
Wheel changing 3 186.
Spare wheel 3 189.
Vehicles with tyre repair kit
Where present, hang the hook to the
upper part of the tailgate opening.
Push both levers on the floor cover
towards the handle and pull up the
cover by the handle.
In vehicles with a tyre repair kit, there
may not be a jack and vehicle tool kit.
The tyre repair kit is in a storage
compartment below the floor cover in
the load compartment.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
177
3 139. Seek the assistance of a
Wheels and tyres
workshop regarding availability of
approved winter tyres.
Tyre condition, wheel condition
If winter tyres are in use, the
Drive over edges slowly and at right
temporary spare wheel may still be
angles if possible. Driving over sharp
fitted with a summer tyre. Vehicle
edges can cause tyre and wheel
driveability could be affected,
damage. Do not trap tyres on the kerb
especially on slippery road surfaces.
when parking.
Spare wheel 3 189.
Regularly check the wheels for
damage. Seek the assistance of a
Tyre designations
workshop in the event of damage or
To remove the tyre repair kit, open the
unusual wear.
E.g. 235/65 R 17 104 H
tailgate and pull the floor cover handle
235 = Tyre width, in mm
upwards 3 69.
65
= Cross-section ratio (tyre height
Winter tyres
to tyre width), %
Winter tyres improve driving safety at
R
= Belt type: Radial
Caution
temperatures below 7 °C and should
RF = Type: RunFlat
Do not allow objects to protrude
therefore be fitted on all wheels.
17
= Wheel diameter, in inches
above the top of the rear floor
Tyres of size 215/70 R 16 are
104 = Load index e.g. 91 is
storage compartment, to avoid
recommended as winter tyres.
equivalent to 618 kg
damage to the storage area and
H
= Speed code letter
In accordance with country-specific
the load compartment floor.
regulations, affix the speed sticker in
Speed code letter:
the driver's field of view.
Q = up to 100 mph
Tyre repair kit 3 183.
If winter tyres are installed that have
S = up to 112 mph
not been approved for your vehicle,
T = up to 118 mph
Electronic Stability Control (ESC)
H = up to 130 mph
system performance may be affected

-------------------------------------------------------------------------------------------------------------------------------------------------------------

178
Vehicle care
V = up to 150 mph
Tyre pressures differ depending on
If the tyre pressure must be reduced
W = up to 168 mph
various options. For the correct tyre
or increased on a vehicle with tyre
pressure value, follow the procedure
pressure monitoring system, switch
below:
off ignition.
Tyre pressure
1. Identify the engine identifier code.
Check the pressure of cold tyres at
Engine data 3 205.
Tyre pressure monitoring
least every 14 days and before any
long journey. Do not forget the spare
2. Identify the respective tyre.
system
wheel. This also applies to vehicles
The tyre pressure tables show all
The tyre pressure monitoring system
with tyre pressure monitoring system.
possible tyre combinations 3 210.
checks the pressure of all four wheels
Use the valve cap key to make
For the tyres approved for your
once per minute when vehicle speed
unscrewing the valve caps easier.
vehicle, refer to the EEC Certificate of
exceeds a certain limit.
The valve cap key is located on the
Conformity provided with your vehicle
inside of the tank flap.
or other national registration
Caution
Tyre pressure 3 210.
documents.
The driver is responsible for correct
Tyre pressure monitoring system
The tyre pressure data refers to cold
adjustment of tyre pressure.
warns only about low tyre pressure
tyres. It applies to summer and winter
condition and does not replace
tyres.
regular tyre maintenance by the
9 Warning
Always inflate the spare tyre to the
driver.
pressure specified for full load.
If the pressure is too low, this can
The ECO tyre pressure serves to
All wheels must be equipped with
result in considerable tyre warm-
achieve the smallest amount of fuel
pressure sensors and the tyres must
up and internal damage, leading to
consumption possible.
have the prescribed pressure. If
tread separation and even to tyre
wheels without sensors are mounted,
Incorrect tyre pressures will impair
blow-out at high speeds.
the tyre pressure monitoring system
safety, vehicle handling, comfort and
is not operational.
fuel economy and will increase tyre
wear.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
179
Notice
A detected low tyre pressure
Tyre pressures in Info-Display
In countries where the tyre pressure
condition is indicated by control
monitoring system is legally
indicator w 3 89.
required, the use of wheels without
If w illuminates, stop as soon as
pressure sensors will invalidate the
possible and inflate the tyres as
vehicle type approval.
recommended 3 210.
The TPMS sensors monitor the air
When the system detects a
pressure in the tyres and transmit tyre
malfunction, w will flash for approx.
pressure readings to a receiver
one minute and then remain
located in the vehicle.
continuously illuminated. This
Each tyre, including the spare, should
sequence will continue upon
be checked monthly when cold and
subsequent vehicle start-ups as long
inflated to the recommended inflation
as the malfunction exists.
pressure 3 210.
When w is illuminated, the system
The current tyre pressures can be
may not be able to detect or signal low
shown in the menu item Tyres in the
Low tyre pressure condition
tyre pressure as intended.
Board Computer menu. Press the
BC button on the Infotainment system
and select the menu item.
The tyre pressure monitoring system
automatically detects the vehicle
load. A corresponding message may
appear on the Info-Display if
inconsistent tyre pressures are
detected. In some versions, the
message is displayed in abbreviated
form.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

180
Vehicle care
For example, the following messages
If the tyre pressure is to be reduced or
can be displayed:
increased, switch off the ignition. Tyre
pressures 3 178, 3 210.
Temperature dependency
Tyre pressure depends on the
temperature of the tyre. During
driving, tyre temperature and
pressure increase.
The tyre pressure value shown in the
Info-Display is the actual tyre
pressure. Therefore it is important to
check tyre pressure with cold tyres.

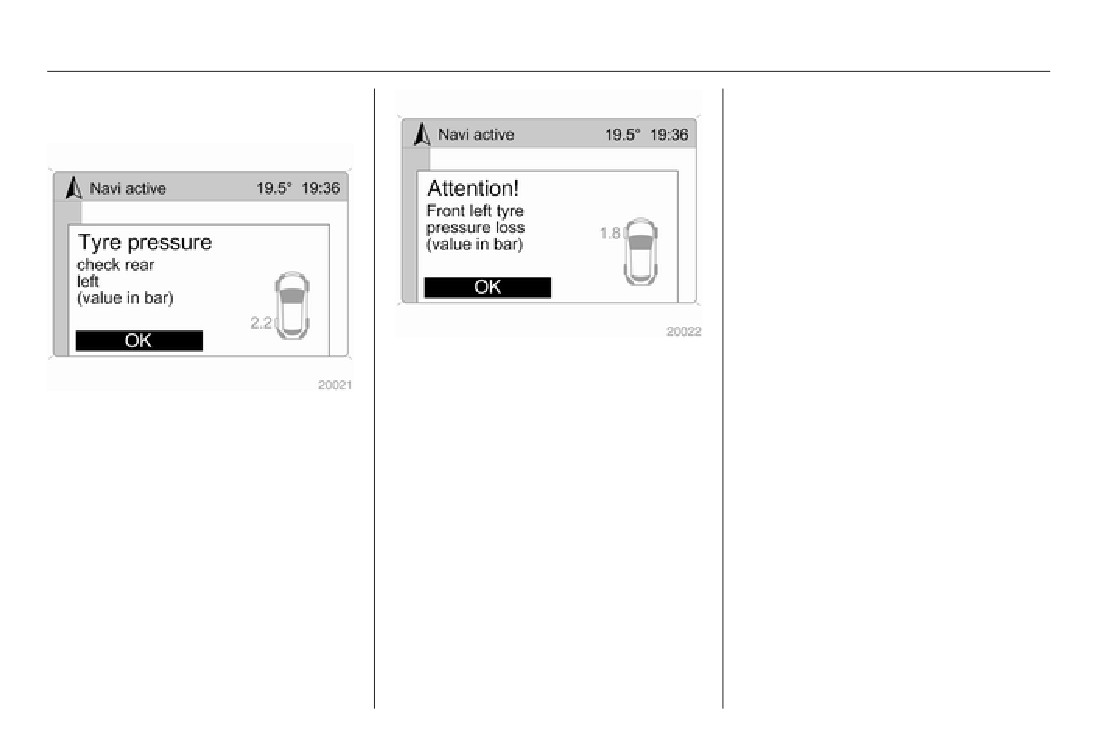

A graphic indicating the front left tyre
is shown together with the current tyre
General information
pressure; significant pressure
A graphic indicating the left rear tyre
The use of commercially available
deviation or direct pressure loss.
is shown together with the current tyre
liquid tyre repair kits can impair the
Steer out of the flow of traffic as
pressure; slight pressure deviation.
function of the system. Factory-
quickly as possible without
approved tyre repair kits can be used.
Reduce speed. Check tyre pressure
endangering other vehicles. Stop and
at next opportunity with an
Tyre repair kit 3 183.
check the tyres. Mount the spare
appropriate gauge and correct if
wheel if necessary 3 186.
External high-power radio equipment
necessary.
could disrupt the TPMS.
On the Colour-Info-Display, this
On the Colour-Info-Display, this
message will appear in red.
The tyre pressure monitoring system
message will appear in yellow.
valve cores and sealing rings must be
Acknowledgement of warnings 3 92,
replaced each time the tyres are
3 95.
changed.
Vehicle messages 3 100.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
181
TPMS sensor matching process
tyre/wheel positions. If it takes longer,
5. Place the relearn tool against the
Each TPMS sensor has a unique
the matching process stops and must
tyre sidewall, near the valve stem.
identification code. The identification
be restarted.
Then press the button to activate
code must be matched to a new tyre/
The TPMS sensor matching process
the TPMS sensor. A horn chirp
wheel position after rotating the tyres
is as follows:
confirms that the sensor
or replacing one or more of the TPMS
identification code has been
1. Apply the electrical parking brake
sensors.
matched to this tyre and wheel
3 137; on vehicles with automatic
position. The next relevant turn
The TPMS sensor matching process
transmission move the selector
signal illuminates.
should also be performed after
lever to position P.
replacing a spare tyre with a road tyre
6. Proceed to the right front tyre, and
2. Turn the ignition on 3 124.
containing a TPMS sensor. The
repeat the procedure in Step 5.
3. Initiate the TPMS Learn Mode by
control indicator w and the warning
7. Proceed to the right rear tyre, and
simultaneously pressing buttons
message should extinguish at the
repeat the procedure in Step 5.
p and q on the radio remote
next ignition cycle.
8. Proceed to the left rear tyre, and
control,
The sensors are matched to the tyre/
repeat the procedure in Step 5.
- or -
wheel positions, using a TPMS
The horn sounds twice to indicate
relearn tool, in the following order:
Press the INFO button on the
the sensor identification code has
Infotainment system until a tyre
been matched, and the TPMS
■ left front tyre
learn message appears on the
sensor matching process is no
■ right front tyre
Info-display. Press and hold the
longer active.
■ right rear tyre
OK button.
9. Turn off the ignition.
■ left rear tyre
The horn sounds twice and the left
10. Set all four tyres to the
Consult your workshop for service or
front turn signal also illuminates
recommended inflation pressure
to purchase a relearn tool.
as confirmation that Learn Mode
3 210.
has been enabled.
There are two minutes to match the
first tyre/wheel position, and
4. Start with the left front tyre.
five minutes overall to match all four

-------------------------------------------------------------------------------------------------------------------------------------------------------------

182
Vehicle care
indicators (TWI). Their position is
Tread depth
9 Warning
indicated by markings on the
Check tread depth at regular
sidewall.
intervals.
Use of unsuitable tyres or wheels
If there is more wear at the front than
may lead to accidents and will
Tyres should be replaced for safety
the rear, swap round front wheels and
invalidate the vehicle type
reasons at a tread depth of 2-3 mm
rear wheels. Ensure that the direction
approval.
(4 mm for winter tyres).
of rotation of the wheels is the same
For safety reasons it is recommended
as before.
If wheel rims of a different type are to
that the tread depth of the tyres on
Tyres age, even if they are not used.
be installed, the wheel nuts may also
one axle should not vary by more than
We recommend tyre replacement
need to be changed. We recommend
2 mm.
every 6 years.
you consult a workshop.
Changing tyre and wheel
Wheel covers
size
Wheel covers and tyres that are
factory approved for the respective
If tyres of a different size than those
vehicle and comply with all of the
fitted at the factory are used, it may be
relevant wheel and tyre combination
necessary to reprogramme the
requirements must be used.
speedometer as well as the nominal
tyre pressure and make other vehicle
If the wheel covers and tyres used are
modifications.
not factory approved, the tyres must
not have a rim protection ridge.
After converting to a different tyre
size, have the label with tyre
Wheel covers must not impair brake
pressures replaced.
cooling.
The legally permissible minimum
tread depth (1.6 mm) has been
reached when the tread has worn
down as far as one of the tread wear

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
183
Always use fine mesh chains that add
Tyre damage exceeding 4 mm or that
9 Warning
no more than 15 mm to the tyre tread
is at the tyre's sidewall near the rim
and the inboard sides (including chain
cannot be repaired with the tyre repair
Use of unsuitable tyres or wheel
lock).
kit.
covers could lead to sudden
In vehicles with a tyre repair kit, there
pressure loss and thereby
9 Warning
may not be a jack and vehicle tool kit.
accidents.
Vehicle tools 3 175.
Damage may lead to tyre blowout.
Tyre chains
Temporary spare wheel 3 189.
Tyre chains are permitted only on
16 inch wheels. We recommend you
9 Warning
consult a workshop.
Do not drive faster than 50 mph.
If the use of tyre chains is required
after suffering a flat front tyre, fit the
Do not use for a lengthy period.
temporary spare wheel on the rear
Steering and handling may be
axle and transfer one of the rear
affected.
wheels to the front axle.
General
If you have a flat tyre:
The use of tyre chains is not permitted
Apply the electrical parking brake
on the temporary spare wheel.
3 137 and engage first gear, reverse
gear or P.
Tyre chains are only permitted on the
Tyre repair kit
The tyre repair kit is in a storage
front wheels.
Minor damage to the tyre tread or
compartment below the floor cover in
the load compartment.
They must be fitted to the tyres
sidewall can be repaired with the tyre
symmetrically in order to achieve a
repair kit.
To remove the tyre repair kit, open the
concentric fit.
Do not remove foreign bodies from
tailgate.
the tyres.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

184
Vehicle care
Pull the floor cover handle upwards
Screw the sealant filler hose onto
3 69.
the tyre valve.
Vehicle tools 3 175.
3. Connect the power plug to the
power outlet. Unplug all items
Caution
from other power outlets.
4. Switch on ignition. To avoid
Do not allow objects to protrude
discharging the battery, we
above the top of the rear floor
recommend running the engine.
storage compartment, to avoid
damage to the storage area and
the load compartment floor.
6. Press the on/off button to turn the
tyre repair kit on. The tyre is filled
with sealant.
The pressure gauge briefly shows
a high pressure while the sealant
canister is emptying. Then the
pressure starts to drop.
All of the sealant is pumped into
the tyre. Then the tyre is inflated.
5. Turn the selector switch
anticlockwise to the sealant +
7. Inflate the tyre to the
air position.
recommended inflation pressure
using the pressure gauge. The
1. Release the sealant filler hose 1
prescribed tyre pressure should
and the power plug 2.
be obtained within 10 minutes
2. Unscrew valve cap from defective
3 210. When the correct pressure
tyre.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
185
is obtained, switch off the
not be driven. Seek the
compressor.
assistance of a workshop.
If the prescribed tyre pressure is
not obtained within 10 minutes,
remove the tyre repair kit. Move
the vehicle one tyre rotation.
Reattach the tyre repair kit and
continue the filling procedure for
10 minutes. If the prescribed tyre
pressure is still not obtained, the
tyre is too badly damaged. Seek
the assistance of a workshop.
Drain excess tyre pressure with
10. Take the label indicating
the button next to the pressure
maximum permitted speed from
gauge.
the sealant canister and affix in
12. To adjust tyre pressure, screw
the driver's field of view.
Do not run the compressor for
compressor air hose (arrowed)
longer than 10 minutes.
11. Continue driving immediately so
directly onto tyre valve.
that sealant is evenly distributed
8. Detach the tyre repair kit and
in the tyre. After driving approx.
replace the tyre valve cap.
6 miles (but no more than
9. Remove any excess sealant
10 minutes) stop and check tyre
using a cloth.
pressure.
If the tyre pressure has fallen
slightly, set it to the correct value.
Repeat the procedure until there
is no more loss of pressure.
If the tyre pressure has fallen by
more than 10 psi, the vehicle must

-------------------------------------------------------------------------------------------------------------------------------------------------------------

186
Vehicle care
Note the expiry date of the kit. After
Make the following preparations and
this date its sealing capability is no
observe the following information:
longer guaranteed. Pay attention to
■ Park the vehicle on a level, firm and
storage information on sealant
non-slippery surface. The front
canister.
wheels must be in the straight-
Replace the used sealant canister.
ahead position.
To remove sealant canister, release
■ Apply the electrical parking brake
sealant filler hose and air hose, slide
3 137 and engage first gear,
canister out of housing and unscrew
reverse gear or P.
hose from canister. Dispose of the
■ Remove the spare wheel 3 189.
canister as prescribed by applicable
laws.
■ Never change more than one wheel
at a time.

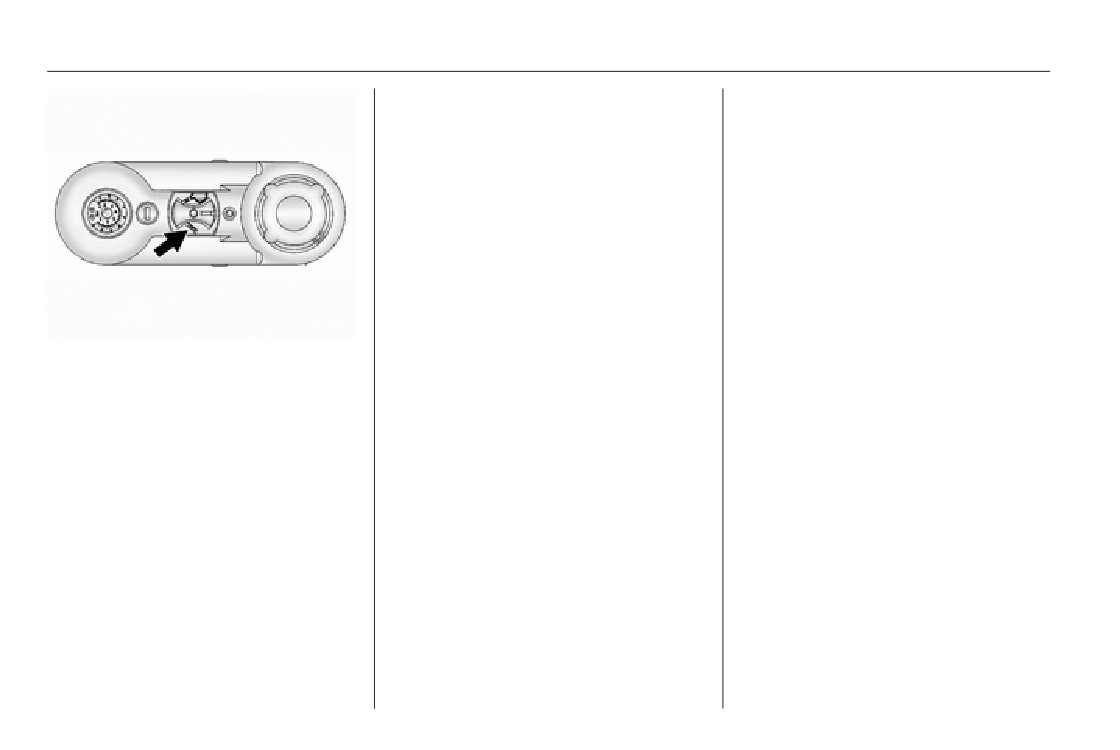

13. Turn the selector switch clockwise
The accessory adapter supplied can
to the air only position. Switch on
be used to pump up other items
■ Block wheel diagonally opposite
the compressor to inflate the tyre
e.g. footballs, air mattresses,
the wheel to be changed, by placing
with air only.
inflatable dinghies etc. The adapter
wedge blocks or equivalent in front
is located on the underside of the
and behind the wheel.
Notice
The driving characteristic of the
tyre repair kit.
■ Use the jack only to change wheels
repaired tyre is severely affected,
in case of puncture, not for
Wheel changing
therefore have this tyre replaced.
seasonal winter or summer tyre
Some vehicles are equipped with a
changes.
If unusual noise is heard or the
tyre repair kit instead of a spare wheel
compressor becomes hot, turn
■ Never exceed jack maximum
3 183.
compressor off for at least
working load (900 kg).
30 minutes.
■ If the ground on which the vehicle
is standing is soft, a solid board
(max. 1 cm thick) should be placed
under the jack.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
187
■ Do not raise the vehicle more than
1. Pull off the wheel cover.
is necessary to change a wheel.
2. Install the wheel wrench ensuring
■ No people or animals may be in the
that it locates securely and loosen
vehicle when it is jacked-up.
each wheel nut by one turn by
turning anticlockwise.
■ Never crawl under a jacked-up
vehicle.
■ Do not start the engine when it is
raised on the jack.
■ Clean wheel nuts and thread before
mounting the wheel.
9 Warning

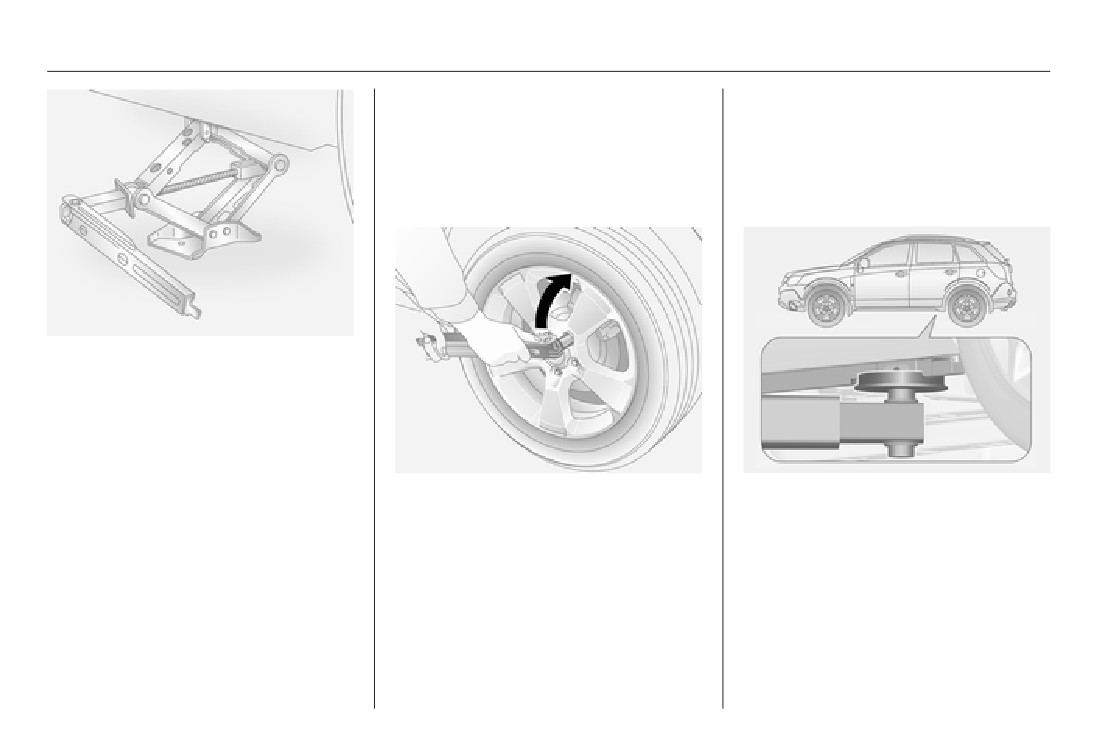

4. Before positioning the jack, set it
to the necessary height by
Do not grease wheel bolt, wheel
rotating the eye by hand.
nut and wheel nut cone.
Position jack at the jacking point
located nearest to the wheel
concerned so that the jack claw
3. The location of front and rear
spans the vertical base. Ensure
jacking points is indicated by
the jack is positioned correctly.
notches on the bottom edge of the
vehicle, under the doors.
The jack base must be on the
ground directly below the jacking
point in a manner that prevents it
from slipping.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

188
Vehicle care
8. Screw on the wheel nuts and
Have the defective tyre renewed and
tighten slightly by hand by turning
replace temporary spare wheel with a
clockwise until wheel is held
full specification wheel without delay.
against the hub.
Jacking position for lifting
9. Rotate wrench anticlockwise and
platform
lower vehicle to the ground.
5. Attach wheel wrench to eye of
threaded rod and rotate wrench
clockwise to raise vehicle.
If this is not the case, carefully
lower the vehicle immediately and
reposition the jack. Raise the
vehicle until the wheel is just clear
10. Install the wheel wrench ensuring
Rear arm position of the lifting
of the ground.
that it locates securely and tighten
platform centrically under the recess
6. Unscrew wheel nuts completely
each wheel nut in a crosswise
of the sill.
and wipe clean with a cloth.
sequence. Tightening torque is
140 Nm.
Do not grease the threads. Put
wheel nuts somewhere where the
11. Stow the replaced wheel 3 189
threads will not be soiled.
and the vehicle tools 3 175.
7. Change the wheel. Notes on
12. Check the tyre pressure of the
spare wheel 3 189.
installed tyre as soon as possible.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
189
corresponding speed limits apply,
even though no label indicates this.
Seek the assistance of a workshop to
check the applicable speed limit.
Use of the temporary spare wheel
could affect driveability, particularly if
using winter tyres. Have the defective
tyre renewed as soon as possible and
have the wheel balanced and fitted to
the vehicle.
Caution
Front arm position of the lifting
The temporary spare wheel is located
platform centrically under the recess
The use of a spare wheel that is
in the load compartment below the
of the sill.
smaller than the other wheels or in
floor cover and is secured with a
combination with winter tyres
screw-in retainer.
could affect driveability. Have the
Push both levers on the floor cover
Spare wheel
defective tyre replaced as soon as
towards the handle and pull up the
possible.
Temporary spare wheel
cover by the handle. Hang the hook
to the upper part of the tailgate
Some vehicles are equipped with a
opening.
tyre repair kit instead of a spare
wheel.
Vehicle tools 3 175.
The temporary spare wheel is
Remove the retainer by rotating it
designed for use on your vehicle only.
anticlockwise and remove temporary
If mounting a spare wheel which is
spare wheel from the spare wheel
different from the other wheels, this
well.
wheel might be classified as a
temporary spare wheel and the

-------------------------------------------------------------------------------------------------------------------------------------------------------------

190
Vehicle care
Only mount one temporary spare
■ Do not drive faster than 50 mph.
Jump starting
wheel. Do not drive faster than
■ Drive particularly carefully on wet
50 mph. Take curves slowly. Do not
and snow-covered road surfaces.
Do not start with quick charger.
use for a long period of time.
A vehicle with a discharged battery
When the temporary spare wheel is
9 Warning
can be started using jump leads and
fitted, do not take the vehicle through
the battery of another vehicle.
an automatic vehicle wash with guide
Storing a jack, a wheel or other
rails. The temporary spare wheel may
equipment in the load
9 Warning
get caught on the rails, causing
compartment could cause injury if
damage to the tyre, wheel and other
they are not fixed in place
Be extremely careful when starting
vehicle parts.
properly. During a sudden stop or
with jump leads. Any deviation
a collision, loose equipment could
The use of tyre chains is not permitted
from the following instructions can
cause personal injury or damage
on the temporary spare wheel.
lead to injuries or damage caused
to the vehicle.
Tyre chains 3 183.
by battery explosion or damage to
Always store the jack and vehicle
the electrical systems of both
Directional tyres
tools in their respective storage
vehicles.
Fit directional tyres such that they roll
compartments and secure them
in the direction of travel. The rolling
properly.
9 Warning
direction is indicated by a symbol
Always place the damaged wheel
(e.g. an arrow) on the sidewall.
in the load compartment, secured
Avoid contact of the battery with
The following applies to tyres fitted
in the spare wheel well with the
eyes, skin, fabrics and painted
opposing the rolling direction:
screw-in retainer.
surfaces. The fluid contains
■ Driveability may be affected. Have
sulphuric acid which can cause
the defective tyre renewed as soon
injuries and damage in the event
as possible and have the wheel
of direct contact.
balanced and fitted to the vehicle.
■ Never expose the battery to naked
flames or sparks.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
191
■ A discharged battery can already
■ The vehicles must not come into
3. Connect the black lead to the
freeze at a temperature of 0 °C.
contact with each other during the
negative terminal 3 of the booster
Defrost the frozen battery before
jump starting process.
battery.
connecting jump leads.
■ Apply the electrical parking brake
4. Connect the other end of the black
■ Wear eye protection and protective
3 137, transmission in neutral,
lead to a vehicle grounding point,
clothing when handling a battery.
automatic transmission in P.
such as the engine block 4 or an
engine mounting bolt. Connect as
■ Use a booster battery with the
■ Open the positive terminal
far away from the discharged
same voltage (12 Volts). Its
protection caps of both batteries.
battery as possible, however at
capacity (Ah) must not be much
least 60 cm.
less than that of the discharged
battery.
Route the leads so that they cannot
catch on rotating parts in the engine
■ Use jump leads with insulated
compartment.
terminals and a cross section of at
least 16 mm2 (25 mm2 for diesel
To start the engine:
engines).
1. Start the engine of the vehicle
■ Do not disconnect the discharged
providing the jump start.
battery from the vehicle.
2. After 5 minutes, start the other
■ Switch off all unnecessary electrical
engine. Start attempts should be
consumers. The Infotainment
made for no longer than
system may be damaged if
15 seconds at an interval of
switched on while jump starting.

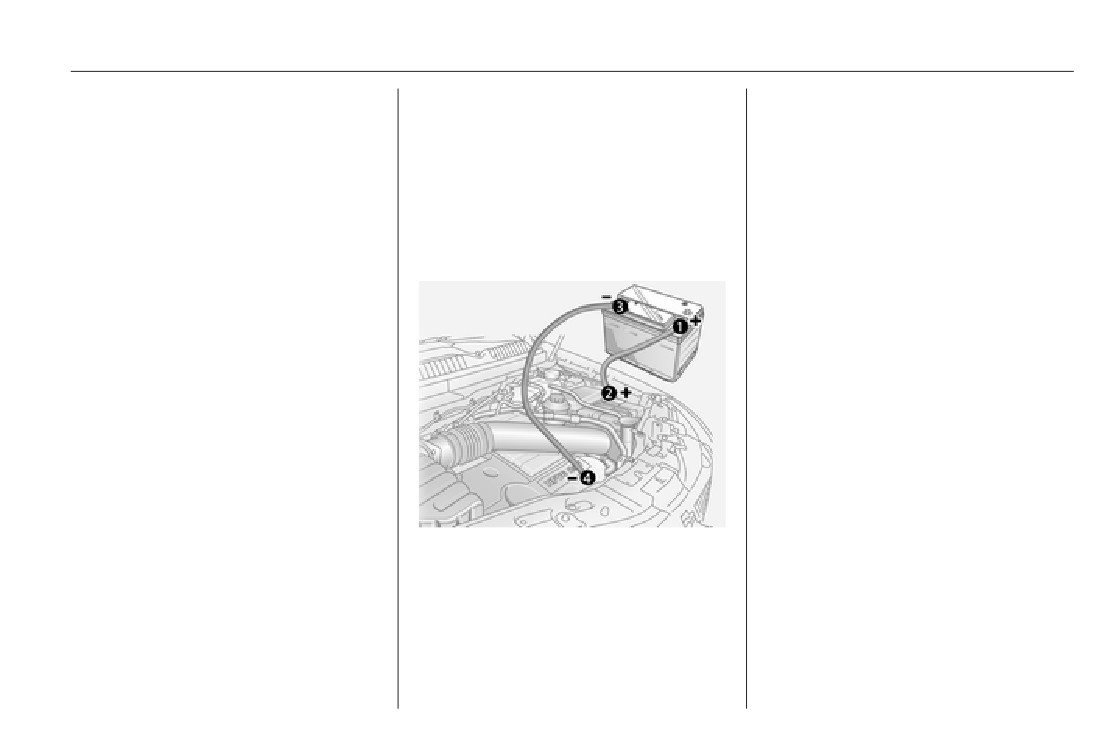

Lead connection order:
1 minute.
■ Do not lean over the battery during
1. Connect the red lead to the
3. Allow both engines to idle for
jump starting.
positive terminal 1 of the booster
approx. 3 minutes with the leads
■ Do not allow the terminals of one
battery.
connected.
lead to touch those of the other
2. Connect the other end of the red
lead.
lead to the positive terminal 2 of
the discharged battery.















Content      ..     9      10      11      12     ..
