Vauxhall Antara (2014 year). Manual - part 10





-------------------------------------------------------------------------------------------------------------------------------------------------------------

158
Vehicle care
battery. Short-distance-driving and
Caution
frequent engine starts can discharge
the vehicle battery. Avoid the use of
Only use high-performance brake
unnecessary electrical consumers.
fluid approved for the vehicle.
Brake fluid 3 198.
Brake fluid level control indicator R
3 85.
Clutch fluid
Batteries do not belong in household
waste. They must be disposed of at
9 Warning
If the fluid in the reservoir falls below
an appropriate recycling collection
the MIN mark, seek the assistance of
point.
Clutch fluid is poisonous and
a workshop.
corrosive. Avoid contact with eyes,
Laying up the vehicle for more than
Clutch fluid 3 198.
skin, fabrics and painted surfaces.
6 weeks can lead to battery
discharge. Disconnect the clamp from
Vehicle battery
the negative terminal of the vehicle
battery.
Vehicles without stop-start system
will be equipped with a lead acid
Ensure the ignition is switched off
battery. Vehicles with stop-start
before connecting or disconnecting
system will be equipped with an
the vehicle battery.
AGM vehicle battery which is not a
The anti-theft alarm siren must be
lead acid battery.
deactivated as follows: Switch the
The vehicle battery is maintenance-
ignition on then off, disconnect the
free provided that the driving profile
vehicle's battery within 15 seconds.
allows sufficient charging of the

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
159
Retrofitted electrical or electronic
Replacing the vehicle battery
accessories can place an additional
Notice
load on the vehicle battery or
Any deviation from the instructions
discharge the battery. Seek the
given in this paragraph may lead to
assistance of a workshop regarding
a temporary deactivation of the stop-
technical possibilities, such as fitting
start system.
a more powerful battery.
When the vehicle battery is being
Ensure the ignition is switched off
replaced, please ensure that there
before reconnecting the vehicle
are no open ventilation holes in the
battery. Then perform the following
vicinity of the positive terminal. If a
actions:
ventilation hole is open in this area, it
1. Set date and time in the
must be closed off with a dummy cap,
information display 3 77.
An AGM battery can be identified by
and the ventilation in the vicinity of the
the label on the battery. We
2. If necessary, activate the power
negative terminal must be opened.
recommend the use of an original
windows and sun roof 3 30, 3 32.
Only use batteries that allow the fuse
Vauxhall battery.
In order to prevent the vehicle battery
box to be mounted above the vehicle
from discharging, some consumers
battery.
Notice
such as the courtesy lights
Using an AGM vehicle battery
In vehicles with stop-start system,
automatically switch off after a delay.
different from the original Vauxhall
ensure to have the AGM (Absorptive
vehicle battery may result in a lower
Charge a disconnected vehicle
Glass Mat) vehicle battery replaced
performance of the stop-start
battery every 6 weeks.
with an AGM battery again.
system.
Vehicle battery discharge protection
We recommend that you have the
3 114.
vehicle battery replaced by a
workshop.
Stop-start system 3 125.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

160
Vehicle care
Charging the vehicle battery
Meaning of symbols:
Diesel fuel filter
■ No sparks, naked flames or
9 Warning
smoking.
■ Always shield eyes. Explosive
On vehicles with stop-start
gases can cause blindness or
system, ensure that the charging
injury.
potential does not exceed
■ Keep the vehicle battery out of
14.6 volts when using a battery
reach of children.
charger. Otherwise the vehicle
battery might be damaged.
■ The vehicle battery contains
sulfuric acid which could cause
Jump starting 3 190.
blindness or serious burn injuries.
■ See the Owner's Manual for further
Warning label
information.
Drain diesel fuel filter of residual
■ Explosive gas may be present in
water at every engine oil change.
the vicinity of the vehicle battery.
Place a container underneath the
filter housing. Turn drain plug
anticlockwise using a suitable
screwdriver, to drain off the water.
The filter is drained as soon as diesel
fuel emerges from the port. Retighten
the drain plug by turning it clockwise.
With engine switched off, turn ignition
key to ON, wait approx. 5 seconds,
and turn key to LOCK to perform
priming operation. Perform this

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
161
operation 3 times or more while the
Wiper blade replacement
Bulb replacement
engine is switched off, to avoid air
entering the fuel line.
Wiper blades on the windscreen
Switch off the ignition and turn off the
Check diesel fuel filter at shorter
relevant switch or close the doors.
intervals if the vehicle is subjected to
Only hold a new bulb at the base! Do
extreme operating conditions.
not touch the bulb glass with bare
If there is water in the diesel fuel filter,
hands.
control indicator U illuminates in the
Use only the same bulb type for
instrument cluster 3 90. Drain the
replacement.
water immediately.
Replace headlight bulbs from within
the engine compartment.
Diesel fuel system
Bulb check
bleeding
After a bulb replacement switch on
If the fuel tank has been run dry, the
the ignition, operate and check the
diesel fuel system must be bled.
Lift wiper arm, press and hold
lights.
Switch on the ignition three times for
retaining clip and detach wiper blade.
15 seconds at a time. Then crank the
engine for a maximum of
Attach the wiper blade slightly angled
Headlights
to the wiper arm and push until it
40 seconds. If the engine will not start,
engages.
Headlamp removal
wait at least 10 seconds before trying
again. If the engine fails to start, seek
Lower wiper arm carefully.
For bulb replacement, it is necessary
the assistance of a workshop.
to first remove the headlamp
assembly.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

162
Vehicle care
Halogen headlights
Low and high beam
1. Switch off the ignition and
headlight switch.
Halogen headlights A can be
Halogen headlights have separate
2. Open the bonnet, release the
identified from Xenon headlights B by
systems for high beam 1 (inner bulbs)
11 retainers and remove the
the different lens layout.
and low beam 2 (outer bulbs).
radiator cover.
1. Remove headlamp assembly
3. Remove 3 bolts and withdraw
3 161.
headlamp.
2. Remove headlamp cap.
4. Depress harness connector tags
and disconnect headlamp wiring.
3. Release bulb retaining spring and
remove bulb from reflector
5. Remove the headlamp assembly.
housing.
Headlamp assembly installation is the
4. When inserting a new bulb,
reverse of removal - ensure locating
ensure the lugs engage correctly
dowel aligns with its socket. Do not
with the recesses on the reflector.
overtighten bolts or retainers.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
163
5. Engage bulb retaining spring and
5. Reinstall bulb holder in lamp
5. Reinstall bulb holder in lamp
replace headlamp cap.
assembly by rotating it clockwise.
assembly and replace headlamp
cap.
6. Reinstall headlamp assembly.
6. Reinstall headlamp assembly.
6. Reinstall headlamp assembly.
Front turn signal
Sidelights
Xenon headlights
1. Remove headlamp assembly
1. Remove headlamp assembly
3 161.
3 161.
Xenon headlights B can be identified
2. Rotate bulb holder anticlockwise
2. Remove headlamp cap and
from Halogen headlights A by the
and withdraw bulb holder from
withdraw bulb holder (located
different lens layout.
lamp assembly.
next to high beam bulb) from lamp
assembly.
3. Press and rotate bulb
anticlockwise to remove it from
3. Remove bulb from bulb holder by
bulb holder.
pulling it straight out.
4. Insert new bulb into bulb holder by
4. Insert new bulb, using a lint-free
pressing and rotating it clockwise.
cloth to hold bulb.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

164
Vehicle care
Low and high beam
3. Press and rotate bulb
3. Remove bulb from bulb holder by
anticlockwise to remove it from
pulling it straight out.
9 Danger
bulb holder.
4. Insert new bulb, using a lint-free
4. Insert new bulb into bulb holder by
cloth to hold bulb.
Xenon headlights work under
pressing and rotating it clockwise.
5. Reinstall bulb holder in lamp
extremely high electrical voltage.
5. Reinstall bulb holder in lamp
assembly by rotating it clockwise.
Do not touch. Have bulbs replaced
assembly by rotating it clockwise.
6. Reinstall headlamp assembly.
by a workshop.
6. Reinstall headlamp assembly.
Front turn signal
Fog lights
Sidelights
1. Remove headlamp assembly
1. Remove headlamp assembly
3 161.
3 161.
2. Rotate bulb holder anticlockwise
2. Rotate bulb holder anticlockwise
and withdraw bulb holder from
and withdraw bulb holder from
lamp assembly.
lamp assembly.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
165
1. Remove 2 screws from panel on
Tail lights
underside of vehicle below front
fog lights and remove panel.
Rear brake, tail, turn signal,
2. Disconnect harness connector
reverse and fog tail light
from bulb holder and rotate bulb
holder anticlockwise.
3. Remove bulb holder from lamp
assembly, rotate bulb
anticlockwise and remove from
bulb holder.
4. Insert new bulb into bulb holder
and rotate it clockwise.
6. Replace lamp assembly by
5. Reinstall bulb holder in lamp
guiding lugs on lamp assembly
assembly and reconnect harness
into their corresponding
connector.
apertures.
6. Reinstall panel to underside of
7. Replace 2 screws removed earlier
vehicle using 2 screws removed
1. Open the tailgate and remove
and close the tailgate.
earlier.
2 screws and lamp assembly.
2. Remove bulb holder by rotating it
anticlockwise.
3. Remove bulb from bulb holder by
pressing the bulb in and rotating it
anticlockwise.
4. Insert new bulb into bulb holder.
5. Reinstall bulb holder into lamp
assembly. Rotate bulb holder
clockwise and ensure it is secure.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

166
Vehicle care
5. Reinstall bulb holder into lamp
Side turn signal lights
Centre high-mounted
assembly, rotate bulb holder
brake light
clockwise and ensure it is secure.
Have bulbs replaced by a workshop.
6. Replace lamp covers using the
4 screws removed earlier.
Number plate light

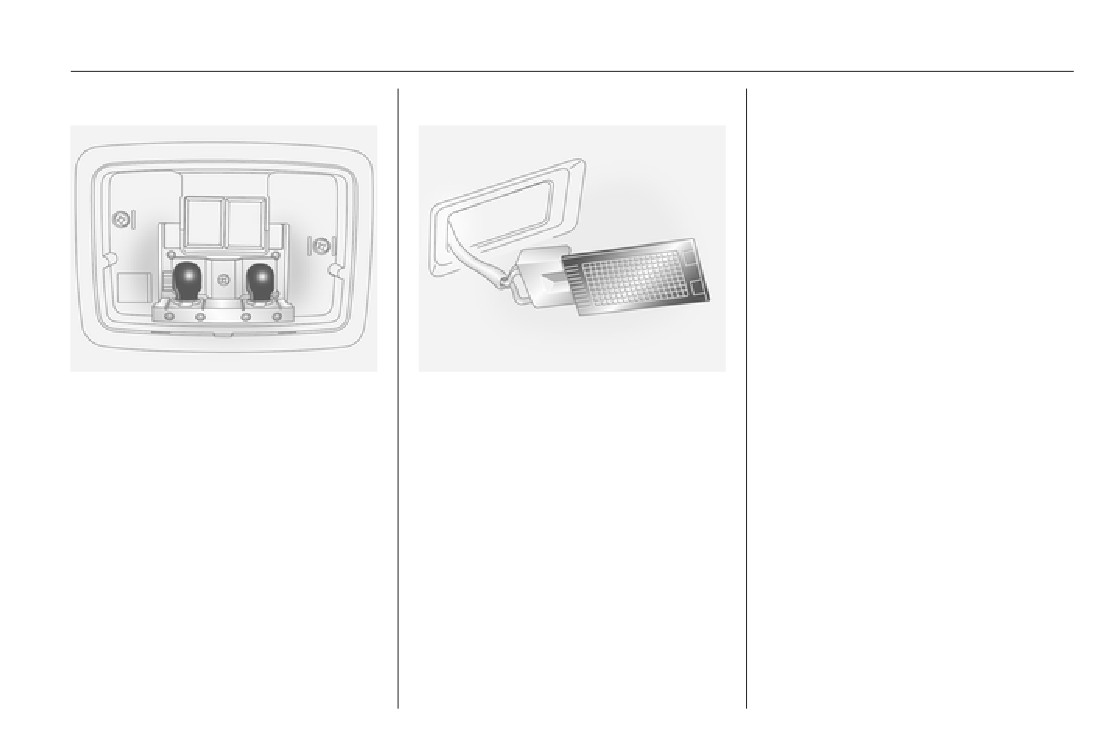

Interior lights
Front reading lights
1. Using a suitable screwdriver, pry
lamp assembly away from wing.
2. Rotate bulb holder anticlockwise.
3. Remove bulb from lamp assembly
by pulling bulb straight out of bulb
1. Remove 4 screws (arrowed) and
holder.
remove lamp covers.
4. Insert new bulb into bulb holder by
2. Remove bulb holder from lamp
pressing it in and rotating the bulb
assembly by rotating it
1. Using a suitable screwdriver, pry
holder clockwise.
anticlockwise.
lamp lens away from roof lining.
5. Push lamp assembly back into
3. Pull bulb straight out of bulb
2. Remove bulb.
aperture.
holder.
3. Insert new bulb.
4. Insert new bulb.
4. Reinstall lamp lens in roof lining.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
167
Rear reading lights
Load compartment light
Electrical system
Fuses
Data on the replacement fuse must
match the data on the defective fuse.
There are two fuse boxes in the
vehicle:
■ in the engine compartment next to
the coolant reservoir,
■ in the instrument panel, on the left-
hand side of the front passenger
seat foot well, or, in right-hand drive
vehicles, on the left-hand side of
1. Using a suitable screwdriver, pry
1. Using a suitable screwdriver,
the driver's seat foot well.
lamp lens away from roof lining.
remove lens from lamp assembly.
Before replacing a fuse, turn off the
2. Remove bulb.
2. Remove bulb.
respective switch and the ignition.
3. Insert new bulb.
3. Insert new bulb.
A blown fuse can be recognized by its
4. Reinstall lamp lens in roof lining.
4. Reinstall lens to lamp assembly.
melted wire. Do not replace the fuse
until the cause of the fault has been
Glovebox light
remedied.
Have bulbs replaced by a workshop.
Some functions are protected by
several fuses. Fuses may also be
Instrument panel
inserted without existence of a
function.
illumination
Have bulbs replaced by a workshop.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

168
Vehicle care
Notice
Not all fuse box descriptions in this
manual may apply to your vehicle.
When inspecting the fuse box, refer
to the fuse box label.
It is advisable to carry a full set of
spare fuses. Spare fuses can be
stored in the engine compartment
fuse box.
Fuse extractor
A fuse extractor may be located in the
engine compartment fuse box.
Place the fuse extractor on the
various types of fuse from the top or
side, and withdraw fuse.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
169

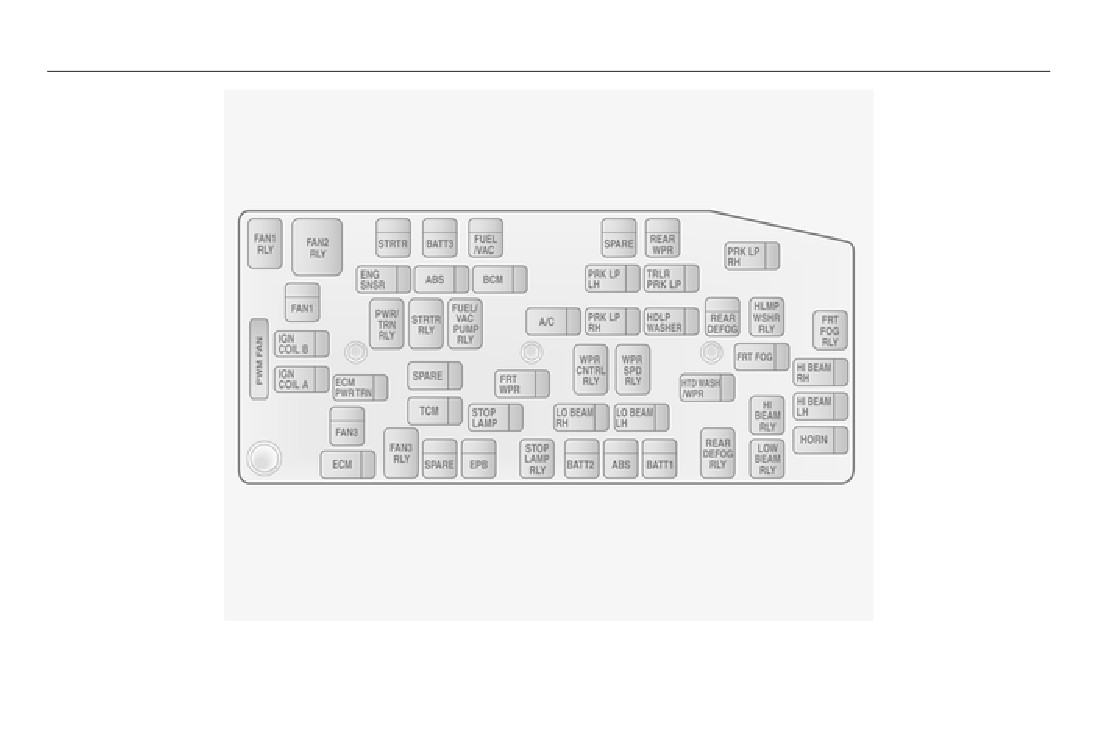

Engine compartment fuse
box
The fuse box is located next to the
coolant reservoir in the engine
compartment.
To open, disengage cover and tilt
upwards.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

170
Vehicle care

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
171
Fuse
Circuit
Fuse
Circuit
Fuse
Circuit
ABS
Anti-lock Brake
FAN1
Cooling fan
LO BEAM RH
Low beam (right-
System
hand)
FAN3
Cooling fan
A/C
Climate control,
PRK LP LH
Parking light (left-
FRT FOG
Front fog lights
air conditioning
hand)
system
FRT WPR
Front wiper
PRK LP RH
Parking light
BATT1
Instrument panel
FUEL/VAC
Fuel pump,
(right-hand)
fuse box
vacuum pump
PWM FAN
Pulse width modu-
BATT2
Instrument panel
HDLP WASHER Headlight washer
lation fan
fuse box
HI BEAM LH
High beam (left-
REAR DEFOG
Heated rear
BATT3
Instrument panel
hand)
window
fuse box
HI BEAM RH
High beam (right-
REAR WPR
Rear wiper
BCM
Body Control
hand)
SPARE
-
Module
HORN
Horn
STOP LAMP
Brake lights
ECM
Engine Control
Module
HTD WASH/MIR Heated washer
STRTR
Starter
fluid, heated exte-
ECM PWR TRN Engine Control
rior mirrors
TCM
Transmission
Module, Power-
Control Module
train
IGN COIL A
Ignition coil
TRLR PRL LP
Trailer parking
ENG SNSR
Engine sensors
IGN COIL B
Ignition coil
lights
EPB
Electrical parking
LO BEAM LH
Low beam (left-
brake
hand)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

172
Vehicle care
After changing of defective fuses
close the fuse box cover and press
until it engages.
If the fuse box cover is not closed
correctly, malfunctions may occur.

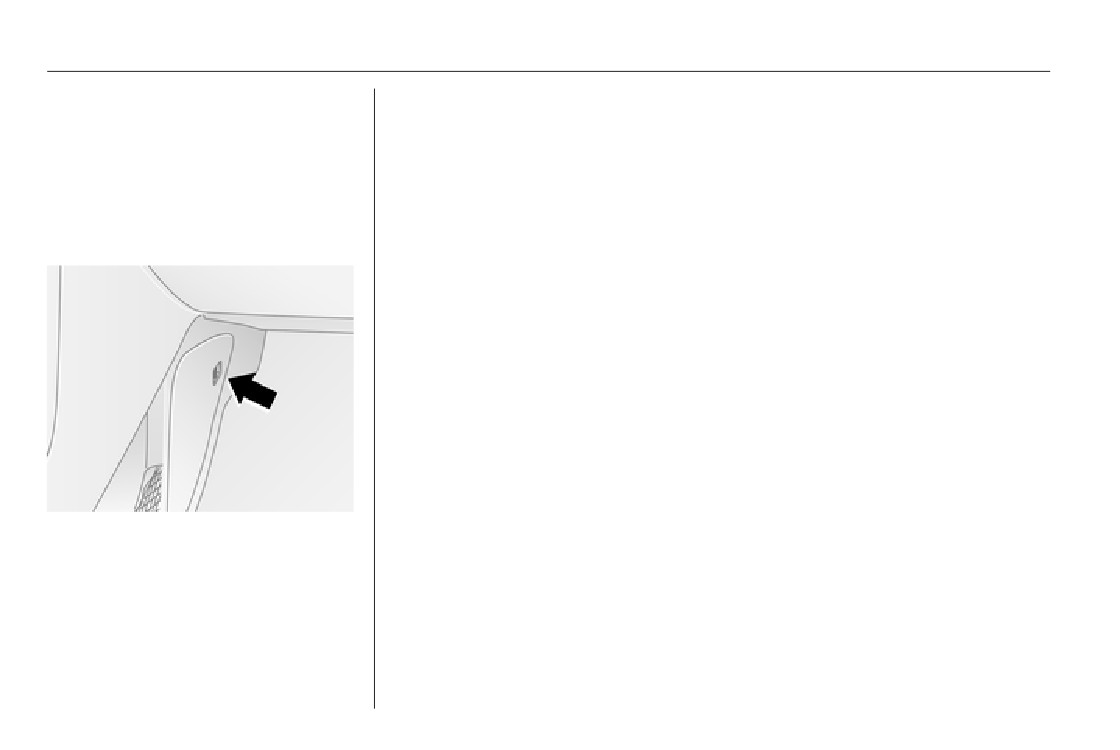

Instrument panel fuse box
The fuse box is located on the left-
hand side of the front passenger seat
foot well, or, in right-hand drive
vehicles, on the left-hand side of the
driver's seat foot well.
Release latch to open cover.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
173

-------------------------------------------------------------------------------------------------------------------------------------------------------------

174
Vehicle care
Fuse
Circuit
Fuse
Circuit
Fuse
Circuit
AMP
Amplifier
CIM
Communica-
HVAC BLWR
Climate control,
tions Integration
air conditioning
APO JACK
Power outlet
Module
fan
(CONSOLE)
(centre console)
CLSTR
Instrument
IPC
Instrument panel
APO JACK
Power outlet
cluster
cluster
(REAR CARGO)
(load compart-
ment)
DRL
Daytime running
ISRVM/RCM
Interior mirror,
lights
remote compass
AWD/VENT
All-wheel drive,
module
ventilation
DR/LCK
Driver door lock
KEY CAPTURE
Key capture
BCM (CTSY)
Courtesy lights
DRVR PWR
Driver power
SEAT
seat
L/GATE
Tailgate
BCM (DIMMER)
Instrument illu-
mination
DRV/PWR
Driver power
LOGISTIC MODE Logistic mode
WNDW
window
BCM (INT LIGHT
Interior lights,
OSRVM
Exterior mirrors
TRLR FOG)
trailer fog light
F/DOOR LOCK
Fuel filler flap
PASS PWR
Passenger
BCM (PRK/TRN)
Parking lights,
FRT WSR
Front washer
WNDW
power window
turn signals
FSCM
Fuel system
PWR DIODE
Power diode
BCM (STOP)
Brake lights
FSCM/VENT SOL Fuel system,
PWR MODING
Power moding
BCM (TRN SIG)
Turn signals
vent solenoid
RADIO
Radio
BCM (VBATT)
Battery voltage
HEATING MAT
Heating mat
RR FOG
Heated rear
SW
switch
window
HTD SEAT PWR
Seat heating















Content      ..     8      9      10      11     ..
