Vauxhall Astravan (2007 year). Manual - part 14

210

Driving and operation

Electronic Stability Programme

(

ESP®

Plus

) 3

ESP®

Plus

 improves driving stability as

necessary in any driving situation

regardless of the type of road surface or

tyre grip. It also prevents the drive wheels

from spinning irrespective of road surface

and tyre grip.
The system monitors vehicle movements.

As soon as the vehicle starts to swerve

(understeers/oversteers) engine output is

reduced (the sound of the engine changes)

and individual wheels are specifically

braked. This considerably improves the

driving stability of the vehicle on snow and

ice and on wet or slippery road surfaces.

ESP®

Plus

is ready for operation as soon as

the ignition is switched on and control

indicator v goes out.
When ESP®

Plus

comes into action,

v

flashes.

The vehicle is now in a critical situation;

ESP®

Plus

 allows you to keep control of the

vehicle and reminds you to match your

speed to the road conditions.

Control indicator v

Illuminates for a few seconds when the

ignition is switched on. The system is now

ready for operation.
Flashing during driving:

This shows the system has come into

action. The engine output may be reduced

(the sound of the engine changes) and the

vehicle may be braked automatically to a

small degree.

9

 Warning

Do not let this special safety feature

tempt you into taking risks when driving.
Traffic safety can only be achieved by

adopting a responsible driving style.

211

Driving and operation

Illuminates while driving:

The system is switched off or a fault is

present. Continued driving is possible. The

driving stability can however deteriorate

depending on road surface conditions.
Re-engage ESP®

Plus

 or have the cause of

the fault eliminated by a workshop. The

self-diagnosis integrated into the system

facilitates rapid fault identification.
Switching off 3

With SPORT mode 3 engaged (LED in

SPORT button illuminated), the ESP®

Plus

can be disengaged for sports

performance.

Hold the SPORT button depressed for

around 4 seconds. Control indicator v will

illuminate. ESPoff will also appear in the

service display, see page 120.

ESP®

Plus

is reactivated by pressing the

SPORT button again or switching on the

ignition.
SPORT mode, see page 212.

Continuous Damping Control 3

(CDC)

CDC adapts vehicle damping to the current

driving situation and road conditions.
The system continually monitors wheel and

vehicle movements and immediately

modifies the damping of each shock

absorber. Chassis calibration is optimally

adapted to the driving situation and road

conditions.
When SPORT mode is enabled the

damping control is adapted for a sportier

driving style. This adaptation leads to

"harder" chassis calibration.
SPORT mode - see right column.

9

 Warning

ESP®

Plus

should not be deactivated if one

of the run-flat tyres 3 has no pressure.

212

Driving and operation

Control indicator IDS+ for

Continuous Damping Control

Illuminates for around 10 seconds after

opening the driver’s door. Illumination

during driving indicates a fault in the

system. The system is not functioning. For

safety reasons, switches to the harder

chassis setting. Have the cause of the fault

eliminated by a workshop. The self-

diagnosis integrated into the system

facilitates rapid fault identification.

SPORT mode 3

SPORT mode is used to change damping 3,

steering 3, throttle application 3 and the

shift point for automatic transmission 3

and Easytronic 3 while driving.
Damping and steering become more direct

and provide better contact with the road

surface. The engine reacts more quickly to

accelerator movements.
For automatic transmission 3 and

Easytronic 3, the shift times are reduced

and gear changes occur at higher engine

speeds (not when cruise control is on).

To activate

Press the SPORT button. The LED in the

button illuminates.
In vehicles with automatic transmission 3

or Easytronic 3 the control indicator 1

illuminates in the transmission display.
SPORT mode cannot be activated if the

Winter programme 3 is running (vehicles

with automatic transmission 3 or

Easytronic 3). Winter programme - see

pages 180, 186, 193.

213

Driving and operation

To deactivate

Briefly press the SPORT button again or

switch off the ignition. The LED in the

button goes out.
Holding it pressed switches off ESP®

Plus

,

see page 211. SPORT mode remains

engaged.
Switching the winter programme on 3

(vehicles with automatic transmission 3 or

Easytronic 3) switches SPORT mode off.
For winter programme, see

pages 180, 186, 193.

Control indicator IDS+ for SPORT mode

Illuminates for around 10 seconds after

opening the driver’s door. Illumination

during driving indicates a fault in the

system. The system is not functioning.

Have the cause of the fault eliminated by a

workshop. The self-diagnosis integrated

into the system facilitates rapid fault

identification.

Cruise control 3

Cruise control can store and maintain

speeds between 20 mph (30 km/h) and

125 mph (200 km/h). Deviation from the

stored speed may occur when driving up or

downhill.
For safety reasons the cruise control

cannot be activated until the footbrake

has been operated once.
Cruise control is operated with

buttons m,

g

, and § on the turn

signal stalk.
Do not use the cruise control if it is not

advisable to maintain a constant speed

(e.g. in situations presenting a danger to

yourself and other road users, in heavy

traffic or on winding, slippery or greasy

roads).

214

Driving and operation

With automatic transmission 3, only use

cruise control in D or in automatic mode

with Easytronic 3.
When the cruise control is active, reaction

times may be increased due to the different

position of the feet.

Control indicator m

When driving, control indicator m will

illuminates as soon as the system is

switched on.

To activate

Briefly press button m: the current speed is

stored and maintained. The accelerator

pedal can be released.
Vehicle speed can be increased by

depressing the accelerator pedal. When

the accelerator pedal is released, the

previously stored speed is resumed.

9

 Warning

The driver is always responsible for

ensuring that vehicle speed is

appropriate for the speed limit and

driving conditions - even if cruise control

is engaged. Failure to follow the

instructions could lead to injuries or

endanger life.

215

Driving and operation

Increase

With cruise control active, hold down

button m or briefly press it repeatedly:

speed is increased continuously or in steps

of 1.2 mph (2 km/h) without using the

accelerator pedal.
When button m is released the current

speed is stored and maintained.
Decelerate

With cruise control active, hold down

button

g

 or briefly press it repeatedly:

speed is reduced continuously or in steps of

1.2 mph (2 km/h).
When button

g

 is released the current

speed is stored and maintained.

To deactivate

Briefly press button §: Cruise control is

switched off, control indicator m goes out

and the vehicle slowly decelerates. To

continue driving, depress the accelerator

pedal in the usual manner.
For reasons of safety, cruise control

deactivates under certain driving

conditions.
For example:

z the vehicle’s speed drops below approx.

20 mph (30 km/h) or

z the brake pedal is depressed or
z the clutch pedal is depressed or
z selector lever of automatic

transmission 3 or Easytronic 3 in N.

Resuming the stored speed

Briefly press button

g

 at a speed above

20 mph (30 km/h): the speed selected

before the cruise control was switched off is

resumed.
The value of the stored speed is deleted

when the ignition is turned off.

Parking distance sensor 3

The parking distance sensor makes reverse

parking easier by measuring the distance

between the vehicle and an obstacle at the

rear, and giving an acoustic signal in the

passenger compartment.
The system records the distance using four

sensors in the rear bumper.

216

Driving and operation

To activate

The parking distance sensor system

activates automatically when the ignition is

switched on and reverse gear is engaged.
Its operational readiness is indicated by

illumination of the LED in button

r

.

If the vehicle approaches an obstacle when

reversing, a series of signals can be heard

in the vehicle interior. The interval between

the signals becomes shorter as the

distance is reduced. If the distance is less

than 30 cm, the signal will be continuous.

To deactivate

The system deactivates automatically

when reverse gear is disengaged.
To deactivate the system when reverse

gear is engaged, press button

r

.

The LED in the button goes out.
To reactivate, press button

r

 again.

Control indicator

r

Illuminates:

Fault in system. The system is not

functioning.Have the cause of the fault

eliminated by a workshop. The self-

diagnosis integrated into the system

facilitates rapid fault identification.

9

 Warning

Under certain circumstances, various

reflective surfaces on objects or clothing

as well as external noise sources may

cause the system to fail to detect

obstacles. For this reason, care must be

taken when reversing even if the parking

distance sensor is operational. This is of

particular importance when in the vicinity

of pedestrians.

217

Driving and operation

Flashing:

The fault is due to sensors obstructed with

snow or ice. The sensors must be

undamaged and free of dirt, snow and ice.
Interference due to external sources of

ultra sound (e.g. pneumatic drills, rotary

machines). Once the source of interference

is removed, the system will operate

normally.

Caravan/trailer towing equipment 3,

caravan/trailer towing

The system automatically detects if a

towbar is properly fitted to the vehicle.
When towing, plugging the trailer cable

into the socket automatically switches the

parking distance sensor off
Fitting rear load racks 3

Rear load racks, e.g. bicycle racks, fitted

near the sensors could disrupt the system.
Observe the note on the Astra TwinTop on

page 58.

Automatic level control 3

Automatic level control makes it possible to

keep the height of the vehicle constant

when subjected to different loads in the

rear (e.g. when towing a caravan or trailer).

This significantly improves driving

conditions.

218

Driving and operation

The vehicle is automatically raised at the

rear, increasing the spring travel and

ground clearance.
The automatic level control system is

activated after approx. 1.9 miles (3 km),

depending on the vehicle loading and the

nature of the road surface.
Headlight range adjustment, see

page 146.
On function faults, do not utilise full load

capacity. Have the cause of the fault

eliminated immediately by a workshop.

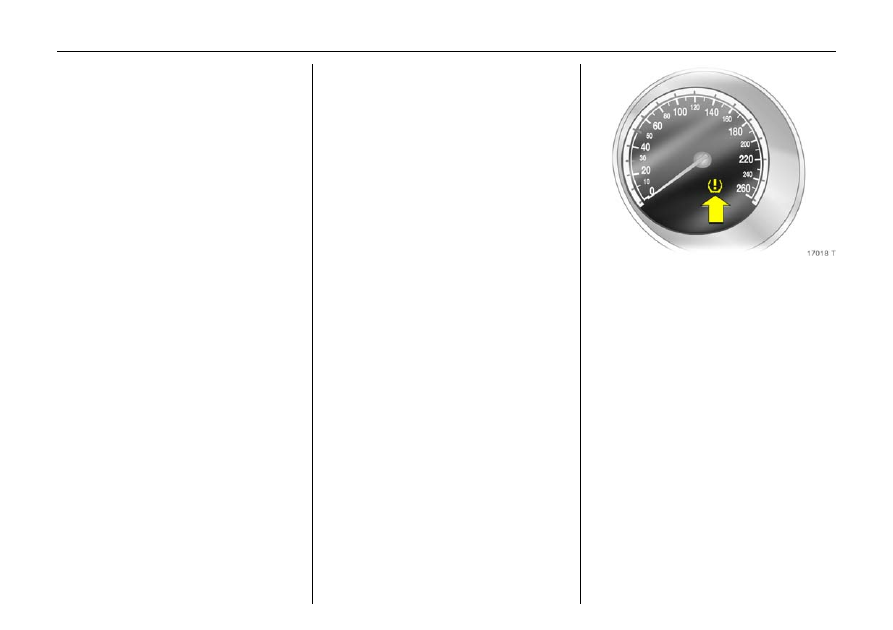

Deflation detection system

(DDS = Deflation Detection System) 3

The deflation detection system

continuously monitors the speed of all

wheels while driving. If a tyre loses

pressure, it grows smaller and rotates more

quickly than the other wheels. If the system

detects a difference in speed, control

indicator

w

illuminates red.

Stop immediately and check tyre pressure.

Mount the spare wheel if necessary, see

pages 249, 252.
The system is operational when the ignition

is switched on and can detect pressure loss

from a speed of 20 mph (30 km/h).

219

Driving and operation

Control indicator

w



If control indicator

w

illuminates red while

driving, there is a loss of pressure. Stop

immediately and check tyre pressures. A

maximum speed of 50 mph (80 km/h) is

permitted for run-flat tyres 3. Observe the

information on page 230.
If the control indicator

w

illuminates yellow,

there is a fault in the system. Have the

cause of the fault eliminated by a

workshop. The self-diagnosis integrated

into the system facilitates rapid fault

identification.
The control indicator flashes three times

when the system is initialising.

Tyre pressure, see pages 227, 337.

System initialisation

After correcting tyre pressure or changing

a tyre/wheel, the system must be initialised:

With the ignition switched on, press the

DDS button for approx. 4 seconds. Control

indicator

w

flashes 3 times. The system is

operational after driving a certain

distance.
Only initialise the system if all tyres have

the prescribed pressure.

Tyre pressure monitoring system 3

The tyre pressure monitoring system

continually checks the pressure and speed

of all four wheels while driving.
A pressure sensor is integrated in each

wheel. Once a minute, the pressure of each

tyre is sent to a control unit, where it is

compared. If the system detects one or

more pressure differences, a message

appears on the information display.
The current tyre pressures are displayed in

the Info display.
For the system to be operational, all wheels

must be equipped with pressure sensors

and all tyres must be filled to the

prescribed pressure. The tyre pressure

monitoring system automatically detects if

the vehicle is being driven with a load of up

to 3 persons or a full load.

9

 Warning

The deflation detection system does not

replace manual checks with a suitable

gauge.
Check tyre pressures at least every

14 days and prior to any long journey;

the tyres should be checked when cold.

Don’t forget to check the spare 3.

220

Driving and operation

Once the ignition is switched on, the system

is operational and will continuously

monitor the tyre pressures at speeds of

approx. 20 mph (30 km/h) and above.

Tyre pressure, see pages 227, 337.

Display of current tyre pressure

Select menu item Tyres from the Board

Computer menu.
The current pressure of each tyre is

displayed.
Warning messages

A message is given on the information

display to warn of inconsistent tyre

pressures. In some versions, the message is

displayed in abbreviated form.
For example, the following messages can

be displayed:

A graphic indicating the left rear tyre is

shown together with the current tyre

pressure: Slight pressure deviation, reduce

speed. Check pressure at next opportunity

with appropriate gauge and correct if

necessary.
On the colour information display this

report will appear in yellow.

9

 Warning

The tyre pressure monitoring system does

not replace manual checks with a

suitable gauge.
Check tyre pressures at least every

14 days and prior to any long journey;

the tyres should be checked when cold.

Don’t forget to check the spare 3.

2

 Board Computer

BC 1

BC 2

Timer

Tyres

 Navi

active

Tyre pressure



OK

check rear
left
(value in bar)

221

Driving and operation

A graphic indicating the front left tyre is

shown together with the current tyre

pressure: Significant pressure deviation or

direct pressure loss! Steer out of flow of

traffic as quickly as possible without

endangering other drivers. Stop and check

the tyres.
Mount the spare wheel 3 if necessary - see

pages 249, 252. A maximum speed of

50 mph (80 km/h) is permitted for run-flat

tyres 3. Observe the information on page

230.
On the colour information display this

report will appear in red.
Acknowledgement of warnings, see

page 130.

Control indicator

w



If control indicator

w

illuminates up yellow

while driving, there is a fault in the tyre

pressure monitoring system. Fitting a wheel

without pressure sensor (e.g. spare wheel

3) will also generate a fault in the system.

Have the cause of the fault remedied by a

workshop. The integral self-diagnostic

feature of the system allows faults to be

quickly remedied.

System initialisation

The system must be initialised after a

wheel/tyre change: With the ignition

switched on, press button DDS approx.

4 seconds. Control indicator

w

flashes

3 times. The system is operational after

driving a certain distance.
Only initialise the system if all tyres have

the prescribed pressure (check when tyres

are cold).

 Navi

active

Attention!

OK

Front left tyre
pressure loss
(value in bar)

222

Driving and operation

General information

The tyre pressure monitoring system does

not function when the emergency or a

spare wheel not fitted with a pressure

sensor is used, and the control indicator

w



illuminates yellow. The tyre pressure

display shows –.–. The tyre pressure is then

monitored by the deflation detection

system, see page 218.
If a complete set of wheels without tyre

pressure control system sensors is mounted

(e.g. four winter tyres), no error message

will be displayed. The tyre pressure

monitoring system is not operational. The

tyre pressure of a set of wheels without

sensors is monitored by the deflation

detection system, see page 218.

Sensors for the tyre pressure monitoring

system can be fitted on request by a

workshop.
When manually checking tyre pressure with

a pressure gauge, screw the adapter onto

the valve. Tyre pressure, see page 337.
On each tyre change, the valve inserts and

sealing rings for the tyre pressure

monitoring system must be replaced by a

workshop.
The use of commercially available liquid

filled run-flat systems or repair kits can

impair the function of the system.

Vauxhall-approved systems can be used.
Radio transmitters (e.g. radio headphones,

walkie-talkies) operated in the area could

cause interference in the tyre pressure

monitoring system.

Brake system

The brakes are an important factor for

traffic safety.
To improve effectiveness, do not brake

unnecessarily hard for the first

125 miles (200 km) after new brake pads

have been fitted.
Brake pad wear must not exceed a

specified limit. Regular maintenance as

detailed in the Service Booklet is therefore

of the utmost importance for traffic safety.
Have worn brake pads replaced by a

workshop.
Tested and approved pads give optimum

braking performance.
Brake pads worn to the minimum level

cause grinding noises. You may continue

to drive but have the pads replaced as

soon as possible. To change the pads,

contact a workshop.

223

Driving and operation

Brake assist

If the brake pedal is operated with a rapid,

powerful push, the vehicle is automatically

braked at full braking power in order to

achieve the shortest possible braking

distance when full-on braking occurs

(brake assist).
Maintain steady pressure on the brake

pedal for as long as full-on braking is to

continue. When the brake pedal is

released, the maximum brake force

amplification is taken away.

Footbrake

The footbrake comprises two independent

brake circuits.
If one brake circuit fails, the vehicle can still

be braked with the other brake circuit.

However the braking effect will occur at a

lower pedal position and considerably

more force is required. The braking

distance is longer. Contact a workshop

before continuing to drive.
To ensure the full pedal travel can be

utilized, especially in case of a fault in one

of the brake circuits, there must be no mats

in the vicinity of the pedals, see page 199.
When the engine is not running, the

support of the brake servo unit disappears

once the brake pedal has been depressed

once or twice. Braking effect is not

reduced, but braking requires significantly

greater force. This is especially important

to bear in mind when towing.

Check the brake lights before starting out

on a journey. On vehicles with check

control 3 the brake lights are checked

automatically, see page 138.
Shortly after starting each journey the

effectiveness of the brake system should

be tested at low speed and without

inconveniencing other traffic, especially if

the brakes are wet, e.g. after the vehicle

has been washed.
The brake fluid level should be checked

regularly. If the brake fluid level is too low

and the handbrake is not applied, control

indicator R in the instrument panel

illuminates, see page 114.
Hill Start Assist 3 (HSA)

The system helps pull away on inclines.

After releasing the footbrake, if the

handbrake is not applied the brakes are

only released after 2 seconds. As soon as

the acceleration is sufficient to prevent

rolling back, the brake is released.

224

Driving and operation

Handbrake

Always apply handbrake firmly without

operating the release button, and apply as

firmly as possible on a downhill or uphill

slope.
The mechanical handbrake acts on the

brakes on the rear wheels. It engages

automatically when applied.
To release the handbrake pull the lever up

slightly, press the ratchet knob, and fully

lower the lever.
To reduce the operating forces of the

handbrake, depress the footbrake at the

same time.

Brake system control indicator R

The control indicator illuminates when the

ignition is switched on if the handbrake is

applied or if the brake or clutch fluid level is

too low. Brake fluid - see page 302.
For vehicles with Easytronic 3, the control

indicator flashes for a few seconds when

the ignition is turned off if the handbrake is

not applied.

Anti-lock Brake System (ABS

u

)



ABS continually monitors the brake system

and prevents the wheels from locking

regardless of the type of road surface or

tyre grip.
It starts to regulate the braking pressure as

soon as a wheel shows a tendency to lock.

The vehicle remains steerable, even in the

event of very heavy braking, for instance

on bends or when swerving to avoid an

obstacle. Even in the case of full-on

braking, the ABS makes it possible to drive

round an obstacle without releasing the

brakes.
ABS control is made apparent though a

pulse in the brake pedal and the noise of

the regulation process.

9

 Warning

If the control indicator comes on when

the handbrake is released, stop driving

immediately. Contact a workshop for

assistance.

9

 Warning

For optimum braking, keep the brake

pedal fully depressed throughout the

braking process, despite the fact that the

pedal is pulsating. Do not reduce the

pressure on the pedal.
Do not let this special safety feature

tempt you into taking risks when driving.
Traffic safety can only be achieved by

adopting a responsible driving style.

225

Driving and operation

Control indicator u for ABS

It comes on for a few seconds after the

ignition is turned on. The system is ready

for operation when the control indicator

goes out.
If the control indicator does not go out

after a few seconds, or if it illuminates while

driving, there is a fault in the ABS. The

brake system remains operational without

ABS regulation.
Self-check

Each time the ignition is turned on and the

engine started, after moving away from a

speed of around 1.9 mph (3 km/h) the

system performs a self-check which may be

audible.

Fault

You can continue driving, provided you

drive with care and anticipation.
Have the cause of the fault eliminated by a

workshop. The self-diagnosis integrated

into the system facilitates rapid fault

identification.

Wheels, tyres

See page 337 for suitable tyres and

restrictions.
Tyres fitted in the factory are adapted to

the chassis and provide optimum driving

comfort and safety.
Changing tyre/wheel type

Before conversion to other tyres or wheels,

note the changes required.
If tyres of a different size than those fitted

at the factory are used, the electronic

speedometer may require reprogramming

to ensure that the correct speed is

displayed.

9

 Warning

If there is a fault in ABS, the wheels may

be subject to locking due to braking that

is heavier than normal. The advantages

of ABS are no longer operational. The

vehicle can no longer be steered and may

swerve.

9

 Warning

Use of unsuitable tyres or wheels may

lead to accidents and render the vehicle

unroadworthy.
