Keys, doors, windows, TwinTop

Swing in exterior mirror:

Manual: The exterior mirrors can be swung

in by pressing on the outside of the

housing.
Electrically 3: Press

n

 and both mirrors will

swing in.
Press button

n

 again - both exterior

mirrors swivel to the driving position.

If an electrical retracted mirror is extended

manually, pressing button

n

will cause the

mirror to move all the way forward. The

other mirror will be eclectically swiveled to

the driving position. If button

n

is pressed

again, both mirrors will be electrically

retracted. Press again: both mirrors swivel

to the driving position.
Fold mirrors back into driving position

before moving away.

For the safety of pedestrians, the exterior

mirrors will swing out of their normal

mounting position if they are bumped with

sufficient force. Reposition the mirror by

applying slight pressure to the mirror

housing.

51

Keys, doors, windows, TwinTop

Interior mirror

To adjust, swivel mirror housing.
To reduce dazzling at night, swivel lever on

underside of mirror housing.

Automatic anti-dazzle interior mirror 3

Dazzling is automatically reduced at night.
With the ignition off, the mirror does

not dim.

Electric windows

3



The electric windows can be used
z with ignition on,
z within 5 minutes of switching ignition

off 3,

z within 5 minutes of switching ignition key

to position 1.

Stand-by after switching on the ignition

ends when the driver’s door is opened.

9

 Warning

Take care when operating the electric

windows 3 and the sun roof 3. Risk of

injury, particularly to children. Vehicle

passengers should be informed

accordingly.
If there are children on the rear seat,

switch on the child safety system 3 for

the electric windows.
Keep a close watch on the windows and

sun roof when closing them. Ensure that

nothing becomes trapped in them as

they move.

52

Keys, doors, windows, TwinTop

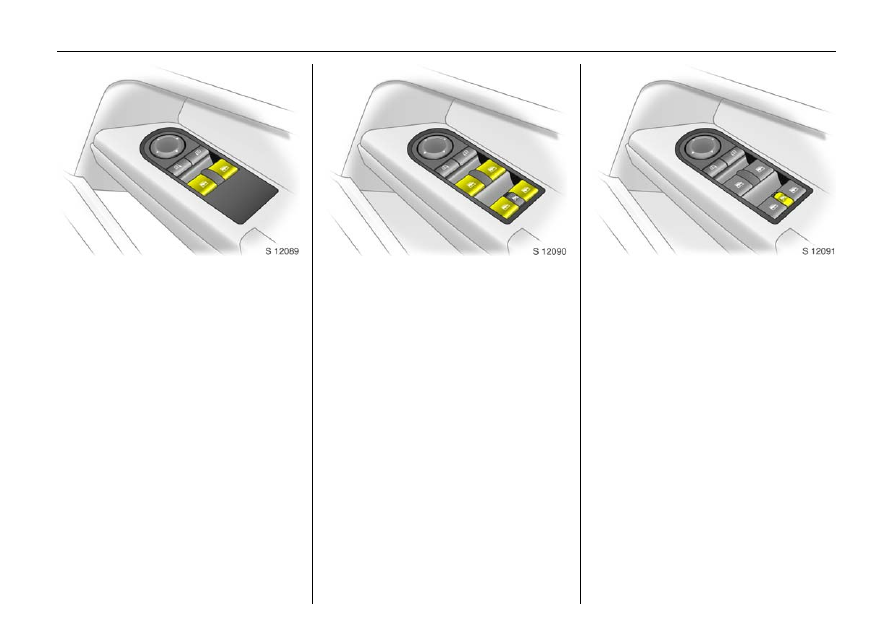

Operated via two or four 3 switches in the

driver’s door handle. The front switches are

for the driver and front passenger doors.

The rear switches 3 are for the rear doors.

Additional switches are located in the front

passenger door and rear doors 3.
For incremental operation, briefly pull or

press the switch. For automatic opening or

closing, pull or press the switch longer. Pull

or press the switch again to stop the

movement.

Safety function

If the window glass encounters resistance

above the middle of the window during

automatic closing, it is immediately

stopped and the window opened again.
In the event of difficulty due to frost or the

like, press the appropriate window switch

several times until the window is closed.

Child safety system for rear windows 3

Switch

z

 between the rear switches in the

driver’s door handle
z Forward (red field visible): Rear door

switches non-operational

z Rearward (green field visible): Rear door

switches operational

53

Keys, doors, windows, TwinTop

Central switch for electric windows,

Astra TwinTop

Button

$

 or

"

in the roof console.

Press button

$

: all windows are closed.

Press button

"

: all windows are opened.

Panoramic windscreen

3



Open the roof lining

Turn the handle to the right and move the

roof lining rearward to a suitable position.

Close the roof lining

Move the roof lining forward to a suitable

position. When moved all the way forward,

the roof lining engages in position.
Note

Close the sun visors before sliding the roof

lining.

54

Keys, doors, windows, TwinTop

Sunroof

3



Operated via rocker switches in the roof

console when the ignition is switched on.
For incremental operation, briefly press the

button. For automatic opening or closing,

press the button longer.

To raise:

When the roof is closed, press button ü.

The roof is tilted in the rear.
To open:

Press button ü again from the tilted

position. The roof opens to its stop.
To close:

Press button

d

.

For reasons of safety, the roof closes from

its open position to approx. 20 cm. Hold

button

d

 depressed to close completely.

Sunblind

Used to reduce sun penetration into the

interior when the sunroof is closed.
The sunblind opens when the sun roof

opens.
To open:

Press button

G

. The sunblind opens to its

stop.
To close:

Press button

H

.

For reasons of safety, the roller blind closes

from its open position to approx. 20 cm.

Hold button

H

 depressed to close

completely.

55

Keys, doors, windows, TwinTop

Note

z If the top of the roof is wet, raise roof,

allow water to run off and then open

roof.

z When using a roof rack, check the

clearance of the sun roof to avoid

damage.

Overload

If the system is overloaded, the power

supply is automatically cut off for a short

time.
The system is protected by fuses in the fuse

box, see page 262.

Fault

If the sun roof and sunblind do not operate

properly, activate electronics as follows:
1. Switch on ignition.
2. Close the sun roof and hold button

d



depressed at least 10 seconds.

3. Close sunblind and hold button

H



depressed at least 10 seconds.

56

Keys, doors, windows, TwinTop

TwinTop

With TwinTop, a convertible hardtop, Astra

unites the benefits of a coupe with those of

a convertible.

Operating the convertible hardtop

Stand-by with ignition key in lock from

position 1, or for Open&Start-System 3

switch on ignition.
Requirements:
z Vehicle is stationary or driving no more

than 20 mph (30 km/h).

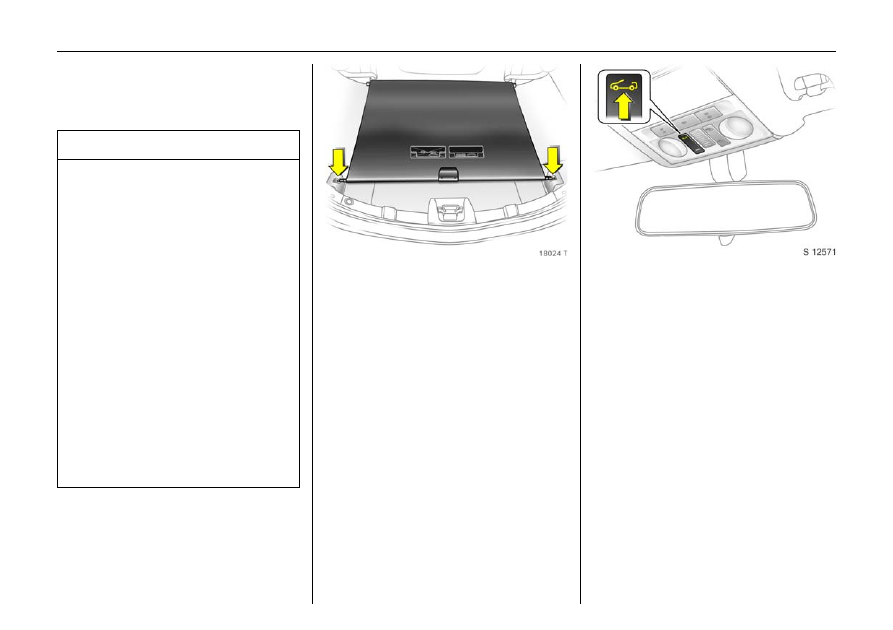

z Luggage compartment blind is closed

and engaged - see Fig. 18024 T above

and page 82.

z Boot lid is closed.
If any of the requirements are not fulfilled,

a warning buzzer sounds when the switch is

actuated and the roof does not open or

close.

To open the roof

There must be no objects in front of the

rear window or in the pivot area of the roof

and boot lid.

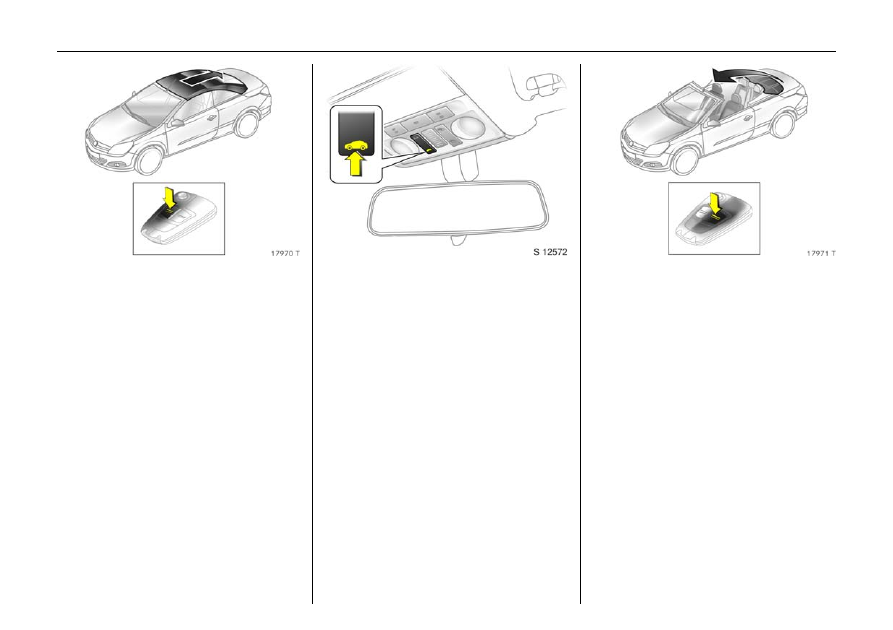

Hold button

>

 in the roof console

depressed until the roof is completely open

and the boot lid is closed.
An acoustic signal sounds at the end of the

opening procedure.
Open the door windows slightly before

opening the roof. If button

>

 is pressed

again after the acoustic signal sounds, the

door windows will close.

9

 Warning

Take care when operating the

convertible hardtop. Risk of injury.
Monitor the action zone above, to the

side and to the rear of the vehicle during

roof operation. Make sure that nothing

could become pinched.
Make sure no one is in the action zone of

the roof or boot lid during roof operation.

Risk of injury.
Check the amount height, length and

width of available space before

operating the roof, e. g. in a garage,

parking garage or when a bicycle rack is

fitted.
Vehicle passengers should be informed

accordingly.
Before leaving the vehicle, remove the

ignition key in order to prevent

unauthorised operation of the windows

and sunroof.

57

Keys, doors, windows, TwinTop

With the vehicle stopped, the roof can be

opened using the remote control 3. Unlock

the vehicle. Press button q again and keep

pressed until the roof has opened fully and

the boot lid has closed.
During operation with the remote control,

the door windows are opened completely.

To close the roof

There must be no objects in the pivot area

of the roof and boot lid.
Hold button

<

 in the roof console

depressed until the roof and boot lid are

completely closed.
An acoustic signal sounds at the end of the

closing procedure.
Open the door windows slightly before

closing the roof. If button

<

 is pressed

again after the acoustic signal sounds, the

door windows will close.

With the vehicle stopped, the roof can be

closed using the remote control 3. Lock the

vehicle. Press button p again and keep

pressed until the roof and boot lid have

closed completely.

6

58

Keys, doors, windows, TwinTop

Indicator and warning buzzers

z Indicator buzzer upon completed

opening or closing of the convertible

hardtop.

z Indicator buzzer upon completed raising

or lowering of the electric luggage

compartment loading aid.

z Gong tone if the boot lid is not closed

during roof operation.

z Gong tone if the boot lid is not fully

opening during operation of the luggage

compartment loading aid.

z Gong tone during roof operation if

vehicle speed exceeds 20 mph (30 km/h).

z Gong tone when vehicle speed exceeds

20 mph (30 km/h)if the roof is not fully

open or closed.

z Three gong tones during roof or loading

aid operation if the luggage

compartment blind is not attached.

z Three gong tones during roof operation

if outside temperature is below –20 °C,

vehicle battery voltage is too low or the

system is overloaded.

z Continuous warning buzzer during roof

operation if the anti-roll bars 3 have

been triggered.

z Continuous warning buzzer starting one

minute before the end of the 9-minute

stand-by time with the roof in an

intermediate position.

z Continuous warning buzzer starting one

minute before the end of the 9-minute

stand-by time with the loading aid in a

raised position.

z Continuous warning buzzer when closing

the boot lid if the lowering process of the

electric load aid is not complete or was

interrupted.

Note

z Do not open the luggage compartment

until the acoustic signal indicating the

end of the roof opening or closing

procedure has sounded.

z The luggage compartment blind must

always be closed during roof operation.

z There must be no one at the covers

behind the rear head restraints.

z There must be no objects in the pivot

area or the roof or on the covers behind

the rear head restraints.

z The roof can only be operated at

temperatures above –20 °C. If the

temperature is below this limit, a gong

will sound three times when roof

operation is requested.

z Frequent operation of the roof with the

engine off discharges the battery.

z Repeated operation of the roof without

breaks can cause overloading and

therefore malfunctions.

59

Keys, doors, windows, TwinTop

z The roof can be held in an intermediate

position for 9 minutes to facilitate

cleaning of roof spaces. This is done by

disengaging the actuation switch. One

minute before the end of this period, a

continuous buzzer sounds as a warning

that the hold period is almost over and

the roof could start to move.

z Activating the roof on uneven ground

can lead to malfunctions and damage.

Fault

The automatic drive of the roof is only

operational if the roof is in the proper open

or closed position.
Check if:
z The luggage compartment blind is

engaged in the closed position

z The boot lid is completely closed
z Outside temperature is above –20 °C
z There is sufficient battery voltage
z There is a system overload
If the automatic drive is not operational,

two persons are required to manually close

the roof. See the accompanying

instructions for Astra TwinTop. We

recommend that you seek professional

assistance.

Rollover protection system

To optimise safety in the event of a

rollover, the Astra TwinTop is equipped

with reinforced windscreen frame and

anti-roll bars behind the rear sat head

restraints. The anti-roll bars are fixed or

deployable depending on vehicle variant.

60

Keys, doors, windows, TwinTop

Fixed anti-roll bars

are secured to the vehicle bodywork.

Deployable anti-roll bars 3

are located between the rear head

restraints and the boot lid in such a way

that they are out of sight. In the event of a

rollover, head-on collision or side impact,

the anti-roll bars deploy upwards within

milliseconds. The convertible roof must not

be operated if the anti-roll bars have been

deployed. A continuous warning will sound

if the switch is actuated. The airbag control

indicator v illuminates if the anti-roll bars

have been deployed.
Manual retraction of the anti-roll bars –

see page 104.
Further information, see page 106.

Luggage compartment

The roof can only be opened if the load in

the luggage compartment does not

exceed the height of the luggage

compartment blind or protrude sideways.

The load height marked in the figure must

not be exceeded. The luggage

compartment blind must be flat; objects

below it must not press it upwards.

Otherwise the roof and load may be

damaged.
Electrically operated loading aid for the

luggage compartment – see page 82.
Luggage compartment blind –

see page 82.

61

Keys, doors, windows, TwinTop

Blockage of boot lid on closure 3

To avoid damage to the open roof, boot lid

or load, the boot lid can only be closed if

the electric load aid is in the lower end

position, see page 82.

Unblocking on failure of electric drive

Push locking lever forward as shown in the

figure.

Wind deflector 3

With the wind deflector installed

turbulence, draughts and noise in the

passenger compartment are reduced when

the roof is open.
The rear seats cannot be occupied when

the wind deflector is in place.
Do not place any objects on the wind

deflector.

62

Keys, doors, windows, TwinTop

With tyre repair set 3, the wind deflector is

folded down into a storage compartment 3

in the luggage compartment below the

loading floor cover.
For the version with spare wheel 3, the

wind deflector is folded away in the

luggage compartment

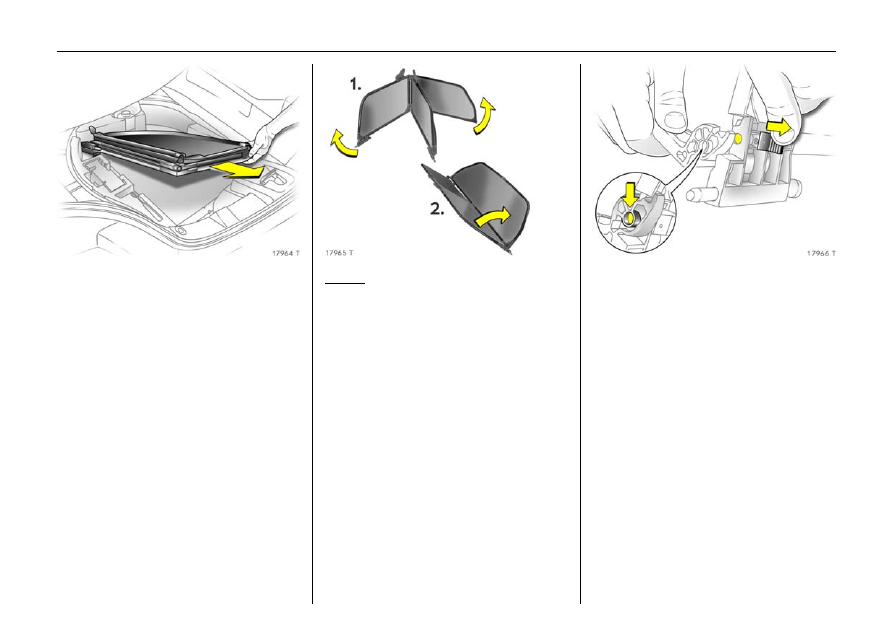

Fitting

Take the wind deflector from the luggage

compartment.
Expand the collapsed wind deflector as

illustrated.

Join together the unfolded ends of the wind

deflector: press in the pin at the slider,

guide the hinge over the pin and release

the slider so that the pin engages in the

hinge.

63

Keys, doors, windows, TwinTop

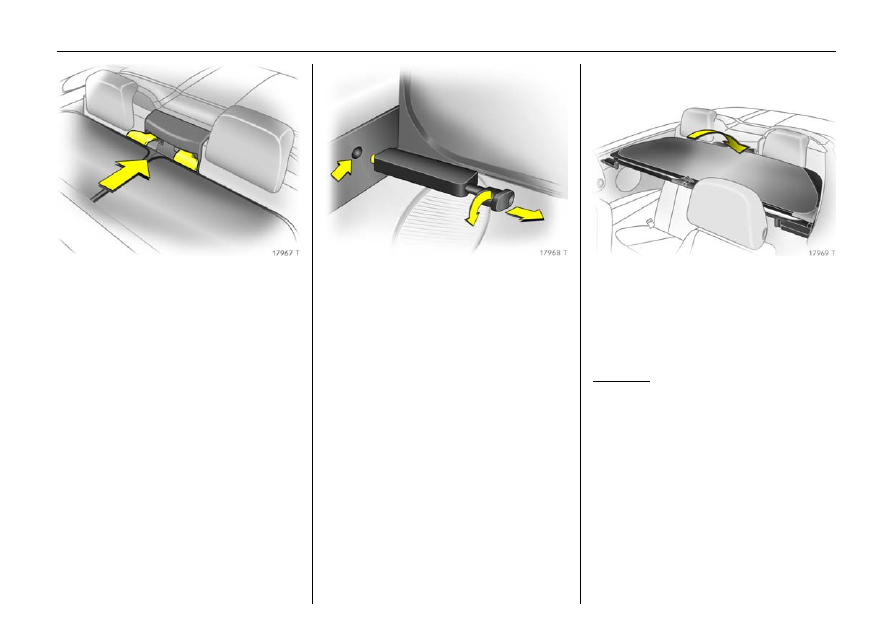

Insert the guide clips of the wind deflector

in the seat belt recesses between the rear

head restraints.

Pull the toggle of the right and left locking

pin and turn to lock. Straighten out the

wind deflector, turn the toggle back and

engage the locking pin in the recess in the

side trim.

The wind deflector can be folded back

when not in use.
If the wind deflector is folded and the rear

seats are unoccupied, the wind deflector

can remain mounted in the vehicle when

the roof is closed.
Removing

Remove in reverse order, wind deflector is

completely folded down in the luggage

compartment:

The wind deflector must never protrude

upwards or sideways from the luggage

compartment, see marked loading height,

see Fig. 17973 T on page 60.

–

For tyre repair kit 3 in the compartment

below the loading floor cover.

–

For version with spare wheel 3, place in

the luggage compartment.

64

Seats, interior

Seats, interior

Front seats

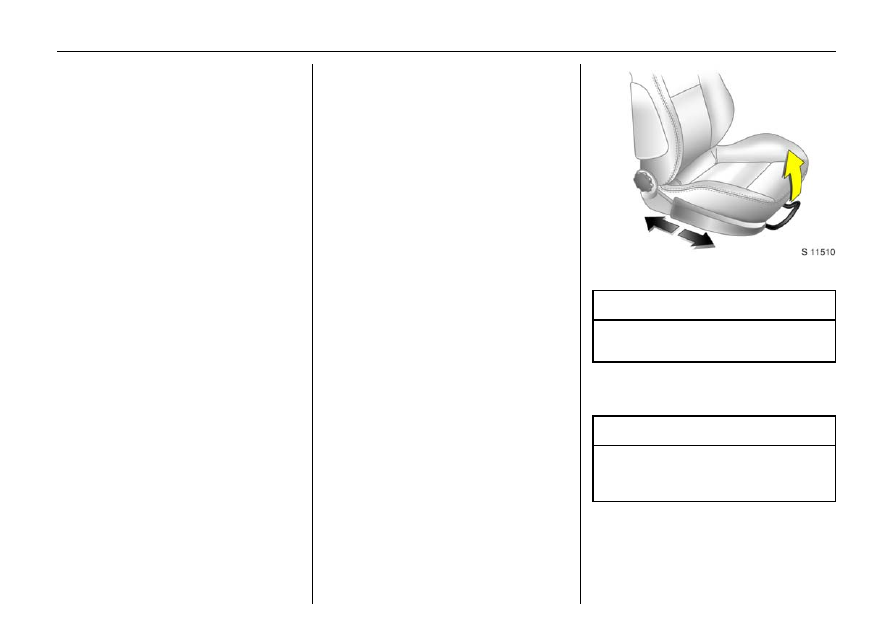

Adjust seat longitudinally

To adjust, pull the handle on the front seat,

slide the seat and release the handle.

Front seats ...........................................  64
Head restraints ....................................  68
Armrest 3 at driver’s seat...................  70
Armrest 3 in back seat backrest........  70
Extending the luggage compartment,

Hatch ................................................. 71

Extending the luggage compartment,

Estate ................................................. 72

Extending the luggage compartment,

Astra TwinTop...................................  75

Folding down the front passenger

seat 3................................................. 75

Luggage compartment cover ............  76
Safety net 3, Estate.............................  78
Luggage compartment grille 3,

pick-up ............................................... 79

Lashing eyes 3 .................................... 80
Rails and hooks in the luggage

compartment 3, Estate ....................  80

FlexOrganizer 3................................... 80
Cargo box 3......................................... 81
Luggage compartment blind,

Astra TwinTop................................... 82

Easy Load.............................................  82
Notes on loading the vehicle..............  84
Three-stage safety system..................  85
Three-point seat belts ......................... 85
Belt tensioners......................................  86

Operating the seat belts.....................  88
Child restraint system 3...................... 90
Vauxhall Full Size airbag system .......  92
Rollover protection system 3 ............. 104
Cigarette lighter 3............................... 107
Accessory socket 3 ............................. 107
Ashtray 3 ............................................. 108
Foldaway tables 3 .............................. 110
Stowage compartments .....................  110
Sun visors .............................................  111

9

 Warning

Never adjust seats while driving as they

could move uncontrollably.

9

 Warning

Important: Do not sit nearer than 10

inches (25 cm) from the steering wheel, to

permit safe airbag deployment.

65

Seats, interior

Adjusting the backrest

To adjust, turn side handwheel on the seat

while releasing the load on the backrest.
Move backrest to suit seating position.

Adjusting the seat height 3

To adjust, operate lever on the outside of

the seat.
Pump action on lever

Adjusting the seat angle 3

To adjust, pull the lever on the front of the

seat, adjust the angle and release the

lever.
The seat should engage perceptibly.
Adjust the inclination by distributing body

weight.

Up:

Seat higher

Down:

Seat lower
