Seats, interior

Adjusting the lumbar support 3

To adjust, turn side handwheel on backrest

while relieving the load on the backrest.
Adjust lumbar support to suit personal

requirements.

Fold the seat backrest forwards 3

To fold forwards, raise the release lever

and fold the backrest forwards. Lower the

release lever and the backrest engages in

the forward-folded position 3. Slide seat

forwards 3.
To straighten the seat, slide back and it

engages in its original position 3. Raise

release lever 3, straighten seat back, lower

release lever, seat back engages.
For seat without memory function 3:

engage seat in desired position.

The seat back can only be tipped forwards

from an upright position.
When the backrest is folded forward, do

not activate the handwheel for backrest

adjustment.
In vehicles with a panoramic window 3:

to tilt seats forward, push head restraints

down and lift up sun visors.

67

Seats, interior

Adjusting the thigh support 3 on the

sports seats 3

To adjust, press the button on the front of

the adjustment padding and slide the thigh

support.
Adjust thigh support to suit personal

requirements.

Seat position

Adjust driver’s seat such that with the

driver sitting upright the steering wheel is

held in the area of its upper spokes with the

driver’s arms slightly bent.
Push passenger seat as far back as

possible.

The seat backrests must not be tilted too

far back (recommended maximum tilting

angle approx. 25°).

9

 Warning

Failure to observe the descriptions could

lead to injuries which could be fatal.

Vehicle passengers should be informed

accordingly before starting off.

68

Seats, interior

Head restraints

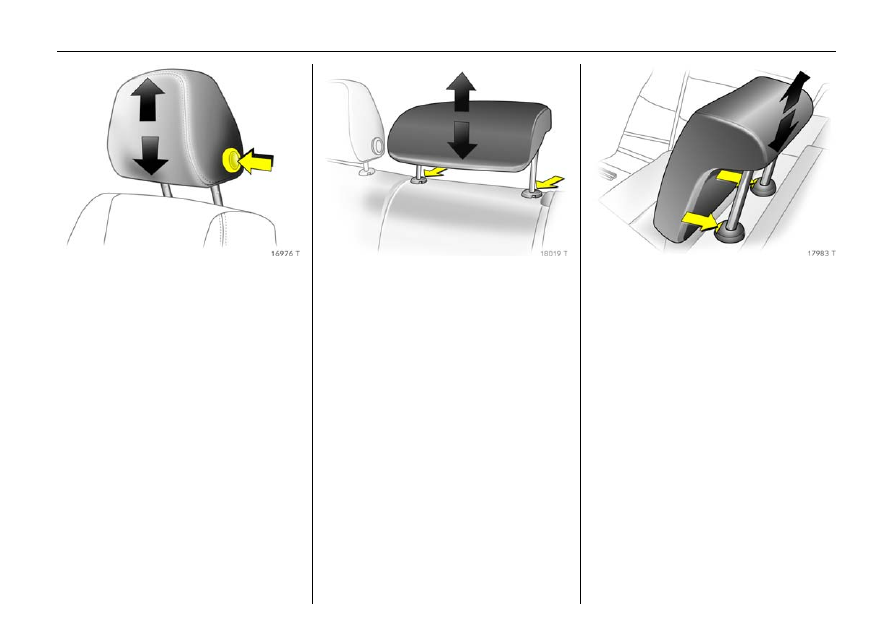

Adjusting the front head restraints and

rear outboard head restraints 3

To adjust, press button on side and adjust

height.
To fold down the backrests (see page 71)

or improve visibility when the rear seats are

not occupied, remove the head restraints

or push them all the way down.
If the seats are occupied, set height

according to body size.

Adjusting the rear, centre head

restraint 3

To adjust, pull the head restraint up or

press the catch to release. Then push the

head restraint down.
To fold down the backrest (see page 71) or

improve visibility when the centre rear seat

is not occupied, remove the head restraint

or push it all the way down.
If the seat is occupied, set height according

to body size.

Adjusting the rear head restraints 3,

Astra TwinTop

To adjust, pull the head restraint up or

press the two catches to release. Then push

the head restraint down.
To improve visibility when the rear seats

are not occupied, push the head restraints

all the way down.
If the seats are occupied, set height

according to body size.
Do not place any objects on the cover

behind the head restraints or between the

head restraints and the anti-roll bars 3.

69

Seats, interior

Head restraint position

The middle of the head restraint should be

at eye level. If this is not possible for

extremely tall persons, set to highest

position, and set to lowest position for

small persons.

Active head restraints 3

In the event of a rear-end impact, the

active head restraints tilt forwards slightly.

The head is more effectively supported by

the head restraint and the danger of

whiplash in the neck area is reduced.
Active head restraints are identified by the

lettering ACTIVE on the head restraint

guide sleeves.

Removing the head restraints

Press and release the two catches. Pull and

remove the head restraint.
To fold down the backrests 3 (see page 71),

push the rear head restraints all the way

down or remove.
Note

Only approved objects or components

should be attached to the head restraint of

the unoccupied front passenger seat.

9

 Warning

Failure to observe the descriptions can

lead to injuries which could be fatal.

Vehicle passengers should be informed

accordingly before moving away.

70

Seats, interior

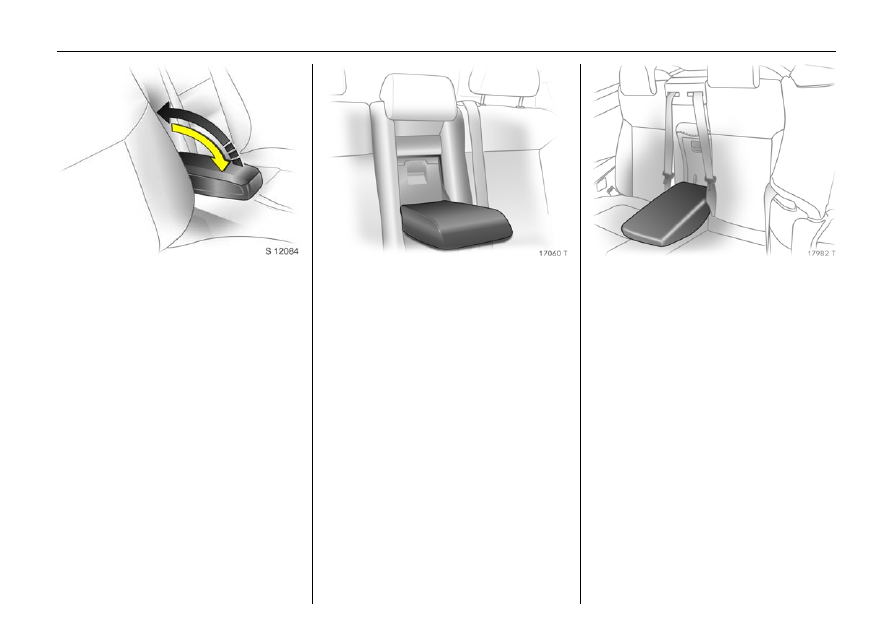

Armrest

3

at driver’s seat

Push raised armrest backward against

resistance and fold down.
The armrest can be moved to different

positions in stages by lifting it.
If the armrest is not required it can be

raised.
Stowage compartment in armrest –

see page 110.

Armrest

3

 in back seat backrest

Fold down the armrest, pulling the strap

obliquely down (45°).
When the centre rear seat is in use or

the rear backrests are folded, fold the

armrest up.
A flap located behind the armrest

facilitates transport of long, narrow

objects – see page 71.

Astra TwinTop

Pull the armrest by the strap, pivot it down

and position on the sit with the flat side up.
The armrest is held in place on the backrest

with a retaining strap. To fully remove the

armrest, disengage the bracket at the

retaining strap.
A flap located behind the armrest

facilitates transport of long, narrow

objects – see page 75.

71

Seats, interior

Extending the luggage

compartment, Hatch

Folding the rear seat backrests

Pushing rear head restraints all the way

down or removing, see pages 68, 69.
Slide front seat forward slightly.
Disengage the backrest (single or split 3)

using the pushbutton and fold it down onto

the seat cushion.
Return front seat to desired position.

Fold down centre backrest 3

Push head restraint all the way down –

see page 68.
Disengage backrest using lever and fold

onto seat cushion.
Folding down the centre seat backrest

makes it possible to load longer objects.

The outer seats can still be used for

occupants.

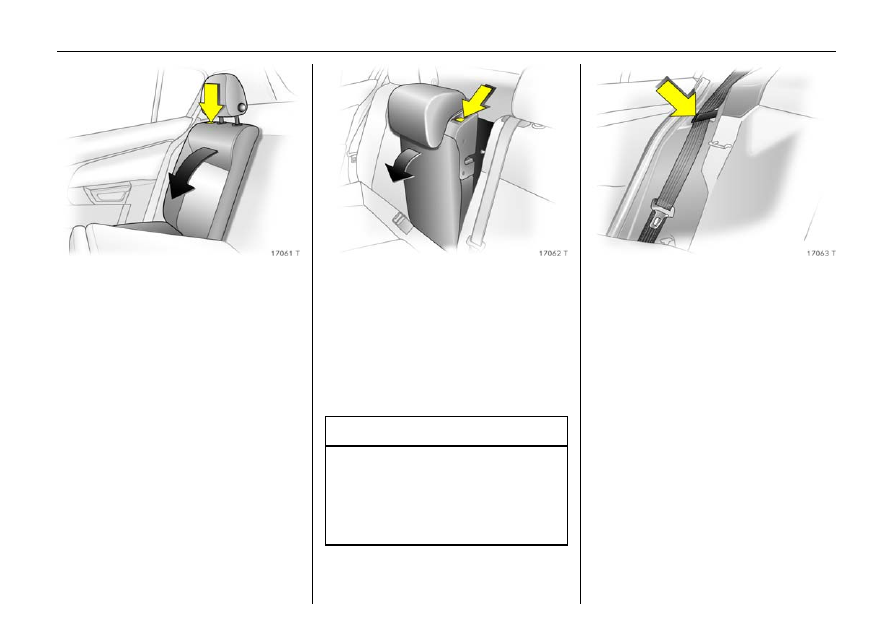

Restoring backrest to an upright position

Guide the seat belt through the side

bracket to protect against damage.
Catches must audibly engage when rear

seat backrests are raised.
The three-point seat belt for the centre rear

seat can only be pulled from its inertia reel

if the backrest is properly engaged.
Notes on loading

See page 84.

9

 Warning

The load must not obstruct the operation

of the pedals, handbrake or transmission

or restrict the driver’s freedom of

movement. Do not place loose objects in

the interior. Pay attention to notes on

page 84.

72

Seats, interior

Extending the luggage

compartment, Estate

Folding the rear seat backrests onto the

seat cushion

Push the rear head restraints all the way

down or remove, see pages 68, 69. To

detach hooks of luggage compartment

cover from head restraints, see page 77.
Slide front seat forward slightly.
Disengage the backrest (single or split 3)

using the pushbutton and fold it down onto

the seat cushion.
Return front seat to desired position.

Raise the seat cushion and fold the

backrest

Pull the strap on the seat cushion and raise

the backrest towards the front (split 3 or

one-piece).
Detach the hooks of the luggage

compartment cover from the head

restraints – see page 77.

Remove rear outer head restraints. Push

centre head restraint all the way down –

see pages 68, 69.
Stow the removed head restraints in the

cavity below the raised seat cushions.

73

Seats, interior

Disengage backrest (one-piece or split 3)

using pushbuttons, fold forward and

engage.

Fold down centre backrest 3

Push head restraint all the way down –

see page 68.
Disengage backrest using lever and fold

onto seat cushion. If the seat cushion is

raised, fold it forward until it engages.

Folding the centre seat backrest makes it

possible to load longer objects. The outer

seats can still be used for occupants.

9

 Warning

The load must not obstruct the operation

of the pedals, handbrake or transmission

or restrict the driver’s freedom of

movement. Do not place loose objects in

the interior. Pay attention to notes on

page 84.

74

Seats, interior

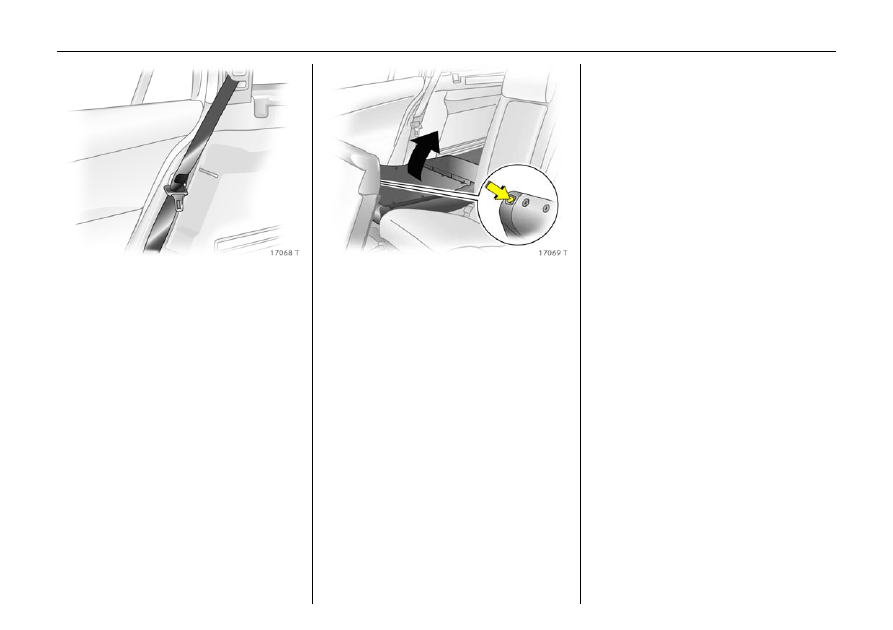

Restoring the backrests or seat cushions 3

to their original position

Guide the seat belt through the side

bracket to protect against damage.
To restore the backrest to an upright

position, fold up, pressing the button on

the backrest. Audibly engage the backrest

in an upright position.

Raised seat cushions: Insert and adjust

head restraints in backrests – see pages 68,

69. Fold back seat cushions, making sure

the belt buckles are properly positioned.
Attach the hooks of the luggage

compartment cover to the head restraints –

see page 77.

The three-point seat belt for the centre rear

seat can only be pulled from its inertia reel

if the backrest is properly engaged.
Safety net 3

See page 78.
Notes on loading

See page 84.

75

Seats, interior

Extending the luggage

compartment, Astra TwinTop

Loading area between rear seats

Pull out the armrest by the strap.
The armrest is held in place on the backrest

with a retaining strap. To fully remove the

armrest, disengage the bracket at the

retaining strap.

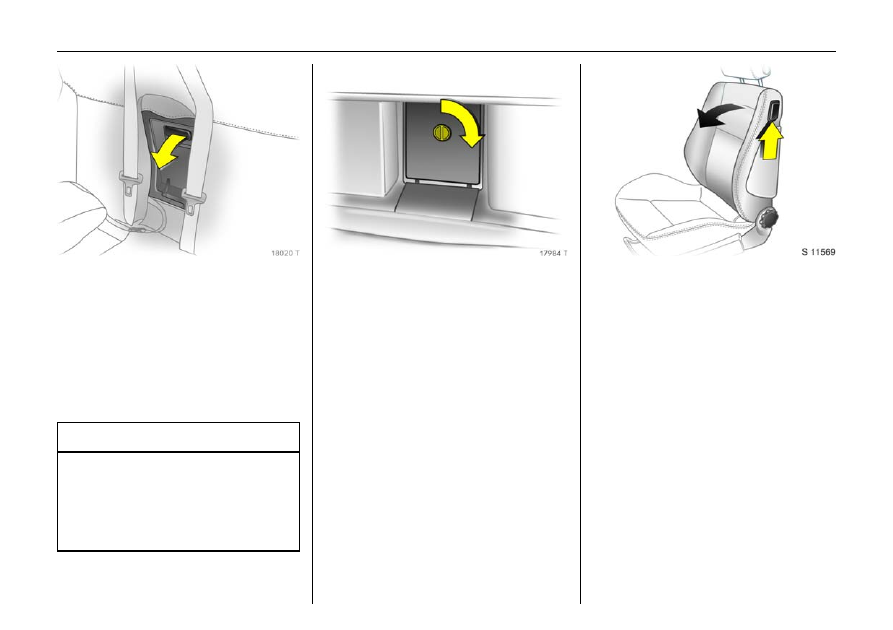

Pull the handle and fold down the cover.

Cover behind armrest can be locked from

luggage compartment 3: turn button 90°:

Notes on loading

See page 84.

Folding down the front passenger

seat

3



To push down and remove front passenger

seat head restraint, see pages 68, 69.
Push front passenger seat back.
Fold front passenger seat forward by

raising release lever.
To raise the backrest, push release lever

forwards, raise front passenger seat

backrest and audibly engage.

9

 Warning

The load must not obstruct the operation

of the pedals, handbrake or transmission

or restrict the driver’s freedom of

movement. Do not place loose objects in

the interior. Pay attention to notes on

page 84.

Locked

=

Horizontal button

Unlocked

=

Vertical button

76

Seats, interior

Luggage compartment cover

Hatch

Removing

Unhook retaining straps from tailgate.
Pull cover from the side guides.
Fitting

Engage cover in side guides and fold

downwards. Attach retaining straps to

tailgate.

Estate

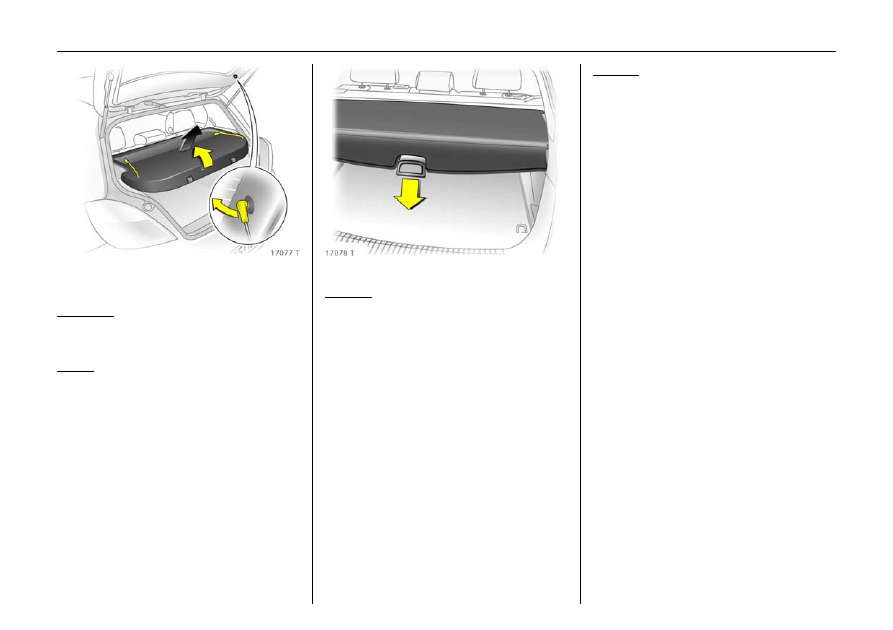

To open

Press handle on luggage compartment

cover down. The cover automatically

unrolls.

To close

Press handle on luggage compartment

cover rearwards; the cover automatically

engages in its end position.
Do not place any heavy or sharp-edged

objects on the cover.

77

Seats, interior

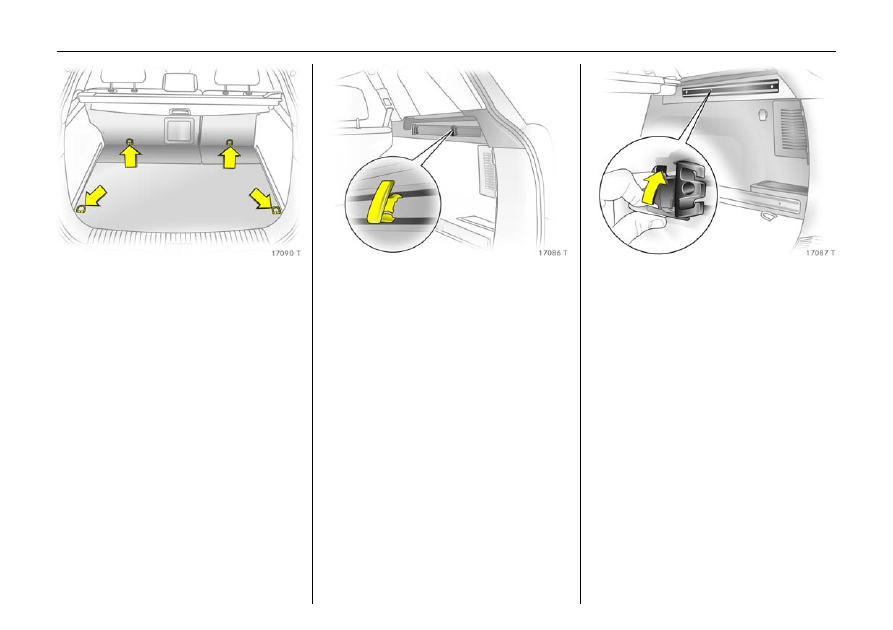

To cover the gap between the luggage

compartment cover and the rear

backrests, there is a cover on the cartridge.

Attach the two hooks of the cover to the

head restraint guide rods. If the safety net

is mounted, run the hooks through the net

mesh.

Removing

Open the luggage compartment cover and

detach the hooks from the head restraints.
Raise release lever at right side of luggage

compartment cover. Lift right side of cover

first, then pull left side out of recess.

Fitting

Insert luggage compartment cover into

recess on left, raise release lever on right

side, insert cover into recess on right,

engage and push lever down.
Attach the hooks on the head restraints -

see Fig. 17079 T.

78

Seats, interior

Safety net

3

, Estate

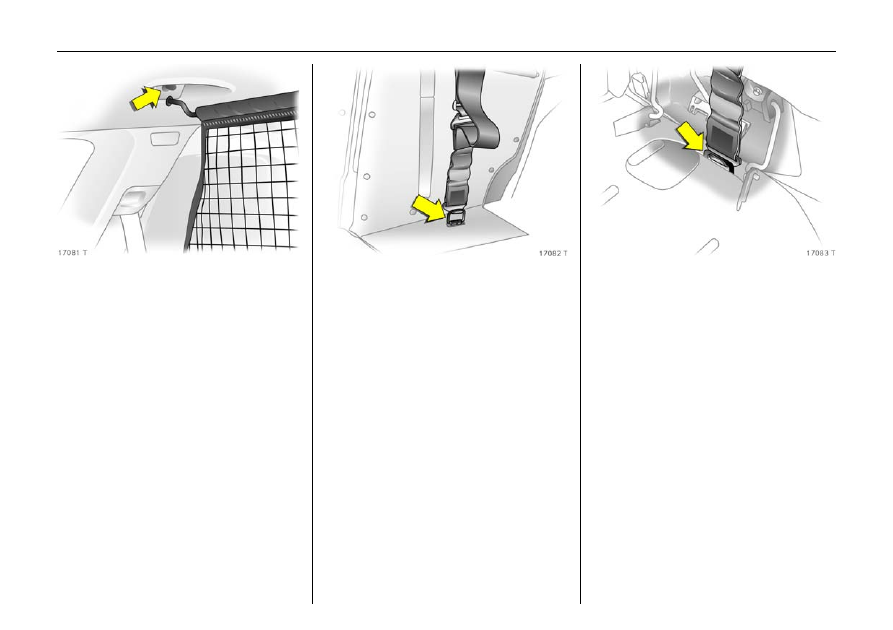

The safety net can be mounted behind the

rear seats or, if the rear seat backrests are

folded and the seat cushions raised,

behind the front seats.
Passengers must not be carried behind the

safety net.
Fitting behind the rear seats

Remove luggage compartment cover, see

page 76
Unroll the safety net.
There are two brackets in the roof frame.

Hook the net rods into the brackets on one

side and then the other. Slide forward to

engage.

Adjust strap length on safety net by

attaching the upper hook to the eye of the

strap, see Fig. 17085 T on page 79, and

attach to eyes in the right and left of the

floor.

Fitting behind front seats

Raise the rear seat cushions, see page 72.
Unroll the safety net.
There are two brackets in the roof frame

above the front seats. Hook the net rods

into the brackets on one side and then the

other. Slide forward to engage.
Adjust strap length on safety net by

attaching the upper hook to the eye of the

strap, see Fig. 17085 T on page 79, and

attach to eyes in the right and left of the

floor.
Remove rear outer head restraints and fold

backrests forward, see pages 68, 69, 72.

79

Seats, interior

Removing

Detach the safety net belt straps by tipping

up the length adjuster.
Unhook the safety net rods from the

brackets in the roof frame. Roll up the net

and secure with a strap.

Luggage compartment grille

3

,

pick-up

To transport long objects, part of the

luggage compartment grille behind the

passenger seat can be opened:
Release passenger seat back and fold

forward.
Press bracket down and fold grille

section up.

Lock grille in open position.

To close the grille section from the open

position, push bracket down, fold down

grille and engage, see Fig. 18441 T.
Check that the closed grille is properly

locked.

9

 Warning

The load must not obstruct the operation

of the pedals, handbrake or transmission

or restrict the driver’s freedom of

movement. Do not place loose objects in

the interior. Pay attention to notes on

page 84.

80

Seats, interior

Lashing eyes

3



in the luggage compartment are used to

secure lashing straps 3 or a luggage net 3

to prevent objects that are being

transported from sliding.

Rails and hooks in the luggage

compartment

3

, Estate

The side walls of the luggage compartment

house two rails. Insert the hooks in the

desired position in the rails: insert the hook

in the upper groove on the rail and press in

the lower groove.
Pull off the hook to remove.

FlexOrganizer

3



Flexible system for dividing the luggage

compartment or securing loads in an

Estate.
The system consists of

z Adapters

z Variable partition net

z Mesh pockets for the side walls

z Hooks in the luggage compartment
Components are mounted in the two guide

rails in the side walls of the luggage

compartment by means of adapters or

hooks.

81

Seats, interior

Variable partition net

Insert an adapter in each rail: Fold up

handle plate, insert adapter in upper and

lower groove of rails, move to desired

position. To lock the adapter, swivel the

handle plate up. Compress the rods of the

partition net slightly and insert in

corresponding openings of the adapter.

The longer rod must be inserted in the

upper adapter.

Hooks and mesh pockets for side walls

Insert hooks in rails in desired position:

insert hook in upper groove in rail and push

into lower groove. The mesh pocket can be

suspended from the hooks.
Removing

Press the partition net rods together and

remove from the adapters.
Adapter: fold open the retainer, release the

adapter from the lower groove and remove

from the upper groove.
Release the hooks from the rails.

Cargo box

3



Foldable box under the floor cover used to

divide the luggage compartment.
The cargo box may only be loaded when

the backrests are engaged in an upright

position.
To remove the cargo box floor cover,

remove first the right half then the left half.

For models with towing equipment, first

release the coupling ball bar fixing strap

and thread this through the eye – see

page 237. Installation in the reverse order.
