Saturn Ion (2007 year). Manual - part 24





Care of Safety Belts

Keep belts clean and dry.

{

CAUTION:

Do not bleach or dye safety belts. If you
do, it may severely weaken them. In a
crash, they might not be able to provide
adequate protection. Clean safety belts
only with mild soap and lukewarm water.

Weatherstrips

Silicone grease on weatherstrips will make them
last longer, seal better, and not stick or squeak.
Apply silicone grease with a clean cloth. During
very cold, damp weather frequent application may
be required. See Recommended Fluids and
Lubricants
on page 402.

Washing Your Vehicle

The paint finish on your vehicle provides beauty,
depth of color, gloss retention, and durability.

The best way to preserve your vehicle’s finish is to
keep it clean by washing it often with lukewarm
or cold water.

Do not wash your vehicle in the direct rays of the
sun. Use a car washing soap. Do not use strong
soaps or chemical detergents. Be sure to rinse the
vehicle well, removing all soap residue completely.
You can get approved cleaning products from
your retailer. See Vehicle Care/Appearance
Materials
on page 373. Do not use cleaning agents
that are petroleum based, or that contain acid or
abrasives. All cleaning agents should be
flushed promptly and not allowed to dry on the
surface, or they could stain. Dry the finish with a
soft, clean chamois or an all-cotton towel to
avoid surface scratches and water spotting.

High pressure car washes may cause water to
enter your vehicle.

369

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Cleaning Exterior Lamps/Lenses

Use only lukewarm or cold water, a soft cloth and
a car washing soap to clean exterior lamps
and lenses. Follow instructions under Washing
Your Vehicle
on page 369.

Finish Care

Occasional waxing or mild polishing of your
vehicle by hand may be necessary to remove
residue from the paint finish. You can get approved
cleaning products from your Saturn retailer. See
Vehicle Care/Appearance Materials on page 373.

Your vehicle has a basecoat/clearcoat paint
finish. The clearcoat gives more depth and gloss
to the colored basecoat. Always use waxes
and polishes that are non-abrasive and made for a
basecoat/clearcoat paint finish.

Notice: Machine compounding or aggressive
polishing on a basecoat/clearcoat paint
finish may damage it. Use only non-abrasive
waxes and polishes that are made for a
basecoat/clearcoat paint finish on your vehicle.

Foreign materials such as calcium chloride and
other salts, ice melting agents, road oil and tar, tree
sap, bird droppings, chemicals from industrial
chimneys, etc., can damage your vehicle’s finish if
they remain on painted surfaces. Wash the vehicle
as soon as possible. If necessary, use non-abrasive
cleaners that are marked safe for painted surfaces
to remove foreign matter.

Exterior painted surfaces are subject to aging,
weather, and chemical fallout that can take their
toll over a period of years. You can help to
keep the paint finish looking new by keeping your
vehicle in a garage or covered whenever
possible.

Windshield and Wiper Blades

If the windshield is not clear after using the
windshield washer, or if the wiper blade chatters
when running, wax, sap, or other material may
be on the blade or windshield.

Clean the outside of the windshield with a glass
cleaning liquid or powder and water solution.
The windshield is clean if beads do not form when
it is rinsed with water.

370

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Grime from the windshield will stick to the wiper
blades and affect their performance. Clean the
blade by wiping vigorously with a cloth soaked
in full-strength windshield washer solvent.
Then rinse the blade with water.
Check the wiper blades and clean them as
necessary; replace blades that look worn.

Aluminum Wheels

Notice: Chrome wheels and other chrome trim
may be damaged if you do not wash your
vehicle after driving on roads that have been
sprayed with magnesium, calcium or sodium
chloride. These chlorides are used on roads for
conditions such as ice and dust. This damage
would not be covered by your vehicle’s
warranty. Always wash your vehicle’s chrome
with soap and water after exposure.

Notice: If you use strong soaps, chemicals,
abrasive polishes, cleaners, brushes, or
cleaners that contain acid on aluminum or
chrome-plated wheels, you could damage the
surface of the wheel(s). The repairs would
not be covered by your warranty. Use only
Saturn-approved cleaners on aluminum
or chrome-plated wheels.

Keep the wheels clean using a soft clean cloth
with mild soap and water. Rinse with clean water.
After rinsing thoroughly, dry with a soft clean
towel. A wax may then be applied.

Notice: Using chrome polish on aluminum
wheels could damage the wheels. The repairs
would not be covered by your warranty.
Use chrome polish on chrome wheels only.

The surface of these wheels is similar to the
painted surface of the vehicle. Do not use strong
soaps, chemicals, abrasive polishes, abrasive
cleaners, cleaners with acid, or abrasive cleaning
brushes on them because the surface could
be damaged. Do not use chrome polish on
aluminum wheels.

Notice: If you drive your vehicle through an
automatic car wash that has silicone carbide
tire cleaning brushes, you could damage
the aluminum or chrome-plated wheels. The
repairs would not be covered by your warranty.
Never drive a vehicle equipped with aluminum
or chrome-plated wheels through an
automatic car wash that uses silicone carbide
tire cleaning brushes.

371

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Tires

To clean the tires, use a stiff brush with tire
cleaner.

Notice: Using petroleum-based tire dressing
products on your vehicle may damage the
paint finish and/or tires. When applying a tire
dressing, always wipe off any overspray
from all painted surfaces on your vehicle.

Sheet Metal Damage

If the vehicle is damaged and requires sheet metal
repair or replacement, make sure the body repair
shop applies anti-corrosion material to parts
repaired or replaced to restore corrosion protection.

Original manufacturer replacement parts will
provide the corrosion protection while maintaining
the warranty.

Finish Damage

Any stone chips, fractures or deep scratches in
the finish should be repaired right away. Bare
metal will corrode quickly and may develop into
major repair expense.

Minor chips and scratches can be repaired with
touch-up materials available from your Saturn
retailer. Larger areas of finish damage can
be corrected in your Saturn retailer’s body and
paint shop.

Underbody Maintenance

Chemicals used for ice and snow removal and
dust control can collect on the underbody. If these
are not removed, corrosion and rust can develop
on the underbody parts such as fuel lines,
frame, floor pan and exhaust system even though
they have corrosion protection.

At least every spring, flush these materials from
the underbody with plain water. Clean any
areas where mud and debris can collect.
Dirt packed in close areas of the frame should be
loosened before being flushed. Your Saturn
retailer or an underbody car washing system can
do this for you.

372

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Chemical Paint Spotting

Some weather and atmospheric conditions can
create a chemical fallout. Airborne pollutants can
fall upon and attack painted surfaces on your
vehicle. This damage can take two forms: blotchy,
ring-shaped discolorations, and small, irregular
dark spots etched into the paint surface.
Although no defect in the paint job causes this,
Saturn will repair, at no charge to the owner, the
surfaces of new vehicles damaged by this fallout
condition within 12 months or 12,000 miles
(20 000 km) of purchase, whichever occurs first.

Vehicle Care/Appearance Materials

Description

Usage

Polishing Cloth
Wax-Treated

Interior and exterior
polishing cloth.

Tar and Road
Oil Remover

Removes tar, road oil,
and asphalt.

Chrome Cleaner
and Polish

Use on chrome or
stainless steel.

White Sidewall
Tire Cleaner

Removes soil and black
marks from whitewalls.

Vinyl Cleaner

Cleans vinyl.

Glass Cleaner

Removes dirt, grime,
smoke, and fingerprints.

Description

Usage

Chrome and Wire
Wheel Cleaner

Removes dirt and grime
from chrome wheels and
wire wheel covers.

Finish Enhancer

Removes dust,
fingerprints, and surface
contaminants. Spray on
wipe off.

Swirl Remover Polish

Removes swirl marks, fine
scratches, and other light
surface contamination.

Cleaner Wax

Removes light scratches
and protects finish.

Foaming Tire Shine
Low Gloss

Cleans, shines, and
protects in one easy step.
No wiping necessary.

Wash Wax Concentrate

Medium foaming
shampoo. Cleans and
lightly waxes.
Biodegradable and
phosphate free.

Spot Lifter

Quickly and easily
removes spots and stains
from carpets, vinyl, and
cloth upholstery.

Odor Eliminator

Odorless spray odor
eliminator used on fabrics,
vinyl, leather, and carpet.

373

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle Identification

Vehicle Identification Number (VIN)

This is the legal identifier for your vehicle. It
appears on a plate in the front corner of the
instrument panel, on the driver side. You can see
it if you look through the windshield from outside
your vehicle. The VIN also appears on the Vehicle
Certification and Service Parts labels and the
certificates of title and registration.

Engine Identification

The eighth character in the VIN is the engine
code. This code helps you identify your vehicle’s
engine, specifications, and replacement parts.

Service Parts Identification Label

This label is on your spare tire cover. It is
very helpful if you ever need to order parts.
The label has the following information:

Vehicle Identification Number (VIN)

Model designation

Paint information

Production options and special equipment

Do not remove this label from the vehicle.

374

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Electrical System

Add-On Electrical Equipment

Notice: Do not add anything electrical to your
vehicle unless you check with your retailer
first. Some electrical equipment can damage
your vehicle and the damage would not
be covered by your warranty. Some add-on
electrical equipment can keep other
components from working as they should.

Your vehicle has an airbag system. Before
attempting to add anything electrical to your
vehicle, see Servicing Your Airbag-Equipped
Vehicle
on page 82.

Windshield Wiper Fuses

The windshield wiper motor is protected by a
circuit breaker and a fuse. If the motor overheats
due to heavy snow or ice, the wiper will stop
until the motor cools. If the overload is caused by
some electrical problem, have it fixed.

Power Windows and Other
Power Options

Circuit breakers in the fuse panel protect the
power windows and other power accessories.
When the current load is too heavy, the circuit
breaker opens and closes, protecting the circuit
until the problem is fixed.

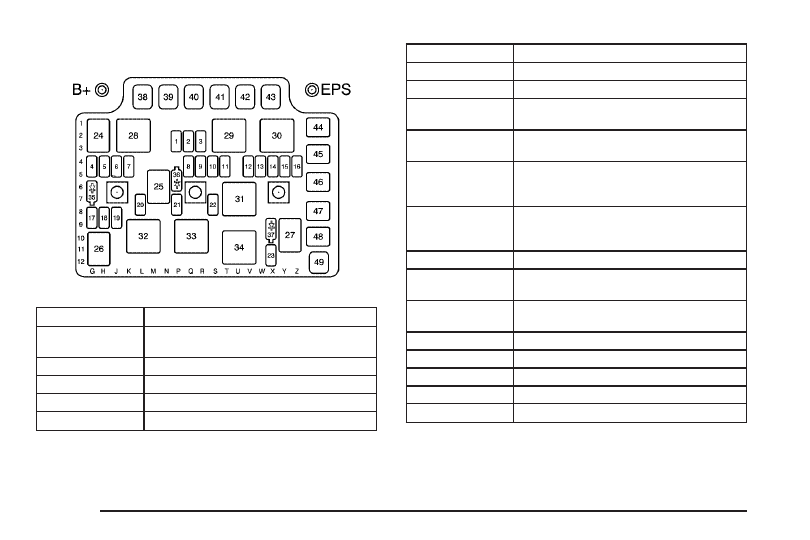

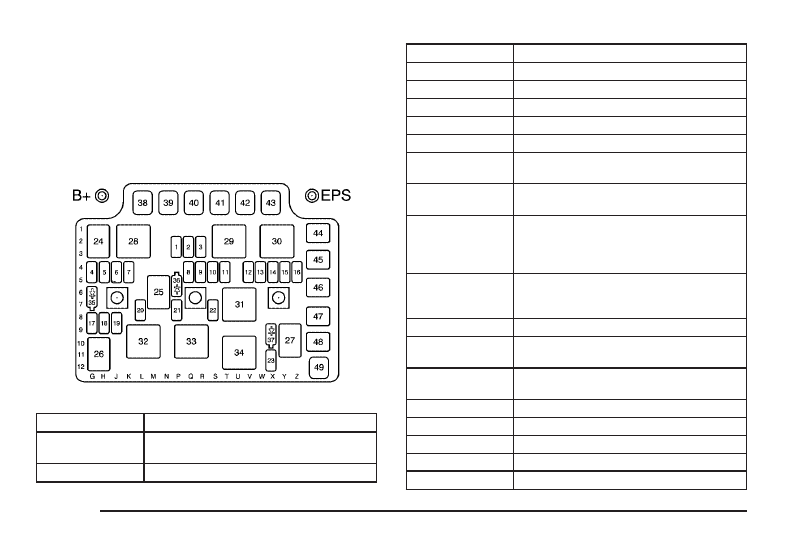

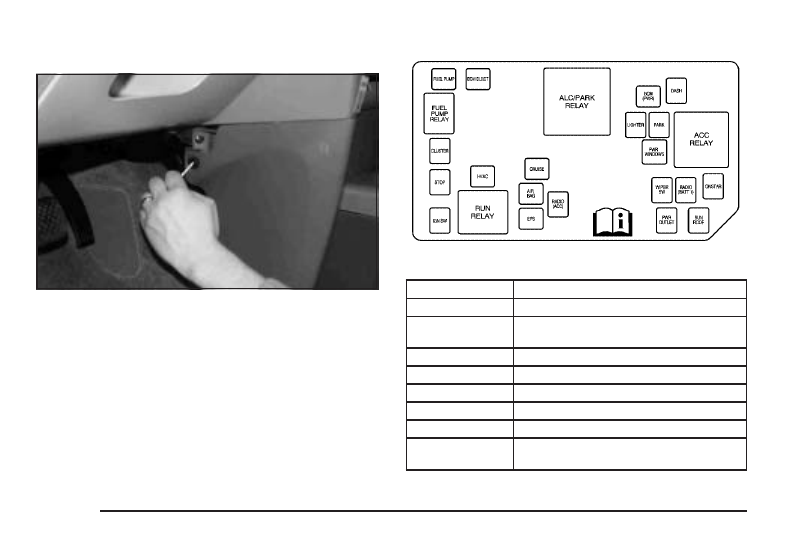

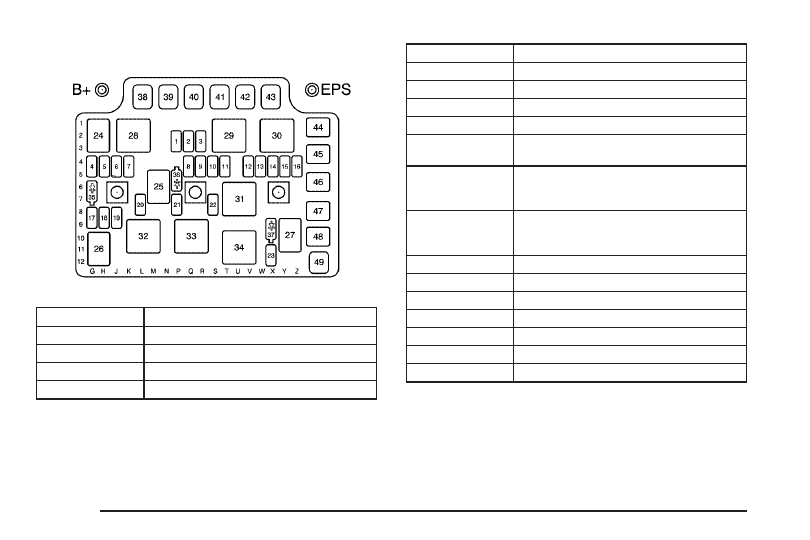

Fuses and Circuit Breakers

The wiring circuits in your vehicle are protected
from short circuits by a combination of fuses.
This greatly reduces the chance of fires caused by
electrical problems.

Look at the silver-colored band inside the fuse.
If the band is broken or melted, replace the fuse.
Be sure you replace a bad fuse with a new
one of the identical size and rating.

375

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Floor Console Fuse Block

Some fuses are in a fuse block on the driver’s
side of the floor console. To remove the floor
console cover, move the driver’s seat back as far
as it will go, and pull the floor console cover,
starting near the front of the vehicle, away from
the floor console.

Then remove the fuse block cover to access
the fuses.

Fuses

Usage

FUEL PUMP

Fuel Pump Relay

BCM ELECT

Ignition Switch, Body Control
Module (BCM)

BCM (PWR)

Entry Control, Trunk Release

DASH

Instrument Panel, Dimming Switch

LIGHTER

Cigar Lighter

PARK

Headlamp Switch

CLUSTER

Instrument Panel Cluster

PWR
WINDOWS

Power Window Switches

376

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Fuses

Usage

STOP

Stoplamp (Brake) Switch

HVAC

Climate Control

CRUISE

Cruise Control Module, Clutch
Start Switch

AIR BAG

Airbags, Sensing and Diagnostic
Module (SDM)

WIPER SW

Windshield Wipers and Washers,
Transaxle Shift Lock Control Switch

RADIO
(BATT1)

Radio Receiver, Entertainment
Memory

ONSTAR

Entertainment, Mobile
Communications, OnStar

®

RADIO (ACC)

Radio Receiver, Entertainment

IGN SW

Ignition Switch

EPS

Cruise Control Switches, EPS Unit

PWR OUTLET

Auxiliary Power Outlet

SUN ROOF

Power Sunroof, OnStar Mirror

Relay

Usage

ALC/PARK
RELAY

OnStar

®

, Radio, Instrument Panel

Cluster, Body Control Module
(Entry Control), Cigar Lighter,
Headlamp Switch, License Lamp

FUEL PUMP
RELAY

Fuel Pump

ACC RELAY

Power Windows, Sunroof, Radio,
Wiper/Washer Switch, Accessory
Power Outlet

RUN RELAY

Climate Control (HVAC Blower,
Control Heads)

377

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Engine Compartment Fuse Block

The engine compartment fuse block is located in
the engine compartment on the driver’s side
of the vehicle. See Engine Compartment Overview
on page 280 for more information on location.

2.2L L4 Engine

Fuses

Usage

1

Engine Control Module, Transaxle
Control Module

2

Not Used

Fuses

Usage

3

Not Used

4

Passenger’s Side Headlamp

5

Air Conditioning

6

Not Used

7

Not Used

8

Anti-lock Brake System, Traction
Control Module

9

Engine Control Module, Electronic
Throttle Control

10

Canister Purge Solenoid, Mass
Airflow Sensor, Low Coolant
Switch, Oxygen Sensors, Air Pump
Relay Coil

11

Electric Ignition Control Module,
Charging System, Neutral Stop
Back-Up Switch

12

Not Used

13

Transaxle, Engine Control
Module (ECM)

14

Transaxle Control Module, Neutral
Stop Back-Up

15

PRNDL, Back-up Switch

16

Fuel Injectors (Cylinder 1, 2, 3, 4)

17

Fog Lamps

18

Driver’s Side Headlamp

19

Windshield Wiper

378

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Fuses

Usage

20

Horn

21

Entertainment, Premium Radio
Amplifier

22

Anti-lock Brake System, Traction
Control Module

23

Rear Defogger

38

Starter/Ignition

39

Body Control Module 1

40

Anti-lock Brake System, Traction
Control Module

41

Body Control Module 2

42

Not Used

43

Electric Power Steering

44

Air Pump Relay Fuse

45

Cooling Fan

46

Crank

47

Body Control Module 1A

48

Body Control Module (IGN 3)

Relays

Usage

24

Air Conditioning Clutch

25

Horn

26

Fog Lamps

27

Air Solenoid

28

Run, Crank (IGN1)

29

Powertrain

30

Engine Cooling Fan

31

Engine Control Module

32

Wiper System 1

33

Wiper System 2

34

Rear Window Defogger

Diodes

Usage

35

§

Air Conditioning Diode

36

§

Not Used

37

§

Wiper Diode

Miscellaneous

Usage

49

Fuse Puller

379

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2.0L L4 Supercharged Engine

Fuses

Usage

1

Engine Control Module

2

Not Used

3

Not Used

4

Passenger’s Side Headlamp

Fuses

Usage

5

Air Conditioning

6

Not Used

7

Not Used

8

Anti-lock Brake System

9

Engine Control Module, Electronic
Throttle Control

10

Canister Purge Solenoid, Mass
Airflow Sensor, Low Coolant Switch,
Oxygen Sensors

11

Electric Ignition Control Module,
Charging System, Neutral Safety
Stop Back-Up Switch

12

Not Used

13

Engine Control Module

14

Boost

15

Back-up Switch

16

Fuel Injectors

17

Fog Lamps

18

Driver’s Side Headlamp

380

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Fuses

Usage

19

Windshield Wiper

20

Horn

21

Entertainment, Premium Radio
Amplifier

22

Anti-lock Brake System

23

Rear Defogger

38

Starter/Ignition

39

Body Control Module 1

40

Anti-lock Brake System

41

Body Control Module 2

42

Not Used

43

Electric Power Steering

44

Cooling Fan 2

45

Cooling Fan 1

46

Crank

47

Body Control Module 1A

48

Body Control Module (IGN 3)

Relays

Usage

24

Air Conditioning Clutch

25

Horn

26

Fog Lamps

27

Intercooler Pump

28

Run, Crank (IGN1)

29

Powertrain

30

Engine Cooling Fan 1

31

Engine Control Module

32

Wiper System 1

33

Wiper System 2

34

Rear Window Defogger

Diodes

Usage

35

§

Air Conditioning Diode

36

§

Not Used

37

§

Wiper Diode

Miscellaneous

Usage

49

Fuse Puller

381

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2.4L LE5 Engine

Fuses

Usage

1

Engine Control Module, Transaxle
Control Module

2

Not Used

3

Not Used

4

Passenger’s Side Headlamp

5

Air Conditioning

Fuses

Usage

6

Not Used

7

Not Used

8

Anti-lock Brake System, Traction
Control Module

9

Engine Control Module, Electronic
Throttle Control

10

Canister Purge Solenoid, Mass
Airflow Sensor, Low Coolant Switch,
Oxygen Sensors

11

Electric Ignition Control Module,
Charging System, Neutral Stop
Back-Up Switch

12

Not Used

13

Transaxle 2, Engine Control
Module (ECM)

14

Transaxle Control Module, Neutral
Stop Back-Up

15

PRNDL, Back-up Switch

16

Fuel Injectors (Cylinder 1, 2, 3, 4)

17

Fog Lamps

18

Driver’s Side Headlamp

19

Windshield Wiper

382

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Fuses

Usage

20

Horn

21

Entertainment, Premium
Radio Amplifier

22

Anti-lock Brake System, Traction
Control Module

23

Rear Defogger

38

Starter/Ignition

39

Body Control Module 1

40

Anti-lock Brake System, Traction
Control Module

41

Body Control Module 2

42

Not Used

43

Electric Power Steering

44

Cooling Fan 2

45

Cooling Fan

46

Crank

47

Body Control Module 1A

48

Body Control Module (IGN 3)

Relays

Usage

24

Air Conditioning Clutch

25

Horn

26

Fog Lamps

27

Not Used

28

Run, Crank (IGN 1)

29

Powertrain

30

Engine Cooling Fan

31

Engine Control Module

32

Wiper System 1

33

Wiper System 2

34

Rear Window Defogger

Diodes

Usage

35

§

Air Conditioning Diode

36

§

Not Used

37

§

Wiper Diode

Miscellaneous

Usage

49

Fuse Puller

383

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Capacities and Specifications

The following approximate capacities are given in English and metric conversions. See Recommended
Fluids and Lubricants
on page 402 for more information.

Application

Capacities

English

Metric

Air Conditioning Refrigerant R134a

For the air conditioning system refrigerant charge

amount, see the refrigerant caution label located

under the hood. See your dealer for more

information.

Cooling System

2.0L L4 Supercharged Engine

7.4 qt

7.0 L

2.2L L4 Engine

6.8 qt

6.5 L

2.4L L4 Engine

7.2 qt

6.8 L

Intercooler System (2.0L L4 Supercharged)

2.0 qt

1.9 L

Engine Oil with Filter

2.0L L4 Supercharged Engine

6.0 qt

5.7 L

2.2L L4 Engine and 2.4L L4 Engine

5.0 qt

4.7 L

384

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     22      23      24      25     ..
