Driving with a Trailer

Towing a trailer requires a certain amount of experience.
Before setting out for the open road, you will want to
get to know your rig. Acquaint yourself with the feel of
handling and braking with the added weight of the trailer.
And always keep in mind that the vehicle you are
driving is now a good deal longer and not nearly as
responsive as your vehicle is by itself.

Before you start, check all trailer hitch parts and
attachments, safety chains, electrical connector, lamps,
tires and mirror adjustment. If the trailer has electric
brakes, start your vehicle and trailer moving and then
apply the trailer brake controller by hand to be sure
the brakes are working. This lets you check your
electrical connection at the same time.

During your trip, check occasionally to be sure that the
load is secure, and that the lamps and any trailer
brakes are still working.

Following Distance

Stay at least twice as far behind the vehicle ahead as
you would when driving your vehicle without a trailer.
This can help you avoid situations that require
heavy braking and sudden turns.

Passing

You will need more passing distance up ahead when
you are towing a trailer. And, because the vehicle
is a good deal longer, you will need to go much farther
beyond the passed vehicle before you can return to
your lane.

Backing Up

Hold the bottom of the steering wheel with one hand.
Then, to move the trailer to the left, just move that hand
to the left. To move the trailer to the right, move your
hand to the right. Always back up slowly and, if possible,
have someone guide you.

4-36

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Making Turns

Notice: Making very sharp turns while trailering
could cause the trailer to come in contact with
the vehicle. Your vehicle could be damaged.
Avoid making very sharp turns while trailering.

When you are turning with a trailer, make wider turns
than normal. Do this so your trailer will not strike soft
shoulders, curbs, road signs, trees or other objects.
Avoid jerky or sudden maneuvers. Signal well in advance.

Turn Signals When Towing a Trailer

When you tow a trailer, your vehicle may need a
different turn signal flasher and/or extra wiring. Check
with your dealer/retailer. The arrows on your instrument
panel will flash whenever you signal a turn or lane
change. Properly hooked up, the trailer lamps will also
flash, telling other drivers you are about to turn, change
lanes or stop.

When towing a trailer, the arrows on your instrument
panel will flash for turns even if the bulbs on the trailer
are burned out. Thus, you may think drivers behind
you are seeing your signal when they are not. It is
important to check occasionally to be sure the trailer
bulbs are still working.

Driving on Grades

Notice: Do not tow on steep continuous grades
exceeding 6 miles (9.6 km). Extended, higher than
normal engine and transmission temperatures may
result and damage your vehicle. Frequent stops are
very important to allow the engine and transmission
to cool.

Reduce speed and shift to a lower gear before you start
down a long or steep downgrade. If you do not shift
down, you might have to use your brakes so much that
they would get hot and no longer work well.

Pay attention to the engine coolant gage. If the indicator
is in the red area, turn off the air conditioning to reduce
engine load. See Engine Overheating on page 5-22.

When towing under severe conditions such as hot
ambient temperatures or steep grades, your vehicle may
experience more transmission shifting. A COOLING
MODE ON message may also appear in the DIC.
This alerts the driver that the shifting mode is in progress
and is aiding engine cooling. See DIC Warnings and
Messages on page 3-44 DIC Warnings and Messages
for more information.

4-37

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Parking on Hills

{

CAUTION:

You really should not park your vehicle, with a
trailer attached, on a hill. If something goes
wrong, your rig could start to move. People
can be injured, and both your vehicle and the
trailer can be damaged.

But if you ever have to park your rig on a hill, here is
how to do it:

1. Apply your regular brakes, but do not shift into

PARK (P) for an automatic transmission, or into
gear for a manual transmission. When parking
uphill, turn your wheels away from the curb. When
parking downhill, turn your wheels into the curb.

2. Have someone place chocks under the trailer

wheels.

3. When the wheel chocks are in place, release the

regular brakes until the chocks absorb the load.

4. Reapply the regular brakes. Then apply your

parking brake, and then shift into PARK (P) for
an automatic transmission or REVERSE (R) for a
manual transmission.

5. Release the regular brakes.

4-38

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When You Are Ready to Leave After
Parking on a Hill

1. Apply your regular brakes and hold the pedal down

while you:

•

Start your engine.

•

Shift into a gear.

•

Release the parking brake.

2. Let up on the brake pedal.

3. Drive slowly until the trailer is clear of the chocks.

4. Stop and have someone pick up and store the

chocks.

Maintenance When Trailer Towing

Your vehicle will need service more often when you are
pulling a trailer. See Scheduled Maintenance on
page 6-4 for more on this. Things that are especially
important in trailer operation are automatic transmission
fluid (do not overfill), engine oil, drive belt, cooling system
and brake system.

Each of these is covered in this manual, and the Index
will help you find them quickly. If you are trailering,
it is a good idea to review this information before you
start your trip.

Check periodically to see that all hitch nuts and bolts
are tight.

Engine Cooling When Trailer Towing

Your cooling system may temporarily overheat during
severe operating conditions. See Engine Overheating on
page 5-22.

4-39

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Service

For service and parts needs, visit your dealer/retailer.
You will receive genuine GM parts and GM-trained and
supported service people.

Genuine GM parts have one of these marks:

Accessories and Modifications

When non-dealer/non-retailer accessories are added to
your vehicle they can affect your vehicle’s performance
and safety, including such things as, airbags, braking,
stability, ride and handling, emissions systems,
aerodynamics, durability, and electronic systems like
antilock brakes, traction control and stability control.
Some of these accessories could even cause
malfunction or damage not covered by warranty.

GM Accessories are designed to complement and
function with other systems on your vehicle. Your GM
dealer/retailer can accessorize your vehicle using
genuine GM Accessories. When you go to your GM
dealer/retailer and ask for GM Accessories, you will
know that GM-trained and supported service technicians
will perform the work using genuine GM Accessories.

Also, see Adding Equipment to Your Airbag-Equipped
Vehicle on page 1-65.

California Proposition 65 Warning

Most motor vehicles, including this one, contain and/or
emit chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.
Engine exhaust, many parts and systems (including
some inside the vehicle), many fluids, and some
component wear by-products contain and/or emit these
chemicals.

5-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

California Perchlorate Materials
Requirements

Certain types of automotive applications, such as airbag
initiators, seat belt pretensioners, and lithium batteries
contained in remote keyless entry transmitters, may
contain perchlorate materials. Special handling may be
necessary. For additional information, see
www.dtsc.ca.gov/hazardouswaste/perchlorate.

Doing Your Own Service Work

{

CAUTION:

You can be injured and your vehicle could be
damaged if you try to do service work on a
vehicle without knowing enough about it.

•

Be sure you have sufficient knowledge,
experience, the proper replacement parts,
and tools before you attempt any vehicle
maintenance task.

CAUTION:

(Continued)

CAUTION:

(Continued)

•

Be sure to use the proper nuts, bolts, and
other fasteners. English and metric
fasteners can be easily confused. If you
use the wrong fasteners, parts can later
break or fall off. You could be hurt.

If you want to do some of your own service work, you
should use the proper service manual. It tells you much
more about how to service your vehicle than this
manual can. To order the proper service manual, see
Service Publications Ordering Information on page 7-16.

Your vehicle has an airbag system. Before attempting
to do your own service work, see Servicing Your
Airbag-Equipped Vehicle on page 1-64.

You should keep a record with all parts receipts and list
the mileage and the date of any service work you
perform. See Maintenance Record on page 6-16.

5-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Adding Equipment to the Outside of
Your Vehicle

Things you might add to the outside of your vehicle can
affect the airflow around it. This can cause wind noise
and can affect fuel economy and windshield washer
performance. Check with your dealer/retailer before
adding equipment to the outside of your vehicle.

Fuel

Use of the recommended fuel is an important part of
the proper maintenance of your vehicle. To help
keep the engine clean and maintain optimum vehicle
performance, we recommend the use of gasoline
advertised as TOP TIER Detergent Gasoline.

The 8th digit of the Vehicle Identification Number (VIN)
shows the code letter or number that identifies your
vehicle’s engine. The VIN is at the top left of the
instrument panel. See Vehicle Identification Number
(VIN) on page 5-95.

Gasoline Octane

If your vehicle has the 2.2L L4 engine (VIN Code F),
use regular unleaded gasoline with a posted octane
rating of 87 or higher. If the octane rating is less than 87,
you might notice an audible knocking noise when you
drive, commonly referred to as spark knock. If this
occurs, use a gasoline rated at 87 octane or higher as
soon as possible. If you are using gasoline rated at
87 octane or higher and you hear heavy knocking, the
engine needs service.

If your vehicle has the 2.4L L4 engine (VIN Code B),
use premium unleaded gasoline with a posted octane
rating of 91 or higher. You can also use regular
unleaded gasoline rated at 87 octane or higher, but your
vehicle’s acceleration could be slightly reduced, and you
might notice a slight audible knocking noise, commonly
referred to as spark knock. If the octane is less than 87,
you might notice a heavy knocking noise when you drive.
If this occurs, use a gasoline rated at 87 octane or higher
as soon as possible. Otherwise, you could damage the
engine. If you are using gasoline rated at 87 octane or
higher and you hear heavy knocking, the engine needs
service.

5-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Gasoline Specifications

At a minimum, gasoline should meet ASTM specification
D 4814 in the United States or CAN/CGSB-3.5 or 3.511
in Canada. Some gasolines contain an octane-enhancing
additive called methylcyclopentadienyl manganese
tricarbonyl (MMT). We recommend against the use of
gasolines containing MMT. See Additives on page 5-6 for
additional information.

California Fuel

If your vehicle is certified to meet California Emissions
Standards, it is designed to operate on fuels that meet
California specifications. See the underhood emission
control label. If this fuel is not available in states adopting
California emissions standards, your vehicle will operate
satisfactorily on fuels meeting federal specifications, but
emission control system performance might be affected.
The malfunction indicator lamp could turn on and your
vehicle might fail a smog-check test. See Malfunction
Indicator Lamp on page 3-37. If this occurs, return to your
authorized dealer/retailer for diagnosis. If it is determined
that the condition is caused by the type of fuel used,
repairs might not be covered by your warranty.

Additives

To provide cleaner air, all gasolines in the United States
are now required to contain additives that help prevent
engine and fuel system deposits from forming, allowing
the emission control system to work properly. In most
cases, you should not have to add anything to the fuel.
However, some gasolines contain only the minimum
amount of additive required to meet U.S. Environmental
Protection Agency regulations. To help keep fuel injectors
and intake valves clean, or if your vehicle experiences
problems due to dirty injectors or valves, look for gasoline
that is advertised as TOP TIER Detergent Gasoline. Also,
your dealer/retailer has additives that will help correct and
prevent most deposit-related problems.

Gasolines containing oxygenates, such as ethers and
ethanol, and reformulated gasolines might be available
in your area. We recommend that you use these
gasolines, if they comply with the specifications described
earlier. However, E85 (85% ethanol) and other fuels
containing more than 10% ethanol must not be used in
vehicles that were not designed for those fuels.

5-6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Notice: Your vehicle was not designed for fuel that
contains methanol. Do not use fuel containing
methanol. It can corrode metal parts in the fuel
system and also damage plastic and rubber parts.
That damage would not be covered under your
warranty.

Some gasolines that are not reformulated for low
emissions can contain an octane-enhancing additive
called methylcyclopentadienyl manganese tricarbonyl
(MMT); ask the attendant where you buy gasoline
whether the fuel contains MMT. We recommend against
the use of such gasolines. Fuels containing MMT can
reduce the life of spark plugs and the performance
of the emission control system could be affected.
The malfunction indicator lamp might turn on. If this
occurs, return to your dealer/retailer for service.

Fuels in Foreign Countries

If you plan on driving in another country outside the
United States or Canada, the proper fuel might be hard
to find. Never use leaded gasoline or any other fuel not
recommended in the previous text on fuel. Costly repairs
caused by use of improper fuel would not be covered by
your warranty.

To check the fuel availability, ask an auto club, or
contact a major oil company that does business in the
country where you will be driving.

5-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Filling the Tank

{

CAUTION:

Fuel vapor burns violently and a fuel fire can
cause bad injuries. To help avoid injuries to
you and others, read and follow all the
instructions on the pump island. Turn off your
engine when you are refueling. Do not smoke
if you are near fuel or refueling your vehicle.
Do not use cellular phones. Keep sparks,
flames, and smoking materials away from fuel.
Do not leave the fuel pump unattended when
refueling your vehicle. This is against the law in
some places. Do not re-enter the vehicle while
pumping fuel. Keep children away from the fuel
pump; never let children pump fuel.

The tethered fuel cap is located behind a hinged fuel
door on the passenger’s side of the vehicle.

To remove the fuel cap, turn it slowly counterclockwise.
The fuel cap has a spring in it; if the cap is released
too soon, it will spring back to the right.

While refueling, hang the tethered fuel cap from the
hook on the fuel door.

5-8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

{

CAUTION:

Fuel can spray out on you if you open the fuel
cap too quickly. If you spill fuel and then
something ignites it, you could be badly burned.
This spray can happen if your tank is nearly full,
and is more likely in hot weather. Open the fuel
cap slowly and wait for any hiss noise to stop.
Then unscrew the cap all the way.

Be careful not to spill fuel. Do not top off or overfill the
tank and wait a few seconds after you have finished
pumping before removing the nozzle. Clean fuel from
painted surfaces as soon as possible. See Washing
Your Vehicle on page 5-89.

When replacing the fuel cap, turn it clockwise until it
clicks. Make sure the cap is fully installed. The
diagnostic system can determine if the fuel cap has
been left off or improperly installed. This would allow fuel
to evaporate into the atmosphere. See Malfunction
Indicator Lamp on page 3-37.

The CHECK GAS CAP message will be displayed on
the Driver Information Center (DIC) if the fuel cap is not
properly installed. See DIC Warnings and Messages
on page 3-44 for more information.

{

CAUTION:

If a fire starts while you are refueling, do not
remove the nozzle. Shut off the flow of fuel by
shutting off the pump or by notifying the
station attendant. Leave the area immediately.

Notice: If you need a new fuel cap, be sure to get
the right type. Your dealer/retailer can get one for
you. If you get the wrong type, it may not fit properly.
This may cause your malfunction indicator lamp to
light and may damage your fuel tank and emissions
system. See Malfunction Indicator Lamp on
page 3-37.

5-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Filling a Portable Fuel Container

{

CAUTION:

Never fill a portable fuel container while it is in
your vehicle. Static electricity discharge from
the container can ignite the fuel vapor.
You can be badly burned and your vehicle
damaged if this occurs. To help avoid injury to
you and others:

•

Dispense fuel only into approved
containers.

•

Do not fill a container while it is inside a
vehicle, in a vehicle’s trunk, pickup bed, or
on any surface other than the ground.

•

Bring the fill nozzle in contact with the
inside of the fill opening before operating
the nozzle. Contact should be maintained
until the filling is complete.

•

Do not smoke while pumping fuel.

•

Do not use a cellular phone while
pumping fuel.

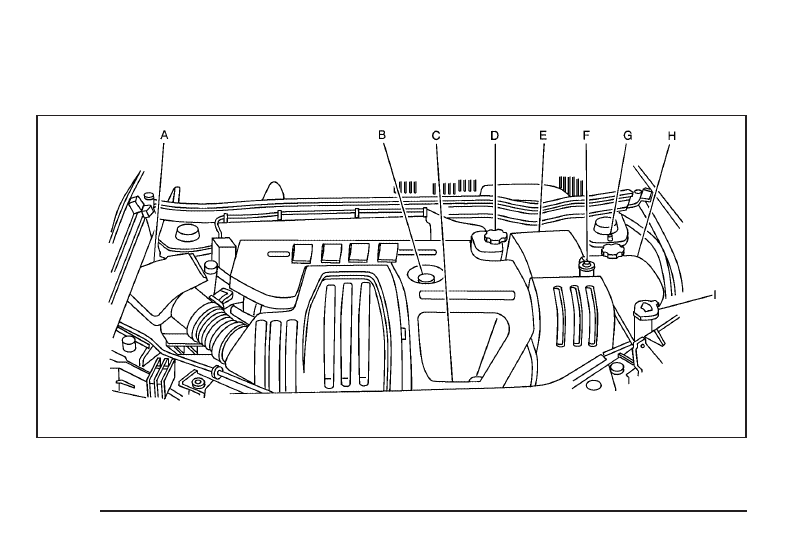

Checking Things Under
the Hood

{

CAUTION:

An electric fan under the hood can start up
and injure you even when the engine is not
running. Keep hands, clothing, and tools away
from any underhood electric fan.

{

CAUTION:

Things that burn can get on hot engine parts
and start a fire. These include liquids like fuel,
oil, coolant, brake fluid, windshield washer and
other fluids, and plastic or rubber. You or
others could be burned. Be careful not to drop
or spill things that will burn onto a hot engine.

5-10

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Hood Release

To open the hood, do the following.

1. Pull the interior hood

release lever with this
symbol on it. It is
located under the
instrument panel on
the driver’s side of the
vehicle.

2. Then go to the front of the vehicle and push the

secondary hood release lever to the left. It is
located under the front center of the hood toward
the driver’s side of the vehicle.

3. After you have partially lifted the hood, a gas strut

will automatically take over to lift and hold the hood
in the fully open position.

Before closing the hood, be sure all the filler caps
are on properly. Lower the hood until the lifting force
of the strut is reduced, then release the hood to
latch fully. Check to make sure the hood is closed
and repeat the process if necessary.

5-11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Pontiac G5 (2008 year). Manual - part 15
