Driving

CONTROLS

Safety information

Folding down the wipers

WARNING

After the wipers are folded back down, the

wiper system must be reactivated.

If the wipers start moving in the folded

away state, body parts can be jammed or dam-

1. Fold the wipers back down onto the wind-

age may occur to parts of the vehicle. There is a

shield.

risk of injury or risk of damage to property.

2. Switch on the ignition.

Make sure that the vehicle is switched off when

3. Push wiper lever down. Wipers return to

the wipers are in the folded away state and the

their resting position and are ready again

wipers are folded in when switching on.◀

for operation.

NOTE

If the wipers are frozen to the windshield,

the wiper blades can be torn off and the wiper

Canada: wiper system

motor can overheat when switching on. There

is a risk of damage to property. Defrost the

General information

windshield prior to switching the wipers on.◀

Do not use the wipers if the windshield is dry,

as this may damage the wiper blades or cause

Folding away the wipers

them to become worn more quickly.

1. Switch the ignition on and off again.

Safety information

2. Press and hold the wiper level down, until

the wipers stop in a close to vertical posi-

WARNING

tion.

If the wipers start moving in the folded

away state, body parts can be jammed or dam-

age may occur to parts of the vehicle. There is a

risk of injury or risk of damage to property.

Make sure that the vehicle is switched off when

the wipers are in the folded away state and the

wipers are folded in when switching on.◀

NOTE

If the wipers are frozen to the windshield,

the wiper blades can be torn off and the wiper

3. Fold the wipers all the way away from the

motor can overheat when switching on. There

windshield.

is a risk of damage to property. Defrost the

windshield prior to switching the wipers on.◀

95

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS

Driving

Switching on

Interval mode or rain sensor

Concept

The rain sensor automatically controls the time

between wipes depending on the intensity of

the rainfall.

General information

The sensor is located on the windshield, directly

in front of the interior mirror. Without the rain

sensor, the frequency of the wiper operation is

Tap up the lever or press it past the resistance

preset.

point.

▷ Normal wiper speed: tap up once.

Safety information

▷ Fast wiper speed: tap up twice or tap once

NOTE

beyond the resistance point.

If the rain sensor is activated, the wipers

The lever automatically returns to its initial po-

can accidentally start moving in vehicle washes.

sition when released.

There is a risk of damage to property. Deacti-

vate the rain sensor in vehicle washes.◀

Switching off and brief wipe

Activating/deactivating

Press the lever down.

▷ To switch off from fast wiper speed: press

Press the button on the wiper lever.

down twice.

Wiping is started.

▷ To switch off from normal wiper speed:

press down once.

The LED in the wiper lever is illuminated.

▷ Brief wipe: press down once.

If wipers are frozen to windshield, wiper opera-

tion is deactivated.

The lever automatically returns to its initial po-

sition when released.

During trip interruption with the rain sensor

switched on: if the trip is resumed within ap-

prox. 15 minutes, the rain sensor is automati-

cally activated again.

96

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving

CONTROLS

Setting the frequency or sensitivity of

Cleaning the windshield

the rain sensor

Pull the lever.

Turn the thumbwheel to adjust the frequency

The system sprays washer fluid on the wind-

or sensitivity of the rain sensor.

shield and activates the wipers briefly.

Up: short interval or high sensitivity of the rain

sensor.

Windshield washer nozzles

Down: long interval or low sensitivity of the rain

The washer jets are automatically heated

sensor.

whenever the ignition is switched on.

Windshield washer system

Rear window wiper

Safety information

Overview

WARNING

The washer fluid can freeze onto the win-

dow at low temperatures and obstruct the

view. There is a risk of an accident. Only use the

washer systems, if the washer fluid cannot

freeze. Use antifreeze, if needed.◀

NOTE

When the washer fluid reservoir is empty,

the wash pump cannot work as intended.

There is a risk of damage to property. Do not

Switching on the rear window wiper

use the washer system when the washer fluid

Turn the outer switch upward.

reservoir is empty.◀

▷ Resting position of the wiper, position 0.

▷ Intermittent mode, arrow 1. When reverse

gear is engaged, the system switches to

continuous operation.

Clean the rear window

Turn the outer switch in the desired direction.

97

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS

Driving

▷ In resting position: turn the switch down-

onds, until the wipers remain in a nearly

ward, arrow 3. The switch automatically re-

vertical position

turns to its resting position when released.

▷ In intermittent mode: turn the switch fur-

ther, arrow 2. The switch automatically re-

turns to its intermittent position when re-

leased.

Fold-away position of the wipers

Concept

The fold-out position enables the wipers to be

3.

Fold the wipers all the way away from the

folded away from the windshield.

windshield.

General information

Helpful when changing the wiper blades or un-

der frosty conditions, for instance.

Safety information

WARNING

If the wipers start moving in the folded

away state, body parts can be jammed or dam-

age may occur to parts of the vehicle. There is a

risk of injury or risk of damage to property.

Folding down the wipers

Make sure that the vehicle is switched off when

After the wipers are folded back down, the

the wipers are in the folded away state and the

wiper system must be reactivated.

wipers are folded in when switching on.◀

1. Fold the wipers back down onto the wind-

NOTE

shield.

If the wipers are frozen to the windshield,

2. Switch on the ignition.

the wiper blades can be torn off and the wiper

3. Push wiper lever down. Wipers return to

motor can overheat when switching on. There

their resting position and are ready again

is a risk of damage to property. Defrost the

for operation.

windshield prior to switching the wipers on.◀

Folding away the wipers

Washer fluid

1. Switch the ignition on and off again.

General information

2. Press the wiper lever up beyond the point

of resistance and hold it for approx. 3 sec-

All washer nozzles are supplied from one reser-

voir.

Use a mixture of tap water and windshield

washer concentrate. If desired, a windshield

washer concentrate containing antifreeze can

be used.

98

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving

CONTROLS

Recommended minimum fill quantity:

Overview

0.2 US gal/1 liter.

Safety information

WARNING

Some antifreeze agents can contain

harmful substances and are flammable. There

is a risk of fire and a risk of injury. Follow the in-

structions on the containers. Keep antifreeze

away from ignition sources. Do not refill oper-

ating materials into different bottles. Store op-

The washer fluid reservoir is located in the en-

erating materials out of reach of children.

gine compartment.

United States: the washer fluid mixture ratio is

regulated by the U.S. EPA and many individual

Malfunction

states; do not exceed the allowable washer

The use of undiluted windshield washer con-

fluid dilution ratio limits that apply. Follow the

centrate or alcohol-based antifreeze can lead

usage instructions on the washer fluid con-

to incorrect readings at temperatures below

tainer.

+5 ℉/-15 ℃.

Use of BMW’s Windshield Washer Concentrate

or the equivalent is recommended.◀

Manual transmission

WARNING

Washer fluid can ignite and catch fire on

Safety information

contact with hot engine parts. There is a risk of

WARNING

injury or risk of damage to property. Only add

washer fluid when the engine is cooled down.

An unsecured vehicle can begin to move

Next, fully close the lid of the washer fluid res-

and possibly roll away. There is a risk of an acci-

ervoir.◀

dent. Before exiting, secure the vehicle against

rolling.

NOTE

In order to ensure that the vehicle is secured

Silicon-containing additives in the washer

against rolling away, follow the following:

fluid for the water-repelling effect on the win-

▷ Set the parking brake.

dows can lead to damage to the washing sys-

▷ On uphill grades or on a downhill slope,

tem. There is a risk of damage to property. Do

turn the front wheels in the direction of the

not add silicon-containing additives to the

curb.

washer fluid.◀

▷ On uphill grades or on a downhill slope,

NOTE

also secure the vehicle, for instance with a

Mixing different windshield washer con-

wheel chock.◀

centrates or antifreeze can damage the wash-

NOTE

ing system. There is a risk of damage to prop-

When shifting to a lower gear, excessive

erty. Do not mix different windshield washer

speeds can damage the engine. There is a risk

concentrates or antifreeze. Follow the informa-

of damage to property. When shifting into 5th

tion and mixing ratios provided on the contain-

ers.◀

99

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS

Driving

or 6th gear, press the gearshift lever to the

Steptronic transmission

right.◀

Concept

Schematic diagram

The Steptronic transmission combines the func-

tions of an automatic transmission with the

possibility of manual shifting, if needed.

Safety information

WARNING

An unsecured vehicle can begin to move

and possibly roll away. There is a risk of an acci-

dent. Before exiting, secure the vehicle against

rolling.

▷

1 - 6: forward gears

In order to ensure that the vehicle is secured

▷ R: reverse

against rolling away, follow the following:

▷ Set the parking brake.

Shifting

▷ On uphill grades or on a downhill slope,

turn the front wheels in the direction of the

General information

curb.

Depending on the engine installation, the en-

▷ On uphill grades or on a downhill slope,

gine speed during a shifting operation is ad-

also secure the vehicle, for instance with a

justed automatically as required for harmo-

wheel chock.◀

nious and dynamic gear shifting.

Selector lever version

Reverse gear

Select only when the vehicle is stationary.

General information

To overcome the resistance push the gearshift

Depending on the vehicle equipment, a trans-

lever dynamically to the left and engage re-

mission with either a latching selector lever or a

verse gear with a forward shifting movement.

tap-operated selector lever is installed.

Rolling or pushing the vehicle

Transmission with a latching selector

In some situations, the vehicle is to roll without

lever

its own power, for instance in a vehicle wash, or

be pushed.

1. Switch on the ignition.

2. Press on the clutch pedal and shift out of a

forward gear or reverse.

3. Release the parking brake.

The selector lever positions P, R, N, and D are

selected by moving the selector lever into the

100

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving

CONTROLS

respective selector lever position. The selector

Functional requirements

lever engages in the selector lever positions.

The selector lever can only be taken out of se-

lector lever position P if the ignition is on or the

engine is running.

Selector lever positions

Drive mode D

Engaging selector lever position D, N, R,

or P

Selector lever position for normal vehicle oper-

ation. All gears for forward travel are activated

With the vehicle stationary, depress the brake

automatically.

pedal before shifting out of selector lever posi-

tion P or N; otherwise, the shift block will not be

deactivated and the shift command will not be

Reverse R

executed.

Engage selector lever position R only when the

vehicle is stationary.

A selector lever lock prevents the following

faulty operation:

Neutral N

▷

Unintentional shifting into selector lever

The vehicle may be pushed or roll without en-

position P or R.

gine power in selector lever position N, for in-

▷

Unintentional shifting from selector lever

stance in vehicle washes, refer to page 102.

position P into another selector lever posi-

tion.

Parking position P

1.

To release the selector lever lock: with the

brake pedal depressed, press the button on

General information

the front of the selector lever.

Selector lever position, for instance for parking

the vehicle.

The transmission blocks the drive wheels in se-

lector lever position P.

Engage selector lever position P only when the

vehicle is stationary.

Before exiting the vehicle, make sure that se-

lector lever position P is set. Otherwise, the ve-

hicle may begin to move.

2.

Move the selector lever into the desired po-

Engaging selector lever positions: with

sition.

a latching selector lever

General information

To prevent the vehicle from creeping after you

select a drive mode, maintain pressure on the

brake pedal until you are ready to start.

101

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS

Driving

Rolling or pushing the vehicle

Activating the sport program

General information

In some situations, the vehicle is to roll without

its own power for a short distance, for instance

in a vehicle wash, or be pushed.

Engaging selector lever position N: with

a latching selector lever

1. Switch on the ignition.

2. If necessary, release the parking brake.

Press the selector lever to the left out of selec-

tor lever position D.

3. Depress the brake pedal.

The engaged gear is displayed in the instru-

4. Touch the selector lever lock and engage

ment cluster, for instance S1.

selector lever position N.

The sport program of the transmission is acti-

5. Release brake.

vated.

The vehicle may roll.

If there is a malfunction, you may not be able

Ending the Sport program

to change the selector lever position.

Push the selector lever to the right.

Manually unlock the transmission lock, if

needed, refer to page 104.

D is displayed in the instrument cluster.

Kickdown

Manual mode M/S

Kickdown is used to achieve maximum driving

Concept

performance. Step on the accelerator pedal be-

yond the resistance point at the full throttle po-

Manual gear-shifting is possible in manual

sition.

mode.

Sport program M/S

Activating manual mode

1. Press the selector lever to the left out of se-

Concept

lector lever position D, arrow 1.

The shifting points and shifting times in the

Sport program are designed for a sportier driv-

ing style. The transmission, for instance shifts

up later and the shifting times are shorter.

2. Push the selector lever forward or pull it

backward, arrows 2.

102

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS

Driving

Shifting

ter console. To do so, pull the retaining ring

upward at the rear edge.

▷ To shift up: briefly pull right shift paddle.

2. Lift the sleeve. Unplug the cable connector,

▷ To shift down: briefly pull left shift paddle.

if needed.

▷ The lowest possible gear can be selected by

3. Using the screwdriver from the onboard ve-

pulling and holding the left shift paddle.

hicle tool kit, refer to page 245, press the

The selected gear is briefly displayed in the in-

yellow release lever downward, see arrow.

strument cluster, followed by the current gear.

Displays in the instrument cluster

The selector lever position is dis-

played, for example P.

Releasing the transmission lock

manually: with a latching selector lever

4. Press the button on the front of the selector

If the selector lever is locked in selector lever

lever and move the selector lever back

position P despite the ignition being switched

slightly.

on, the brake pedal being depressed and the

Release the release lever.

button on the selector lever being pressed, the

5. Bring the selector lever into the desired po-

transmission lock can be unlocked manually:

sition.

Before unlocking the transmission lock man-

For additional information, see the chapter on

ually, set the parking brake to prevent the vehi-

tow-starting and towing.

cle from rolling away.

1. Loosen the selector lever sleeve, together

Steptronic Sport transmission: Launch

with the lower retaining ring, from the cen-

Control

Concept

Launch Control enables optimum acceleration

on surfaces with good traction under dry sur-

rounding conditions.

104

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving

CONTROLS

General information

Repeated use during a trip

The use of Launch Control causes premature

After Launch Control has been used, the trans-

component wear since this function represents

mission must cool down for approx. 5 minutes

a very heavy load for the vehicle.

before Launch Control can be used again.

Do not use Launch Control during the break-in,

refer to page 198, period.

After using Launch Control

To increase vehicle stability, activate DSC Dy-

To start with Launch Control do not steer the

namic Stability Control again.

steering wheel.

System limits

Functional requirements

An experienced driver may be able to achieve

Launch Control is available as soon as the en-

better acceleration values in DSC OFF mode.

gine and transmission are at operating temper-

ature.

The engine is at operating temperature after an

uninterrupted trip of at least 6 miles/10 km.

Depending on the external temperature and

driving style, the transmission requires an unin-

terrupted trip of up to 30 miles/50 km in order

to reach the operating temperature required

for Launch Control.

Start with launch control

While the engine is running:

1.

Press button and select SPORT with

the MINI Driving Modes switch.

The instrument cluster displays TRACTION

in combination with SPORT. The DSC OFF

indicator light lights up.

2. Engage selector lever position S.

3. With the left foot, forcefully press down on

the brake.

4. Step on the accelerator pedal beyond the

resistance point at the full throttle position,

kickdown.

A flag symbol is displayed in the instrument

cluster.

5. The starting engine speed adjusts. Within

3 seconds, release the brake.

105

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS

Displays

Displays

necessarily available in your vehicle, e. g., due

Vehicle features and op-

to the selected options or country versions. This

tions

also applies to safety-related functions and sys-

tems. When using these functions and systems,

This chapter describes all standard, country-

the applicable laws and regulations must be

specific and optional features offered with the

observed.

series. It also describes features that are not

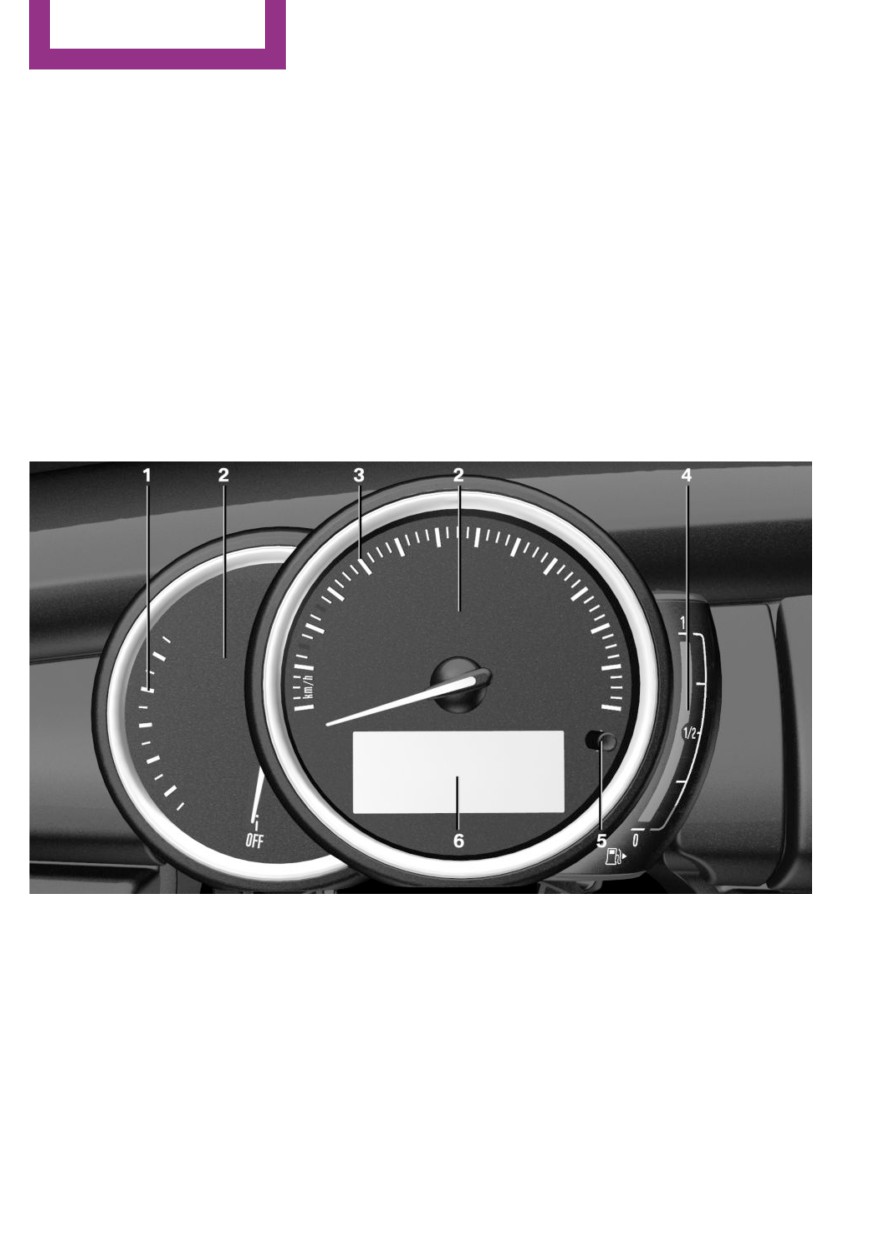

Instrument cluster

Overview

1

Tachometer

111

4

Fuel gauge

111

2

Indicator/warning lights

5

Display/reset miles

111

3

Speedometer

6

Electronic displays

107

106

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Displays

CONTROLS

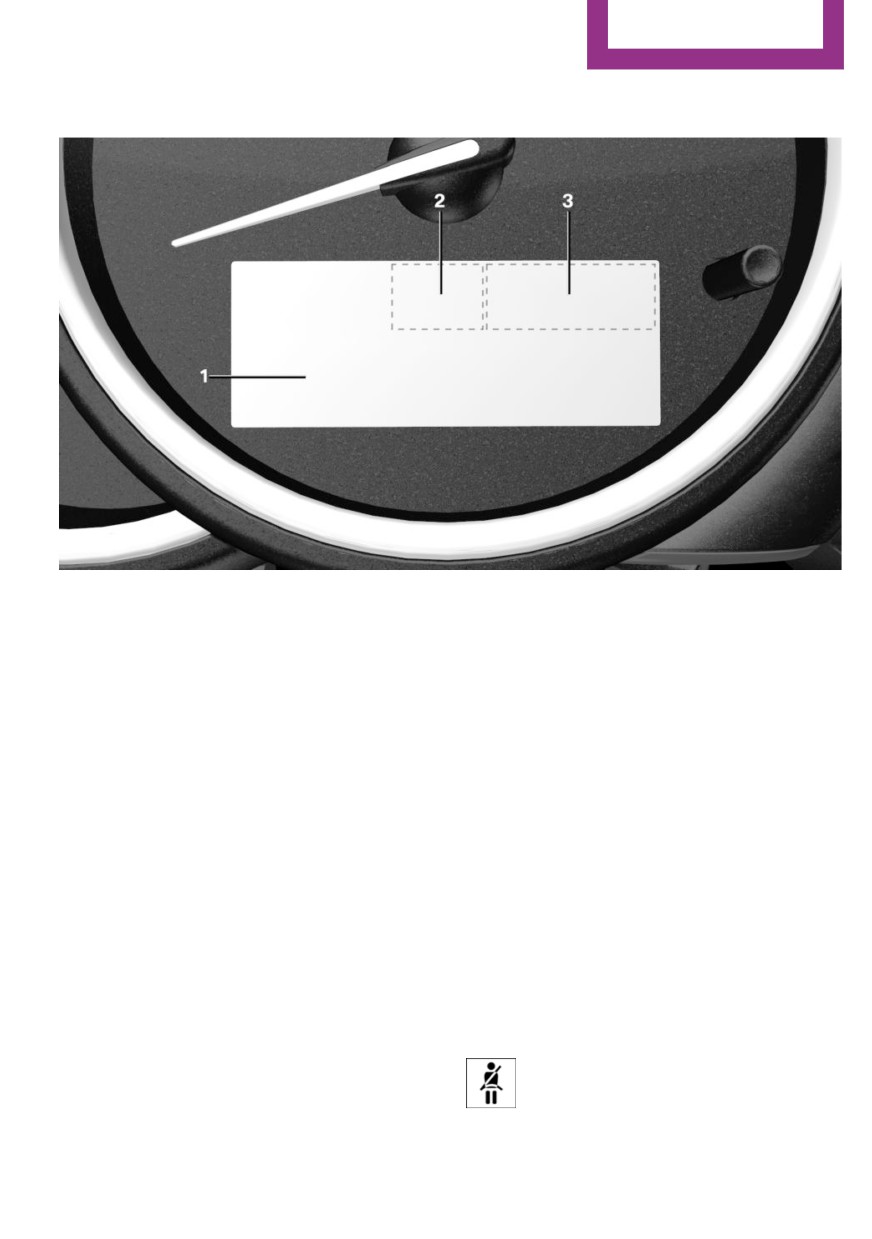

Electronic displays

1

Driver assistance systems

Total miles/trip odometer

111

Messages, for instance Check Control

Onboard Computer

115

Time

112

2

Selector lever position

100

External temperature

111

Gear shift indicator

113

Selection lists

115

3

MINI Driving Modes switch status

151

Indicator/warning lights

Check Control

General information

Concept

The indicator/warning lights can light up in a

The Check Control system monitors functions in

variety of combinations and colors.

the vehicle and notifies you of malfunctions in

the monitored systems.

Several of the lights are checked for proper

functioning and light up temporarily when the

General information

engine is started or the ignition is switched on.

A Check Control message is displayed as a com-

Red lights

bination of indicator or warning lights and SMS

text messages in the instrument cluster and in

Safety belt reminder

the Head-up Display.

In addition, an acoustic signal may be output

Indicator light flashes or is illuminated:

and a SMS text message may appear on the

safety belt on the driver or passenger

Control Display.

side is not buckled. The safety belt re-

minder can also be activated if objects are

placed on the front passenger seat.

107

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS

Displays

Make sure that the safety belts are positioned

Orange lights

correctly.

Active Cruise Control

Airbag system

The number bars shows the selected

distance from the vehicle driving ahead.

Airbag system and belt tensioner are

not working.

Camera-based cruise control, refer to

page 154.

Have the vehicle checked immediately

by a dealer’s service center or another qualified

service center or repair shop.

Vehicle detection, Active Cruise Control

Indicator light illuminates: a vehicle has

Parking brake

been detected ahead of you.

The parking brake is set.

Indicator light flashes: the conditions

are not adequate for the system to work.

Release the parking brake, refer to

page 91.

The system was deactivated but applies the

brakes until you actively resume control by

pressing on the brake pedal or accelerator

Brake system

pedal.

Braking system impaired. Continue to

drive moderately.

Yellow lights

Have the vehicle checked immediately

by a dealer’s service center or another

Anti-lock Braking System ABS

qualified service center or repair shop.

Braking force boost may not be work-

ing. Avoid abrupt braking. Take the lon-

Approach control warning

ger braking distance into account.

Indicator light illuminates: advance

Have the system immediately checked

warning is issued, for example when

by a dealer’s service center or another

there is the impending danger of a colli-

qualified service center or repair shop.

sion or the distance to the vehicle ahead is too

small.

DSC Dynamic Stability Control

Increase distance.

The indicator light flashes: DSC controls

Indicator light flashes: acute warning of the im-

the drive and braking forces. The vehi-

minent danger of a collision when the vehicle

cle is stabilized. Reduce speed and

approaches another vehicle at a relatively high

modify your driving style to the driving circum-

differential speed.

stances.

Intervention by braking or make an evasive

The indicator light lights up: DSC has malfunc-

maneuver.

tioned.

Have the system checked by a dealer’s service

Person warning

center or another qualified service center or re-

pair shop.

If a collision with a person detected in

this way is imminent, the symbol lights

DSC, refer to page 149.

up and a signal sounds.

108

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Displays

CONTROLS

DSC Dynamic Stability Control is deactivated

Have the system checked by a dealer’s service

or DTC Dynamic Traction Control is activated

center or another qualified service center or re-

pair shop.

DSC is deactivated or DTC is activated.

DSC, refer to page 149, and DTC, refer

Emissions

to page 150.

▷ The warning light lights up:

Flat Tire Monitor FTM

Emissions are deteriorating. Have

the vehicle checked as soon as pos-

The Flat Tire Monitor signals a loss of

sible.

tire inflation pressure in a tire.

▷ The warning light flashes under certain cir-

Reduce your speed and stop cautiously.

cumstances:

Avoid sudden braking and steering maneuvers.

This indicates that there is excessive misfir-

Flat Tire Monitor, refer to page 138.

ing in the engine.

Reduce the vehicle speed and have the sys-

Tire Pressure Monitor TPM

tem checked immediately; otherwise, seri-

The indicator light lights up: the Tire

ous engine misfiring within a brief period

Pressure Monitor reports a low tire in-

can seriously damage emission control

flation pressure or a flat tire. Follow the

components, in particular the catalytic con-

information in the Check Control message.

verter.

The indicator light flashes and then continu-

Socket for Onboard Diagnosis, refer to

ously lights up: no flat tire or loss of tire infla-

page 244.

tion pressure can be detected.

▷ Interference caused by systems or devices

Rear fog light

with the same radio frequency: after leav-

Rear fog light is switched on.

ing the area of the interference, the system

automatically becomes active again.

Rear fog light, refer to page 127.

▷ TPM was unable to complete the reset. Re-

set the system again.

Green lights

▷ A wheel without TPM wheel electronics is

Turn signal

mounted: have it checked by a dealer’s

service center or another qualified service

Turn signal switched on.

center or repair shop as needed.

Unusually rapid flashing of the indicator

▷ Malfunction: have the system checked by a

light indicates that a turn signal bulb

dealer’s service center or another qualified

has failed.

service center or repair shop.

Turn signal, refer to page 91.

Tire Pressure Monitor, refer to page 133.

Parking lights, headlight

Steering system

Parking lights or headlights are

Steering system in some cases not

switched on.

working.

Parking lights/low beams, headlight

control, refer to page 124.

109

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS

Displays

Front fog lights

The messages can be hidden for approx. 8 sec-

onds. After this time, they are displayed again

Front fog lights are switched on.

automatically.

Front fog lights, refer to page 127.

Temporary display

High-beam Assistant

Some Check Control messages are hidden auto-

matically after approx. 20 seconds. The Check

High-beam Assistant is switched on.

Control messages are stored and can be dis-

High beams are switched on and off au-

played again later.

tomatically depending on the traffic sit-

uation.

Displaying stored Check Control

High-beam Assistant, refer to page 126.

messages

Via the Central Information Display (CID):

Cruise control

1.

"My MINI"

The system is switched on. It maintains

2. "Vehicle status"

the speed that was set using the control

3.

"Check Control"

elements on the steering wheel.

4. Select the SMS text message.

Blue lights

Display

High beams

Check Control

High beams are switched on.

At least one Check Control message is

High beams, refer to page 92.

displayed or is stored.

Hiding Check Control messages

SMS text messages

SMS text messages in combination with a sym-

bol in the instrument cluster explain a Check

Control message and the meaning of the indi-

cator/warning lights.

Supplementary SMS text messages

Additional information, such as on the cause of

an error or the required action, can be called up

via Check Control.

Press and hold button on signal lever.

With urgent messages the added text will be

automatically displayed on the Control Display.

Continuous display

Further help

Some Check Control messages are displayed

Depending on the Check Control message, fur-

continuously and are not cleared until the mal-

ther help can be selected.

function is eliminated. If several malfunctions

occur at once, the messages are displayed con-

secutively.

110

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Displays

CONTROLS

Via the Central Information Display (CID):

Odometer and trip odom-

1.

"My MINI"

eter

2. "Vehicle status"

3.

"Check Control"

Concept

The total number of kilometers driven and the

4. Select the desired text message.

number of kilometers driven since the last reset

5. Select the desired setting.

are displayed in the instrument cluster.

▷ "Owner's Manual"

Display additional information about

Reset the trip odometer

the Check Control message in the

Press the button.

Integrated Owner's Manual.

▷ The odometer is displayed

▷ "Service request"

when the ignition is switched

Contact a dealer’s service center or an-

off.

other qualified service center or repair

▷ When the ignition is switched

shop.

on, the trip odometer is re-

▷ "MINI Roadside Assistance"

set.

Contact Roadside Assistance.

Messages after trip completion

External temperature

Special messages displayed while driving are

displayed again after the ignition is switched

General information

off.

If the indicator drops to +37 ℉/+3 ℃, a signal

sounds.

A Check Control message is displayed.

Fuel gauge

There is an increased risk of ice on roads.

The arrow beside the fuel pump

symbol shows which side of the

Safety information

vehicle the fuel filler flap is on.

WARNING

Vehicle tilt position may cause

Even at temperatures above +37 ℉/+3 ℃

the display to vary.

there can be a risk of icy roads, for instance on

Information on refueling, refer to page 210.

bridges or shady sections of road. There is a risk

of an accident. Modify your driving style to the

The yellow indicator light illuminates,

weather conditions at low temperatures.◀

once the fuel reserve is reached.

Display

The external temperature is dis-

Tachometer

played in the instrument cluster.

Always avoid engine speeds in the red warning

field. In this range, the fuel supply is reduced to

protect the engine.

111

Content      ..     4      5      6      7     ..
