Iran Khodro Runna. Service Manual - part 6

86

5

FUSES

F25

30A

Power supply of central lock.

F26

20A

Power supply of central node BCM

F27

5A

Power supply of relays, monitors

Cooler

F28

20A

Power supply of central node BCM

F29

5A

Power supply of Immobilizer

F30

10A

Power supply of radio memory

F31

-

Reserve

F32

-

Reserve

F33

40A

Power supply of Heater Fan

F34

40A

Power supply of front windows

regulator, mirror

F35

40A

Power supply of rear window

Regulators

F36

5A

Reserve

F37

10A

Reserve

Fuse

No.

Rating

Fuse Function

F1

-

Reserve

F2

 5A

Heating fan relay

F3

5A

Power supply of front node FCM, cooler,

Instrument panel

F4

10A

Power supply of rear wiper motor and trunk lock

F5

5A

Power supply of background light

F6

5A

Power supply of anti-lock braking system ABS

F7

10A

Power supply of airbag unit

F8

5A

Power supply of Instrument panel , immobilizer, DIAG,

ECU

F9

5A

Power supply of wiper washer pumps

F10

5A

Power supply of central node of BCM, Front windows

regulator display , reverse gear sensor.

F11

10A

Power supply of reverse gear

F12

5A

Power supply of Brake Light Switch

F13

10A

A three-position switch power supply of Cooler

F14

5A

Power supply of ceiling lights, trunk

F15

20A

Power supply of Lighter

F16

10A

Power supply of Radio Player

F17

-

Reserve

F18

-

Reserve

F19

-

Reserve

F20

-

Reserve

F21

-

Reserve

F22

10A

Power supply of Front Window Regulators

F23

5A

Power supply of mirrors heater.

F24

30A

Power supply of rear glass heater

Relay

Number

Operation Relay

Flow - Type

R1

Fan Relay

35A- 1 Contact

R2

Instrument panel relay, cooler and front node FCM

20A- 1 Contact

R3

Voltage relay ECO

35A- 1 Contact

R4

Rear of rear glass heater and side mirrors

20A- 1 Contact

R5

Front wiper washer pump relay

20A- 2 Contact

R6
R7

Front window regulator Relay

35A- 1 Contact

R8

Rear window regulator Relay

35A- 1 Contact

R9

Trunk opener and rear wiper relay

20A- 2 Contact

R10

Central opener relay

20A- 2 Contact

R11

Central door locking relay

20A- 2 Contact

If your vehicle is equipped *

87

5

Relay No.

Relay Function

Rating - type

RLY1

Relay switch for engine control

30A-1Contact

RLY2

Relay switch for fuel pump

30A-1Contact

RLY3

Relay switch for small light

30A-1Contact

RLY4

Relay switch for horn

30A-1Contact

RLY5

Relay switch for front

windshield wiper

30A-2Contact

RLY6

Relay switch for front

windshield wiper

30A-2Contact

FUSES

Engine Compartment Fuse box

Fuse box is in the right part of the engine compartment. To access the fuse located in

the engine compartment, unclip the fuse box cover. Close the fuse box cover carefully

when you have finished.

Vehicle owner shall not tamper fuse connection. Any problem in this part should be

checked by authorized experts.

Engine Compartment Fuse box by Sazeh Pooyesh System

Fuse No.

Rating

Fuse Function

1

40A

Power supply for ignition switch

2

20A

Power supply of front node internal systems

3

20A

Connector power supply of front node internal systems

4

20A

Connector power supply of front node internal systems

5

10A

Relay switch for small lights

6

Spare

7

40A

Brake (ABS)

8

30A

Brake (ABS)

9

40A-MAXI

Connector power supply of BCM internal system

10

70A-MAXI

Connector power supply of BCM internal systems

11

20A

Relay switch for horn

12

30A

Starter supply

13

Spare

14

30A

Relay switch for front windshield wiper

15

10A

Sensor oxygen power

16

40A

Double relay supply

17

10A

Fuel pump supply and Engine unit

18

10A

Engine unit supply

Relay Guide Table

88

5

Relay No.

Relay Function

Rating - type

RLY1

Relay switch for engine control

30A-1Contact

RLY2

Relay switch for fuel pump

30A-1Contact

RLY3

Relay switch for fog lamp

30A-1Contact

RLY4

Relay switch for horn

30A-1Contact

RLY5

Relay switch for front

windshield wiper

30A-2Contact

RLY6

Relay switch for front

windshield wiper

30A-2Contact

Engine Compartment Fuse box

Fuse box is in the right part of the engine compartment. To access the fuse located in

the engine compartment, unclip the fuse box cover. Close the fuse box cover carefully

when you have finished.

Vehicle owner shall not tamper fuse connection. Any problem in this part should be

checked by authorized experts.

Fuse No.

Rating

Fuse Function

1

40A

Power supply for ignition switch - Immobilizer

2

30A

Relay switch for fog lamp - horn

3

40A

Connector power supply of BCM internal systems

4

30A

Connector power supply of BCM internal systems

5

Spare

6

Spare

7

30A

Brake (ABS)

8

30A

Brake (ABS)

9

40A-MAXI

Fan (High and Low speed)

* 10

50A-MAXI

Connector power supply of BCM internal systems

* 11

40A

Connector power supply of BCM internal systems

12

20A

Front node supply

13

15A

Front node supply

14

30A

Relay switch for front windshield wiper

15

Spare

16

30A

Double relay supply

17

10A

Fuel pump supply

18

10A

Engine unit supply

* Connector power supply of BCM internal systems is placed in fuse F10 or F11.

Relay Guide Table

FUSES

89

5

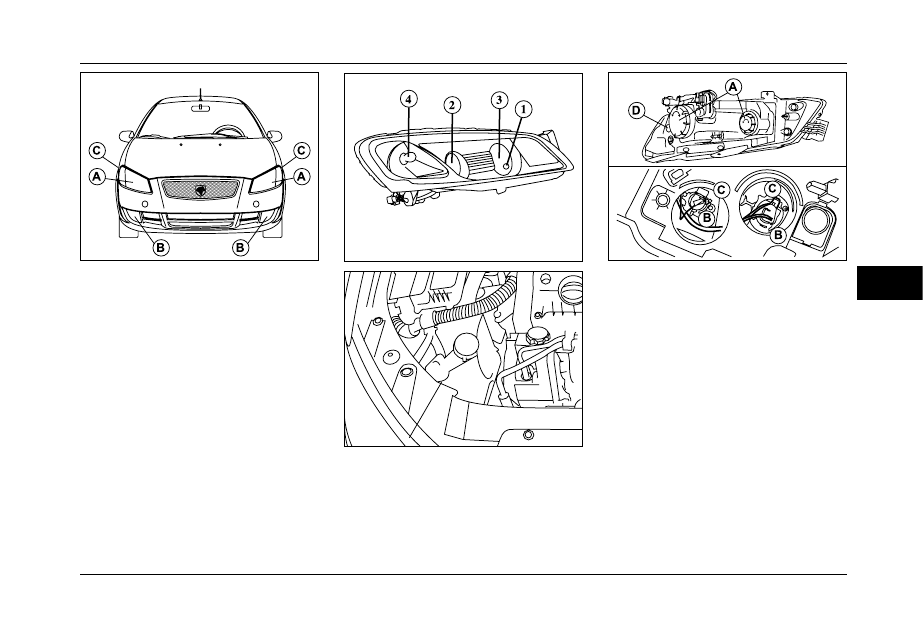

FUSES

A- Head lamps (right and left)

B- Front fog lamps (right and left)

C- Direction indicators on the fender(right

and left)

Changing bulbs

To change the right bulb, first disconnect

the windscreen washer reservoir pipe.

Then turn the cover (A) at back of the

lamp in order to have  “A” cover detached.

1-Small lamps Parking W5W

-Turn the lamp holder (D) a quarter

counterclockwise and take the bulb out.

-Replace the bulb

-Install the lamp holder correctly.

2- Anti-dazzle lamps H7 55w

3- Main beam lamps H1 55w

-Detach the B contact connector(s)

-Press both sides of the C connection

clip(s) to be released and replace the bulb.

-When fitting the new bulb, ensure that the

direction notches are positioned correctly

and the securing clips are fixed properly.

-Reconnect the connector.

-Refit the lamp protective cover (A) and

then windscreen washer reservoir pipe.

90

5

1-Direction indicators PY21W

-Turn the lamp holder a quarter turn. Take

the bulb out.

-Replace the bulb.

-Install the lamp holder in its place.

B-Front fog lamps H1 55W

Turn the cover and take it.

Disconnect the lamp connection.

Press both end of clip to release the

lamp,  replace the defective lamp. Then

refit the lamp holder, refit the cover.

C-Direction indicator at fender

sideWY5W (flasher)

Push the lamp set toward front and take it

out. Take the bulb body carefully and turn

the lamp base. Take the lamp out of the

base and replace it. Put the base on its

place and turn to be fitted. Place the lamp

set on its place.

CHANGING LAMPS

91

5

CHANGING LAMPS

Take the lamp by a dry cloth. The front
lams are covered with poly carbonate
glass and protective cover.
Do not clean them with a dry or abrasive
cloth, nor with a detergent or solvent product.
Use sponge and soap.
Use only H1 lamps under following
brands:

-TUNGSRAM

- PHILIPS

-OSRAM

-NORMA

The head lamps are denoted for
preventing damages through ultraviolet
ray which is necessary for proper function
in co-ordination with head lamps.
The head lamps are installed by poly
carbon glass and protective cover. Do
not clean them with a dry or abrasive, nor
with a detergent or solvent product.
Use soft and damped cloth To change the
left front lamp, first take the windscreen
wash reservoir.
Vapor formation on the lamps location,
when the lamps are on, cause non-
reflection of the light.

Rear lamps set

D:rear lamps (right and left)

E:rear fog lamps (only left)

F:high mounted brake light

Rear lamps

1-Direction indicators P21W (right and

left)

2-Rear gear lights P16W (right and left)

3-Braking light/rear position side lamp

(parking lamp) P21/5W (right and left)

Replacing bulb

-Take luggage compartment carpet out

-Open all three nuts

-Detach connector A from lamps set

-Take lamps set out

-Turn the lamps holder( B) toward direction

-Replace the defective  bulb

-Then, first attach the connector A to the

lamps set and install the dirt guard ©’a9

carefully, ensure that the direction notches

are positioned correctly. Finally, install the

lamps set with three nuts on their place.

92

5

CHANGING LAMPS

Warning

-Check the function of all exterior

lights before starting to drive.

-Switch off the lamp key to avoid short

circuit when replacing any lamps.

-If you do not install dirt guard, the

water will penetrate to the luggage

compartment.

Warning

The bulbs are in vacuum condition

and may be broken when replacing

and cause injury.

High mounted brake light (middle)

This light is formed of the some light

emitting diodes (LED).

In case of any problem refer to one of the

Iran Khodro authorized dealer.

Rear fog lamp P21W (left)

First reach the back of the lamp under

bumper and turn the lamp holder and

take it. Then replace the lamp. Fit the

lamp holder correctly in its place.

Only left lamp is applicable. Right lamp is

only for decoration.

Number plate light W5W (left and right)

Detach the plastic cover of the lamps

Replace the faulty bulb.

Then fit the plastic cover correctly.

93

5

TOWING VEHICLE

Warning
-Towing vehicle should always be heavier than
the towed vehicle.
-No passenger should be in the vehicle being
towed.
-When towing with four wheels on the ground, do
not take the key out of the switch or make it OFF.
It is recommended to have the key at position 2
-Use a fixed and strong bar for towing. In case
of using cable or rope for towing (if allowed by
regulations), the towed vehicle should be able to
brake (there is the risk of ignition On).
-Vehicle, which has not ability to move or drive,
should not be towed. It should be carried by a
special transportation vehicle.

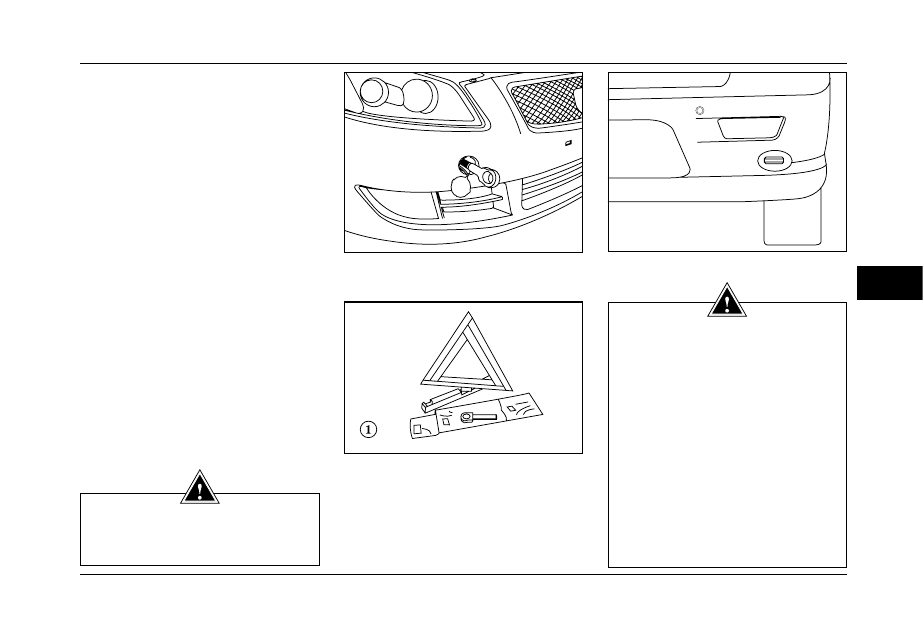

Towing vehicle

Lifting

(2 wheels only on the ground)

It is preferable to raise the vehicle with a

professional lifting device.

Without lifting (4 wheels on the ground)

You must always use a tow bar.

Front towing hook

This hook is screw type. Unclip the cover

and screw the towing hook on the nut

installed on the vehicle body. Then tow

your vehicle by a tow bar.

Front towing hook is insider of peril

triangle bag.(1)

Rear towing hook

This hook is of fixed type.

Peril Triangle

The peril triangle must be kept at the edge

of the road with the distance of 50 to 100m

from the vehicle ;when the vehicle is out

of order or when you’re replacing the

tires. Increase the distance ,if there is any

obstacle in the sight of drivers.

Front towing hook

Rear towing hook

Warning

Never use the radiator front grille for

towing

95

6

VEHICLE IDENTIFICATION FACTORS .................. 96

ENGINE TECHNICAL INFORMATION ................... 97

WEIGHT OF THE VEHICLE ........................................ 98

VEHICLE DIMENSION ............................................... 99

TECHNICAL INFORMATION

96

6

RUNNA IDENTIFICATION FACTORS

Runna identification factors

A- Manufacturer’s plate

B- Serial number on the bodywork.

C- Tire pressure’s plate

The plate C on the pilar near to the door

hinges on the driver’s side indicates:

- The wheel and tire size

- The brand of tires approved by the

manufacturer.

- The tires pressure

D- VIN Plate

E- Place of the plate number

F- The plate of fuel type (To be installed

on inside of  the fuel cap cover)

A- Plate of vehicle manufacturer.

C- Tire pressure’s plate The plate of fuel type





Caution

The tires must be checked at least

once a month, when it is cold.

97

6

ENGINE TECHNICAL DATA

Gasoline

Engine (TU5)*
Engine capacity (cm3)
Diameter X piston displacement  (mm)
Max. power as  per EEC standard (KW)
Max. power engine rotating speed (Tr/min)
Max. torque per EEC standard (Nm)
Max. torque at engine rotating speed (tr/min)
Fuel
Catalyst

1.6 lit – 16 V

1587

82 x 78.5

(105 hp) 77

5800

142

4000

Without lead

Yes

Gearboxes

Manual
5 gears

Oil capacity (lit.)
Engine (with replaceable cartridge)
Gearbox – differential

 3.2

(2)

 - 3.4

(1)

2

*The car’s fuel consumption is based on 206 SD.

Fuel consumption depends on driving condition, weather condition, vehicle load and maintenance, side equipment and how to drive.

(1) discharge by gravity

(2) discharge by suction

98

6

WEIGHT OF THE VEHICLE

Engine



1.6 lit. 16 v

Gearbox

Manual 5 gears

Net weight on front axle (kg)
Net weight on rear axle (kg)
Vehicle net weight (kg)
Max. permitted load on front axle (kg)
Max. permitted load on rear axle (kg)
Max. vehicle weight with passengers and load (kg)
Number of the passengers

678
431

1109

855
780

1567

5

Weight(kg)

99

6

DIMENSION OF THE VEHICLE

102

7

INDEX

A

Access to the spare wheel and jack       81

Accessory system during emergency

braking                                               67

Adjusting front headlamp light height 65

Advice on child seat



39

Air  bag  performance  checking

            14

Air bags                                             40

Air bags warning light

                        56

Air condition

                                    20,48

Air filter and vehicle cab ventilation filter    76

Air ventilation vents diagram              45

Anti-dazzle headlamp-green               89

Anti-ignition (anti-theft)                     30

Anti-lock brake system (ABS)            67

Anti-lock braking system warning light (ABS)      55

Ash tray                                         51

Automatic  central  lock  of  doors

       24

Automatic starting of the flasher

  62

B

Bar-coded card                           13,29

Battery                                  76

Before driving

                     23

Brake fluid level

72

Brake pads

76

Braking system warning light          55

C

Central warning light (stop)

55

Changing wheel                           80

Checking fluid levels                      72

Checking oil level                            72

Child booster seat                           39

Child safety lock                               25

Child seat connections                        35

Child seat installation by seat belt     36,37

Closing engine lid                            70

Controls                                      54-62

Coolant level                              73

D

Digital display screen guide             54

Discharge/improper charge of the battery

warning light                                  56

Dome lamp                                        50

Door open warning light                   26

Doors                                       24

Driving                                        53

E

Electric brake  ABS distribution system     67

Engine auto-diagnostic warning light  56

Engine compartment                  71

Engine  compartment  fuse  box

        87

Engine Fuel feed stoppage         76

Engine lid                                   70

Engine strut                                   70

Engine temperature level indicator     56

Engine technical data

                     93

F

Fascia fuses                                   84

Fast reviewing                               4

Filling gasoline tank                          70

Flasher automatic switching on           62

Front air bags                              40

Front fog lamps

89

Front seat                                    32

Fuel indicator                           54

Fuses                                    84

G

Gasoline engine 1.6 lit.                       71

Glove box                                    50

H

Hand brake                               68

Hand brake warning light

55

Headlamp height adjustment           49

Heating and ventilation                      45

High engine temperature warning light     56

103

7

INDEX

Horn                                               49

Hydraulic steering fluid level           73

I

Immobilizer system light               56

Instrument panel                            54

Instrument panel audio warning        61

Instrument panel illumination adjusting   62

Iran Khodro recommendation for

child seat



38

K

Keys                                     12,27

Kilometer counter                      62

L

Left and right turning signals       63

Light lever                                     16

Light keys                                    63

Lighter                                          50

Locking and unlocking by central lock    27

Locking and unlocking of doors from inside  25

Locking and unlocking the luggage

compartment lid                              26

Low Fuel warning indicator        55

Low oil pressure indicator         55

M

Main  beam  and  anti-dazzle  light

     89

Manual demisting                          47

Manual gearbox                          76

O

Oil filter                                     76

Opening door from inside of the vehicle  70

Opening engine lid                            70

Opening vehicle wheel                  82

P

Parking vehicle                    12, 27, 81

Passenger air bag inactivation warning light 56

Pictorial list                                  5

Power  windows                        15,44

Protection of children                35

Protection of the vehicle body          75

R

Radio installation                       74

Rear alarm system



60

Recommendation for vehicle interior settings 21

Releasing engine lid lock                19

Remote control                          12

Removing and installing fuse      84

Replacing battery of remote control    27

Replacing fuse                             84

Replacing lamp                       88

Runna dimensions                      99

Runna identification factors               95

S

Safety Belt warning light

56

Safety issues in regard to the passenger

air bag                                        14

Seat belt                                     33

Selection of viscosity grade           72

Side power mirror                        43

Snow tire installation                         82

Some points about child seat             35

Starting gasoline engine                   14

Steering wheel height adjustment     18,42

Steering wheel lock                       14

Sun visor                                        50

T

Technical emergencies            79

Temporary deactivating of rear

manual windows                      44

Tire size                                           83

Tire wearing indicator                 83

Tires pressure                                83

Tires rotation in vehicle                 83

104

7

INDEX

Towing vehicle                            93

V

Vehicle doors                                 24

Vehicle maintenance            69,75-77

Vehicle parts                        10-11

W

Warning light



55

Warning chime                          63

Weight of the Runna



96

Windscreen washer level            73

Windscreen washing                  66

Wiper                                        66

Wiper lever                             16

Y

Your vehicle at a glance

              9-21
