EF494T OM

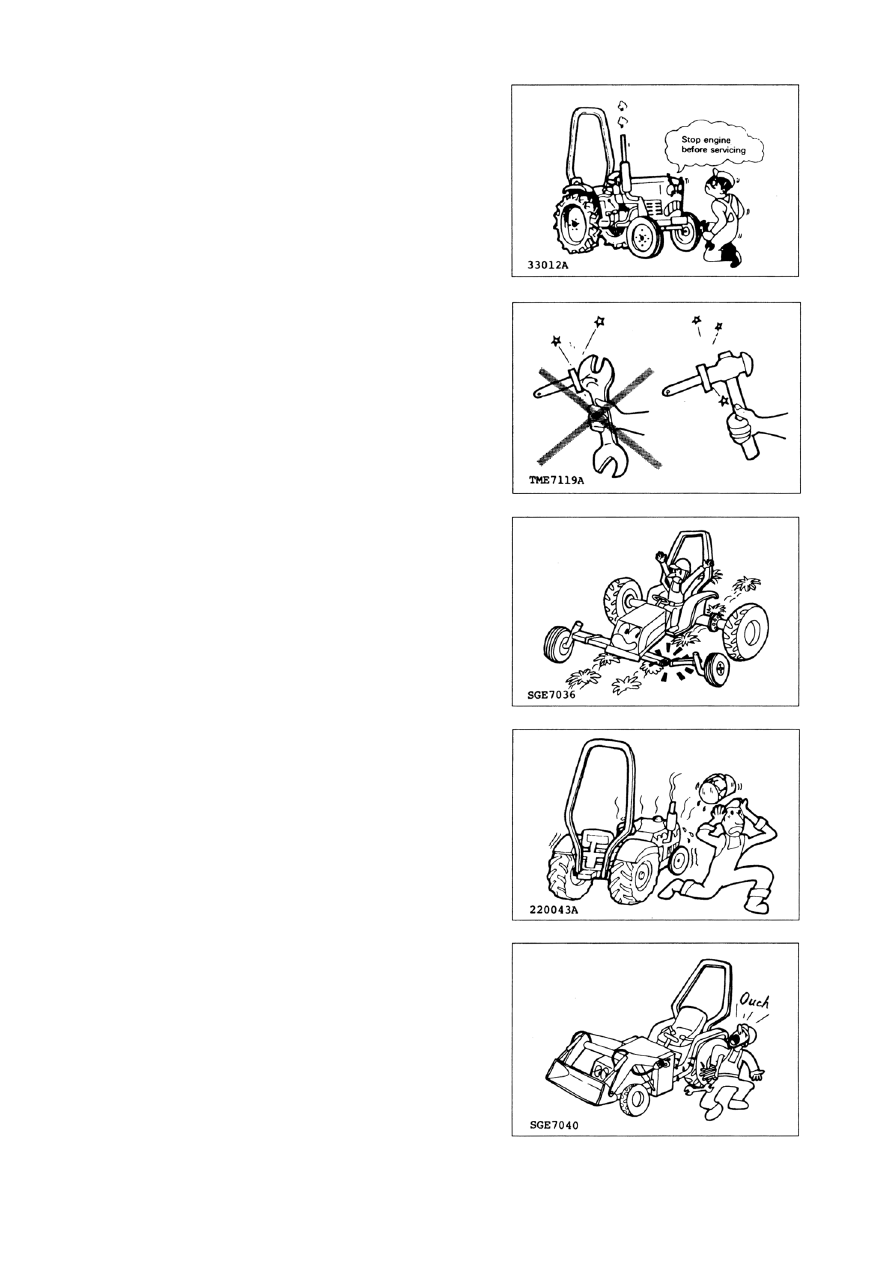

Do not service the tractor while it is in motion or while
the engine is running.
Before servicing the tractor, always set the parking
brake, block the wheels, lower the implement, release all
hydraulic pressure and place all the controls in neutral.




Use only the correct tools and equipment.



Unauthorized modification to the tractor may impair its
function, create an unsafe situation and reduce the
tractor’s useful working life.
Do not use substitute parts that may not meet the
strength and design requirements or may not fit the
Do not use repair parts not approved by YANMAR.



Remove the radiator cap only when the coolant
temperature is low. Wait at least one hour after
operation, to allow the coolant to cool down.
Cover the radiator cap with a cloth before opening it and
release the pressure gradually before completely
removing the cap.



Do not service the hydraulic system when the hydraulic
oil is hot.
Do not set the relief valve pressure higher than stated in
the tractor or implement specifications.
Do not close off the overflow or bypass lines.



EF494T OM

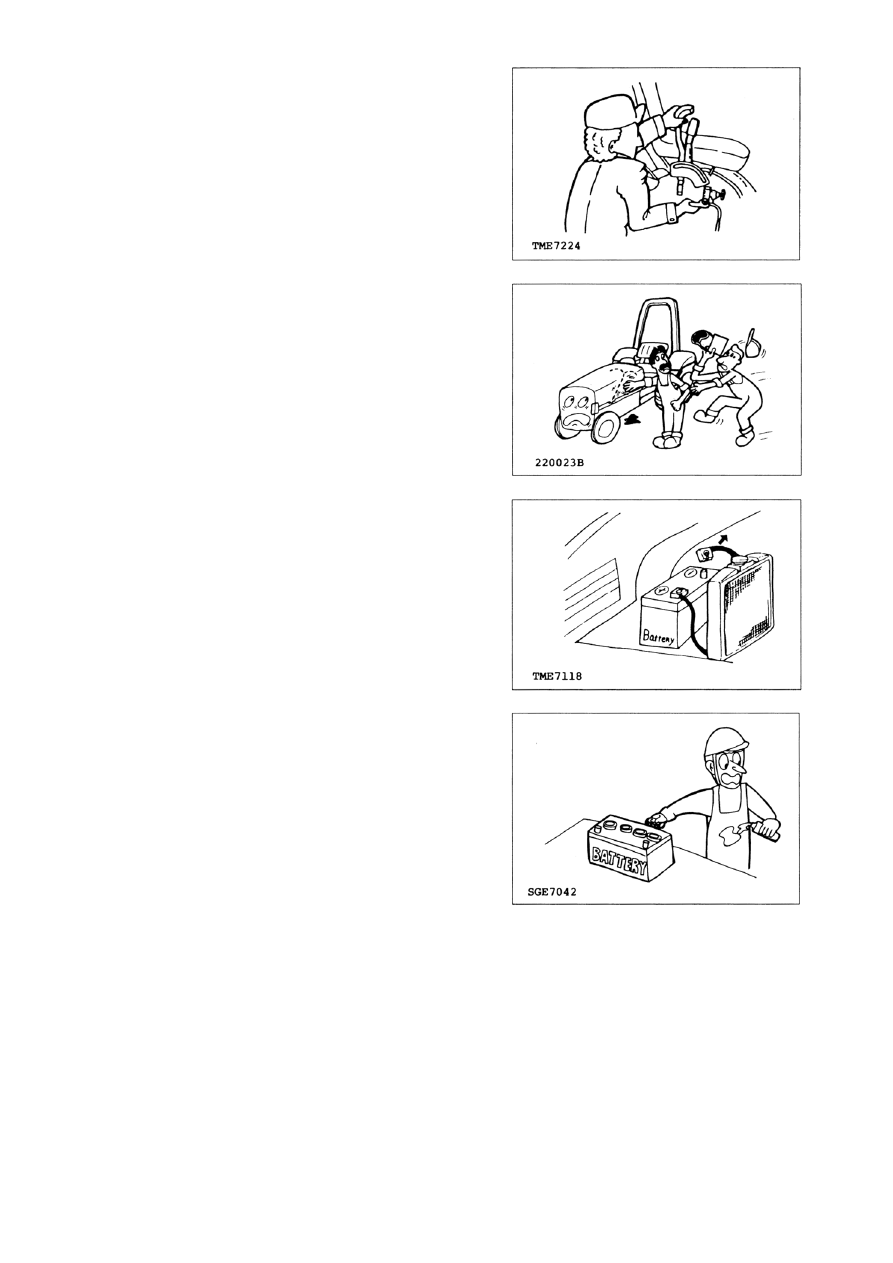

Hydraulic oil or diesel fuel escaping under pressure can
penetrate the skin and cause serious injury. Before
disconnecting any lines, be sure to relieve all pressure.
Before applying pressure, be sure all connections are
tight and all components are in good condition.



Fluid escaping under pressure from a very small hole
can be almost invisible. Wear safety goggles for eye
protection and use a piece of cardboard to check for
suspected leaks. Do not use your hands. If injured by
escaping fluid, see a doctor at once. Serious infections
and other problems can develop if proper medical
treatment is not administered immediately.



Disconnect the battery ground cable before working on
the electrical system or working in any area where you
might come into contact with electrical components.
Disconnect the ground cable first and reconnect it last.



The sulfuric acid in a battery is poisonous. It can destroy
clothing and burn the skin. Wear eye protection and
rubber gloves when filling the battery. If you spill acid on
yourself, flush your skin with water and apply baking
soda or lime to neutralize the acid. Then seek medical
attention right away. If acid is swallowed, get medical
attention immediately!





EF494T OM

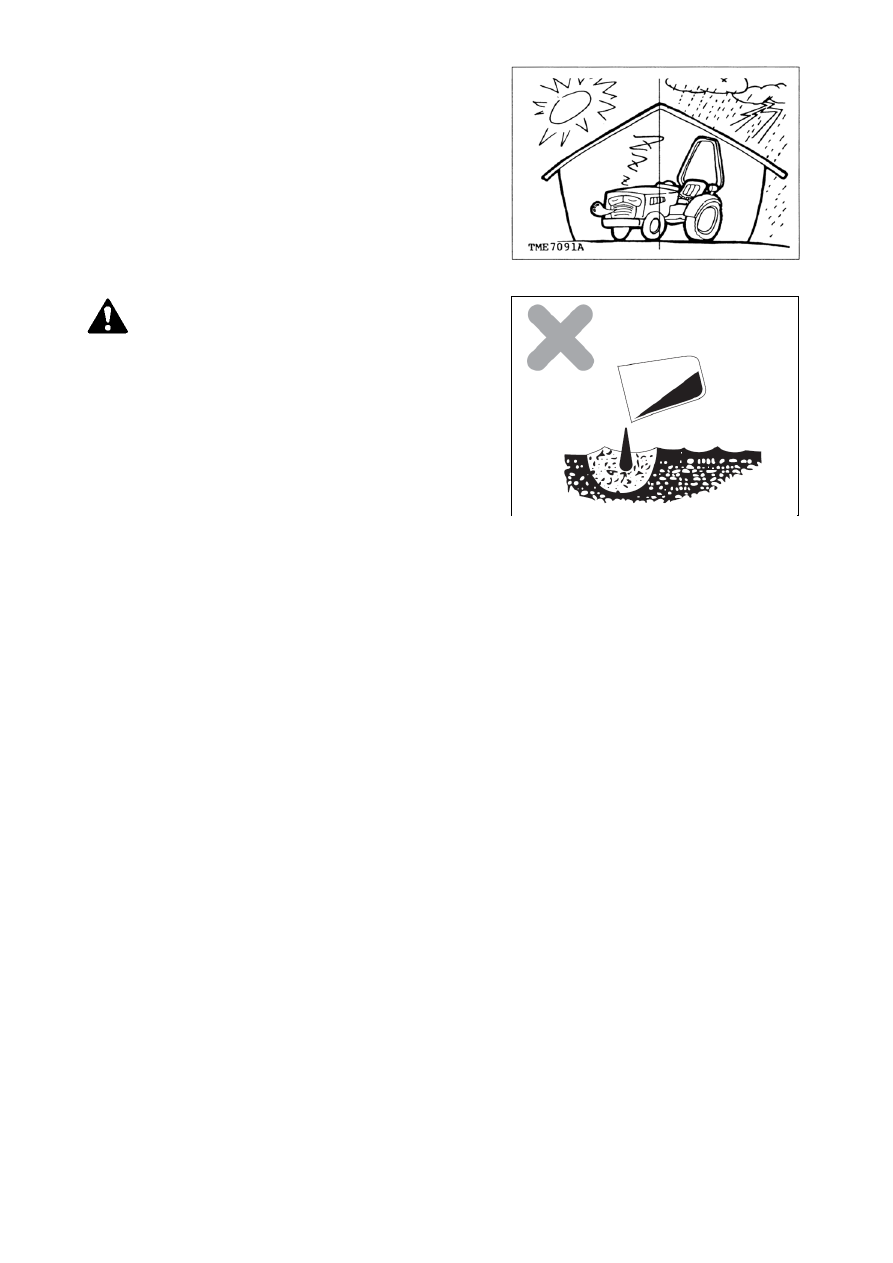

Whenever the tractor will not be used for a few months,
do the following:
(1) Drain the fuel tank.
(2) Lower any implement still attached.
(3) Set the parking brake and block the wheels.
(4) Remove the battery and store it in a cool, dry place,

out of the reach of children.








  Follow the guidelines of the governmental agency for

the proper disposal of hazardous materials such as
engine oil, diesel fuel, engine coolant and, machine
fluid, grease.

  NEVER dispose of hazardous materials

irresponsibly by dumping them into a sewer, on the
ground, or into groundwater or waterways.

  Failure to follow these procedures may seriously

harm the environment.

  Comply with legal regulations and guidelines for

disposal of: empty containers for fuel, cooling water
(coolant), oil, grease; fuel/oil filters; batteries;
machine itself; machine accessories; and packaging






EF494T OM



After sales service

If your tractor is not working normally, refer to the
troubleshooting section in this manual. You can also
consult with your service representative.

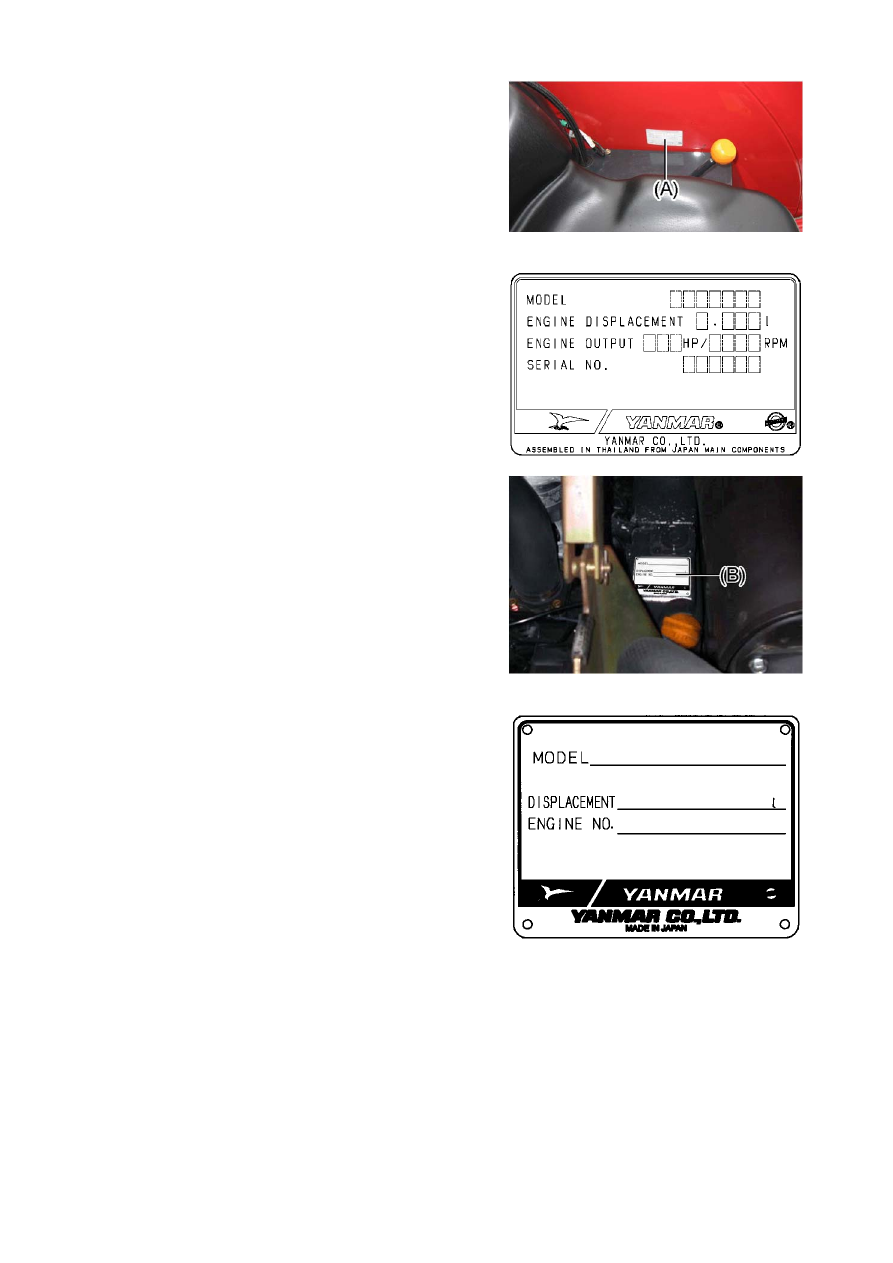

Information needed when asking for service:
  Model name and serial number (A) of your tractor.
  Engine type number (B)
  Operating conditions. What type of work was being

performed when the problem occurred?

  How long have you used your tractor? (total hours of


  Any other information about the problem that has


Availability of spare parts

Maintenance parts and spare parts will be available for
10 years after the production of this tractor series has
been discontinued. However, special parts will be
available subject to consultation. Yanmar may be able to
supply a particular part after the normal supply period.

(A) Tractor serial number
(B) Engine type number







This machine is designed to be operated with a various
implement for particular tasks and for pulling a trailer in
a variety of agricultural operations. Other use or
modification is prohibited.
Orientation and Position Marks
A right-hand and Left-hand side of the machine is
determined by facing in the direction of the machine
forward travel.
