Yanmar diesel tractor EF494T. OPERATOR'S MANUAL - part 3



EF494T OM

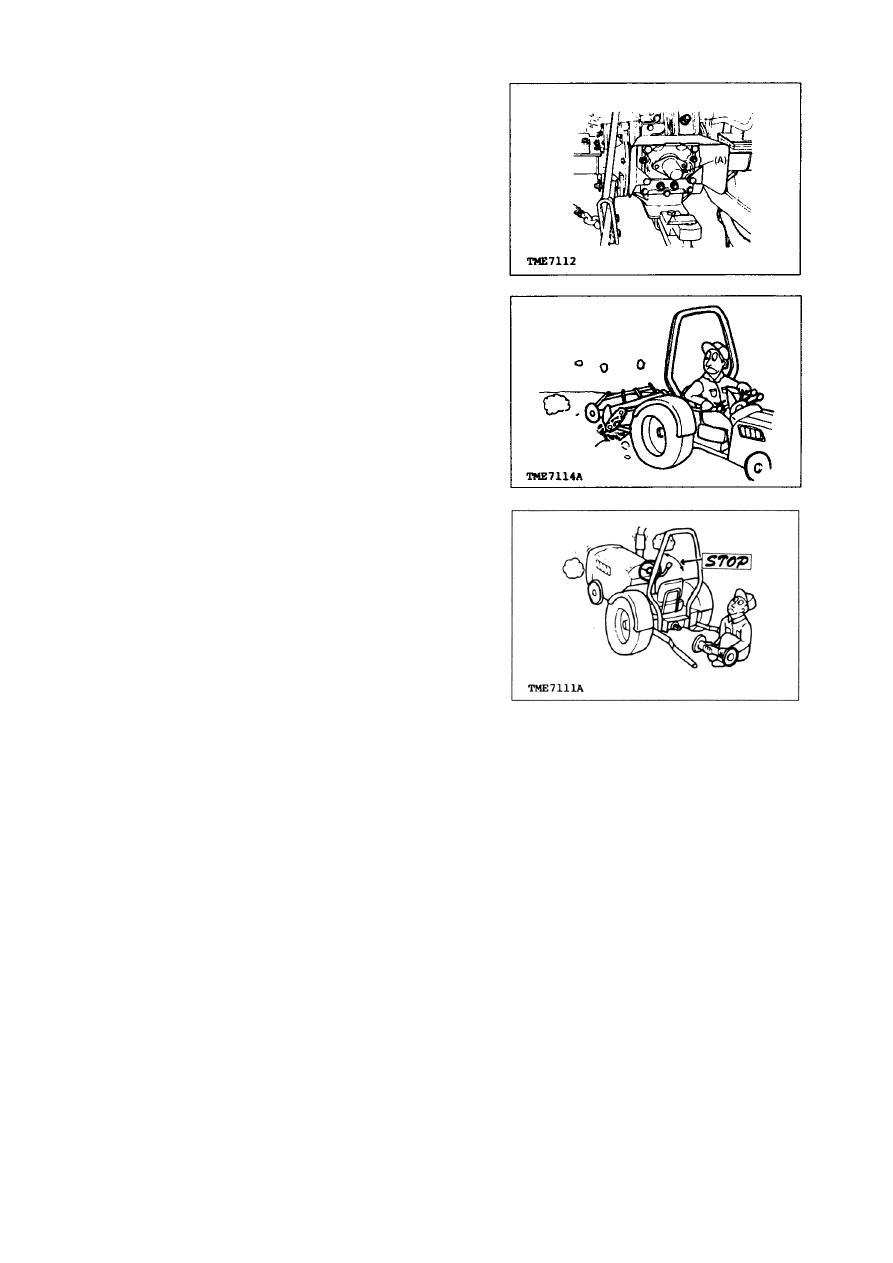

The PTO shaft safety guard (A) should be installed when
the PTO system is not in use.




Make sure that the tractor PTO speed matches the
implement’s required PTO speed.
Do not drive or operate the implement beyond the
tractor’s PTO speed.



Stop the engine and be sure the PTO has stopped
moving before:
(1) Connecting or disconnecting the PTO shaft.
(2) Making any adjustment to the PTO drive or 3-point


(3) Adjusting, cleaning or servicing PTO driven






EF494T OM

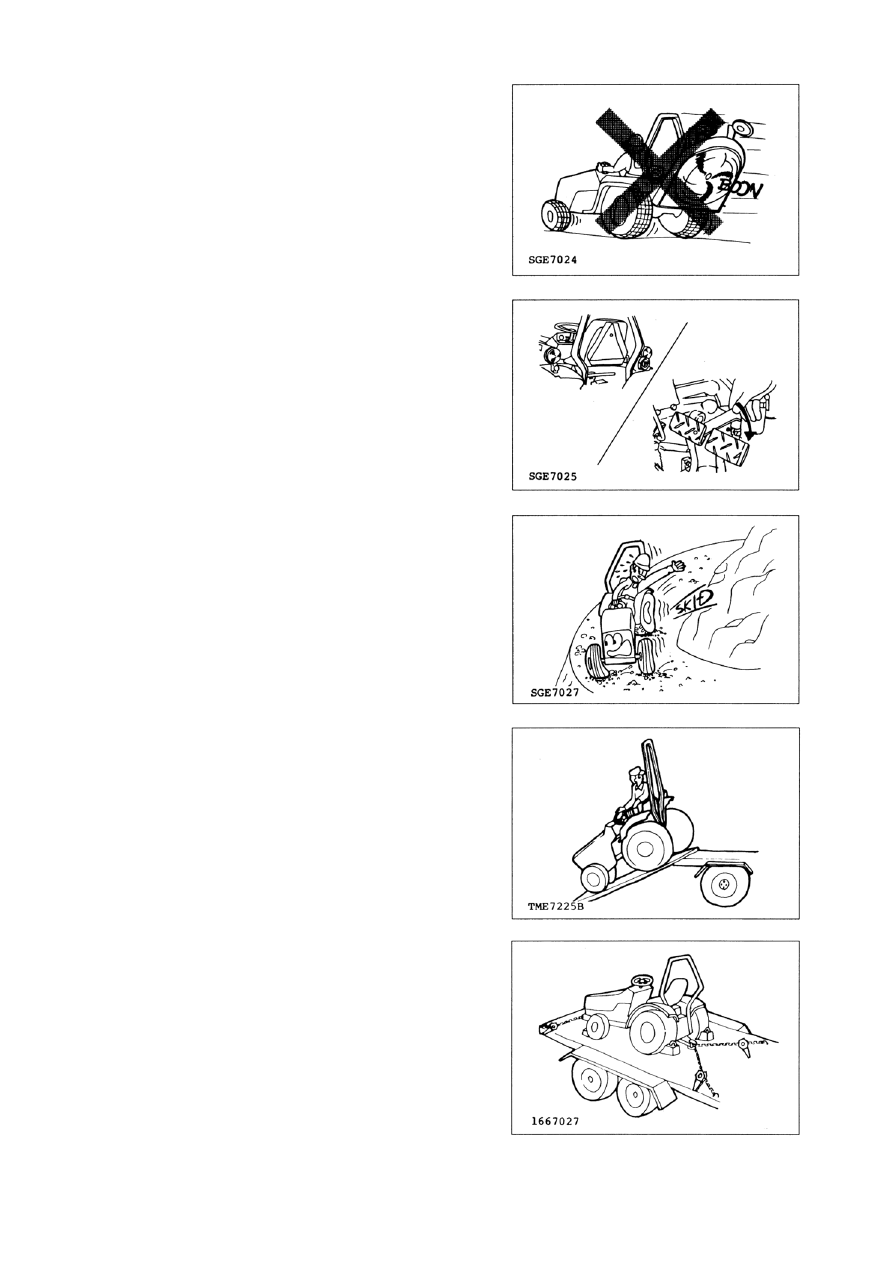

Raise all implements and place them in the locked-for-
transport position.
Do not drive the tractor on the road with implements in




Couple the brake pedals together for travel at road
speeds. (This only applies to models with two brake
Do not make sharp turns at road speeds.
Always dim your headlights when another vehicle is
coming toward you. Keep the lights adjusted so that they
will not blind the driver of another vehicle.



Before going down a steep hill, shift to the lowest speed
in order to control tractor with the least braking possible.
Do not coast downhill.
Do not stop or start suddenly when going uphill or



When loading (or unloading) the tractor onto a vehicle,
use care as follows:
(1) Use a strong loading ramp or loading dock.
(2) Use the lowest reverse speed and drive up the

loading ramp backward.

(3) Set the parking brake and place wheel blocks firmly

under the vehicle’s wheels.

(4) Do not try to drive onto a trailer from the bank of a




Secure the tractor and any other load with chains. Be
sure they are tight.
If chains are not available, use rope, wire, blocks, or a
winch cable. Check the load after traveling a few
kilometers, and every 100 km thereafter, to make sure
that the ties are not coming loose. Also, check after
rough bumps in the road.



EF494T OM

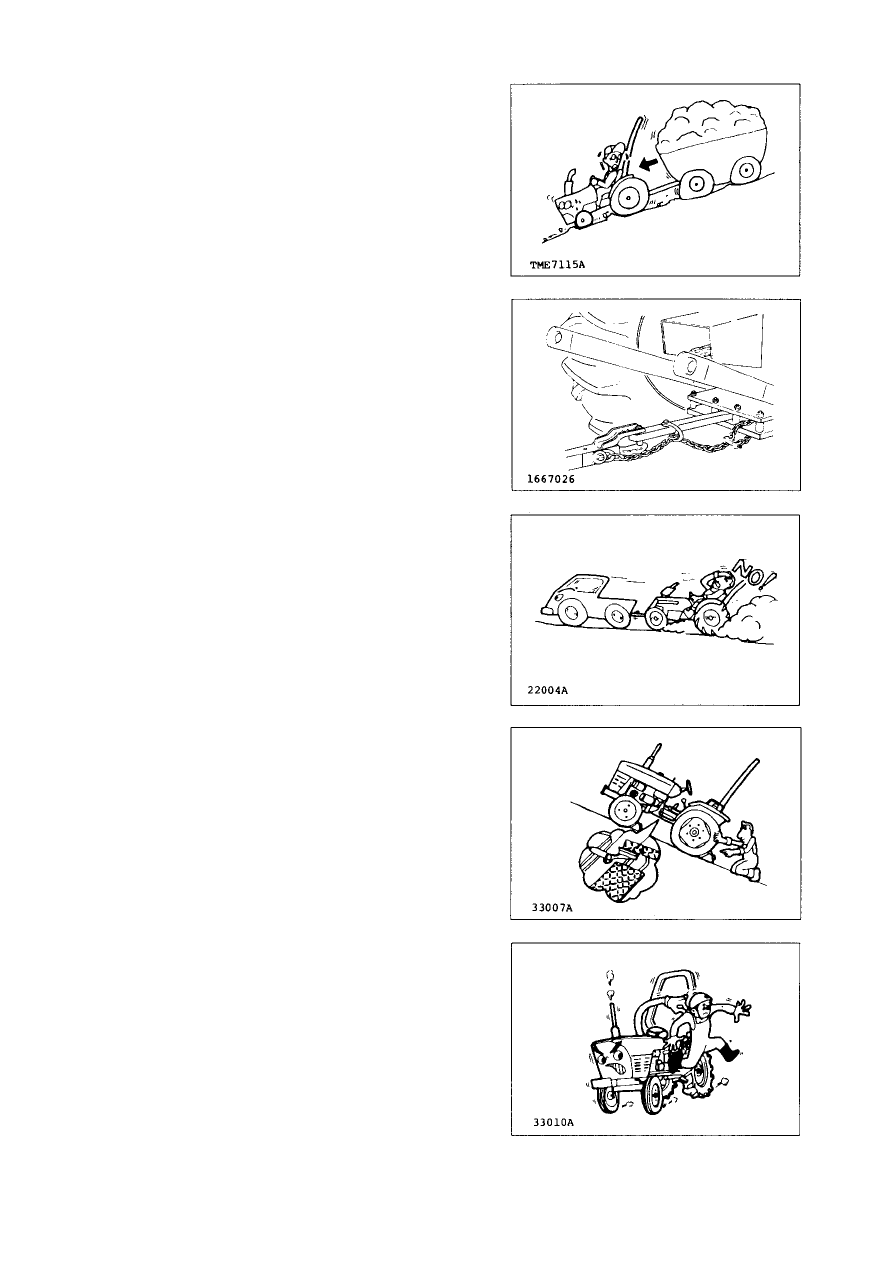

When towing a load  that weighs more than the tractor,
the trailer should have its own brakes. When towing,
drive slowly, avoid hills and apply the brakes gently.




A safety chain will help control an implement being
pulled if it accidentally separates from the drawbar while
traveling. Using appropriate adapter parts, attach the
chain to the tractor drawbar support or to some other
specified anchor location. Leave only enough slack in
the chain to permit turning.



Do not tow the tractor faster than the tractor’s maximum
travel speed in the highest gear, and never more than 25
km/h (16 mph).
Check local regulations concerning towing. Towing is
illegal in some countries.




Park tractor on a firm level surface.
When parking the tractor, couple the brake pedals
together and set the parking brake securely. When you
must park on a slope, position the tractor at a right angle
to the slope and set the parking brake securely. Then,
block both the front and rear wheels.



Take all possible precautions as follows when leaving
tractor unattended:
(1) Disengage the PTO and lower any implement to the


(2) Move all shift levers to neutral.
(3) Couple the brake pedals together and set the parking

brake lever.

(4) Run the engine for 2 to 3 minutes at one-third throttle

speed and no load in order to cool it.

(5) Stop the engine and remove the key.
(6) Cycle the hydraulic controls to eliminate any residual





EF494T OM

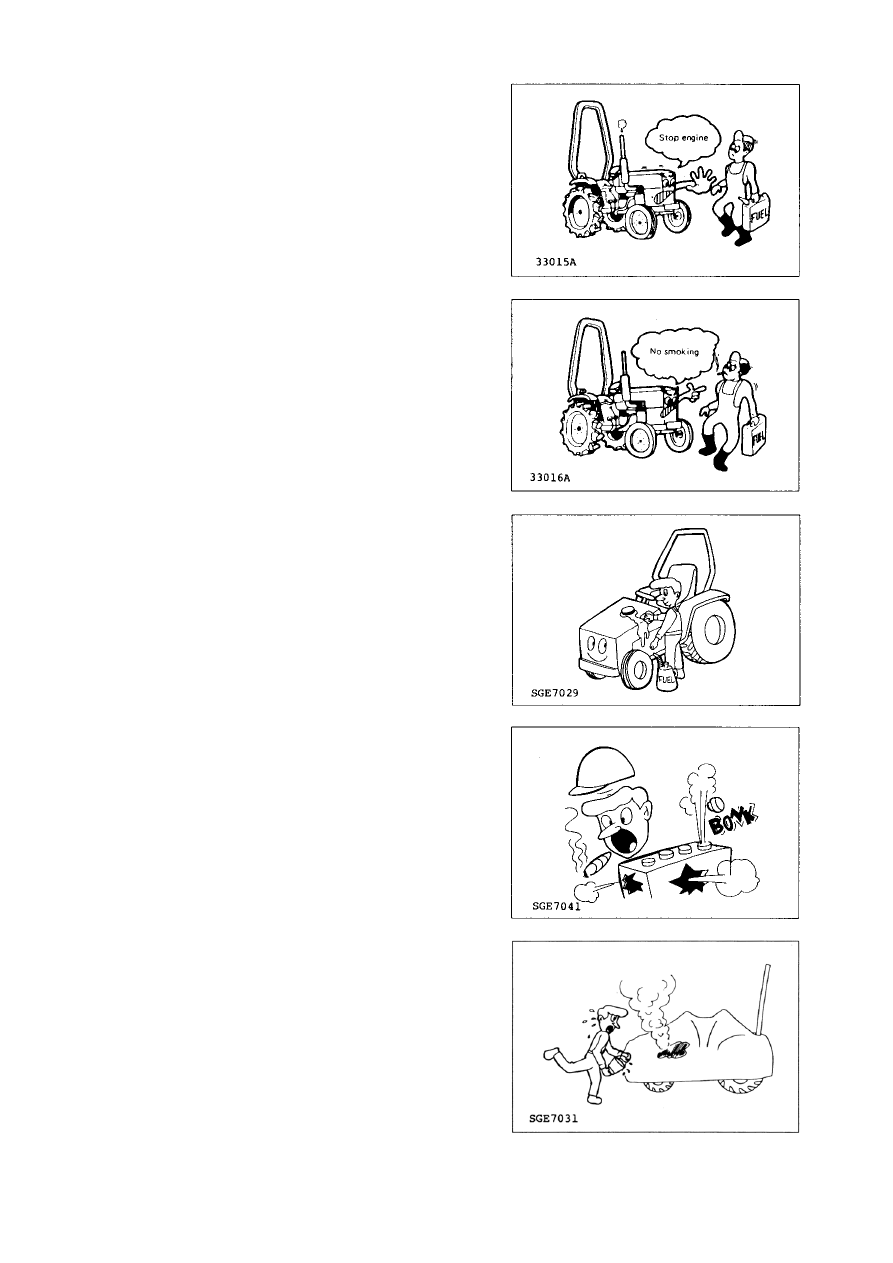

Refuel the tractor when the engine is cool and in a well-
ventilated area, preferably outside.
Never fill the fuel tank with the engine running.




Be sure to use the correct type and grade of fuel.
Keep all sparks, flames and smoking materials well
away while handling fuel.
Ground the fuel funnel or nozzle against the filler neck
on the tractor to prevent sparks.



Do not overfill the tank or spill the fuel. If fuel is spilled,
wipe it up immediately. Install the fuel tank cap securely
after refueling.



Be sure there is plenty of ventilation before charging the
battery. Gas produced while charging the battery is
Keep all sparks, flames, and smoking materials well
away from battery. Hydrogen gas at a concentration as
low as 7 per cent can explode in the presence of a spark
or open flame and spatter acid.
Use a flashlight to check the battery electrolyte level.
Never use an open flame or match to check.



Keep the engine clean and free of grass, leaves, or
excessive grease.
Let the engine cool down before storing the tractor in an
enclosure or covering it with a sheet.
