Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 213

62-

—— ----------------

T6-9003-101

cab, complete

1

As Req’d

—— ----------------

T6-9003-305

econo-cab (note 1)

1

“

—— ----------------

T6-9006-103

overhead guard

1

“

62-

—— ----------------

T6-9006-105

hood stop, overhead guard

1

“

62-

----- ----------------

T6-7010-333

Cab Wiring Harness

1

“

62-1

—— ----------------

CMA-202

roof panel

1

Note 2

62-2

—— ----------------

3/8-16NCX2-1/4"

hex head bolt

4

“

62-3

—— ----------------

3/8

flat washer

8

“

62-4

—— ----------------

3/8-16NC

locknut

4

“

62-5

—— ----------------

T6-9003-159

head liner

1

“

62-6

—— ----------------

CMA-509

liner, front header

1

“

62-7

—— ----------------

CMA-501

liner, rear header

1

“

62-

—— ----------------

CMA-213

Removeable inner panel, front, left

1

As Req’d

62-

—— ----------------

CMA-215

removeable inner panel, front, right

1

“

62-

—— ----------------

CMA-217

cowl, wiring harness, right front inner panel

1

“

62-

—— ----------------

CMA-219

removeable outer front panel

1

“

62-8

—— ----------------

T6-9003-111

glass, front windshield

1

Note 2

62-

—— ----------------

T6-9003-109

glass, rear windshield

1

Note 3

62-

----- ----------------

T6-9003-511

Rear Window, Sliding (UPS)

1

As Req’d

62-9

283 7500892

T6-9003-195

trim seal edging

Ref.

Note 2

62-10

16 2558

T6-9003-171

grommet, rubber

Ref.

“

62-11 —— ----------------

T6-9003-211

bushing, steel

Ref.

“

62-12 —— ----------------

1/4-20NCX1"

hex head bolt

Ref.

“

62-13 —— ----------------

1/4

flat washer

Ref.

“

62-14 —— ----------------

1/4-20NC

locknut

Ref.

“

62-15 —— ----------------

CMA-308

hinge, window, male   (note 4)

Ref.

“

62-16 —— ----------------

CMA-315

hinge, window, female (note 4)

Ref.

“

62-

—— ----------------

T6-9003-139

hinge, window (note 4)

Ref.

Note 2

62-17 —— ----------------

3/8-16NCX6-1/2"

hex head bolt

Ref.

“

62-18 —— ----------------

3/8-16NC

Locknut, nylon insert

Ref.

“

62-19 —— ----------------

CMA-319

bottom closure bracket (note 5)

Ref.

“

62-20 —— ----------------

CMA-316

break-over rod, short  (note 5)

Ref.

“

62-21 —— ----------------

CMA-313

break-over rod, long  (note 5)

Ref.

“

62-22 —— ----------------

CMA-314

tube, break-over handle (note 5)

Ref.

“

62-23 —— ----------------

CMA-318

bottom closure bracket (note 5)

Ref.

“

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

1. Econo-cab T6-9003-305 consists of complete cab T6-9003-101 less doors, rear window and heater/defroster.

2. Used with full cab T6-9003-101 and Econo-cab T6-9003-305.

3. Used with full cab T6-9003-101.

4. Window hinge T6-9003-139 includes male hinge CMA-308 (item 15) and female hinge CMA-315 (item 16).

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 214

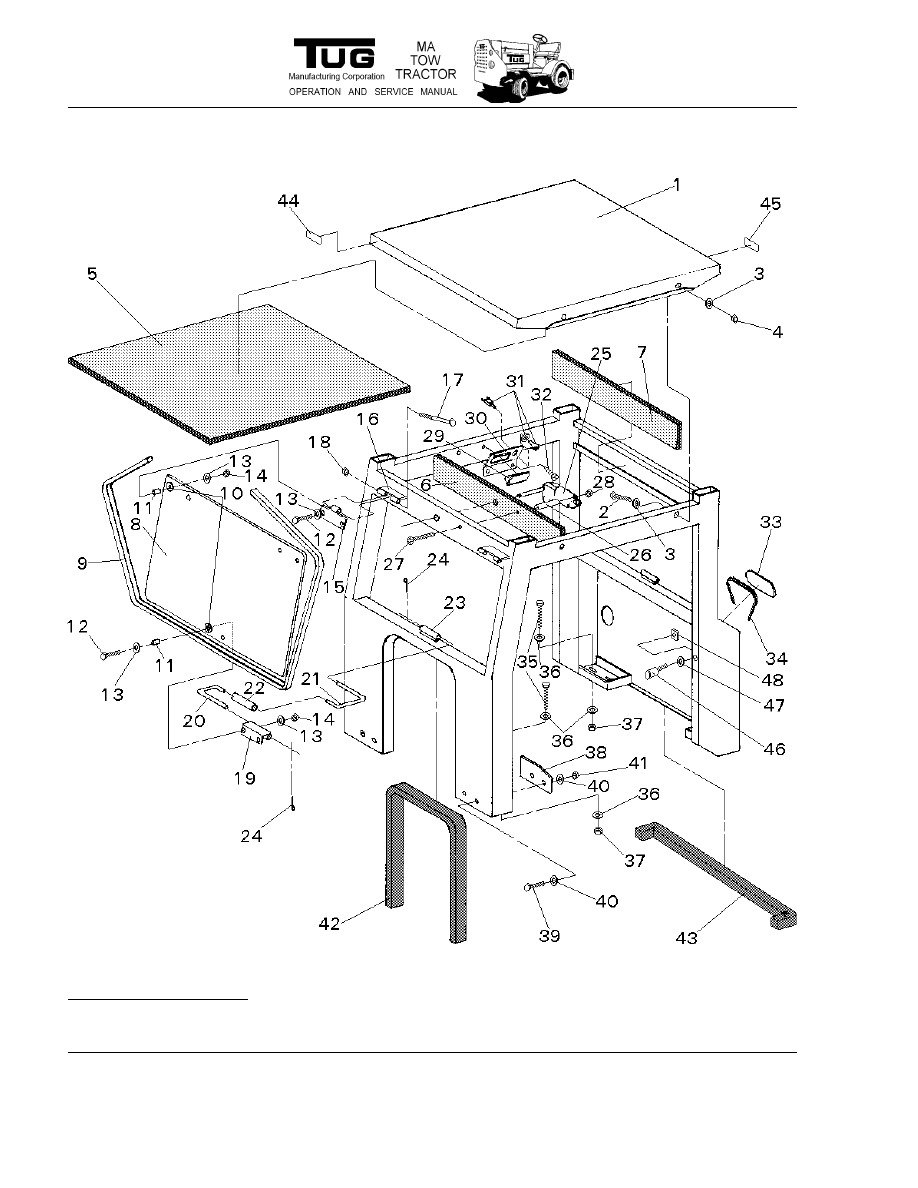

Figure 62: Cab Assembly

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 215

62-24 —— ----------------

1/8X1"

Cotter pin (note 5)

Ref.

“

62-

—— ----------------

T6-9003-141

break-over handle, window (note 5)

Ref.

“

62-

—— ----------------

T6-9003-149

cowl vent, with screen, front

2

Note 6

62-25

216 WWF12C1-720

T6-9003-121

motor, windshield wiper

1

Note 2

62-

216 LE721156-14

T6-9003-123

arm, windshield wiper

1

“

62-

216 BD721020-14

T6-9003-125

blade, windshield wiper

1

“

62-

158 35-300

T6-9003-209A

switch, windshield wiper

1

“

62-26 —— ----------------

5/16X2"

roll pin, spacer, windshield wiper motor

1

“

62-27 —— ----------------

#10-32NFX2-1/2"

screw

1

“

62-28 —— ----------------

#10-32NF

locknut

1

“

62-29

268 61031-3

T6-9003-197

lamp, dome light

1

“

62-

268 90401

T6-9003-197-1

lens, dome light

1

“

62-30 —— ----------------

CMA-301

bracket, dome light

1

“

62-31

158 35-300

T6-9003-209A

switch, dome light

1

“

62-32 —— ----------------

3/8X3/4"

sheet metal screw

2

Note 2

62-33

394 30-21-12

T6-9003-163

window, fuel gauge

1

“

62-34

283 75000533

T6-9003-165

gasket, fuel gauge window

Ref.

“

62-35 —— ----------------

1/2-13NCX3-1/2"

hex head bolt

6

Note 7

62-36 —— ----------------

1/2

flat washer (note 8)

12

“

62-37 —— ----------------

1/2-13NC

locknut

6

“

62-38 —— ----------------

CMA-302

closeout plate, lower front

2

Note 2

62-39 —— ----------------

3/8-16NCX3"

hex head bolt

4

“

62-40 —— ----------------

3/8

flat washer

8

“

62-41 —— ----------------

3/8-16NC

locknut

4

“

62-42 —— ----------------

MG-1-320

trim lok

Ref. As Req’d

862 4100-1/8C

T6-9003-351

hood seal, rubber bead

Ref.

“

62-43 —— ----------------

T6-9003-153

Rear seal, foam

Ref.

“

862 75001362

CMA-504

rear seal, rubber bead

Ref.

“

62-44 —— ----------------

T6-500-102

Reflector, Amber Rect.

4

Note 7

62-45 —— ----------------

T6-500-103

reflector, red, rear

8

“

62-

—— ----------------

T6-7010-333

wiring harness, cab, single connector

1

As Req’d

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

2. Used with full cab T6-9003-101 and Econo-cab T6-9003-305.

3. Used with full cab T6-9003-101.

4. Window hinge T6-9003-139 includes male hinge CMA-308 (item 15) and female hinge CMA-315 (item 16).

5. Window break-over handle T6-9003-141 includes items 19 through 24.

6. Used on units equipped with full cab T6-9003-101 or econo-cab T6-9003-305 through serial number 4141.

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 216

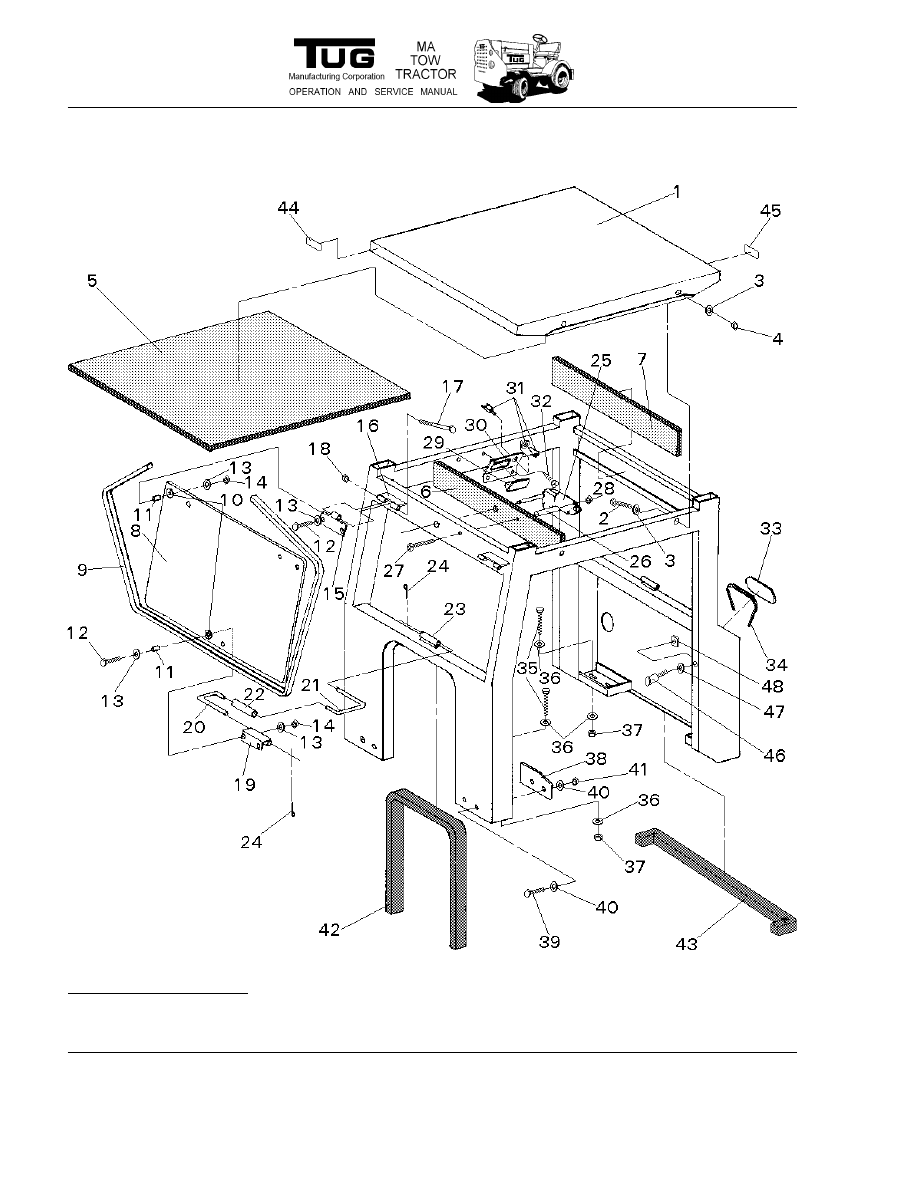

Figure 62: Cab Assembly
