Model MA TOW Tractor. Manual - part 80

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 205

59-1

46 6.75X16.5

T6-2003-101

wheel, Dish-type

2

As Req’d

46 FS27850

T6-2003-101

wheel, truck-type

2

“

108 W20801X1

T6-2003-103

wheel, heavy-duty, welded 16 X 5.5

2

“

59-2

94 411-541-8068

T6-2004-103

tire, 8.00 x 16.5

2

“

94 411-541-1068

T6-2004-153

tire, 10.00 x 16.5

2

“

94 740345399

MH-1-602

tire, goodyear wrangler aT, 8.00 X 16.5

2

“

94 411-620-8068

T6-1300-101

snow tire, 8.00 x 16.5

2

“

94 411-620-1068

T6-1300-105

snow tire, 10.00 x 16.5

2

“

727 7.5X16

MJ-ND-2103

tire, soft shoe, 7.50 x 16

2

“

59-3

----- ----------------

T6-3003-105

lug nut

10

001 & Up

59-

----- ----------------

T6-3061-165

Stud

8

“

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 206

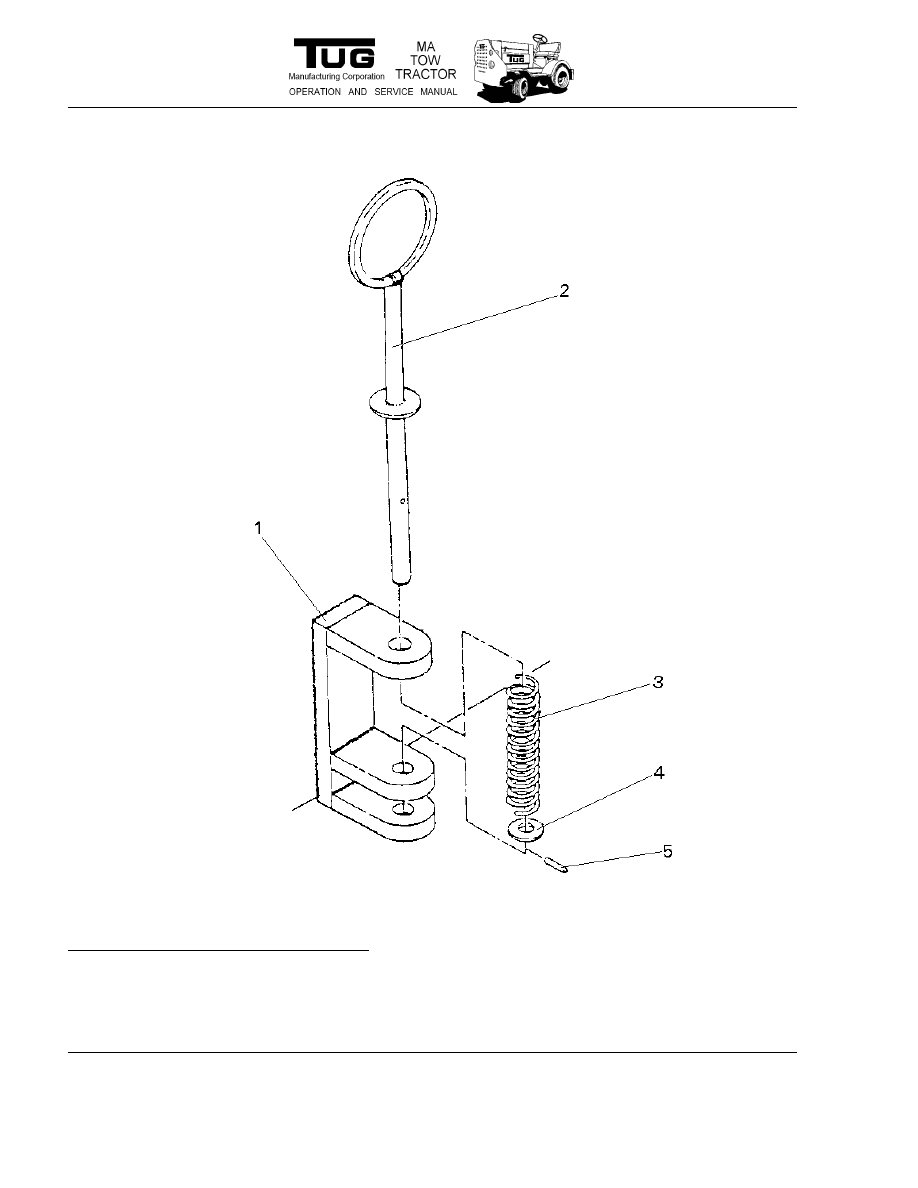

Figure 60: Hitch Assembly Front and Rear

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 207

60-

—— ----------------

T6-4014-103

e-hitch, standard, weld on

1

As Req’d

—— ----------------

T6-4014-103FE

e-hitch, weld on, no pull ring, federal express type 1

“

—— ----------------

T6-4044-103

E-hitch, bolt on, rectangular pull ring, Eastern air Lines type 1

“

—— ----------------

T6-4014-151

e-hitch, bolt on, 10-1/2" bracket, tWA type

1

“

—— ----------------

T6-4044-200

e-hitch, bolt on, 11-3/4" bracket, uPS domestic type

1

“

—— ----------------

T6-4044-201

e-hitch, bolt on, dual throat, uPS germany type

1

“

392 HA-ECT-30

T6-7200-030

e-hitch, bolt on, bentz mobile type

1

“

60-1

—— ----------------

T6-4014-125

bracket, weld on, 10-1/2"

1

Notes 1,2

—— ----------------

T6-4044-105

bracket, bolt on, 8-3/8"

1

Note 3

—— ----------------

T6-4014-151-11

bracket, bolt on, 10-1/2"

1

Note 4

—— ----------------

T6-4044-200-7

bracket, bolt on, 11-3/4"

1

Note 5

—— ----------------

T6-4044-201-10

bracket, bolt on, 18-1/4"

1

Note 6

60-2

—— ----------------

T6-4014-105

hitch pin, 6" i.d. pull ring, 18" long

1

Note 1

—— ----------------

T6-4014-105FE

hitch pin, no pull ring

1

Note 2

—— ----------------

T6-4044-107

hitch pin, rectangular pull ring, 8-7/8" long

1

Note 3

—— ----------------

T6-4014-151-10

hitch pin, 5-1/2" i.d. pull ring, 18" long

1

Note 4

—— ----------------

T6-4044-200-3

hitch pin, 6" i.d. pull ring, 18" long

1

Note 5

—— ----------------

T6-4044-201-3

hitch pin, 6" i.d. pull ring, 25-3/8" long

1

Note 6

60-

—— ----------------

T6-4014-127

Fed Ex Cable

1

As Req’d

60-

—— ----------------

T6-4044-218

Tug  E-Hitch -International

1

“

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Note: quantities given are for one hitch assembly.

1. Used with standard Tug E-hitch T6-4014-103.

2. Used with Federal Express type E-hitch T6-4014-103FE.

3. Used with Eastern Air Lines type E-hitch T6-4044-103.

4. Used with TWA type E-hitch T6-4044-151.

5. Used with UPS domestic type E-hitch T6-4044-200.

6. Used with UPS Germany type E-hitch T6-4044-201.

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 208

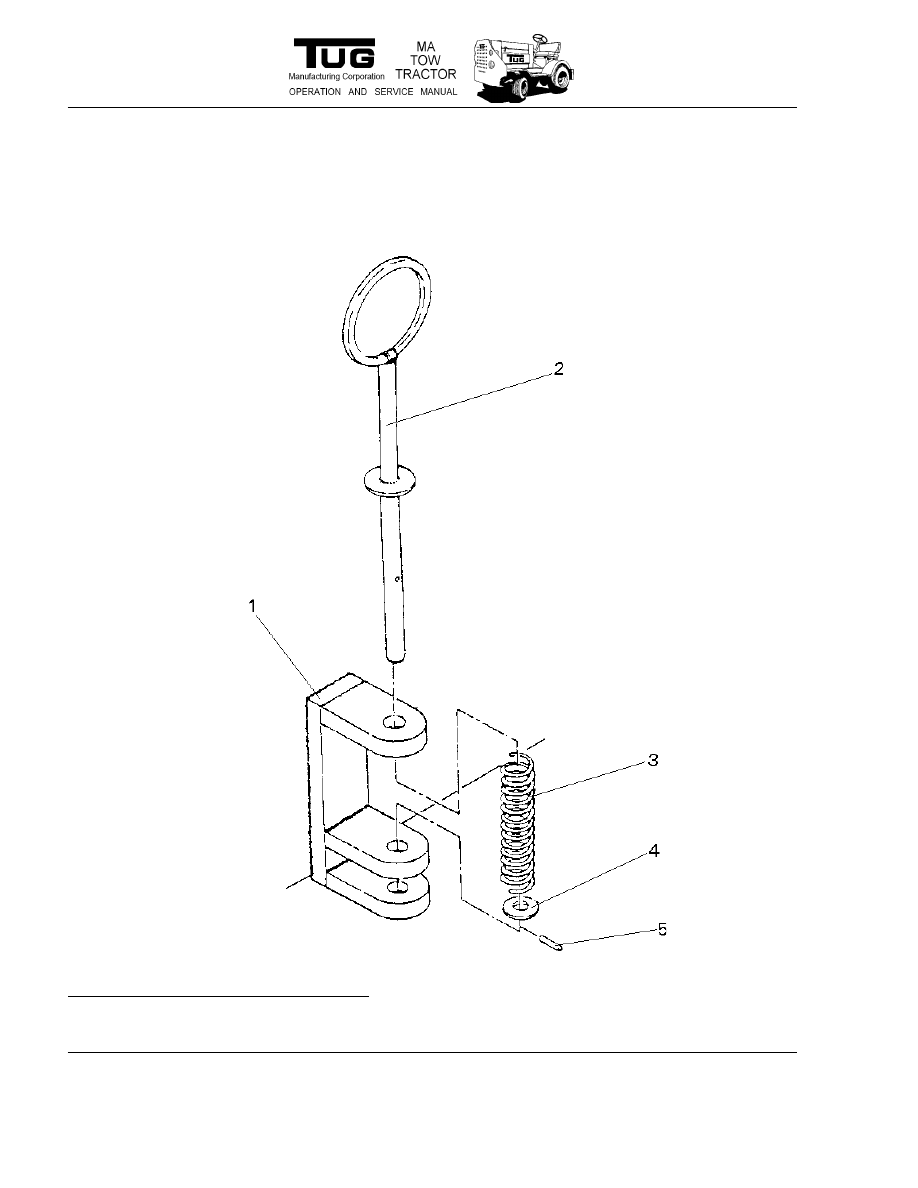

Figure 60: Hitch Assembly Front and Rear
