Model MA TOW Tractor. Manual - part 79

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 201

57-

—— ----------------

T6-2006-101

drive shaft assembly

1

Note 1

—— ----------------

T6-7200-090

drive shaft assembly   (Note 3)

1

Note 2

57-1

14 2401041

T6-2006-113

slip stub (Note 3)

1

“

57-2

14 33788KX

T6-2006-115

slip yoke

1

“

57-3

127 20026

T6-2002-107

universal joint kit, rear (note 4)

1

001 & Up

57-4

127 20049

T6-2006-107

universal joint kit, front (note 4)

1

362 & Up

57-5

256 C6TZ-4A254B

T6-2006-105

saddle, drive shaft

2

“

57-6

256 382884S

T6-2006-103

bolt, drive shaft saddle

4

“

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

1. Used on all units from serial number 362 except units equipped with Hercules diesel engines.

2. Used on units equipped with Hercules diesel engines.

3. Slip stub T6-2006-113 (item 1) is not used with drive shaft assembly T6-7022-090.

4. Universal joint kits T6-2002-107 (item 3) and T6-2006-107 (item 4) include spider, seals, snap rings,

bearings and grease fitting.

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 202

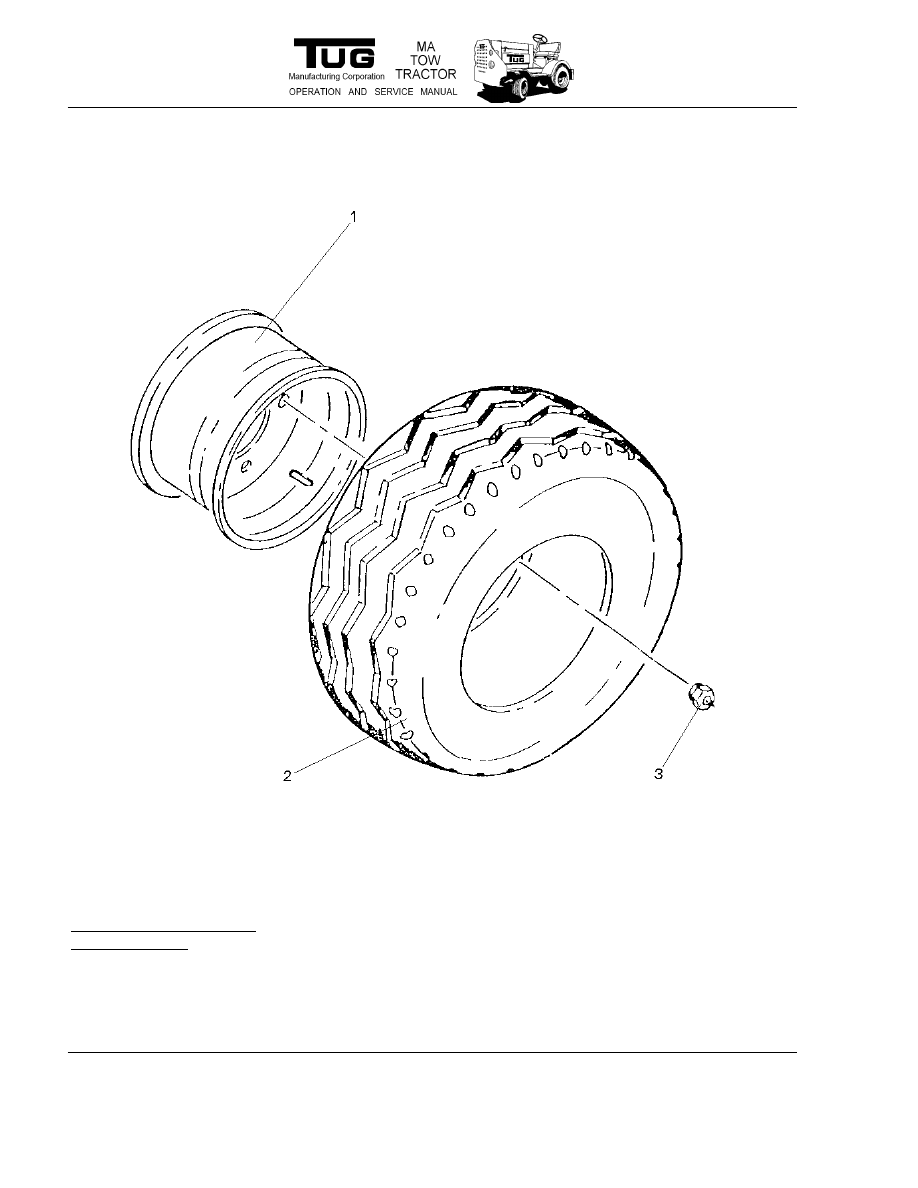

Figure 58: Wheel and Tire
Assembly, Front

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 203

58-

60 O701828201

T6-3006-101

wheel and tire assembly (note 1)

2

As Req’d

58-1

—— ----------------

T6-3003-103

wheel, 10-inch, 1-piece (note 1)

2

“

417 W20380-5

T6-1300-121

wheel, 9x4, lock ring

2

“

417 MS-24325-1

T6-1300-129

wheel, 9x4, 2-piece

2

“

417 MS-24326-1

T6-1300-125

wheel, 10x5.5, 2-piece

2

“

58-2

60 1139200

T6-3004-103

tire, 20.5x8x10 (note 1)

2

“

94 202-090-870-6 M3-1-2001

tire, goodyear highlander, 6.90x9

2

“

94 26019754360450

23-101-103

tire, goodyear highlander, 6.50x10

2

“

94 DP2B3/YD1DL 44-100-104

tire, industrial/mining, 6.90x9

2

“

94 DP2C3/YD1DD MD-D23-107

tire, industrial/mining, 6.50x10

2

“

727 6.90X9X4

MG-ND-723

tire, soft shoe, 6.90x9x4

2

“

727 6.50X10X5

MG-ND-724

tire, soft shoe, 6.50x10x5

2

“

58-3

—— ----------------

T6-3003-105

lug nut

10

001 & Up

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

1. Wheel and tire assembly T6-3006-101 includes 10-inch, 1-piece wheel T6-3003-103 and 20.5x8x10-inch

tire T6-3004-103.

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 204

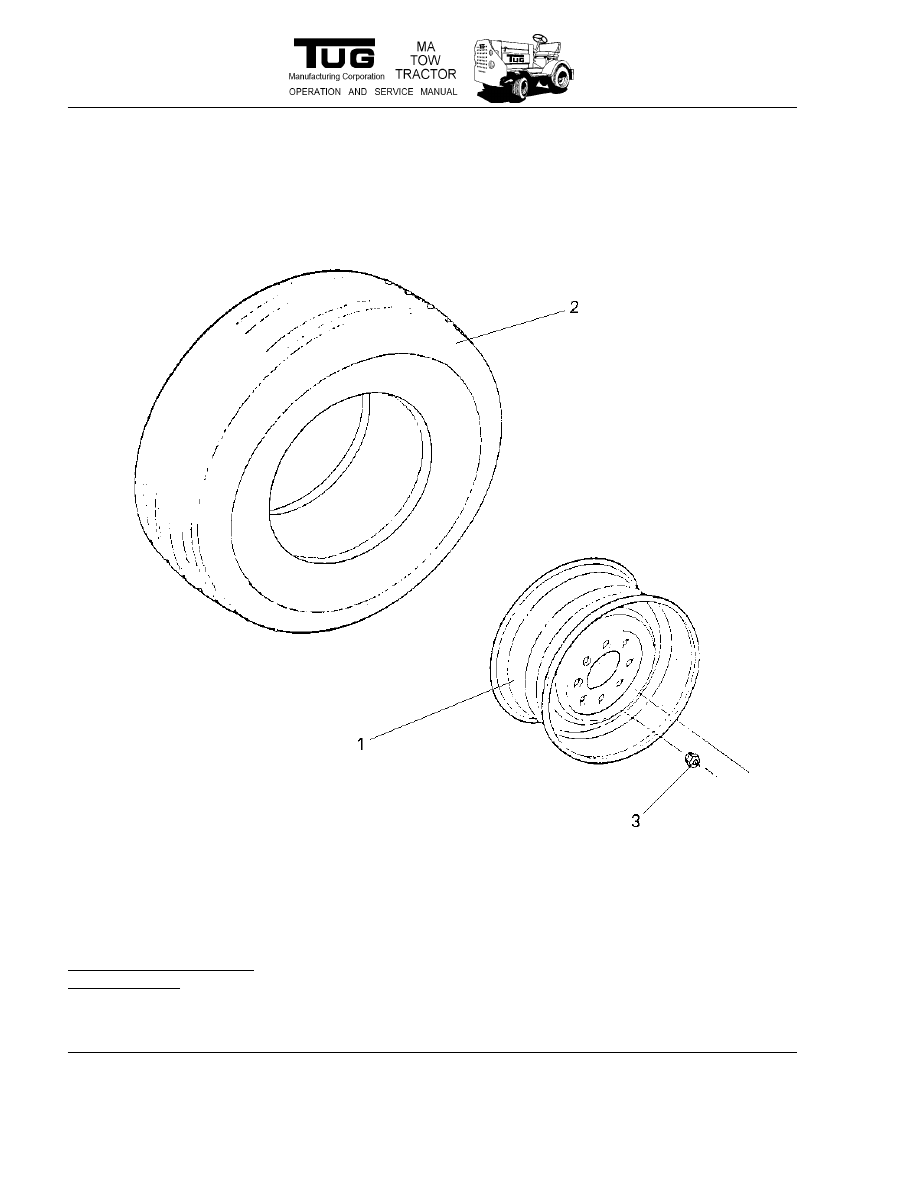

Figure 59: Wheel and Tire
Assembly, Rear
