Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 193

53-19

256 OIT-31225-S

T6-8002-123

adjusting bolt

1

“

53-20

256 OIT-33795-S(M-49) T6-8002-125

nut, adjusting bolt

2

“

53-21

256 OIT-34805-S(X-62) T6-8002-127

lock washer, adjusting bolt

1

“

53-22

256 OIT-2634

T6-8002-129

spring, brake release

2

“

53-23 —— ----------------

3/8-16NCX1"

hex head bolt

2

“

53-24 —— ----------------

3/8

lock washer

2

“

53-25

256 OIT-2837

T6-8002-109

bolt, stabilizer strap

1

“

53-26

256 OIT-3407-S

T6-8002-111

nut, stabilizer strap

1

“

53-27

256 OIT-72035-S

T6-8002-113

lock washer, stabilizer

1

“

53-28 —— ----------------

T6-8002-115

cotter pin

1

“

53-29

256 OIT-44730-S(X-26) T6-8002-133

flat washer

1

“

53-30

256 OIT-34808-S(X-67) T6-8002-137

lock washer

1

“

53-31

256 OIT-34670-S(X54) T6-8002-135

nut

2

001-361

53-32

256 B7T-2648B

T6-8002-139

band, park brake, fMX transmission

1

“

53-33

256 OIT-2614

T6-8002-103

drum, park brake, fMX trans. (discontinued)

1

“

53-34

256 OIT-2616

T6-8002-141

bolt, band retainer

1

“

53-35

256 OIT-2640

T6-8002-143

spring, band retainer

1

“

53-36

256 OIT-7089

T6-8002-145

flange, transmission output, fMX transmission

1

“

53-37

256 371887-S

T6-8002-147

nut, transmission output flange, fMX transmission 1

“

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 194

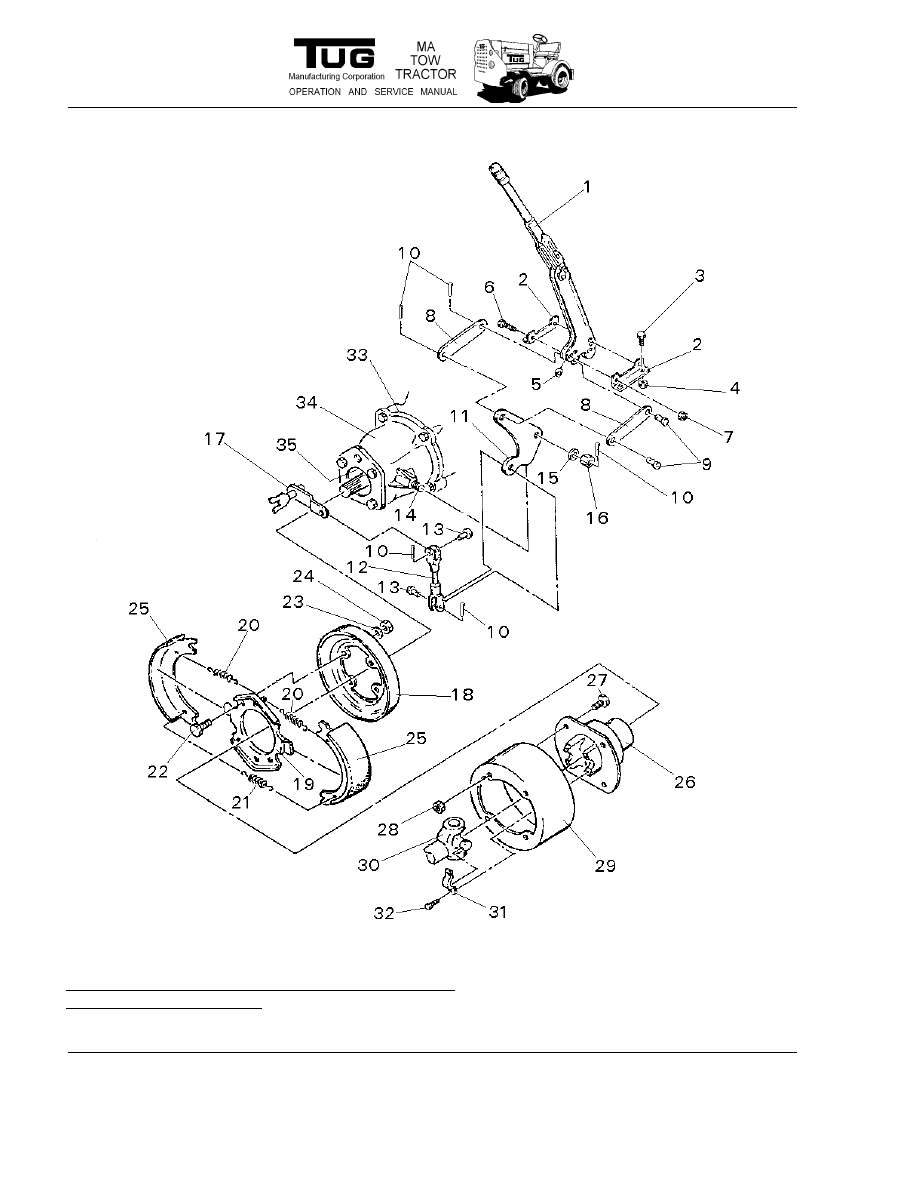

Figure 54: Park Brake Assembly, Floorboard Mounted,
Serial Numbers 362 and Up

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 195

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

54-1

152 O218-2900

T6-8005-101

park brake lever

1

001 & Up

54-2

—— ----------------

T6-8005-105

mounting bracket, park brake

2

Note 1

54-3

—— ----------------

1/4-20NCX1-1/4"

hex head bolt

4

“

54-4

—— ----------------

1/4-20NC

locknut

4

“

54-5

—— ----------------

T6-8005-103

spacer, park brake lever

1

001 & Up

54-6

—— ----------------

3/8-16NCX1-1/2

hex head bolt

2

Note 1

54-7

—— ----------------

3/8-16NC

locknut

2

“

54-8

—— ----------------

T6-8005-111

strap, park brake, gasoline engine

2

362 & Up

—— ----------------

T6-8205-103

strap, park brake, perkins and cummins/onan diesel

2

362-2236

—— ----------------

T6-7200-065

strap, park brake, Hercules diesel engine

2

As Req’d

54-9

79 87443

T6-500-123

clevis pin

2

362 & Up

54-10 —— ----------------

1/8X1-1/4"

cotter pin

5

“

54-11

256 D3TZ-2A663D

T6-8005-113

bell crank

1

Note 1

54-12

404 D3TZ-2857A

MD-CB21-113

clevis

1

362 & Up

54-13

79 87442

MD-CB21-115

clevis pin

2

“

54-14

256 385554S2

T6-8005-115

stud

1

“

54-15

256 44880S2

T6-8005-117

washer

1

“

54-16

256 386034S100

T6-8005-119

nut

1

“

54-17

256 B9TZ-2A710D

T6-8005-125

cam shaft

1

“

54-18

256 D6TZ-2A703A

T6-8005-153

shield, brake drum

1

“

54-19

256 B9TZ-2A636A

T6-8005-135

plate

1

“

54-20

256 B9T-2634B

T6-8005-147

spring

2

“

54-21

256 B9T-2749A

T6-8005-149

spring

1

“

54-22

256 58675-S2

T6-8005-131

hex head bolt

4

“

54-23

256 34794-S2

T6-8005-137

lock washer

4

“

54-24

256 380952-S2

T6-8005-133

nut

4

“

54-25

22 B4088

T6-8005-143

brake lining assembly

2

“

54-26

256 D3TZ-7089B

T6-8005-139

flange

1

“

54-27

256 385524-S2

----------------

stud

4

“

54-28 —— ----------------

1/2-13NC

locknut

4

“

54-29

256 D3TZ-2614A

T6-8005-141

drum, 9"x3"

1

362 & Up

54-30 —— ----------------

T6-2006-101

drive shaft assembly

1

“

54-31

256 C6TZ-4A254B

T6-2006-105

saddle, drive shaft

2

“

54-32

256 382884S

T6-2006-103

bolt, drive shaft saddle

4

“

54-33 —— C6A2-7086-A

----------------

Gasket

1

“

54-34 —— Dotz-7a0398

----------------

Tail Shaft, C6

1

“

54-35 —— 371887-52

T6-8002-147

1” Locknut

1

“

54-

—— ----------------

T6-8005-151

Park Brake Kit

1

As Req’d

1. Used on all tractors bearing serial numbers 362 through 2236 and all tractors equipped with gasoline

engines from serial number 2237.

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 196

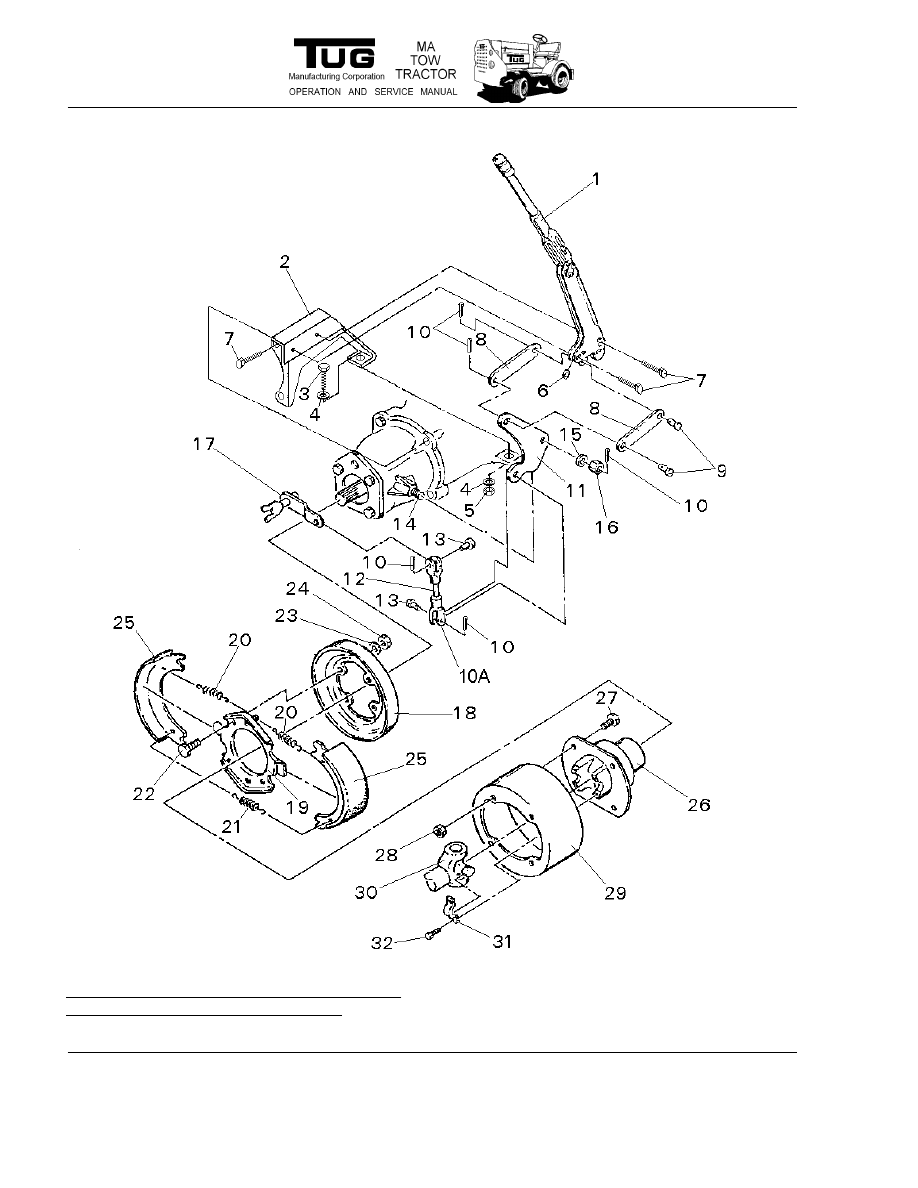

Figure 55: Park Brake Assembly, Transmission
Mounted, Serial Numbers 2237 and Up
