Model MA TOW Tractor. Manual - part 54

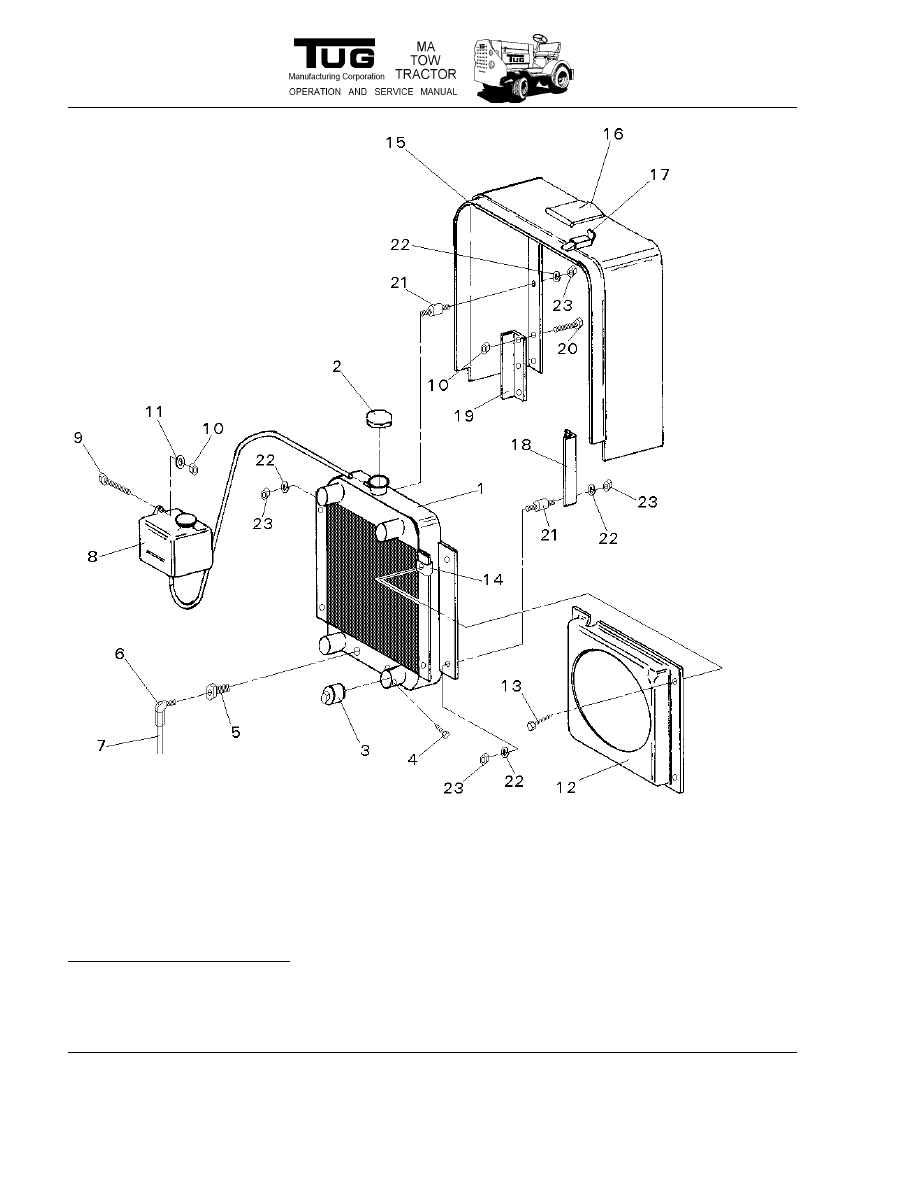

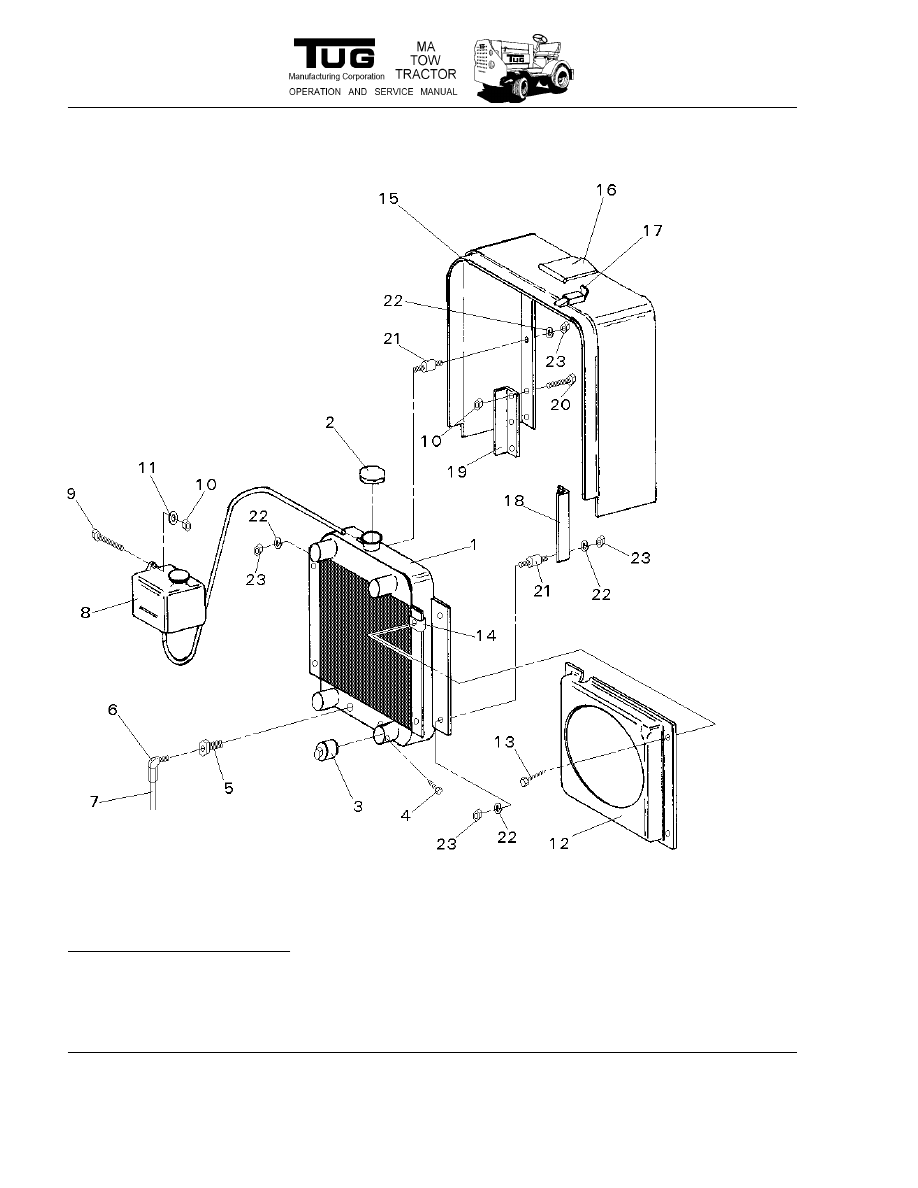

Chapter 4: Illustrated Parts List
Jan. 1997
Section 4-2
p. 101
29-1
----- ----------------
T6-4024-101
radiator, gasoline engine
1
001-240
----- ----------------
T6-4024-601
radiator, gasoline engine
1
241-296
----- ----------------
T6-4055-203
radiator
1
Note 1
----- ----------------
T6-4055-205
radiator with fan shroud (fex)
1
Note 2
29-2
324 agx-2641-01
md-hO4-107
radiator cap
1
001 & Up
29-3
127 620526
T6-4055-105
plug, radiator inlet/outlet
1
Note 4
29-4
----- ----------------
1/4x1/2"
sheet metal screw
4
"
29-5
92 c3109x4x2
T6-6011-103
bushing, coolant fitting
2
001 & Up
29-6
246 7405x5
T6-6006-107a
elbow, 90° with nut
2
"
29-7
----- ----------------
5/16odx.035
transmission cooling line
Ref.
"
29-8
----- ----------------
T6-9011-330
overflow tank with tubing
1
Note 5
29-
----- ----------------
T6-4055-109
Radiator Overflow Bottle W/Bracket
1
As Req’d
29-
----- ----------------
T6-9011-333
Overflow Tank Support
1
“
29-9
----- ----------------
1/4-20ncx1-1/4"
hex head bolt
1
Note 5
29-10
----- ----------------
1/4-20nc
locknut
Ref.
"
29-11
----- ----------------
1/4
flat washer
1
"
29-12
----- ----------------
T6-4055-207
fan shroud, gasoline engine
1
Note 3
----- ----------------
T6-4001-153ns
fan shroud, gasoline engine
1
Note 4
----- ----------------
T6-3200-115
Fan shroud, cummins/onan diesel engine
1
As Req'd
----- ----------------
T6-4203-209
fan shroud, perkins diesel engine, frame-mounted radiator
1
"
----- ----------------
T6-7200-105
Fan shroud, Hercules diesel engine
1
"
29-13
----- ----------------
1/4x1"
sheet metal screw
4
"
29-14
79 86782
T6-4006-119
tinnerman fastener
4
"
29-
----- ----------------
T6-4003-113
mounting angle, radiator shroud
2
362 & Up
29-
----- ----------------
T6-4055-212
Radiator Shroud Adaptor, Gas
ref
As Req’d
29-
----- ----------------
T6-4103-236
Radiator Shroud Hole Cover (Universal)
ref
“
1. Radiator T6-4055-203 replaces radiator T6-4055-103 (original equipment on tractors 926 through 3226)
and is used on all tractors equipped with diesel engines and as required (optional equipment) on tractors
equipped with gasoline engines after serial number 926 and is identified by four inlet/outlet ports.
2. Radiator T6-4055-205 is used as required (standard equipment) on tractors equipped with gasoline
engines after serial number 926 and is identified by two inlet/outlet ports.
3. Used with radiator T6-4055-205.
4. Used with radiator T6-4055-203.
5. Used on all tractors equipped with gasoline engines and as required in units equipped with diesel engine.
Fig &
Co Vendor Part
Tug Part Number
Description
Qty
Effective
Ind#
de Number
