Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 105

29-20

----- ----------------

1/4-20ncx1"

hex head bolt

4

As Req'd

29-21

----- ----------------

T6-4055-209

rubber mount, radiator

4

Note 3

16 2281

T6-9011-239

grommet

4

Note 4

293 .250idx.375od

T6-9011-237

bushing, metal (.312 long)

4

"

----- ----------------

T6-4121-109

spacer, top, radiator mount

1

"

29-22

----- ----------------

5/16

lock washer

8

Note 3

----- ----------------

1/4

flat washer

4

Note 4

29-23

----- ----------------

5/15-18nc

locknut

8

Note 3

----- ----------------

1/4-20ncx1-3/4"

hex head bolt (top)

2

Note 4

----- ----------------

1/4-20ncx1"

hex head bolt (bottom)

2

"

----- ----------------

1/4-20nc

locknut

4

"

29-

----- ----------------

T6-9011-368

bypass fitting, gasoline engine, low mount fan

1

As Req'd

29-

----- ----------------

T6-9011-369

bypass hose, gasoline engine, low mount fan

1

"

29-

----- ----------------

T6-9011-370

hose, pcv valve to manifold gasoline engine, low mount fan

1

"

29-

----- ----------------

T6-9011-371

hose, breather vent to air cleaner, gasoline, low mount fan

1

"

29-

246 ev-127

T6-9011-372

pcv valve, gasoline engine, low mount fan

1

"

29-

----- ----------------

T6-9011-373

y-fitting, heater hose, gasoline engine, low mount fan

1

"

3. Used with radiator T6-4055-205.
4. Used with radiator T6-4055-203.

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 106

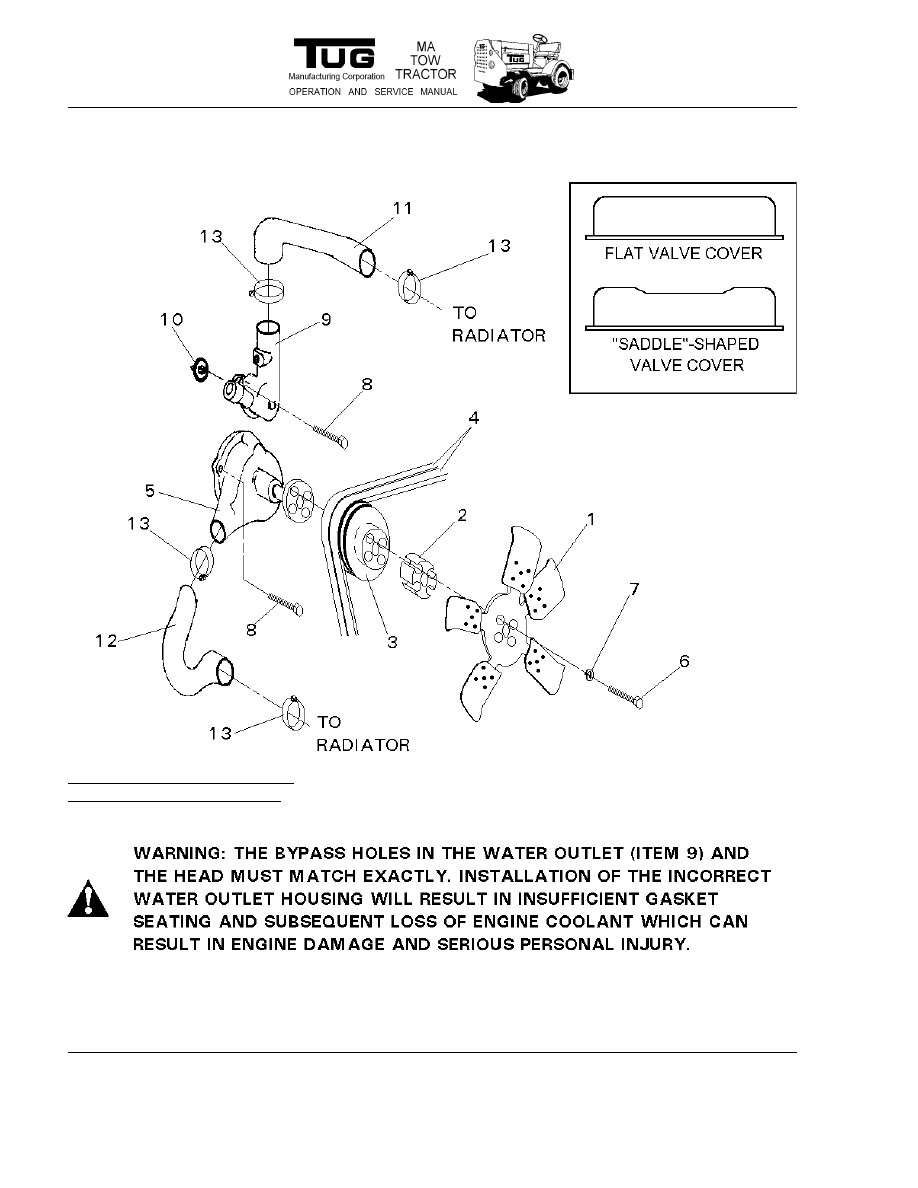

Figure 30: Fan and Water Pump
Installation - Gasoline Engine

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 107

30-1

256 D2JL-8600B

T6-7002-131

Fan, Low Mount

1

2868 & Up

256 c5jz-8600n

MH-ND-440

Fan, High Mount

1

001-2867

30-2

246 epgd005z-8546b

-----------------

fan spacer

1

6563 & Up

30-3

246 c6az-8509l

T6-7002-127

water pump pulley

1

001-6562

246 epgetz-8509b

-----------------

water pump pulley

1

6563 & Up

30-

246 e5jl-8625ba

T6-1001-193

fan pulley and bracket assembly, high mount fan

1

001-2867

30-4

127 15445

T6-9011-151

water pump/alternator belt

Ref. As Req'd

30-

127 l444

660-1-1139

fan belt, high mount fan

1

001-2867

30-

----- ----------------

T6-1001-195

Guide, Fan Bracket

1

As Req’d

30-

----- ----------------

T6-1001-197

Stud

1

As Req’d

30-5

246 e9pz-8501b

-----------------

water pump

1

001-6562

246 f3je-8501aa

T6-4055-501

water pump

1

6563 & Up

30-

256 c5az-8507a

-----------------

gasket, water pump

1

001 & Up

30-6

----- ----------------

5/16-24nfx2"

hex head bolt

4

"

30-7

----- ----------------

5/16

lock washer

4

"

30-8

----- ----------------

5/16-18ncx1"

hex head bolt

6

"

30-9

246 e7tz-8592a

T6-4055-503

water outlet, low mount fan

1

Note 1

246 e0tz-8592b

-----------------

water outlet, low mount fan

1

"

246 e5jl-8592aa

T6-1001-191

water outlet, high mount fan

1

001-2867

30-10

246 c5te-8575b

-----------------

thermostat, 180°

1

As Req’d

30-

246 eagc5te-8575b -----------------

thermostat, 160°

1

As Req’d

30-

----- ----------------

T6-4255-110

Hose, Radiator Upper & Lower MA-13

1

As Req’d

30-

256 E6JE-6316AA

T6-7002-129

Harmonic Balancer (Himount Crankshaft Pulley)

1

“

30-

243 C5JZ-6A312A

T6-1001-199

Pulley, Crankshaft (Himount)

1

“

1. Water outlet E0TZ-8592B is used on gasoline engines with 1/2" diameter water port (engines

manufactured through 1985 with cast rocker arms and flat valve covers - see insert in FIGURE 30). Water
outlet E7TZ-8592A is used on engines with 3/4" diameter water port (engines manufactured after 1985
with stamped rocker arms and “saddle”-shaped valve covers - see insert in FIGURE 30). SEE WARNING
BELOW.

THE BYPASS HOLES IN THE WATER OUTLET (ITEM 9) AND THE HEAD MUST MATCH EXACTLY.

INSTALLATION OF AN INCORRECT WATER OUTLET WILL RESULT IN INSUFFICIENT
GASKET SEATING AND SUBSEQUENT LOSS OF ENGINE COOLANT WHICH CAN RESULT
IN ENGINE DAMAGE AND SERIOUS PERSONAL INJURY.

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 108

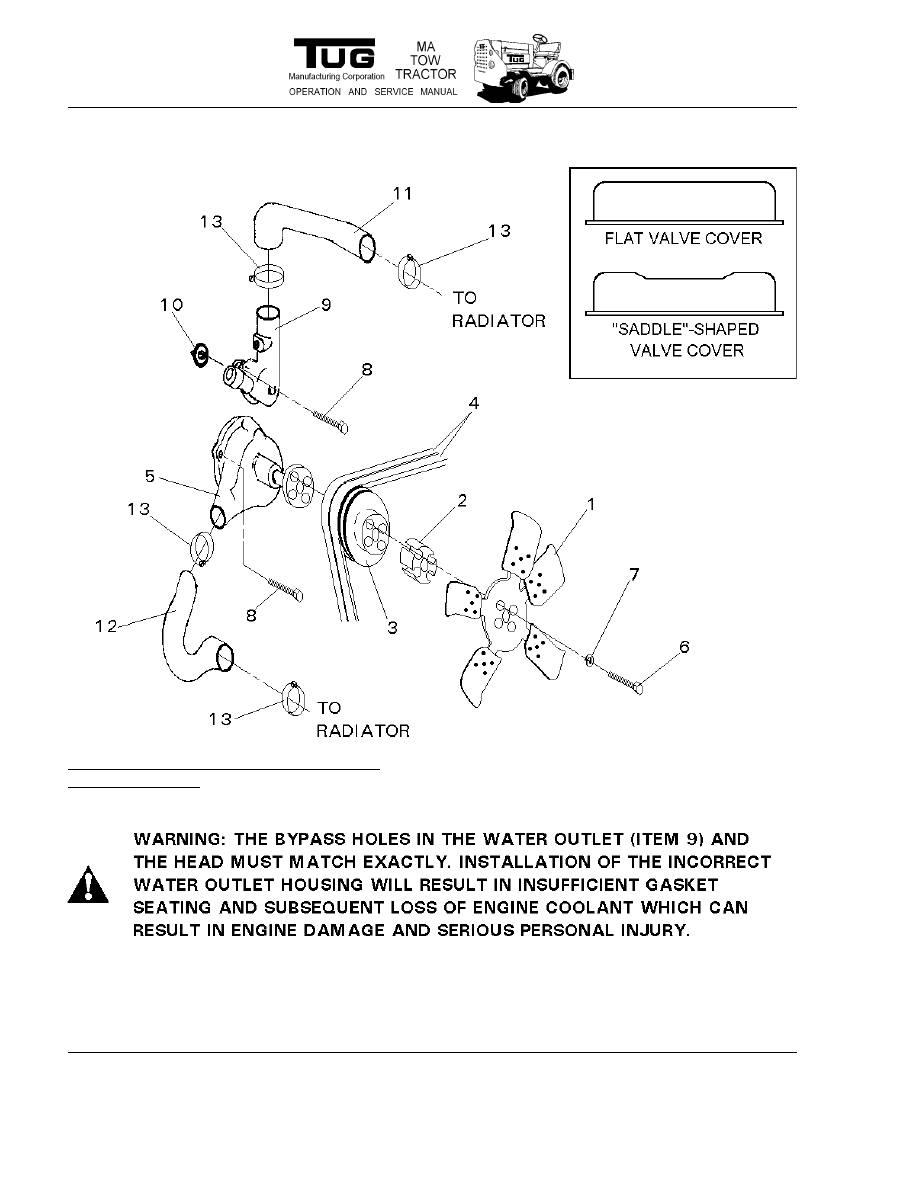

Figure 30: Fan and Water Pump Installation
 - Gasoline Engine
