Model MA TOW Tractor. Manual - part 52
Chapter 4: Illustrated Parts List
Jan. 1997
Section 4-2
p. 93
26-
250 300cid
T6-6017-103

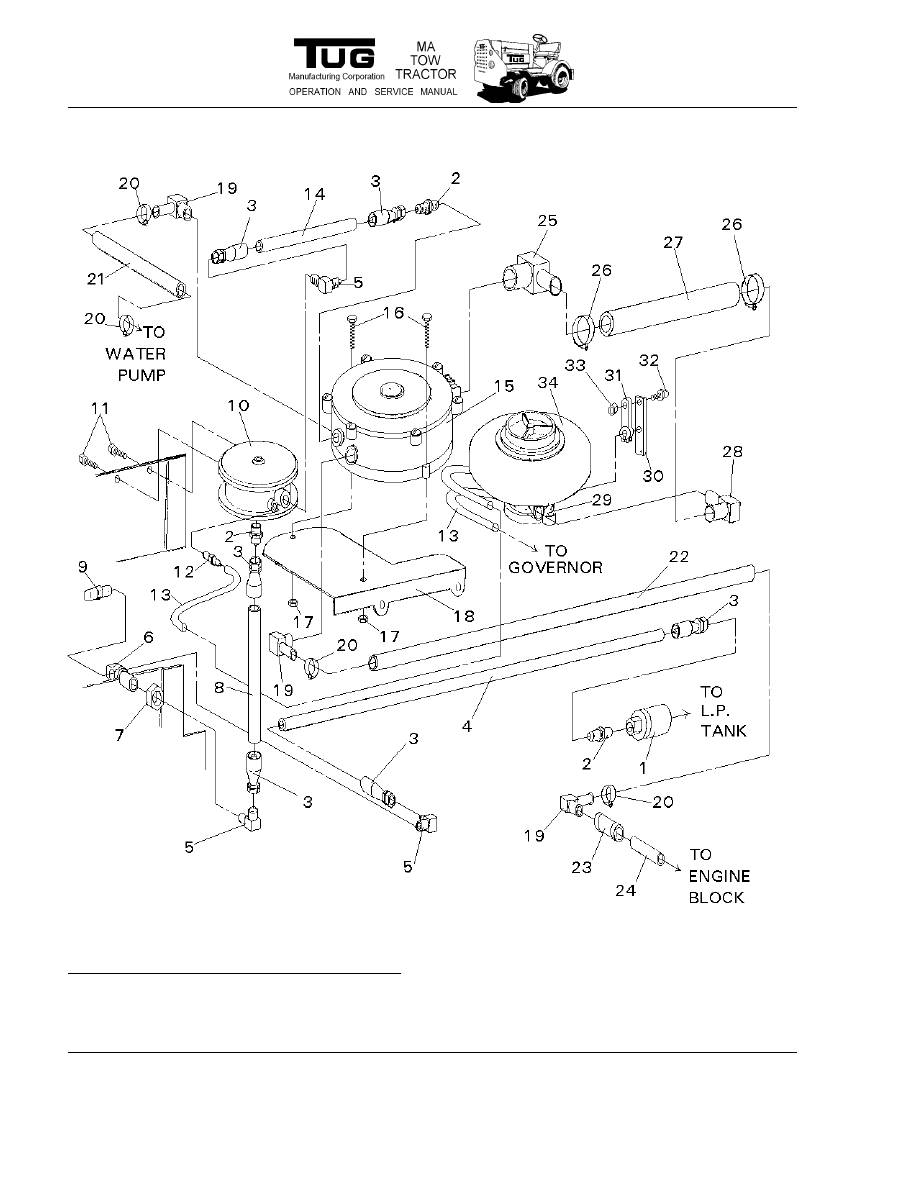

L.p. fuel kit (note 1)
1
As Req'd
26-1
250 7141f
md-w06-103
couping, l.p. tank
1
"
26-2
250 t216-4
md-h09-119
straight fitting, 6mj-4mp
3
"
26-3
250 4401-6s
-----------------
female swivel
6
"
26-4
----- ----------------
T6-6017-121
fuel line, tank to bulkhead fitting
1
"
26-5
250 149f-6-4
md-h09-115
elbow, 90°
3
"
26-6
250 t444
-----------------
bulkhead fitting (note 2)
1
"
26-7
----- ----------------
md-h09-121
jamb nut (note 2)
1
"
26-8
----- ----------------
T6-6017-119
fuel line, bulkhead fitting to vacuum lock-off
1
"
26-9
250 pv3865
md-h09-105
relief valve
1
"
26-10
250 vff30-2
md-hb27-115
vacuum lock-off
1
"
26-11
----- ----------------
1/4-20ncx1/2"
hex head bolt
2
"
26-12
250 125hb3-2
-----------------
hose barb
1
"
26-13
----- ----------------
7/32id
vacuum hose
Ref.
"
26-14
----- ----------------
T6-6017-123
fuel line, vacuum lock-off to converter
1
"
26-15
250 eb
MD-H12-103
l.p. gas converter
1
"
26-16
----- ----------------
1/4-20ncx1-1/2"
hex head bolt
2
"
26-17
----- ----------------
1/4-20nc
locknut
2
"
26-18
----- ----------------
T6-6017-105
bracket
1
"
26-19
250 473b-6
-----------------
elbow, 90°, water hose
3
"
26-20
----- ----------------
#6
hose clamp
4
"
26-21
----- ----------------
T6-6017-113
water hose, engine to converter
1
"
26-22
----- ----------------
T6-6017-111
water hose, converter to engine
1
"
26-23
----- ----------------
3/8"
coupling
1
"
26-24
----- ----------------
3/8"x2"
nipple
1
"
26-25
250 54e9
-----------------
elbow, 90°, vapor (large)
1
"
26-26
----- ----------------
#16
hose clamp
2
"
1. L.P. fuel kit T6-6017-103 includes items 1 through 15, 19 through 22, 25 through 29 and 31 through 34.
2. Bulkhead fitting T444 (item 6) includes jamb nut MD-H09-121 (item 7) flat washers and star washer.
Fig &
Co Vendor Part
Tug Part Number
Description
Qty
Effective
Ind#
de Number
