Model MA TOW Tractor. Manual - part 50

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 85

25-1

----- ----------------

T6-6009-101

fuel tank, stainless steel

1

As Req'd

----- ----------------

T6-6009-201

fuel tank, polyethylene

1

"

25-2

92 6788

T6-6010-111

fuel tank drain valve

1

024 & Up

25-3

92 c3109x4x2

T6-6011-103

bushing, fuel fitting

Ref.

Note 1

25-4

92 7405x5

T6-6006-107a

elbow, 90° with nut

Ref.

"

25-5

----- ----------------

1/4npt

pipe plug, tapered, gasoline engine

1

"

25-6

----- ----------------

T6-6003-109

fuel cell padding, bottom

1

001 & Up

25-7

----- ----------------

T6-6003-107

fuel cell padding, top

1

"

25-8

----- ----------------

T6-4027-117

cover, fuel cell

1

2363 & Up

----- ----------------

T6-4027-101

fuel tank cover assembly

1

024-2362

----- ----------------

T6-4027-103

fuel tank cover, bottom

1

"

----- ----------------

T6-4027-111

fuel tank cover, top

1

"

----- ----------------

1/4-20ncx1"

hex head bolt

2

"

79 86782

T6-4006-119

tinnerman fastener

2

"

25-9

----- ----------------

3/8-16ncx1"

hex head bolt

4

Note 2

----- ----------------

1/4-20ncx3/4"

hex head bolt

4

"

25-10

431 6580

T6-6007-103

fuel gauge, local-reading

1

As Req'd

131 fsa-102

x6005-101

fuel lever sender, remote reading

1

"

25-

----- ----------------

T6-6009-132

flange, polyethylene fuel tank to fuel sender

1

"

25-

131 mf-691-30

x6017-101

fuel gauge, remote reading

1

"

25-11

----- ----------------

T6-4027-113

window, fuel gauge

1

024 & Up

25-12

----- ----------------

cma-602

coupling, 2"

1

Note 3

25-13

----- ----------------

cam-601

nipple 2"x3"

1

"

25-14

----- ----------------

cma-603

elbow, 45°, 2"

1

"

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 86

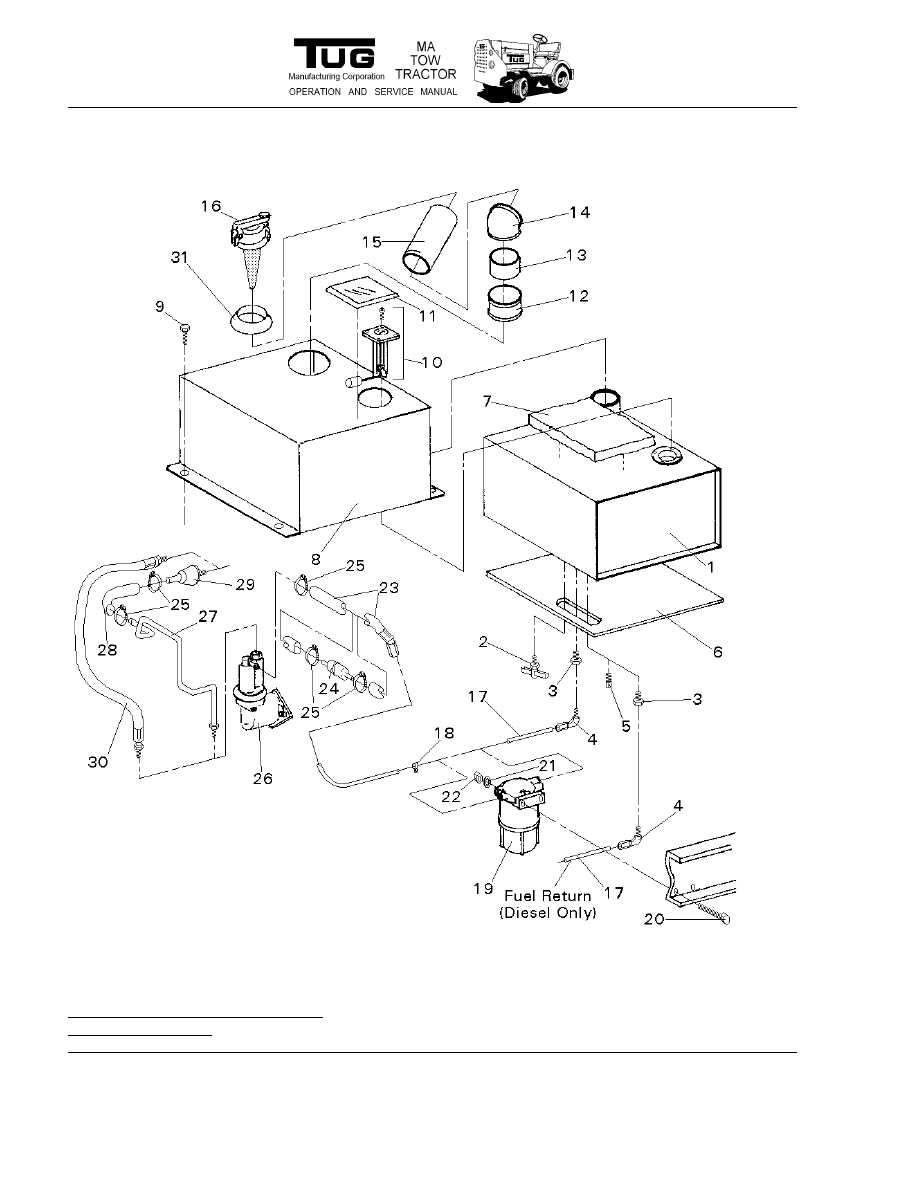

Figure 25: Fuel System Installation,
Diesel and Gasoline

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 87

25-15

----- ----------------

cma-600

nipple 2" x 12"

1

Note 3

----- ----------------

T6-9003-502

fuel hose, 2-1/4" ID

1

"

----- ----------------

#36

hose clamp

2

"

----- ----------------

T6-9003-503

fuel hose pipe adapter

1

"

----- ----------------

T6-9003-500

fuel filler flange tube

1

"

25-16

160 1273a6-314t

T6-6004-101

fuel filler cap, red

1

As Req'd

----- ----------------

T6-6004-1015

O-Ring

1

“

----- ----------------

T6-6004-101g

fuel filler cap, green

1

"

25-17

----- ----------------

5/16odx.o35

fuel line

Ref. 001 & Up

25-18

----- 86080

-----------------

p-clamp

Ref.

"

25-19

110 2656088

-----------------

separator, pre-lift pump, perkins diesel engine

1

Note 4

----- ----------------

T6-3200-139

filter assembly, pre-fuel pump, cummins/onan diesel engine

1

Note 5

----- ----------------

T6-3200-139-1

filter head, pre-fuel pump, cummins/onan diesel engine

1

"

----- ----------------

T6-3200-139-2

filter cartridge, pre-fuel pump, cummins/onan diesel engine

1

"

----- ----------------

T6-3200-139-3

filter bracket, pre-fuel pump, cummins/onan diesel engine 1

"

388 40-0000401

-----------------

fuel filter, hercules diesel engine

1

Note 8

388 40-0026553

-----------------

filter head, hercules diesel engine

1

"

25-20

----- ----------------

3/8-16ncx2"

hex head bolt

2

As Req'd

25-21

----- ----------------

3/8

flat washer

2

"

25-22

----- ----------------

3/8-16nc

locknut

2

"

25-23

----- ----------------

T6-1001-501

fuel hose, 10"

1

Note 6

25-24

256 c2rz-9155a

mg-nd-622

fuel filter

1

Note 7

Fuel systems on tractors prior to serial number 024 may vary slightly.

1. 1/4" NPT tapered pipe plug (item 5) is used in place of bushing T6-6011-103 (item 3) and elbow T6-6006-107A (item

4) in third fuel tank boss on tractors with gasoline engines (no fuel return line).

2. Most early tractors are equipped with 1/4-20NCx3/4" hex head bolts; most later tractors are equipped with 3/8-

16NCx1" hex head bolts.

3. Used as required on tractors equipped with cab.

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 88

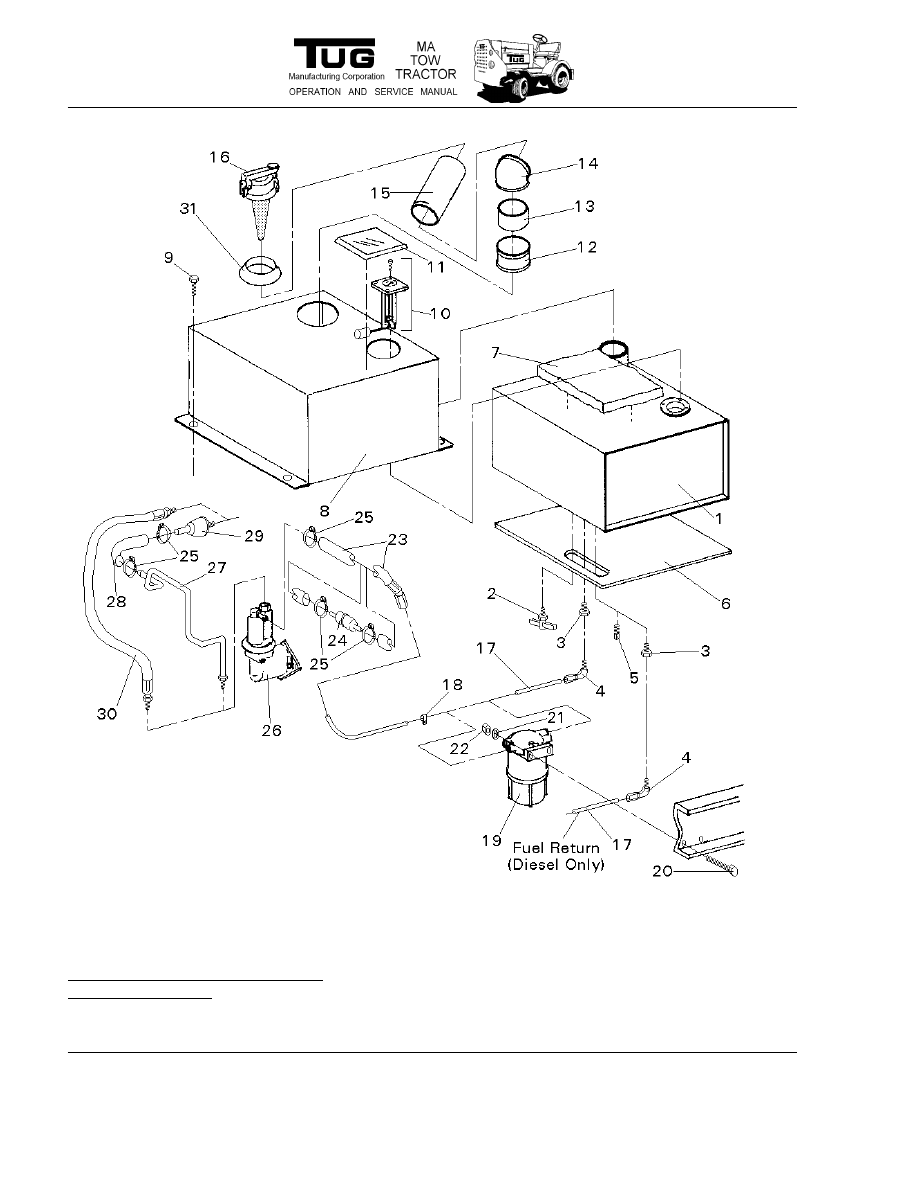

Figure 25: Fuel System Installation,
Diesel and Gasoline
