Model MA TOW Tractor. Manual - part 49
Chapter 4: Illustrated Parts List
Jan. 1997
Section 4-2
p. 81
24-
256 co154229500
----------------

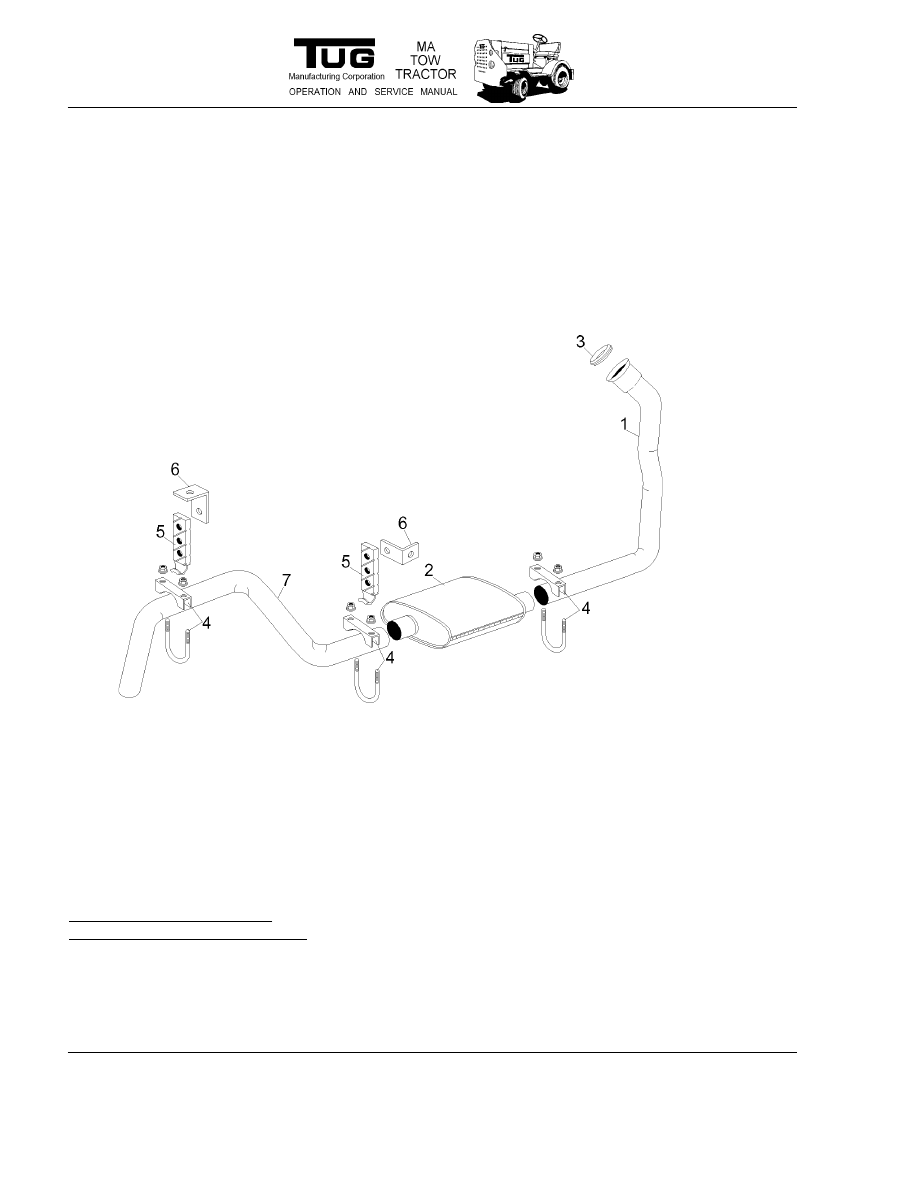

exhaust manifold, cummins/onan diesel engine
1
001 & Up
24-
256 co154216200
----------------
gasket, exhaust manifold, cummins/onan diesel engine
1
"
24-12
----- 106
----------------
gasket, exhaust pipe, cummins/onan diesel engine
1
"
24-13
----- ----------------
T6-3200-121
exhaust pipe, cummins/onan diesel engine
1
"
24-14
256 co155-192100
T6-3200-163
exhaust flange, cummins/onan diesel engine (obsolete)
1
"
24-15
----- ----------------
5/16-18ncx2-1/2"
stud, exhaust flange, cummins/onan diesel engine
2
"
24-16
----- ----------------
5/16-18nc
locknut, exhaust flange, cummins/onan diesel engine
2
"
24-
----- ----------------
T6-1000-114
Muffler, Perkins 1000-4
1
As Req'd
24-17
26 17604
T6-1005-105
muffler, 2” o.d. pipes
1
“
26 21-578
T6-9011-320
muffler, spark arresting
1
"
24-18
296 udo200-b
T6-1005-119
muffler clamp assembly (note 1)
3
001 & Up
24-19
26 35398
T6-1005-115
exhaust hanger strap
2
"
24-20
----- ----------------
T6-4043-105
l-bracket, exhaust hanger
1
"
24-21
----- ----------------
3/8-16ncx1-1/2"
hex head bolt
3
"
24-22
----- ----------------
3/8-16nc
locknut
3
"
24-23
----- ----------------
3/8
flat washer
2
"
24-24
----- ----------------
T6-1005-133
tail pipe
1
362 & Up
----- ----------------
T6-1005-109
tail pipe, 240 Cid gasoline engine
1
130-361
----- ----------------
T6-9011-322
tail pipe, side exhaust
1
As Req'd
24-
----- ----------------
T6-1005-107hs
heat shield, muffler
1
"
Fig &
Co Vendor Part
Tug Part Number
Description
Qty
Effective
Ind#
de Number
1. Muffler clamp assembly T6-1005-119 (item 18) includes U-bolt, clamp and locknuts.
