Model MA TOW Tractor. Manual - part 47

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 73

21-1

246 d3uz-9600a

T6-1001-111

air filter housing (note 1)

1

Note 2

----- ----------------

T6-1001-111m

air filter housing (note 1)

1

Note 3

21-2

22 2055

T6-1001-209

air filter element (note 1)

1

001 & Up

21-3

----- ----------------

1/4-20nc

wingnut

2

"

21-4

----- ----------------

1/4

flat washer

1

"

21-5

246 c8dz-9654a

-----------------

gasket, air cleaner

1

"

21-6

246 e5jl-9a627aa

T6-1006-101

air cleaner bracket

1

"

21-7

----- ----------------

5/16-18ncx1/2"

hex head bolt

4

"

21-8

246 d7uz-9a626b

T6-1001-113

duct and valve assembly

1

"

21-9

----- ----------------

7/32id

vacuum hose, rubber

Ref.

"

21-10

246 d1fz-6a664b

-----------------

crank case vent hose

1

"

21-11

246 384411s

-----------------

elbow, crank case vent hose

1

"

21-12

246 c9uz-9652a

-----------------

flex tube

1

"

21-13

246 d9tz-9a603b

-----------------

manifold shroud assembly

1

"

21-14

246 d3az-9c670b

-----------------

bracket, manifold shroud assembly

1

"

21-15

----- ----------------

5/16-18nc

locknut

2

"

21-16

----- ----------------

7/16-14nc

locknut

1

"

21-

246 epg387331-5100

T6-1001-185

flute valve

1

“

21-

246

T6-1001-187

Choke Outlet Tube

1

“

21-

246

T6-1001-189

Carb Inlet Tube

1

“

1. Air filter housings T6-1001-111 and T6-1001-111M include air filter element T6-1001-209 (item 2).
2. Used on all gasoline tractors except when equipped with Hyster governor.
3. Used on all tractors equipped with Hyster governors.

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 74

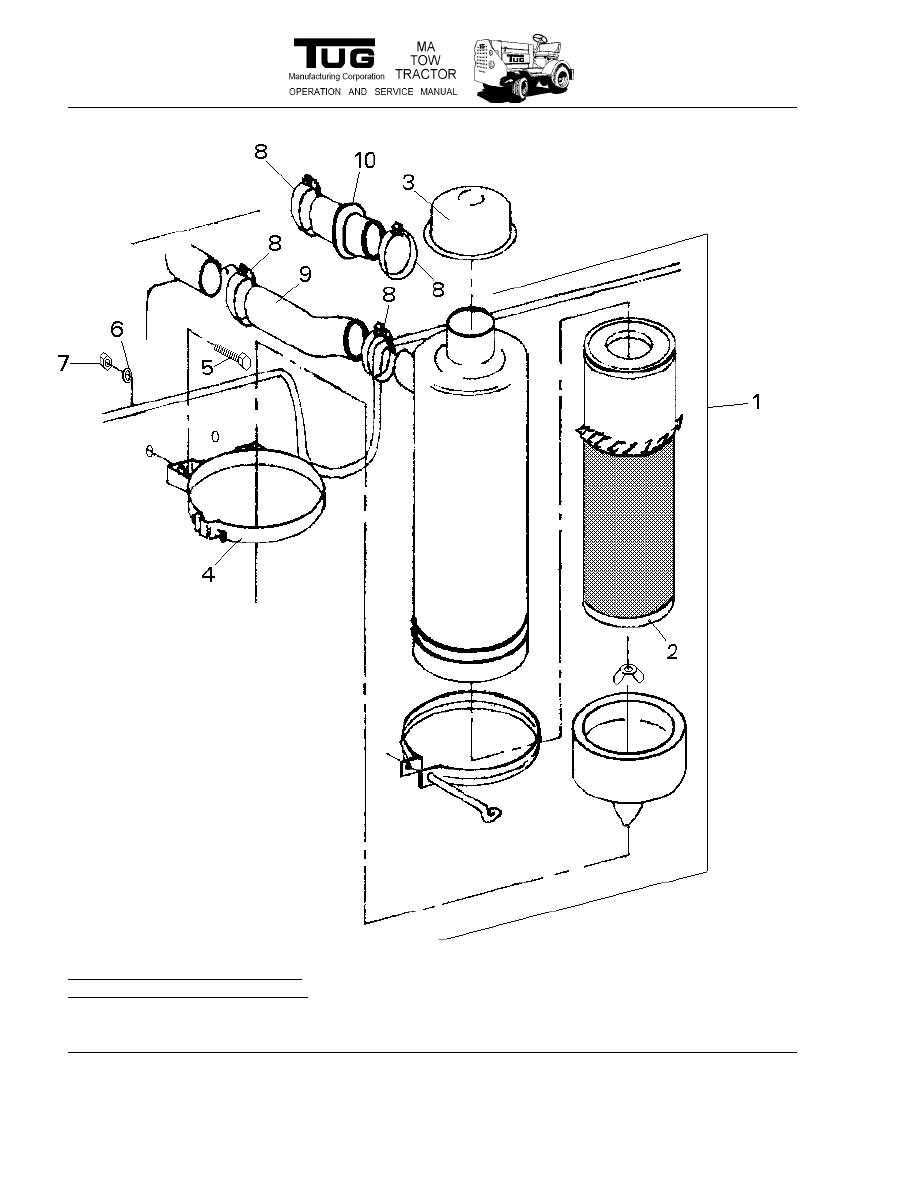

Figure 22: Air Cleaner Assembly,
Diesel Engine (Without Pre-Filter)

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 75

22-1

202 FWA06-5015

T6-1201-209a

air filter housing (note 1)

1

As Req’d

22-2

625 42222

T6-1201-209

air filter element (note 1)

1

"

22-3

46 GAX00-1966

T6-1201-213

inlet hood, air filter

1

"

22-4

46 DNP00-7191

T6-1206-103

mounting strap, air cleaner

2

"

22-5

----- ----------------

1/4-20ncx1"

hex head bolt

4

"

22-6

----- ----------------

1/4

flat washer

4

"

22-7

----- ----------------

1/4-20nc

locknut

4

"

22-8

----- ----------------

#40

hose clamp

2

"

22-9

127 70955

T6-3200-135

air cleaner hose

1

"

22-

----- ----------------

T6-7200-035

Air intake adaptor, Hercules diesel engine

1

“

22-10

----- ----------------

T6-

Air intake adaptor, Perkins 1000-4 diesel engine

1

“

22-11

----- ----------------

T6-1201-217

Clamp

1

“

22-12

----- ----------------

T6-1201-215

Cap

1

“

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

1. Air filter housing T6-1201-209A (item 1) includes air filter element T6-1201-209 (item 2).

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 76

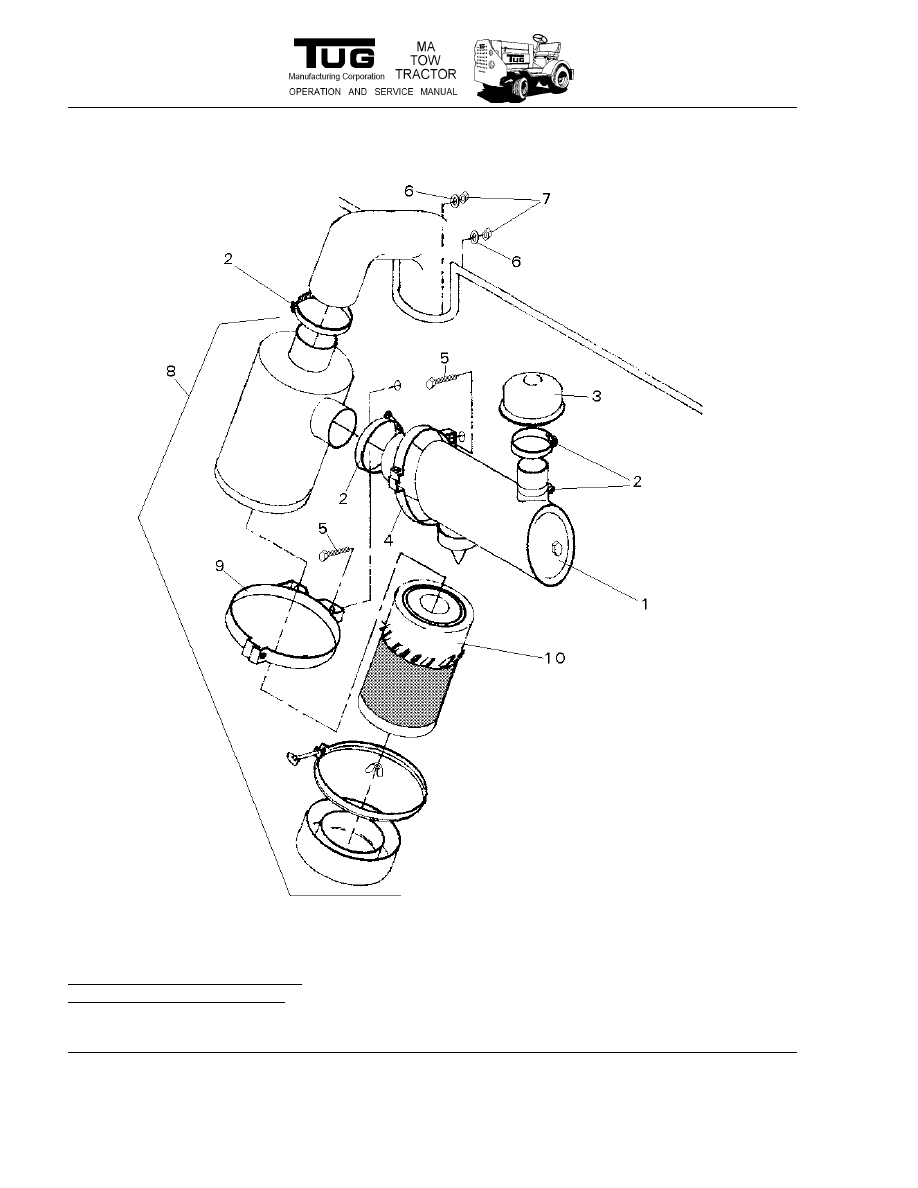

Figure 23: Air Cleaner Assembly,
Diesel Engine (With Pre-Filter)
