Model MA TOW Tractor. Manual - part 39

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 41

10-23

----- ----------------

T6-1209-111

accelerator cable stand-off, (perkins)

1

As Req'd

10-24

----- ----------------

1/4-20ncx1-1/2"

hex head bolt

Ref.

"

10-25

----- ----------------

T6-1209-109

throttle arm, (perkins)

1

"

10-26

----- ----------------

T6-3200-105

accelerator cable stand-off, (cummins/onan)

1

"

10-27

70 2180-90”

660-1-1264

transmission manual modulator cable

1

"

10-28

----- ----------------

T6-7200-080

throttle lever

1

"

10-29

----- ----------------

T6-7200-085

throttle linkage plate

1

"

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 42

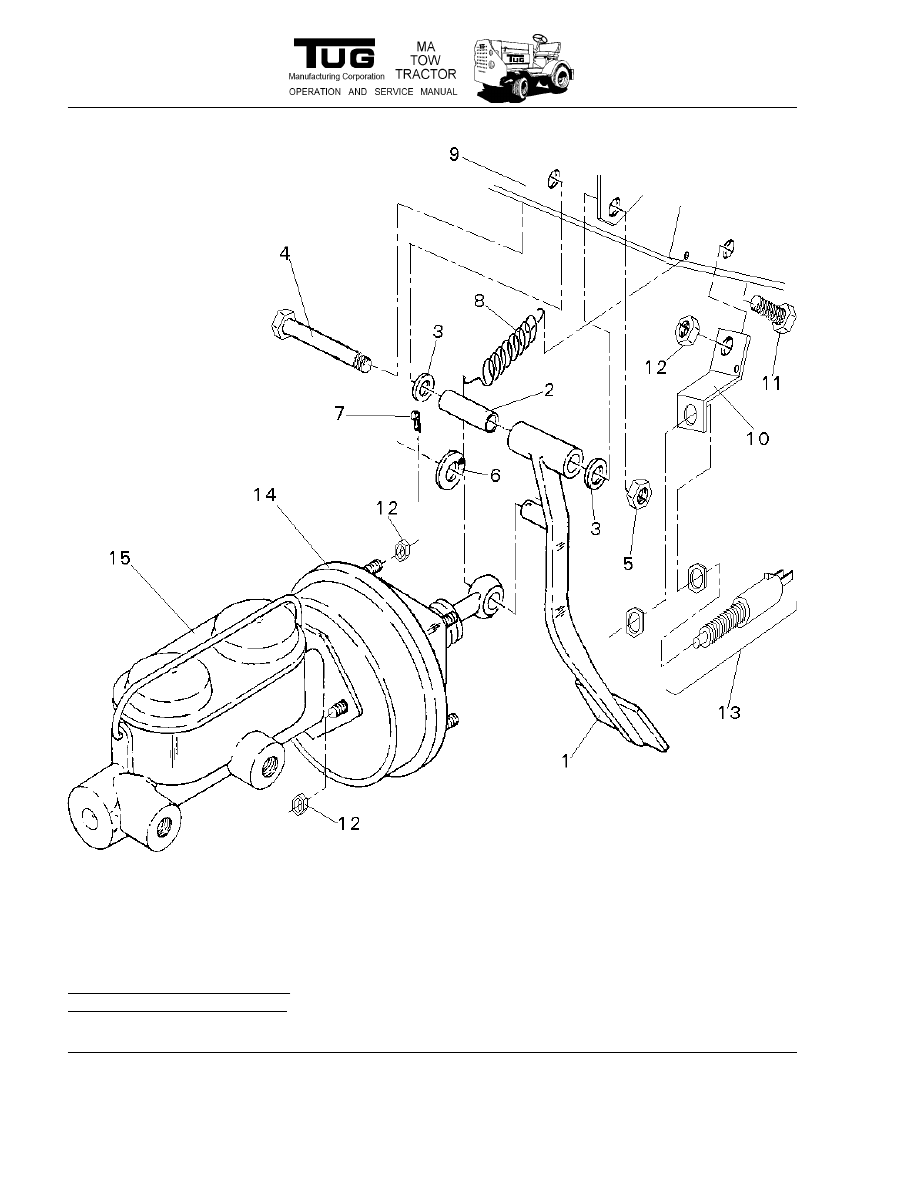

Figure 11:Brake Pedal, Booster
and Master Cylinder Assembly

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 43

11-1

----- ----------------

T6-8006-103

Brake pedal

1

Note 1

----- ----------------

T6-8106-107

brake pedal

1

362 & Up

11-2

141 ep812-24

T6-8006-105

bushing, brake pedal

2

001 & up

11-3

----- ----------------

3/8

flat washer (shim)

Ref.

001-248

----- ----------------

1/2

flat washer (shim)

Ref. 249 & Up

11-4

----- ----------------

3/8-24nfx4-1/2"

hex head bolt

1

001-248

----- ----------------

1/2-13ncx5"

hex head bolt

1

249 & Up

11-5

----- ----------------

3-8-24nf

locknut

1

001-248

----- ----------------

1/2-13nc

locknut

1

249 & Up

11-6

----- ----------------

T6-5005-129

brake pedal booster retaining washer

1

001 & Up

11-7

----- ----------------

1/8x1"

cotter pin

1

"

11-8

----- ----------------

T6-1001-123

return spring

1

"

11-9

----- ----------------

T6-5005-121

Bracket, Steering Column, upper

1

"

11-10

----- ----------------

T6-5005-119

bracket, stoplight switch

1

128 & Up

----- ----------------

T6-6001-105

adapter, stoplight switch

1

001-127

11-11

----- ----------------

3/8-16ncx2"

hex head bolt

1

"

11-12

----- ----------------

3/8-16nc

locknut

Ref.

"

11-13

79 41392

T6-7006-105

switch,  stoplight

1

128 & Up

----- ----------------

T6-7006-103

switch, stoplight

1

001-127

11-14

50 2513664

T6-8007-101

Booster, brake, vacuum

1

Note 1

11-

----- ----------------

T6-8007-101k

Retrofit kit, brake pedal and booster

1

Note 1

11-

----- ----------------

T6-8007-101C

Check Valve

1

“

11-15

127 f36706

md-cb1-121

master cylinder, single

1

001-127

----- ----------------

T6-6001-113

master cylinder, dual, rear disc brakes only

1

128 & Up

gu 1779

T6-6001-113cv

master cylinder, dual, front drum brakes

1

"

11-

----- ----------------

T6-3200-117

heat shield, brake booster

1

As Req'd

11-

127 22749

T6-6001-109

rebuild kit, dual master cylinder

1

"

1. Brake booster provided as original equipment on tractors prior to serial number 362 is no longer

available. Replacement of this booster requires retrofit kit number T6-8007-101K which includes
booster T6-8007-101 (item 14) and brake pedal T6-8106-107. This change also requires replacement of
single master cylinder MD-CB1-121 with dual master cylinder T6-6001-113, and installation of stoplight
switch bracket T6-5005-119 and stoplight switch T6-7006-105.

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 44

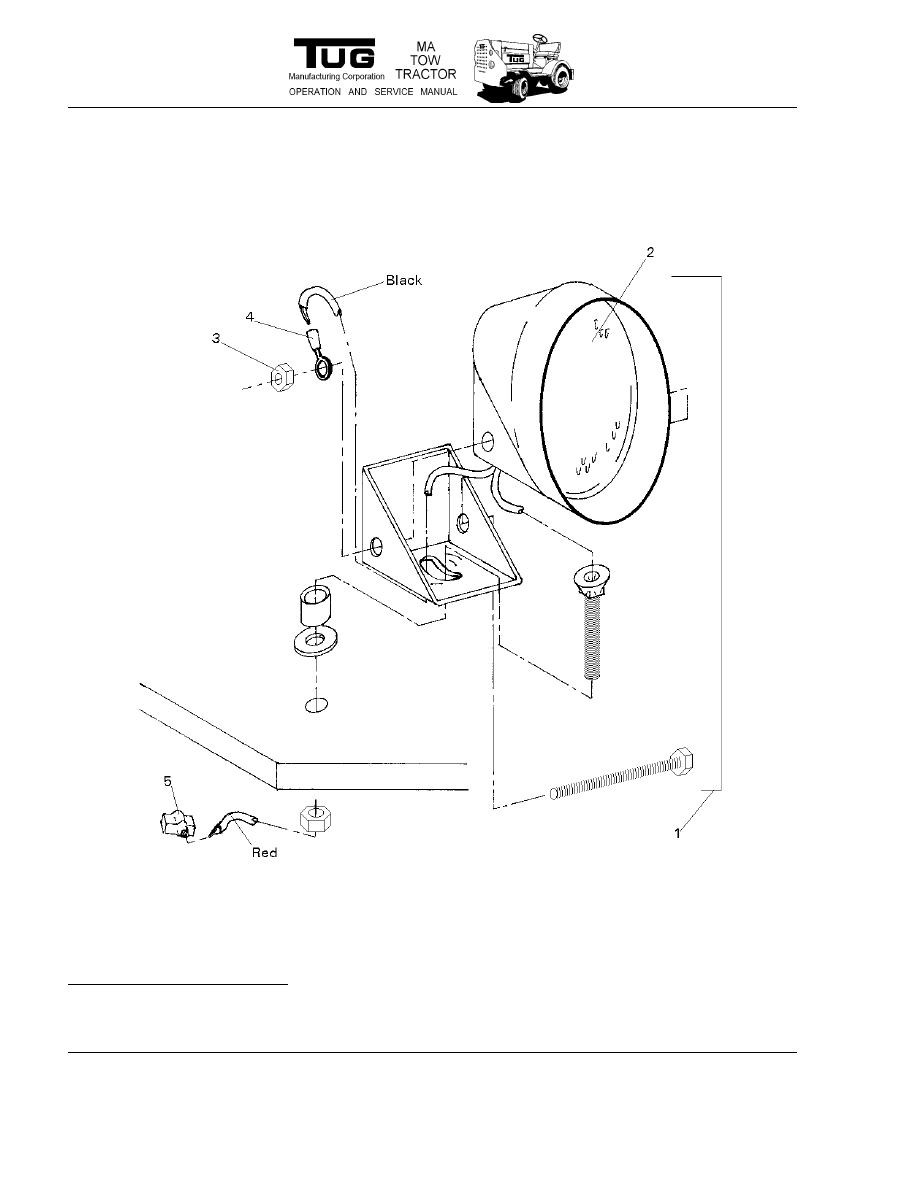

Figure 12: Headlight Assembly
