Model MA TOW Tractor. Manual - part 37

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 33

7-22

----- ----------------

1/4-20ncx1/2"

hex head bolt

2

Note 2

7-23

----- ----------------

1/4

Lock Washer

2

"

7-24

140 b44720

660-4-0732-9

swivel, shift cable

1

"

7-25

----- ----------------

5/16-24nf

locknut

1

"

7-26

----- ----------------

T6-1004-109

yoke assembly, shifter linkage rod (note 3)

3

001-361

7-27

----- ----------------

T6-1004-105

rod assembly, long    (note 3)

1

"

7-28

----- ----------------

T6-1004-103

bell crank assembly    (note 3)

1

"

7-29

----- ----------------

T6-1004-104

rod assembly, short   (note 3)

1

"

7-

140 304242-003-0035 T6-1023-105

cable, shifter, 35", gas (note 3)

1

As Req'd

7-

140 304242-003-0032 T6-1023-103

cable, shifter, 32", diesel (note 3)

1

"

7-

----- ----------------

T6-9000-101

Safety Interlock Kit

1

“

1. Used on all units equipped with Morse shifters from serial number 096.
2. Used on all units equipped with Morse shifters.
3. 35-inch shifter cable T6-1023-105 (for gasoline) or 32-inch shifter cable T6-1023 103 (for diesel) replaces

shifter linkage rod yoke assembly T6-1004-109 (item 26), long rod assembly T6-1004-105 (item 27), bell
crank assembly T6-1004-103 (item 28) and short rod assembly T6-1004-104 (item 29) used as original
equipment through serial number 361.

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 34

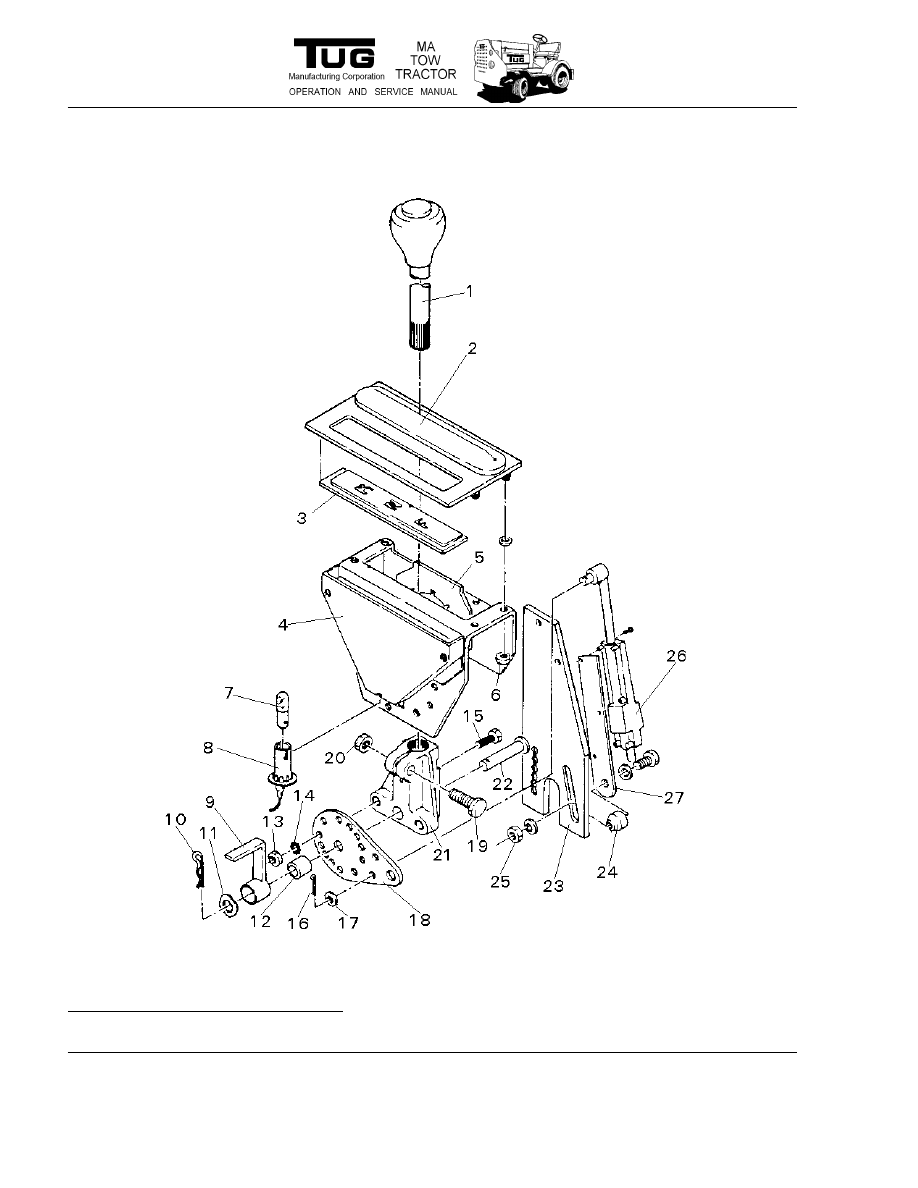

Figure 8: Quadrastat Shifter Assembly

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 35

8-

162 t37001

T6-1002-153

Quadrastat Shifter

1

As Req'd

----- ----------------

T6-1002-153m

quadrastat shifter, full range

1

"

8-1

162 da581

T6-1010-105k

handle assembly kit

1

Note 1

8-2

----- ----------------

T6-1010-107

dust cover (not available)

1

"

8-3

----- ----------------

T6-1010-111

Position panel

1

As Req'd

162 dtp-037

mj-nd-1010

Position panel, full range

1

"

8-4

162 dy-1827

T6-1010-113

housing assembly

1

Note 1

8-5

162 dy16520-1

T6-1010-109

gate plate

1

As Req'd

162 dtz-008

mj-nd-1009

gate plate, full range

1

"

8-6

----- ----------------

T6-1010-157

nut and washer

4

Note 1

8-7

----- ----------------

T6-1010-115

indicator bulb

1

"

8-8

----- ----------------

T6-1010-117

bulb socket

1

"

8-9

162 dz953

T6-1010-119

position indicator

1

"

8-10

----- ----------------

T6-1010-121

keeper

1

"

8-11

----- ----------------

T6-1010-123

wave washer

1

"

8-12

----- ----------------

T6-1010-125

spacer bushing

1

"

8-13

----- ----------------

T6-1010-127

Nut

1

"

8-14

----- ----------------

T6-1010-129

star washer

1

"

8-15

----- ----------------

T6-1010-131

hex head bolt

1

"

8-16

----- ----------------

T6-1010-133

cotter pin

1

"

8-17

----- ----------------

T6-1010-135

washer

1

"

8-18

----- ----------------

T6-1010-137

output plate

1

"

8-19

----- ----------------

T6-1010-139

bolt

1

"

8-20

----- ----------------

T6-1010-141

nut

1

"

8-21

162 da-581

T6-1010-143

trunnion (Note 2)

1

"

8-22

----- ----------------

T6-1010-145

clevis pin

1

"

8-23

----- ----------------

T6-1010-147

switch support plate

1

"

8-24

----- ----------------

T6-1010-149

pivot spacer

1

"

8-25

----- ----------------

T6-1010-151

nut, washer and bolt

1

"

8-26

162 t-308

T6-1010-153

neutral start switch

1

"

8-27

----- ----------------

T6-1010-155

switch assembly plate

1

"

1. Used on all units equipped with Quadrastat shifters.
2. Not available separately. Included with item 8-1.

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 36

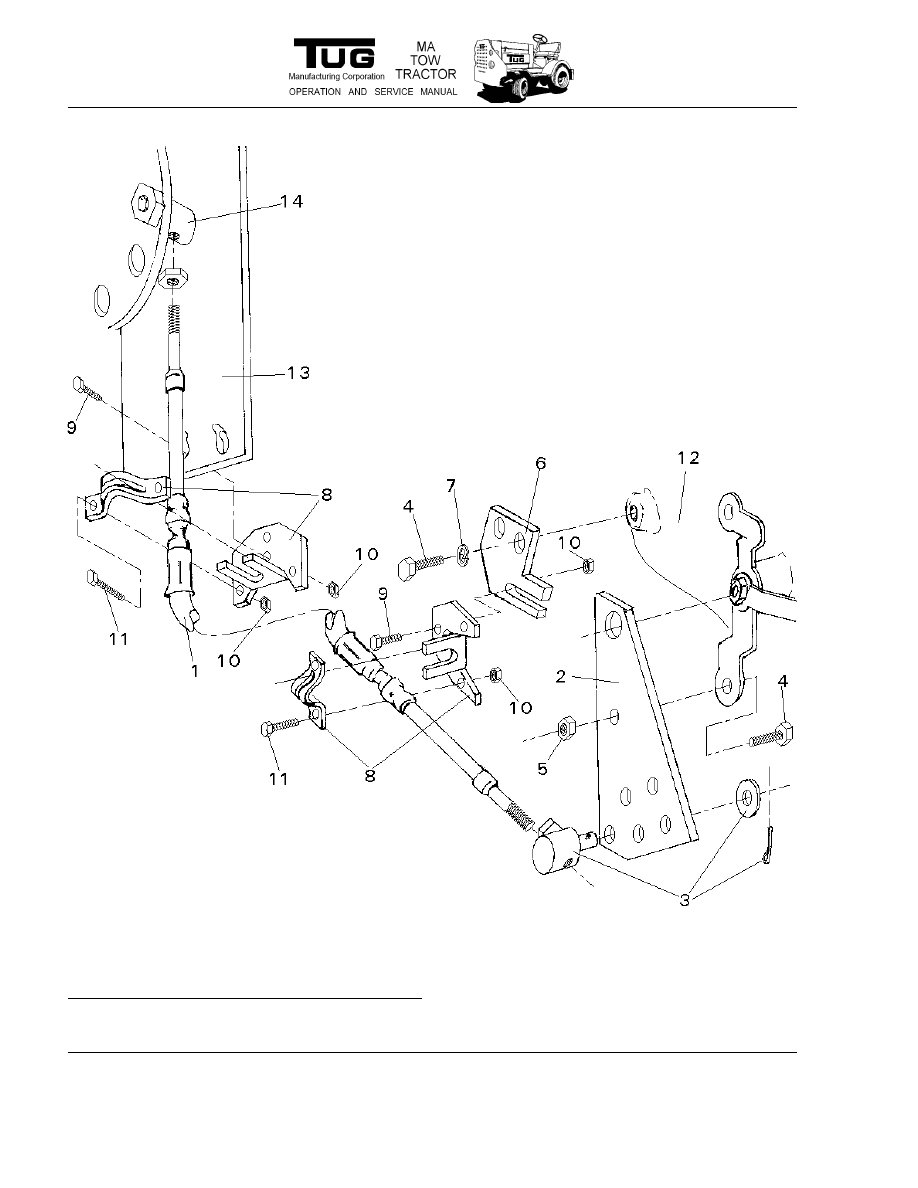

Figure 9: Transmission Shifter Linkage Assembly
