Model MA TOW Tractor. Manual - part 35

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 25

5-18

256 c0333023700

----------------

glow plug controller

1

Note 2

5-19

256 c0321026300

----------------

fuse holder

1

"

5-20

256 c0321026201

----------------

fuse

1

"

5-21

256 c0322035400

----------------

light socket, glow plug

1

"

5-22

256 c0322035300

----------------

bulb, glow plug light

1

"

5-23

817 SCM100

T6-1300-225

protecto-start relay

1

As Req'd

5-24

gz em2-g12

md-e05-101

Relay module, Rider safe seat

1

"

5-25

----- ----------------

T6-7010-324

instrument panel closeout

1

Note 3

5-26

256 d9jl-9180-b

----------------

clamp, filter, transmission and reduction gear vent

1

As Req'd

5-27

----- ----------------

1/4

Flat washer

1

"

5-28

256 c2rz-9155-a

----------------

filter, transmission and reduction gear vent

1

"

5-29

----- ----------------

5/16"id

hose, transmission and reduction gear vent

1

"

2. Used on tractors equipped with Cummins/Onan diesel engines.
3. Used on tractors equipped with firewall insulation only.

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 26

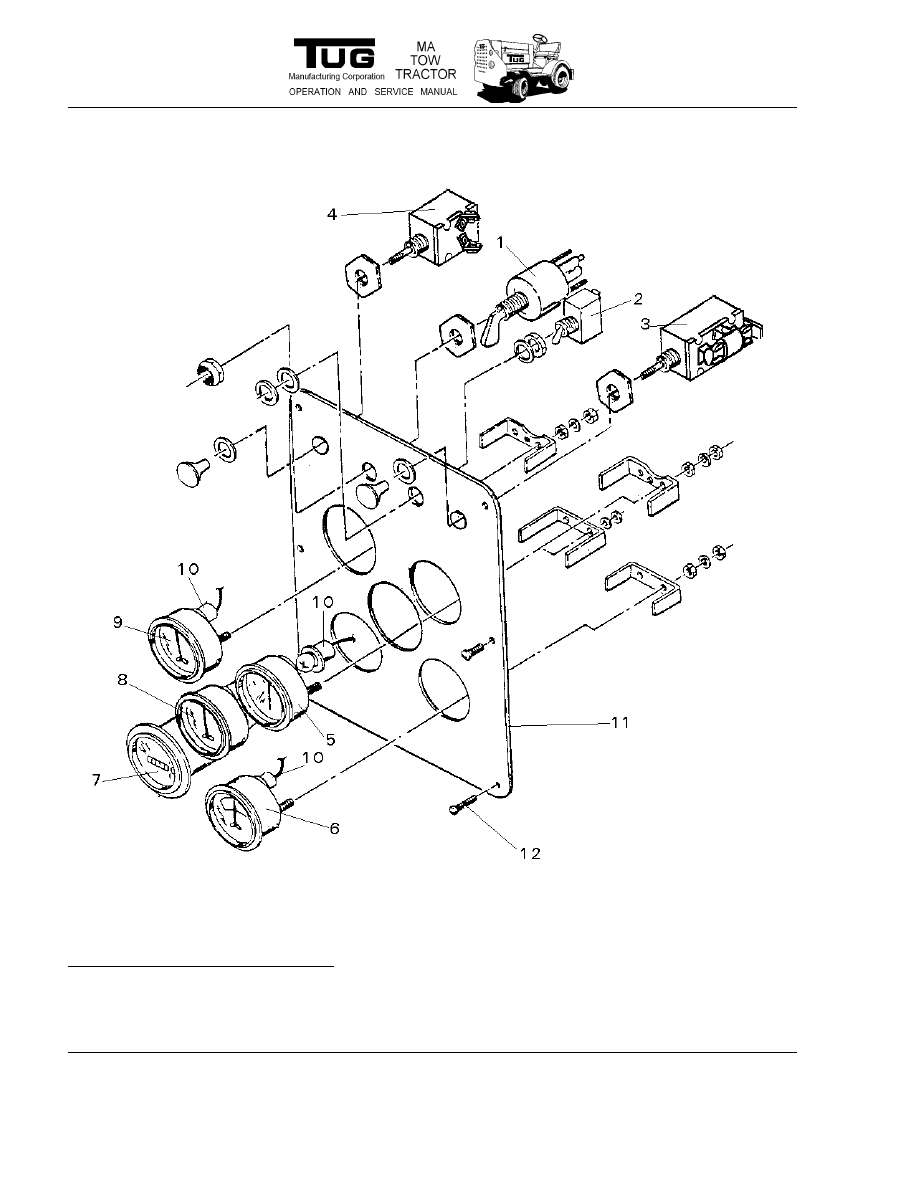

Figure 6: Instrument Panel Assembly

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 27

6-1

158 31-237

T6-7010-139

ignition switch, pollack

1

As Req'd

----- ----------------

T6-7010-140

ignition switch, Cole hersee

1

"

----- ----------------

T6-7010-141

ignition switch, cole hersee, with key

1

"

----- ----------------

T6-7010-142

ignition switch, lansing, with key

1

"

6-

----- ----------------

T6-1300-107

lever, pollack ignition switch

1

"

6-

158 31-600-102

T6-1300-155

key and tumbler, used with pollack ignition switch 1

"

6-2

259 8801K22

T6-7010-113

toggle switch, headlights

1

001 & Up

6-

259 8801K22

T6-7010-113

toggle switch, work light

1

As Req'd

6-3

22 hc6385

T6-9004-107

heater switch

1

Note 1

6-4

158 35-300

T6-9003-209a

windshield wiper switch

1

"

6-5

371 104679

T6-7010-103

oil pressure gauge

1

001 & Up

6-

371 02505-04

T6-1001-133

oil pressure sensing unit

1

"

6-6

371 104603

T6-7010-131

ammeter

1

"

6-7

371 104678

T6-1300-257

hourmeter

1

"

6-8

131 SKF10130

x6017-101

fuel gauge, Gasoline and diesel

1

As Req'd

----- ----------------

mg-nd-591

fuel gauge, l.p. gas

1

"

196 82344

x6004-101

transmission oil temperature gauge

1

"

196 82677

mh-nd-549

speedometer head

1

"

6-

----- ----------------

OPT-SAF-008

Kysor Shutdown System -Gas

1

As Req’d

6-

----- ----------------

T6-7010-207

Kysor Water Alarmstat -240 -Gas

1

“

6-

----- ----------------

T6-9011-327

Nipple

1

“

6-

----- ----------------

T6-9011-328

Tee

1

“

6-

----- ----------------

T6-9011-329

Adaptor

1

“

6-

----- ----------------

T6-1300-165

Kysor Water Alarmstat -210-Diesel

1

“

6-

----- ----------------

T6-4011-329

Adaptor

1

“

6-

----- ----------------

T6-7010-209

Kysor Oil Pressure

1

“

6-

----- ----------------

42-132-101

Resistor, 500 Ohm

1

“

6-

----- ----------------

T6-7010-300

Ignition Switch With Key

1

“

6-

----- ----------------

T6-7010-105

Oil Gauge

1

“

6-

----- ----------------

T6-7010-120

Oil/Water Pressure Warning Light

1

“

6-

----- ----------------

T6-7010-155

Water Temperature Gauge, Mechanical

1

“

6-

----- ----------------

T6-7016-123

Battery Disconnect Switch

1

“

6-

----- ----------------

660-4-0741-13

Vacuum Switch

1

“

6-

Note:  All instruments are supplied with mounting hardware. the remote fuel gauge is supplied with light

socket and bulb.

1. Used on tractors equipped with cabs only.
2. Used on tractors equipped with firewall insulation only.

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 28

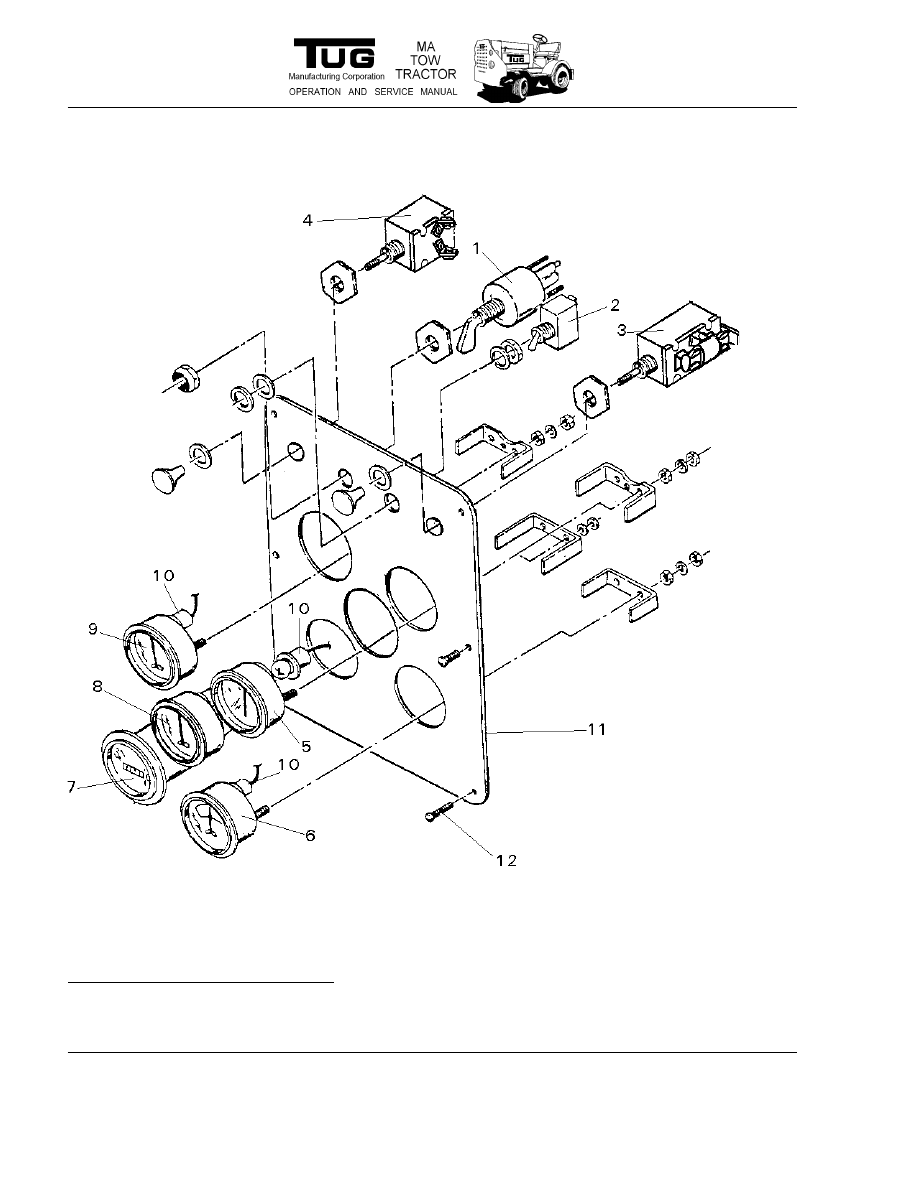

Figure 6: Instrument Panel Assembly
