Model MA TOW Tractor. Manual - part 40

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 45

12-1

187 1400342

T6-1300-247

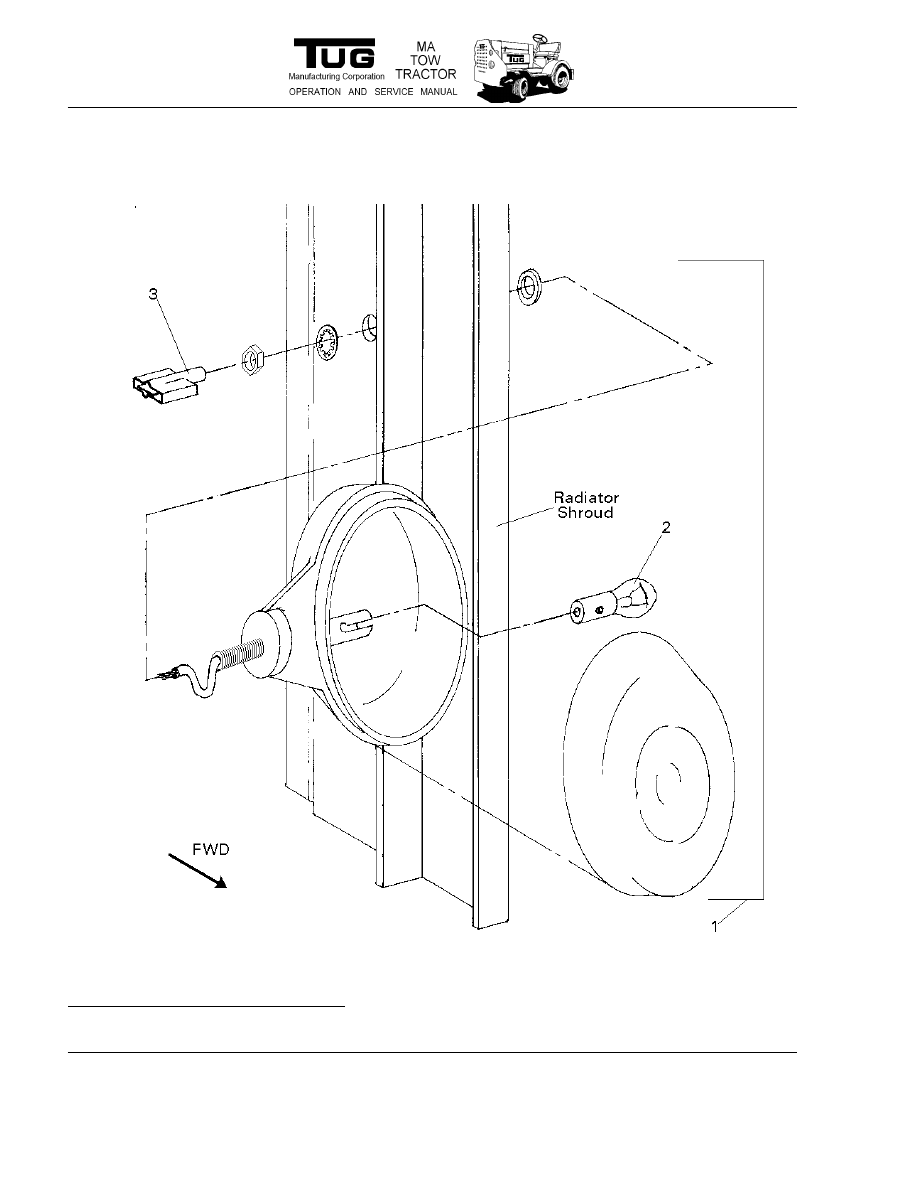

Headlight Assembly

2

Note 1

12-2

187 4929190

T6-1300-247b

Sealed Beam, Halogen

2

"

12-3

----- ----------------

1/4-20nc

Locknut

2

"

12-4

56 852145

----------------

ring connector

2

001 & Up

12-5

56 634005

----------------

male connector, quick disconnect

2

"

12-

----- 805000

T6-1300-248

Headlight Assembly, Betts (UPS)

2

As Req’d

1. Headlight Assembly T6-1300-247 (item 1) is provided as original equipment on units from serial number

4806. Sealed beam T6-1300-247B (item 2) is not interchangeable with original equipment on units 001
through 4805. Replacement of sealed beam on units 001 through 4805 requires replacement of headlight
assembly with item 1. Item 2 is included in item 1 or is available separately.

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 46

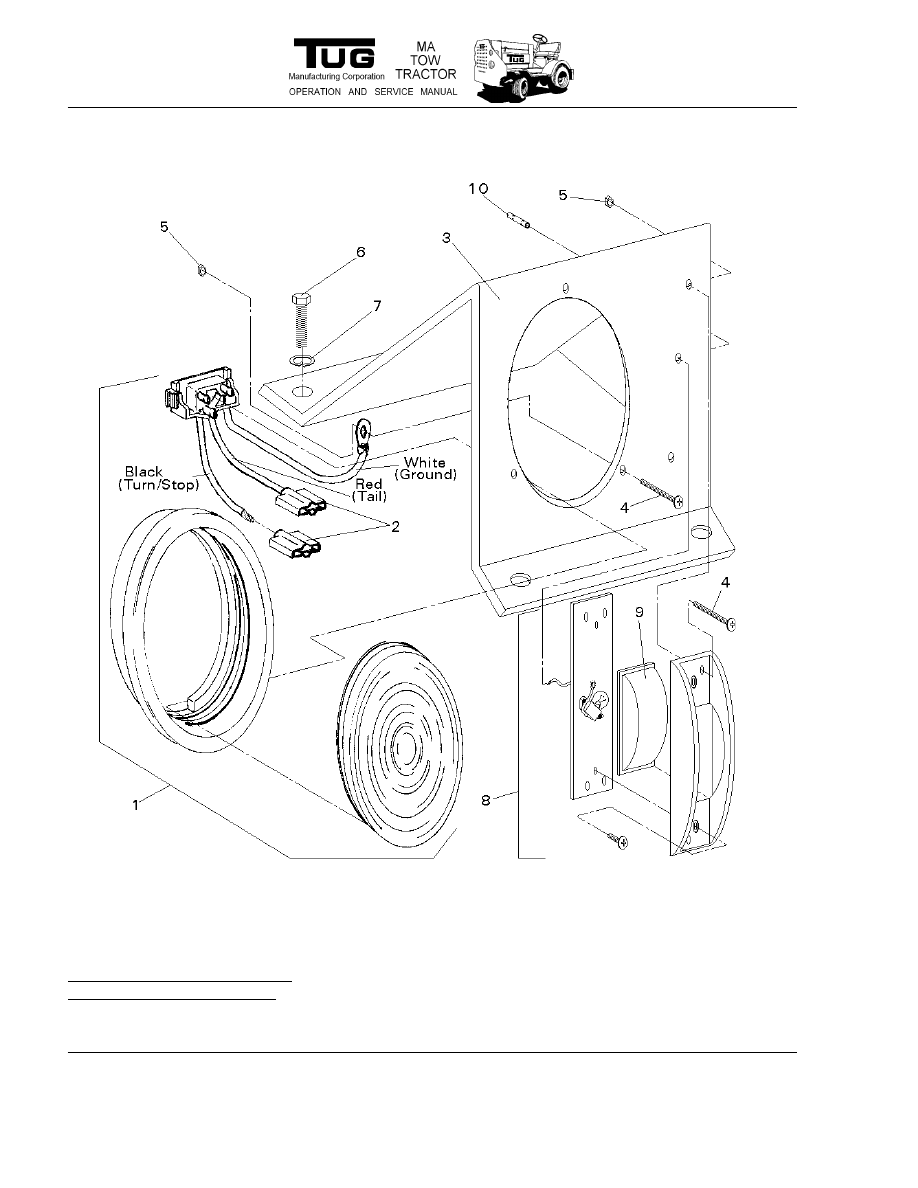

Figure 13: Tail Light/Stop Light
and Back Up Light Assembly

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 47

13-1

213 40042r

T6-7006-101a

tail/stop light kit, plastic

Ref. As Req'd

155 m413-3

T6-7006-101

tail/stop light assembly, steel frame (note 1)

Ref.

"

13-

22 1157

----------------

bulb, double filament, steel frame light

*1

"

13-2

56 634005

----------------

male connector, quick disconnect

*2

001 & Up

13-

213 426ka

T6-7006-115

rear turn signal

2

As Req'd

13-3

----- ----------------

T6-7017-102

stop light bracket, rh (non-cab only)

1

"

----- ----------------

T6-7017-101

stop light bracket, lh (non-cab only)

1

"

13-

----- ----------------

T6-9011-340

turn signal box, roof mount (cab only)

2

"

13-4

----- ----------------

#10-32nfx1"

screw

Ref.

"

13-5

----- ----------------

#10-32nf

locknut

Ref.

"

13-6

----- ----------------

3/8-16ncx3/4"

Hex Head bolt

8

"

13-7

----- ----------------

3/8

lock washer

8

"

13-8

155 m124a

T6-7006-107

armored light (note 2)

2

"

213 40004

T6-7006-107a

back-up light kit, plastic

2

"

13-9

22 680-2125

T6-7006-109

lens, back-up light, armored

2

"

213 414-15c

x6021-101

lens, backup-light, steel frame (note 3)

2

"

13-10

56 42205

----------------

connector

2

"

13-

----- ----------------

T6-7018-101

L/H Tail/Backup Brkt

2

101 & Up

13-

----- ----------------

T6-7018-102

R/H Tail/Backup Brkt

2

“

1. Steel frame tail/stop light assembly T6-7006-101does not include double filament bulb 1157.
2. Armored light T6-7006-107 does not include lens T6-7006-109.
3. Back-up light lens X6021-101 is used with steel frame tail/stop light assembly T6-7006-101 to provide steel

frame back-up light.

* Quantity shown is for one assembly.

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 48

Figure 14: Front Turn Signal Assembly
