Model MA TOW Tractor. Manual - part 31
Chapter 4: Illustrated Parts List
Jan. 1997
Section 4-2
p. 9
2-1
----- ----------------
T6-4004-103

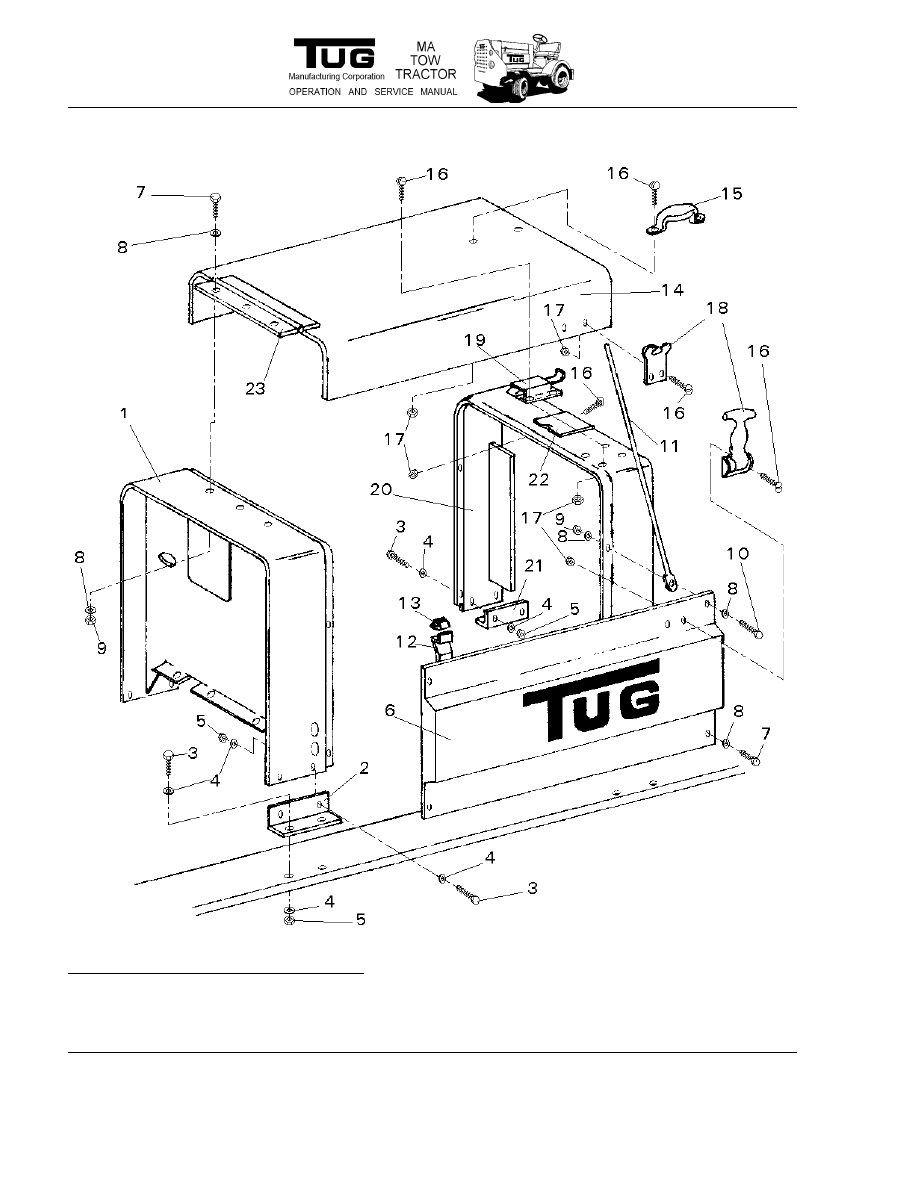

Firewall
1
001 & Up
2-2
----- ----------------
T6-4004-116
Mounting angle, firewall, rh
1
"
2-
----- ----------------
T6-4004-115
Mounting angle, firewall, lh
1
"
2-3
----- ----------------
3/8-16ncx1"
Hex head bolt
16
"
2-4
----- ----------------
3/8
Flat washer
32
"
2-5
----- ----------------
3/8-16nc
Locknut
16
"
2-6
----- ----------------
T6-4006-104
Engine compartment side panel, rh (gas)
1
As Req'd
----- ----------------
T6-4206-106
Side Panel, Diesel
1
"
----- ----------------
T6-4006-106
Engine compartment side panel, rh (diesel, pwr steering)
1
"
2-
----- ----------------
T6-4006-103
Engine compartment side panel, lh
1
001 & Up
2-7
----- ----------------
1/4-20ncx1/2"
Hex head bolt
10
"
79 m01517
T6-4006-121
Fastener, quarter-turn, compartment side panel, bottom
4
As Req'd
----- ----------------
T6-4006-121UPS
Fastener, 1/4 Turn -UPS
4
“
2-8
----- ----------------
1/4
Flat Washer
22
001 & Up
2-9
----- ----------------
1/4-20nc
Locknut
11
"
2-10
----- ----------------
1/4-20ncx1"
Hex head bolt
10
"
2-11
----- ----------------
T6-4005-119
Hood prop rod, side
1
1338 & Up
----- ----------------
T6-4005-101
Hood prop rod, center
1
001-1337
2-
----- ----------------
T6-4005-113
Angle, hood prop rod
2
"
2-12
----- ----------------
T6-4005-117
Support, hood prop
2
1338 & Up
2-13
----- ----------------
T6-4005-121
Clip, hood prop
1
"
2-14
----- ----------------
T6-4005-120
Hood, with side prop
1
1338 & Up
----- ----------------
T6-4005-103
Hood, with center prop
1
001-1337
2-15
----- ----------------
T6-4005-109
Handle
1
001 & Up
2-16
----- ----------------
#10-32nfx1"
Screw
19
"
2-17
----- ----------------
#10-32nf
Locknut
19
"
2-18
----- ----------------
T6-4006-111r
Hood latch assembly, rubber
2
As Req'd
----- ----------------
T6-4006-111
Hood latch assembly
2
"
Fig &
Co Vendor Part
Tug Part Number
Description
Qty
Effective
Ind#
de Number
