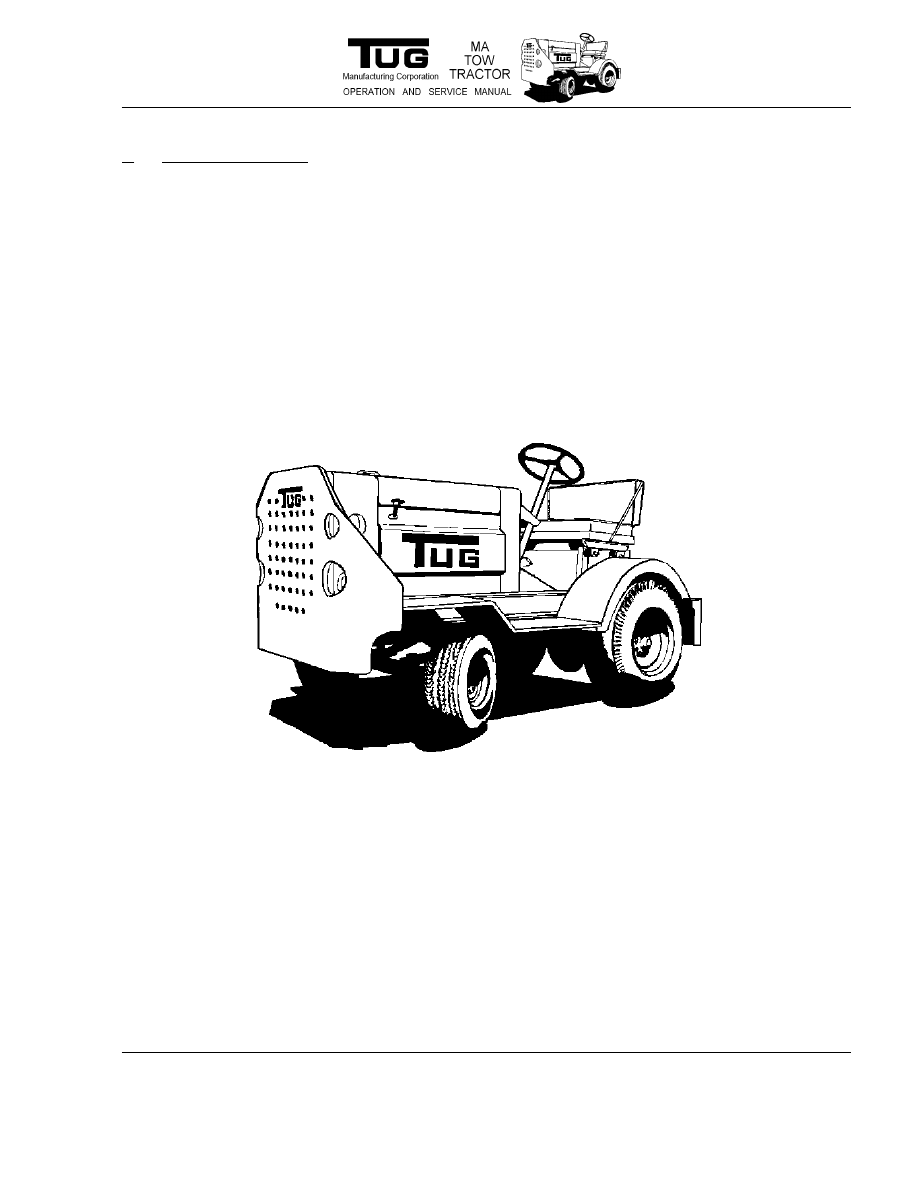

Model MA TOW Tractor. Manual - part 29

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 1

II.

Illustrated Parts List

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 2

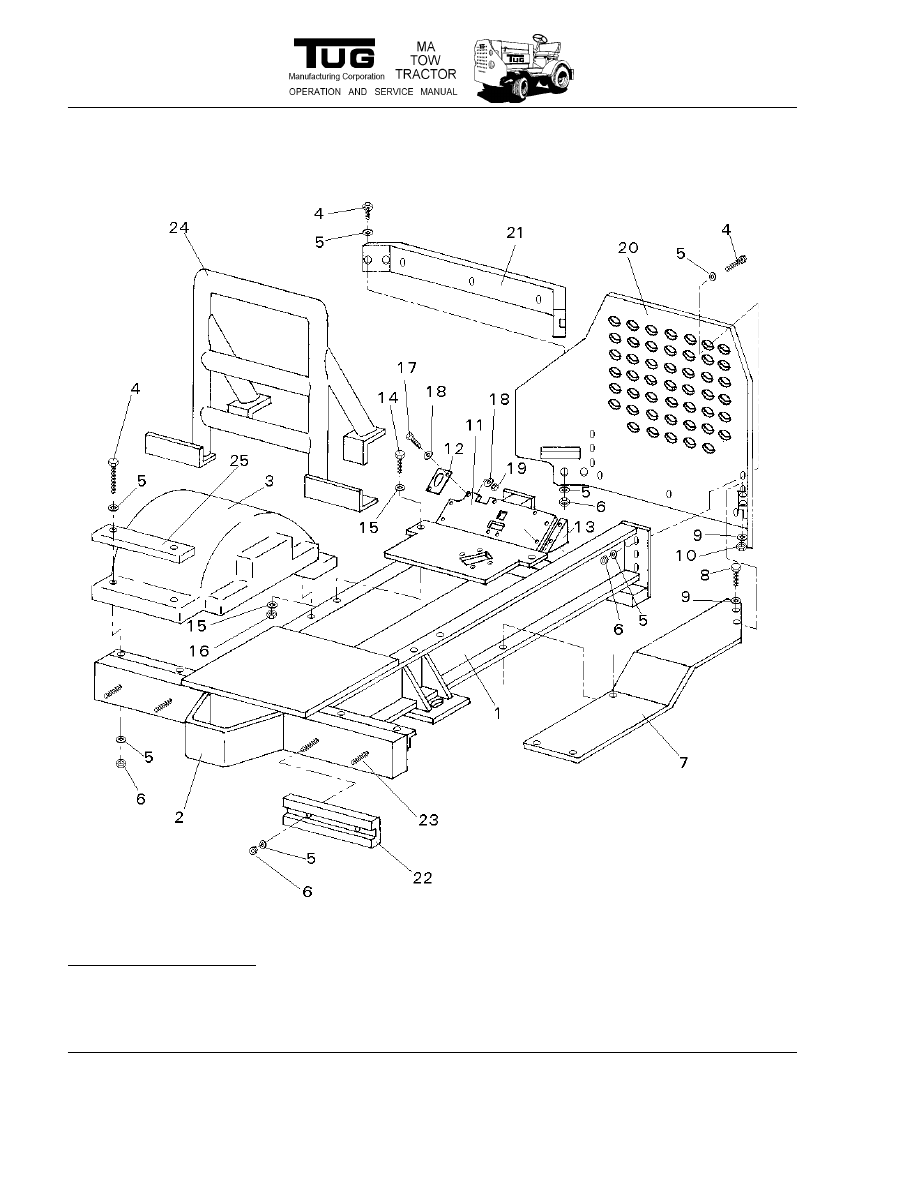

Figure 1: Frame Assembly

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 3

1-1

----- ----------------

T6-4011-115

Frame Weldment

1

001-020

----- ----------------

T6-4001-133LM

Frame Weldment, MA-30, 40 Gas, herc. diesel

1

As Req'd

----- ----------------

T6-4001-137

Frame Weldment, MA-50 Gas, hercules diesel

1

"

----- ----------------

T6-4201-133D

Frame Weldment, MA-30 Perkins Diesel

1

"

----- ----------------

T6-4201-137d

Frame Weldment, MA-50 Perkins Diesel

1

"

----- ----------------

T6-4201-133on

Frame Weldment, MA-30 Cummins/Onan Diesel 1

"

----- ----------------

T6-4201-137on

Frame Weldment, MA-50 Cummins/Onan Diesel 1

"

----- ----------------

T6-4001-133GL

Frame Rail, L/H Gas

1

“

----- ----------------

T6-4001-133GR

Frame Rail, R/H Gas

1

“

1-2

----- ----------------

T6-4014-123

Hitch Extension, Standard, Undrilled

1

"

----- ----------------

T6-4014-123h

hitch extension, holland 400 hitch

1

"

----- ----------------

T6-4014-123p

Hitch extension, pintle hitch

1

"

----- ----------------

T6-4014-123ups

Hitch extension, e-hitch (ups)

1

"

----- ----------------

T6-4014-123twa

Hitch extension, e-hitch (twa)

1

"

----- ----------------

T6-4014-123eal

Hitch extension, e-hitch (eastern air lines)

1

"

----- ----------------

T6-1300-314

Hitch extension, slotted

1

"

----- ----------------

T6-4014-125

Hitch extension block

1

"

1-

----- ----------------

T6-4044-127

Backing plate for slotted hitch extention

1

"

1-

----- ----------------

T6-4011-121

Bracket, Magnet -UPS

1

“

1-

----- ----------------

T6-9011-393

36” Rear Magnet

1

“

1-

----- ----------------

T6-9011-364

48" Rear Magnet

1

"

1-

----- ----------------

660-ND-1816

60” Rear Magnet

ref

“

1-

----- ----------------

T6-9011-326

Chain, 3/8", Rear Magnet

2

"

1-

----- ----------------

T6-9011-411

3/8” Quick Link

2

“

1-

----- ----------------

T6-9011-412

Eyebolt, 1/2” for Magnet Chain

2

“

1-3

----- ----------------

T6-4002-101

Rear fender, lh, light

1

Note 1

----- ----------------

T6-4002-103

Rear fender, lh, heavy

1

Note 2

1-

----- ----------------

T6-4002-102

Rear fender, rh, light

1

Note 1

----- ----------------

T6-4002-104

Rear fender, rh, heavy

1

Note 2

1-

----- ----------------

T6-4001-138

Rear Bumper, Special 3” Cut w/cutout

1

As Req'd

----- ----------------

T6-4034-201

Luggage Rack, NWA

Ref

“

1-4

----- ----------------

1/2-13ncx3"

Hex head bolt

Ref. 001 & Up

1-5

----- ----------------

1/2

Flat washer

Ref.

"

1-6

----- ----------------

1/2-13nc

Locknut

Ref.

"

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

NOTE:  ma-30 and ma-40 use ma-30 frame. heavier tractors use ma-50 frame.

1. Used on MA-30 frames through serial number 6513.

2. Used on MA-50 frames through serial number 6513 and all frames thereafter.

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 4

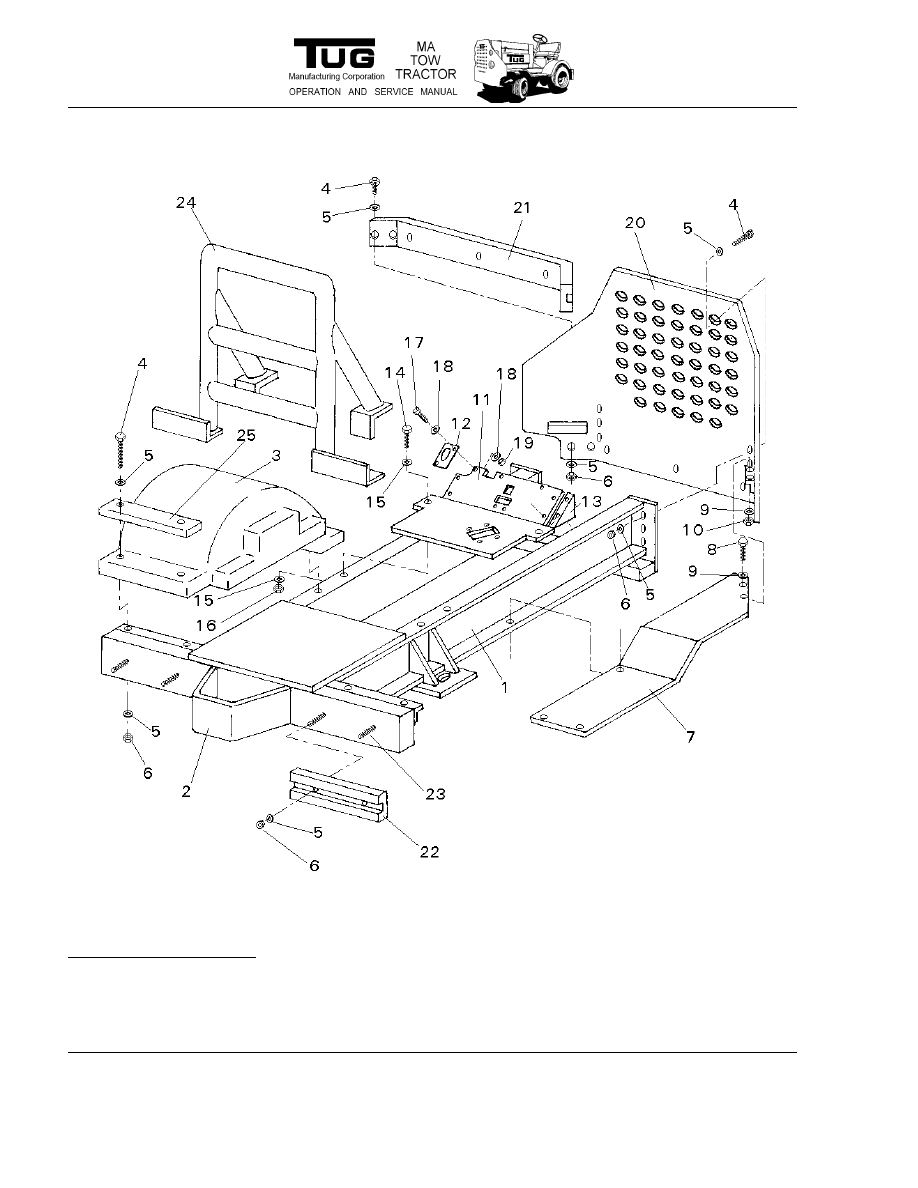

Figure 1: Frame Assembly
