Model MA TOW Tractor. Manual - part 32

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 13

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

3-1

----- ----------------

T6-4011-101

Seat frame assembly, 33"

1

Note 1

----- ----------------

T6-4511-151

Seat frame assembly, 39"

1

"

3-2

----- ----------------

T6-4013-101

Cushion, seat bottom, 33"

1

"

----- ----------------

T6-4513-101

Cushion, seat bottom, 39"

1

"

3-3

----- ----------------

T6-4013-103

Cushion, seat back, 33"

1

"

----- ----------------

T6-4513-103

Cushion, seat back, 39"

1

"

3-4

----- ----------------

T6-9005-109a

Asset number plate

1

As Req'd

3-5

----- ----------------

1/4-20ncx1"

Hex head bolt

4

Note 1

3-6

----- ----------------

1/4

Lock washer

4

"

3-7

----- ----------------

T6-4012-103

Angle, seat support, lh, ma-30

1

Note 2

----- ----------------

T6-4012-109

Angle, seat support, lh, ma-50

1

Note 3

----- ----------------

T6-4012-113

Angle, seat support, lh

1

Note 4

3-

----- ----------------

T6-4012-104

Angle, seat support, rh, ma-30

1

Note 2

----- ----------------

T6-4012-110

Angle, seat support, rh, ma-50

1

Note 3

----- ----------------

T6-4012-114

Angle, seat support, rh

1

Note 4

3-8

----- ----------------

T6-4012-105

Strap, seat support, ma-30

2

Note 2

----- ----------------

T6-4012-111

Strap, seat support, ma-50

2

Note 3

----- ----------------

T6-4012-115

Strap, seat support,

2

Note 4

3-9

92 50x55

T6-4012-107

Rubber seat mount

4

001 & Up

3-10

----- ----------------

1/2-13ncx1"

Hex head bolt

12

"

3-11

----- ----------------

1/2

Lock washer

8

"

3-12

----- ----------------

3/8-16ncx1"

Hex head bolt

8

"

3-13

----- ----------------

3/8

Lock washer

8

"

3-14

55 730-3042

660-6-0581-25

Safety belt, standard

2

As Req'd

55 ZA2611-48-02-1091 T6-9011-103

Safety belt, retracting

2

"

3-15

----- ----------------

1/2

Flat washer

4

001 & Up

3-16

----- ----------------

1/2-13nc

Locknut

4

"

Note: ma-30 and ma-40 use ma-30 frame. heavier tractors use ma-50 frame.

1. Used on tractors equipped with standard bench seat only.

2. Used on MA-30 frames through serial number 230.

3. Used on MA-50 frames through serial number 361.

4. Used on MA-30 frames from serial number 231 and all frames from serial number 362.

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 14

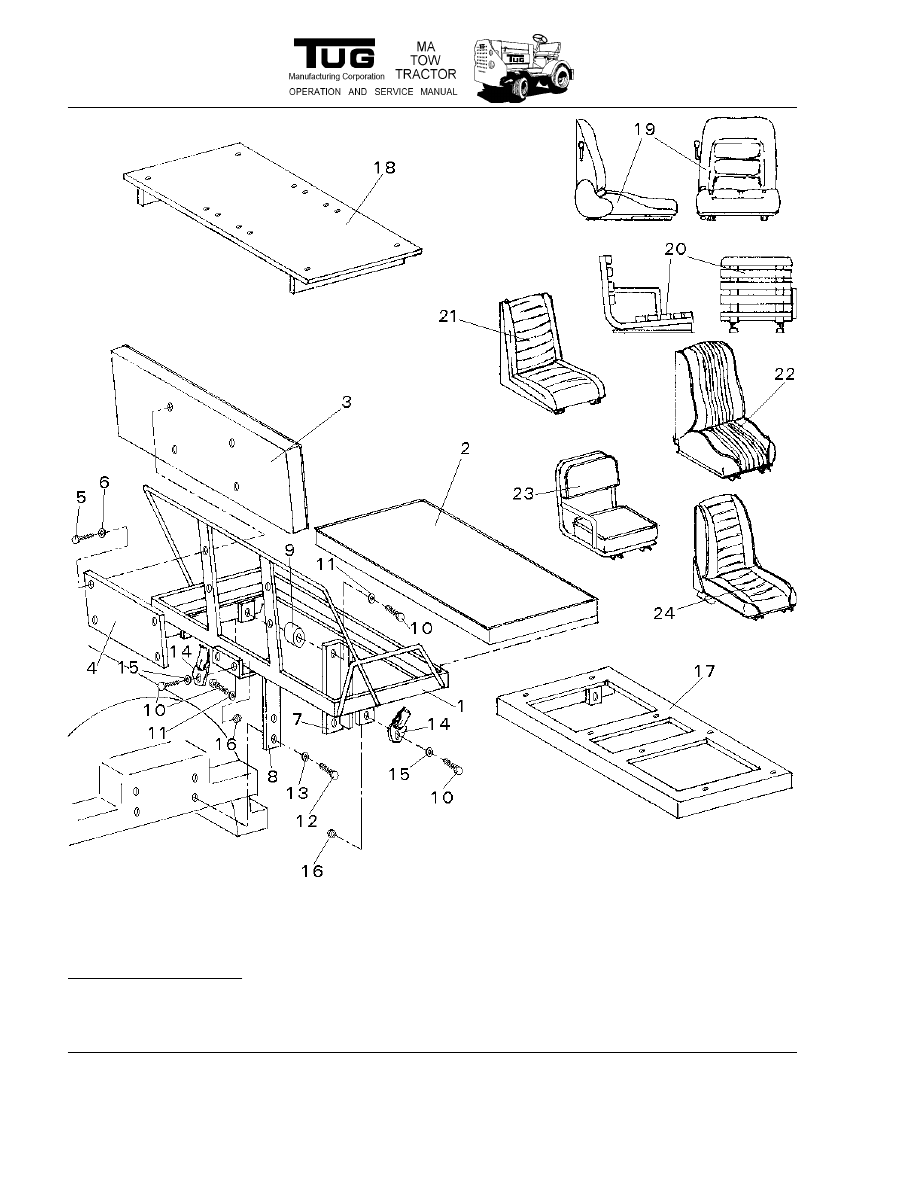

Figure 3: Seat Assembly

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 15

3-17

----- ----------------

T6-4202-103

Seat frame, Dual bucket seats

1

As Req'd

3-18

----- ----------------

T6-4202-201

Seat Plate, Dual Grammer Seats

1

"

----- ----------------

T6-1300-312

Seat Plate, single Grammer Seat

1

"

3-19

246 127266

T6-9011-227

Seat (grammer), without switch

Ref.

"

246 116356

MG-nd-716

Seat (grammer), vinyl, with switch

1

"

246 121478

T6-9011-147

Seat (grammer), cloth, with switch

1

"

3-20

----- ----------------

660-4-0649

Seat assembly, wood, left arm rest

1

"

----- ----------------

660-4-0649s

Seat assembly, wood, left and right arm rests

1

"

3-

----- ----------------

660-4-0649-1

Seat slide (Note 6)

1

Note 5

3-

----- ----------------

660-4-0650

Frame, wooden seat

2

As Req'd

3-

----- ----------------

660-2-0689

Strip, oak (wooden seat)

7

"

3-

----- ----------------

660-2-0690

End strip, oak (wooden seat)

2

"

3-21

233 WM366S

MD-F14-103

Seat, padded bucket, with switch

1

"

3-22

233 wm740

MD-F14-107

Seat, padded bucket

2

"

3-23

233 wm451

T6-4202-115

Seat assembly (Obsolete -No Longer Avail.)

1

"

3-24

233 WM917

4-100-101-a

Seat

2

"

3-

233 60hd

T6-1300-153

Shell, plastic seat

2

"

3-

----- ----------------

T6-9011-225

Frame, plastic seat

2

"

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

5. Used on tractors equipped with wooden or plastic seats.

6. One seat slide assembly per seat.

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 16

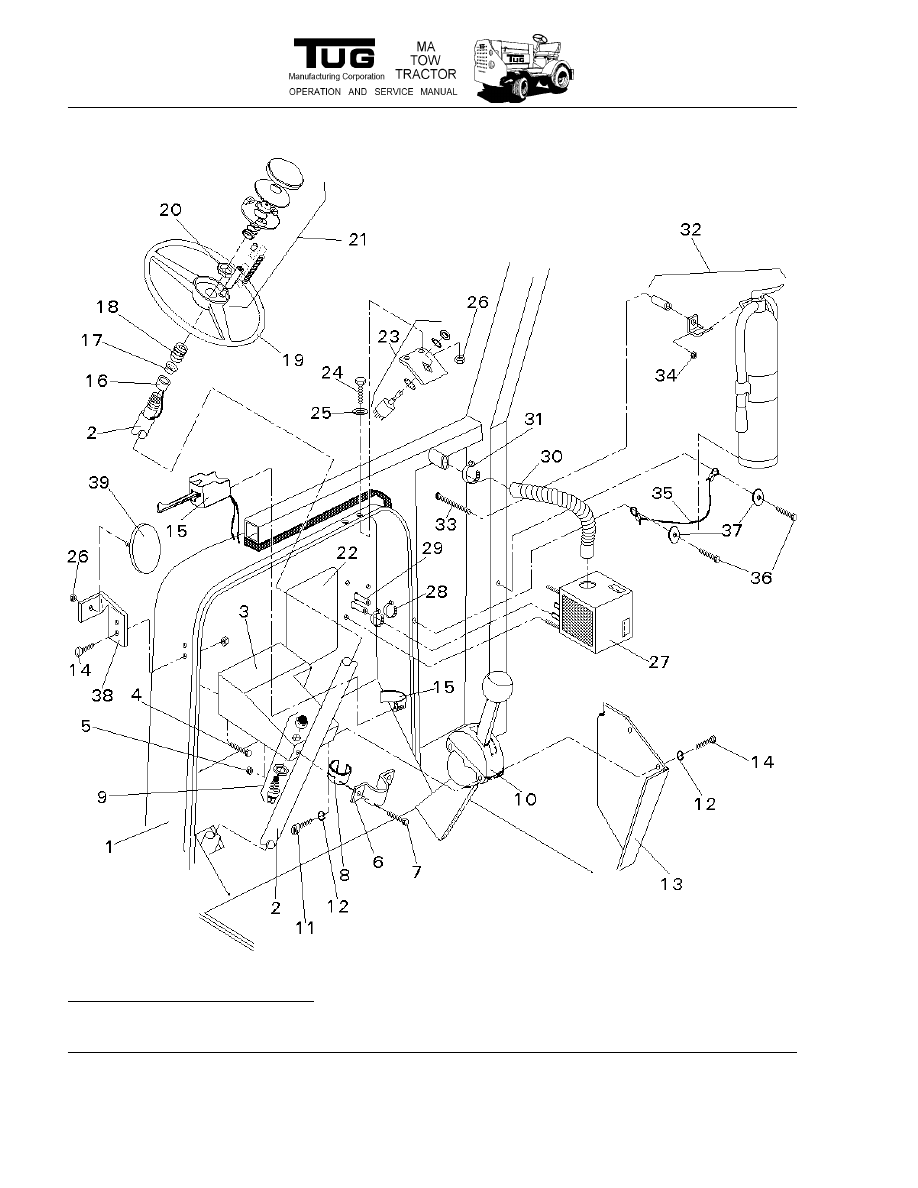

Figure 4: Firewall, Operator's Side
