Check parking brake engagement

Make  sure  that  the  ratchet  locking  mechanism  of  the
parking brake is secure and reliable.

The  parking  brake  hand  lever  is  directly  linked  to  the
brake pedals.
Make  sure  that  free  travel  is  identical  for  both  pedals,
since free travel of the pedals determines the free travel of
the parking brake and left/right distribution of the braking
action when the brakes are locked.

Once you have adjusted the brake pedals, adjust the free
travel of the parking brake by means of the adjuster nut
(3) on the brake lever, so that the parking brake engages
after 2-3 clicks of the ratchet mechanism.

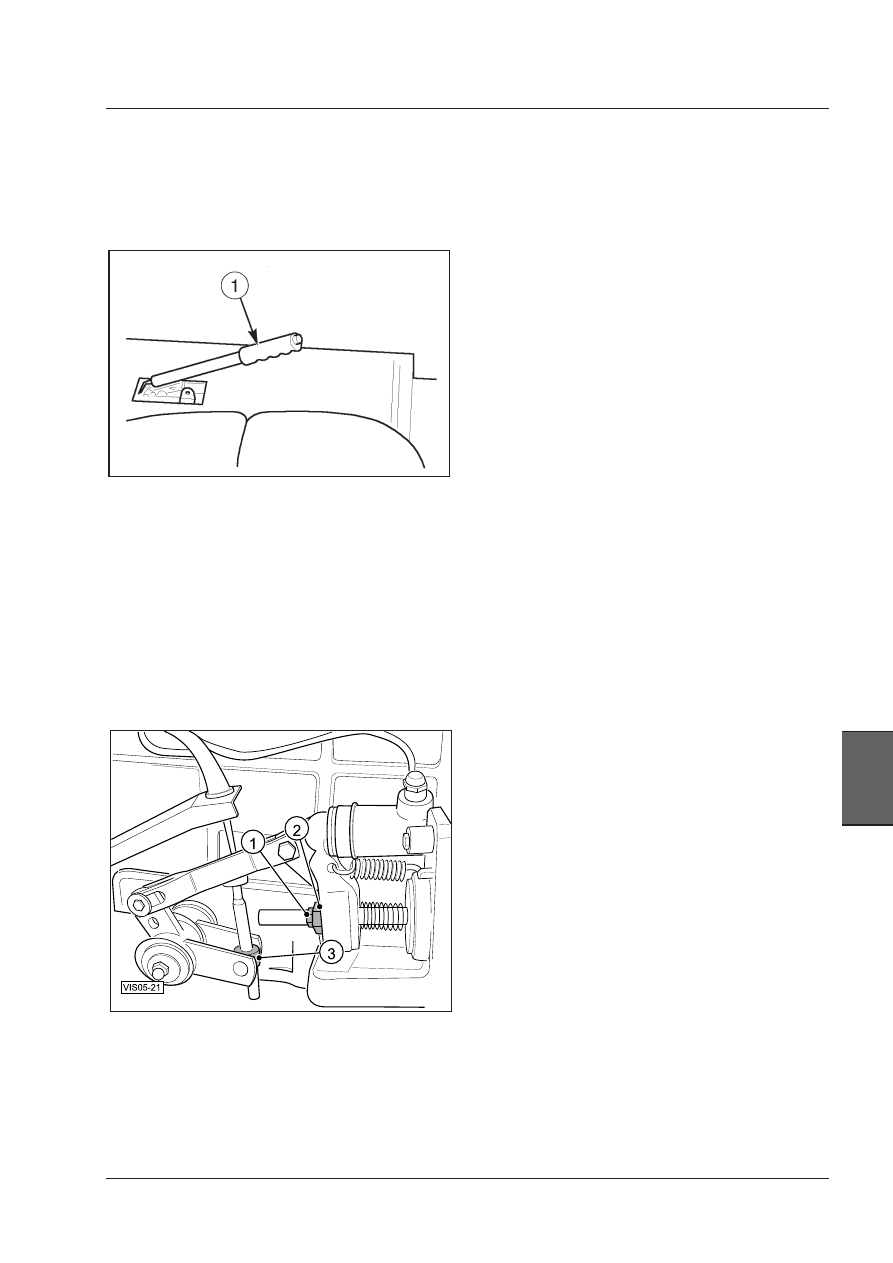

Travel adjustment of the lh brake pedal and parking
brake hand lever.
1 -  Fixing nut.
2 - Brake adjustment nut.
3 - Fixing and adjuster nut of the parking brake.

100 HOUR MAIN SERVICE

WARNING: Always use specific personal safety devices
for each operation. Beware of burns caused by hot
tractor parts.

 [4.1.n]

188

Maintenance

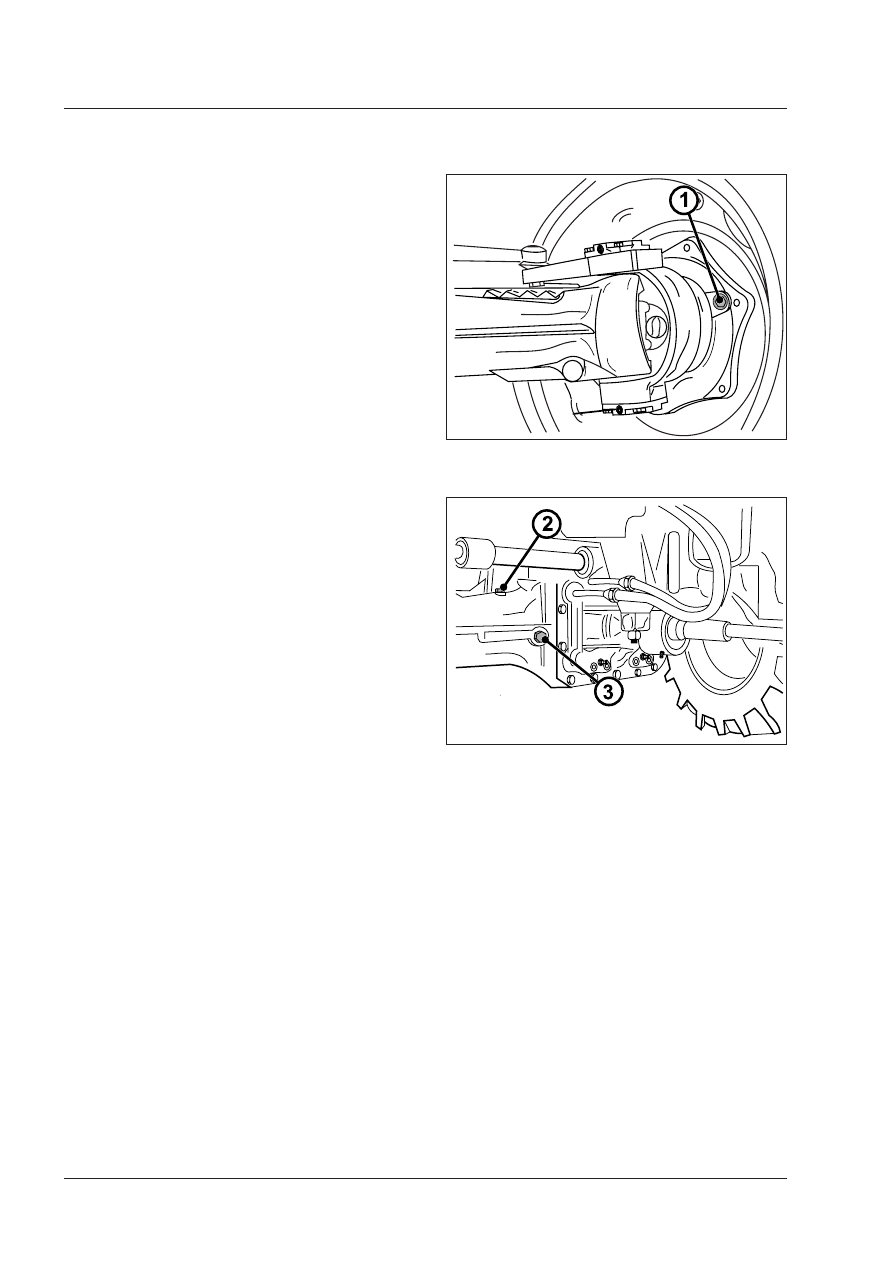

Front axle oil level

4WD front axle

Regularly check the oil level in the differential of the
front axle and in the front axle side final drives.

1. Park the tractor on level ground

2. Position the final drive plugs (1) on the wheel center

line. Remove the plugs and check the level. Top up if
necessary  with  oil  of  the  specified  type  through  the
plugs themselves..

3. Remove the level plug (3) from the central axle housing.

The oil level must reach the hole. Top up if necessary
with oil of the specified type through the plug (2).

NOTE: See the Fuel and Lubricant chart for the correct
type of oil.

100 HOUR MAIN SERVICE

WARNING: Always use specific personal safety devices
for each operation. Beware of burns caused by hot
tractor parts.

 [4.1.n]

189

Maintenance

7

100 HOUR MAIN SERVICE

General lubrication

Lubricate the grease points every 100 hours or more
often, depending on the working conditions.

Grease Points

NOTE: Use lithium grease of the prescribed type.

NOTE: In severe conditions lubricate these points more
frequently.

NOTE: Lubricate if not used frequently and also after wash-
ing with water pressure hose.

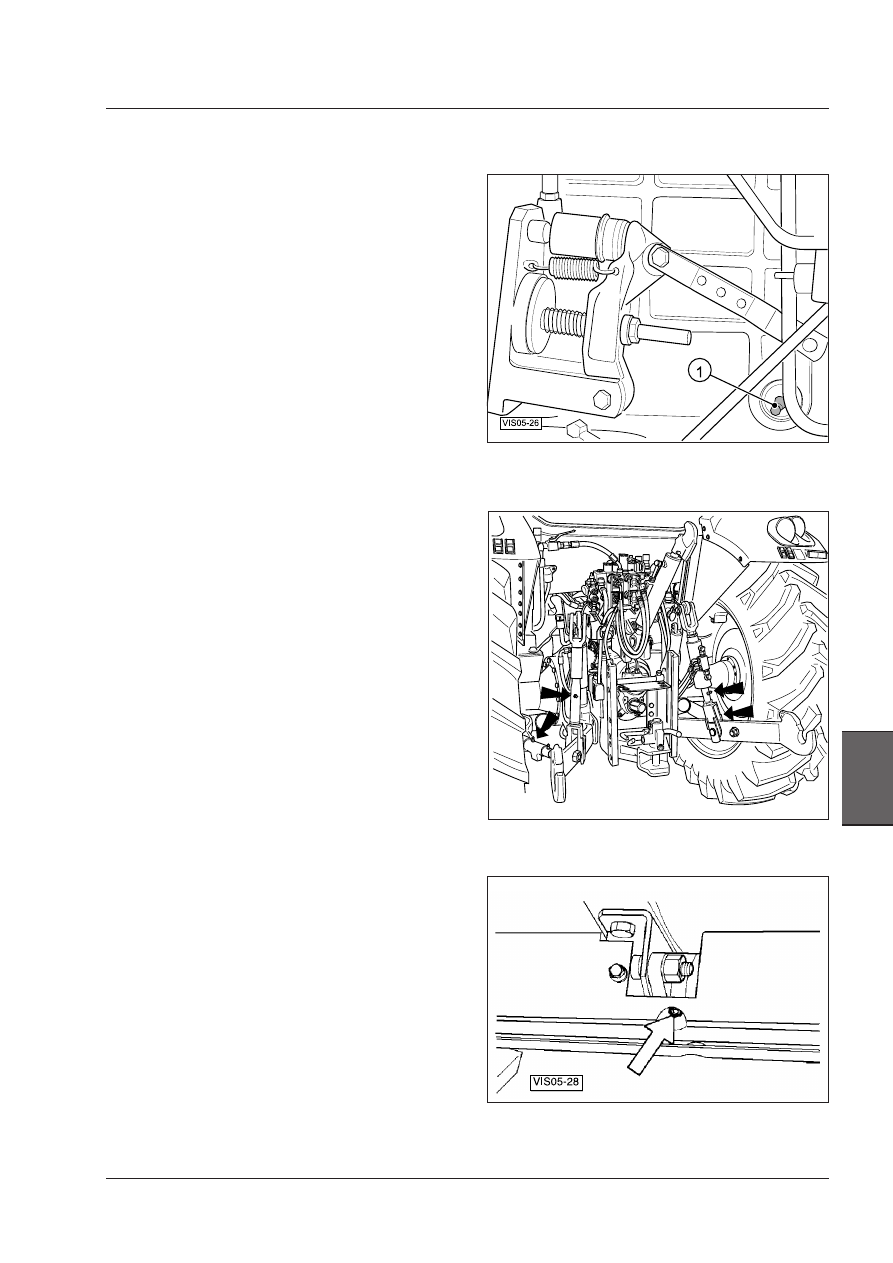

Grease nipples on brake control cross link, two points.

Three point linkage.

4WD drive shaft thrust bearing.

WARNING: Always use specific personal safety devices
for each operation. Beware of burns caused by hot
tractor parts.

 [4.1.n]

190

Maintenance

WARNING: Always use specific personal safety devices
for each operation. Beware of burns caused by hot
tractor parts.

 [4.1.n]

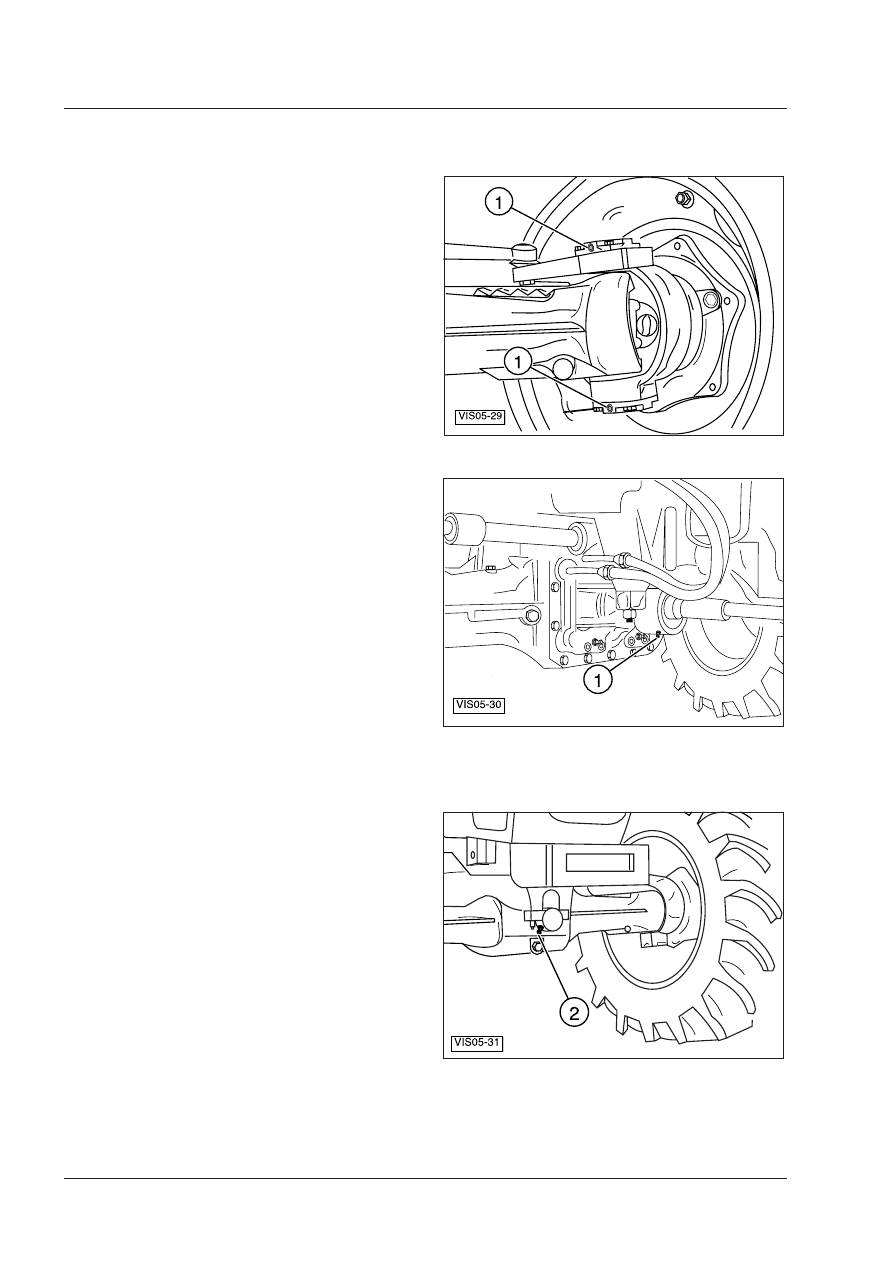

4WD front axle greasing

Lubricate the following greasing nipples every 100
hours or more frequently, depending on work condi-
tions.

Grease Points

NOTE: Use lithium grease of the prescribed type.

NOTE: In severe conditions lubricate these points more
frequently.

NOTE: Lubricate if not used frequently and also after wash-
ing with water pressure hose.

2 - Grease nipple of rear pivot bushing of the front axle.

1 - Grease nipple of front pivot bushing of the front axle.

1 - Kingpins of 4WD axle (2 pcs).

100 HOUR MAIN SERVICE
