Section 09 REAR SUSPENSION
Subsection 02 (SC 3 SUSPENSION)

A33F40T

2.5 N•m

(23 lbf•in)

4 N•m

(35 lbf•in)

4.5 N•m

(40 lbf•in)

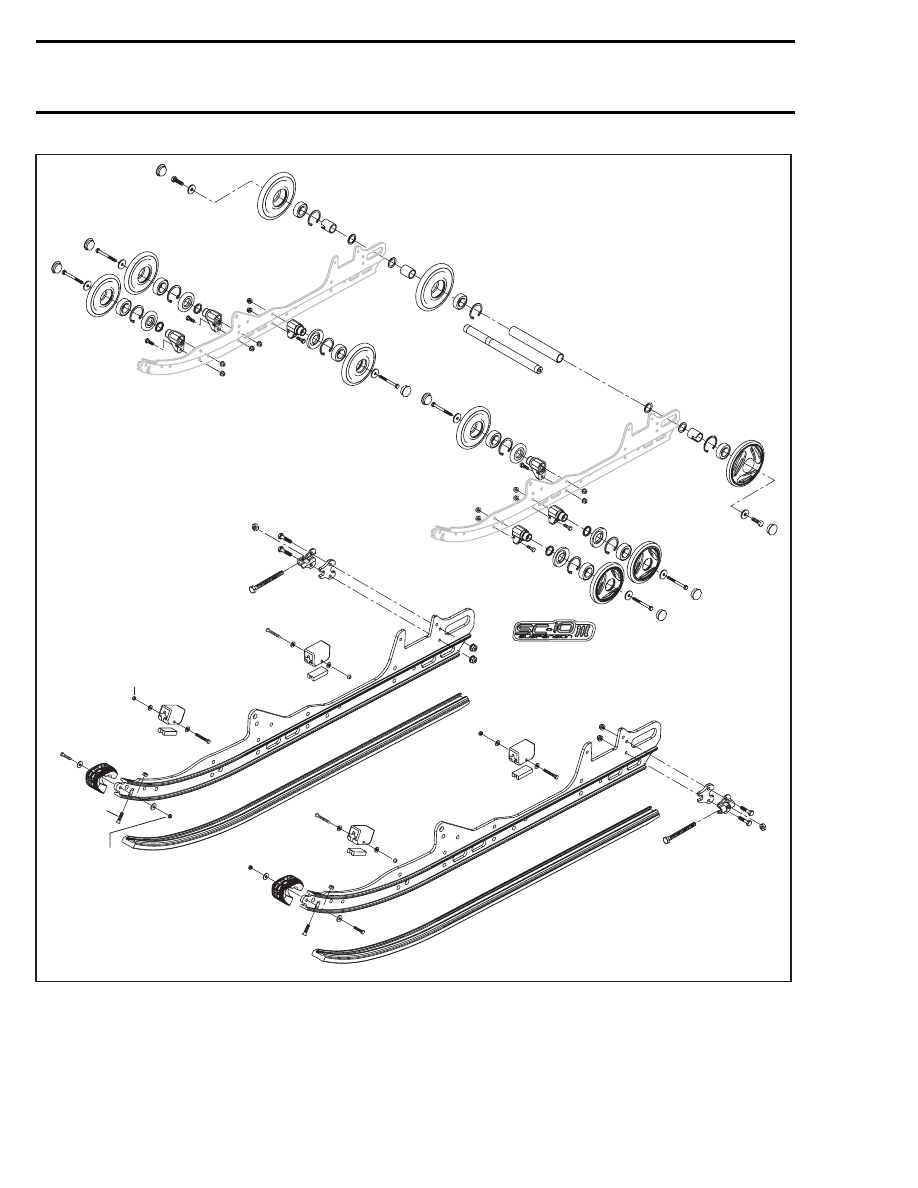

RAILS AND IDLER WHEELS

396

mmr2005-095

Section 09 REAR SUSPENSION

Subsection 02 (SC 3 SUSPENSION)

A33F41T

2.5 N•m

(22 lbf•in)

Suspension

synthetic grease

Suspension

synthetic grease

3 N•m

(27 lbf•in)

24.5 N•m

(18 lbf•ft)

3 N•m

(27 lbf•in)

4.5 N•m

(40 lbf•in)

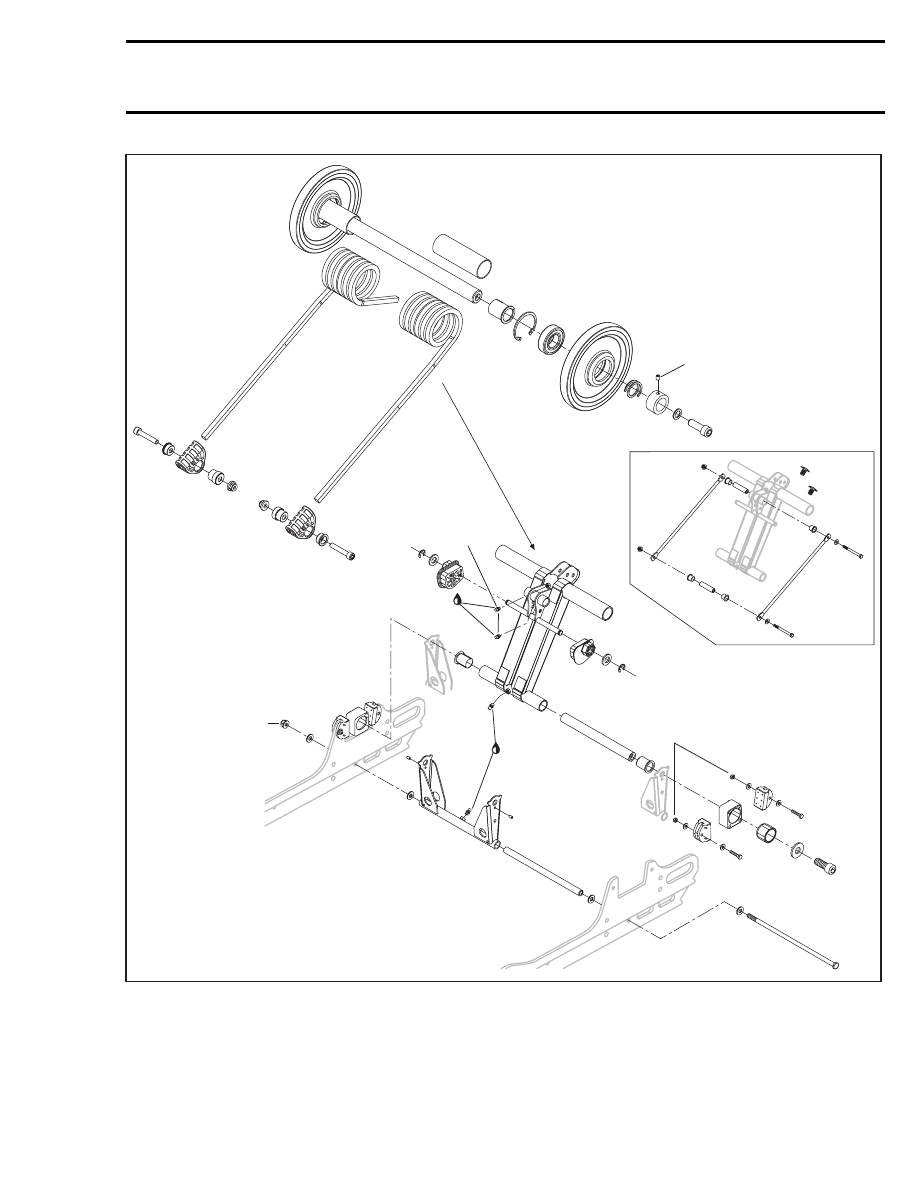

REAR ARM AND UPPER IDLER WHEELS

mmr2005-095

397

Section 09 REAR SUSPENSION
Subsection 02 (SC 3 SUSPENSION)

Suspension

synthetic

grease

A33F6CS

11 N•m

(97 lbf•in)

Suspension

synthetic grease

3 N•m

(27 lbf•in)

3 N•m

(27 lbf•in)

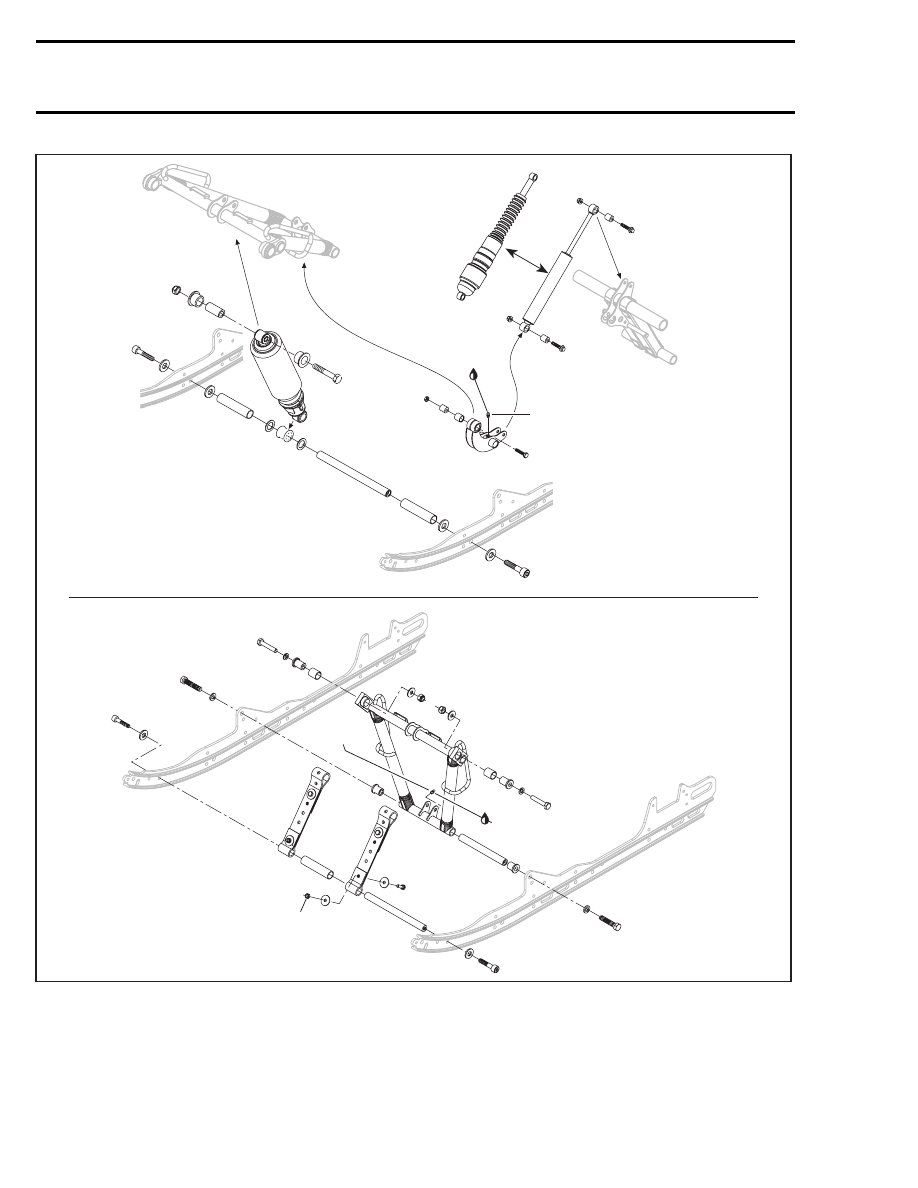

FRONT ARM AND SHOCK ABSORBERS

398

mmr2005-095

Section 09 REAR SUSPENSION

Subsection 02 (SC 3 SUSPENSION)

AXLE SELF-LOCKING SCREWS
REMOVAL

CAUTION: These self-locking screws must al-
ways be replaced by new ones everytime they
are removed.

NOTE: To prevent axle from turning when un-
screwing self-locking screws, proceed as follows:

– Remove one self-locking screw then install a

10 mm shorter non-self-locking one in place.
Torque as specified in exploded view.

– Remove the opposite self-locking screw.
– Remove the temporary installed non-self-lock-

ing screw.

– If it doesn’t work, heat bolt head to melt thread-

locker.

REAR AXLE REMOVAL

Lift rear of vehicle and support it off the ground.

Remove screws on rear axle.

Completely loosen track tension.

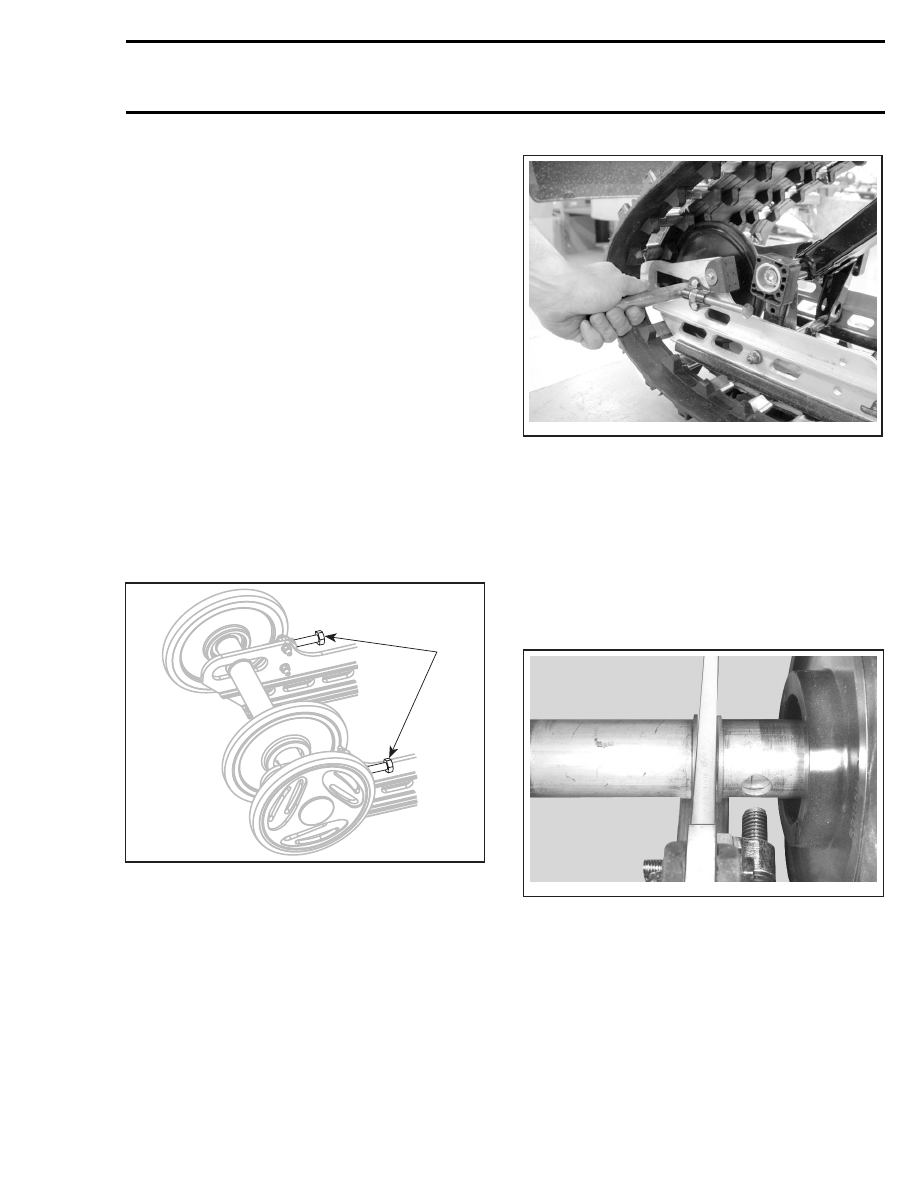

A33F57A

1

TYPICAL
1. Completely loosen track tension

Pull out rear axle from RH side of vehicle.

A33F5JA

TYPICAL — PULL OUT REAR AXLE

REAR AXLE INSTALLATION

Installation is reverse of removal procedure. Pay
attention to the following details.

Hole of outer bushing must face adjustment
screw.

Make sure to reinstall washer on each side of run-
ner.

A32F12A

OUTER BUSHING POSITION

REAR SHOCK ABSORBER
REMOVAL

Lift rear of vehicle and support it off the ground.

Remove shock upper and lower bolt and nut

mmr2005-095

399
