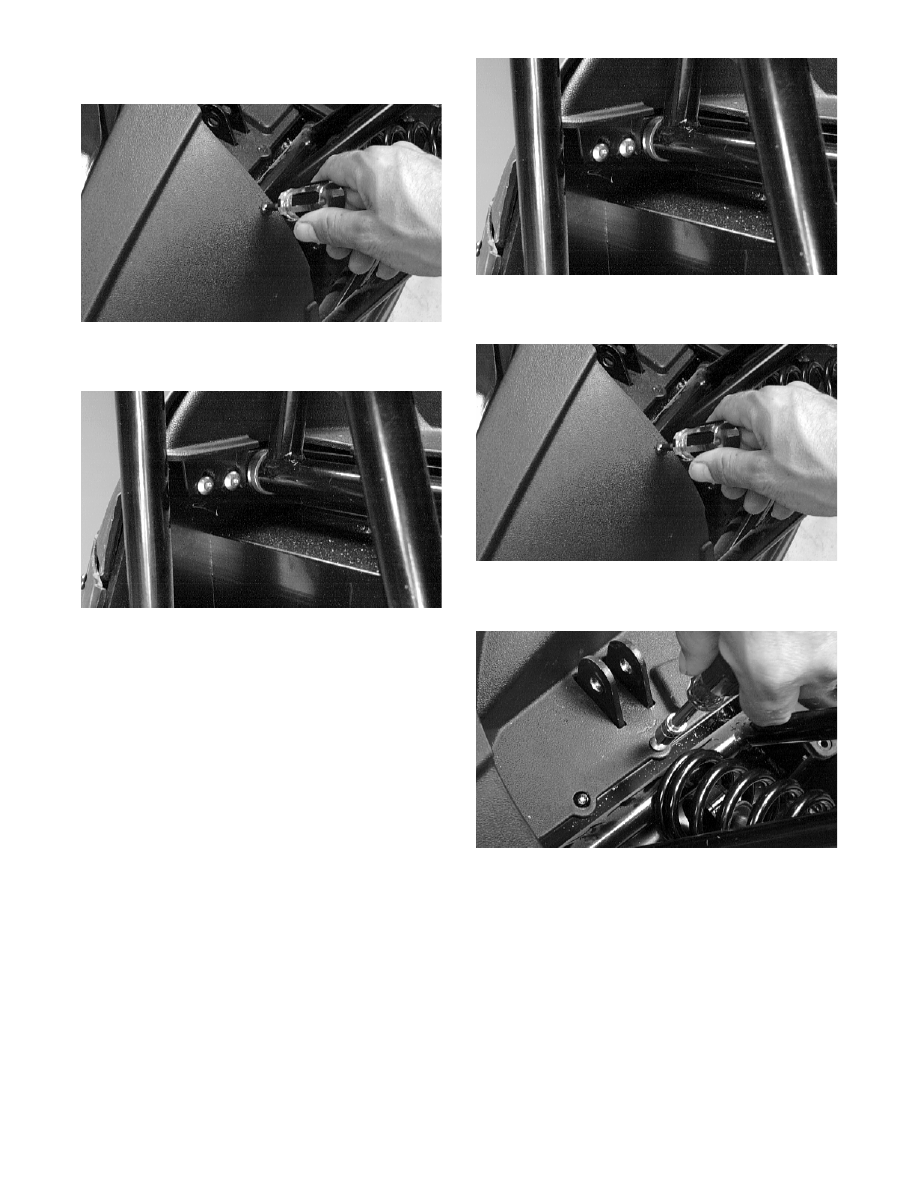

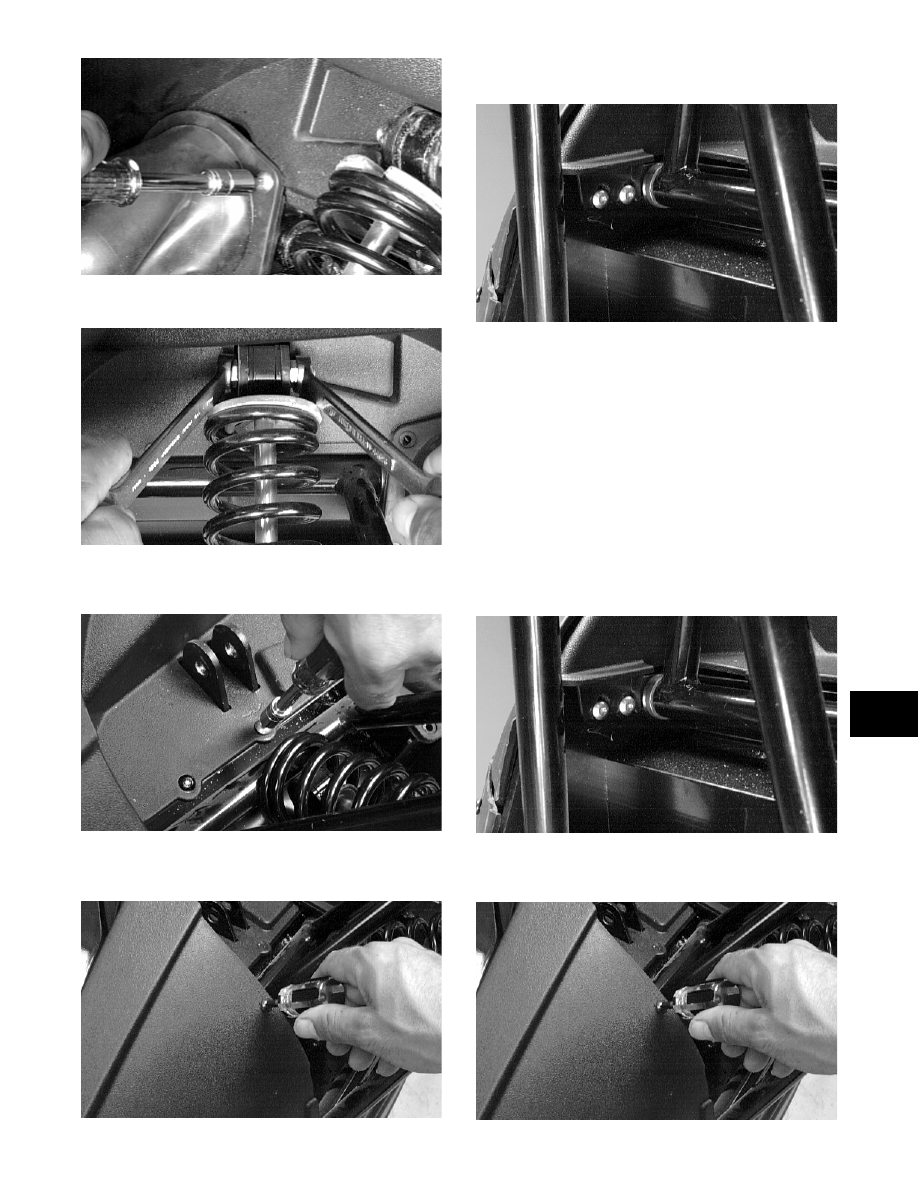

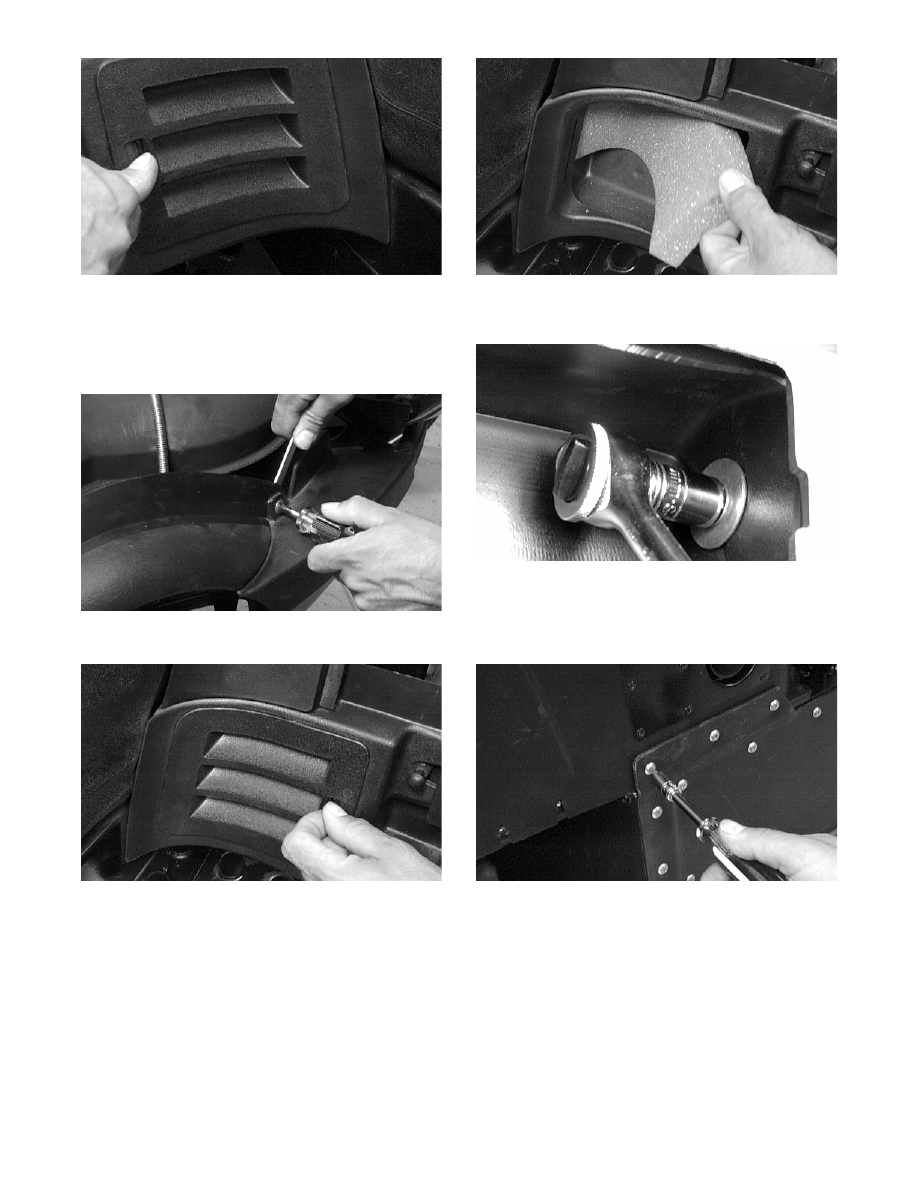

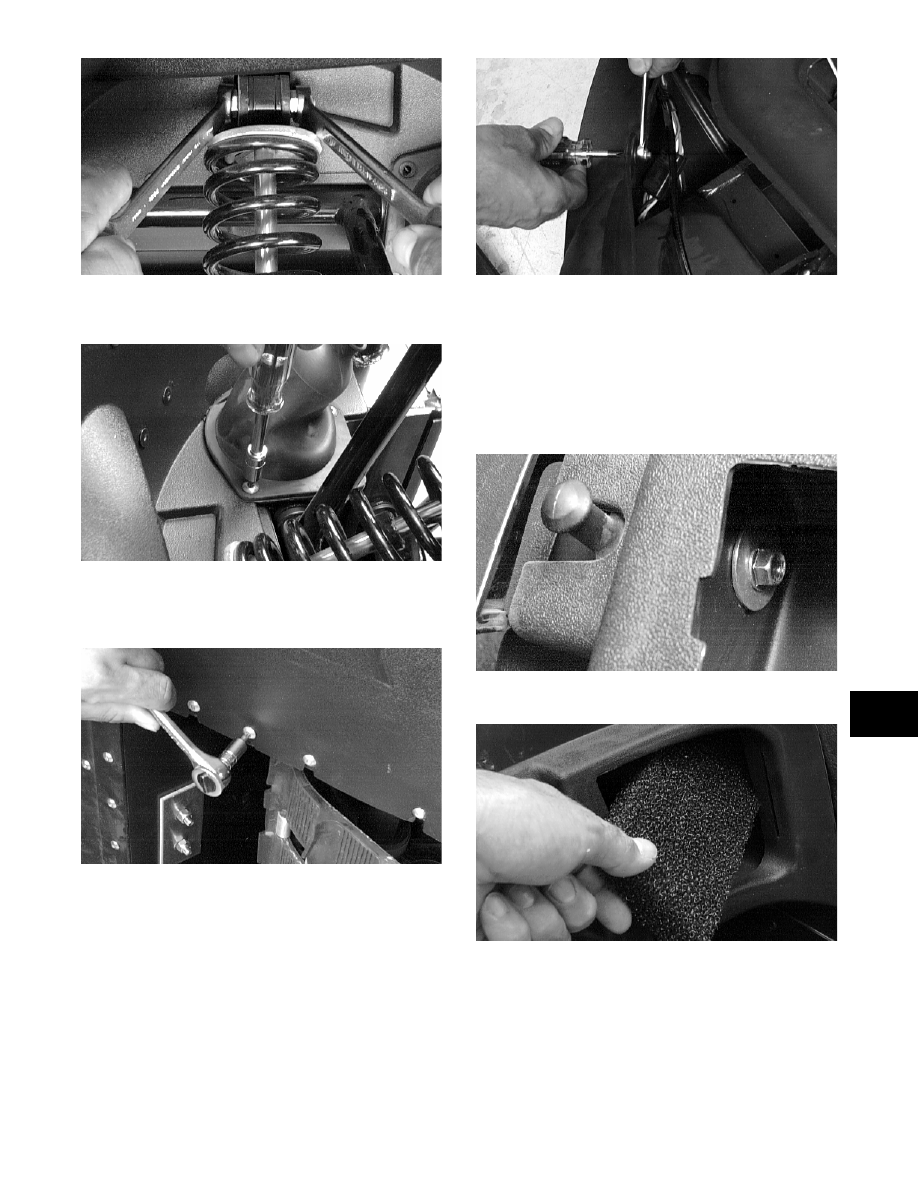

7-46 11. Remove the front belly pan-to-nosepiece Phillips- head screws. AL181D 12. Remove the front belly pan-to-nosepiece torx- head screws. AL182D 13. Remove the belly pan assembly from the snowmo- bile. INSPECTING LEFT-SIDE 1. Inspect for gouges, cuts, and tears. 2. Inspect all belly pan threaded bosses that they are in good shape. INSTALLING LEFT-SIDE 1. Place the belly pan assembly in position in the frame. 2. Secure the front belly pan to the nosepiece with torx-head screws. AL182D 3. Secure the front belly pan to the nosepiece with Phillips-head screws. AL181D 4. Install the torx-head screws securing the belly pan underneath the shock mount. AL179D 5. Install the shock absorber bolt. Tighten to specifi- cations. |
