9-12

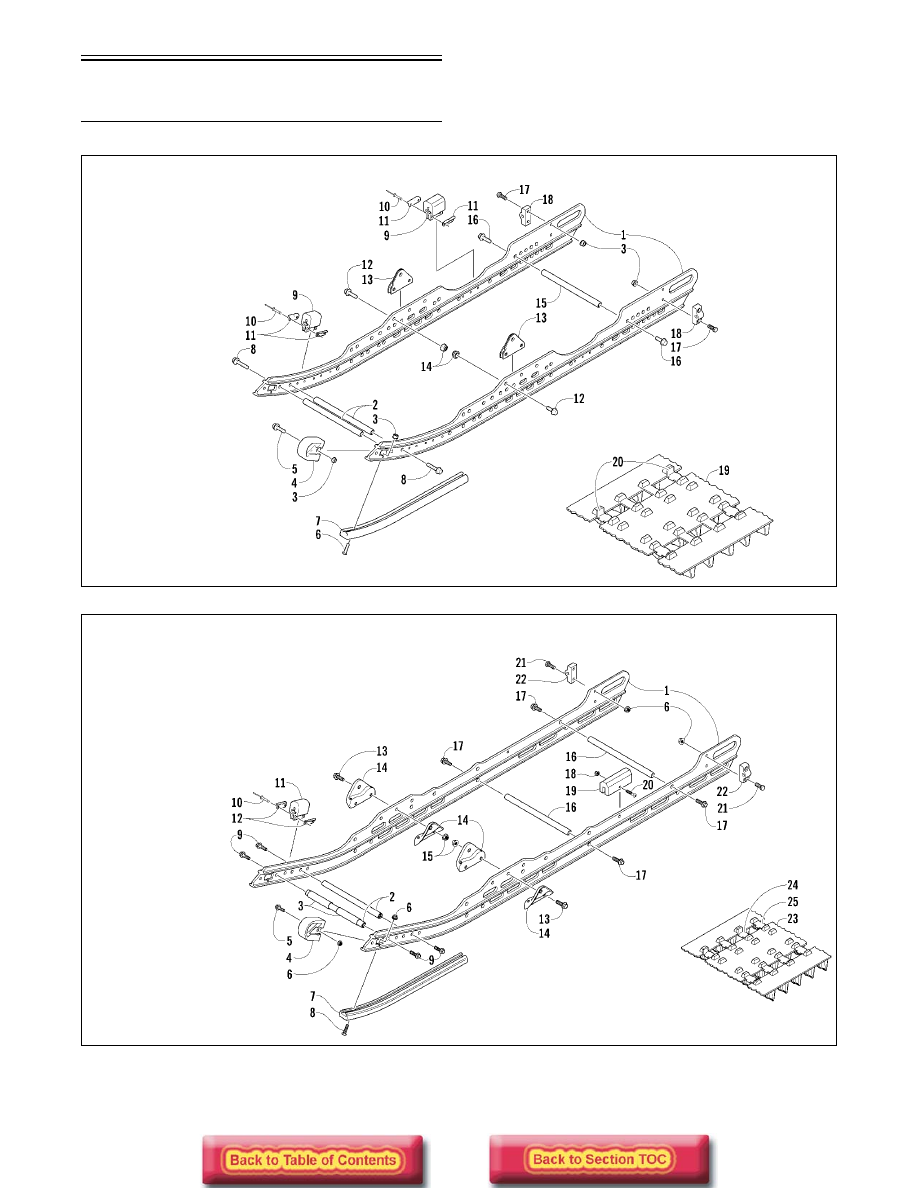

Slide Rail
Schematics
0738-378
0738-558

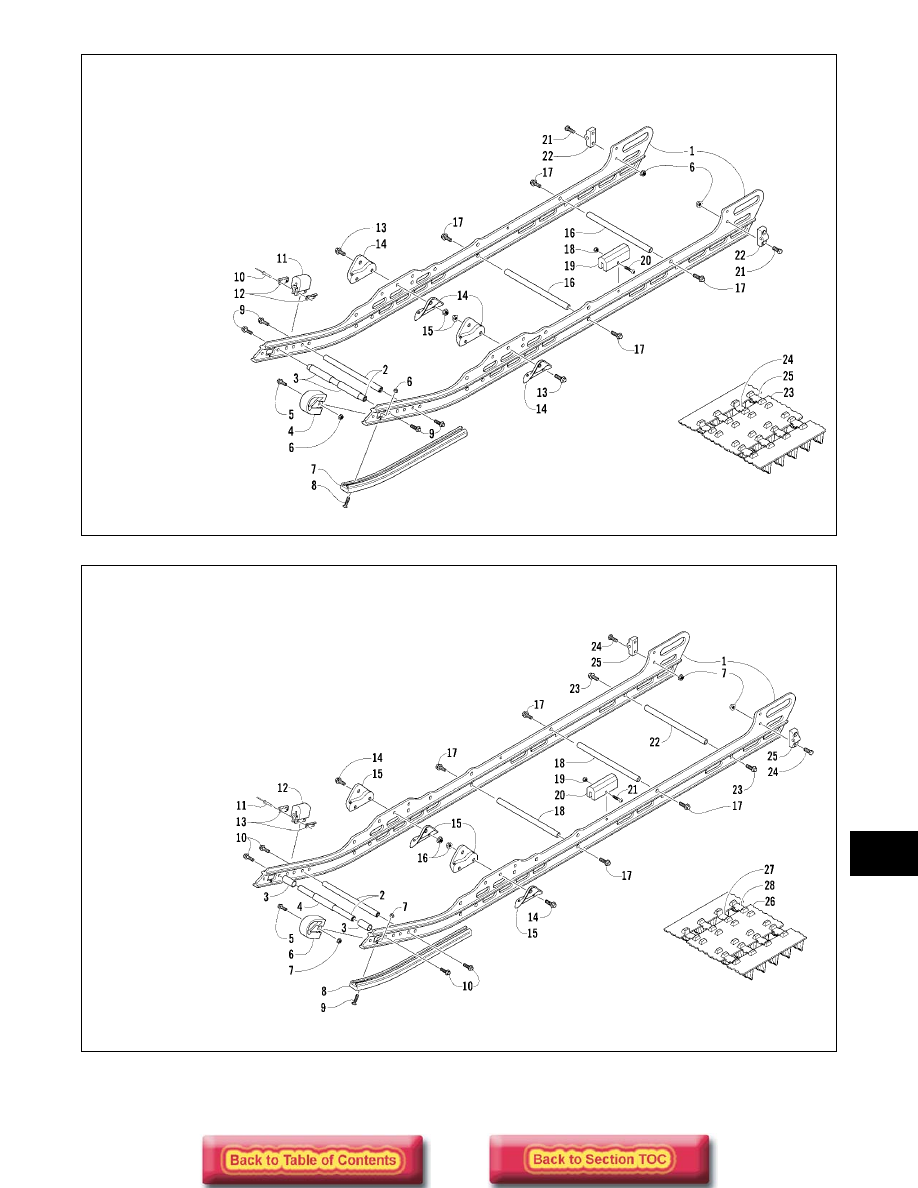

KEY
1. Formed Rail
2. Crossbrace
3. Lock Nut
4. End Cap
5. Cap Screw
6. Machine Screw
7. Wear Strip
8. Cap Screw
9. Shock Pad
10. Rivet
11. Bracket
12. Cap Screw
13. Bracket
14. Lock Nut
15. Axle
16. Cap Screw
17. Cap Screw
18. Adjuster
19. Track Assy
20. Wear Clip w/Guide
Style A

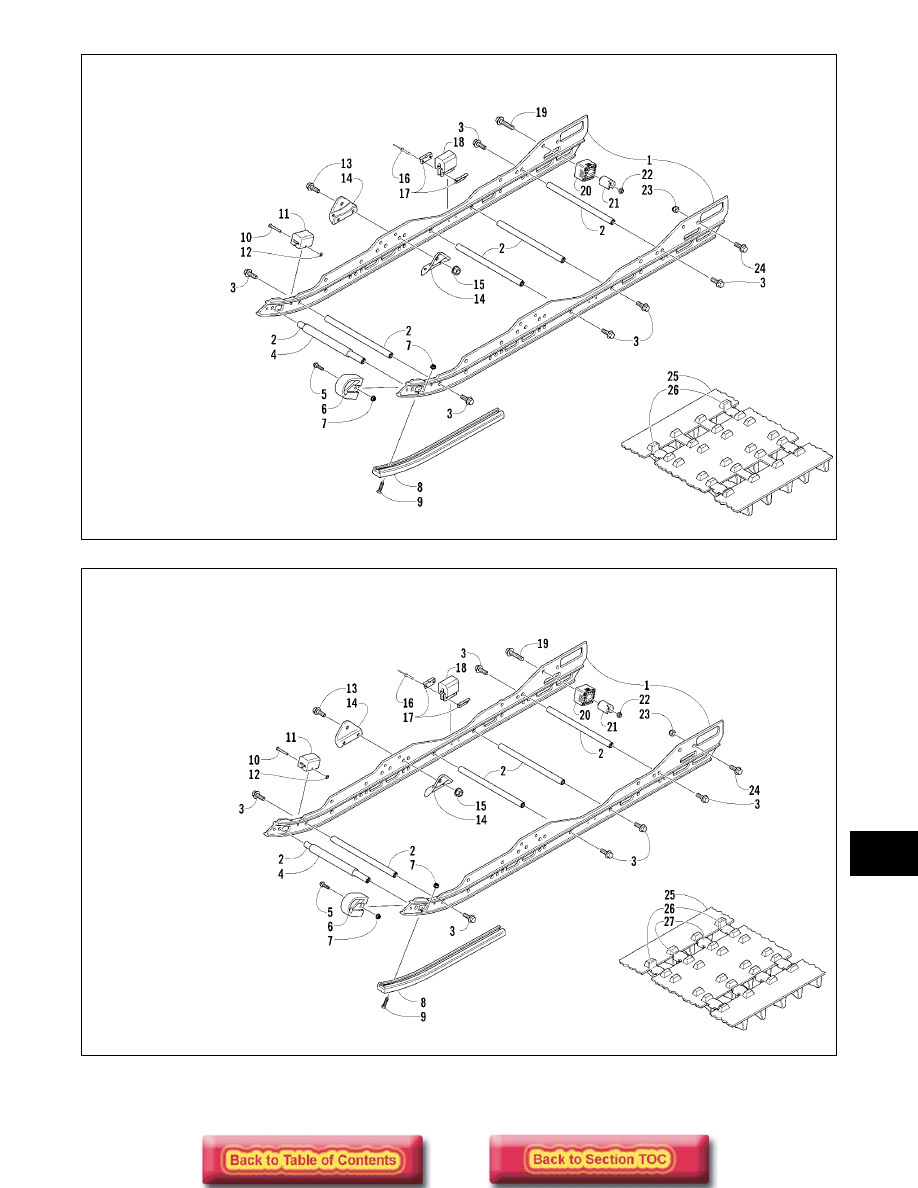

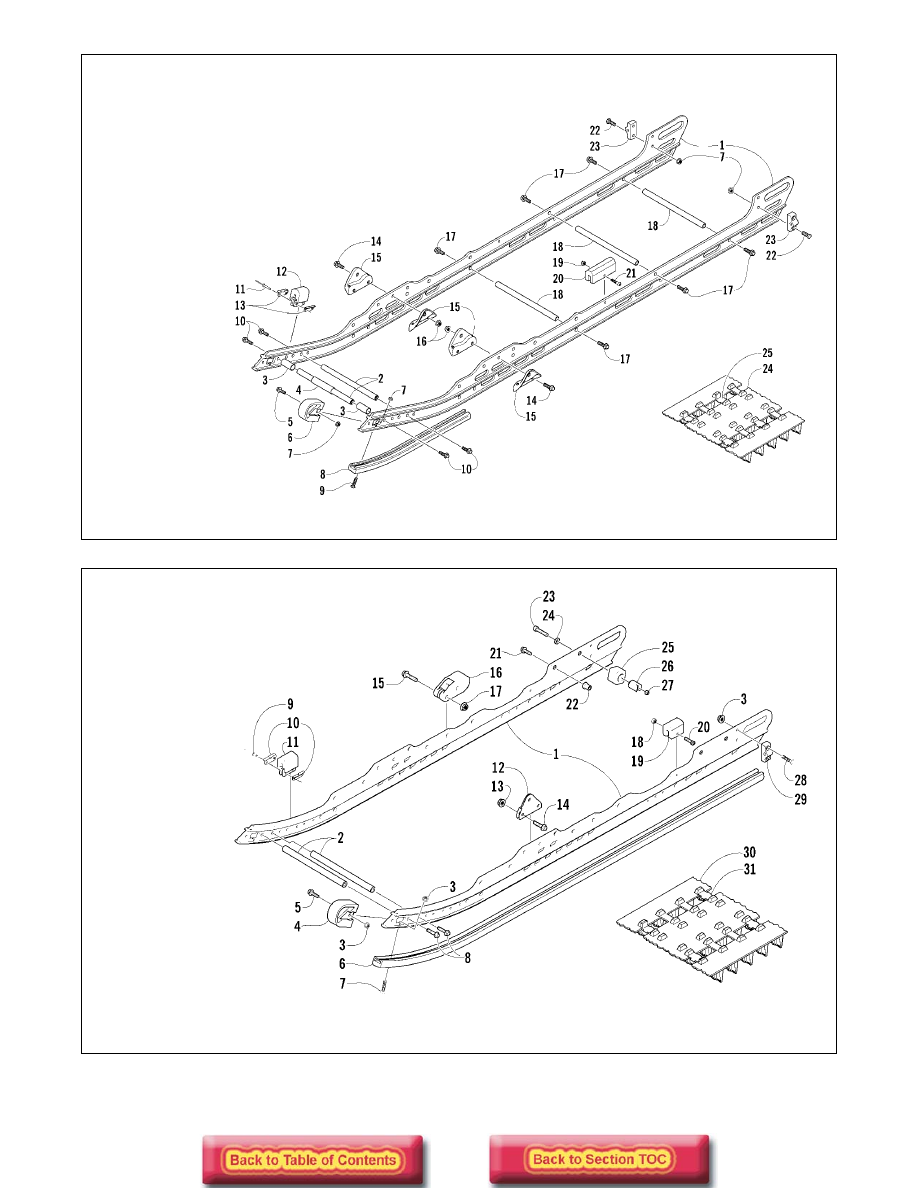

KEY
1. Formed Rail
2. Crossbrace
3. Spacer
4. End Cap
5. Cap Screw
6. Lock Nut
7. Wear Strip
8. Machine Screw
9. Cap Screw
10. Rivet
11. Shock Pad
12. Retaining Bracket
13. Cap Screw
14. Mounting Bracket
15. Lock Nut
16. Axle
17. Cap Screw
18. Lock Nut
19. Pad
20. Machine Screw
21. Cap Screw
22. Track Adjuster
23. Track Assy
24. Guide Clip
25. Wear Clip
Style B
NOTE: Some components illustrated in this
sub-section may vary from actual conditions.
The technician should use discretion and sound
judgment when removing and installing compo-
nents.
