SHOCK ABSORBER USAGE GUIDE

Below is a list of shock absorbers used on the front and rear suspensions of many Arctic Cat snowmobiles.

Specifications given for each shock absorber include collapsed and extended length, stroke, and both
rebound and compression valving ratings.

When using the shock absorber guide, always select a shock absorber with the same length, both
collapsed and extended. Shock valving selection will depend on personal preference.

P/N

Collapsed

Length

Extended

Length

Stroke

Rebound

Valving

Compression

Valving

0604-217

10.190"

16.250"

6.06"

3

1

0604-464

10.190"

16.250"

6.06"

2

3

0604-591

10.170"

16.250"

6.06"

1

2

0604-308

9.580"

15.020"

5.45"

1

2

0604-311

9.580"

15.020"

5.45"

4

3

0604-402

9.580"

15.020"

5.45"

3

4

0604-659

9.580"

15.020"

5.45"

2

1

0604-737

9.580"

15.020"

5.44"

2

2

0604-763

9.580"

15.020"

5.44"

4

3

0604-923

9.580"

15.020"

5.44"

1

1

0604-404

9.700"

15.020"

5.32"

3

3

0604-453

9.700"

15.020"

5.32"

2

2

0604-462

9.700"

15.020"

5.32"

1

1

0604-664

9.590"

14.020"

4.61"

2

2

0604-665

9.590"

14.020"

4.61"

1

1

0603-420

9.380"

14.280"

4.950"

2

3

0603-555

9.410"

13.540"

4.130"

1

1

0603-645

9.290

13.050"

3.760"

2

2

0604-755

7.060"

10.100"

3.040"

3

1

0604-533

7.060"

9.710"

2.650"

2

3

0604-599

7.060"

10.100"

3.040"

1

2

0603-792

9.830"

15.290"

5.46"

1

2

1604-102

9.560"

15.010"

5.45"

1

1

1604-101

7.670"

11.420"

3.75"

3

1

1604-196

7.670"

11.370"

3.70"

3

1

0603-117

7.060"

10.030"

2.97"

1

1

1604-093

7.670"

11.370"

3.70"

3

2

0603-758

9.830"

15.290"

5.47"

2

2

1604-369

8.420"

12.490"

4.07"

2

2

NOTE: Rebound and compression valving is rated on a scale of 1 - 4 (1 being the stiffest and 4 being the softest).

9

9-139

Ryde FX

P/N

Collapsed

Length

Extended

Length

Stroke

Rebound

Valving

Compression

Valving

0604-756

9.590"

14.200"

4.61"

3

3

0604-757

9.590"

14.200"

4.61"

2

2

0604-758

9.590"

14.200"

4.61"

1

2

0604-909

9.550"

14.570"

5.020"

2

1

0603-649

9.560"

13.100"

3.840"

2

1

1604-001

9.550"

14.570"

5.020"

1

1

1604-011

9.550"

14.570"

5.020"

3

3

1604-092

9.580"

14.700"

5.12"

1

1

0604-997

7.490"

10.110"

2.87"

3

1

1604-085

10.590"

16.710"

6.12"

1

1

0603-843

9.460"

14.300"

4.85"

2

2

1604-176

9.540"

14.660"

5.12"

1

2

1604-212

9.540"

14.660"

5.12"

1

2

1604-218

10.570"

16.640"

6.07"

2

1

0603-901

9.940"

15.170"

5.24"

2

2

1603-172

9.960"

14.300"

4.35"

2

3

1603-173

9.080"

13.790"

4.47"

2

3

1603-174

10.460"

16.300"

5.85"

2

3

1603-175

11.330"

17.060"

5.73"

2

3

1604-368

8.380"

12.110"

3.74"

1

1

1604-370

10.550"

16.670"

6.12"

1

1

1604-371

9.550"

14.670"

5.12"

1

1

1604-372

9.550"

14.670"

5.12"

1

1

1603-200

9.080"

13.790"

4.47"

2

3

1603-201

9.960"

14.300"

4.35"

2

3

NOTE: Rebound and compression valving is rated on a scale of 1 - 4 (1 being the stiffest and 4 being the softest).

9-140

REBUILDABLE SHOCK REVALVING &

REBUILDING SCHEMATICS

NOTE: The following illustrations should be used as a reference for proper placement of the

valves and the piston whenever a 2000 Arctic Cat rebuildable shock absorber is disassembled
for the purpose of revalving or rebuilding.

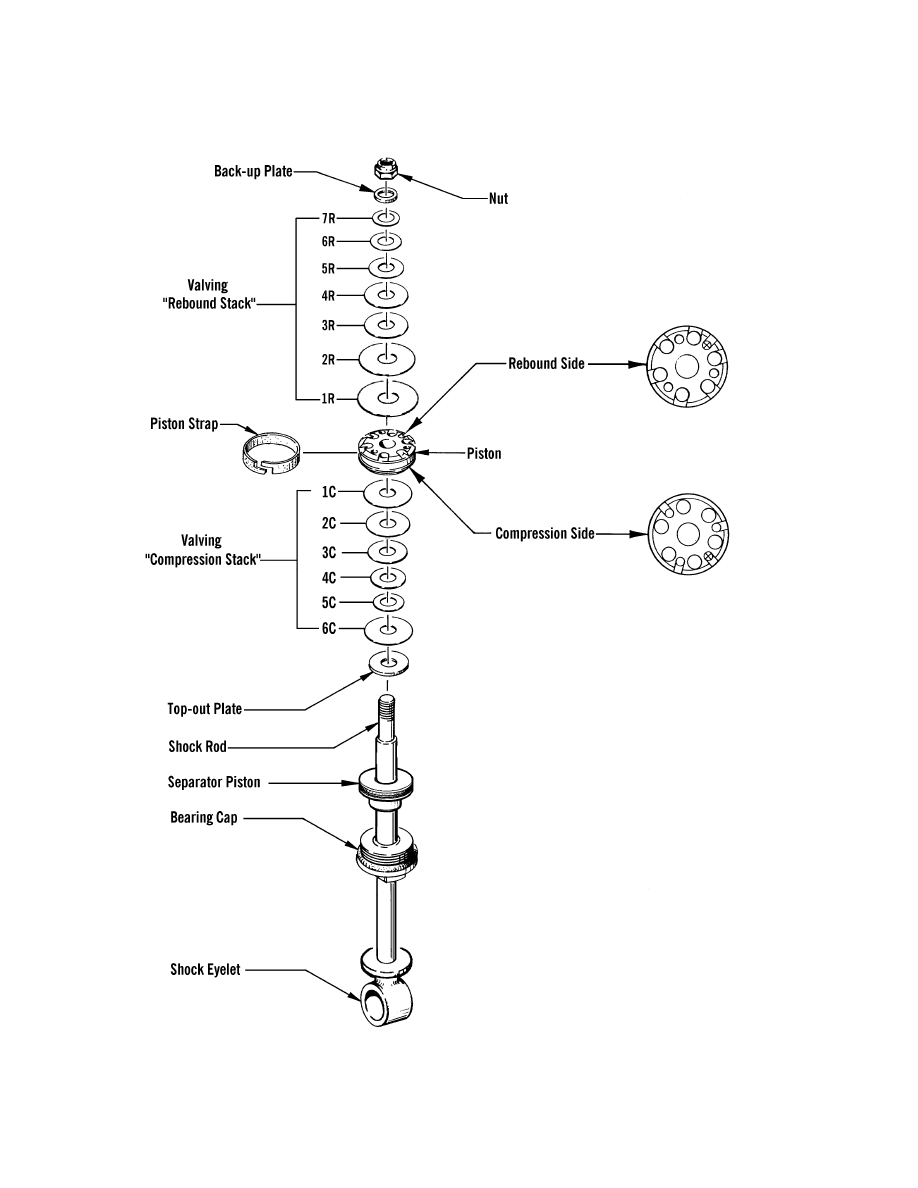

0735-329

STANDARD IFP
SHOCK
(Rebuild Kit -
p/n 1639-769

)

9

9-141

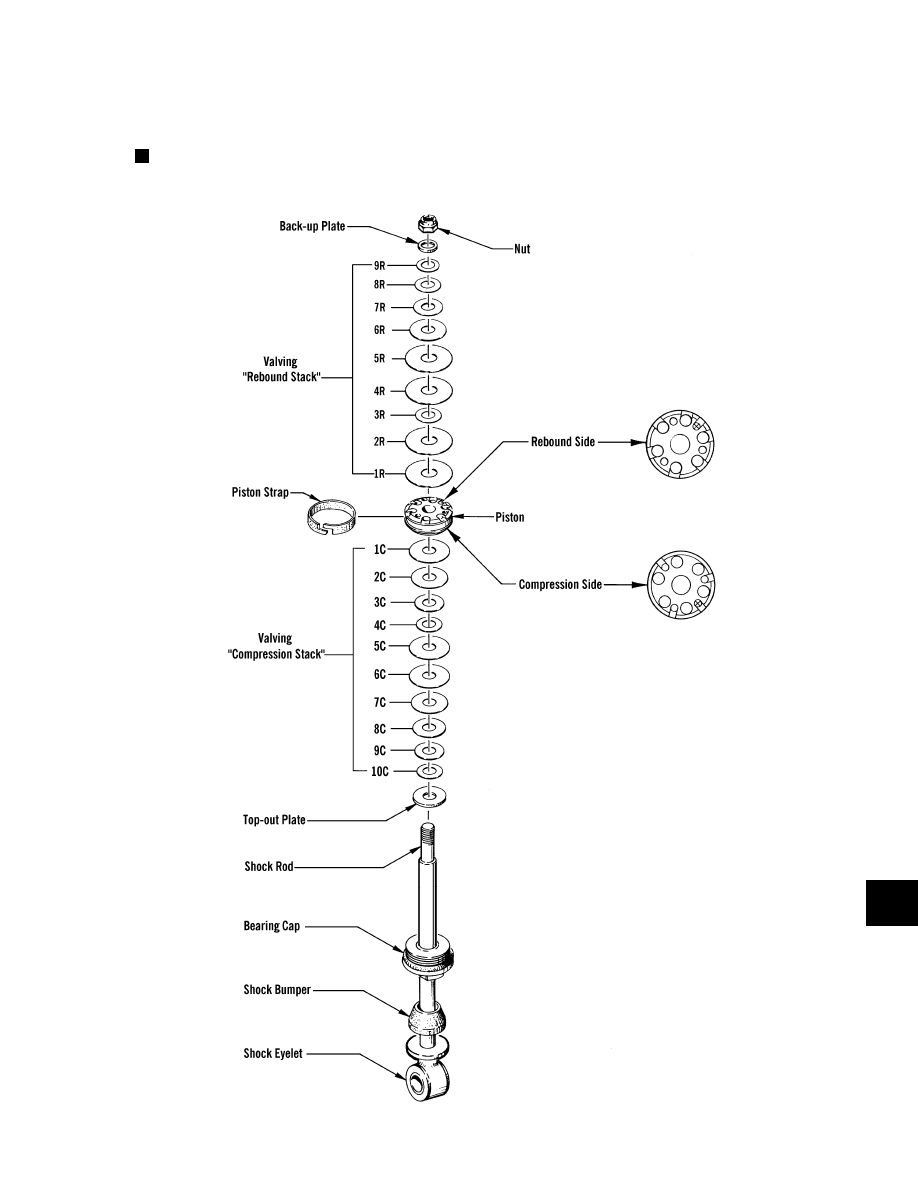

0735-330

ADJUSTABLE FRONT
ARM SHOCK
(Rebuild Kit -
p/n 1639-770)

9-142
