0735-327

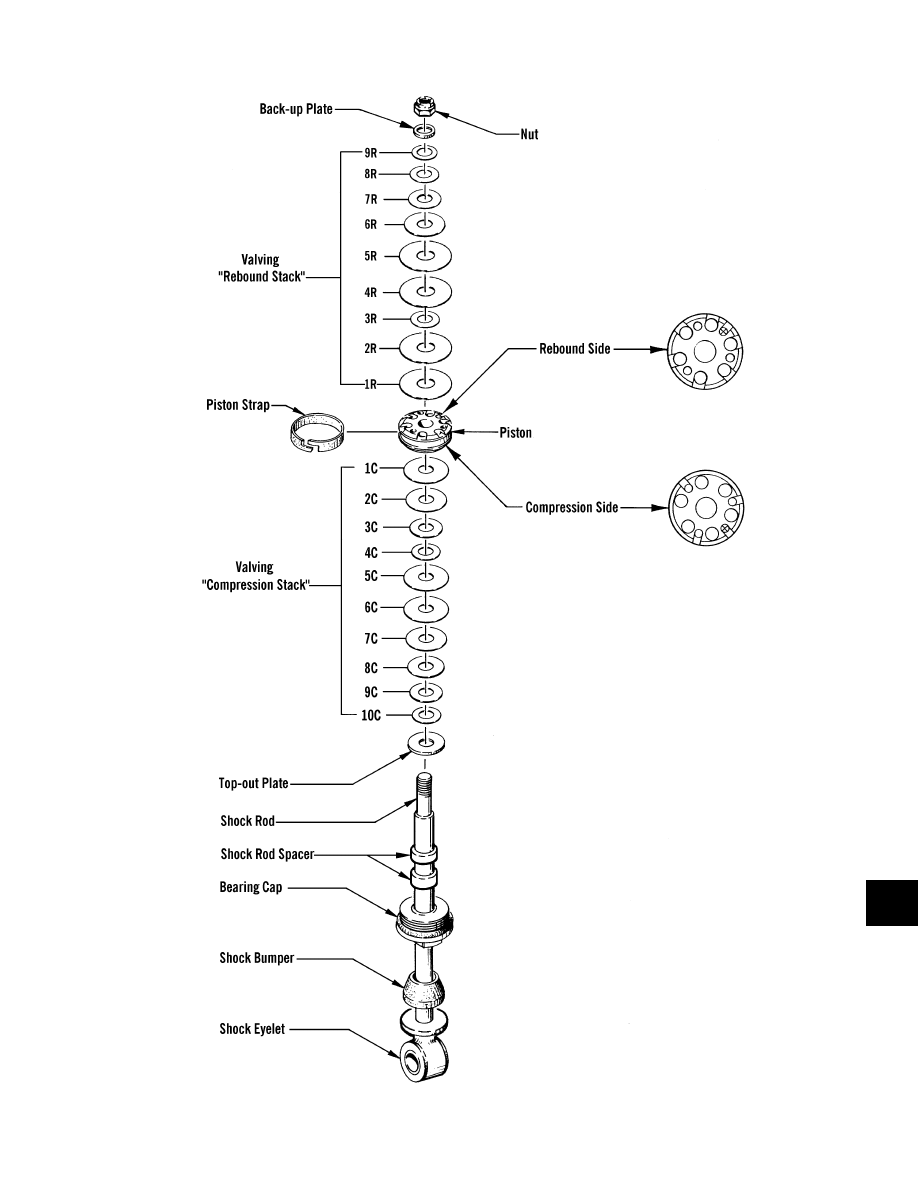

CLICKER SHOCK
(Rebuild Kit -
p/n 1639-771)

9-143

OPTIONAL RIDE KITS

There are two optional ride kits available for the 1997 and 1998 snowmobiles manufactured with
Fox shocks. The Consumer Ride kit listed will soften the suspension on the models listed. The Race
Ride kits will stiffen the suspension on the models listed. The kits can be ordered from the Arctic
Cat Parts Department.

Application

Ride

Part No.

1997 - 1998 ZR 440,

1998 ZR 600 EFI C.C.

Consumer Ride

0639-535

1997 ZR 580, ZRT 600,

ZRT 800

Race Ride

0639-534

1998 ZR 500, ZR 600, ZR 600 EFI,

ZRT 600, ZRT 800, Thundercat,
Powder Special 600 EFI L.E.

Race Ride

0639-961

1998 ZR 440 Sno-Pro

None Available

2000 ZR 440 Sno-Pro

Consumer Ride

1639-614

All 2000 models equipped w/ACT
Shock Absorbers
(Except ZR 440 Sno-Pro)

Race Ride

1639-613

9-144

ARCTIC CAT REAR SPRING SELECTION CHART

REAR SUSPENSION SPRINGS

P/N

Wire Diameter

(A)

Angle

(B)

Number of

Coils

Coil Width

(C)

Length

(D)

Length

(E)

0604-054/053

.406

65°

7.75

3.88

17.500

4.50

0604-118/117

.460

45°

4.75

17.500

4.50

0604-132/133*

.437

85°

5.030

16.500

5.75

0604-134/135*

.468

85°

5.030

16.500

5.75

0604-272/273

.437

90°

4.800

17.500

5.50

0604-282/283

.437

75°

4.800

17.500

5.50

0604-288/289

.460

60°

4.75

17.500

4.50

0604-290/291

.490

60°

5.020

17.500

4.50

0604-314/315**

.460

90°

5.030

17.500

5.50

0604-400/401

.406

90°

8.75

4.320

17.500

5.50

0604-454/455*

.437

90°

4.800

17.500

4.50

0604-474/475

.406

90°

7.75

3.880

17.500

4.50

0604-492/493

.406

90°

8.75

4.320

15.750

5.50

0604-584/585

.406

90°

8.75

4.320

18.100

5.70

0604-592/593

.460

83°

8.75

4.800

15.750

5.50

0604-654/655**

.437

90°

8.75

4.590

20.000

5.70

0604-660/661**

.437

90°

8.75

4.590

18.100

5.70

0604-746/747

.390

90°

8.75

4.320

19.750

5.70

0604-774/775*

.421

90°

8.75

4.430

18.100

5.70

0604-970/971*

.421

90°

8.75

4.430

15.900

5.70

1604-050/051**

.437

83°

8.75

4.590

16.000

5.70

1604-076/077**

.460

97°

9.00

4.530

16.000

5.70

1604-078/079**

.437

83°

8.75

4.56

21.000

5.70

1604-178/179**

.421

77°

8.75

4.52

20.000

6.00

1604-194/195**

.460

90°

8.75

4.53

16.000

6.70

1604-060/061**

.460

77°

8.75

4.85

20.000

5.50

1604-062/063**

.437

75°

8.75

4.60

18.000

5.50

1604-224/225**

.460

83°

8.75

4.53

21.000

5.70

1604-388/389**

.452

75°

8.75

4.60

18.000

5.50

1604-442/443

.452

90°

8.75

4.53

16.000

5.70

1604-067/066

.460

75°

8.75

4.83

18.000

5.50

1604-065/064

.421

75°

8.75

4.45

18.000

5.50

1604-608/609

.437

83°

8.75

4.59

20.750

5.70

1604-149/148***

.460

77°

8.75

4.84

22.000

8.00

1604-381/380***

.452

77°

8.75

4.97

22.000

8.00

1604-146/147***

.421

77°

8.75

4.52

22.000

8.00

1604-144/145***

.437

77°

8.75

4.52

22.000

8.00

*Long leg of spring is bent inward

**Short leg of spring is bent inward

***Must be cut to correct length

NOTE: The wire diameter and length of the spring have a large influence over the valving of the shocks.

Below is a complete list of rear suspension
springs and specifications. This chart was
compiled to assist technicians in fine-tuning the
Arctic Cat rear suspension when the original
springs are not satisfactory and a softer or firmer
ride is desired.

If there are any questions concerning the charts
usage, please contact the Arctic Cat Inc. Service
Department.

0730-218

Fig. 9-447

9-145

FRONT SUSPENSION SKI SPRINGS

AWS MODELS

PART

NUMBER

WIRE

DIAMETER

FREE LENGTH

INCHES

RATE LBS/INCH

# OF COILS

TAB

0603-279

.281

9.25

YES

0603-152

.281

11.35

43-53 Variable

13.5

YES

0603-400

.281

11.35

43-53 Variable

13.5

YES

0603-550

.312

11.75

12.5

YES

0603-260

.312

11.35

13.5

YES

0603-425

.312

11.35

13.5

0603-277

.312

8.75

70-83 Variable

YES

0603-426

.331

11.35

13.5

0603-430

.331

11.35

13.5

YES

0603-278

.328

8.25

85-100 Variable

YES

0603-090

.331

10.5

110

YES

0603-548

.420

10.5

110

0603-663

.331

10.5

110

YES

0603-665

.331

10.5

110

YES

0603-709

.330

9.5

110

YES

0603-626

.307

9.14

115

YES

0603-650

.330

9.14

150

YES

0603-860

.312

9.50

110

7.5

YES

0703-482

.312

9.50

110

7.5

YES

0603-836

.306

11.50

80-125 Dual Rate

YES

0603-837

.306

11.50

80-125 Dual Rate

YES

0603-760

.313

9.15

110

0603-602

.280

11.40

YES

0703-579

.312

8.38

YES

0703-588

.312

11.50

YES

0703-592

.331

10.50

7.5

YES

0703-597

.331

9.50

110

10.5

YES

0703-598

.331

9.50

110

10.5

YES

0703-599

.312

8.38

YES

1603-170

.331

10.5

7.5

YES

1603-197

.312

8.38

9.5

YES

1603-254

.331

9.5

110

0703-630

.331

9.5

110

0603-718

.312

11.3

110

YES

1603-240

.312

11.3

110

YES

1603-225

.312

12.25

14.9

YES

0703-620

10.50

0703-619

.312

12.25

14.9

YES

1603-275

.312

12.61

80-120 dual rate

14.9

YES

1603-239

.281

10.50

11.34

YES

0703-620

.281

10.50

11.34

YES

Orange Color

Green Color

White Color

9-146
