Snowmobile Arctic Cat (2000 year). Manual - part 152

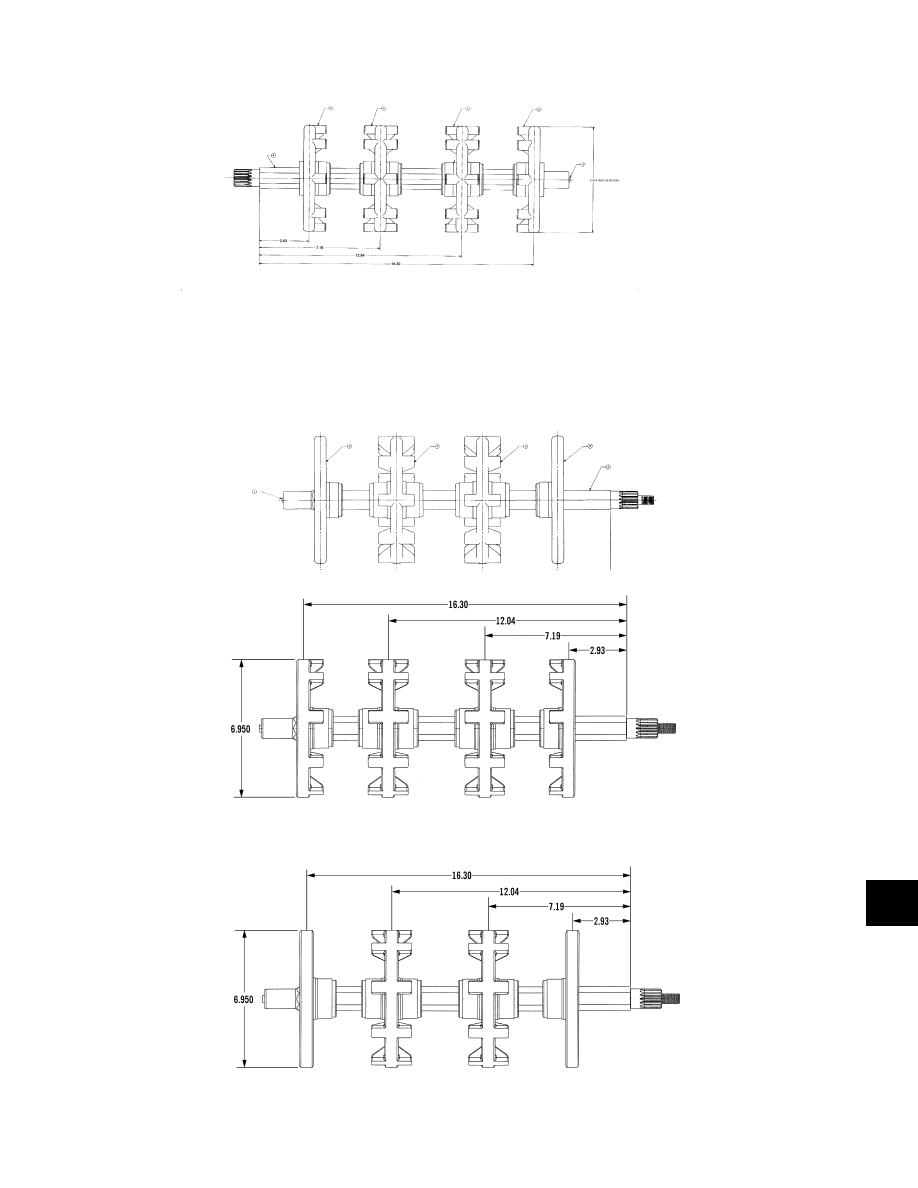

0728-037

0000-096

0728-038

0000-097

0728-039

0735-365

0728-041

0735-366

9

9-131

DRIVE TRACK USAGE CHART (1984-2000)

Below is a listing of drive tracks for Arctic Cat snowmobiles. This chart lists each track with its specifications such
as length, pitch, width, rail centers, and bar grip design.

From the information provided in this chart, note what other tracks can be substituted as a replacement track if a
recommended track isn’t available. Pay close attention to all critical specifications when choosing an alternative
track. Do not select a track with a lower rating than the track being replaced.

P/N

Length

Width

Pitch

Rail Center

# Lugs in

Center Belt

Bar Design

Rating

Lug Height

0102-294

121"

16"

3.29"

7.5"

Two

Regular

4

.610"

0102-314

151"

15"

2.52"

7.5"

Two

Regular

4

.610"

0602-001

156"

16"

2.52"

7.5"

Two

Regular

4

.610"

0602-116

121"

16"

2.52"

7.5"

Two

Regular

4

.610"

0602-239

121"

16"

2.52"

7.5"

Two

Full Block

2

.710"

0602-240

136"

16"

2.52"

7.5"

Two

Full Block

2

.710"

0602-241

156"

16"

2.52"

7.5"

Two

Full Block

2

.710"

0602-242

136"

15"

2.52"

8.84"

Two

Full Block

2

.710"

0602-247

116"

15"

2.52"

7.5"

Two

Full Block

2

.725"

0602-249

131"

15"

2.52"

7.5"

Two

Full Block

2

.710"

0602-252

151"

15"

2.52"

7.5"

Two

Full Block

2

.710"

0602-443

121"

15"

2.52"

8.84"

Four

Full Block

2

.725"

0602-478

121"

15"

2.52"

8.84"

Four

Full Block Clip

4

.710"

0602-534

136"

15"

2.52"

8.84"

Four

Full Block

2

.710"

0602-535

136"

15"

2.52"

8.84"

Four

Full Block

2

.710"

0602-753

121"

15"

2.52"

8.84"

Four

Full Block

2

.725"

0602-754

136"

15"

2.52"

8.84"

Four

Full Block

2

.725"

0602-725

156"

16"

2.52"

8.84"

Two

Full Block

2

.725"

0602-755

136"

15"

2.52"

8.84"

Four

Full Block

2

.725"

0602-677

121"

15"

2.52"

8.84"

Four

Full Block

4

.725"

0602-752

121"

15"

2.52"

8.84"

Two

Full Block

2

.725"

0602-756

136"

15"

2.52"

8.84"

Four

Full Block

4

.725"

0602-759

136"

15"

2.52"

8.84"

Four

Wave

4

.920"

0602-762

156"

16"

2.52"

8.84"

Two

Full Block

2

.725"

0602-798

121"

15"

2.52"

8.84"

Four

Full Block

4

.725"

0602-805

136"

15"

2.52"

8.84"

Four

Deep Lug

2

1.4"

0602-824

121"

15"

2.52"

8.84"

Four

Deep Lug

2

1.4"

0602-829

121"

15"

2.52"

8.84"

Four

Deep Lug

4

1.4"

*6799-841

121"

15"

2.52"

8.84"

Two

Deep Lug

4

2.0"

6799-842

136"

15"

2.52"

8.84"

Two

Deep Lug

4

2.0"

0602-861

156"

20"

2.52"

13.50"

Four

Full Block

4

.850"

0602-868

121"

15"

2.52"

8.84"

Two

Full Block

2

.725"

0602-869

136"

15"

2.52"

8.64"

Four

Deep Lug

4

1.4"

0602-904

136"

15"

2.52"

8.84"

Two

Deep Lug

4

1.6"

0602-905

136"

15"

2.52"

8.84"

Two

Deep Lug

4

2.0"

0602-921

121"

15"

2.52"

8.84"

Two

Full Block

4

.725"

0602-922

121"

15"

2.52"

8.84"

Two

Full Block

4

.725"

0602-923

121"

15"

2.52"

8.84"

Two

Full Block

4

.850"

0602-928

121"

15"

2.52"

8.84"

Two

Full Block

4

.725"

0602-962

156"

20"

2.52"

13.5"

Four

Full Block

4

1.0"

0602-935

156"

16"

2.52"

8.84"

Two

Full Block

4

1.0"

1602-004

121"

15"

2.52"

8.84"

Two

Full Block

4

.850"

1602-005

121"

15"

2.52"

8.84"

Four

Full Block

4

.850"

0602-153

115"

16"

2.52"

8.84"

Two

Full Block

2

.850"

1602-033

121"

15"

2.52"

8.84"

Four

Full Block

4

.850"

1602-008

121"

15"

2.52"

8.84"

Four

Aggressive Wave

4

1.25"

1602-647

136"

15"

2.52"

8.84"

Four

Aggressive Wave

4

N/A

6909-819

136"

15"

2.52"

8.84"

Four

Wave

4

1.25"

6799-800

136"

15"

2.52"

8.84"

Four

Wave

4

1.50"

0602-531

136"

15"

2.52"

8.84"

Four

Wave

2

.900"

* This track can only be used on AWS V chassis with a Torque Sensing Link Rear Suspension.

9-132

IDLER WHEEL SELECTION CHART

P/N

Diameter

I.D.

Insert Part Number

Width

Color Spoke

0114-209

4.25 in.

0.625 in.

0104-340

0104-341

0.75 in. Not spoked

0114-159

5.00 in.

0.625 in.

0104-340

0104-341

1.05 in. Not spoked

0114-245

5.25 in.

0.625 in.

0104-340

0104-341

1.00 in. Not spoked

0604-004

5.35 in.

0.625 in.

0104-340

0104-341

1.00 in. Not spoked

0604-225

5.35 in.

0.625 in.

0104-340

0104-341

1.12 in. Chrome

0604-226

5.35 in.

0.625 in.

0604-220

1.33 in. Chrome

0604-227

5.35 in.

0.625 in.

0604-220

1.33 in. Gold

0604-235

5.35 in.

0.625 in.

0104-340

0104-341

1.12 in. Gold

0604-332

5.35 in.

0.625 in.

0104-304

0104-341

1.12 in. Black

0604-334

5.35 in.

0.625 in.

0604-220

1.33 in. Black

0114-240

5.63 in.

0.625 in.

0104-340

0104-341

1.00 in. Not spoked

0604-205

5.63 in.

.9843 in.

NONE

1.00 in. Not spoked - has hole for wrench

0604-234

5.63 in.

0.625 in.

0604-220

1.33 in. Gold

0604-239

5.63 in.

0.625 in.

0104-340

0104-341

1.12 in. Gold

0604-240

5.63 in.

0.625 in.

0104-340

0104-341

1.12 in. Chrome

0604-281

5.63 in.

0.625 in.

0604-220

1.33 in. Silver

0604-327

5.63 in.

0.625 in.

0604-220

1.12 in. Chrome

0604-328

5.63 in.

0.625 in.

0604-220

1.12 in. Gold

0604-333

5.63 in.

0.625 in.

0604-220

1.12 in. Black

0604-374

5.63 in.

.9843 in.

NONE

1.00 in. Not spoked - S/A 0604-205 w/o hole

0604-450

5.63 in.

0.625 in.

0104-340

0104-341

0.875 in. Not spoked - aluminum center

0604-459

5.63 in.

0.625 in.

0104-340

0104-341

1.00 in. Not spoked

0604-981

5.63 in.

0.625 in.

0104-340

0104-341

1.12 in. Green

0638-550

5.63 in.

0.625 in.

0104-340

0104-341

1.12 in. Purple

0114-223

5.83 in.

0.750 in.

0104-342

0104-343

1.00 in. Not spoked

0114-206

6.38 in.

0.625 in.

0104-340

0104-341

0.875

Not spoked - aluminum center

0114-210

6.38 in.

0.750 in.

0104-342

0104-343

1.00 in. Not spoked

0604-210

6.38 in.

0.625 in.

0104-340

0104-341

1.00 in. Not spoked

0604-222

6.38 in.

0.750 in.

0604-224

1.46 in. Chrome

0604-223

6.38 in.

0.750 in.

0604-224

1.46 in. Gold

0604-237

6.38 in.

0.625 in.

0604-220

1.46 in. Gold

0604-238

6.38 in.

0.625 in.

0604-220

1.46 in. Chrome

0604-331

6.38 in.

0.750 in.

0604-224

1.46 in. Black

0604-670

6.38 in.

0.625 in.

0604-220

1.12 in. Black

0604-969

6.38 in.

0.625 in.

0604-220

1.00 in. Not spoked

0604-980

6.38 in.

0.625 in.

0604-220

1.12 in. Green

0638-431

6.38 in.

0.750 in.

0604-224

1.46 in. Purple

0104-298

7.125 in.

0.750 in.

0104-342

0104-343

.950 in. Not spoked

0604-275

7.125 in.

0.625 in.

0604-220

1.46 in. Silver

0604-276

7.125 in.

0.625 in.

0604-220

1.46 in. Gold

0604-284

7.125 in.

0.625 in.

0104-341

0104-340

0.950 in. Not spoked

0107-137

7.625 in.

0.750 in.

0104-342

0104-343

1.00 in. Not spoked

9

9-133

Torque Specifications

REAR SUSPENSION

TORQUE

End Caps

ft-lb

kg-m

8
1.1

Wear Strip/Rail

ft-lb

kg-m

8
1.1

Idler Wheels (5/16-in. cap screw)

ft-lb

kg-m

17
2.4

Idler Wheels (3/8-in. cap screw)

ft-lb

kg-m

23
3.2

Mounting Block/Rail

ft-lb

kg-m

23
3.2

Spring Slide Block/Rail

ft-lb

kg-m

23
3.2

Offset Pivot Idler/Idler Arm

ft-lb

kg-m

19
2.6

Rear Arm/Rail

ft-lb

kg-m

23
3.2

Front Arm Mounting Bracket/

ft-lb

Rail

kg-m

17
2.4

Front Arm/Mounting Brackets

ft-lb

kg-m

30
4.2

Limiter Straps

ft-lb

kg-m

8
1.1

Crossbrace/Rail

ft-lb

kg-m

11
1.5

Shock Links

ft-lb

kg-m

23
3.2

Shock Eyelets

ft-lb

kg-m

23
3.2

Rear Arm/Idler Arm

ft-lb

kg-m

23
3.2

Track Adjuster Bracket/Rail

ft-lb

kg-m

11
1.5

Rear Arm Limiter/Rail

ft-lb

kg-m

23
3.2

Skid Frame/Tunnel

ft-lb

kg-m

23
3.2

9-134
