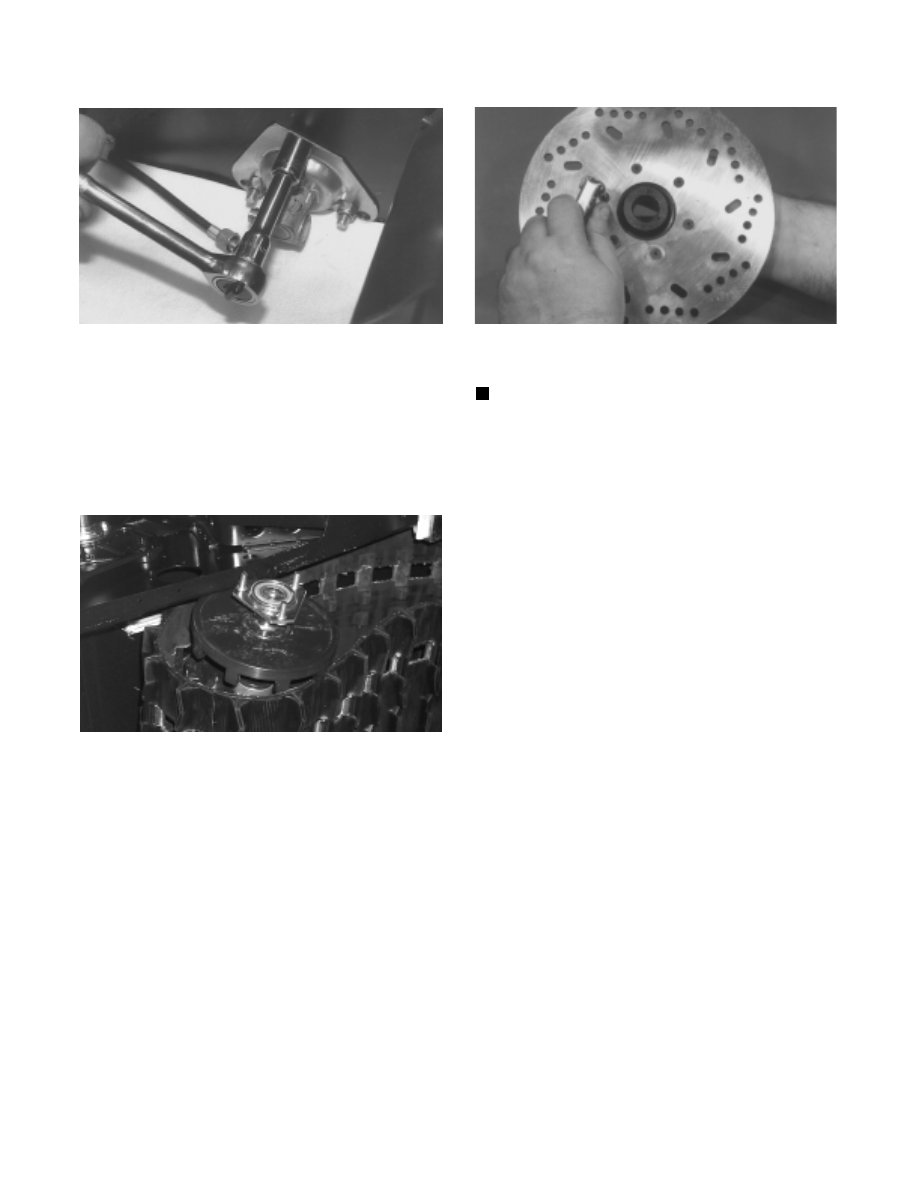

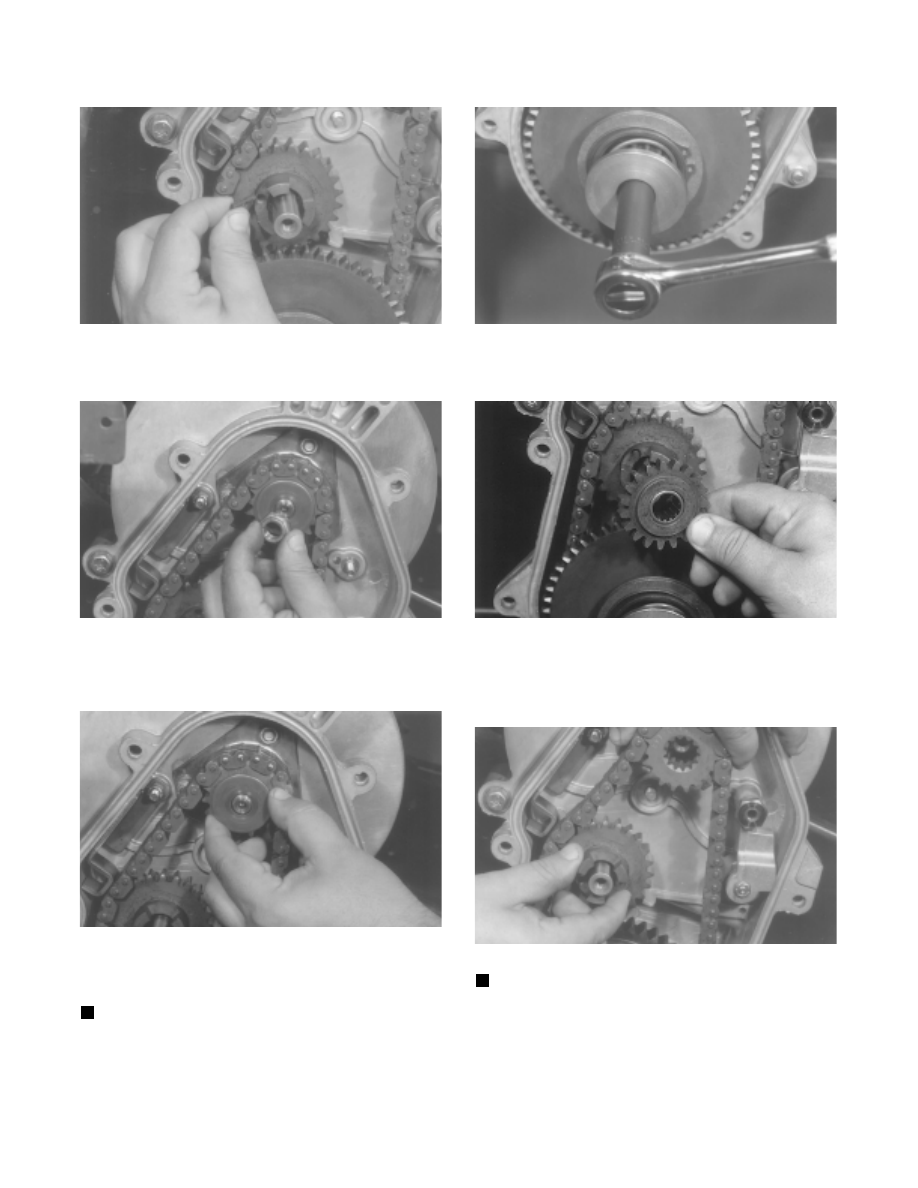

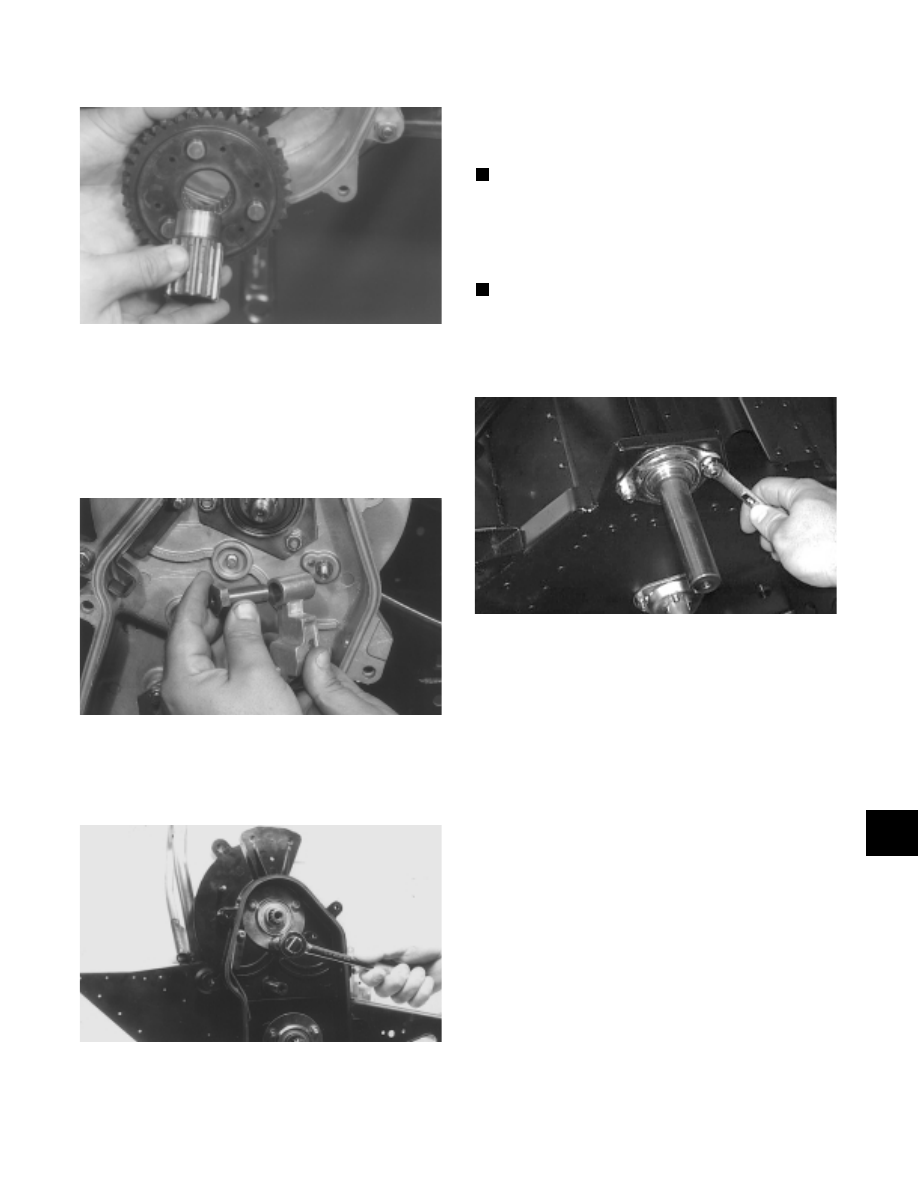

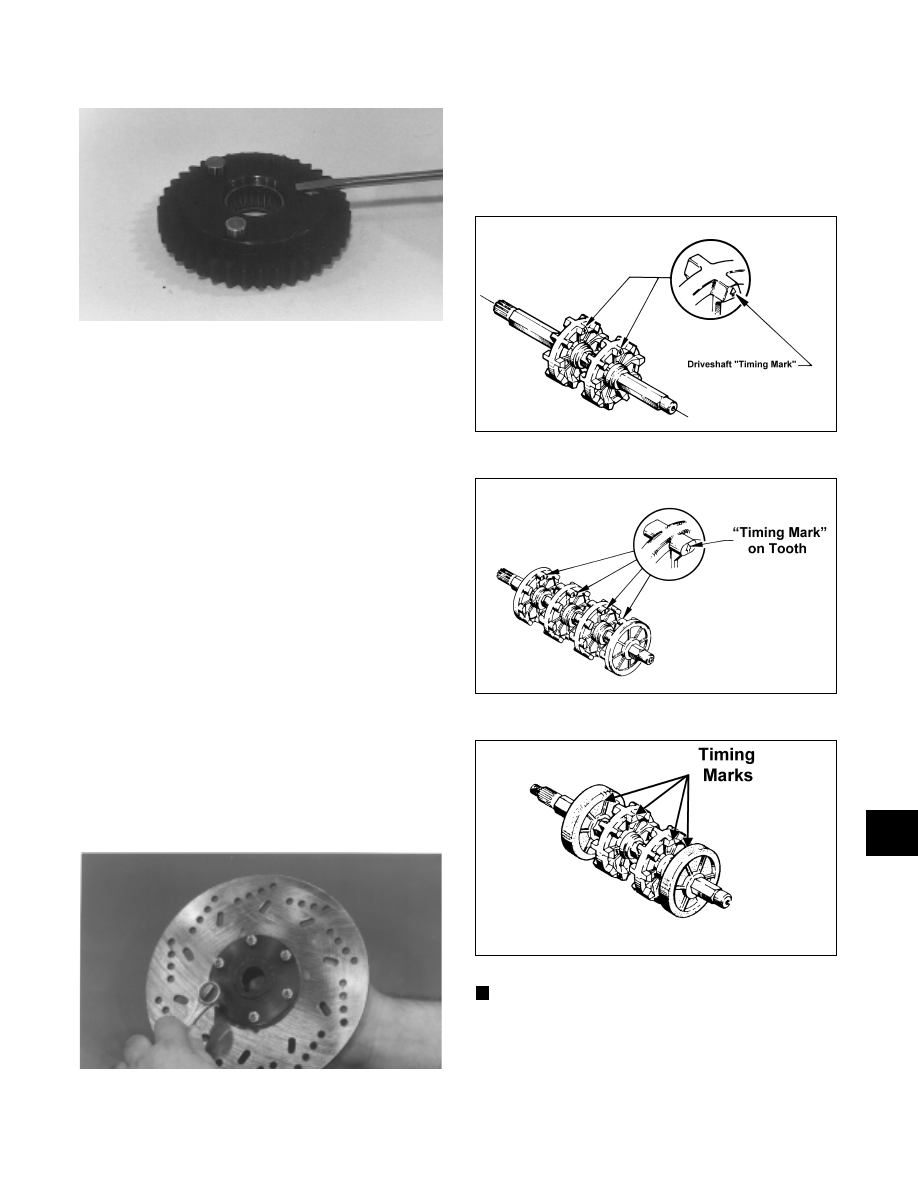

Fig. 8-82 AF439 13. Remove the lock nut securing the top sprocket. Fig. 8-83 AF432 14. Remove the spring washer in front of the top sprocket. Fig. 8-84 AF444 15. Set the brake lever lock. Remove the cap screw and large washer securing the bottom sprocket. NOTE: The bottom sprocket cap screw and washer are spring loaded. Fig. 8-85 AF428 16. Remove the reverse gear. Fig. 8-86 AF442 17. Remove the top sprocket, chain, and idler gear. Account for one shim washer located behind the Fig. 8-87 AF433 NOTE: If the chain is too tight and won’t allow the top sprocket to be removed, remove the PTO-side 18. Remove the driveshaft extension, bottom sprocket, and spacer washer. 8-26 |
