9-45

SPEC

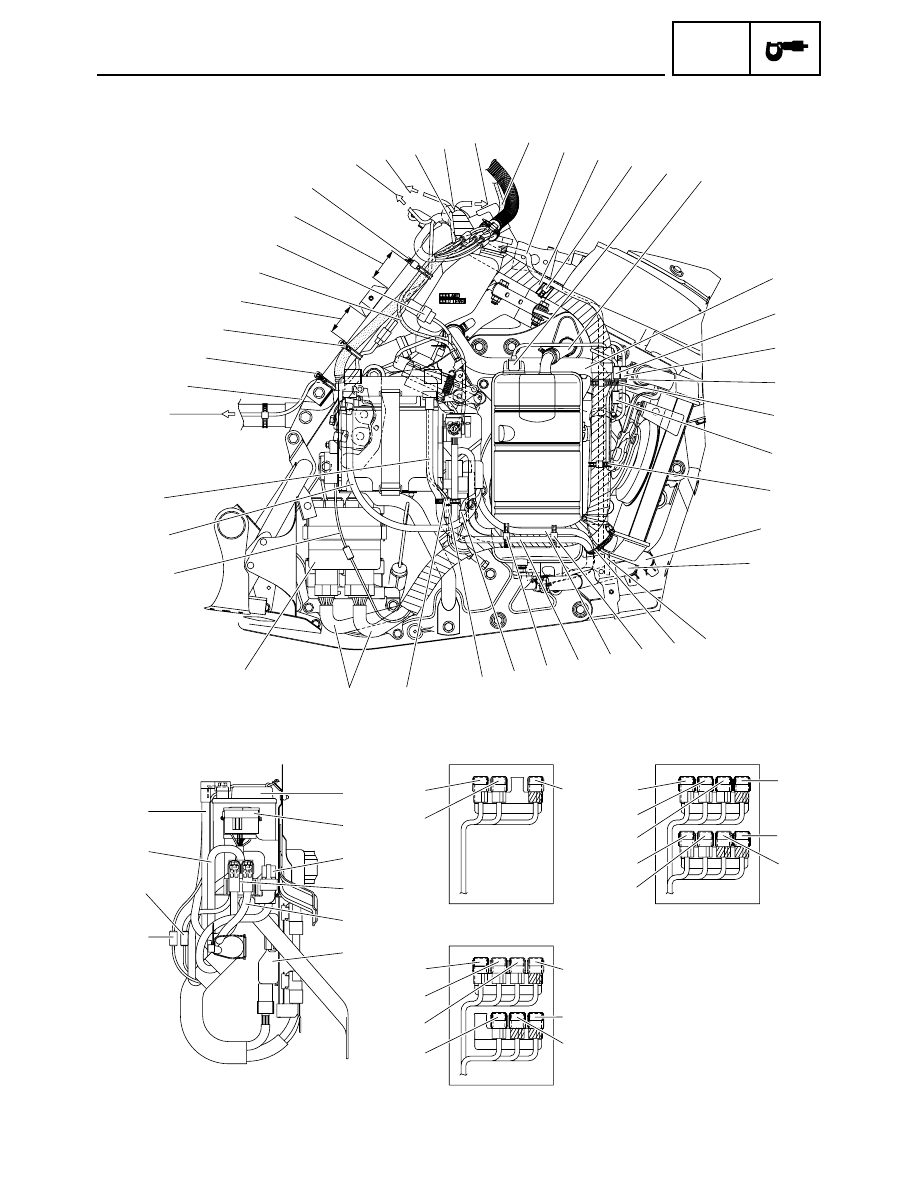

CABLE ROUTING

F

D

G

H

I

J

K

8

9

0

A

B

C

E

1 2

3 4

5

6

7

L

M

N

N

O

O

O

P

Q

Q

R

R

T

S

U

T

V

W

X

Y

Z

[

\

\

]

^

a

b

c

d

e

f

g

g

g

h

h

h

i

i

i

j

j

k

k

l

l

m

m

n

PZ50

PZ50VT/PZ50MP

PZ50GT/PZ50FX/PZ50M

9-46

SPEC

CABLE ROUTING

1 To the main switch
2 To the main switch
3 To the fuel pump
4 Route the wire harness over the

frame rear cross member.

5 To the multi-function meter unit
6 Brake hose
7 Coolant reservoir breather hose
8 Wire harness
9 Fasten the wire harness at the

white tape to the frame rear
cross member with the plastic
band. Face the end of the plastic
band downward.

0 Oil level switch coupler
A Oil tank breather hose
B Radiator outlet pipe
C Radiator fan motor coupler

(PZ50M/PZ50VT/PZ50MP)

D Knock sensor coupler
E Radiator inlet hose
F Fasten the wire harness, radiator

fan motor lead and knock sensor
lead to the radiator outlet pipe
with the plastic band, making
sure to align the radiator fan
motor coupler with the wire har-
ness joint coupler. Install the
plastic band with its buckle posi-
tioned to the outside of the pipe
and its end facing rearward.
(PZ50M/PZ50VT/PZ50MP)

G Coolant temperature sensor cou-

pler

H Fasten the wire harness and

radiator fan motor lead to the
radiator outlet hose with the plas-
tic band. Install the plastic band
with its buckle positioned to the
outside of the hose and its end
facing rearward. (PZ50M/
PZ50VT/PZ50MP)

9-47

SPEC

CABLE ROUTING

F

D

G

H

I

J

K

8

9

0

A

B

C

E

1 2

3 4

5

6

7

L

M

N

N

O

O

O

P

Q

Q

R

R

T

S

U

T

V

W

X

Y

Z

[

\

\

]

^

a

b

c

d

e

f

g

g

g

h

h

h

i

i

i

j

j

k

k

l

l

m

m

n

PZ50

PZ50VT/PZ50MP

PZ50GT/PZ50FX/PZ50M

9-48

SPEC

CABLE ROUTING

I Oil tank inlet hose
J Oil tank outlet hose
K Place the end of the coolant res-

ervoir breather hose to the inside
of the frame rear cross member.

L Fasten the starter motor lead and

negative battery lead to the radi-
ator joint pipe with the plastic
band.

M Fasten the wire harness, starter

motor lead, and negative battery
lead to the oil tank with the plas-
tic band. Face the end of the
plastic band upward.

N Starter motor lead
O Negative battery lead
P Fasten the starter motor lead,

negative battery lead, and wire
harness at the white tape to the
oil tank with the plastic band.
Face the end of the plastic band
upward.

Q Positive battery lead coupler
R Negative battery lead coupler
S Fasten the fuse box lead and

negative battery leads with the
plastic band. The buckle of the
plastic band on the right side of
the leads.

T ECU lead
U ECU
V DC back buzzer lead (PZ50GT/

PZ50FX/PZ50M/PZ50VT/
PZ50MP)

W Positive battery lead
X To the tail/brake light
Y Tail/brake light lead
Z Fasten the tail/brake light lead to

the frame rear cross member
with the plastic band, making
sure to route the lead to the
inside of the cross member.
Install the plastic band with its
buckle positioned towards the
front of the machine and its end
facing to the right.
