FRONT AXLE AND TRACK

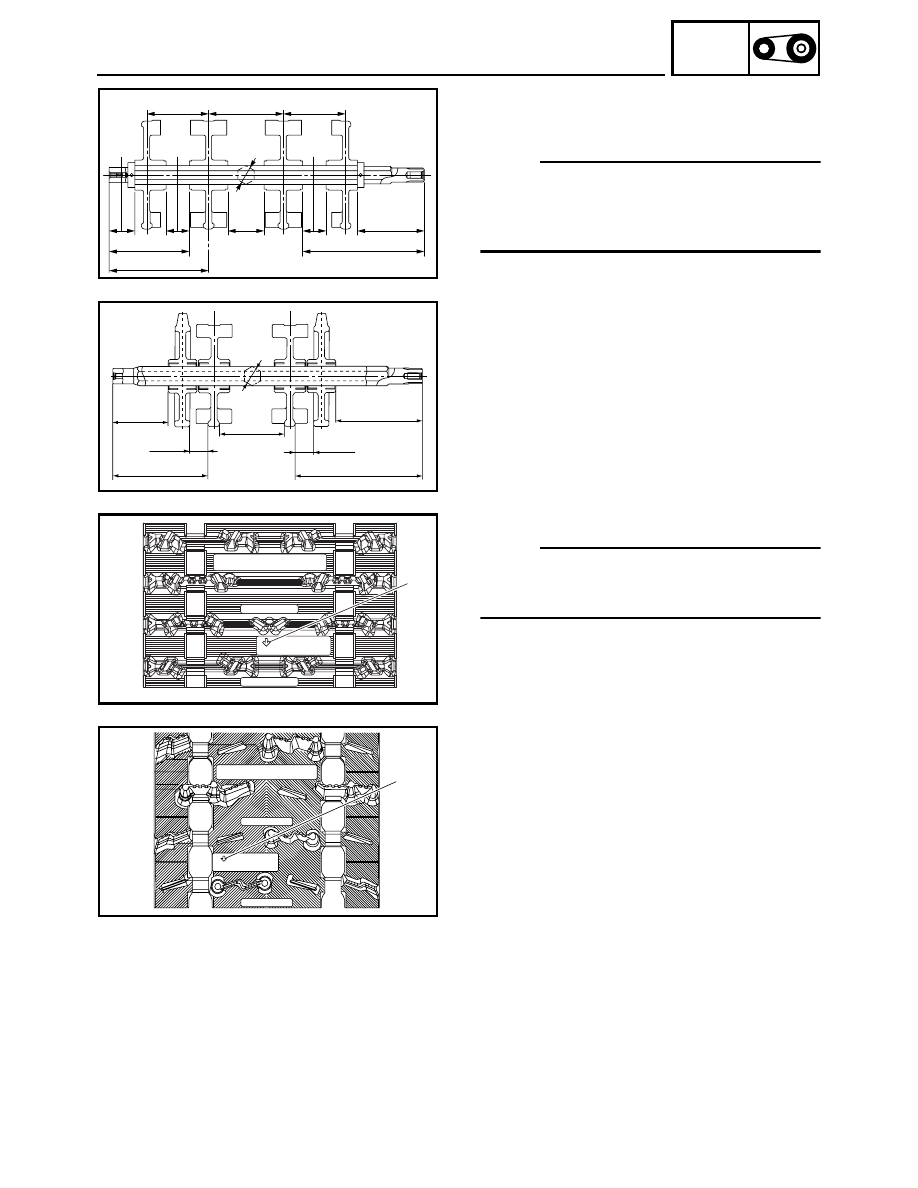

2. Install:

• Sprocket wheels
• Guide wheels

NOTE:

• When pressing the sprocket wheels onto the front

axle, align the lugs on each sprocket wheel.

• Position each sprocket wheel on the axle as

shown in the illustration.

È FX10/FX10RT/FX10RTR/FX10RTRA
É FX10MT/FX10MTR/FX10MTRA

102 mm
(4.02 in)

53.8 mm
(2.12 in)

 39 mm
(1.54 in)

123 mm
(4.84 in)

 27 mm
(1.06 in)

102 mm
(4.02 in)

 39 mm
(1.54 in)

109.9 mm
 (4.33 in)

199.4 mm
 (7.85 in)

 60 mm
(2.36 in)

143.3 mm
 (5.64 in)

174.8 mm
 (6.88 in)

È

101 mm
(3.98 in)

157.1 mm

(6.19 in)

166.1 mm

(6.54 in)

222.2 mm

(8.75 in)

105.5 mm

(4.15 in)

29.6 mm

(1.17 in)

29.6 mm

(1.17 in)

27 mm

(1.06 in)

É

3. Place the track in the chassis.

NOTE:

For track with a direction of rotation mark

a:

Install the track with the mark pointing in the direc-
tion of track rotation.

È FX10/FX10RT/FX10RTR/FX10RTRA
É FX10MT/FX10MTR/FX10MTRA

a

È

a

É

5-1

ENG

ENGINE

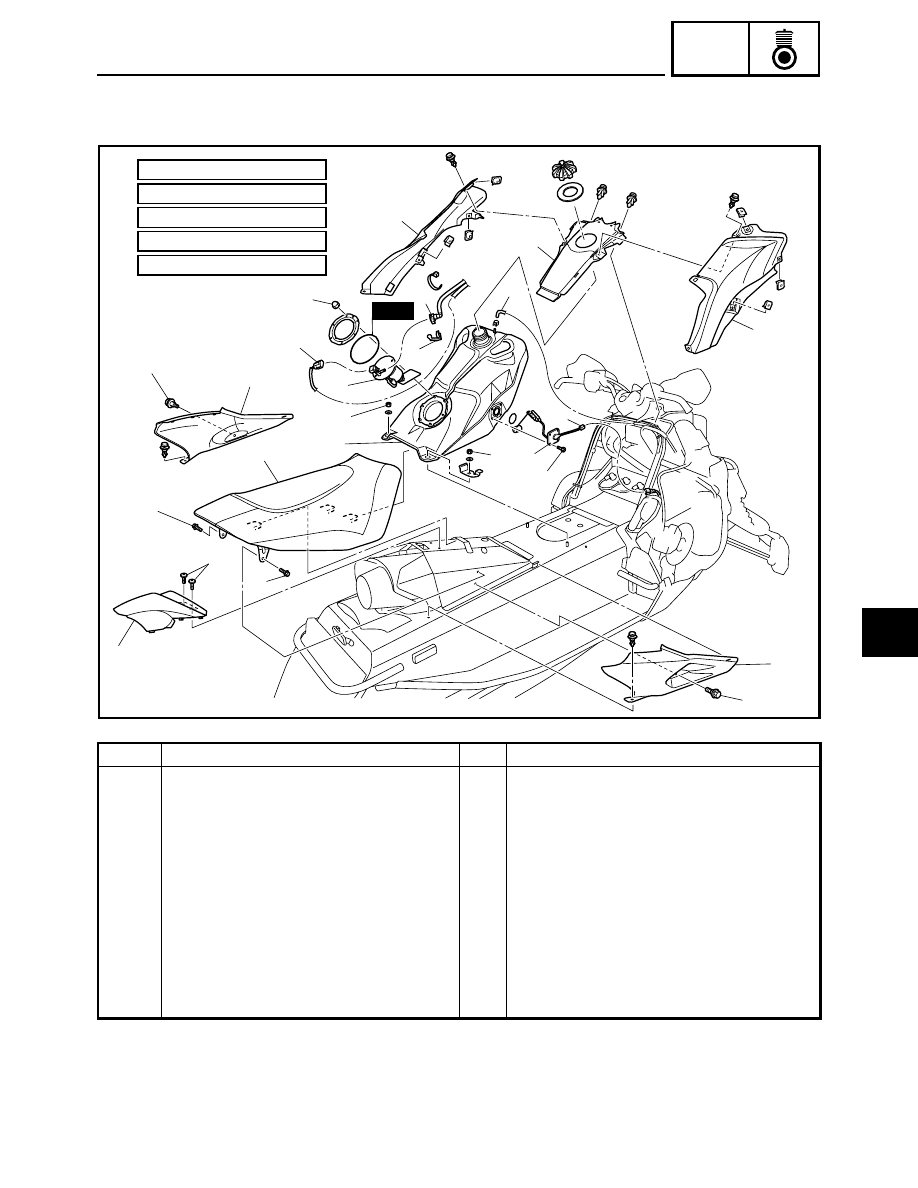

SEAT AND FUEL TANK

Order

Job name/Part name

Q’ty

Remarks

Seat and fuel tank removal

Remove the parts in the order listed below.

Side cover

Refer to “COVERS” in CHAPTER 3.

1

Rear side cover (left and right)

2

2

Seat

1

3

Rear upper cover

1

4

Fuel tank cover (left and right)

2

5

Fuel tank upper cover

1

6

Fuel pump coupler

1

Disconnect.

7

Fuel hose connector holder

1

8

Fuel hose

1

Disconnect.

9

Fuel sender coupler

1

Disconnect.

10

Fuel tank breather hose

1

Disconnect.

New

Ê

Ê

É

É

Ë

Ë

Ì

È

Ì

1

2

3

4

4

(6)

1

6

5

10

11

7

(4)

(3)

(3)

8

13

9

12

23 Nm (2.3 m

•

 kg, 17 ft

•

 lb)

Ì:

4 Nm (0.4 m

•

 kg, 2.9 ft

•

 lb)

7 Nm (0.7 m

•

 kg, 5.1 ft

•

 lb)

È:
É:

8 Nm (0.8 m

•

 kg, 5.8 ft

•

 lb)

10 Nm (1.0 m

•

 kg, 7.2 ft

•

 lb)

Ê:
Ë:

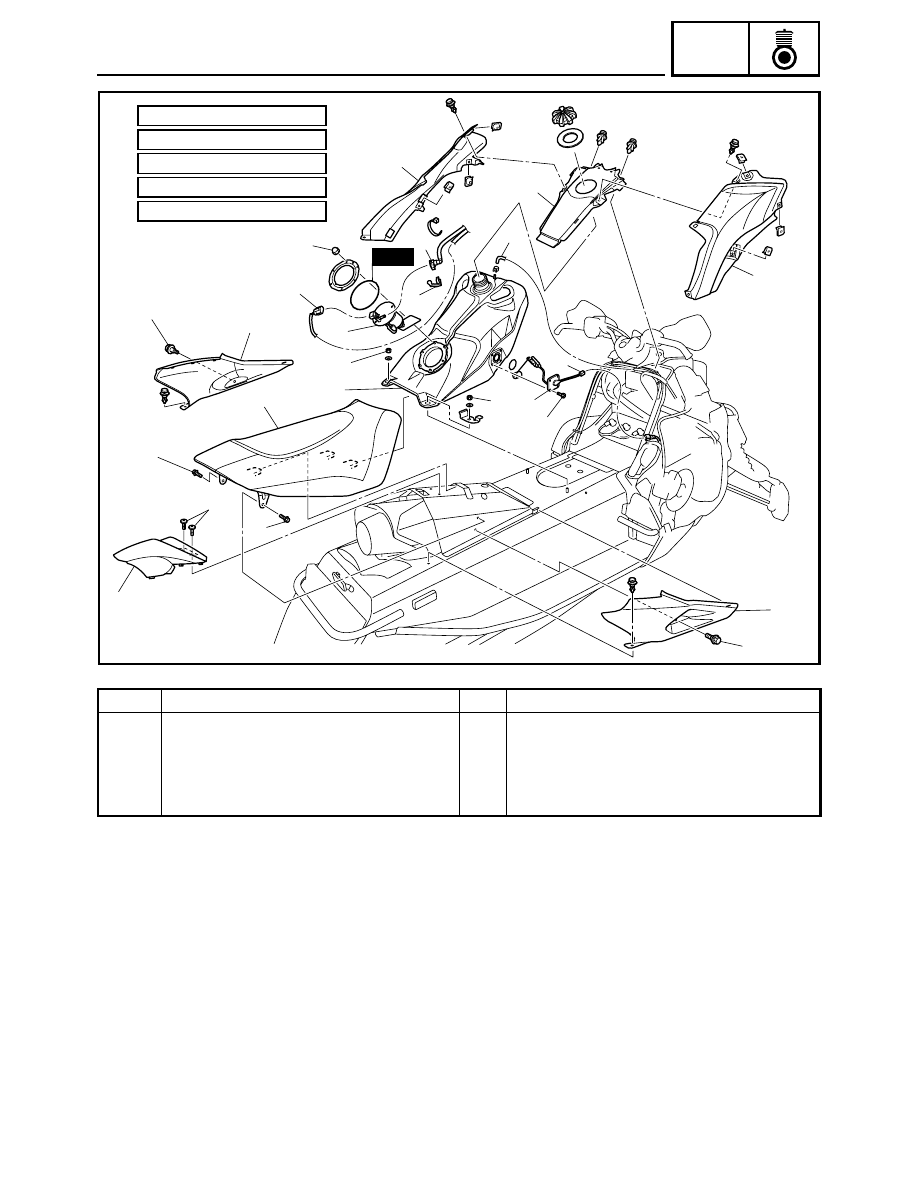

SEAT AND FUEL TANK

5

5-2

ENG

SEAT AND FUEL TANK

Order

Job name/Part name

Q’ty

Remarks

11

Fuel tank assembly

1

12

Fuel pump

1

13

Fuel sender

1

For installation, reverse the removal proce-
dure.

New

Ê

Ê

É

É

Ë

Ë

Ì

È

Ì

1

2

3

4

4

(6)

1

6

5

10

11

7

(4)

(3)

(3)

8

13

9

12

23 Nm (2.3 m

•

 kg, 17 ft

•

 lb)

Ì:

4 Nm (0.4 m

•

 kg, 2.9 ft

•

 lb)

7 Nm (0.7 m

•

 kg, 5.1 ft

•

 lb)

È:
É:

8 Nm (0.8 m

•

 kg, 5.8 ft

•

 lb)

10 Nm (1.0 m

•

 kg, 7.2 ft

•

 lb)

Ê:
Ë:

5-3

ENG

SEAT AND FUEL TANK

REMOVAL

1. Extract the fuel in the fuel tank through the fuel

tank cap with a pump.

2. Remove:

• Fuel hose connector holder
• Fuel hose

CAUTION:

• Be sure to disconnect the fuel hose by hand.

Do not forcefully disconnect the hose with
tools.

• Although the fuel has been removed from the

fuel tank be careful when removing the fuel
hose, since there may be fuel remaining in it.

NOTE:

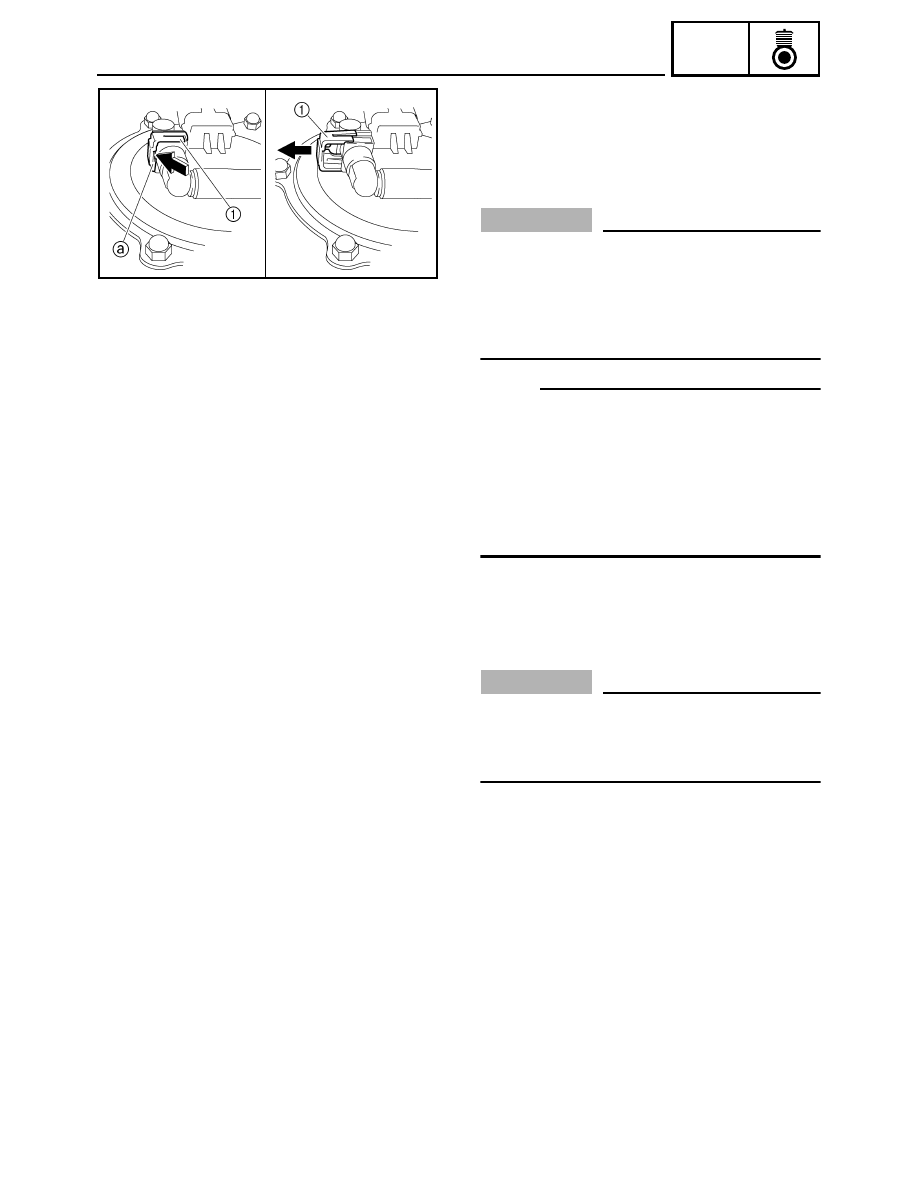

• When removing the fuel hose from the fuel pump,

remove the fuel hose connector holder first, and
next, insert a slotted head screwdriver etc. in the
slot part

a of the fuel hose connector cover 1,

then slide the screwdriver in the direction of the
arrow, and remove the fuel hose.

• Before removing the hose, place a few rags in the

area under where it will be removed.

3. Remove:

• Fuel pump bracket
• Fuel pump
• Fuel pump gasket
• Fuel sender

CAUTION:

• Do not drop the fuel pump or give it a strong

shock.

• Do not touch the base section of the fuel

sender.
