MPE 750 HO Snow. Manual - part 4

10055_abMJ07_ETK_Rev1.4_090128

MPE 750 HO Snow

1

2

3

4

5

5

6

7

8

9

10

11

Spare Parts Catalogue

Page 11

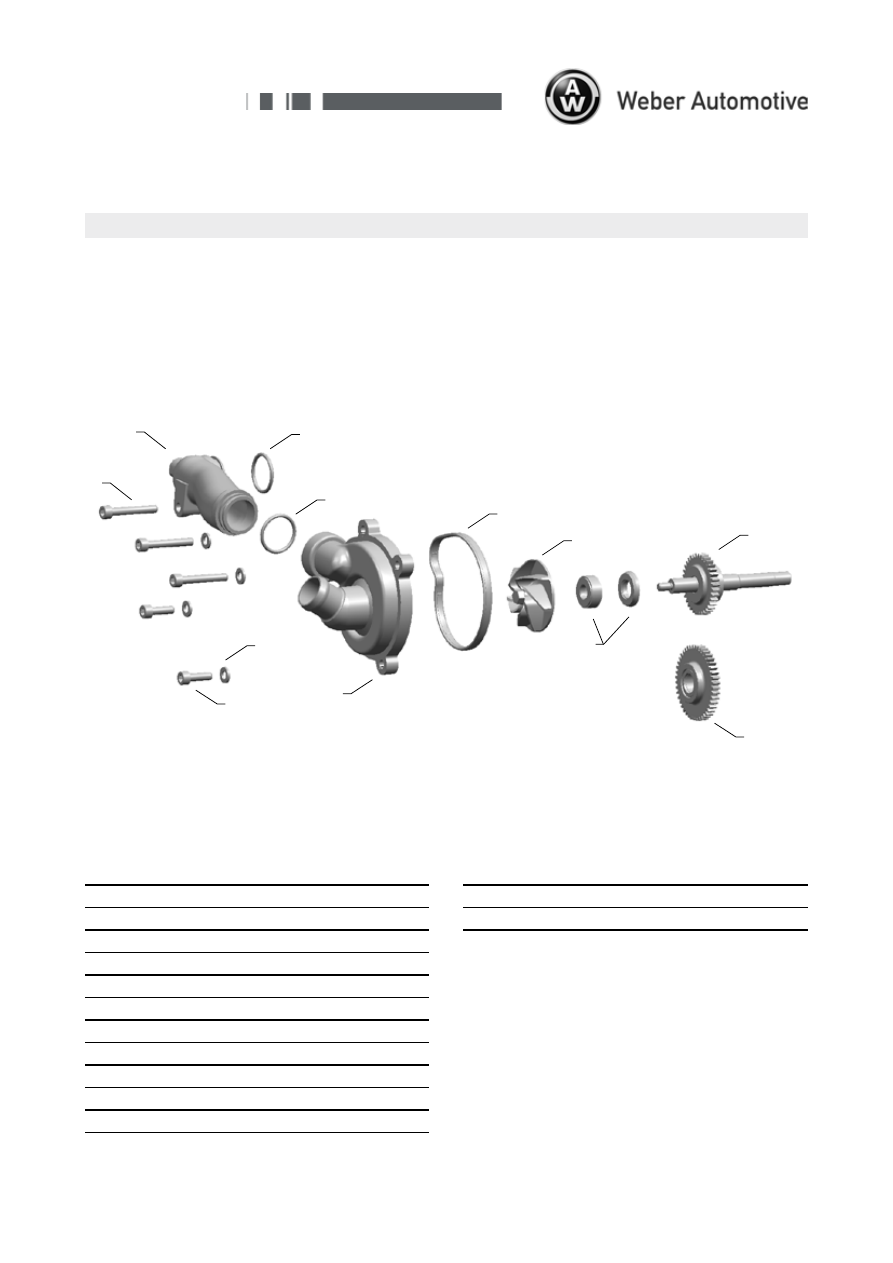

050  Cooling System

02 Water Pump

Pos. Part No Description

QTY

1

100826 Bolt

M6x40

3

2

100501 Bolt

M6x20 8.8

2

3

100448 Washer

4

4

102903 Water Tube

1

5

102454 O-Ring

2

6

102194 Water Pump Cover  incl. Pos. 7

1

7

102427 Gasket

1

8

400180 Impeller Type 2

1

9

103743 Sealing Kit

1

10

102948 Water Pump Axle

1

Pos. Part No Description

QTY

11

102870 Intermediate Gear Water Pump

1

10055_abMJ07_ETK_Rev1.4_090128

MPE 750 HO Snow

1

2

3

4

5

6

10

9

11

8

7

12

13

Spare Parts Catalogue

Page 12

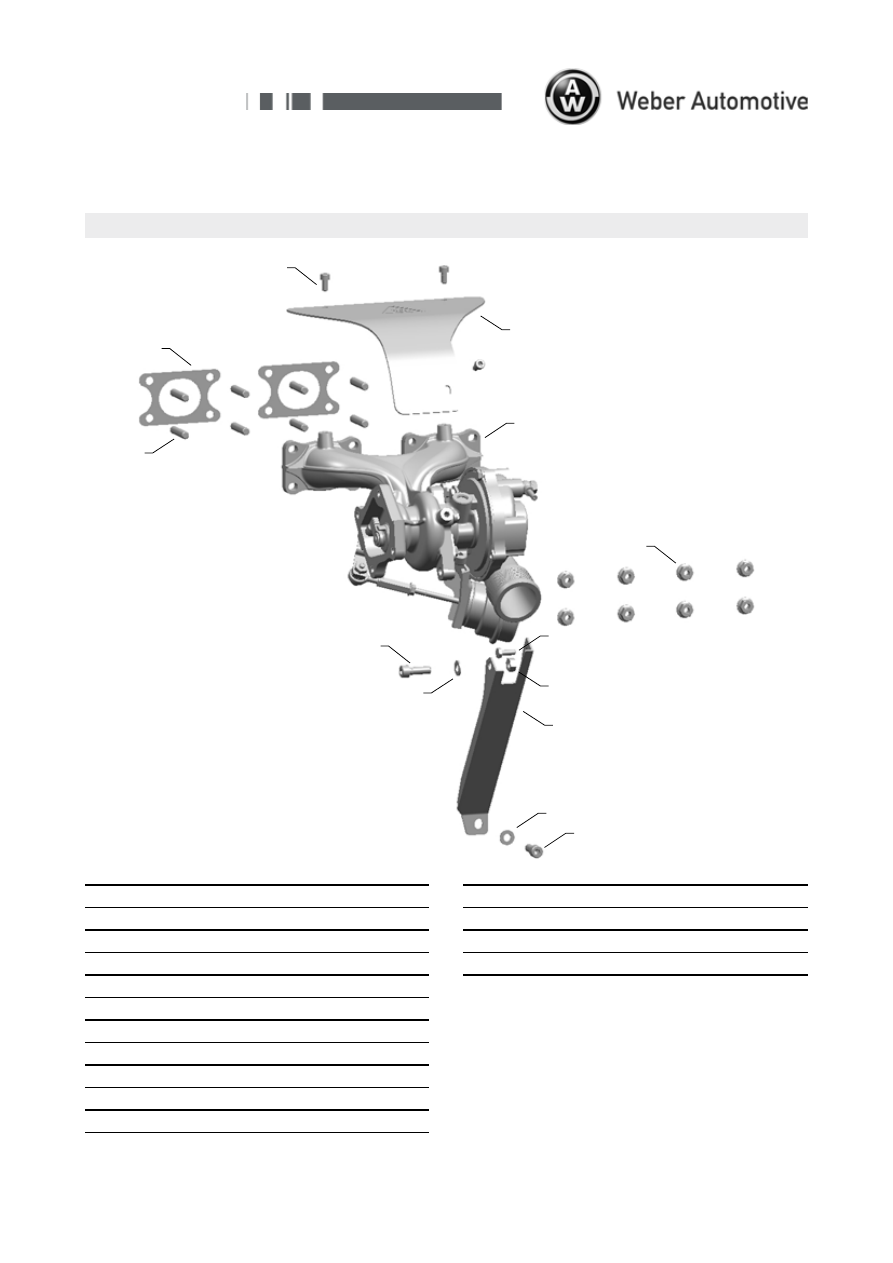

060  Turbocharging

Pos. Part No Description

QTY

1

401923 Bolt

M6x12

3

2

102845 Heat Shield

1

3

101446 Exhaust Gasket

2

4

102453 Stud

M8x38 8.8

8

5

400937 Turbocharger

1

6

100737 Nut

M8

8

7

102490 Bolt

M8x25

1

8

100547 Washer

1

9

101651 Nut

M8

1

10

101131 Bolt

M6x16

1

Pos. Part No Description

QTY

11

103006 Turbocharger Bracket

1

12

100468 Washer

1

13

101373 Bolt

M8x20 8.8

1

10055_abMJ07_ETK_Rev1.4_090128

MPE 750 HO Snow

1

3

4

5

6

2

Spare Parts Catalogue

Page 1

*  See Chapter Engine Management System

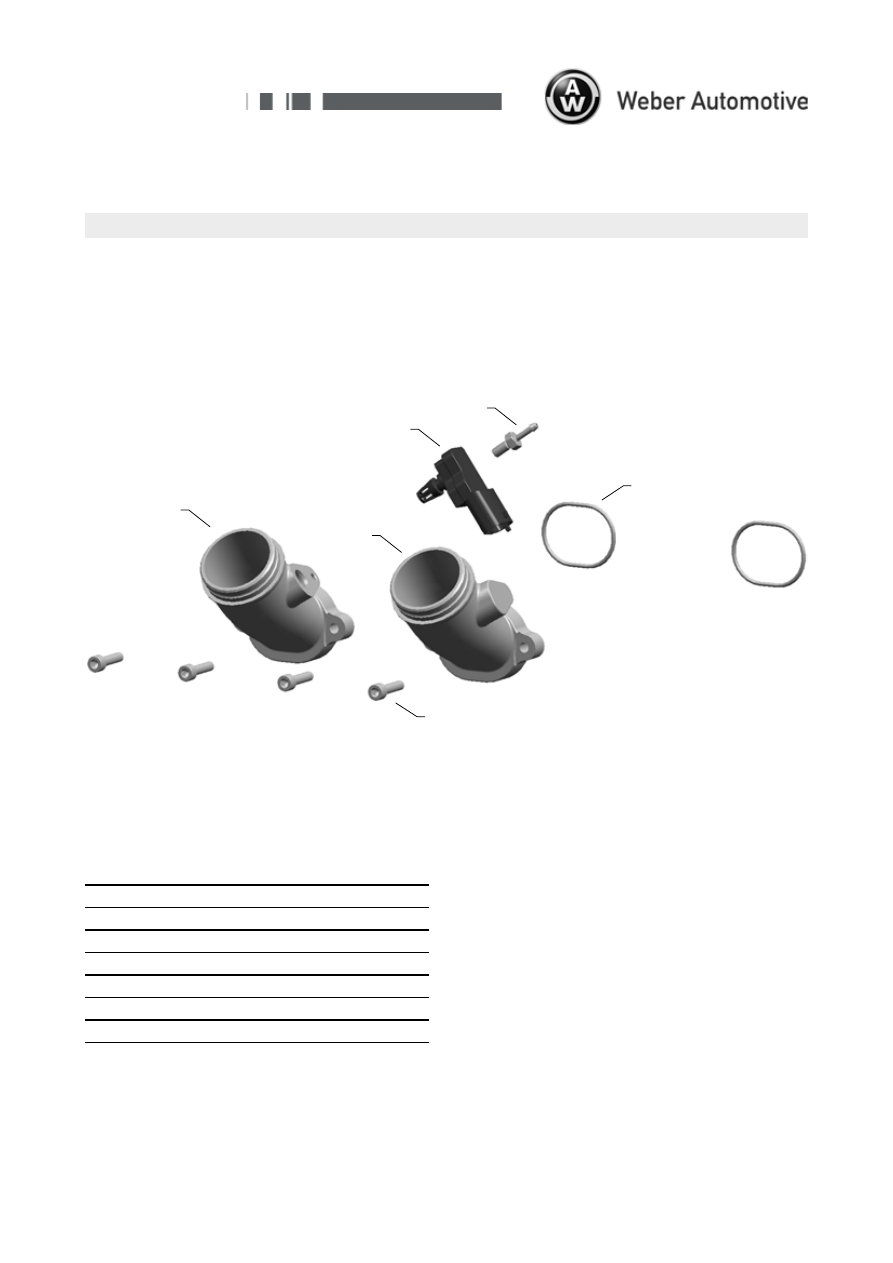

070  Intake Area

Pos. Part No Description

QTY

1

402558 Intake Fitting

1

2

402559 Intake Fitting

1

3

100502 Bolt

M6x25 8.8

4

4

*

Pressure Sensor

1

5

102533 Fitting

1

6

102651 O-Ring

2

10055_abMJ07_ETK_Rev1.4_090128

MPE 750 HO Snow

1

3

1

2

1

1

2

1

2

1

2

Spare Parts Catalogue

Page 14

Pos. Part No Description

QTY

1

104258 Spark Plug

RC7PYCBX

1

Pos. Part No Description

QTY

1

100031 Sensor Camshaft

1

2

102021 Bolt

6x18

1

Pos. Part No Description

QTY

1

100029 Pressure Sensor

1

Pos. Part No Description

QTY

1

100141 Ignition Coil

2

2

100448 Washer

4

3

100501 Bolt

M6x20 8.8

4

See Chapter Cylinder Head

See Chapter Cylinder Head

See Chapter Intake Area

See Chapter Cylinder Head

Pos. Part No Description

QTY

1

100442 Knock Sensor

1

2

100538 Bolt

M8x30 8.8

1

080  Engine Management System

Pos. Part No Description

QTY

1

102954 Injector incl. Pos. 2

2

2

100708 O-Ring

2

See Chapter Fuel Unit

See Chapter Crankcase
