MPE 750 HO Snow. Manual - part 3

10055_abMJ07_ETK_Rev1.4_090128

MPE 750 HO Snow

1

2

4

3

5

6

7

4

11

6

9

10

8

Spare Parts Catalogue

Page 7

*  See Chapter Engine Management System

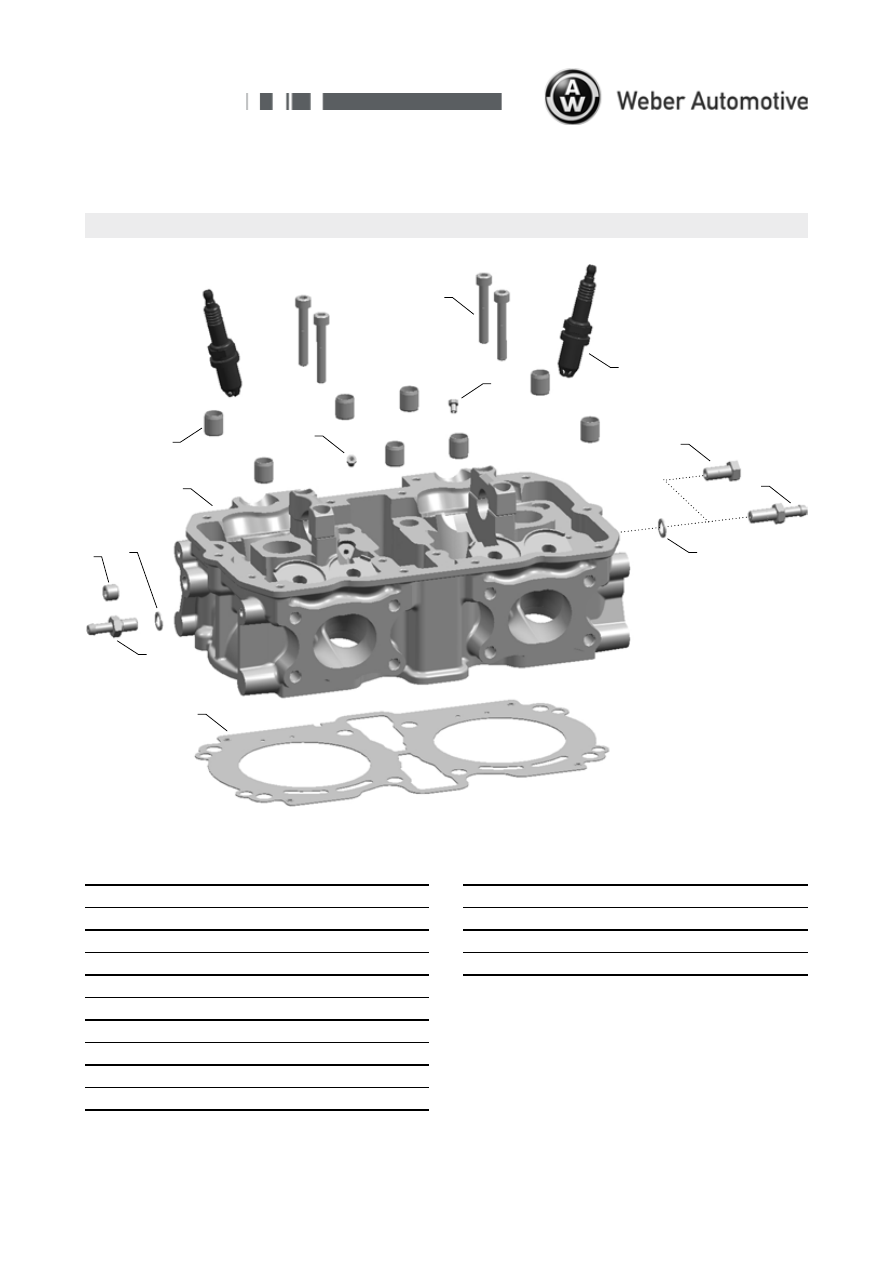

030  Cylinder Head

03 Cylinder Head

Pos. Part No Description

QTY

1

100514 Bolt

M6x40 10.9

4

2

*

Spark Plug

RC7PYCBX

2

3

100228 Sleeve

8

4

100094 Welch Plug

2

5

104249 Cylinder Head incl. Pos. 1, 4, 6, 7, 8, 10

1

6

100587 Seal

8x12x1 Al

2

7

102992 Plug

1

8

400920 Fitting (total lenght 33mm) M8x1x12

1

9

101445 Cylinder Head Gasket

1

Pos. Part No Description

QTY

Depending on delivery status Pos. 10 or Pos. 11

10

401990 Fitting (total lenght 38mm) M8x1x17

1

11

100572 Banjo Bolt

M8x1

1

Quod vide chapter 910 Repair Kits

10055_abMJ07_ETK_Rev1.4_090128

MPE 750 HO Snow

1

2

3

4

5

6

7

8

Spare Parts Catalogue

Page 8

030  Cylinder Head

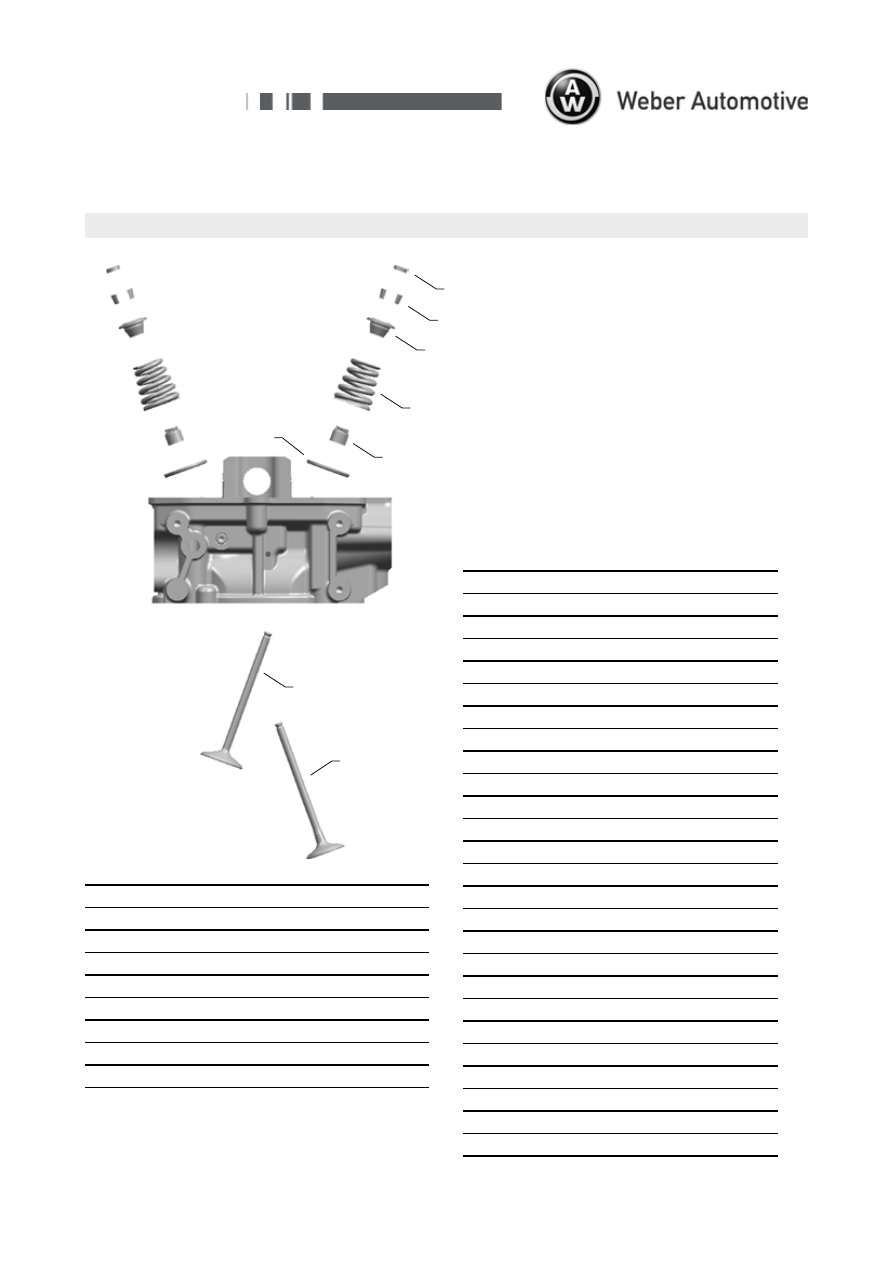

04 Valves

*  See Table Valve Adjustment Shim

Intake Side

Exhaust Side

Pos. Part No Description

QTY

1

*

Shim

8

2

100129 Collet Valve

16

3

102316 Spring Cup

8

4

100081 Valve Spring

8

5

100658 Valve Stem Seal

8

6

100262 Spring Pad

8

7

102542 Intake Valve

4

8

102327 Exhaust Valve

4

Valve Adjustment Shim (8 parts per bag)

Part No Description

QTY

102043 Shim

10x2.50

1

102044 Shim

10x2.55

1

102045 Shim

10x2.60

1

102046 Shim

10x2.65

1

102047 Shim

10x2.70

1

102048 Shim

10x2.75

1

102049 Shim

10x2.80

1

102050 Shim

10x2.85

1

102051 Shim

10x2.90

1

102029 Shim

10x2.95

1

102030 Shim

10x3.00

1

102052 Shim

10x3.05

1

102031 Shim

10x3.10

1

102032 Shim

10x3.15

1

102033 Shim

10x3.20

1

102034 Shim

10x3.25

1

102053 Shim

10x3.30

1

102035 Shim

10x3.35

1

102036 Shim

10x3.40

1

102037 Shim

10x3.45

1

102038 Shim

10x3.50

1

102039 Shim

10x3.55

1

102040 Shim

10x3.60

1

102041 Shim

10x3.65

1

102042 Shim

10x3.70

1

10055_abMJ07_ETK_Rev1.4_090128

MPE 750 HO Snow

2

4

5

7

8

9

10

11

6

3

1

Spare Parts Catalogue

Page 9

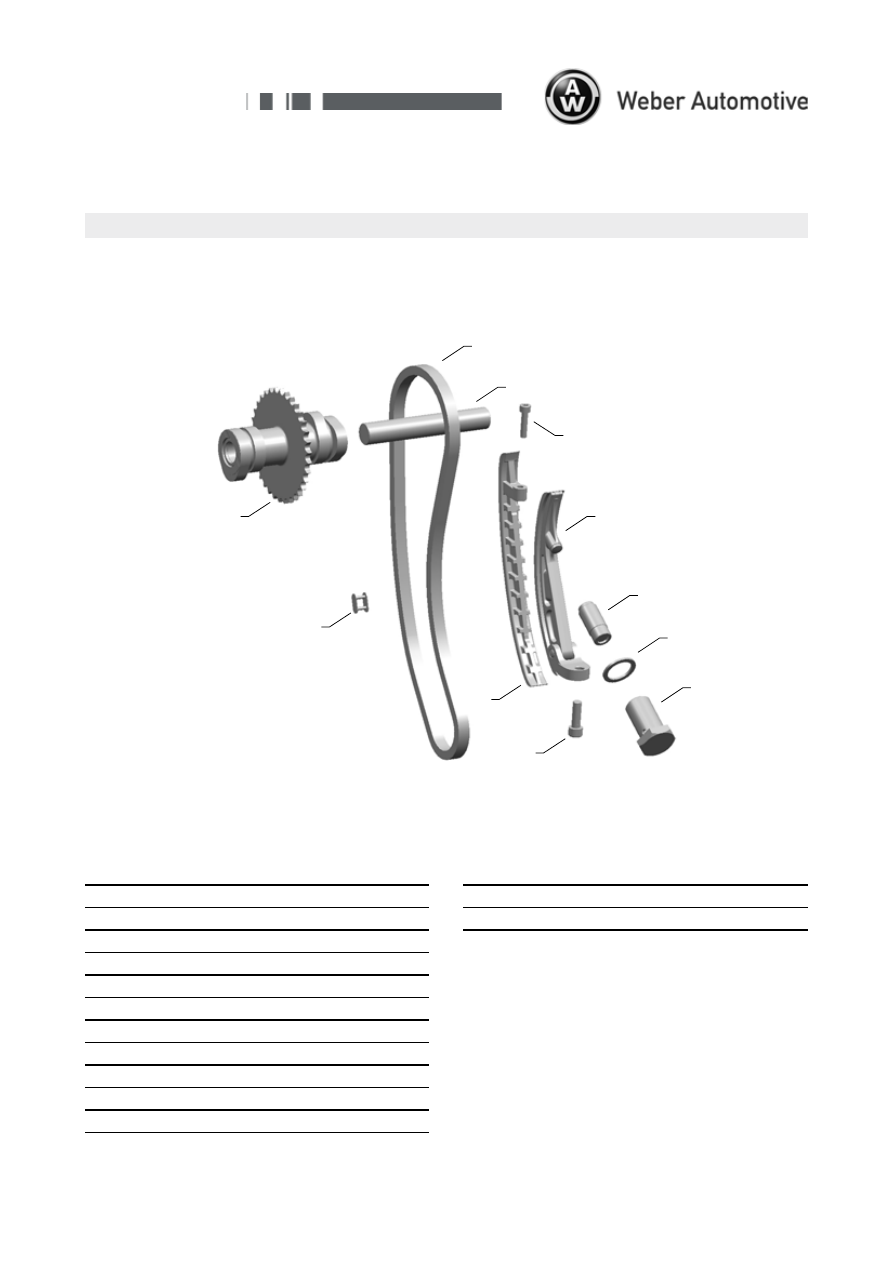

040  Valve Train

Pos. Part No Description

QTY

1

101921 Camshaft

1

2

100116 Timing Chain incl. Link

1

3

100557 Chain Link, Single

1

4

100078 Camshaft Axle

1

5

100502 Bolt

M6x25 8.8

1

6

100069 Chain Rail

1

7

102456 Chain Guide

1

8

100079 Chain Tensioner

1

9

100436 Seal

24x32x2 Al

1

10

100337 Plug

1

Pos. Part No Description

QTY

11

100832 Bolt

M8x25 10.9

1

10055_abMJ07_ETK_Rev1.4_090128

MPE 750 HO Snow

1

2

3

6

4

7

5

8

9

Spare Parts Catalogue

Page 10

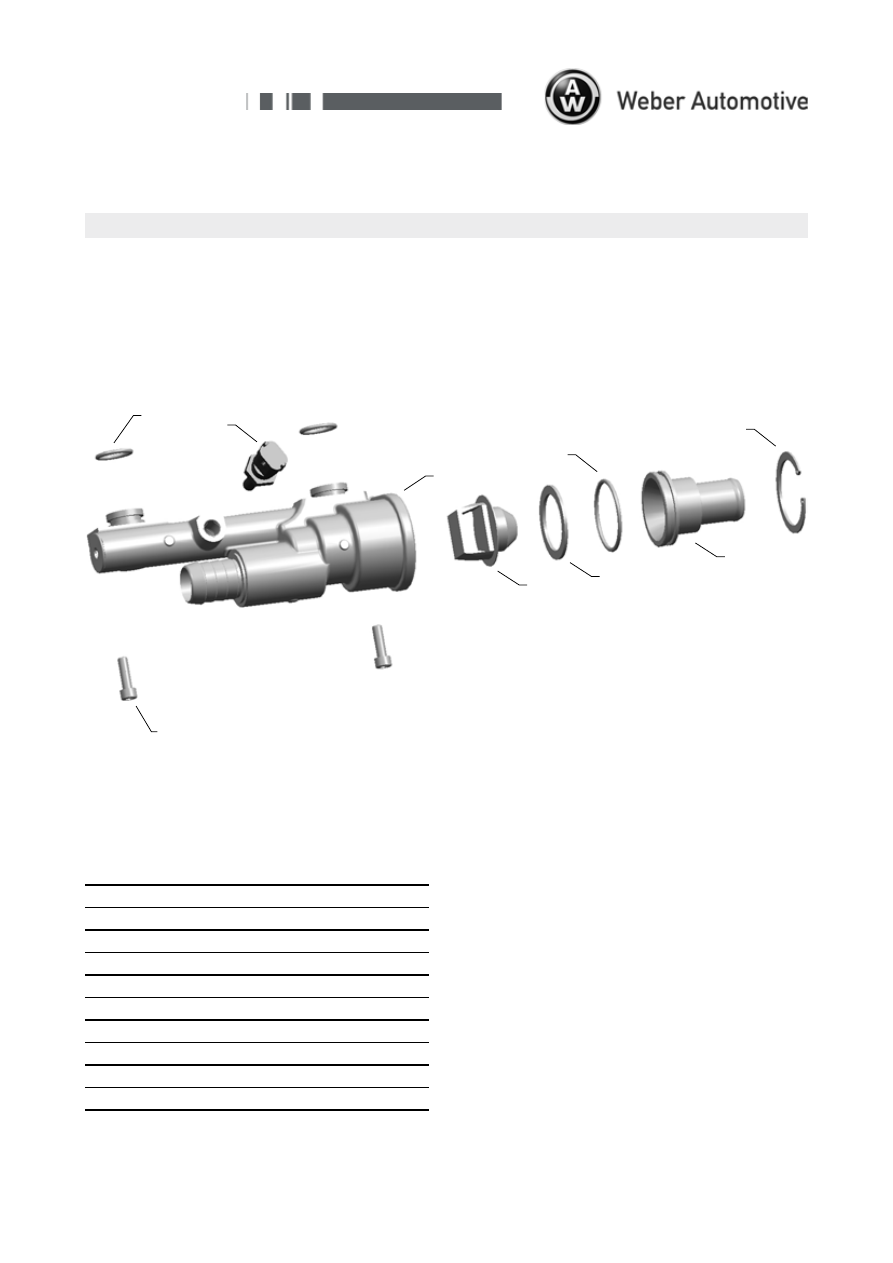

050  Cooling System

01 Water Manifold

*  See Chapter Engine Management System

Pos. Part No Description

QTY

1

100517 O-Ring

2

2

100501 Bolt

M6x20 8.8

2

3

*

Sensor Coolant Temperature

1

4

101076 Water Manifold

1

5

402430 Thermostat

1

6

401279 Distance Washer

1

7

100516 O-Ring

1

8

101253 Fitting

1

9

100294 Circleclip

1
