39

FEATURES

Instrumentation

MFD Digital Display Programs

Press and release the MODE button to cycle through the three MFD
programs: Performance, Engine and History. Each program remains
active until you cycle to the next program. While any program is active,
press and release the SET button to cycle through the program’s screens.

Performance Program

The Performance Program automatically displays either speed or
tachometer, whichever is opposite the analog display. See page 38. It
also displays electrical system voltage and fuel level (if equipped).

While in the Performance mode, press the SET button to cycle through
the odometer, Trip 1, Trip 2, Trip F (if equipped with electronic fuel
gauge) and Clock (if equipped). Use the following procedures to make
changes to these screens.

Odometer Setting

The odometer records the vehicle's total
distance traveled since manufacture. The
odometer cannot be reset.

40

FEATURES

Instrumentation

MFD Digital Display Programs

Trip Settings

Trip 1 and Trip 2 are odometers used
to check fuel mileage or to keep
track of distance traveled. Both
odometers can be reset to zero.

1. Enter the Performance Program.

2. Press and release the SET button

until the desired trip screen is
active.

3. Press and hold the SET button for two seconds to reset the trip

odometer to zero.

4. Press and release the SET button to cycle through additional

screens.

41

FEATURES

Instrumentation

MFD Digital Display Programs

Performance Program
Trip Settings

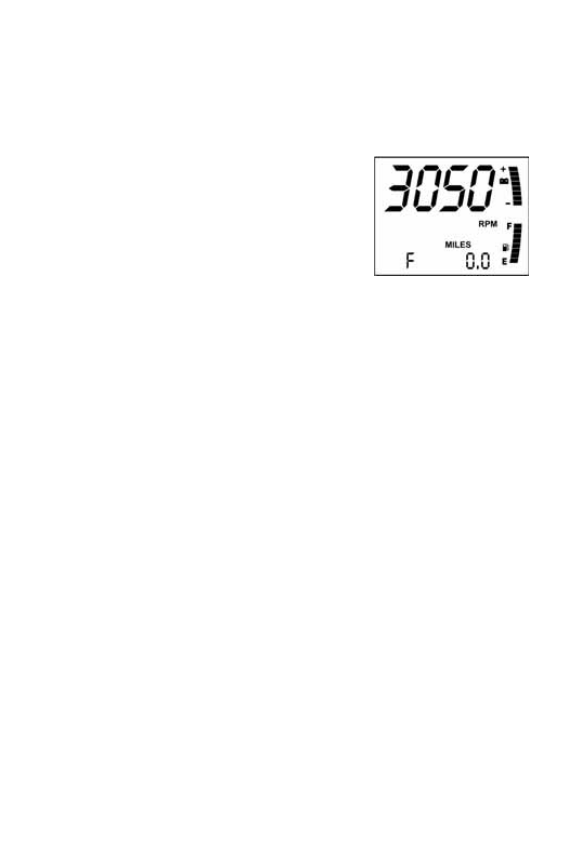

If the snowmobile is equipped with an
electronic fuel gauge, Trip F
automatically displays when the fuel
level is low. The fuel symbol and the last
fuel bar on the MFD gauge will blink
when the fuel level reaches 1/8th tank.

The Trip F odometer records distance
traveled until enough fuel is added to
raise the level above 1/4 tank. The fuel
symbol and the fuel bar will continue to
blink until the fuel level is above 1/4
tank. The Trip F odometer will
automatically reset to zero after refueling.

42

FEATURES

Instrumentation

MFD Digital Display Programs

Performance Program

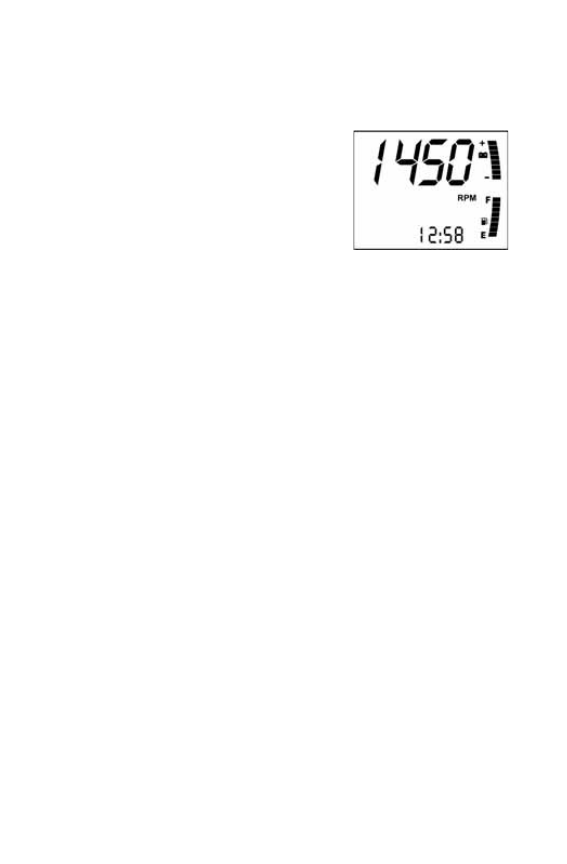

Clock Setting (if equipped)

1. Enter the Performance Program.

2. Press and release the SET button

until the clock screen is active.

3. Press and hold the SET button for

five seconds.

4. When the hour starts flashing,

press the SET switch once to advance one hour. (Press and hold the
SET button to advance the hours quickly.)

5. Press and release the MODE button to save the hour. The minutes

will begin flashing.

6. Set the minutes in the same manner.

7. When finished, press and release the MODE button to save the new

setting. If the MODE button is not pressed within ten seconds, the
gauge will automatically save the new entry.
