9.3

REAR SUSPENSION

9

SPECIAL TOOLS

Shock Rebuilding Tools

Special Tools

PART NUMBER

DESCRIPTION

2200421

Gas Shock Recharging Kit

2201639

Shock Shaft Seal Protector .50" Diameter

2201640

Shock Shaft Seal Protector .625" Diameter

2870623

Shock Absorber Spring Compression Tool

2870803

Shock Spring Pre-Load Adjustment Too

PS-45259

Gas Fill Tool

9917736

VIDEO-Rebuilding Mono Tube Shocks

9917737

VIDEO-Rebuilding Remote Reservoir Shocks

Ryde FX Shock Special Tools

PART NUMBER

DESCRIPTION

PS-45259

Gas Fill Tool and Gauge (Incl. 5 needles)

PS-45259-1

Gas Fill Needles replacement pack

PS-45259-2

Gas Fill Gauge (replacement)

PS-45260

Lower Retainer Wrench

PS-45261

IFP Positioning / Extraction tool

PS-45262

Cylinder Head Wrench

PS-45263

Wear Band Tool

PS-45629

Arvin Shock Body Holder

PS-45280

Shock Collar Tool

PS-45821

Shock Reservoir Holder

FOX Shock Special Tools

PART NUMBER

DESCRIPTION

2871021

Shock Body Holding Tool

2871352

Shock Rod Holding Tool .50" Diameter Rod

2872429

Shock Rod Holding Tool .625" Diameter Rod

2871232

Fox Shock Spanner

2871351

Fox Shock IFP Depth Tool

PS-44925

Fox Inner Tube Puller PS 2

9.4

REAR SUSPENSION

REAR SUSPENSION TORQUE SPECIFICATIONS

Shock Mounting Fasteners Specification

NOTE:  All bolt heads should be in the left hand side.

NOTE:  Torque both sides of pivot shaft if applicable

UNIT

SUSPENSION

FTS UPPER

FTS LOWER

RTS UPPER

RTS LOWER

340 LX

Edge 121

35 ft-lb (47 N-m)

35 ft-lb (47 N-m)

25 ft-lb (34 N-m)

35 ft-lb (47 N-m)

500 XCSP

550 LX

SuperSport

340 Touring

Edge 136

35 ft-lb (47 N-m)

35 ft-lb (47 N-m)

35 ft-lb (47 N-m)

35 ft-lb (47 N-m)

Trail Touring

Trail RMK

Edge RMK 136

25 ft-lb (34 N-m)

35 ft-lb (47 N-m)  25 ft-lb (34 N-m)

25 ft-lb (34 N-m)

600 IQ Switchback (Carb
and CFI)

IQ Switchback

19 ft-lb (26 N-m)

35 ft-lb (47 N-m)

25 ft-lb (34 N-m)

35 ft-lb (47 N-m)

FST IQ Switchback

FST IQ

IQ 121

35 ft-lb (47 N-m)

35 ft-lb (47 N-m)

35 ft-lb (47 N-m)

35 ft-lb (47 N-m)

600 IQ (Carb and CFI)

IQ Dragon

IQ 121 Dragon

35 ft-lb (47 N-m)

35 ft-lb (47 N-m)

35 ft-lb (47 N-m)

35 ft-lb (47 N-m)

600 IQ LX

M10 128

35 ft-lb (47 N-m)

45 ft-lb (61 N-m)

35 ft-lb (47 N-m)

45 ft-lb (61 N-m)



FST IQ LX

600 IQ Touring

M10 136

35 ft-lb (47 N-m)

45 ft-lb (61 N-m)

35 ft-lb (47 N-m)

45 ft-lb (61 N-m)

FS IQ Touring

FST IQ Touring

FST IQ Cruiser

M10 136 ACE

35 ft-lb (47 N-m)

45 ft-lb (61 N-m)

35 ft-lb (47 N-m)

(Note: This value is also

for the mid shock)

35 ft-lb (47 N-m)

(Note: This value is also

for the mid shock)

WideTrak LX

WideTrak

25 ft-lb (34 N-m)

35 ft-lb (47 N-m)  25 ft-lb (34 N-m)

25 ft-lb (34 N-m)

600 RMK 144

IQ RMK 144

19 ft-lb (26 N-m)

35 ft-lb (47 N-m)

25 ft-lb (34 N-m)

35 ft-lb (47 N-m)

600 RMK 155

IQ RMK 155

RMK Dragon

9.5

REAR SUSPENSION

9

Suspension to Chassis Fasteners Specification

UNIT

SUSPENSION

FTA

RTA

340 LX

Edge 121

45 ft-lb (61 N-m)

45 ft-lb (61 N-m)

500 XCSP

550 LX

SuperSport

340 Touring

Edge 136

45 ft-lb (61 N-m)

45 ft-lb (61 N-m)

Trail Touring

Trail RMK

Edge RMK 136

40 ft-lb (54 N-m)

40 ft-lb (54 N-m)

600 IQ Switchback (Carb and CFI)

IQ Switchback

45 ft-lb (61 N-m)

45 ft-lb (61 N-m)

FST IQ Switchback

FST IQ

IQ 121

60 ft-lb (81 N-m)

60 ft-lb (81 N-m)

600 IQ (Carb and CFI)

IQ Dragon

IQ 121 Dragon

60 ft-lb (81 N-m)

60 ft-lb (81 N-m)

600 IQ LX

M10 128

70 ft-lb (95 N-m)

70 ft-lb (95 N-m)

FST IQ LX

600 IQ Touring

M10 136

70 ft-lb (95 N-m)

70 ft-lb (95 N-m)

FS IQ Touring

FST IQ Touring

FST IQ Cruiser

M10 136 ACE

70 ft-lb (95 N-m)

70 ft-lb (95 N-m)

WideTrak LX (4 suspension mounting
positions)

WideTrak

40 ft-lb (54 N-m)

40 ft-lb (54 N-m)

600 RMK 144

IQ RMK 144

45 ft-lb (61 N-m)

45 ft-lb (61 N-m)

600 RMK 155

IQ RMK 155

RMK Dragon

9.6

REAR SUSPENSION

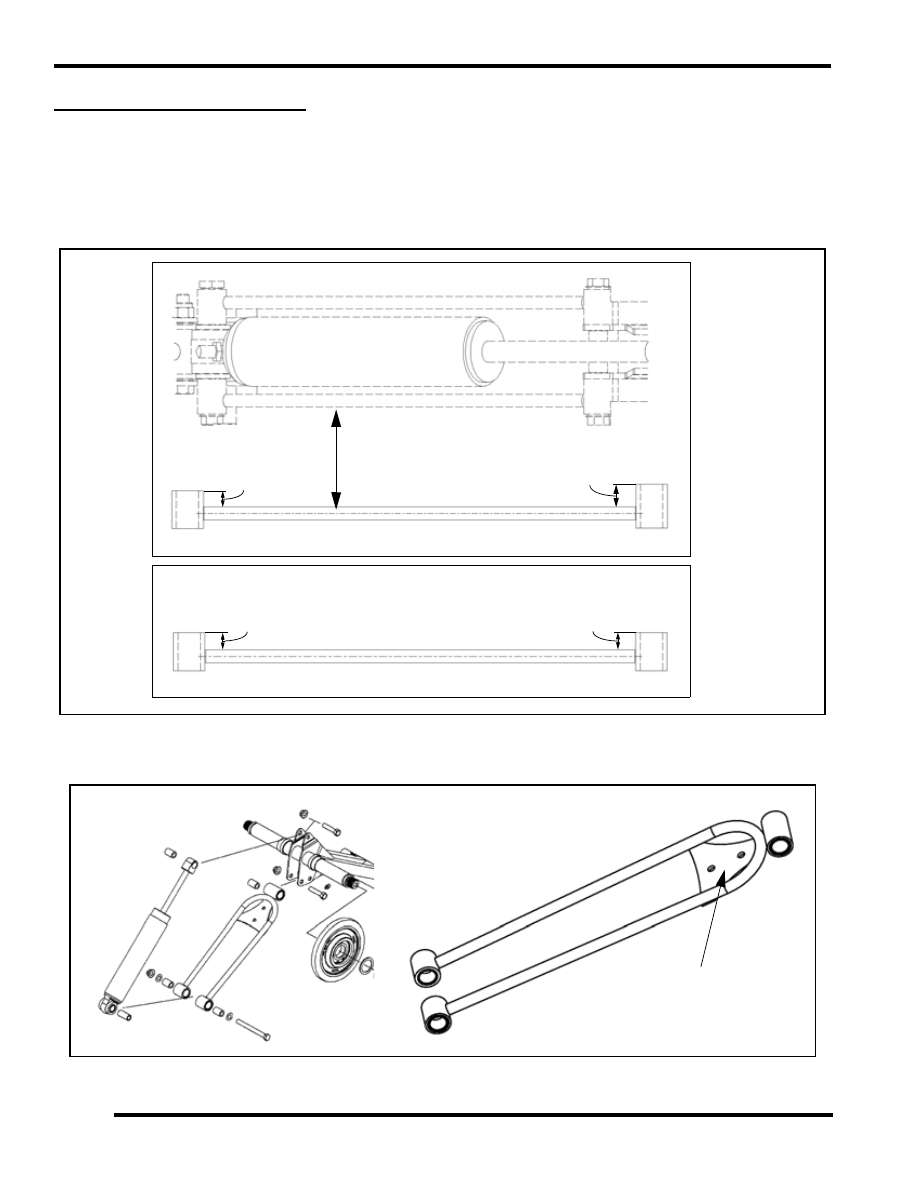

SHOCK CONTROL RODS

Edge Shock Rods

Shock rods must be installed in the same orientation as set from the factory. Any changes made to the shock rod orientation other
than the factory setting may cause suspension damage.

The shock rods that are found on all 2007 Edge rear suspensions are shown below.

IQ Shock Rod

Below are examples of the IQ shock rod. The orientation of this rod is so that the plate is facing downward.

.63" (16 mm)

.45" (11.4 mm)

Lower

Upper

Trail RMK (lower end is smaller than the upper end)

340, 340 LX, 500 XC SP, SuperSport (both ends are the same size)

.475" (12 mm)

.475" (12 mm)

Facing Shock

Facing Shock

Shock Rod Assembly Example (Trail RMK Shown)

Shock

Lower

Upper

Plate facing down

(plate will look different
with suspensions utilizing
remote reservoir shocks)
