D11

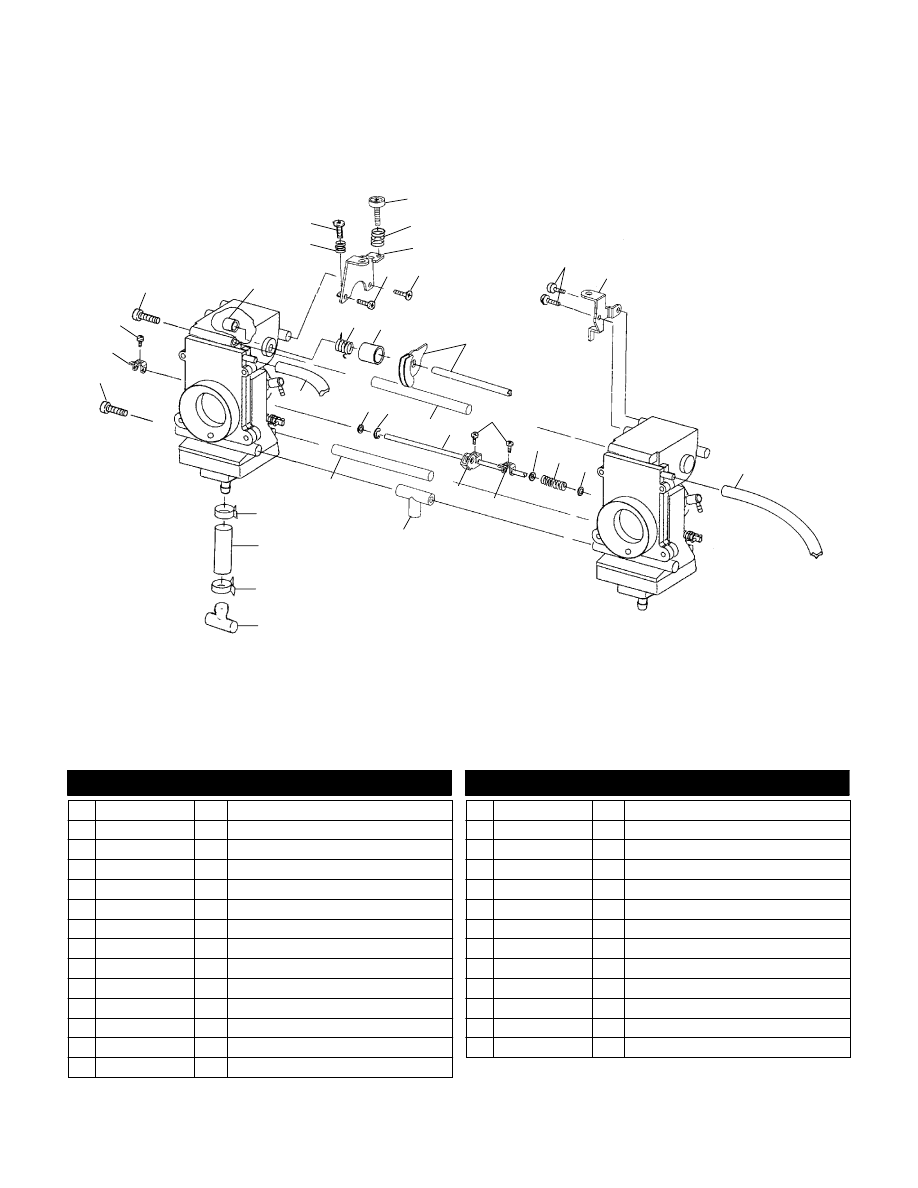

CARBURETOR (700)

700 XC SP EDGE S03NP7CSA and 700 XC SP EDGE S03NP7CSB and 700 XC EDGE S03NP7CS and 700 XC SP EDGE X F/0 S03NA7CS and 700 XC SP EDGE M-10 F/O

S03NE7CS and 700 XC SP EDGE X M-10 F/O S03NF7CS

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 3130834

2 Bolt

2 3130832

2 Lever

3 3130833

3 Screw

4 3140032

1 Ring

5 3130817

1 Spring

6 3130816

1 Screw

7 3131285

1 Adjuster

8 3131284

1 Spring

9 3130815

1 Bracket

10 3130810

1 Screw

11 3130809

1 Screw

12 3130950

1 Spring

13 3130853

1 Ring

14 3131369

1 Asm., Shaft (Incl. Lever)

15 3130821

2 Screw

16 3130820

1 Bracket

17 3131137

2 Hose

18 3130842

3 Packing, Starter Shaft

19 3130841

1 Spring, Starter Shaft

20 3131233

1 Shaft

21 3131232

2 Ring

22 3130839

1 E-Ring

23 3130819

1 Lever, Starter

24 3131350

1 Nipple

25 7080003

4 Clamp, Hose

26 8350017-600

AR Line, Fuel

27 5431893

2 Plug, Trap

5/01

D12

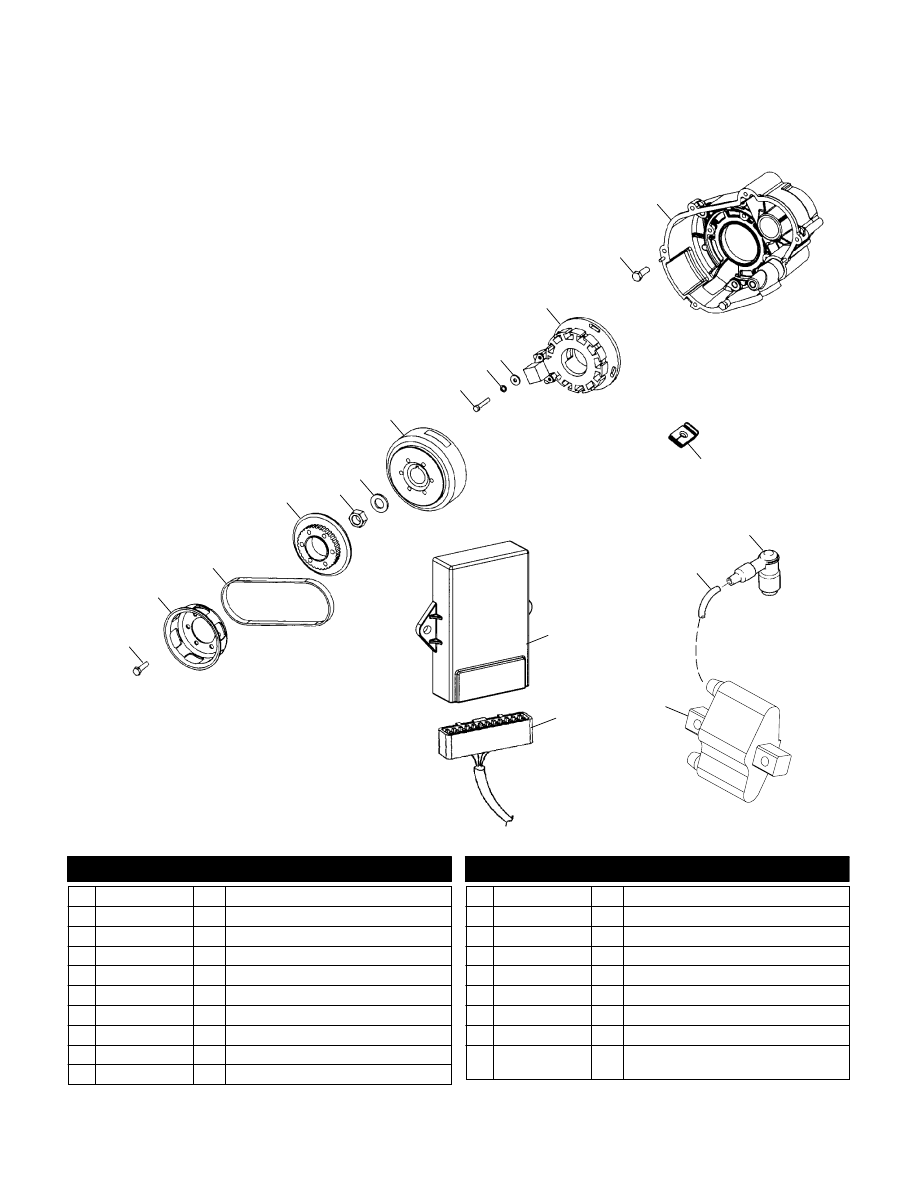

MAGNETO (700)

700 XC SP EDGE S03NP7CSA and 700 XC SP EDGE S03NP7CSB and 700 XC EDGE S03NP7CS and 700 XC SP EDGE X F/0 S03NA7CS and 700 XC SP EDGE M-10 F/O

S03NE7CS and 700 XC SP EDGE X M-10 F/O S03NF7CS

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty. Description

Ref. Part No.

Qty. Description

1 7516823

6 Screw

2 3021144

1 Pulley, Starting

3 5411998

1 Belt

4 5630824

1 Pulley, Water Pump Drive

5 7546909

1 Nut, Hex

6 7555907

1 Washer

7 4010677

1 Flywheel

8 7517246

3 Screw

9 7555969

3 Washer, Lock

10 7555970

3 Washer, Flat

11 4010297

1 Stator

12 7516734

4 Screw

13 1202161

1 Housing, Ignition

14 5411178

1 Grommet

15 4020155

2 Cap, Spark Plug

16 4010124-305

AR Wire, Ignition

17 4060229

1 Coil, Ignition

18 4010549

1 Harness, Ignition

19 2202235

7077026

Kit - CDI (Incl. 19, Nyogel & Decal)

Decal - Spark Plug

3/02

D13

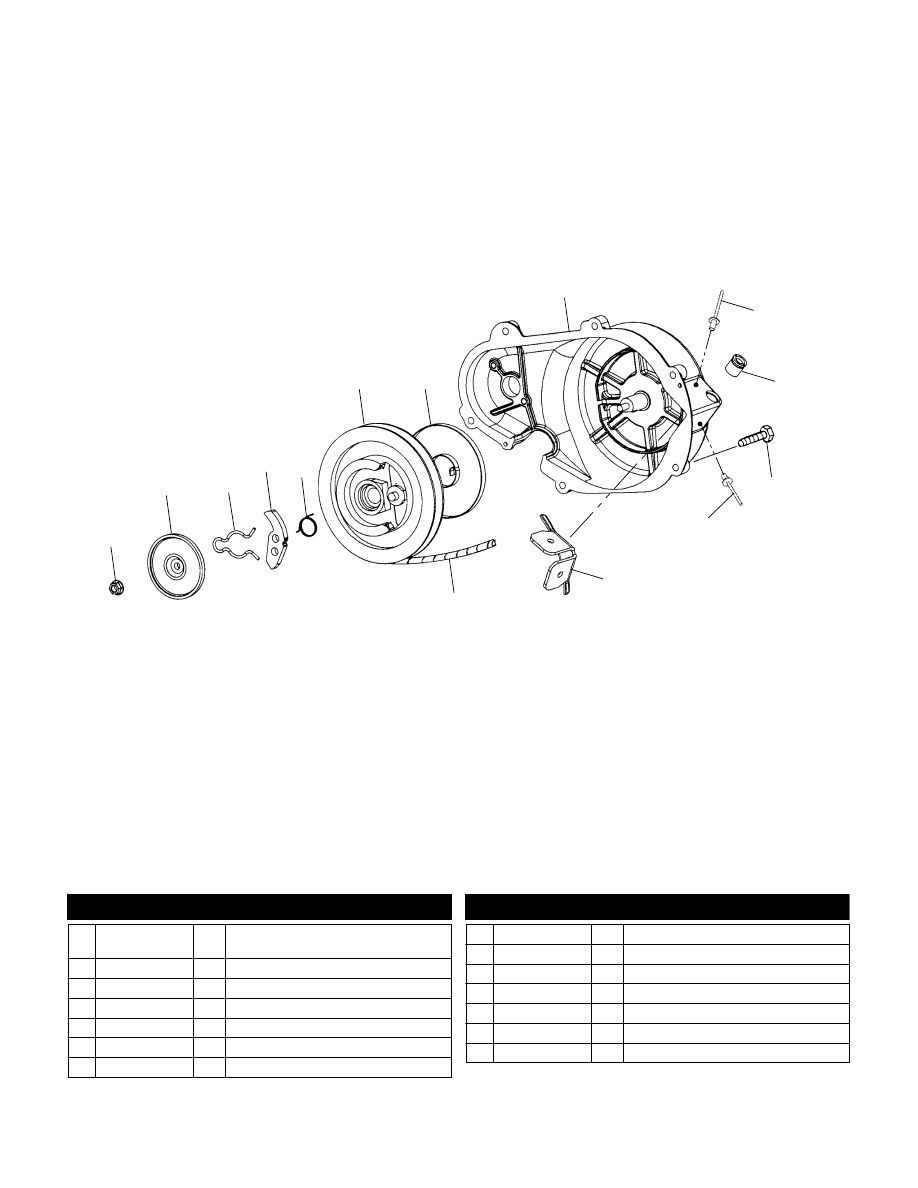

RECOIL STARTER (700)

700 XC SP EDGE S03NP7CSA and 700 XC SP EDGE S03NP7CSB and 700 XC EDGE S03NP7CS and 700 XC SP EDGE X F/0 S03NA7CS and 700 XC SP EDGE M-10 F/O

S03NE7CS and 700 XC SP EDGE X M-10 F/O S03NF7CS

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty. Description

Ref. Part No.

Qty. Description

1202408

1 Asm., Recoil

(Incl. 1-10,13 & Starting Pulley)

1 3040163

1 Nut

2 3040164

1 Plate, Friction

3 3040167

1 Spring, Friction

4 5246108

1 Ratchet

5 3040166

1 Spring, Return

6 3040168

1 Reel

7 3040170

1 Spring, Spiral

8 3040160

1 Housing, Recoil

9 7661148

2 Rivet

10 3040171

1 Bushing, Rope Slide

11 7516823

6 Screw

12 5246218

1 Shield, Recoil Rope

13 3040169

1 Rope

3/02

D14

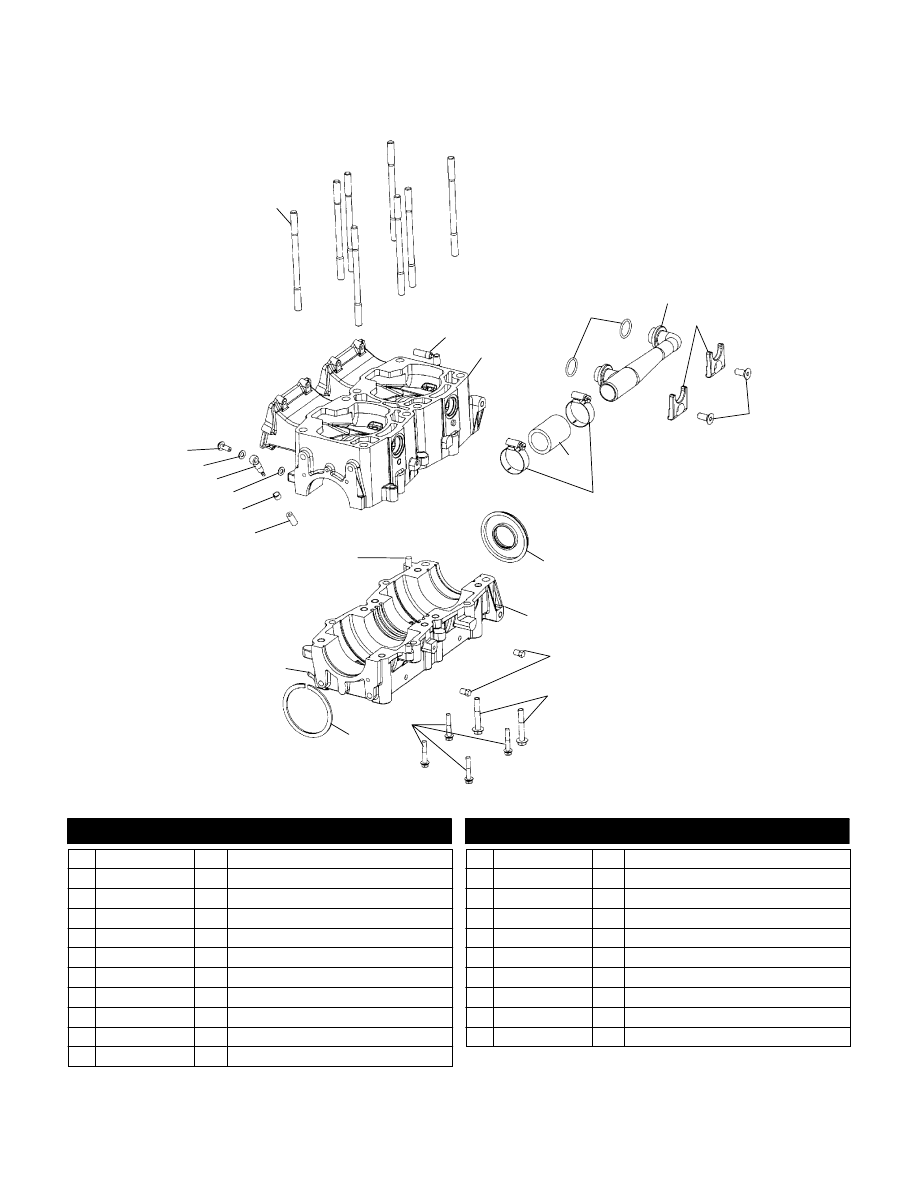

CRANKCASE (800)

800 XC EDGE F/O S03NP8CS and 800 XC SP EDGE S03NP8CSA and 800 XC SP EDGE S03NP8CSB and 800 XC SP EDGE X F/0 S03NA8CS and 800 XC SP EDGE M-10

F/O S03NE8CS and 800 XC SP EDGE X M-10 F/O S03NF8CS

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty. Description

Ref. Part No.

Qty. Description

1 5131677

8 Stud

2 7051020

1 Valve, Check

3 2202336

1 Kit, Crankcase (Incl. 1,5,14,15,18)

4 5411125

2 O-Ring

5 5630610

1 Manifold, Inlet

6 5243431

2 Retainer, Manifold

7 7516736

2 Screw

8 8450068-04

1 Hose

9 7080560

2 Clamp, Hose

10 5411394

1 Seal

11 7051529

2 Plug

12 7516919

2 Screw

13 7516732

4 Screw

14 7710441

1 Ring, Retaining

15 7052322

1 Fitting

16 7663001

2 Pin, Dowel

17 8450061-600

AR Line, Fuel

18 7080603

1 Clamp

19 7555998

2 Washer, Flat

20 7052160

1 Valve, Check

21 7517319

1 Screw

3/02
