102

MAINTENANCE

Clutch System

Drive Belt Installation

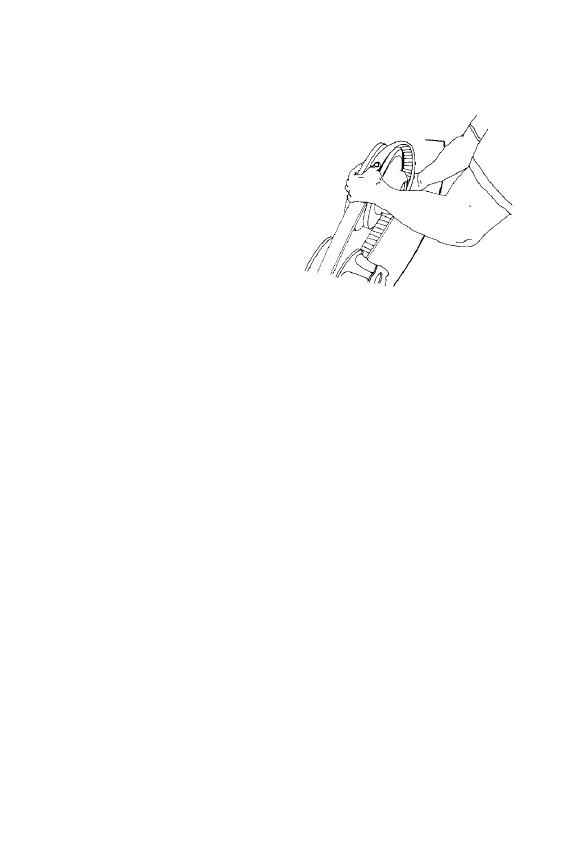

1. With the L-wrench inserted into

the threaded hole and the sheaves
in the open position, install the
drive belt.

TIP: Install the belt so that the numbers

can be read correctly on the left side
of the vehicle, or in the direction in
which the belt was originally
installed.

2. Wiggle the belt to remove slack

while removing the L-wrench.

3. Reinstall the side panel.

4. Break in the new belt. See page 65.

103

MAINTENANCE

Track Maintenance

Track Inspection

WARNING! Broken track rods can cause a rotating track to come off the
snowmobile, which could cause serious injury or death. Never operate with a
damaged track. Never rotate a damaged track under power.

1. Using a hoist, safely lift and

support the rear of the snow-
mobile off the ground.

2. Rotate the track by hand to

check for damage.

3. Carefully examine the track

along the entire length of each
rod. Bend the track to check
for breakage.

4. Replace the track if any rod

damage is found.

Track Lubrication

The slide rail needs snow for lubrication. Excessive wear indicates
insufficient lubrication. A new rail slide can cause faster heat build-up
in limited lubrication, resulting in excessive wear.

WARNING! Operating with insufficient lubrication between the rail slide and
track guide clips can cause track failure, loss of vehicle control and loss of
braking ability, which can result in serious injury or death. Avoid operating for
extended periods on ice and other surfaces that have little or no snow for
lubrication.

If excessive rail slide wear occurs due to poor snow conditions, addi-
tional wheel kits are available. See your dealer for more information.

Track damage or failure caused by operation on ice or under other poor
lubrication conditions will void the track warranty.

Rod

104

MAINTENANCE

Track Maintenance

WARNING! Moving parts can cut and crush body parts. When performing the
checks and adjustments recommended on the following pages, stay clear of all
moving parts. Never perform track measurement or adjustments with the engine
running.

Track Tension

Track adjustment is critical for proper handling. Always maintain cor-
rect tension and alignment.

TIP: Tension adjustments should be made only after the track is warmed up and

limber.

1. Turn the engine off.

2. Lift the rear of the snowmobile and safely support it off the ground.

3. Place the recommended weight or downward pressure on the track

at the specified distance (see chart) ahead of the center of the rear
idler wheel.

4. Measure at the point where the weight is hanging.

TRACK TENSION DATA CHART

Suspension

Slack Measurement

Weight

Measurement

Location

PRO-RIDE

RMK

3/8-1/2 inch (1.0-1.3 cm)

10 lbs.

(4.54 kg)

16 inches (40 cm)

ahead of rear

idler shaft

105

MAINTENANCE

Track Maintenance

Track Tension

5. Check for specified slack between the wear surface of the track clip

and the plastic slider. Refer to the Track Tension Data Chart on page
104.

If the track needs adjustment:

6. Loosen the rear idler shaft bolt.

7. Loosen the locknuts.

8. Tighten or loosen the track adjusting screws to provide equal adjust-

ment on both sides of the track.

9. Repeat the measurement on the other side of the track.

TIP: Check more frequently when the snowmobile is new.

10. Start the engine and slowly rotate the track at least five revolutions.

Let the track come to a stop (do not apply brakes).

11. Check track alignment (see page 106) and adjust as necessary.

12. Tighten the locknuts.

13. Tighten the idler shaft bolts.

14. Torque idler shaft bolts to 35 ft. lbs. (47.5 Nm).

Slack Measurement

Lock Nut

Adjusting Screw

Track

10 lbs. (4.54 kg)

Shaft

Bolt

16 inches

(40 cm)
