98

MAINTENANCE

Clutch System

Periodically inspect clutch sheaves for damage, wear or belt residue. To
maintain optimum performance, clean with non-oil based cleaners such
as isopropyl alcohol.

WARNING! If you become aware of higher than normal clutch engagement or
an unusual vibration or shift pattern, see your dealer immediately. Do not
operate the snowmobile until repairs have been made.

All clutch maintenance and repairs must be performed by an authorized
POLARIS dealer. Any unauthorized modifications to clutches, such as
adding or removing weights, will void the warranty.

NOTICE: The bushings in the weights and rollers of POLARIS clutches are

made of a material that may be damaged if lubricated. Do not lubri-
cate clutch bushings.

Clutch Alignment Offset

Clutch alignment offset is important for maintaining optimum perfor-
mance. See your dealer for service and adjustments. A special tool is
required to check for proper alignment.

99

MAINTENANCE

Clutch System

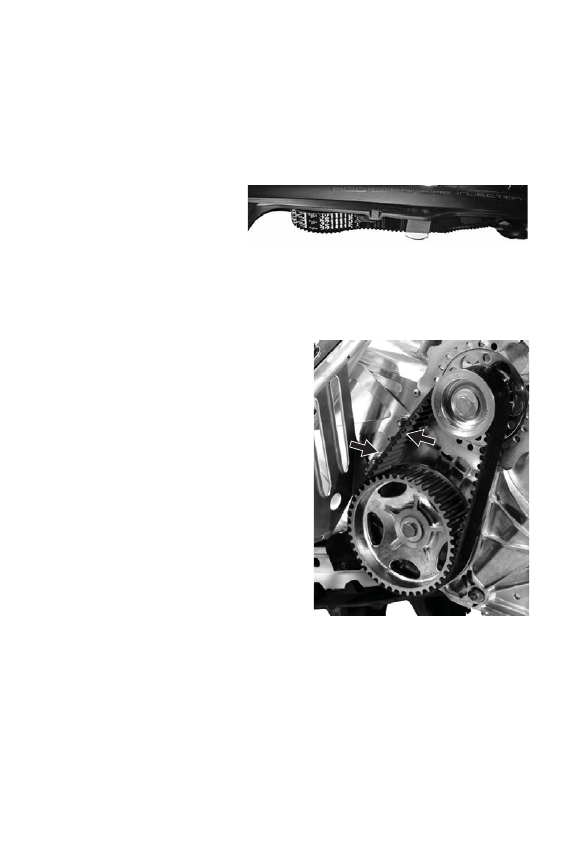

Drive Belt Condition

Periodically check the condition and tension of the drive belt. Inspect
the belt for signs of excessive wear (frayed edges, missing cogs, cracks)
and excessive looseness. Replace the belt if any of these conditions
exist.

Always carry a spare drive
belt. Store the spare belt in
the belt clip located under
the left side of the hood.

For improved drive-away during extremely cold temperatures, remove
the belt and warm it to room temperature. Reinstall it before starting the
snowmobile.

QUICKDRIVE Belt Condition

Periodically check the condition of
the QUICKDRIVE belt. Inspect the
belt for signs of excessive wear
(frayed edges, missing cogs, cracks)
and excessive looseness.

Replace the QUICKDRIVE belt
every 2000 miles (3200 km) and
whenever inspection reveals
excessive wear or damage.

Special tools are required to remove
and install the QUICKDRIVE belt.
Please see your POLARIS dealer for
this service, or refer to the
instructions provided with the
purchase of a new belt.

100

MAINTENANCE

Clutch System

Drive Belt Deflection

Measure belt deflection with both
clutches at rest and in their full
neutral position.

Place a straight edge (1) on the
belt and apply downward pressure
while measuring at point 2. This
measurement should be 1 1/4
inches (3.2 cm).

Drive Belt Adjustment

1. Loosen the 7/16-inch jam nut on the belt width adjuster.

2. Using a 1/8-inch Allen wrench, turn the set screw inward (clock-

wise) to increase the distance between the sheaves or outward
(counter-clockwise) to decrease the distance.

3. Tighten the jam nut.

1

2

101

MAINTENANCE

Clutch System

Drive Belt Removal

NOTICE: Do not attempt to remove the drive belt after operating in reverse. The

snowmobile must be stopped after forward motion to prevent damage
to components during belt removal. Rotate the driven clutch counter-
clockwise 1/4 turn by hand to ensure forward engagement before
attempting to remove the belt.

1. Stop the engine after operating in a forward motion.

2. Turn the ignition key off. Wait for the engine to come to a complete

stop.

3. Lock the parking brake.

4. Remove the left side panel.

5. Rotate the driven clutch counter-clockwise 1/4 turn by hand to

ensure forward engagement.

6. Locate the L-wrench in the tool kit. Install the wrench into the open

threaded hole in the outer sheave of the clutch.

7. Turn the wrench clockwise until the sheaves open far enough to

remove the belt. If the wrench does not turn readily, rotate the
driven clutch counter-clockwise an additional 1/4 turn by hand and
try again.

8. Remove the belt from the driven clutch.
